35MM Euro Hinge Drilling Jig

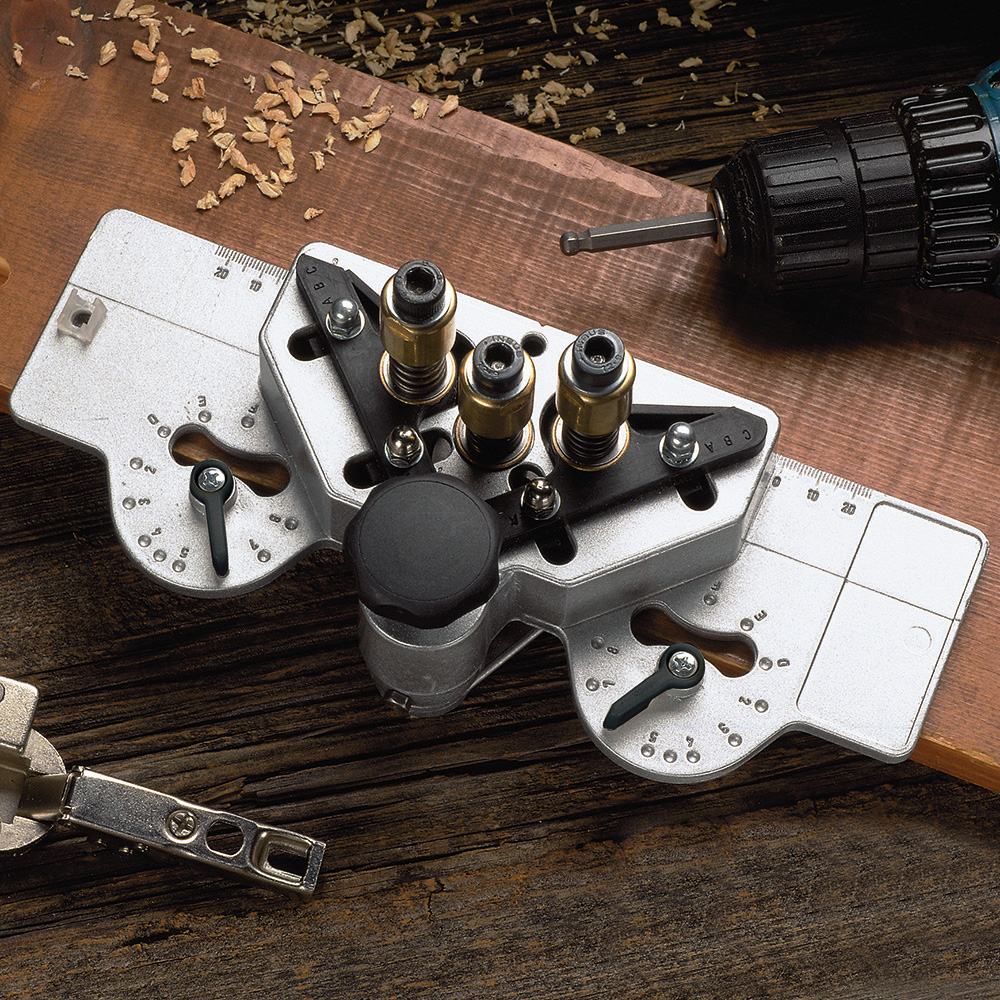

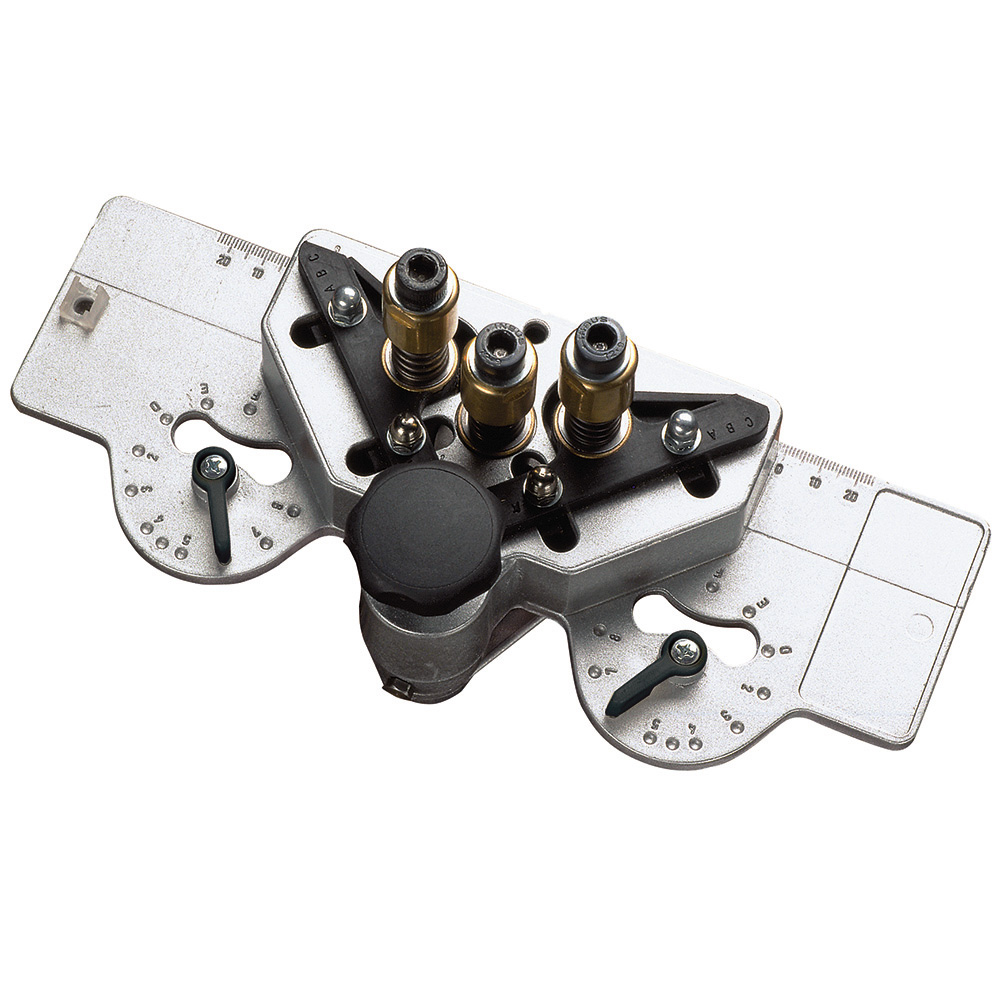

Ideal for large projects, this jig drills the standard 35mm cup hole and hinge screw pattern for Euro-style hinges using three integrated, permanently mounted drill bits. All of the bits are hex drive, so you can quickly drill all three holes without having to change tooling.

The jig has indexed settings for eight hinge cup tabs ("tab" is the term commonly used for the distance from the edge of the cup hole to the edge of the door). And it can be set up to drill small pilot holes for hinges held in place with screws. 35mm cup and two 7/64" pilot hole drill bits are included.
