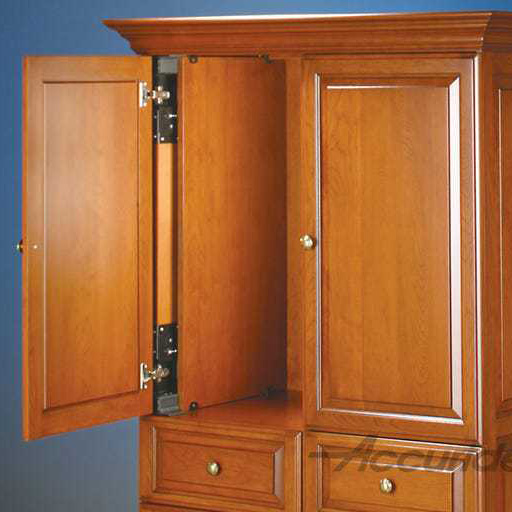

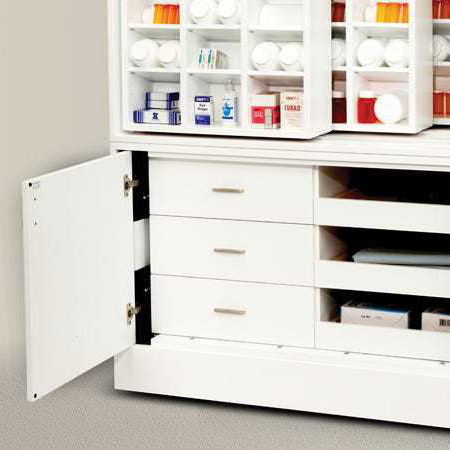

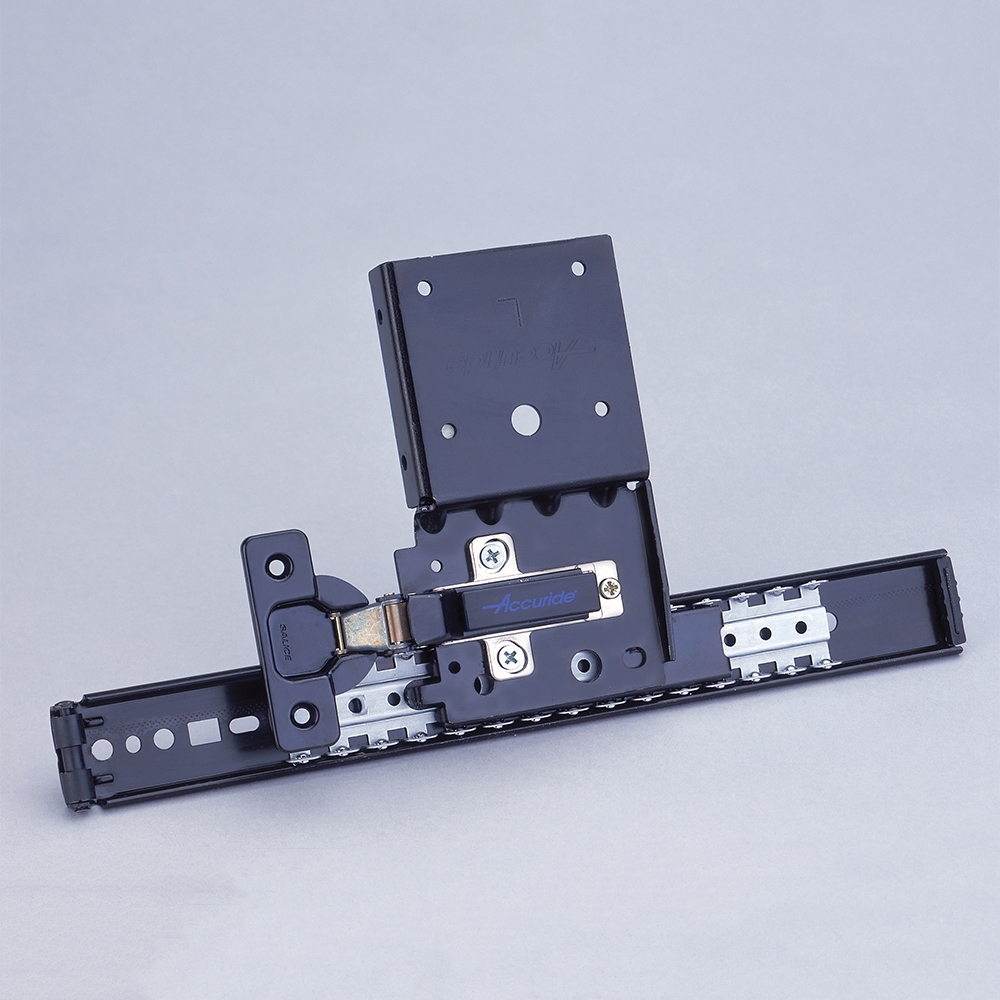

Accuride's 1321 Pro Pocket Door Slides feature ''Auto Open,'' which gently pushes the doors forward at the end of their travel, ensuring they are extended fully before closing. This eliminates scuffs and dents at the pivot points. They also feature innovative brackets that accept partitions for hassle-free installation—no dadoing required. The 1321 is ideal for home and office cabinets as well as built-in storage casework. The included hinges support both inset and full-overlay applications (see Technical Documents for detailed information).
Features:
Accommodates doors up to 42'' tall x 24'' wide and up to 30 pounds

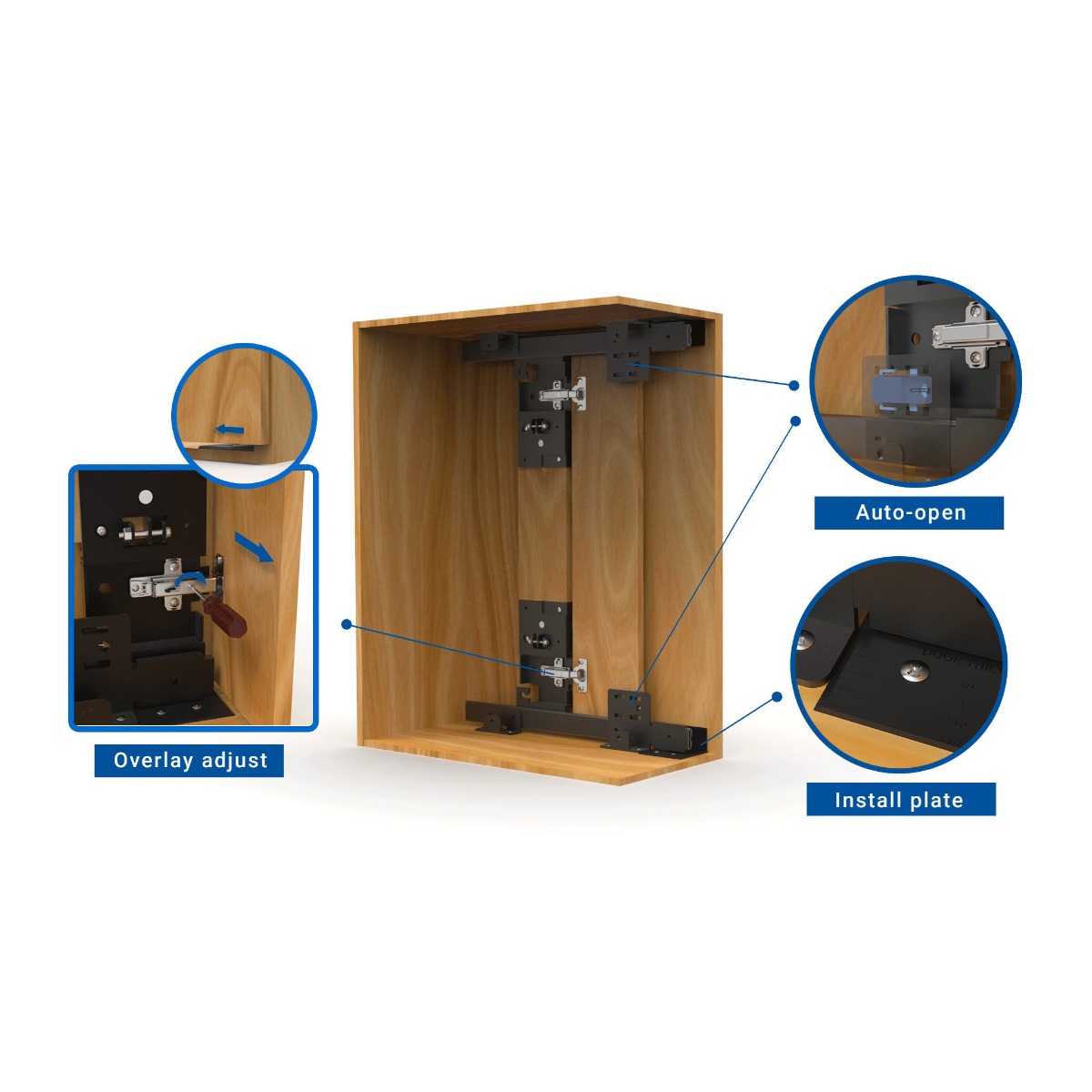

Auto-open feature pushes cabinet doors open the last 1-1/4'' of travel to ensure doors are fully extended before rotation
Unique mounting method creates a pocket between the cabinet side and internal partition. This allows full 3/4'' overlay installation and minimizes door damage
Use with a variety of door styles: sculptured fronts, applied moldings, or raised panels
Slide rollers run across the back of doors, never touching door faces
Attached brackets make adding internal partitions easy—no need to dado
Travel/extension equals slide length minus 4.54''
Note: Minimum door stile width is 2-1/2''. Maximum door height should be 1/4'' less than opening. See the Technical Documents for detailed information on cabinet and door requirements and installation instructions.
