Axiom 9-Piece CNC Router Bit Set by Amana Tool (for Iconic Series)

Name: Axiom 9-Piece CNC Router Bit Set by Amana Tool (for Iconic Series)
Brand: Axiom
SKU: 66262
Price: 395.99 USD
Availability: InStock

Item #

66262

Special Price $395.99 Each Regular Price $439.99 Save $44.00

Axiom's most comprehensive set for signmaking, carving, lettering and engraving—nACo® coating for extreme hardness and heat resistance.

More details

Must be shipped within 48 Contiguous United States.
20% restocking fee on all returned merchandise.
Please call customer service before returning product.

How do you want your item?

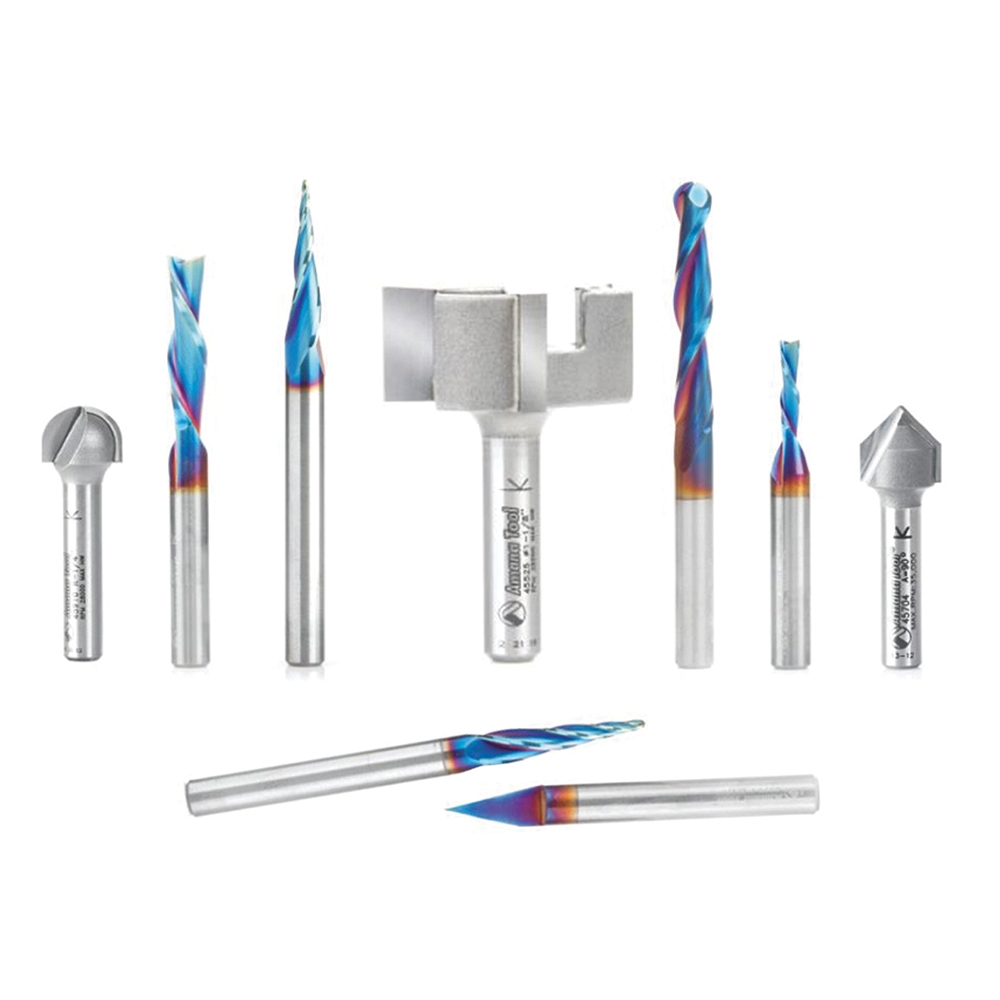

The ABS901 9-Piece CNC Router Bit Set is Axiom's most comprehensive set for signmaking, carving, lettering and engraving. The 1/4'' shanks make the set compatible with the Iconic Series of CNCs, which have a maximum collet size of 1/4''. The six Spektra™ bits have a nACo® nanocomposite coating that results in a tinted coloring, extreme hardness and heat resistance. Use the 1-1/8'' diameter mortising bit to flatten your sacrificial MDF spoilboard for the utmost in precision, the 1/8'' and 1/4'' down-spiral straight bits for pocketing and cutout operations, the 1/4'' radius core box bit for removing large amounts of material, the three ball nose bits for details and smoothing, the 90° V-groove bit for crisp corners on letters, and the Carving Liner bit for small characters and fine details. Each router bit is manufactured from Amana's exclusive grade of carbide, in keeping with stringent quality standards. Includes wooden storage box.

Return Policy

Axiom 9-Piece Router Bit Set, 1/4'' Shanks
(1) Carbide-Tipped Bottom Cleaning/Spoilboard Bit, 1-1/8'' Dia x 1/2'' x 1/4'' Shank Upshear Design 3-Flute
(1) Carbide-Tipped Core Box Bit, 1/4'' Radius x 1/2'' Dia x 3/8'' x 1/4'' Shank
(1) Carbide-Tipped V-Groove Bit, 90 Deg x 1/2'' Dia x 1/2'' x 1/4'' Shank
(1) Spektra-Coated Solid Carbide Carving/Engraving Fine Line Engraving Bit, 30 Deg x 0.005'' Tip Width x 1/4'' Shank x 2-1/4'' Length
(1) Spektra-Coated Solid Carbide Tapered Ball Nose Bit, 6.2 Deg Tapered Angle Ball Tip x 1/64'' Dia x 1/32'' Radius x 1'' x 1/4'' Shank x 3'' Long Solid Carbide Spiral
(1) Spektra-Coated Solid Carbide Tapered Ball Nose Bit, 5.4 Deg Tapered Angle Ball Tip x 1/16'' Dia x 1/32'' Radius x 1'' x 1/4'' Shank x 3'' Long Solid Carbide Spiral
(1) Spektra-Coated Solid Carbide Straight Ball Nose Spiral Bit, 0.10 Deg Tapered Angle Ball Tip x 1/4'' Dia x 1/8'' Radius x 1-1/2'' x 1/4'' Shank x 3'' Long x 2-Flute Solid Carbide
(1) Spektra-Coated Solid Carbide Spiral Flute Plunge Bit, 1/8'' Dia x 1/2'' x 1/4'' Shank
(1) Spektra-Coated Solid Carbide Spiral Plunge Bit, 1/4'' Dia x 1'' x 1/4'' Shank Down-Cut
(1) Wooden storage case

Axiom 9-Piece Router Bit Set, 1/4'' Shanks
(1) Carbide-Tipped Bottom Cleaning/Spoilboard Bit, 1-1/8'' Dia x 1/2'' x 1/4'' Shank Upshear Design 3-Flute
(1) Carbide-Tipped Core Box Bit, 1/4'' Radius x 1/2'' Dia x 3/8'' x 1/4'' Shank
(1) Carbide-Tipped V-Groove Bit, 90 Deg x 1/2'' Dia x 1/2'' x 1/4'' Shank
(1) Spektra-Coated Solid Carbide Carving/Engraving Fine Line Engraving Bit, 30 Deg x 0.005'' Tip Width x 1/4'' Shank x 2-1/4'' Length
(1) Spektra-Coated Solid Carbide Tapered Ball Nose Bit, 6.2 Deg Tapered Angle Ball Tip x 1/64'' Dia x 1/32'' Radius x 1'' x 1/4'' Shank x 3'' Long Solid Carbide Spiral
(1) Spektra-Coated Solid Carbide Tapered Ball Nose Bit, 5.4 Deg Tapered Angle Ball Tip x 1/16'' Dia x 1/32'' Radius x 1'' x 1/4'' Shank x 3'' Long Solid Carbide Spiral
(1) Spektra-Coated Solid Carbide Straight Ball Nose Spiral Bit, 0.10 Deg Tapered Angle Ball Tip x 1/4'' Dia x 1/8'' Radius x 1-1/2'' x 1/4'' Shank x 3'' Long x 2-Flute Solid Carbide
(1) Spektra-Coated Solid Carbide Spiral Flute Plunge Bit, 1/8'' Dia x 1/2'' x 1/4'' Shank
(1) Spektra-Coated Solid Carbide Spiral Plunge Bit, 1/4'' Dia x 1'' x 1/4'' Shank Down-Cut
(1) Wooden storage case

More Information
Brand	Axiom
Manufacturer Part Number	ABS901
Tech Spec	Carbide-Tipped Bottom Cleaning/Spoilboard Bit: 1-1/8'' Dia x 1/2'' x 1/4'' Shank Upshear Design 3-Flute Carbide-Tipped Core Box Bit: 1/4'' Radius x 1/2'' Dia x 3/8'' x 1/4'' Shank Carbide-Tipped V-Groove Bit: 90 Deg x 1/2'' Dia x 1/2'' x 1/4'' Shank Spektra-Coated Solid Carbide Carving/Engraving Fine Line Engraving Bit: 30 Deg x 0.005'' Tip Width x 1/4'' Shank x 2-1/4'' Length Spektra-Coated Solid Carbide Tapered Ball Nose Bit: 6.2 Deg Tapered Angle Ball Tip x 1/64'' Dia x 1/32'' Radius x 1'' x 1/4'' Shank x 3'' Long Solid Carbide Spiral Spektra-Coated Solid Carbide Tapered Ball Nose Bit: 5.4 Deg Tapered Angle Ball Tip x 1/16'' Dia x 1/32'' Radius x 1'' x 1/4'' Shank x 3'' Long Solid Carbide Spiral Spektra-Coated Solid Carbide Straight Ball Nose Spiral Bit: 0.10 Deg Tapered Angle Ball Tip x 1/4'' Dia x 1/8'' Radius x 1-1/2'' x 1/4'' Shank x 3'' Long x 2-Flute Solid Carbide Spektra-Coated Solid Carbide Spiral Flute Plunge Bit: 1/8'' Dia x 1/2'' x 1/4'' Shank Spektra-Coated Solid Carbide Spiral Plunge Bit: 1/4'' Dia x 1'' x 1/4'' Shank Down-Cut Wood Storage Box Dimensions: 13-7/16''L x 6''W x 2-3/4''H
Unit of Measure	Each
