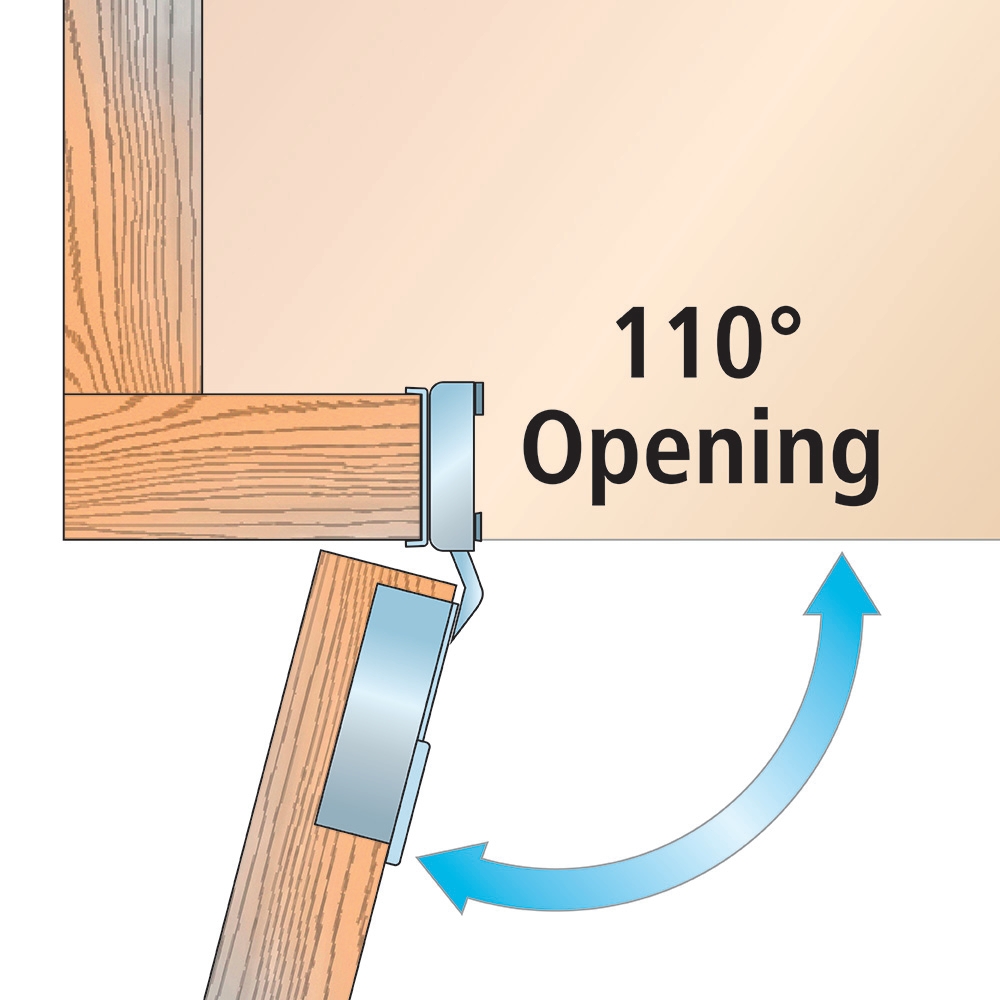

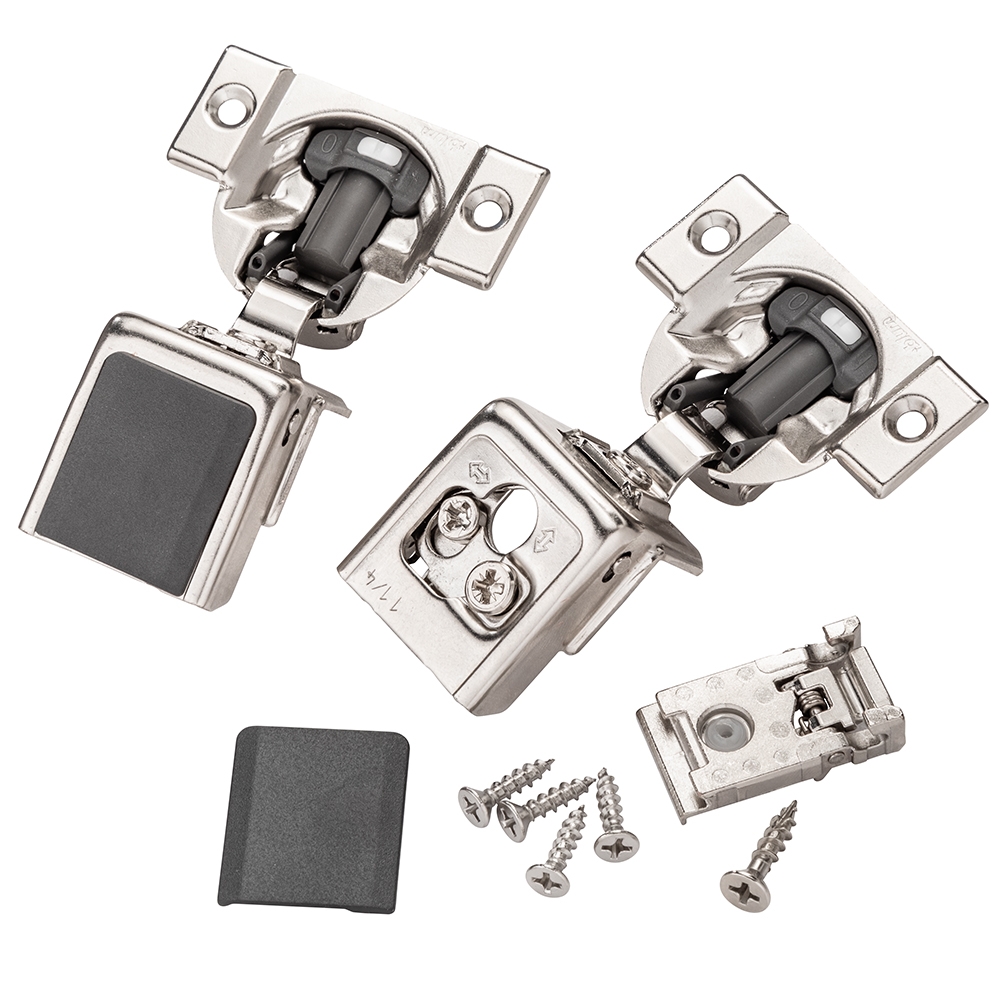

Full Kit Blum 110° Compact Clip Soft-Close Hinges for Face Frame, Larger Overlays

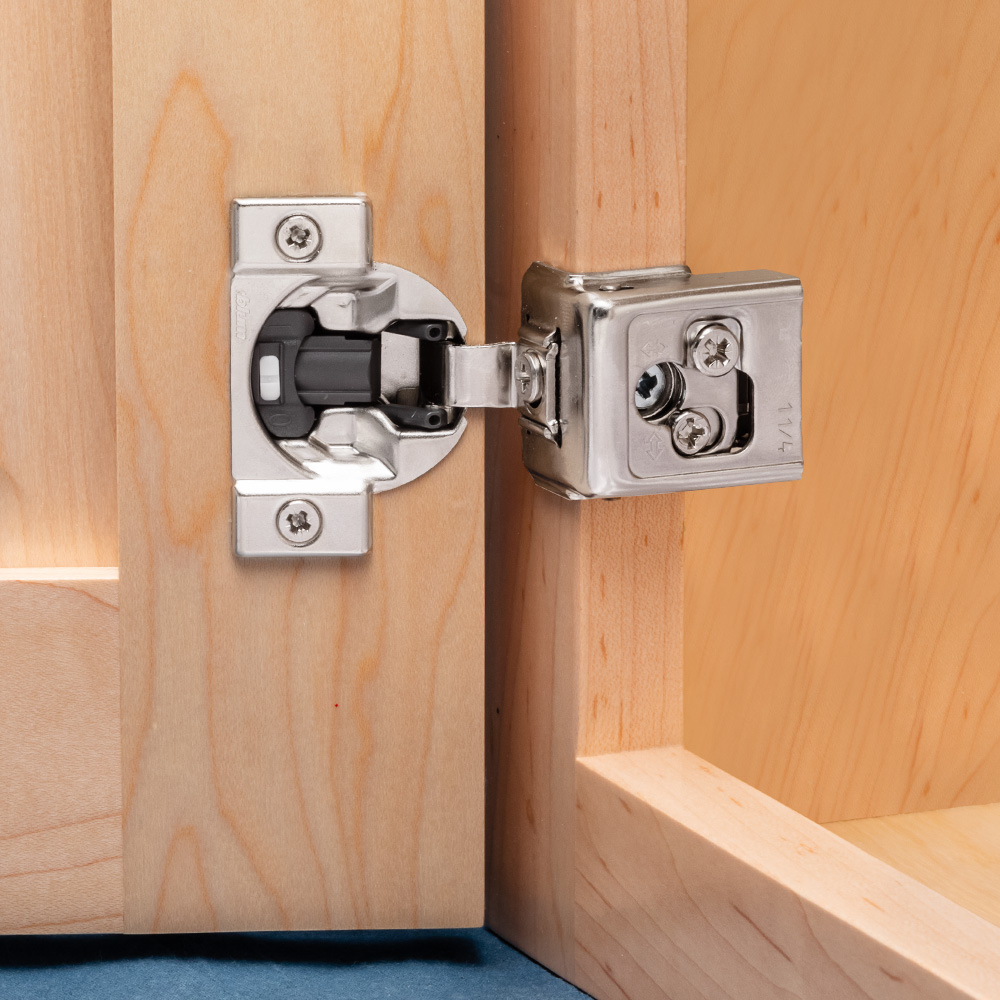

Blum's large overlay Compact Clip hinges bring you all the premium features of a long-arm Euro hinge—clip-on mounting and demounting, soft-close action and 3-way cam adjustments—in a compact package that looks great, has an attractive price, and won't take up space inside the cabinet. Since Compact Clip hinges arrive pre-clipped onto the plates, with the mounting screws pre-started, mounting them couldn't be easier. Once mounted to the door, simply hook the hinges over the face frame and drive the two screws! With Compact Clip BLUMotion, the soft-close mechanism fits entirely within the hinge cup, maintaining the compact form factor. Each hinge has a switch for turning the soft-close feature off—often required for proper closure of small doors. Three-way cam adjustments for up/down, left/right and in/out let you align the doors perfectly with each other.

Blum Compact Clip 31C3 Features:

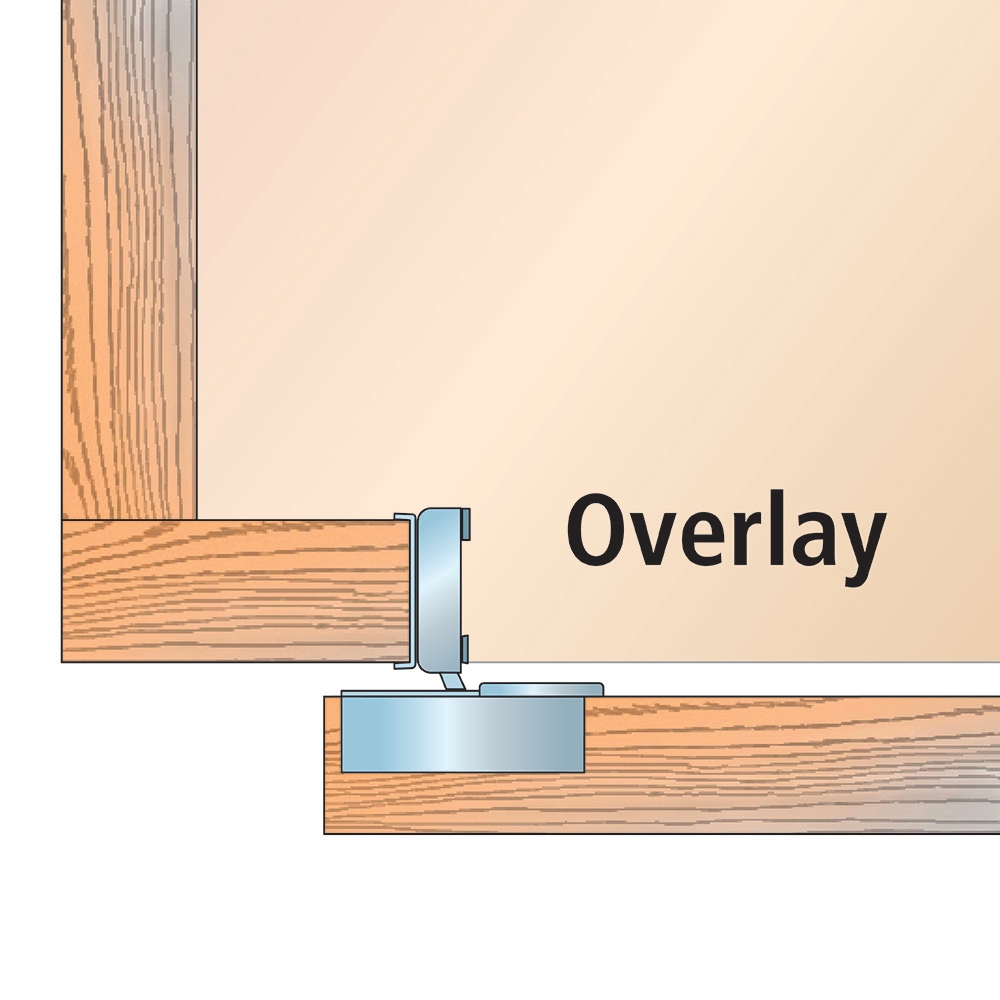

• Choose from overlays from 1'' to 1-1/2'' (see note at bottom on smaller overlays)

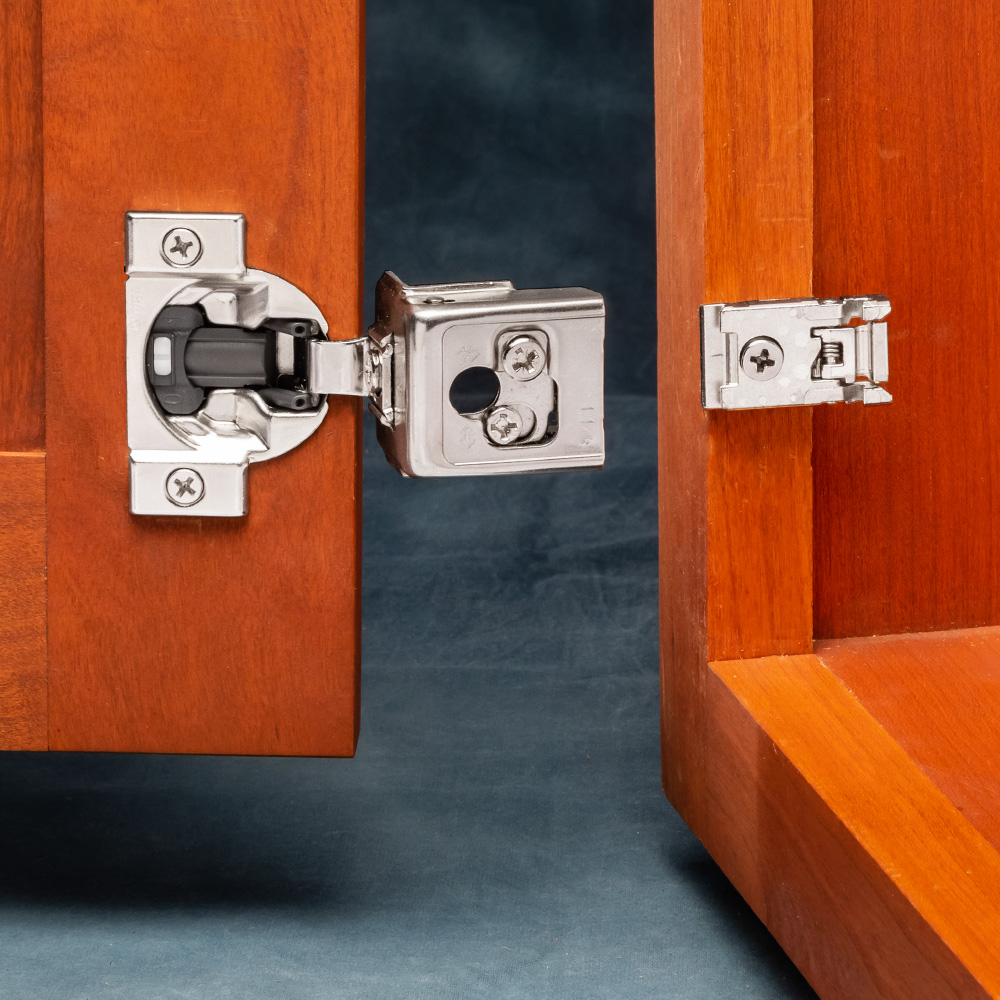

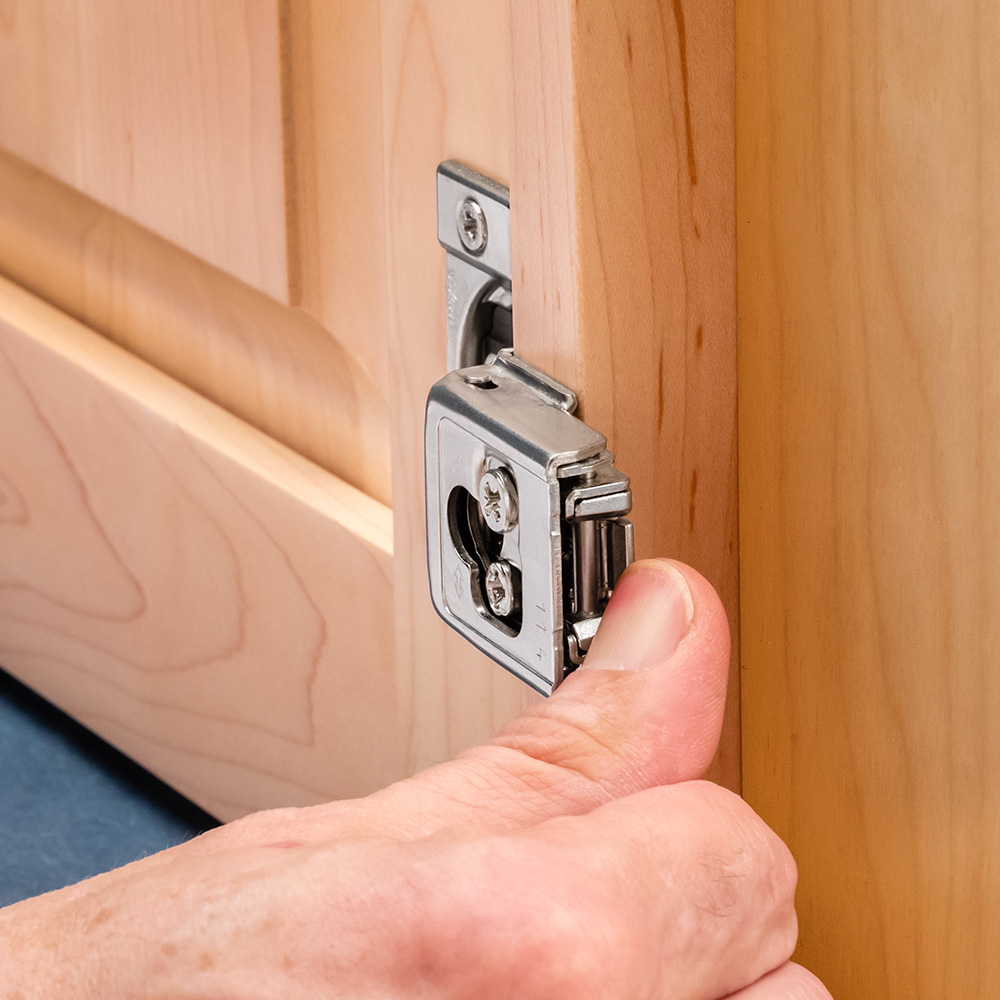

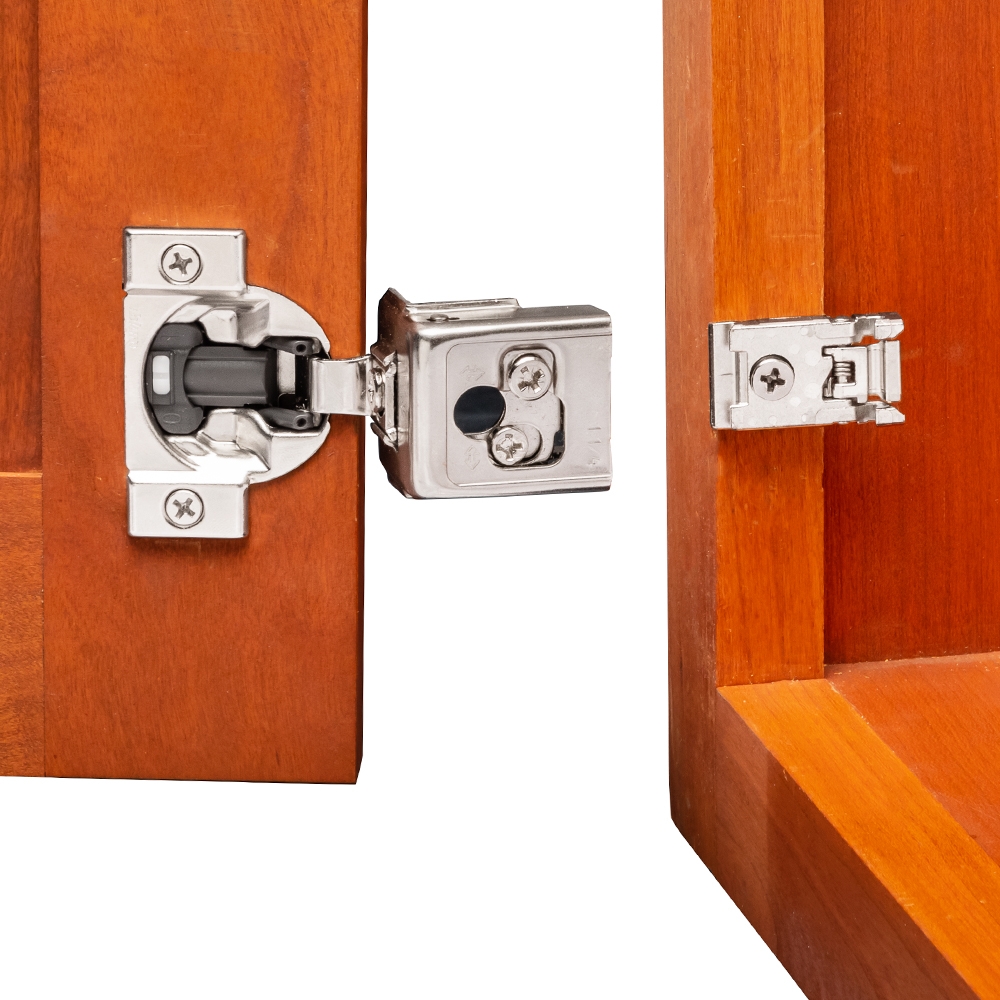

• Just pull the lever to clip the door on and off the cabinet for easy cleaning or finishing
• BLUMotion soft-close action is integrated into the hinge cup
• Each hinge has a soft-close deactivation switch for small/light doors

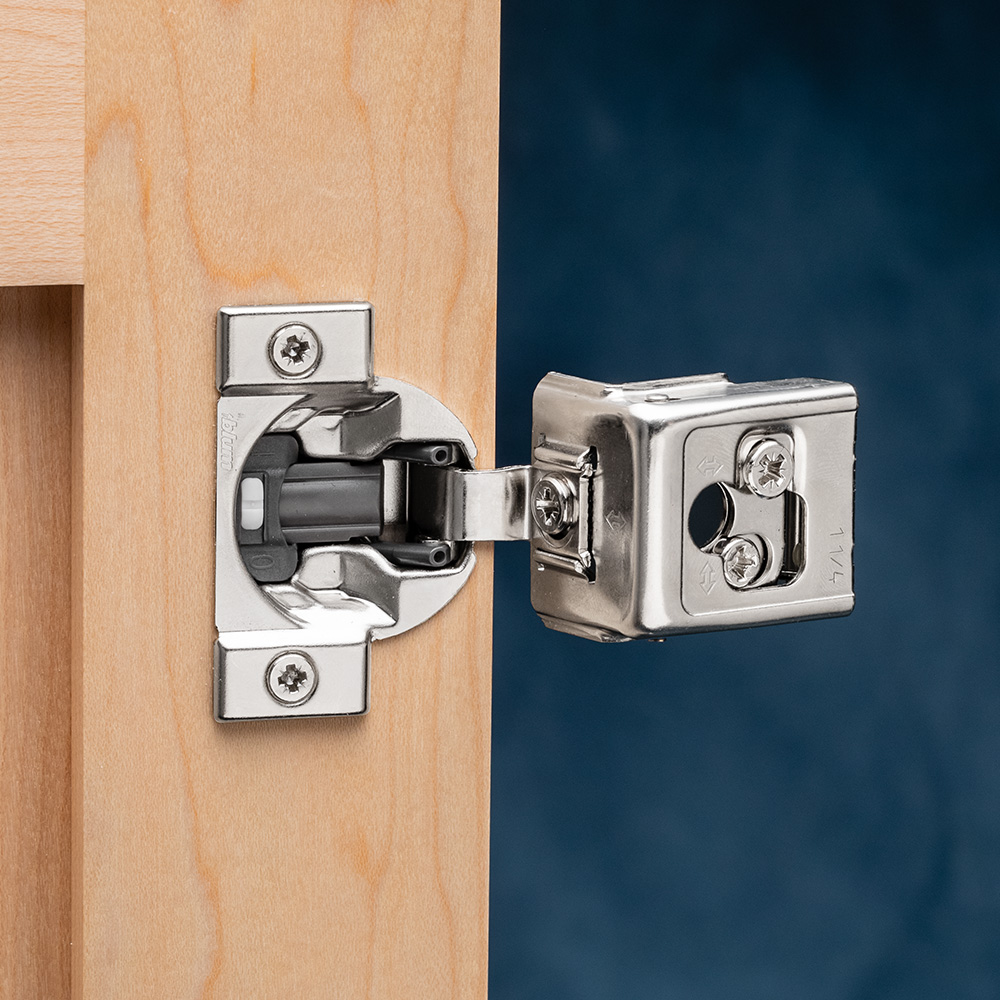

• Three-dimensional cam adjustments with directional arrows for easy adjustability
• Use on 3/4'' face frame cabinets
• 1/2'' cup depth—use 35mm Forstner bit (e.g. #10104, sold separately) to drill

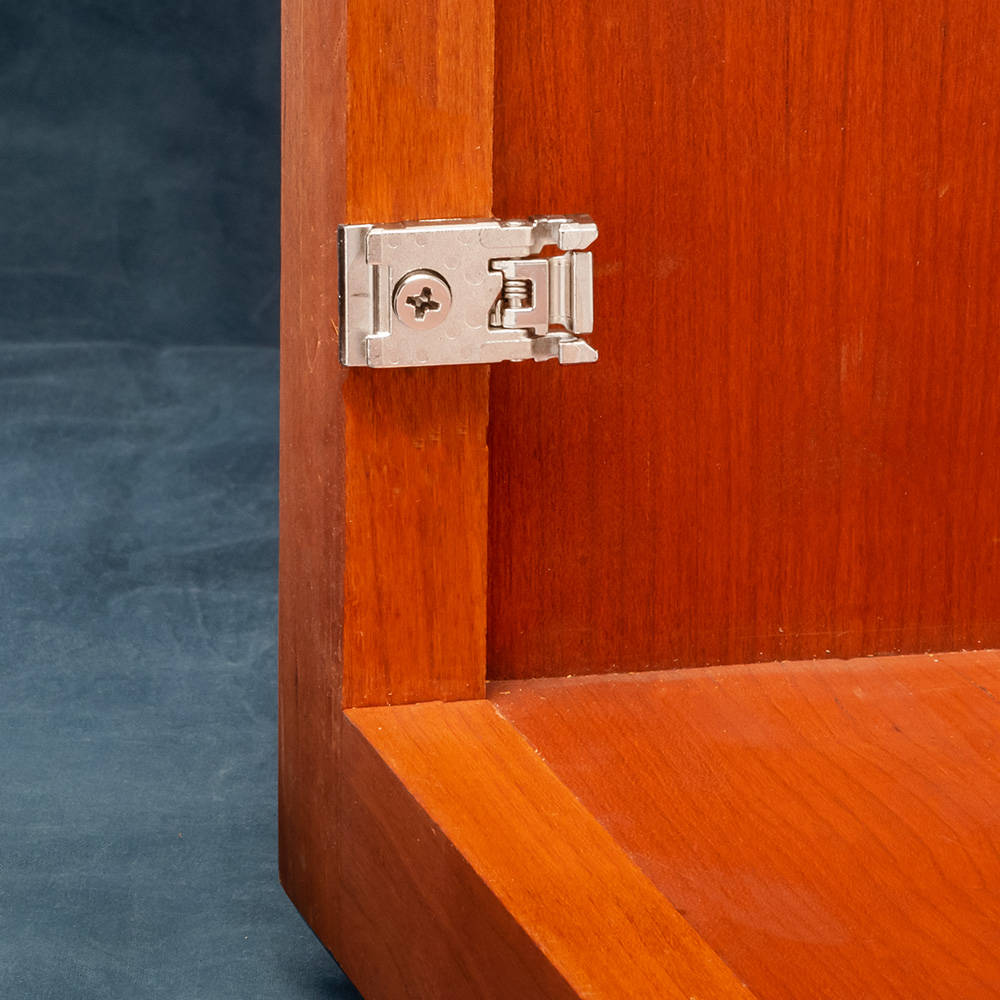

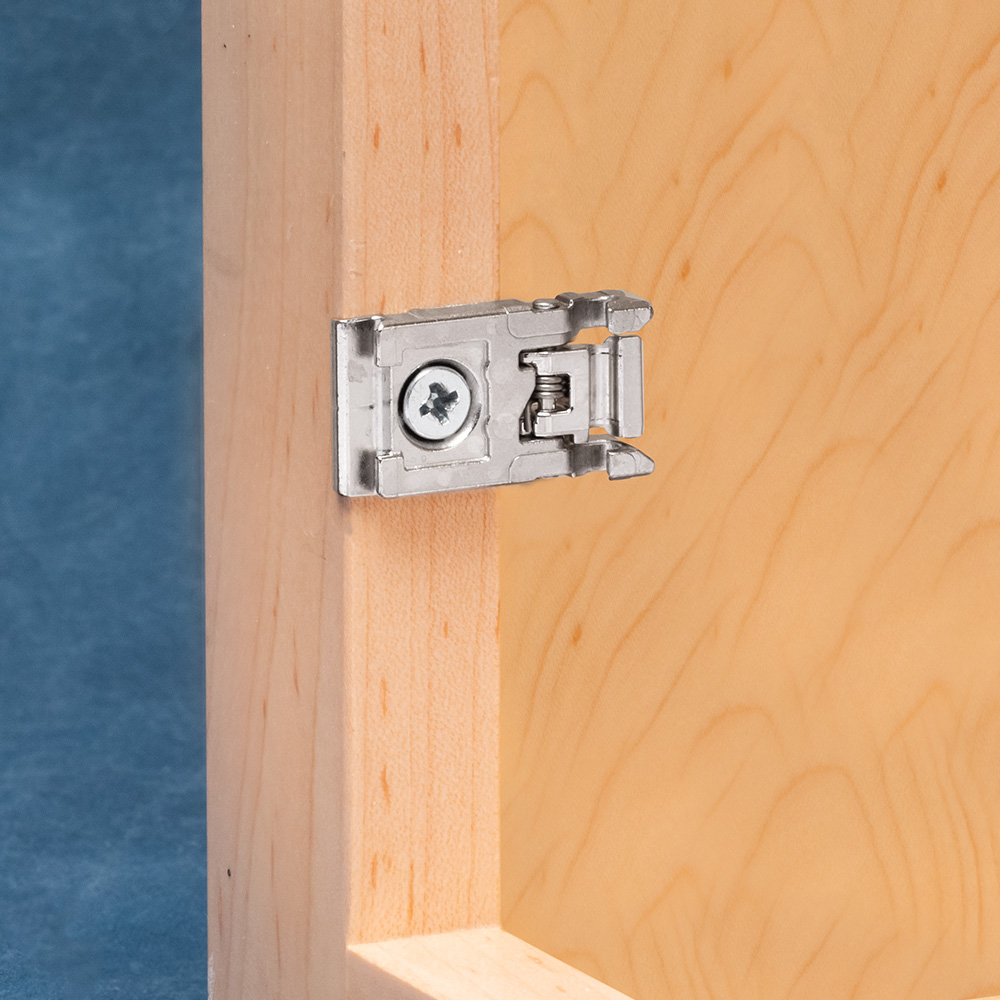

• Pre-mounted wood screw for fast installation onto the cabinet—just drive two screws!

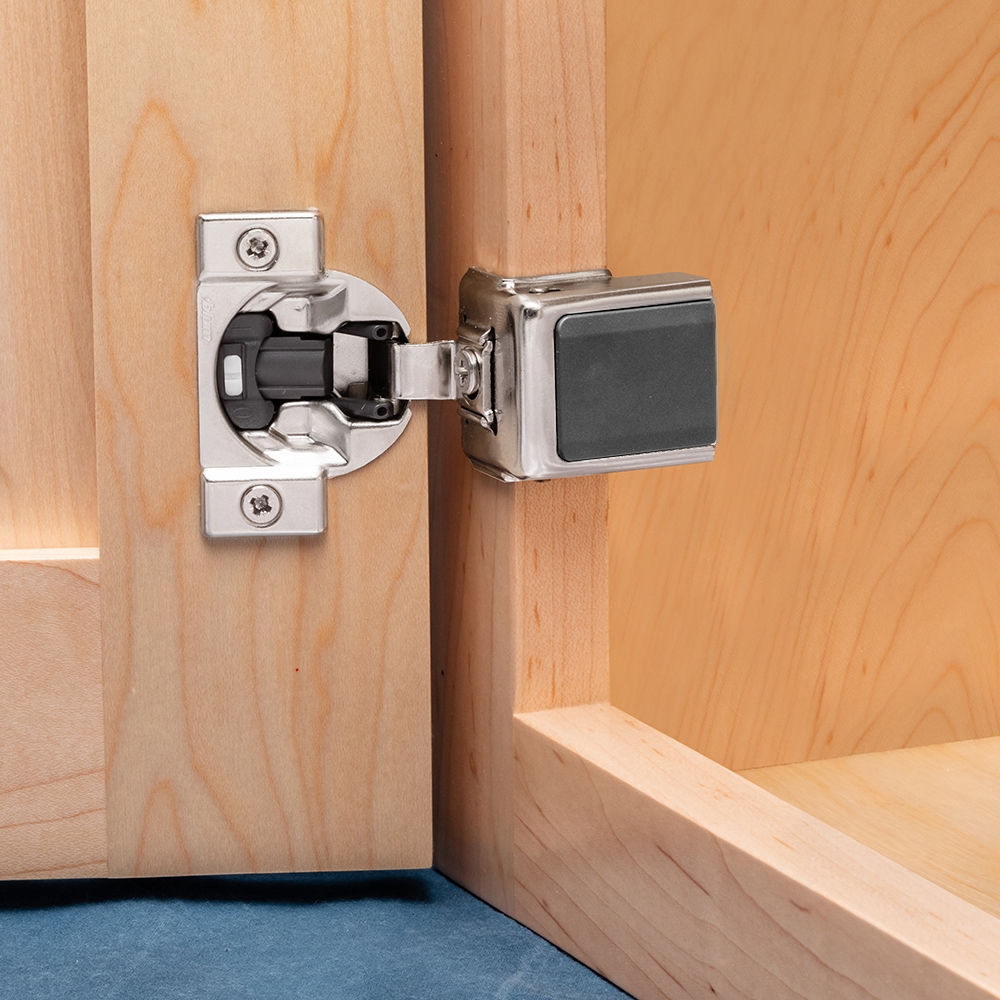

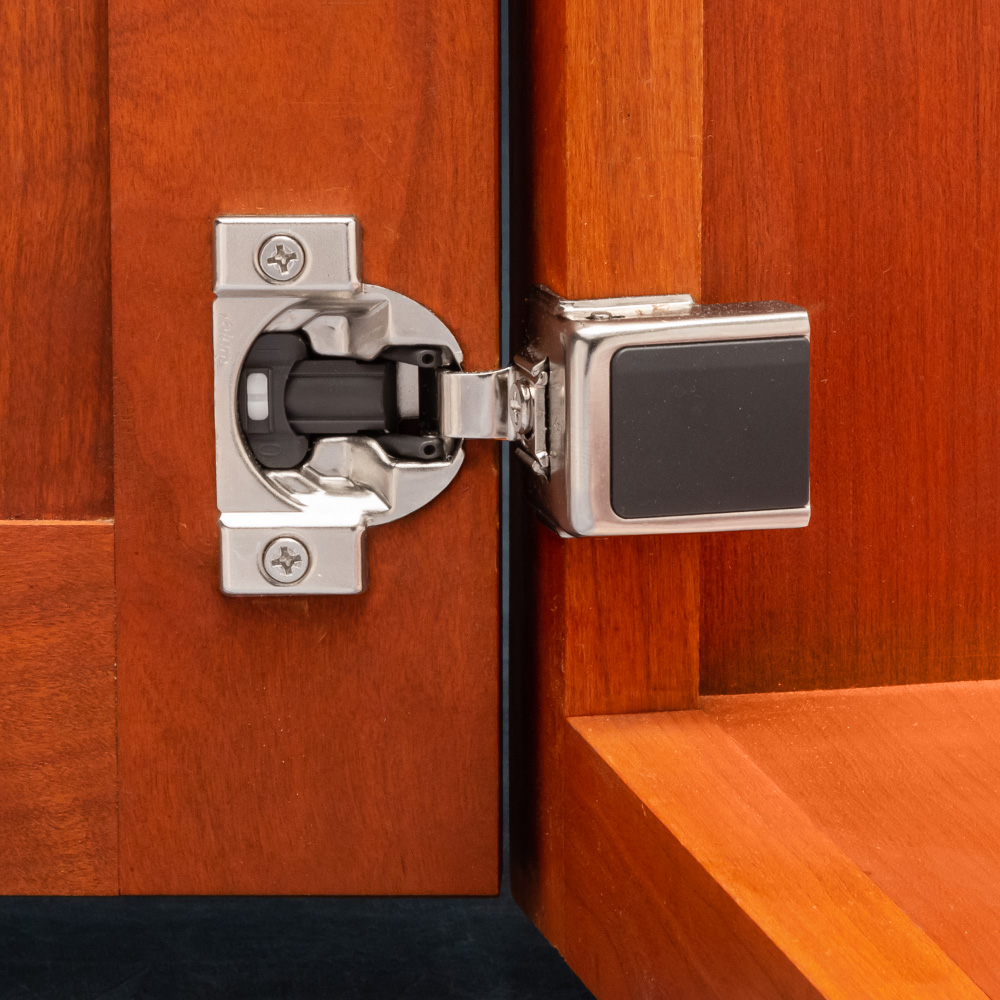

• Includes hinge covers for a clean look

Smaller overlays also available! If you need the same features with a smaller overlay (and a 105° opening angle), see e.g. #66889.

Note: Blum Restrictor Clips 38C315B3 (#47937, sold separately) are available for restricting the opening angle. This prevents the door from banging into adjacent cabinets or cabinet doors.
