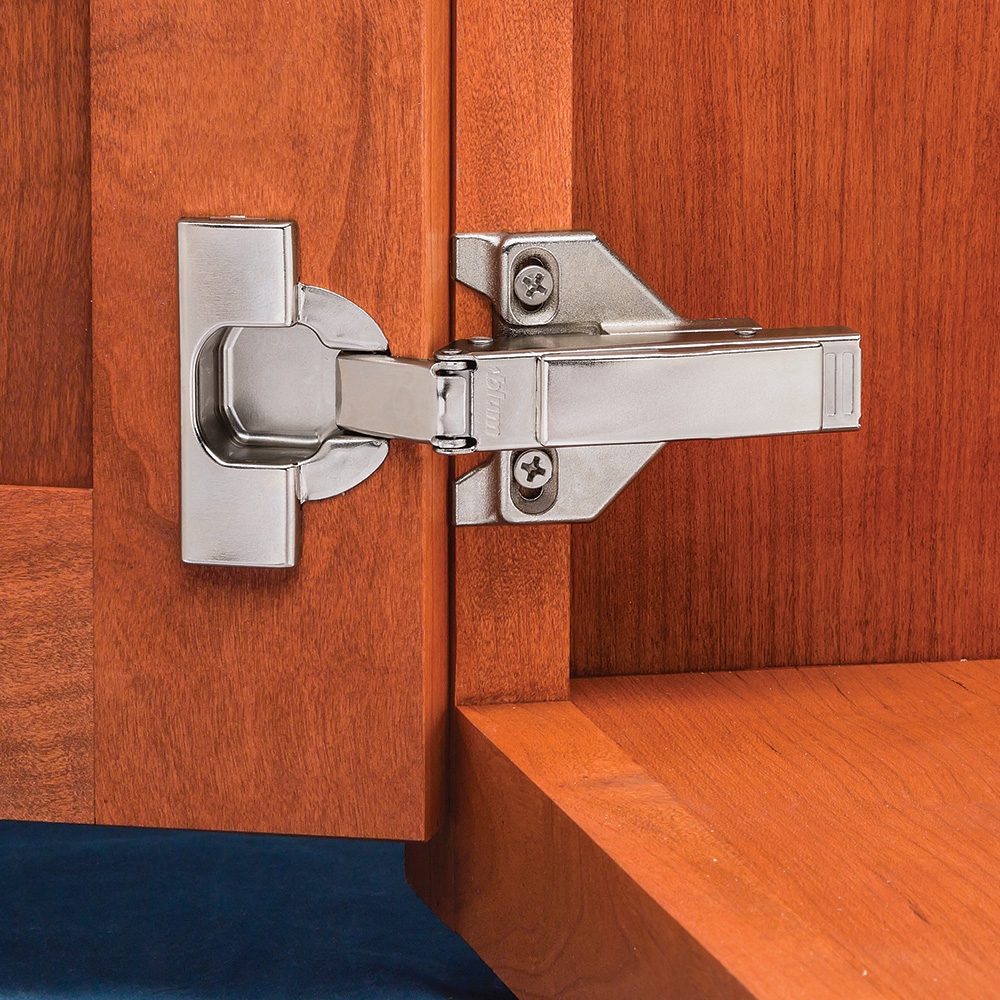

These standard snap-close type self-closing hinges from Blum offer convenient three-way adjustability for face frame applications. You get a standard 120° angle of opening. See optional Blumotion Soft Close System for silent and cushioned door closure.
Features:
Blum 120° Long Arm Hinges
Snap-close self-closing action
Convenient 3-way door adjustments
Clip-on mounting and demounting
For face frame cabinets
About The Rockler Advantage:
In one convenient package, Rockler Advantage hinge kits include all the hardware needed to hang an average-sized cabinet door: the hinges themselves, the required mounting plates for clip-on installation, sleek cover caps for a streamlined look, all required screws, plus detailed instructions for mounting. This makes it easy to order, and easy to install, cutting out the time and expense of hunting it all down online or at the hardware store.
Related Products
We recommend using our JIG IT® Deluxe Concealed Hinge Drilling System with the JIG IT® Hinge Plate Template D to make installation of these hinges accurate and easy.
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
(1) Blum® 120° Overlay Clip Top 3-Way Face Frame Hinges (1) Pair of ''clip-on'' mounting plates (1) Pair of sleek metal caps to cover hinge arm adjustment screws (1) Pair of sleek metal caps to cover cup mounting screws (1) Complete pack of mounting screws (1) Set of online installation instructions (see link)
(1) Blum® 120° Overlay Clip Top 3-Way Face Frame Hinges (1) Pair of ''clip-on'' mounting plates (1) Pair of sleek metal caps to cover hinge arm adjustment screws (1) Pair of sleek metal caps to cover cup mounting screws (1) Complete pack of mounting screws (1) Set of online installation instructions (see link)
Brand Blum
More Information
Brand
Blum
Weight
0.50
Tech Spec
Style: Long Arm European
Cabinet Style: Face Frame
Overlay: Multiple Options
Opening: 120 Degree
Closing Option: Snap Close
Finish: Nickel
Tab: 5mm
Cup Diameter: 35mm (1-3/8")
Cup Depth: 12.7mm (.5'')
Minimum Door Thickness: 16mm (.63")
Maximum Door Thickness: 22mm (.86")
Adjustment: 2-Cam. 1-Slot
Gap: 1mm
Clip-on: Yes
Minimum Reveal: 1.1mm
Hinge Type: Euro hinge, European hinge, concealed hinge
