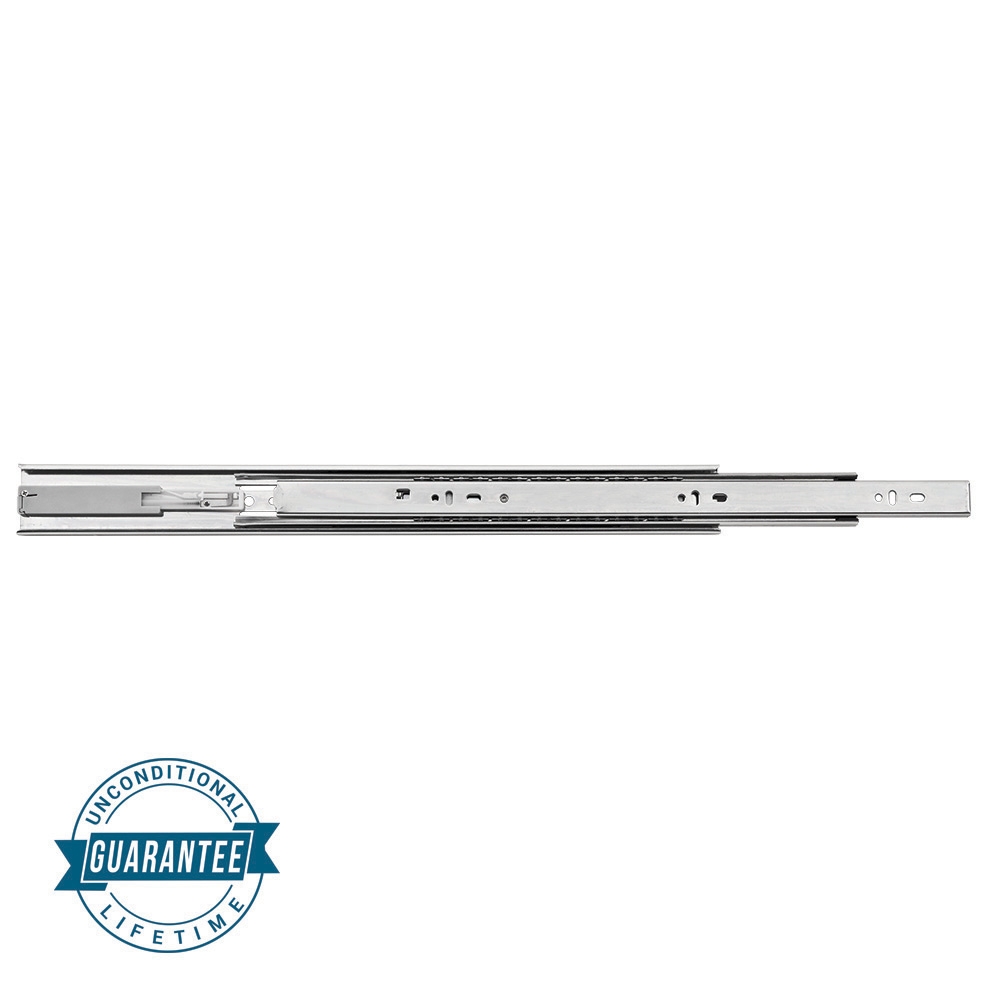

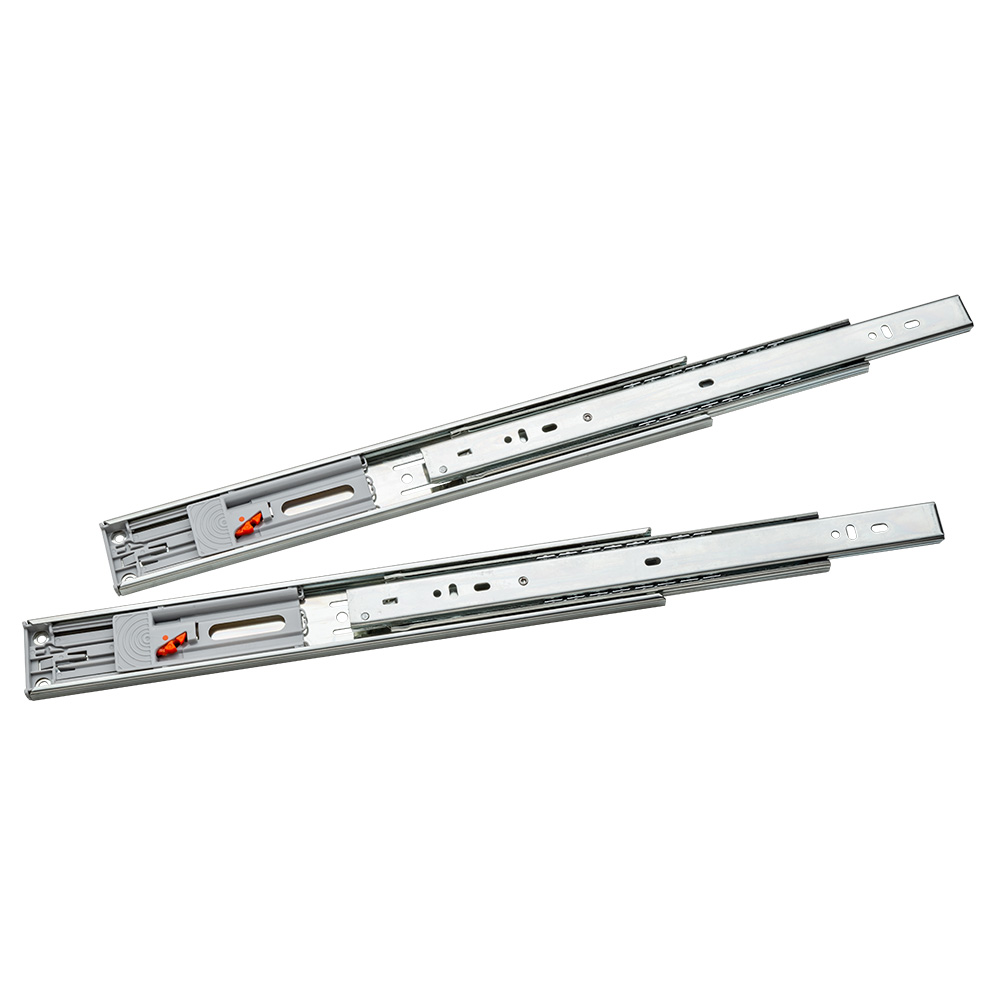

100-lb. Push-to-Open Full Extension Drawer Slides (Pair) - Centerline® 757-P (16" to 22")

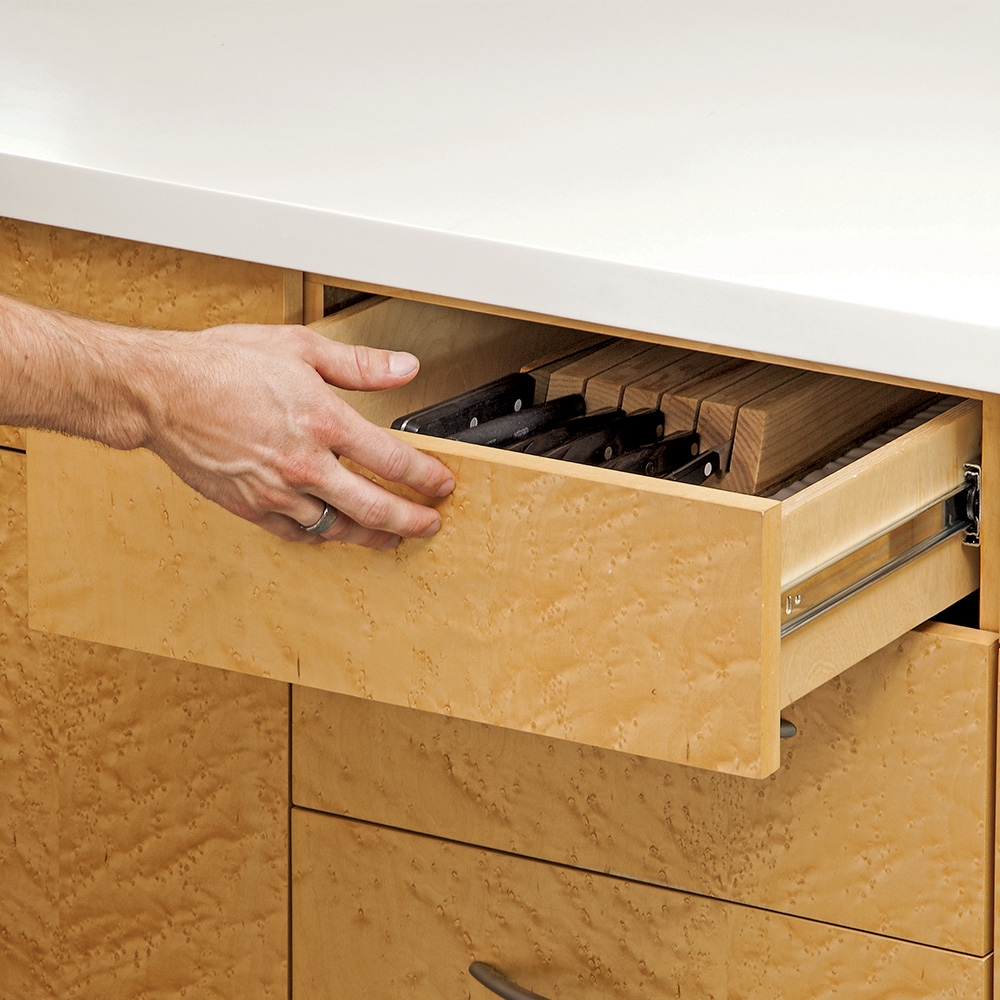

Drawer opens enough for you to reach in and fully extend it with no need for pulls or knobs - perfect for a clean, modern look, or where space or clearance is a concern, such as for boats, motor homes and corner cabinets, where a pull could damage adjoining cabinets. Centerline® Lifetime Push-to-Open Drawer Slides feature smooth ball- bearing action with hold-in detents to prevent accidental opening.
If a Rockler TopSlide/Centerline Lifetime drawer slide fails to perform for any reason we will replace it. No proof of purchase required. Exchange the product at your local Rockler retail store or mail it to Rockler at 4365 Willow Dr. Medina MN 55340. Name and address must be included in the package to process the exchange.
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
Illustration depicts 100 lb. full extension slideClick to enlarge
Illustration depicts 1/2" wide, 1-13/16" long cross-section hinge.
Click to enlarge
Maximum Drawer Slide Thickness: No Limit
Required Side Clearance (Each Side): 1/2"
Required Drawer Bottom Recess: None
Face-Frame or Frameless Cabinets: Frameless
Minimum Face-Frame Cabinet Depth With Rear Brackets: Length of slide
Push-open action eliminates the need for pulls or knobs
Perfect for frameless cabinet applications
Full extension
100lb load rating
For overlay configurations there will be a 5.5mm gap between the back of the drawer front and the cabinet to allow the push-open mechanism to function.
