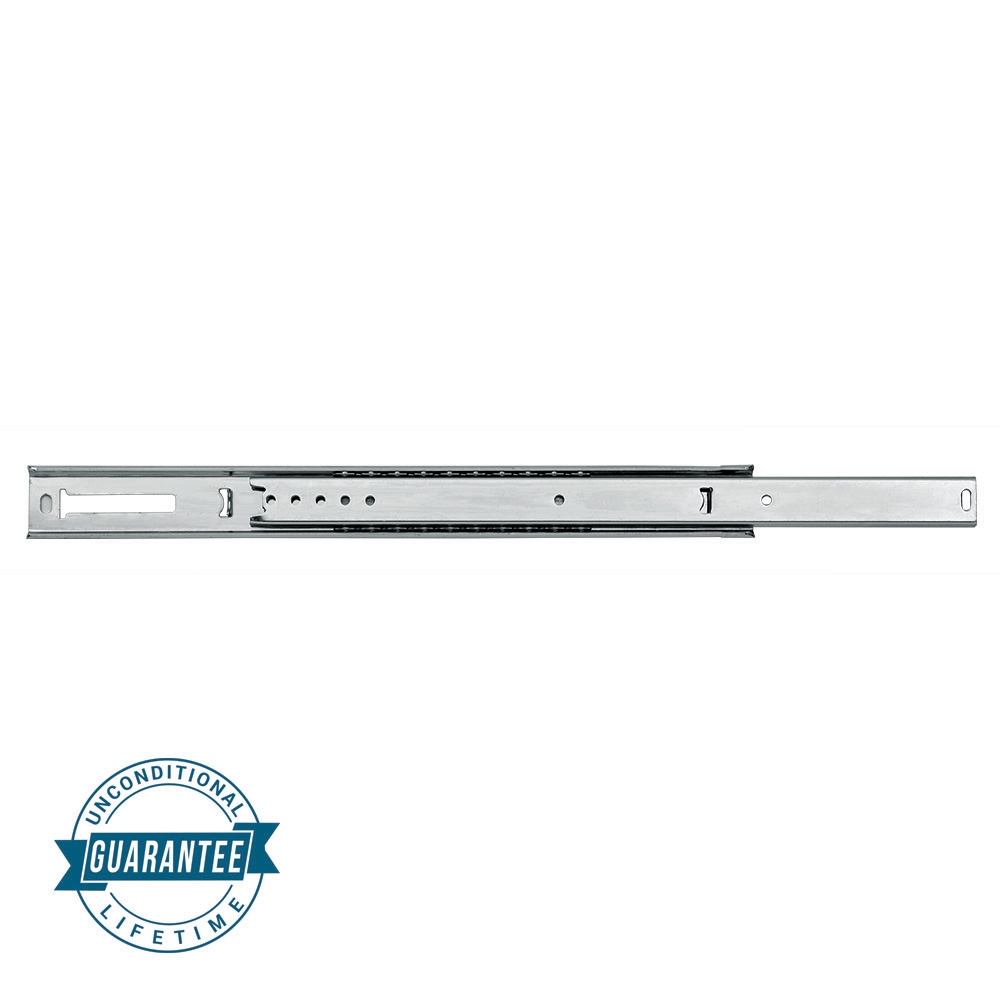

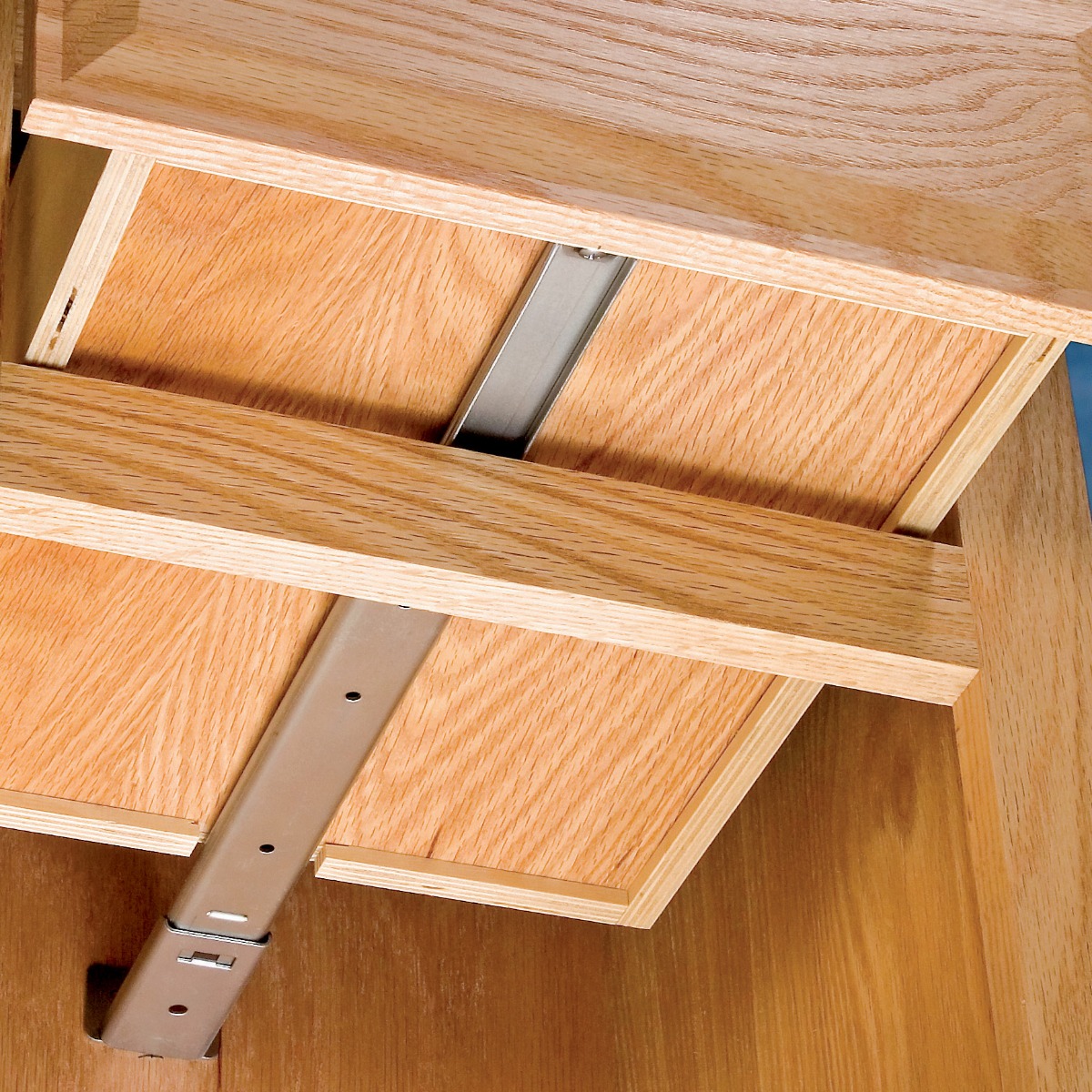

35-lb. Center-Mount Drawer Slides - Centerline® 714 (14" to 24")

• Motion: Standard Motion
• Disconnect: Friction Fit Disconnect
• Handed: Handed
• Maximum Drawer Slide Thickness: No Limit
• Required Side Clearance (Each Side):
• Required Drawer Bottom Recess: 1/4"
• Face-Frame or Frameless Cabinets: Both
• Minimum Face-Frame Cabinet Depth With Rear Brackets: Length of slide

Rockler Item # 47510

• Slide Length: 14''
• Fits Drawer Lengths: 12'' - 13.78''
• Fits Cabinet Depths: 13.8'' - 15.75''

Rockler Item # 47772

• Slide Length: 16''
• Fits Drawer Lengths: 13.8'' - 15.75''
• Fits Cabinet Depths: 15.95'' - 17.72''

Rockler Item # 45885

• Slide Length: 18''
• Fits Drawer Lengths: 15.95'' - 17.72''
• Fits Cabinet Depths: 17.9'' - 19.68''

Rockler Item # 48114

• Slide Length: 20''
• Fits Drawer Lengths: 17.9'' - 19.68''
• Fits Cabinet Depths: 19.88'' - 21.65''

Rockler Item # 49796

• Slide Length: 22''
• Fits Drawer Lengths: 19.88'' - 21.65''
• Fits Cabinet Depths: 21.85'' - 23.62''

Rockler Item # 44087

• Slide Length: 24''
• Fits Drawer Lengths: 21.85'' - 23.62''
• Fits Cabinet Depths: 23.82'' - 25.6''
