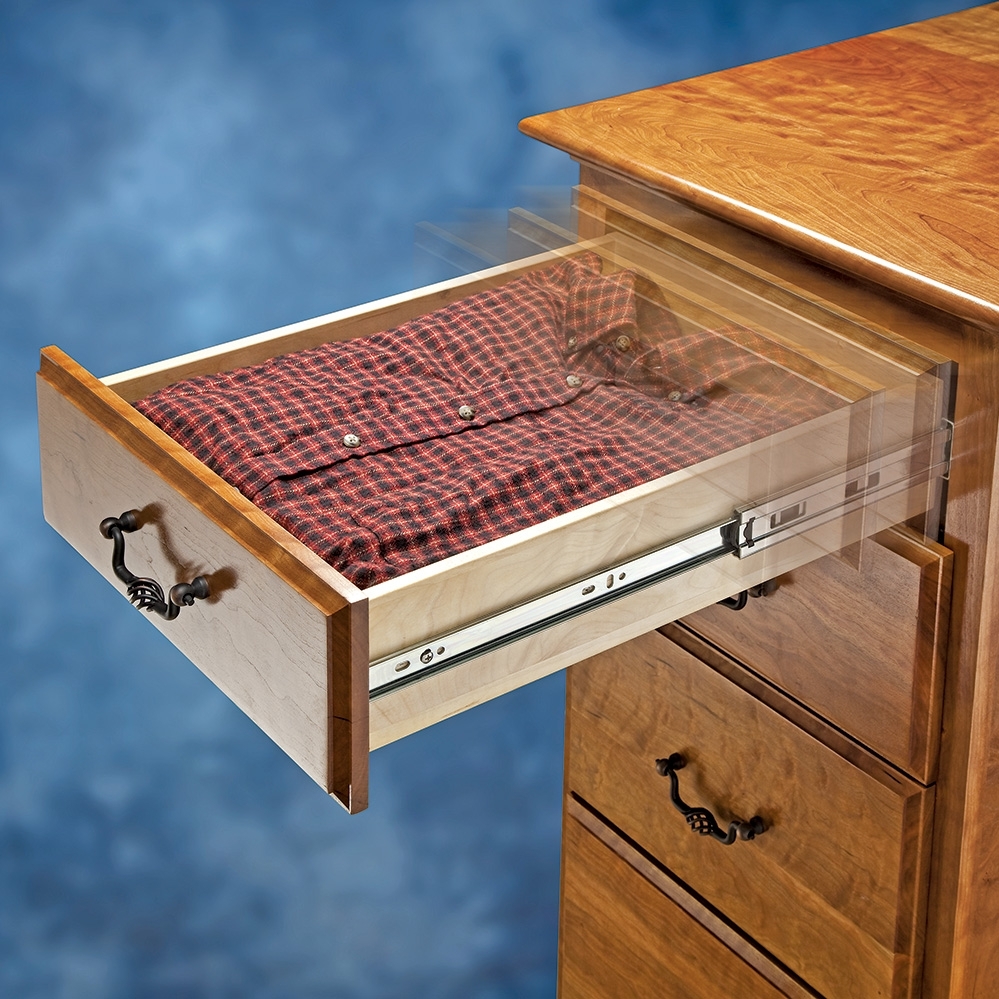

Designed for the smoothest possible closing action! A spring loaded, pressure-controlled mechanism automatically engages to ease the drawer quietly shut during the final 1-1/2" of travel. These over travel slides also feature convenient lever disconnect and impeccable construction. Back brackets (#47585, sold separately) are required for mounting to face frame cabinets.
Note: These slides have very tight tolerances and require that the drawer box be square and the slides be parallel. If this attention to detail is not followed you may find them binding on open or close cycle. Sold in pairs.
If a Rockler TopSlide/Centerline Lifetime drawer slide fails to perform for any reason we will replace it. No proof of purchase required. Exchange the product at your local Rockler retail store or mail it to Rockler at 4365 Willow Dr. Medina MN 55340. Name and address must be included in the package to process the exchange.
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.

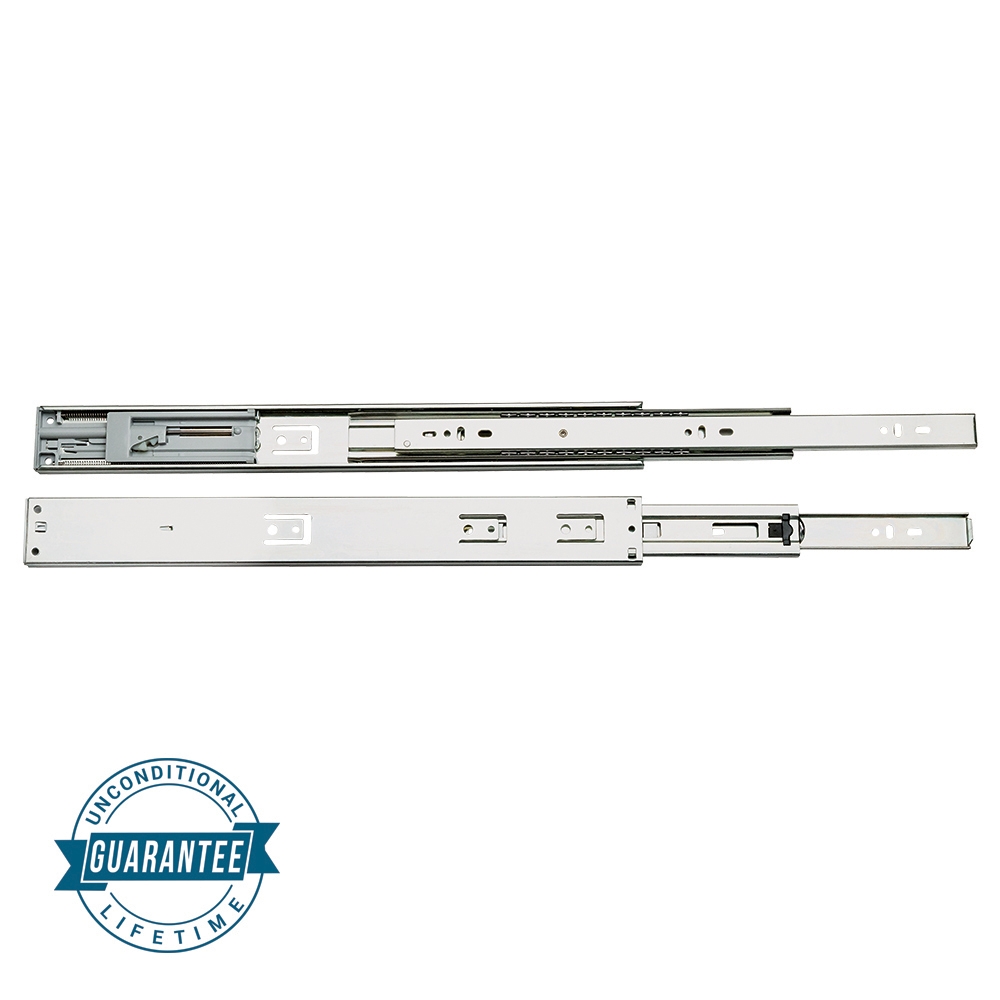

(1) Pair of 75-lb. Comfort-Close Over-Travel Drawer Slides - Centerline (1) Package of Mounting Hardware (1) Set of Instructions
(1) Pair of 75-lb. Comfort-Close Over-Travel Drawer Slides - Centerline (1) Package of Mounting Hardware (1) Set of Instructions
Brand Rockler Centerline
More Information
Brand
Rockler Centerline
Weight
3.70
Tech Spec
Motion: Soft-Closing Motion
Disconnect: Lever
Handed: Non-handed
Maximum Drawer Slide Thickness: No Limit
Required Side Clearance (Each Side): 1/2"
Required Drawer Bottom Recess: None
Face-Frame or Frameless Cabinets: Both
Minimum Face-Frame Cabinet Depth With Rear Brackets: Length of slide
RoHS compliant, meeting the newest European and US ecological standards
Made from high grade steel with an attractive zinc finish
75-pound load rating
Smooth, ball-bearing sliding action
Easy-close mechanism also prevents accidental rollout
Tested to 50,000 cycles and backed by Rockler's limited lifetime warranty.
1” of travel past full extension

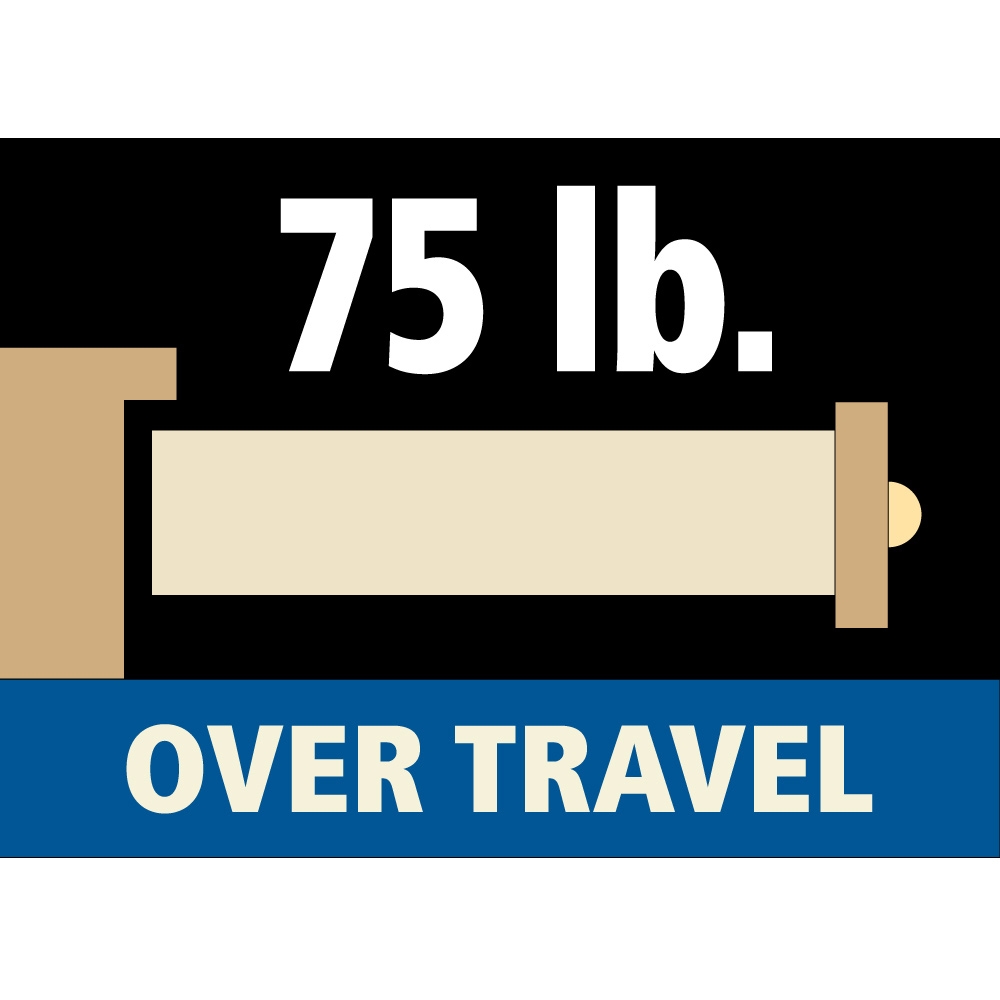

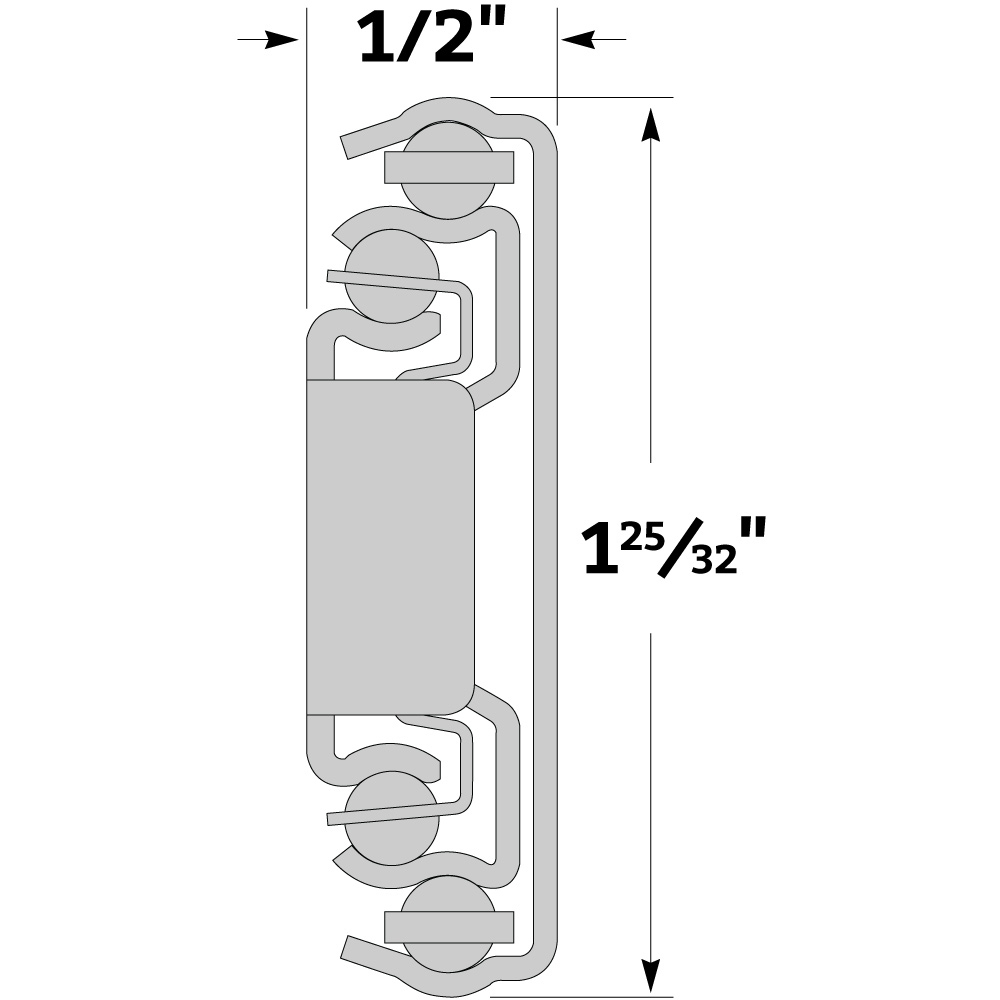

Illustration depicts 75 pound slide weight rating with over travel slide extension. Click to enlargeIllustration depicts hinge 1/2" width and 1 25/32" length. Click to enlarge
Slide Weight Rating
75 lbs
Slide Extension
Over Travel
Length
10 in, 12 in, 14 in, 16 in, 18 in, 20 in, 22 in, 28 in, 126 in
