Festool 14mm Connector Set for Domino DF 700, 3 Packs of 32 (203420)

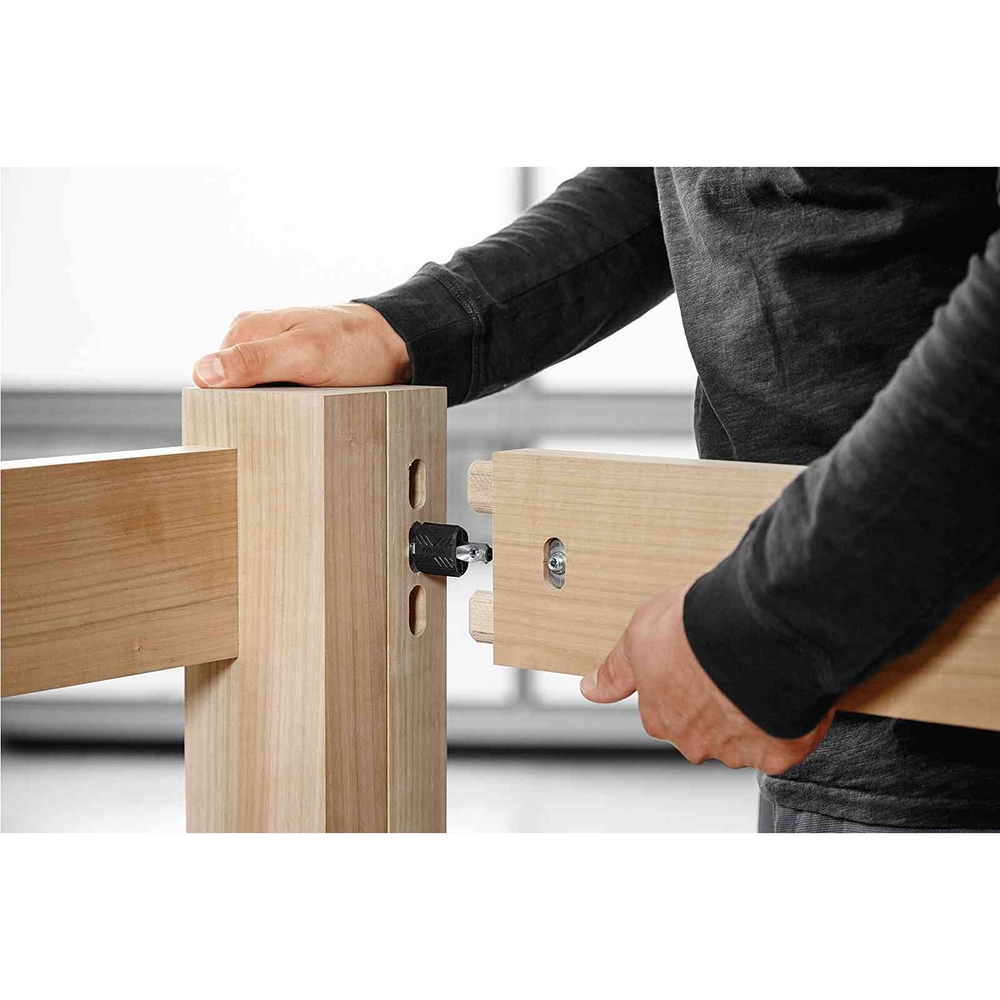

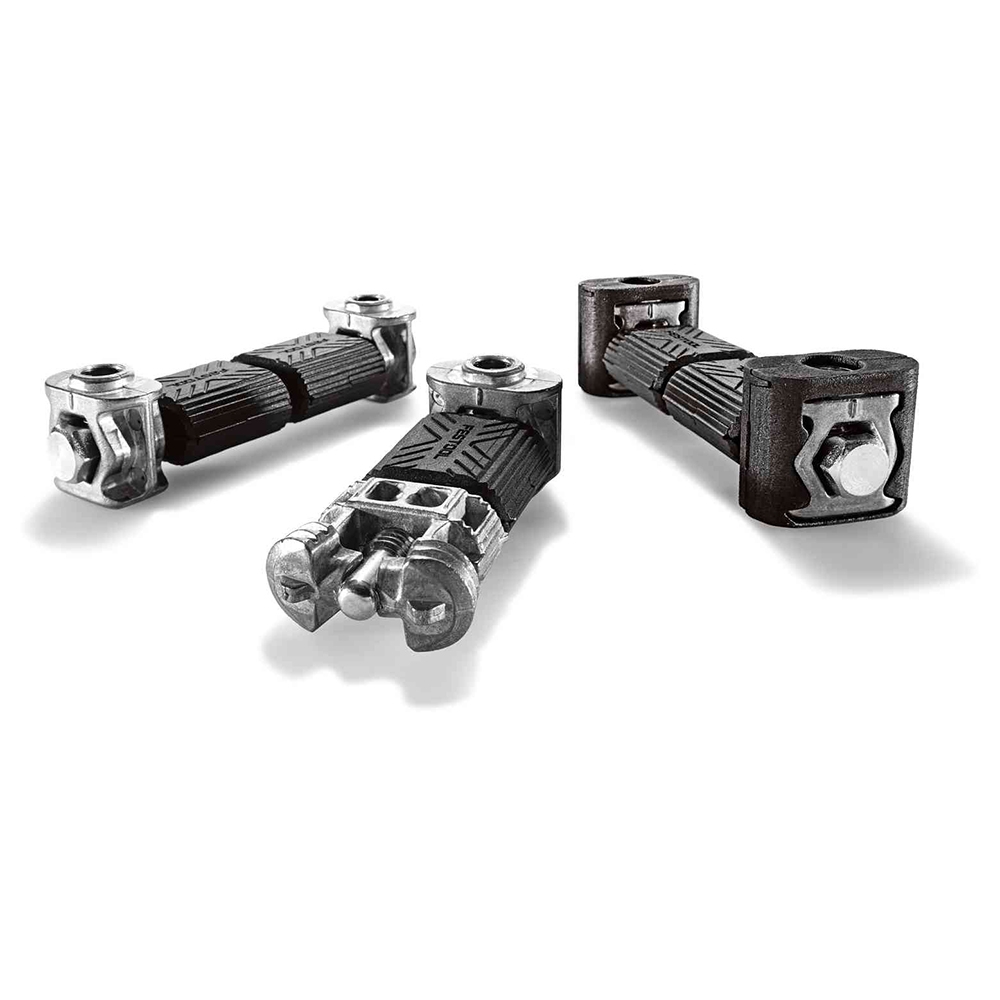

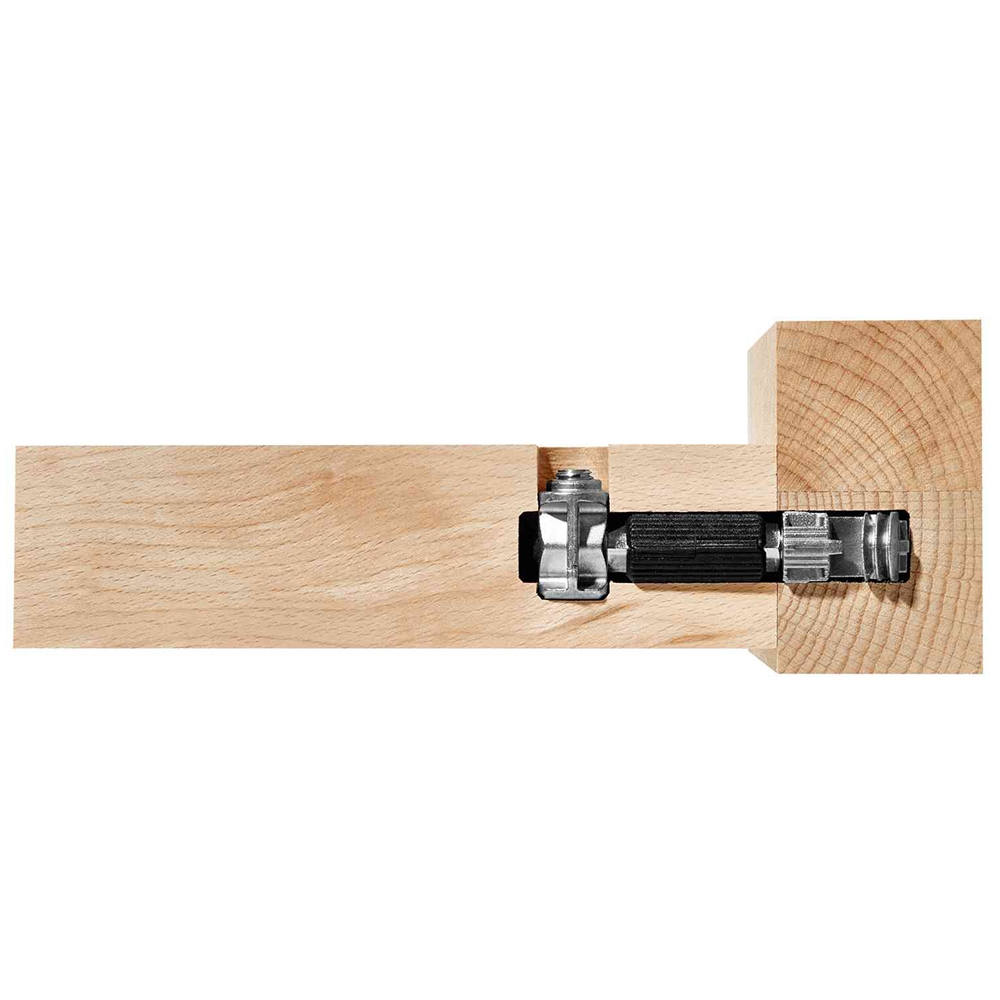

The Festool 203420 Connector Set includes: (32) Anchor Bolts, SV-AB D14, (32) Split Anchors, SV-SA D14 and (32) Cross Anchors, SV-QA D14. Combine them in a variety of ways to create knock-down fittings for RTA furniture. For material thicknesses of 1-3/16'' (30mm) or thicker.

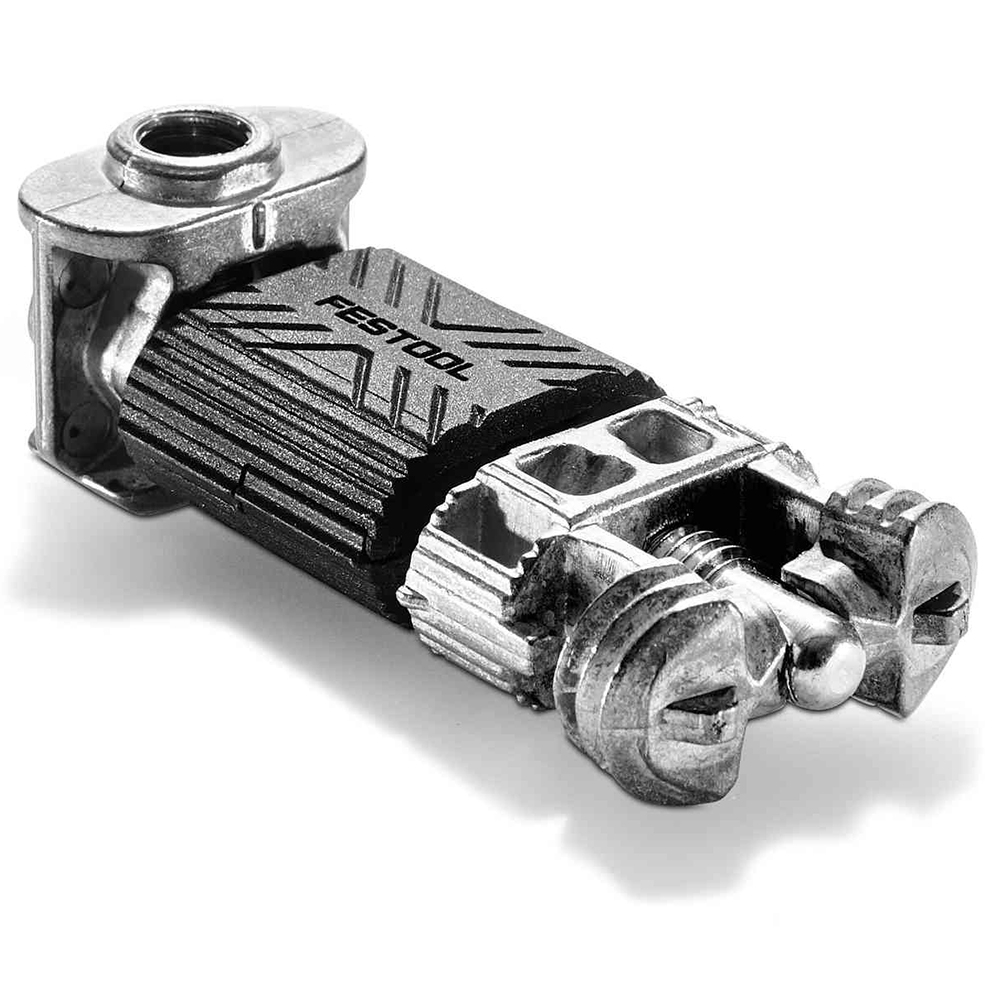

Festool 201350 Anchor Bolts have one threaded end that wedges open the Split Anchors so that they bite into the walls of a 14mm Domino mortise. The opposite end has a wedged recess that fits into the Cross Anchors and allows the joint to be tightened with a hex screw.

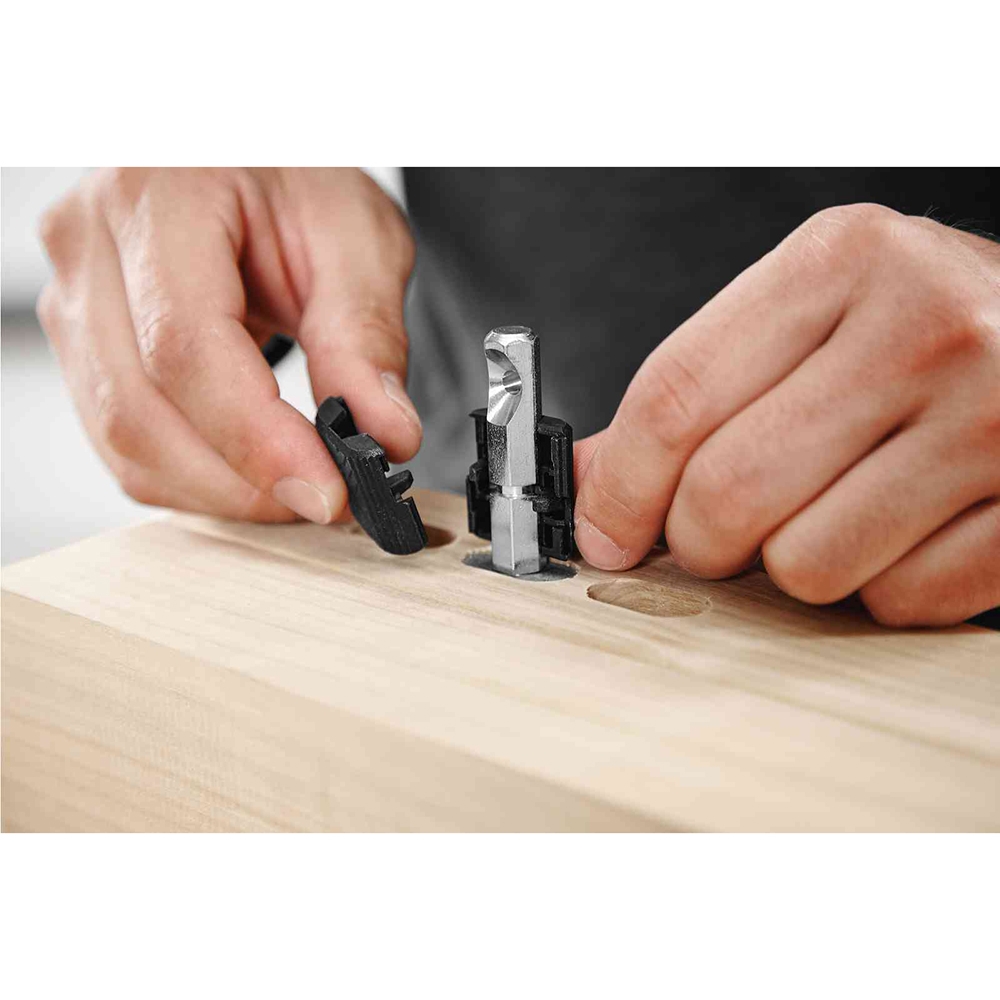

Festool 201349 Split Anchors are mortised into your material to accept the included Anchor Bolts. Each Split Anchor has a threaded hole that accepts the matching end of the Anchor Bolt, which expands the anchor until it bites into the walls of the Domino mortise. Combine with Cross Anchors for right angle connections.

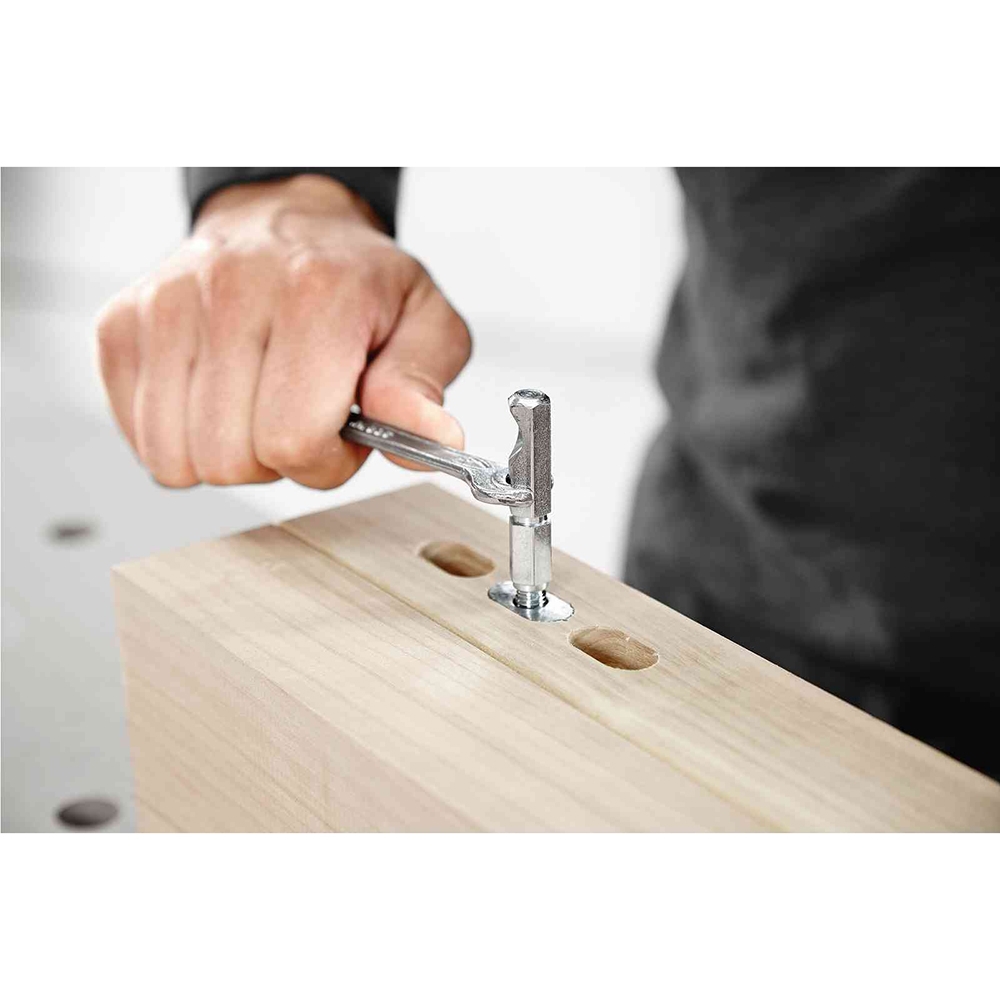

Festool 201351 Cross Anchors are mortised into your material to accept the included Anchor Bolts or the 201352 Double-Headed Anchor Bolts (e.g. #78059, sold separately). Each Cross Anchor has a hex screw that wedges into the matching end of the Anchor Bolt, which tightens up the knock-down fitting. Combine with Split Anchors for right angle connections.

Note: With soft or porous material like chipboard, use of 201498 Half Shells (#77307, sold separately) is recommended to stop the Cross Anchor from compressing the material.
