Festool 8mm Corner Connectors for Domino DF 500 and LR 32, 50-Pack (203168)

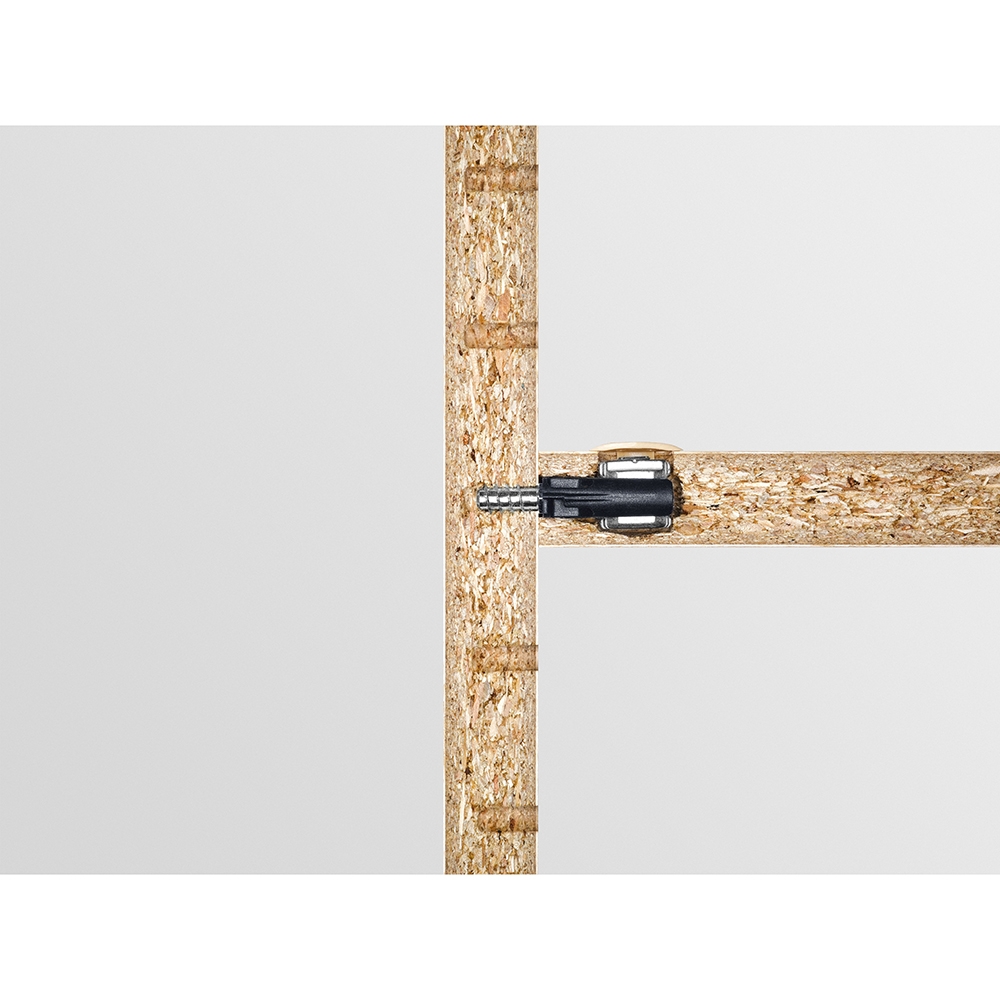

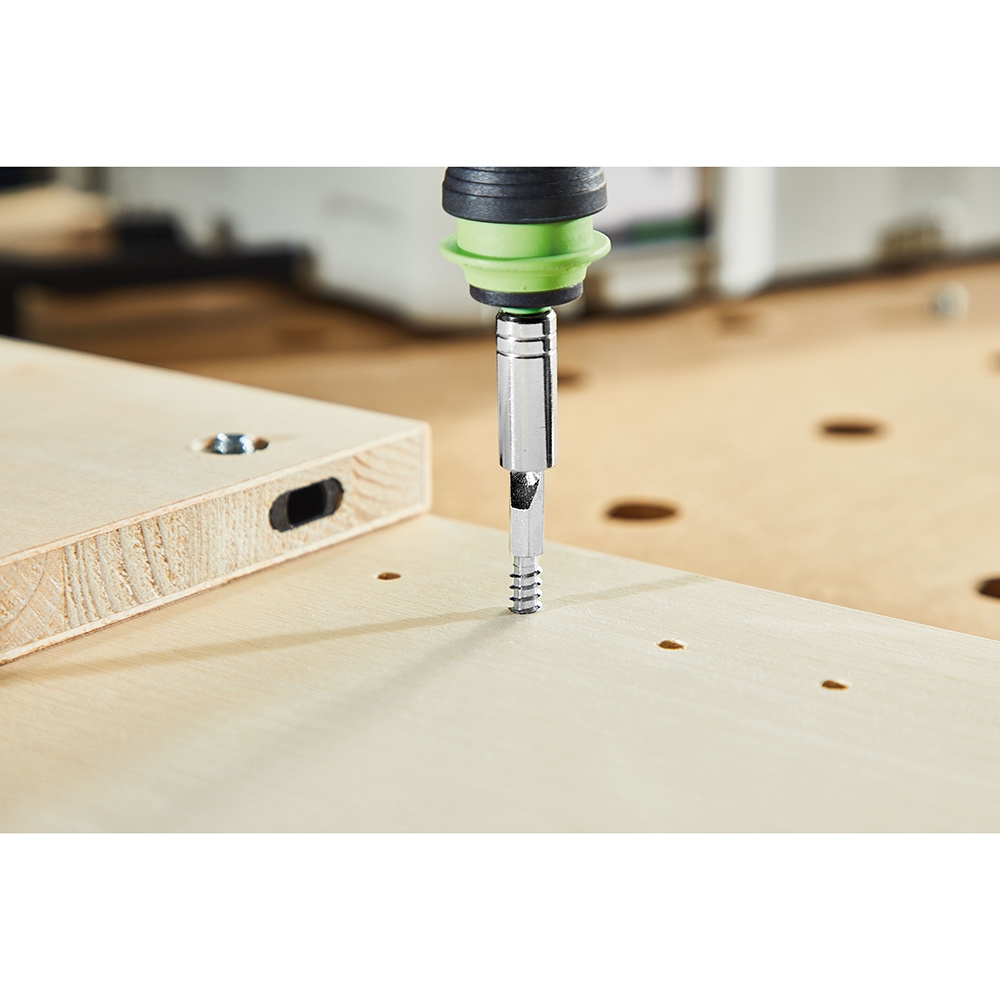

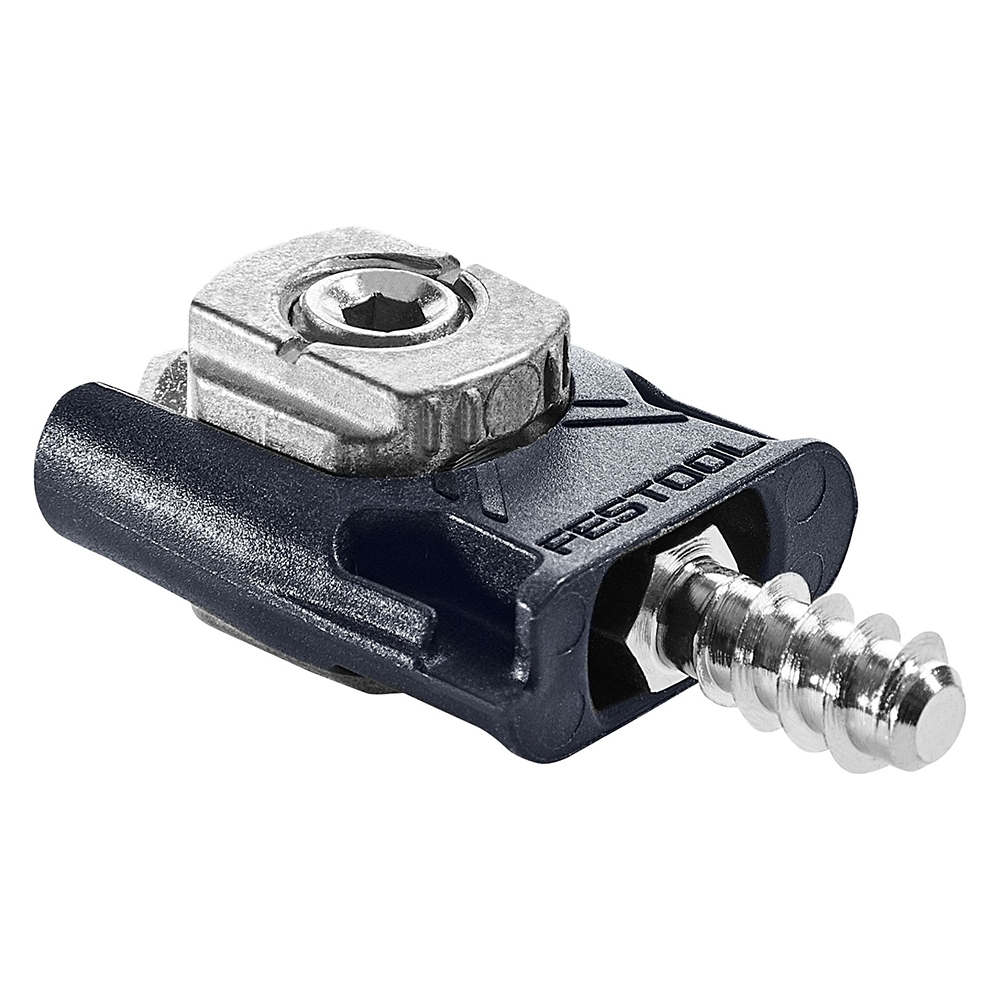

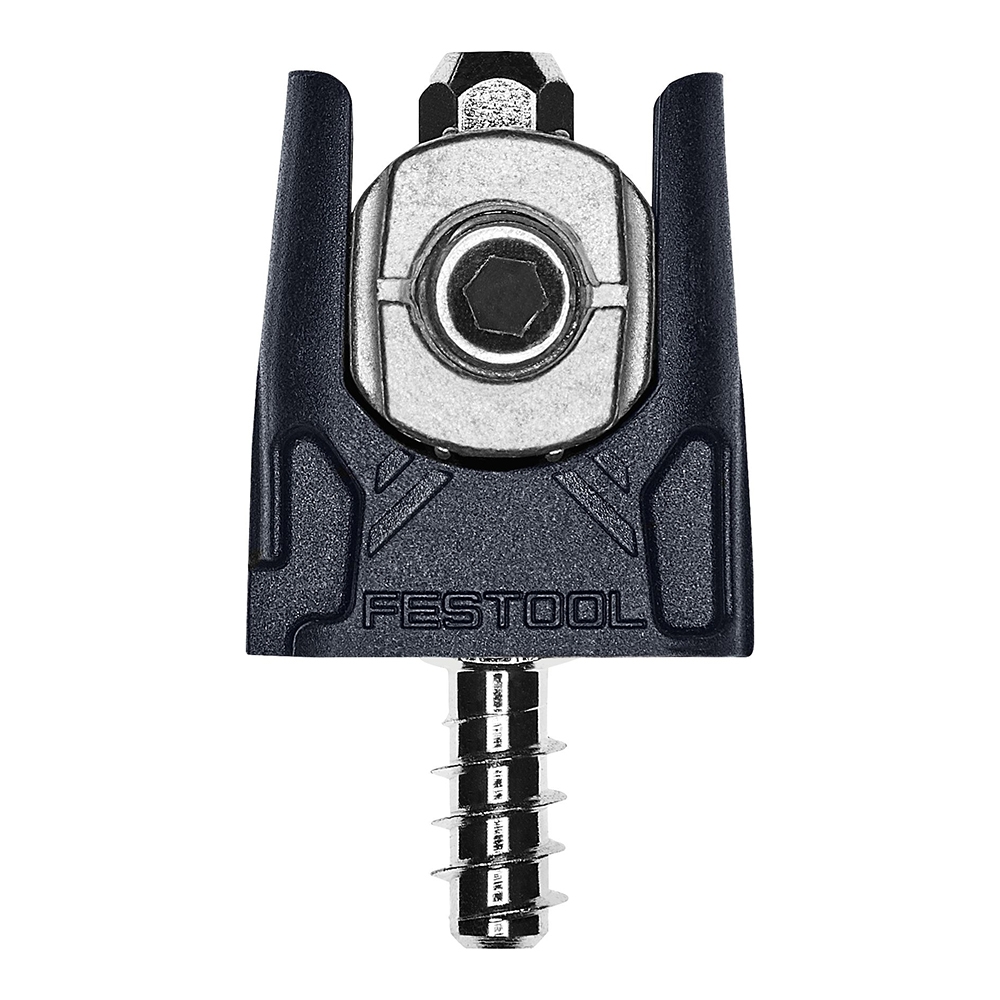

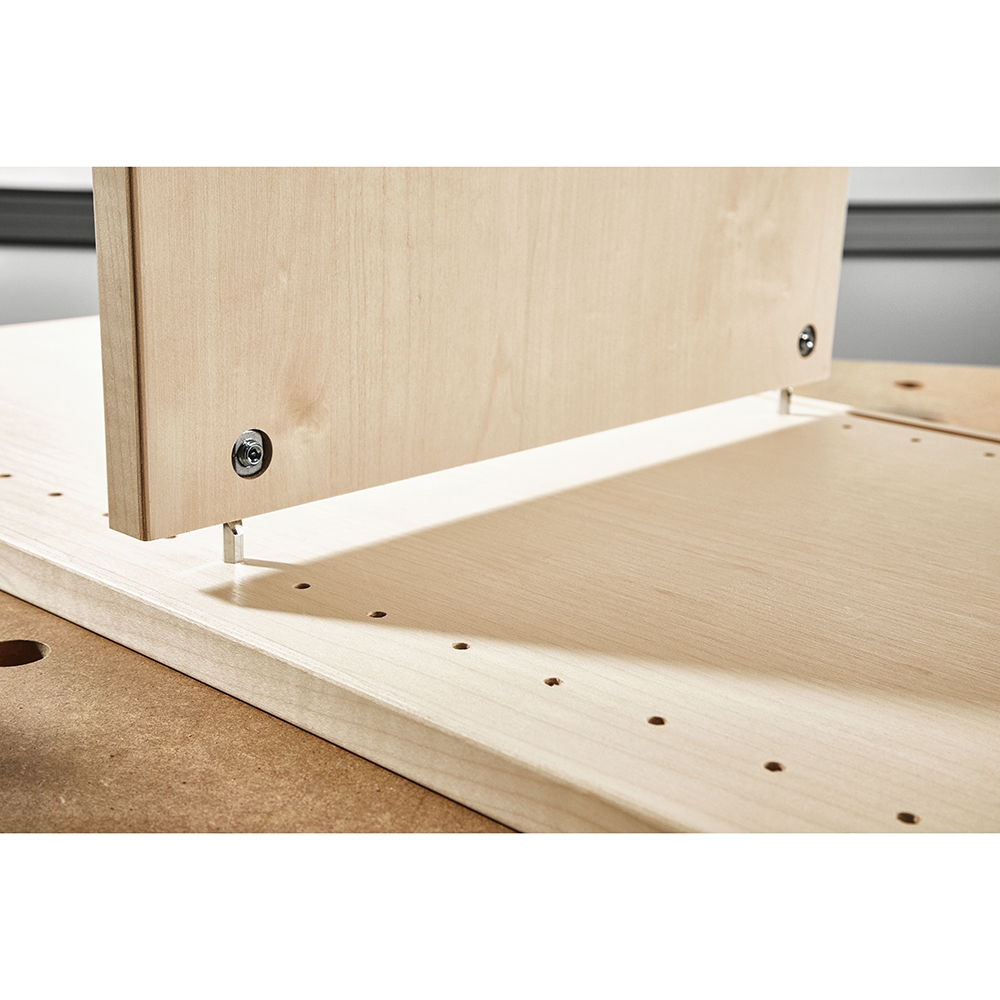

The Festool 203168 Corner Connector works with your Domino DF 500 joiner to connect two panels in a ''T'' configuration. With this version, one end of the connector threads into a 5mm shelf pin hole in the partition, commonly drilled with the Festool LR 32 system. Therefore, a primary use is to attach additional horizontal partitions or shelves inside of a rectangular cabinet.

Festool Corner Connector Details:

• Knock-down connectors allow sturdy assemblies that can be easily disassembled for shipping or alteration
• Suited for panel thicknesses of 18mm to 28mm
• Requires 15mm Drill Bit 203165 (#70304, sold separately) and Template 203164 (#76308, sold separately) for drilling the access holes for tightening
