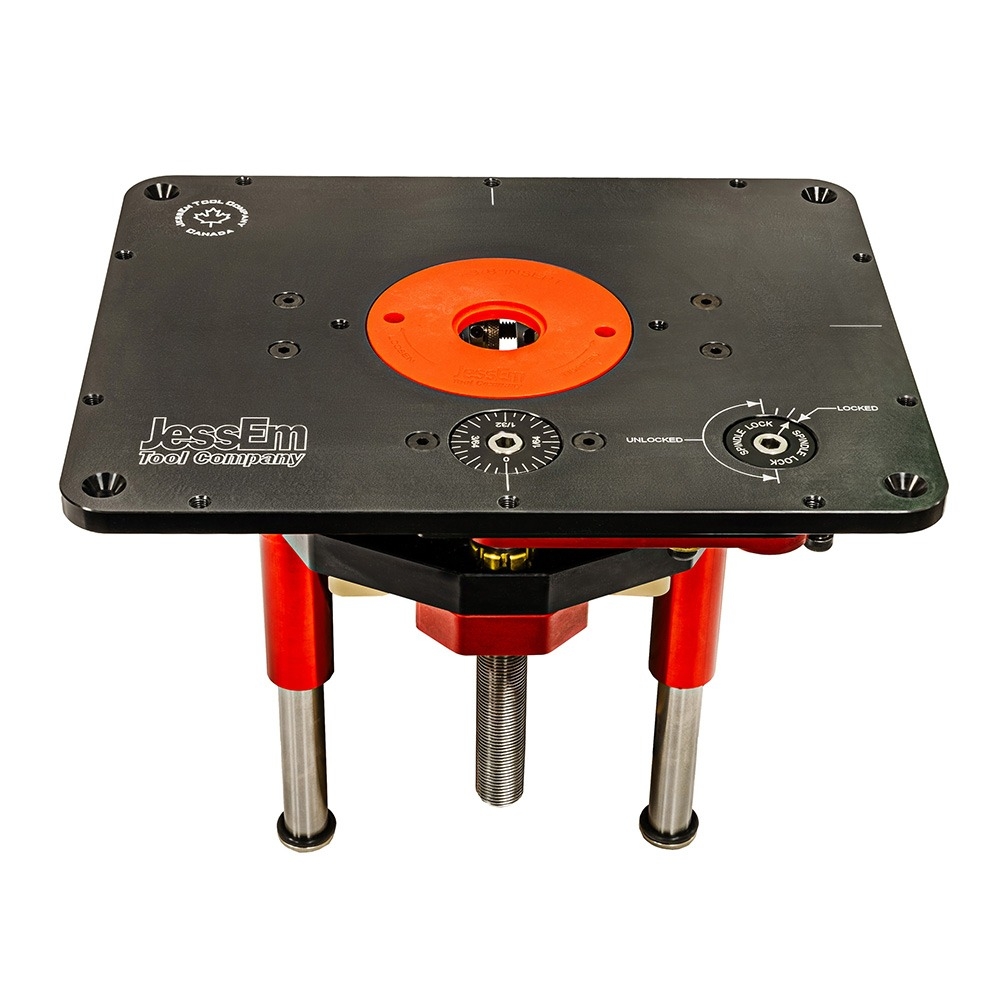

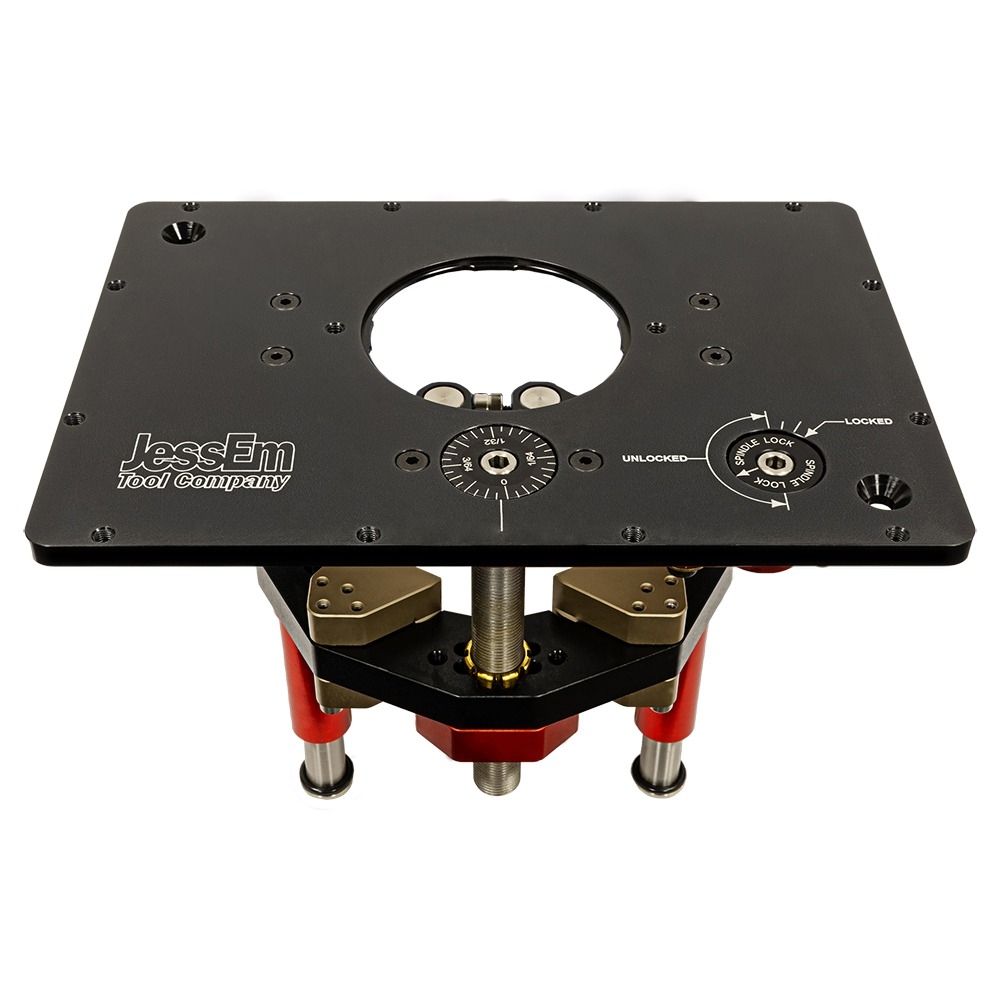

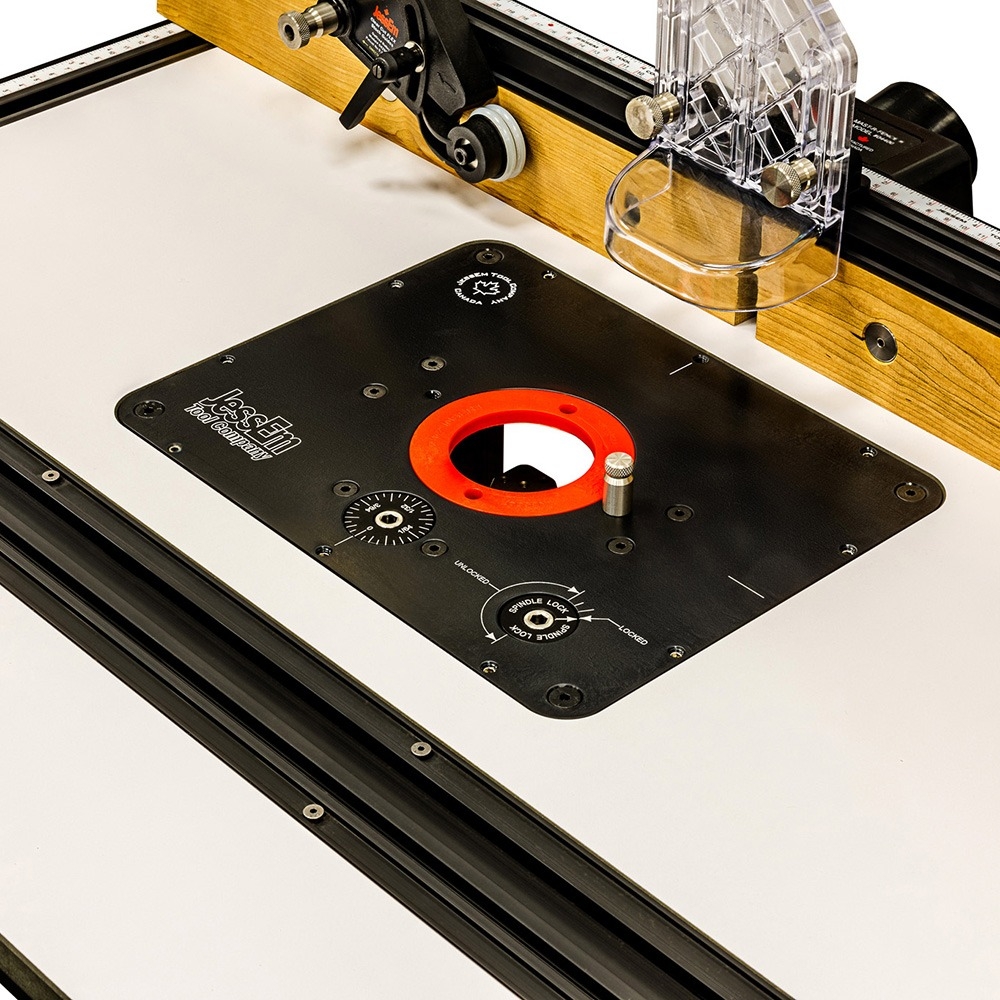

With its robust steel undercarriage and 3/8''-thick anodized aluminum top plate, the Mast-R-Lift II is designed to be one of the most durable router lifts available. Its carriage rides on a pair of 3/4'' solid-steel shafts and double-sealed bearings for smooth, even router travel up and down. A 16 threads-per-inch spindle allows you to adjust bit height by 1/16'' per crank handle rotation, then refine the setting in 0.001'' increments. Patented anti-backlash provisions and a cam lock ensure that your bit height stays exactly where you want it during operation.

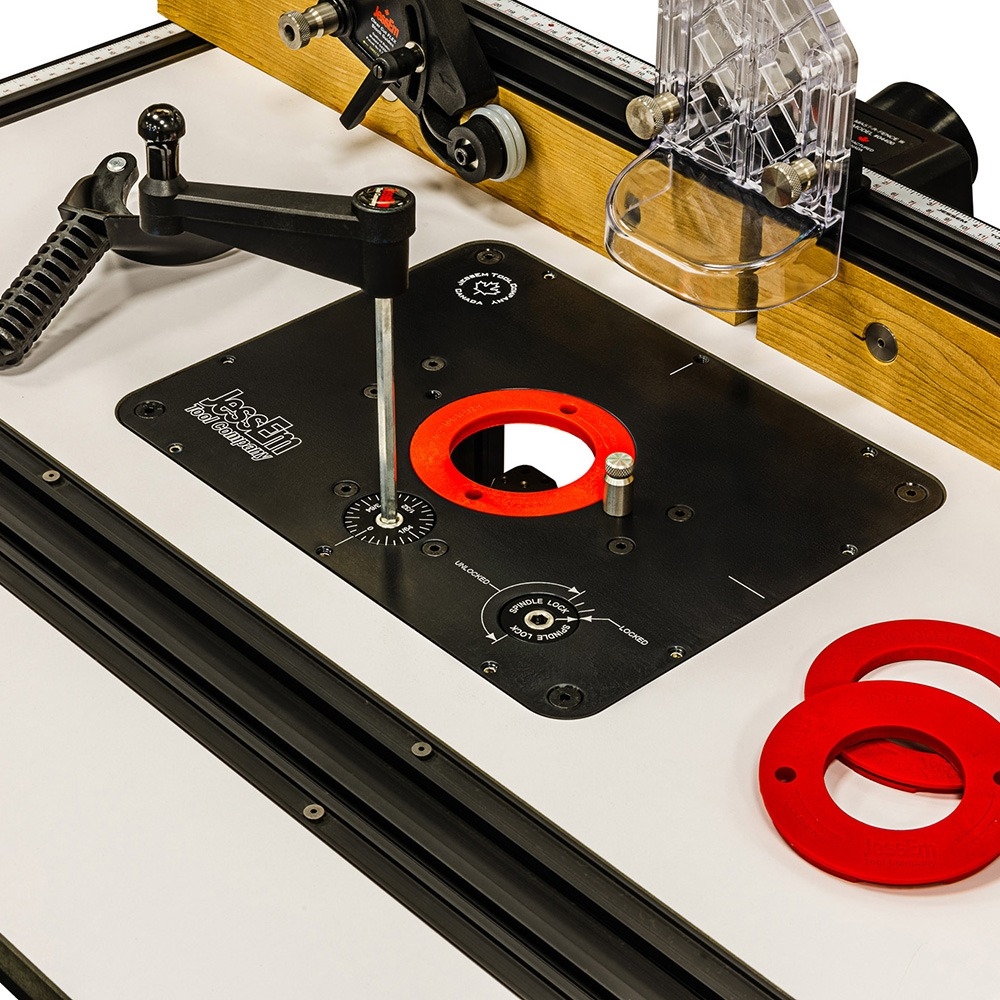

Mast-R-Lift II has an adjustable clamping block system that accommodates many popular fixed-base router motors (see below). Regardless of which motor you install, the lift allows for above-the-table router bit changes. Three Tab-Loc insert rings suit many bit diameters and install or remove from the lift with a quarter turn of the included wrench.
JessEm Mast-R-Lift II Router Lifts Details:

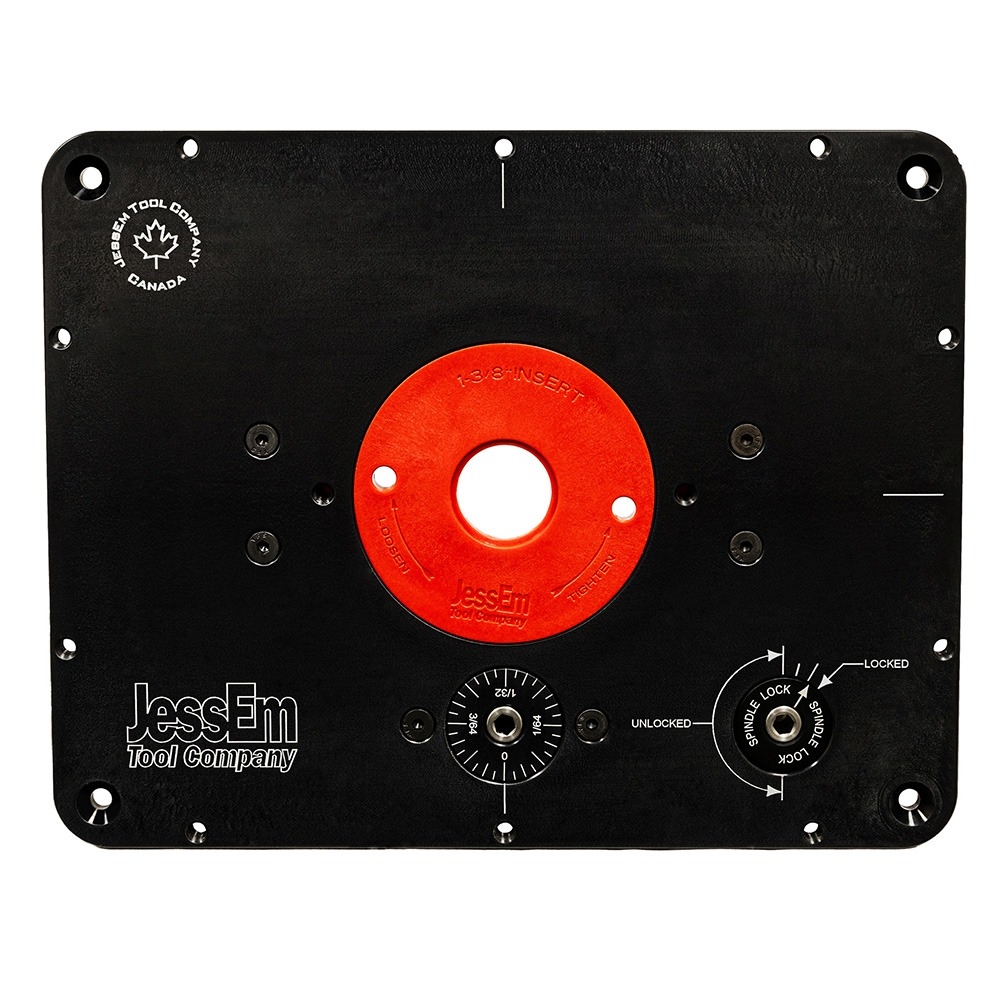

Heavy-duty 3/8''-thick aluminum top plate with 3/4''-diameter solid-steel shafts

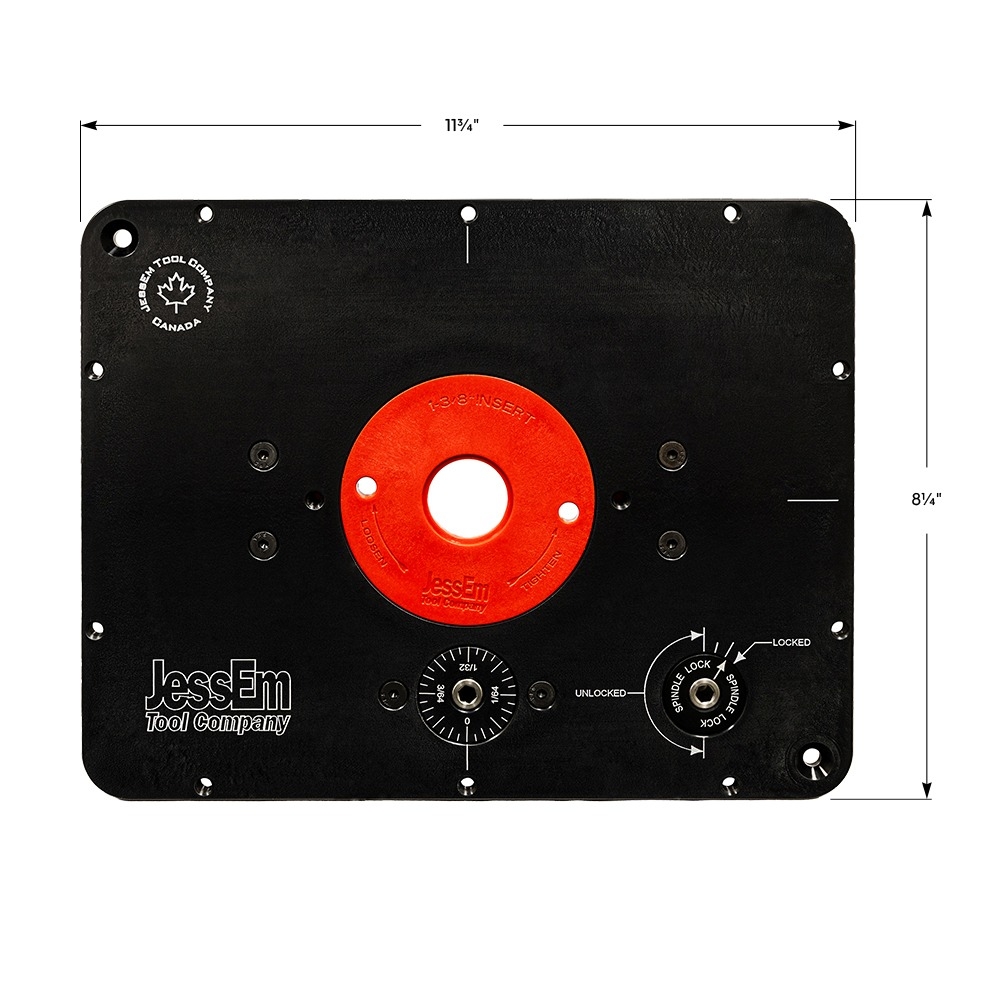

Top plate is sized to fit either standard (9-1/4'' x 11-3/4'') or small (8-1/4'' x 11-3/4'') router table openings

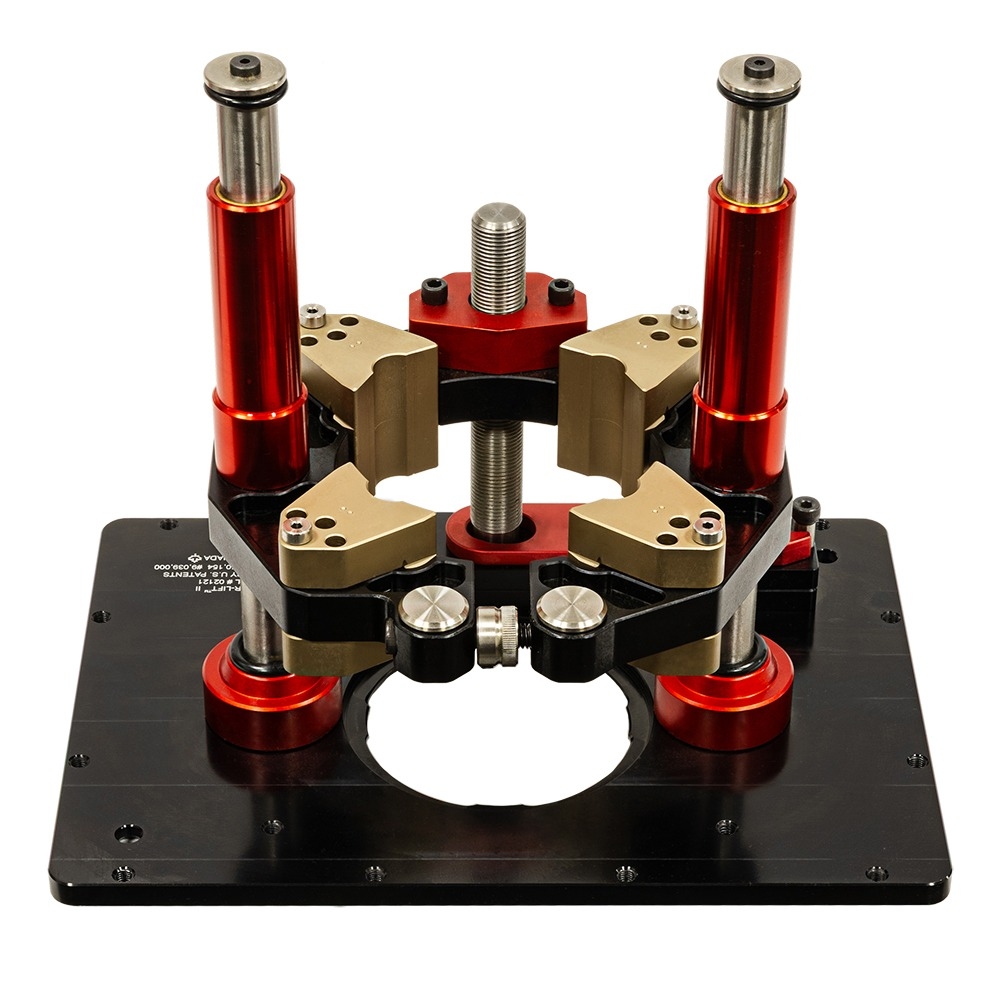

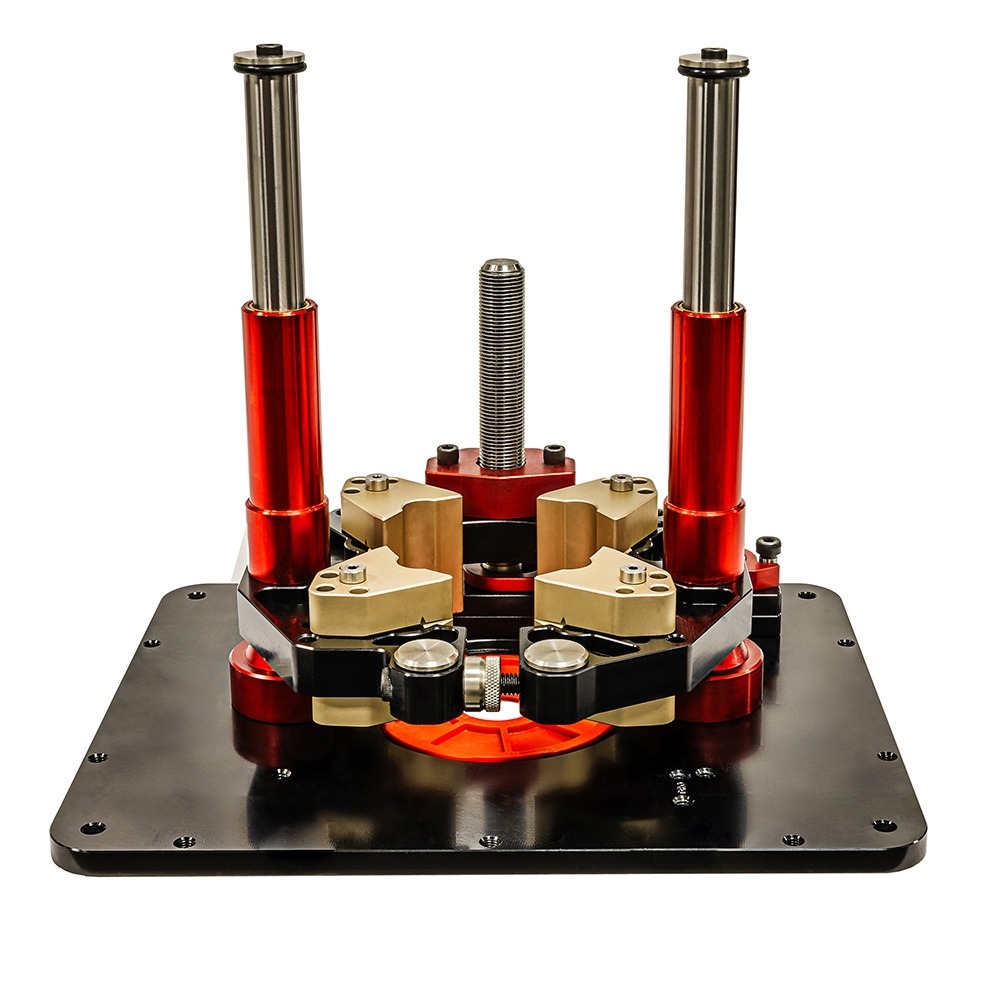

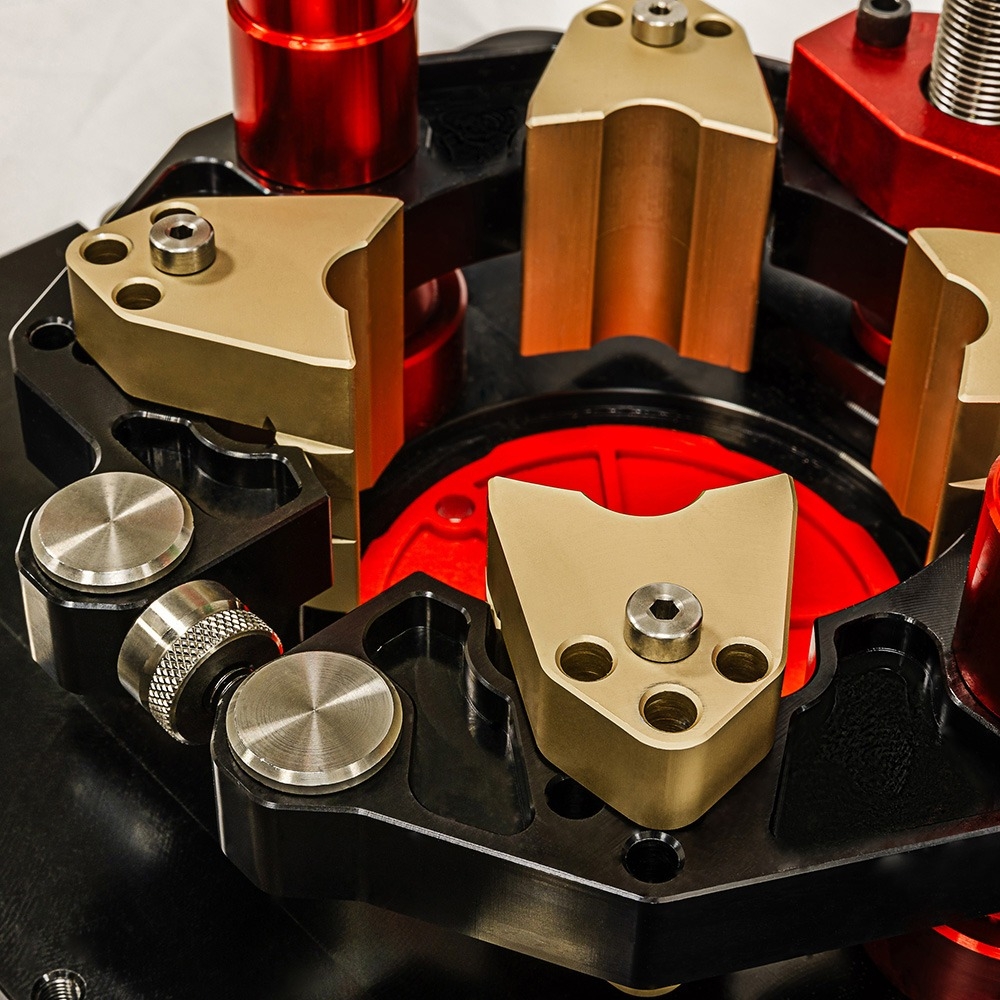

Adjustable clamping block system accommodates many router motors up to 4.2'' in diameter
Each crank revolution adjusts coarse bit height by 1/16''; demarcations allow fine adjustment to within 0.001''
Patented tensioning feature eliminates backlash found in other lifts, helping you set and maintain accurate bit heights
Double-sealed ball bearings for a lifetime of use
Lift shafts are hydraulically pressed into a larger-diameter mount, enhancing rigidity and durability
One hex crank handle raises, lowers and locks bit settings
Bit changes and height adjustments happen above the table
Cam-lock ensures that bit heights won't change during use

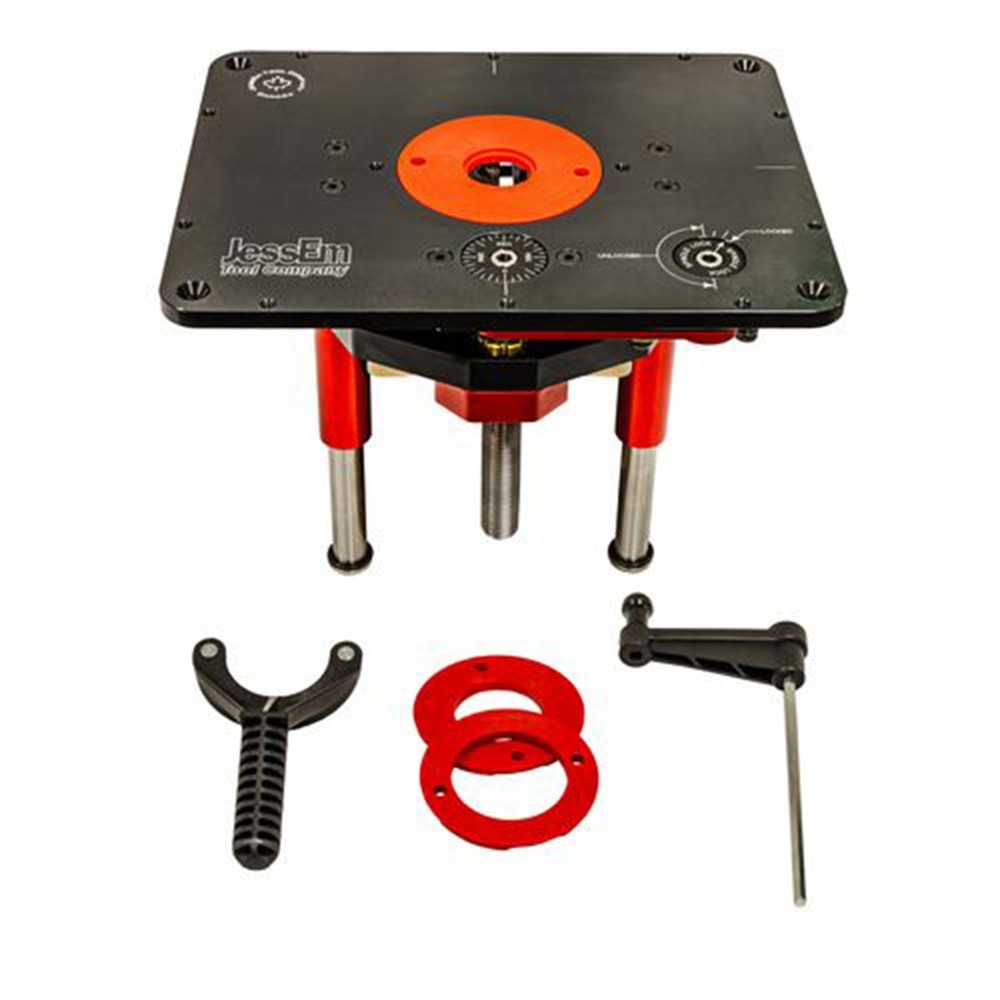

Tab-Loc insert rings install or remove with a quarter turn of the included wrench
Precision CNC machined out of non-wear components for enhanced appearance and resistance to corrosion and wear
Made in Canada
Will my router fit?
JessEm Mast-R-Lift II Router Lifts accept the following router motors:
