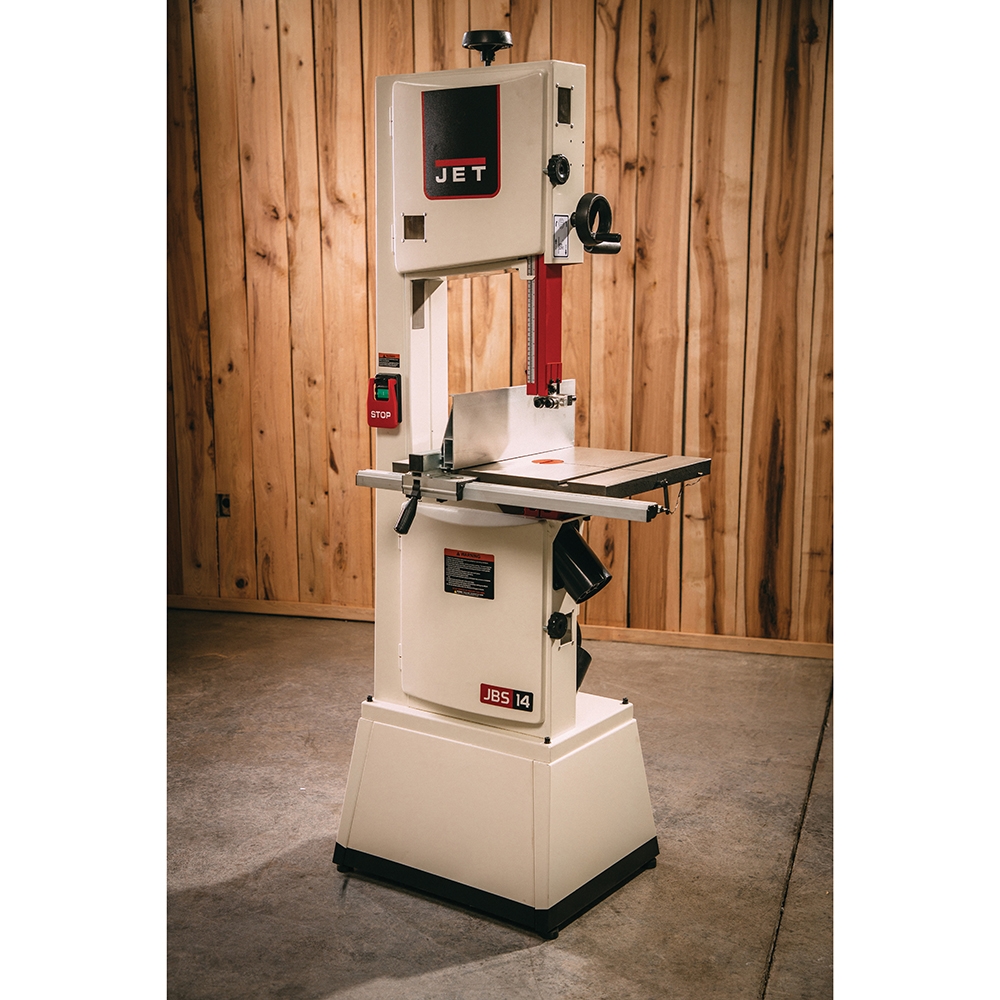

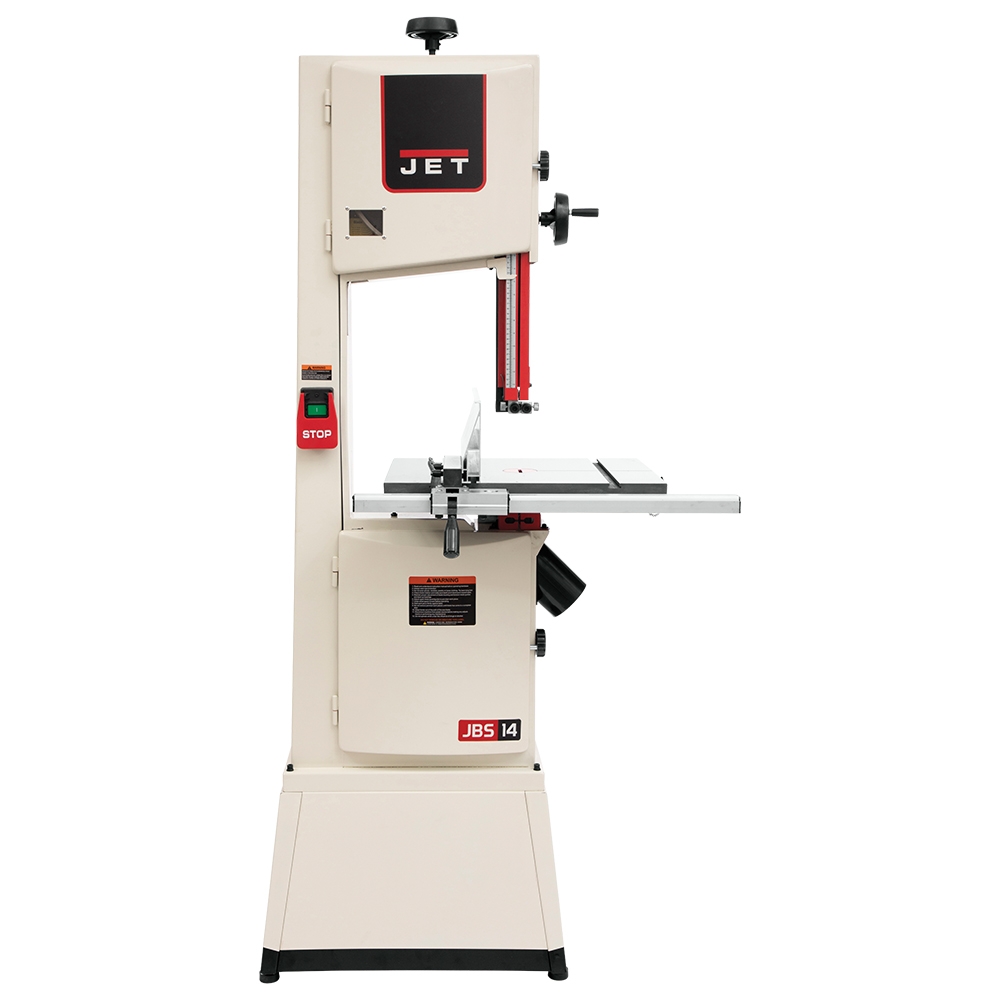

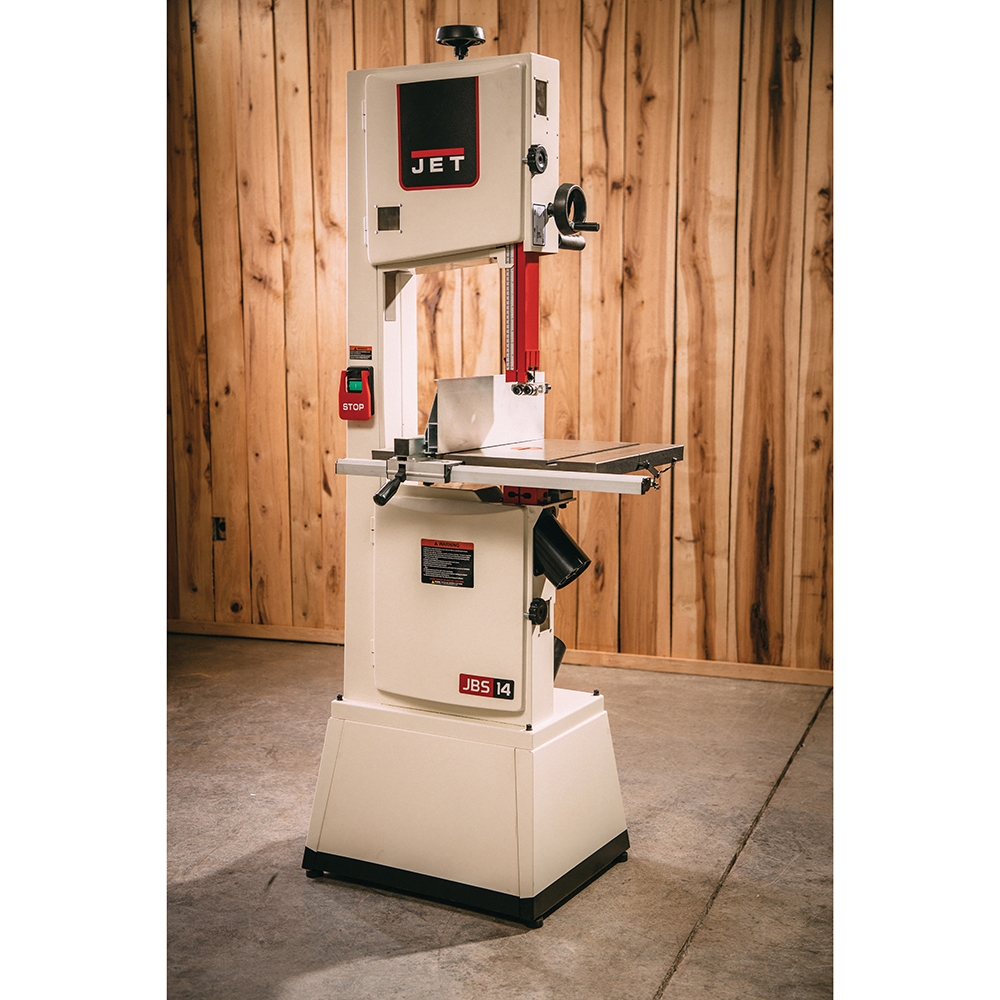

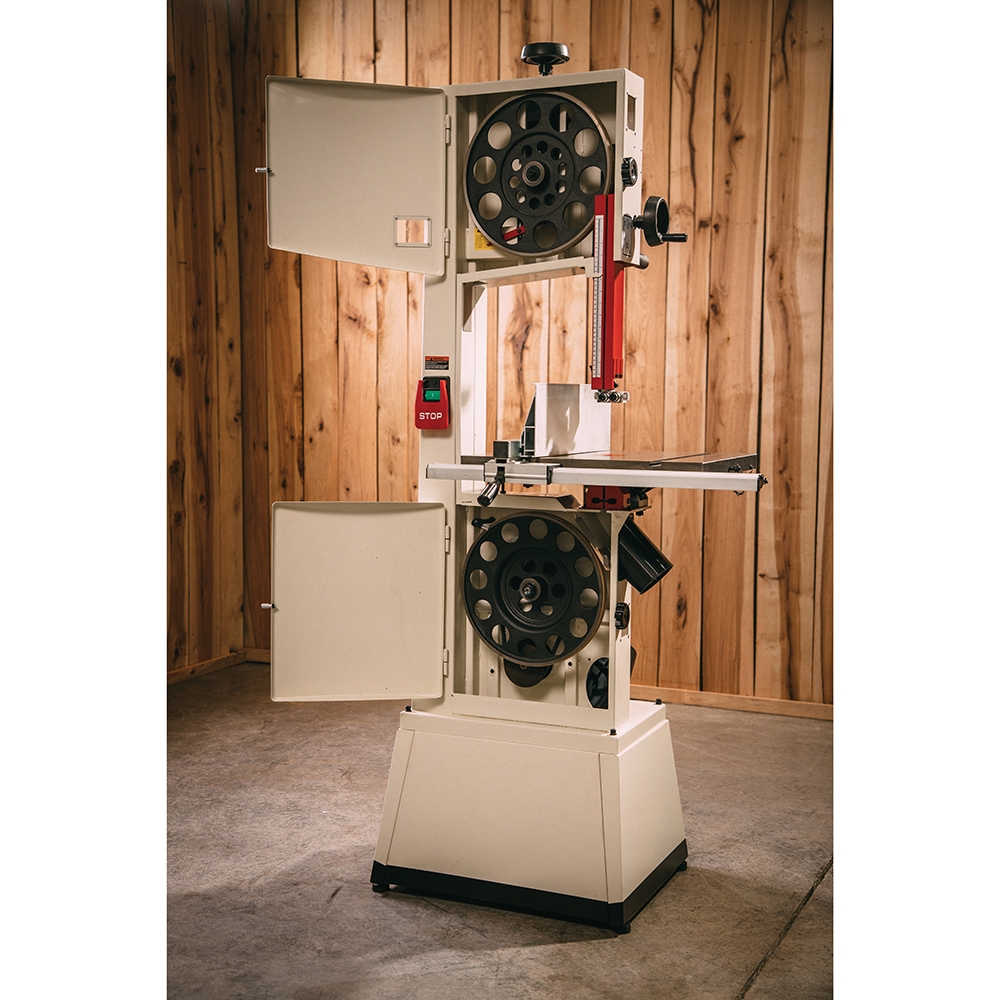

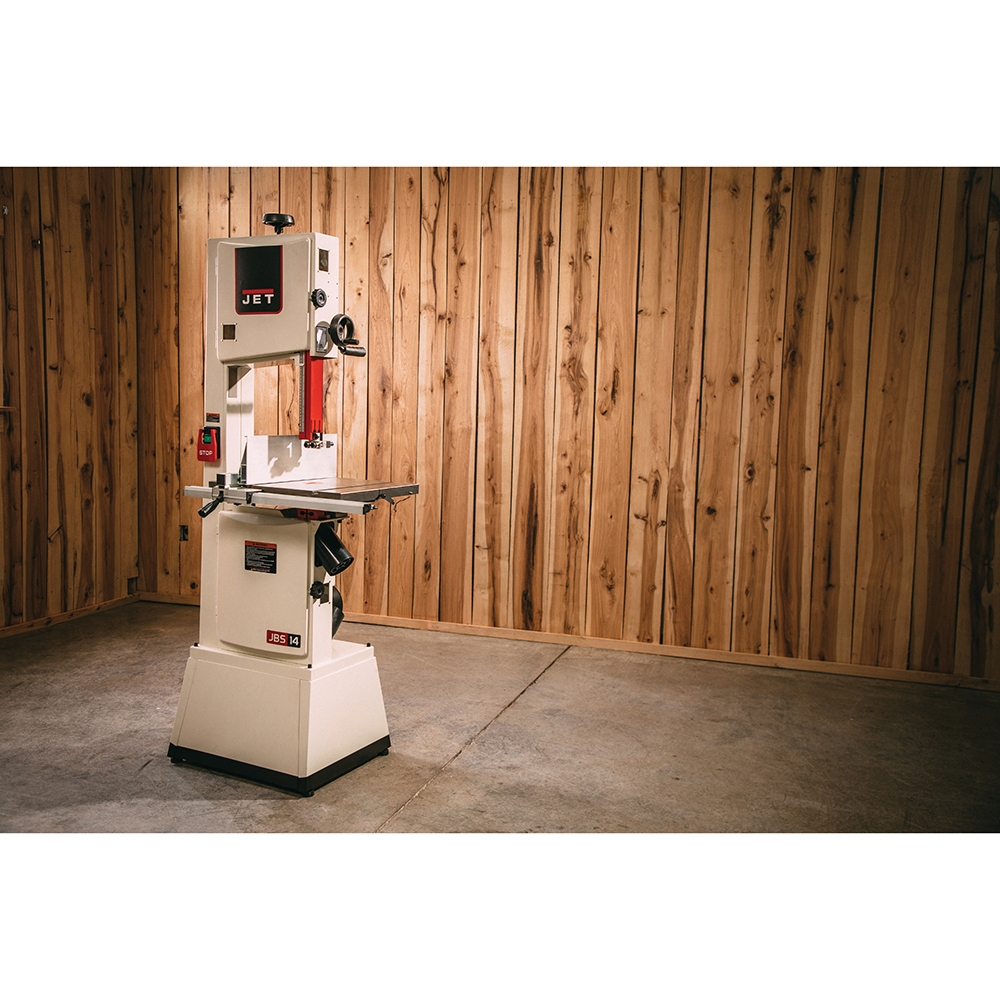

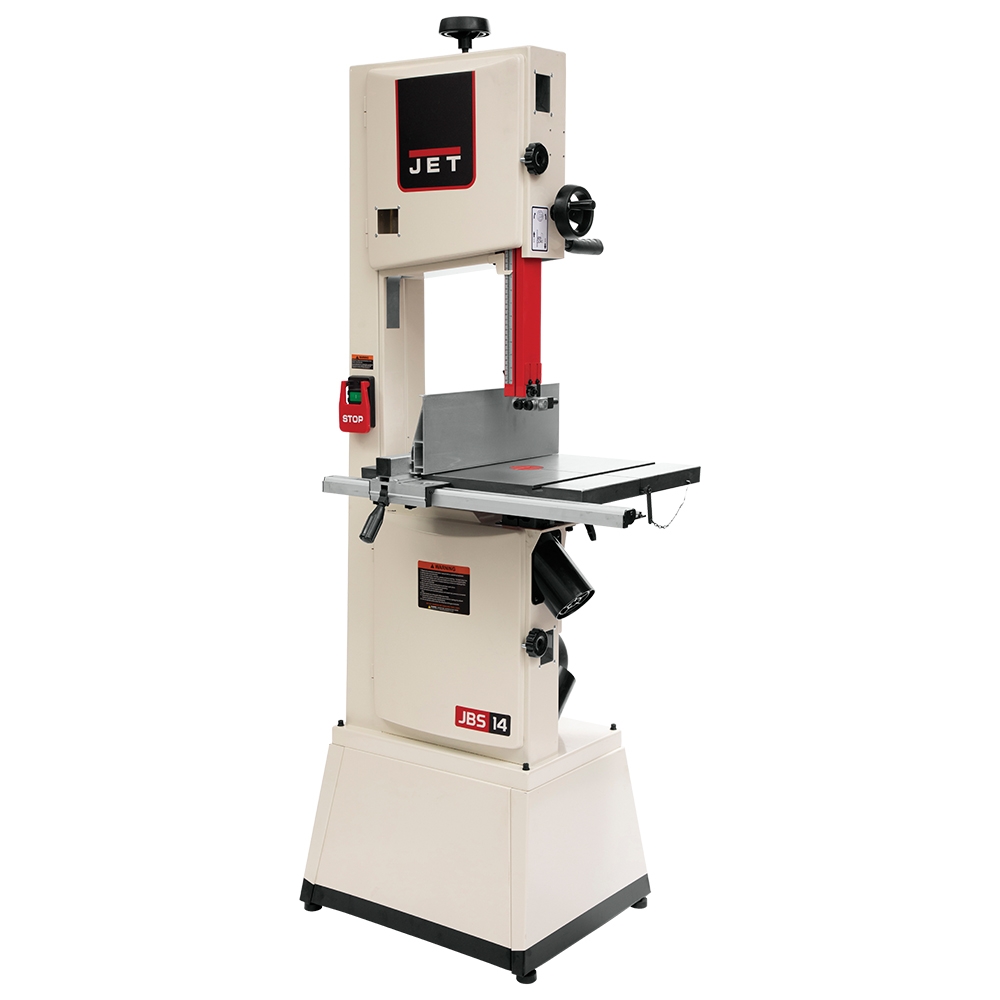

Jet Bandsaw JWBS-14SFX, 14'' Rip x 13'' Resaw

Jet 714400K (JWBS-14SFX) Bandsaw: Motor and Electricals:

• Motor Type: Totally-enclosed fan-cooled induction, capacitor run
• Horsepower: 1.75 HP (1.3 kW)
• Motor Phase: Single
• Motor Voltage: 115/230 V (prewired 115 V)
• Cycle: 60 Hz
• Listed FLA (full load amps): 15 / 7.5A
• Run Capacitor: 40μF 450VAC
• Motor Speed: 1720 RPM
• Starting Current: 63 / 34 A
• Running Current (no load): 5.8 / 3.6 A
• Power Transfer: V-belt
• On/off Switch: Industrial-style push button
• Power Cord and Plug: SJT 14AWGx3C, 6ft., 5-15P plug
• Recommended Circuit Size: 20A (for 115V), 15A (for 230V)
• Sound Emission without Load: 75 dB at 3 ft. (900mm) from blade

Capacities and Speeds:

• Bandsaw Nominal Size: 14'' (355 mm)

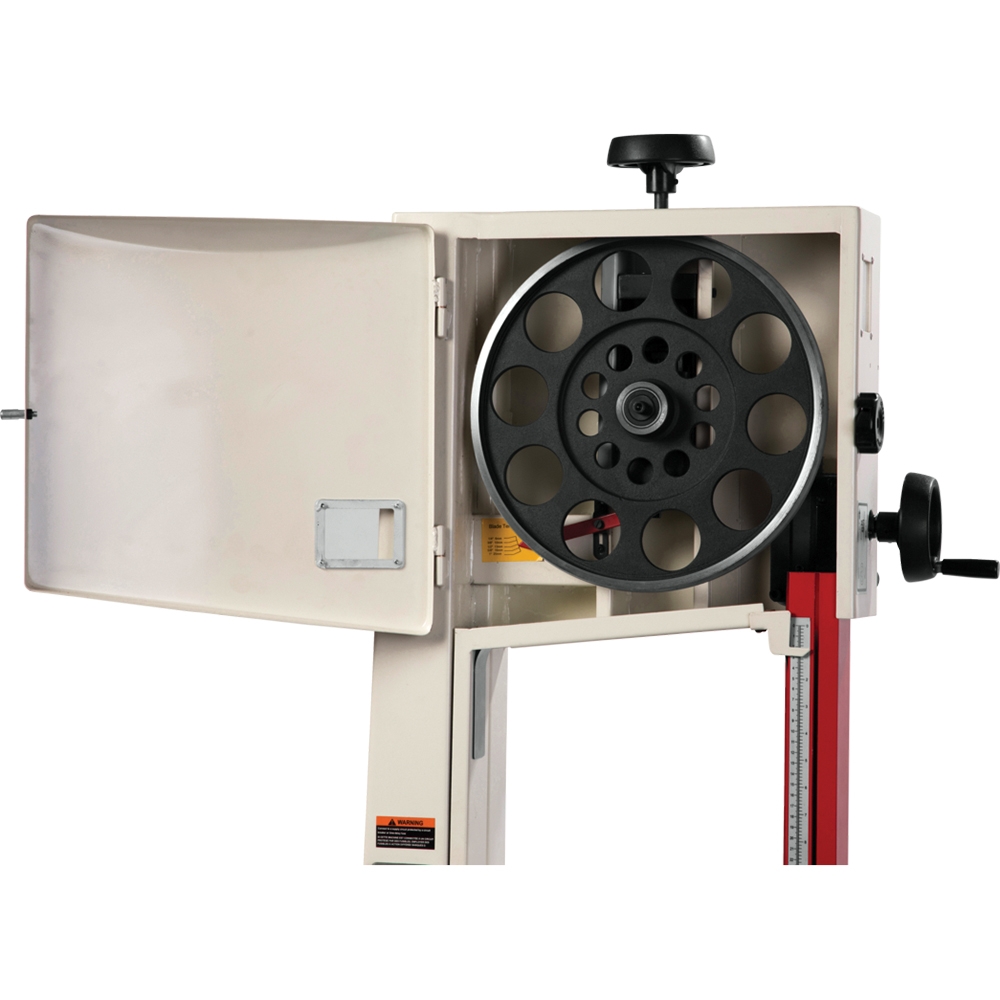

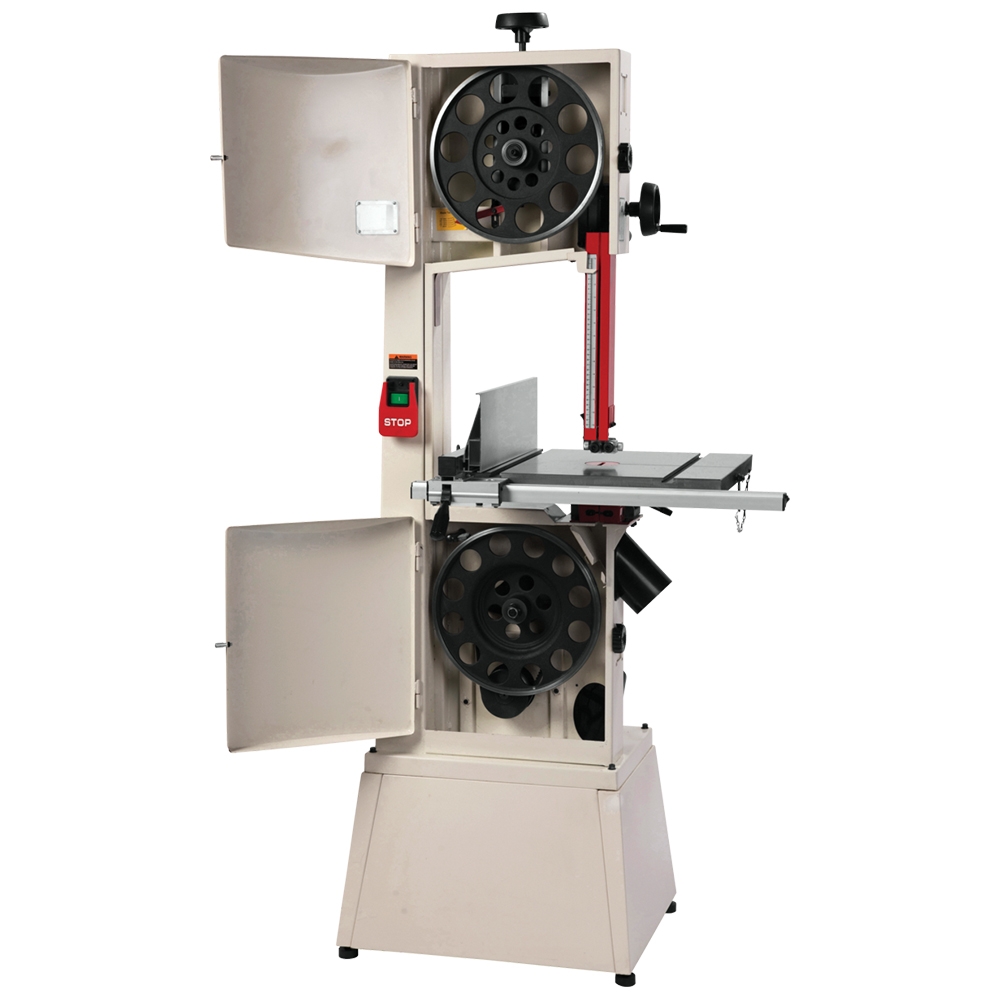

• Wheel Diameter: 14'' (355 mm)
• Resaw Capacity (cutting height): 13'' (330 mm)
• Throat Capacity: 13-1/2'' (345 mm)
• Blade Length: 116” (2947 mm)
• Minimum Blade Width: 1/8” (3.175 mm)
• Maximum Blade Width: 3/4'' (19 mm)
• Blade Speed: 15.24 m/s (3000 FPM)
• Wheel Speed: 765 RPM

Main Materials:

• Table: Ground cast iron
• Table Insert: Anodized aluminum
• Trunnion: Cast iron
• Frame: Steel

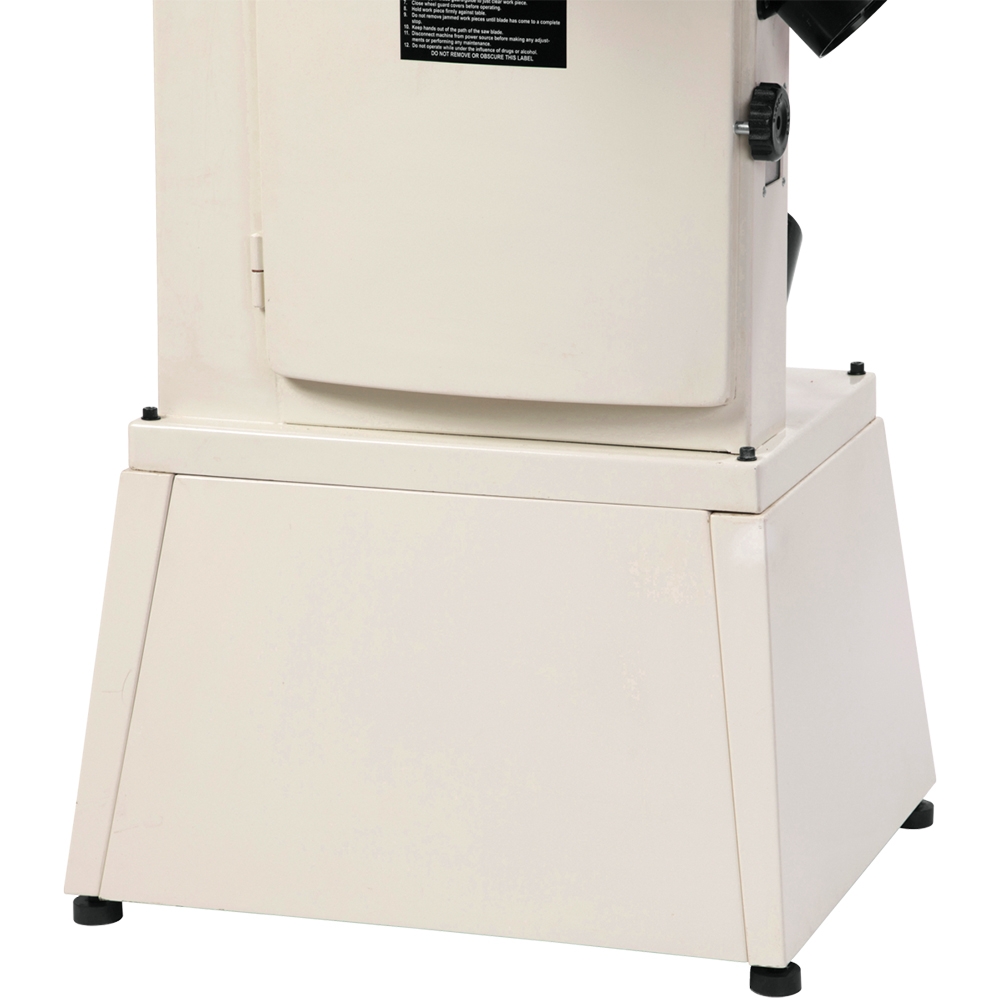

• Stand: Steel
• Wheels: Cast iron
• Tires: Polyurethane
• Blade guides: Ball bearings, aluminum block
• Resaw Fence: Extruded aluminum

Table, Fence, Miter Gauge and Dust Ports:

• Table Dimensions L x W: 21-1/2 x 17'' (535 x 435 mm)
• Table Tilt: 45° Right
• Table Height from Floor: 40'' (1020 mm)
• Miter T-Slot (2), W x D: 3/4'' x 13/32'' (19 x 10 mm)
• Resaw Fence Size L x W x H: 18-1/4'' x 6'' (463 x 155 mm)
• Dust Port Outside Diameter: 4'' (100mm) x 2
• Minimum Extraction Volume Required: 400 CFM

Dimensions and Weights:

• Overall Dimensions, Assembled L x W x H (approx.): 37'' x 27-1/2'' x 75-3/8'' (940 x 700 x 1915 mm)
• Footprint L x W: 24-7/8'' x 17-3/4'' (630 x 450 mm)
• Net Weight (approx.): 300 lbs. (135 kg)
