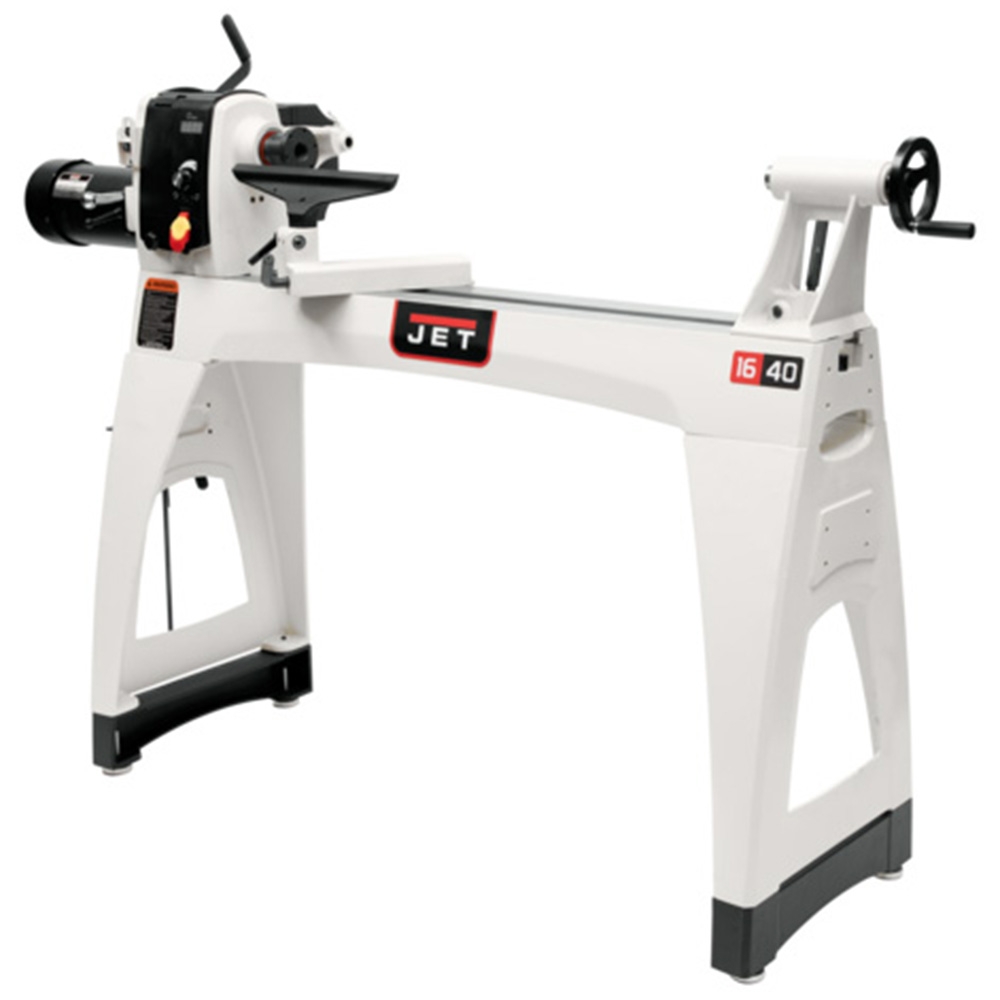

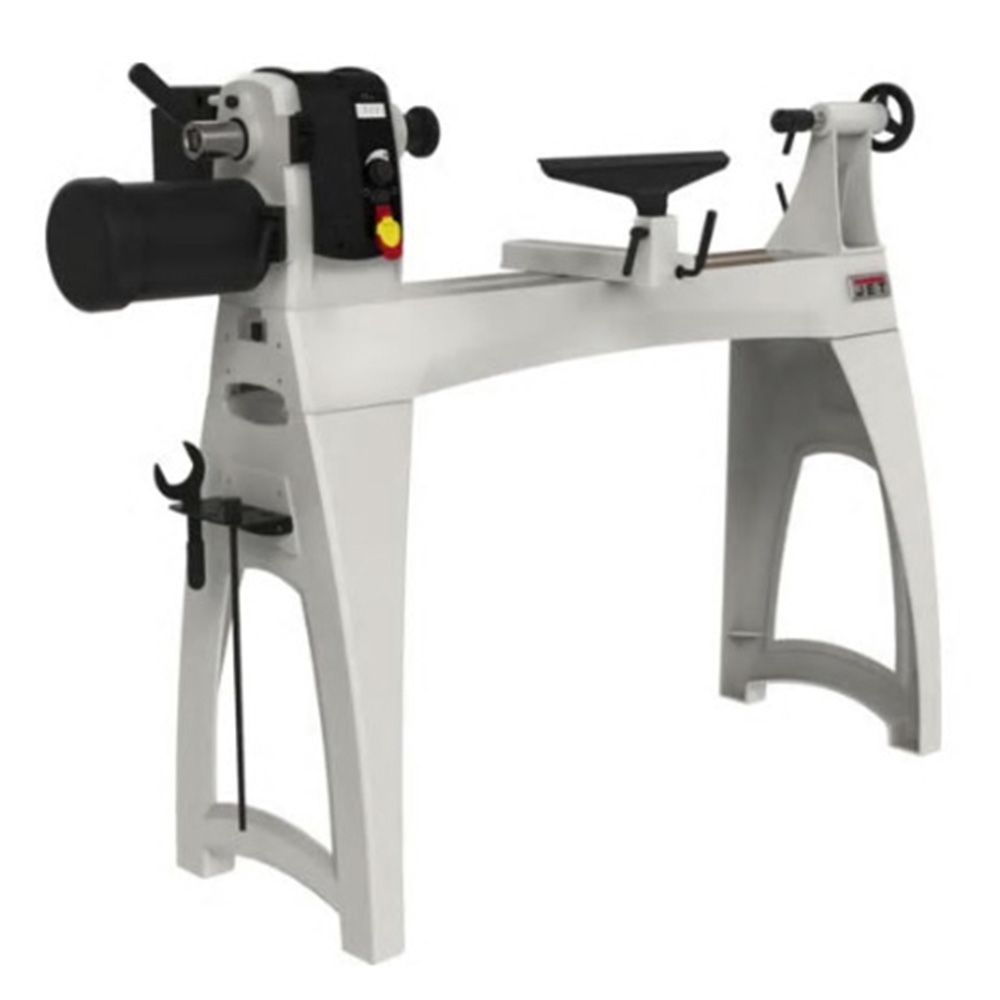

Jet Electronic Variable Speed Wood Lathe JWL-1640EVS, 16'' x 40''
Boasts up to 16'' of swing over the bed and 40'' between centers—simply turn the knob to dial in any speed from 40 to 3,200 RPM!
How do you want your item?
Jet Electronic Variable Speed Wood Lathe JWL-1640EVS, 16'' x 40''
Product Details
Jet's JWL-1640EVS lathe boasts up to 16'' of swing over the bed and 40'' between centers, enough for your most ambitious projects. With its electronic variable speed, an infinite range of speeds between 40 and 3,200 RPM is at your fingertips. Simply turn the knob to dial in the speed you need.
Features:

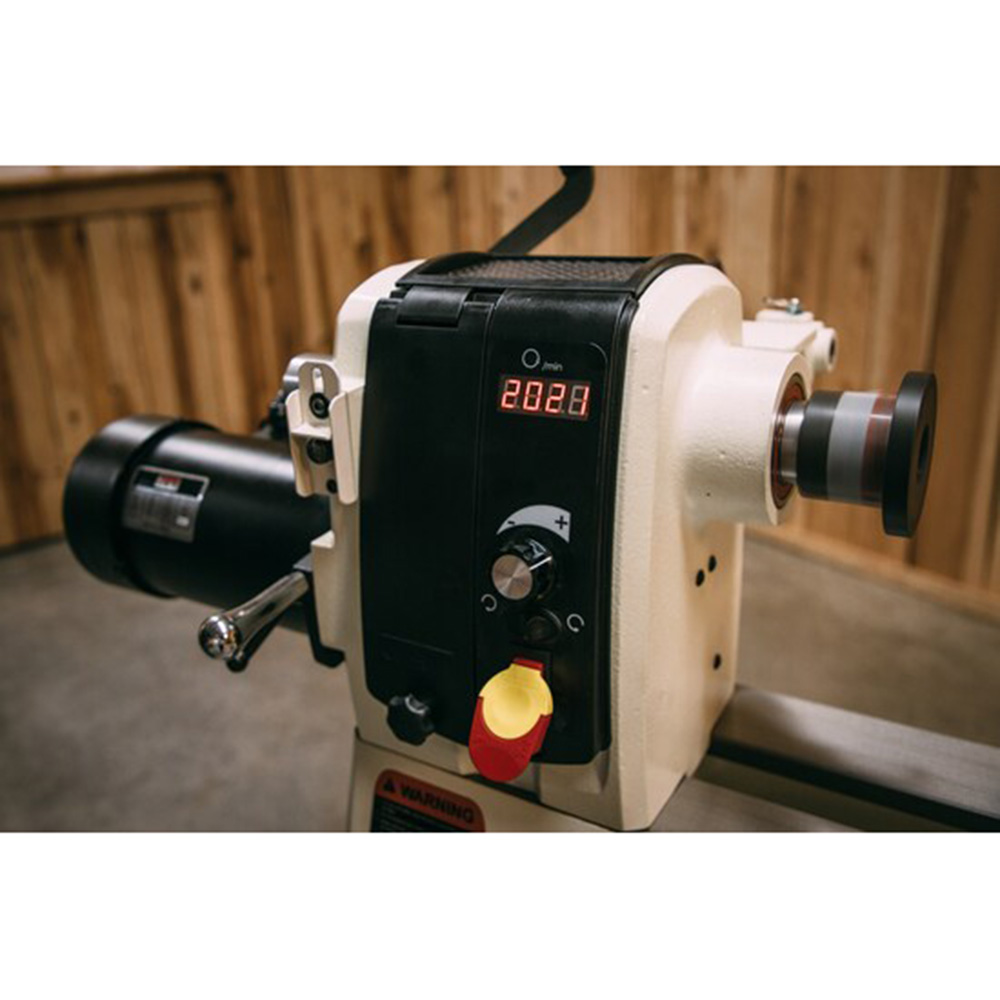

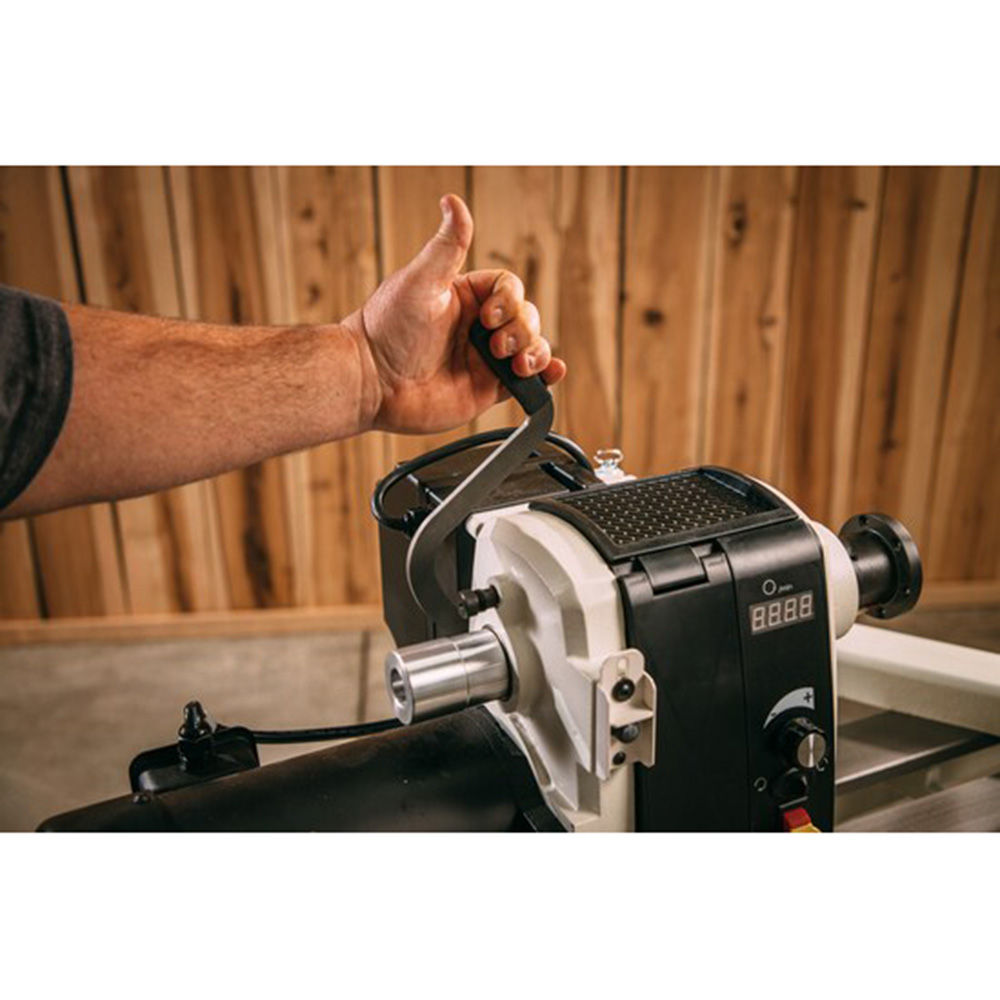

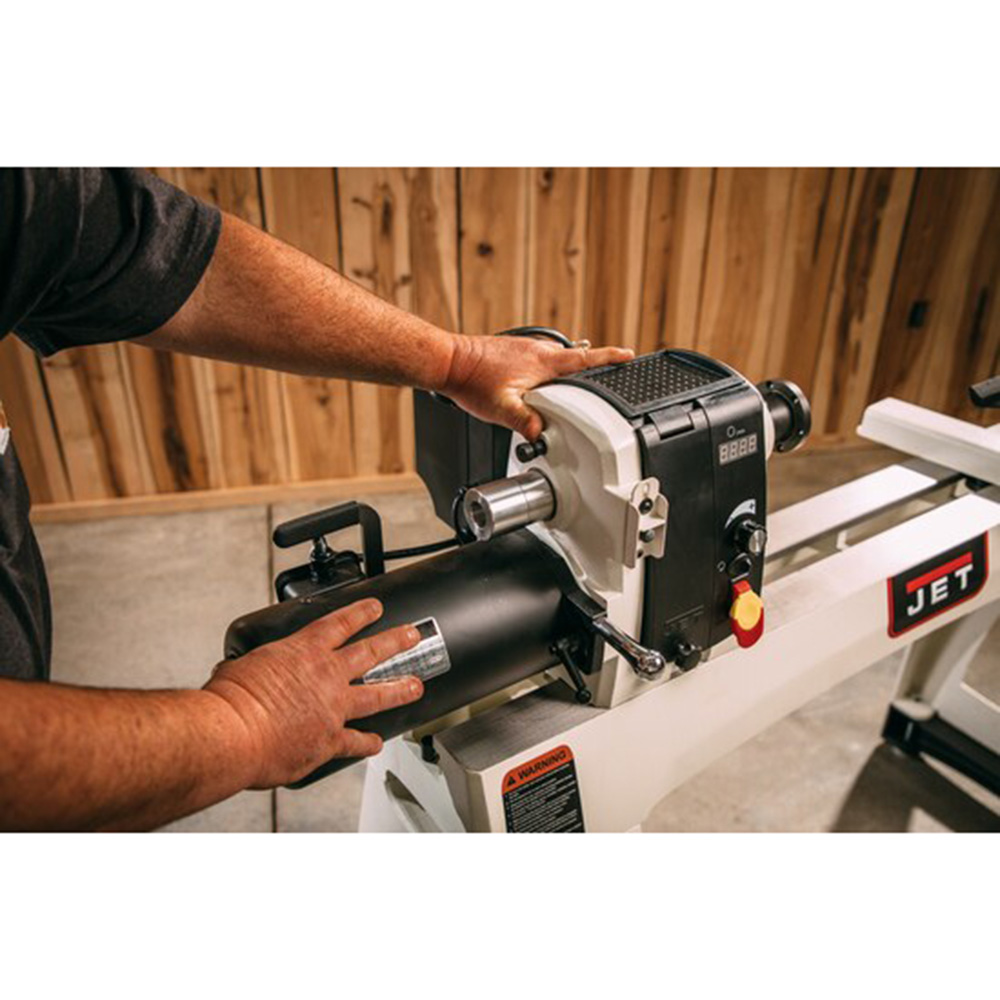

Extended spindle nose houses dual bearings Improved tailstock quill locking mechanism incorporates an anti-rotation key Tailstock features Acme threads for smooth, durable movement Banjo uses non-marring, positive locking wedge system to securely hold tool post Spindle lock latch frees up both hands Electronic infinitely variable speed from 40 to 3,200 RPM 36 integrated indexing positions Newly designed headstock locking handle is accessible from front of lathe Convenient leg-mounted tool holder Inverter is enclosed for added protection E Drive inverter features a built in EMI filter Conveniently located digital readout Rubber tool mat on top of headstock
Return Policy
What's Included
(1) Jet JWL-1640EVS 16'' x 40'' Electronic Variable Speed Wood Lathe with
headstock, tool support and tailstock
(1) Tool rest
(2) Legs
(1) Spur center
(1) Live center
(1) Live cone center
(1) Live cone center pin
(1) Knockout rod
(1) Faceplate (installed on lathe)
(1) Faceplate wrench
(4) Levelers
(1) Tool shelf
(1) Manual
(1) Jet JWL-1640EVS 16'' x 40'' Electronic Variable Speed Wood Lathe with
headstock, tool support and tailstock
(1) Tool rest
(2) Legs
(1) Spur center
(1) Live center
(1) Live cone center
(1) Live cone center pin
(1) Knockout rod
(1) Faceplate (installed on lathe)
(1) Faceplate wrench
(4) Levelers
(1) Tool shelf
(1) Manual
Specifications
More Information
Brand
Jet
Manufacturer Part Number
JT9-719500
Weight
440.00
Tech Spec

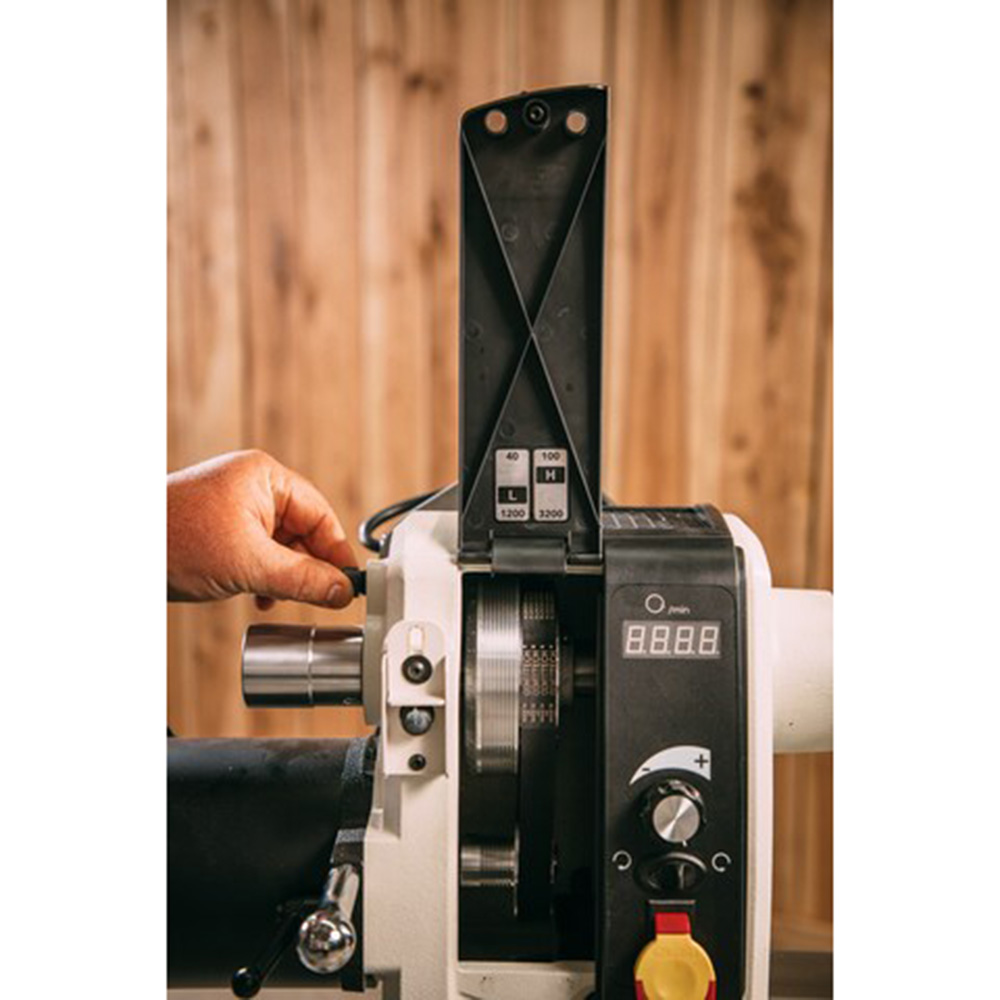

Swing Over Bed (In.): 16-1/2 Bed Gap (In.): 1-3/4 Swing Over Tool Rest Base (In.): 12-7/8 Distance Between Centers (In.): 40 Headstock Movement: Slide Spindle Bore (In.): 5/8 Tailstock Bore (In.): 3/8 Spindle Taper: MT2 Quill Taper: MT2 Quill Travel (In.): 4-1/4 Spindle Thread (In./TPI): 1-1/4"/8 TPI Outboard External Threads (In. x TPI): 3/4-14 LH Spindle Speeds: High 120-3200/Low 40-1200 Speed Range: 40-3200 Number of Indexing Positions: 36 Centerline of Spindle to Floor (In.): 44-1/2 Outboard Turning: Yes Bed Construction: Cast Iron Motor Power (HP): 1-1/2 Motor Phase (PH): 3 Motor Voltage (V.): 230 Prewired Voltage (V.): 115 Input Only Wiring Remarks: 115v input only Motor Amps: 4.6 Recommended Circuit Size (Amps.): 20 Assembled Machine Dimensions (In.): 73 x 52-1/2 x 20
