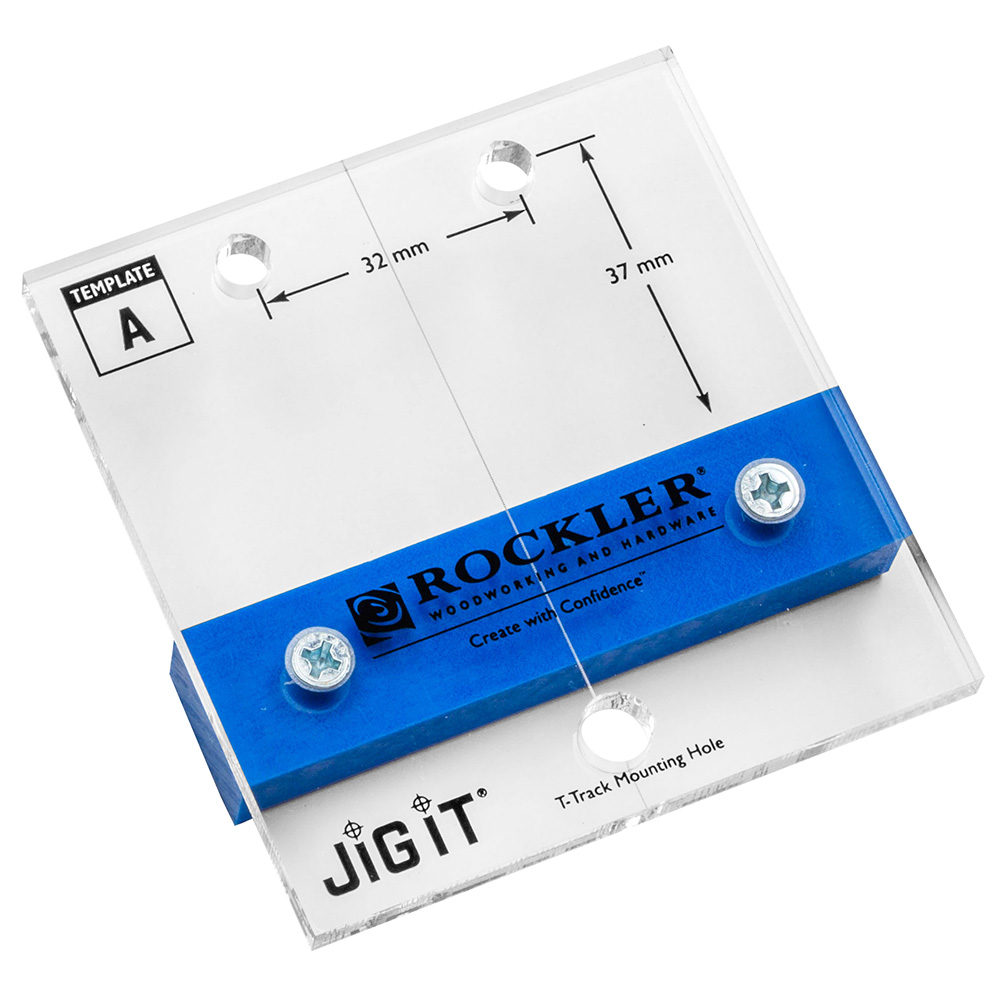

JIG IT® Hinge Plate Template A

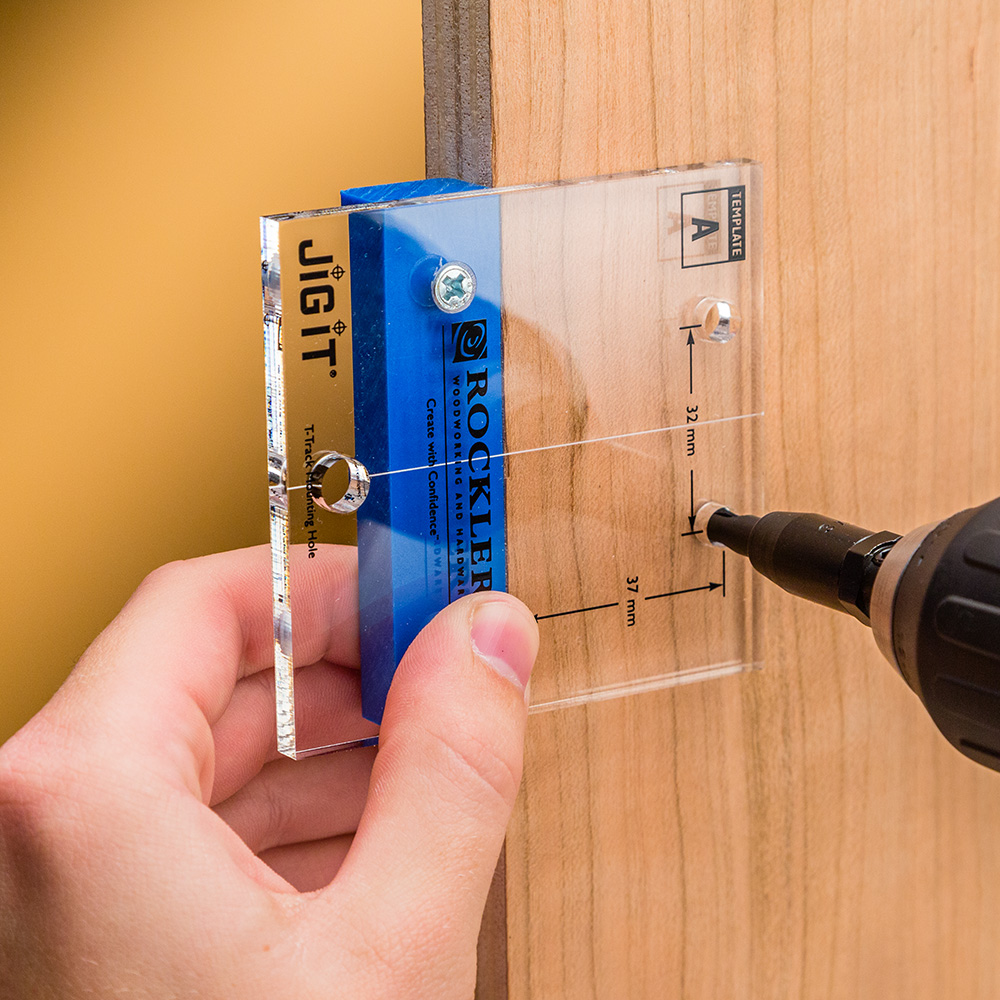

Your doors will swing smoothly and line up neatly every time with our JIG IT® templates to guide your way. Just butt the template up against the face of your cabinet and use a centering bit to drill perfectly positioned mounting holes for a wide variety of concealed hinges. See the compatibility info below for a list of which hinges are compatible with this template. Requires #6 Self Centering Bit.

For even faster, more foolproof installation, use several of these templates mounted on one of our T-track rails (e.g. #26420, sold separately).

For easier mounting of the cup plate from two-part Euro-style hinges, check out the JIG IT® Deluxe Concealed Hinge Drilling System. It works with your handheld drill and sets up so you can bore precisely spaced hinge cup mounting holes on multiple doors.

Features:

• Installs hinges: #32894, #33603, #55864, #55872, #55793, #55801, #55840, #55847, #28817, #81018, #55886, #38385, #38398
• Use with #6 Self Centering Bit
• These hinges are used on frameless cabinets
• Clear acrylic for easy alignment with your marks
• Also includes T-track mounting hole for repeatable alignment and placement of hinges
• Hole spacing and setback measurements are conveniently printed on the acrylic face for reference
• Stable, durable polymer fence
