Kreg Adaptive Cutting System

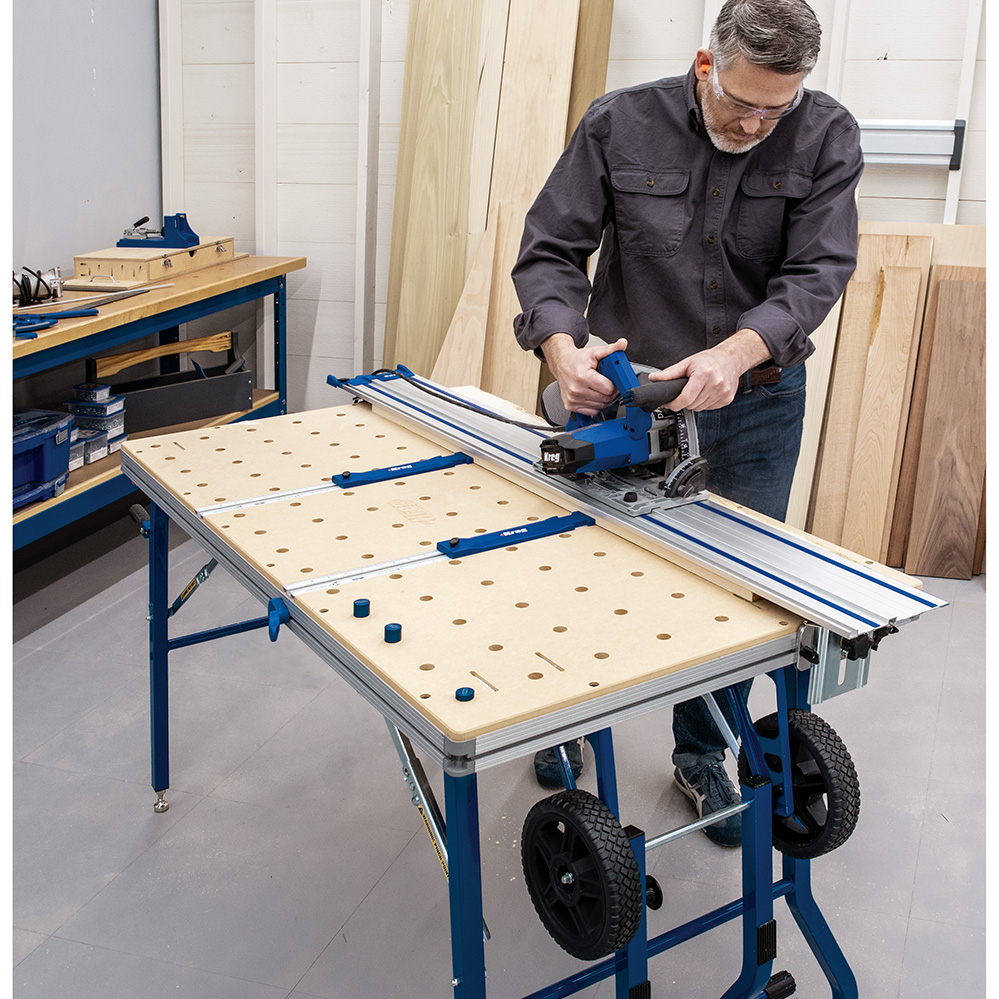

Kreg Adaptive Cutting System Master Kit

Kreg's ACS (Adaptive Cutting System) Master Kit is your one-stop shop for crosscutting, ripping, mitering and beveling both sheet stock and solid wood. Versatile, portable and precise, it can make an ideal table saw substitute for small shops. The system marries a high-performance track saw and a matching 62'' track with a sturdy, supportive table that can be folded up and rolled away when not in use. The Project Table is pre-drilled with dog holes that accept the included Versa-Stops, and features integrated measuring systems with included material stops that precisely position your materials for smooth, straight, accurate cuts, every time.

Features:

• Precisely dimension plywood sheet goods and solid wood—all in one location with one tool
• Easily move the system to wherever you need it, in the garage, in the driveway or to the jobsite
• Plunge Saw and joinable 62'' Guide Tracks provide straight, smooth cuts
• Replaceable splinter guards in the base of the plunge saw help minimize chip-out and splintering
• 50'' cutting capacity when a single Guide Track is used—expandable to 112'' by combining two tracks with the optional Connector Kit
• Project Table enhances cutting capabilities by supporting and precisely positioning materials for repeatable cuts
• Capable of ripping, crosscutting, mitering and beveling with one system
• Portable, with a compact, vertical storage footprint—table folds up and rolls away on the integral wheels
• Integrated safety features include a fully-shrouded blade, a retractable riving knife and anti-kickback protection

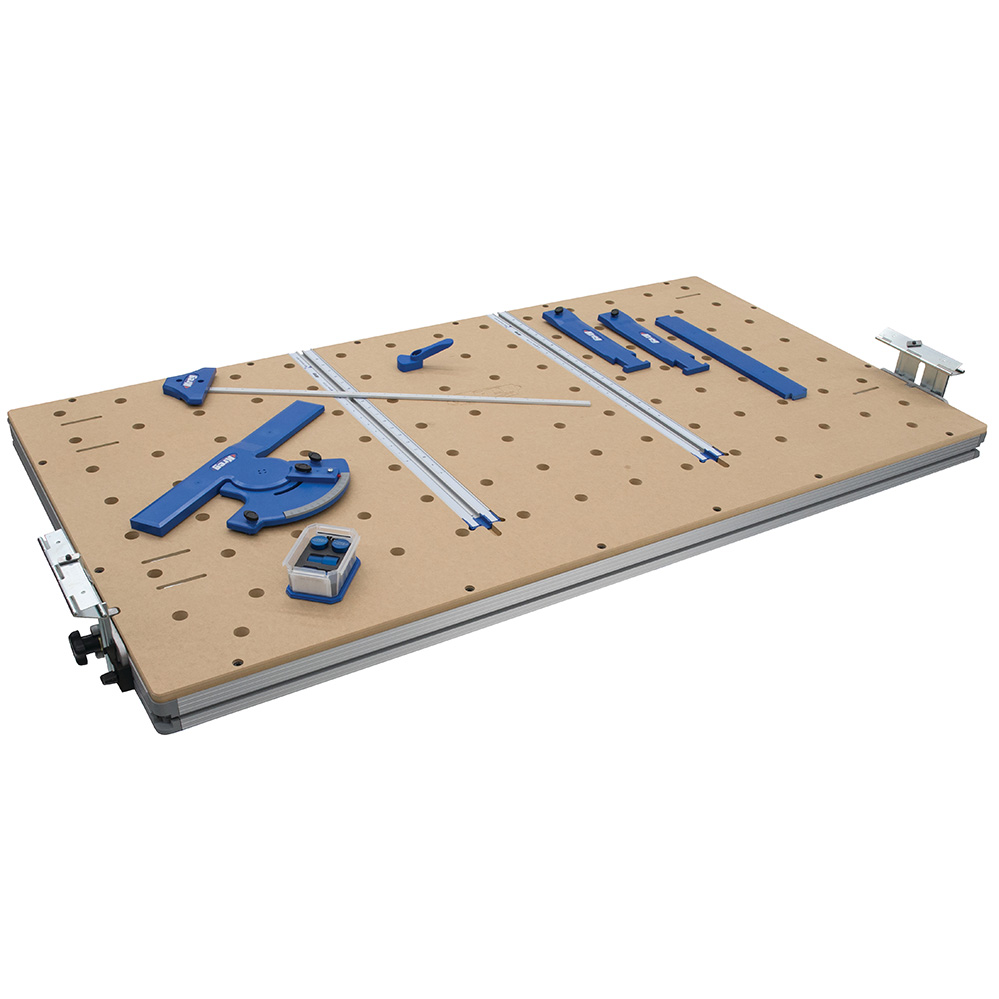

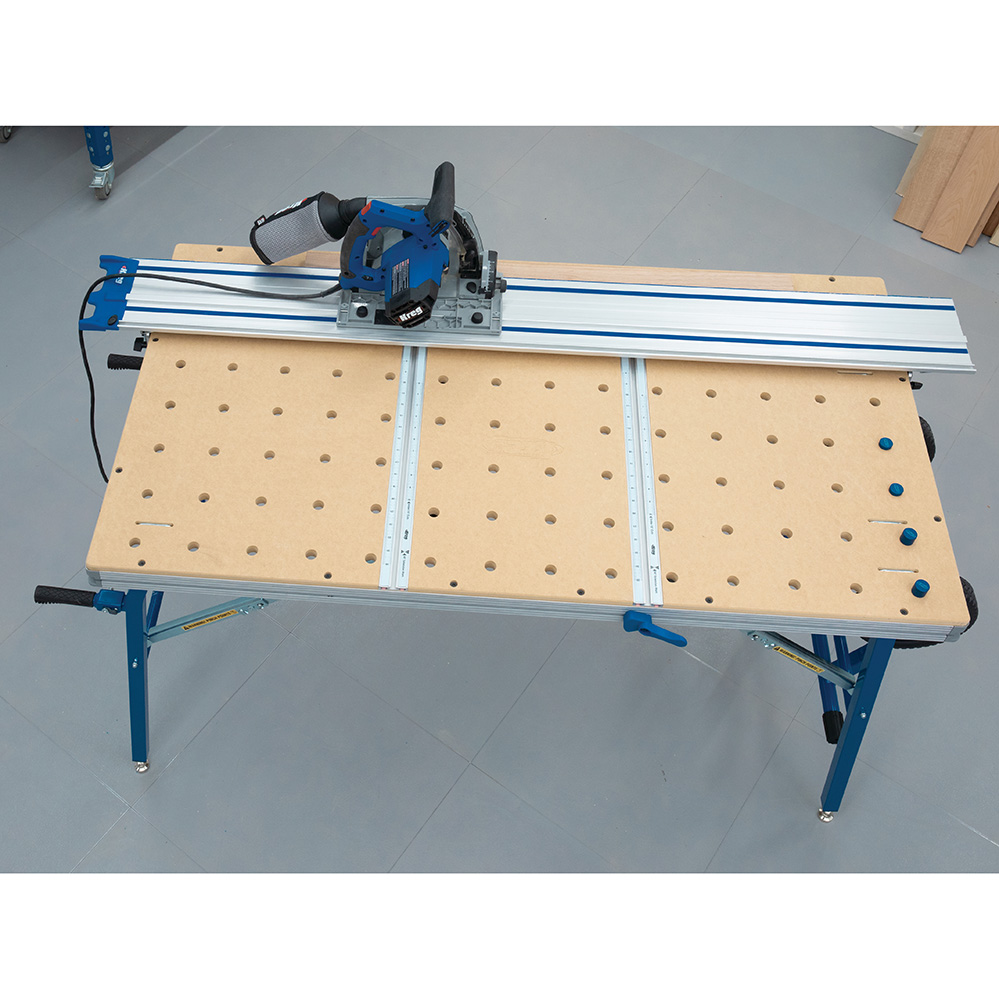

Kreg ACS Project Table Top

The Kreg ACS Project Table Top lets you quickly and precisely position solid stock and sheet goods for cutting with your Kreg Plunge Saw and 62'' Guide Track (both sold separately). A major innovative feature of the top is the convenient hinge mechanism that lifts your Guide Track above the table so you can position your workpiece beneath it and remove it after cutting. Since the Guide Track remains in the same place, a kerf in the table shows where the cut line will always be, and acts as a chip breaker for the bottom side. That means splinter-free cuts on both sides of the workpiece. Precisely positioned dog holes in the top make it easy to position Versa-Stops, while the scales and stops make it easy to perform repeated cuts.

Features:

• Supports and positions your work while cutting with the Kreg Adaptive Cutting System Plunge Saw and Guide Track
• Hinged track lifting mechanism make it easy to position boards under the Guide Track
• Project Table Top is made from flat, stable MDF with an aluminum frame for additional stiffness
• Large 55'' x 29-3/4'' surface supports large panels and sheet goods
• Integrated measuring scales ensure accurate, repeatable cuts and simple setups
• Precision-machined holes accept included Versa-Stops for precise material positioning at 90° and 45°
• Included adjustable stops and miter guide position and hold materials for a wide variety of accurate cuts

Note: The Project Table Top is designed for use with the Adaptive Cutting System Project Table Base (#62584, sold separately).

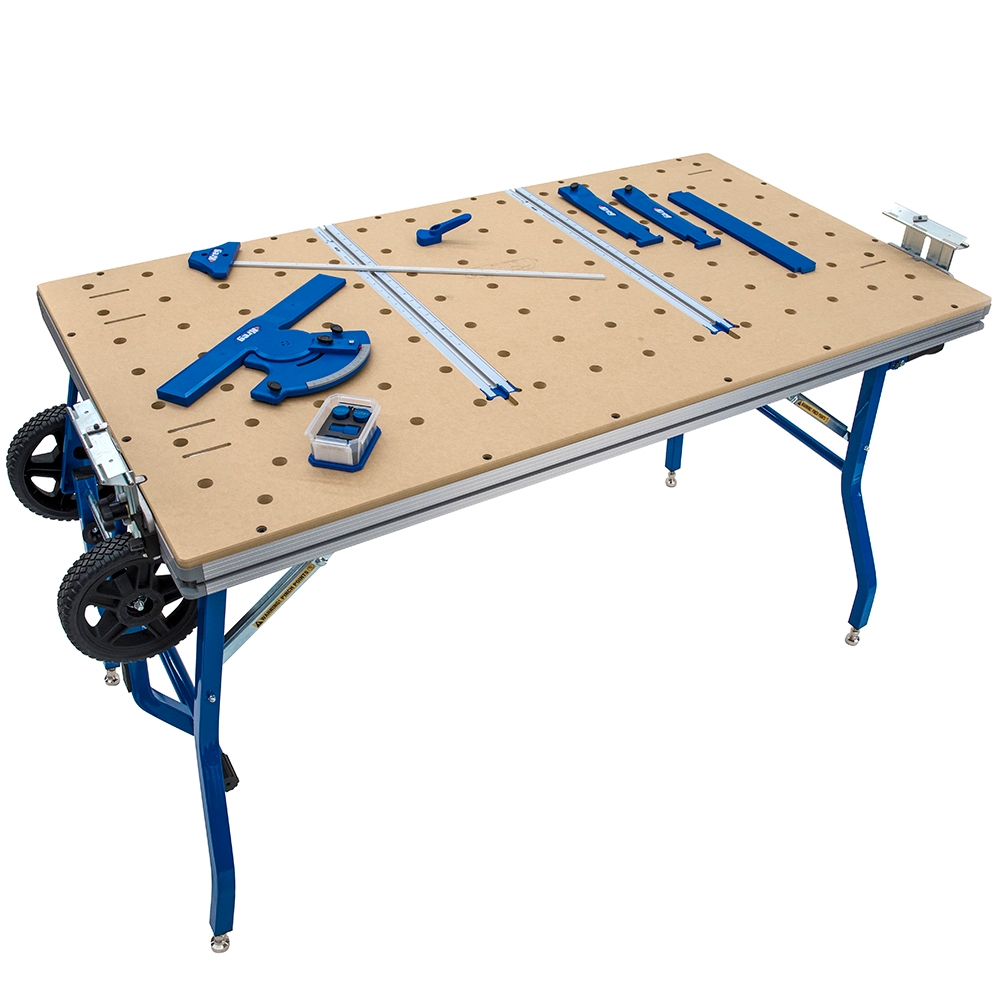

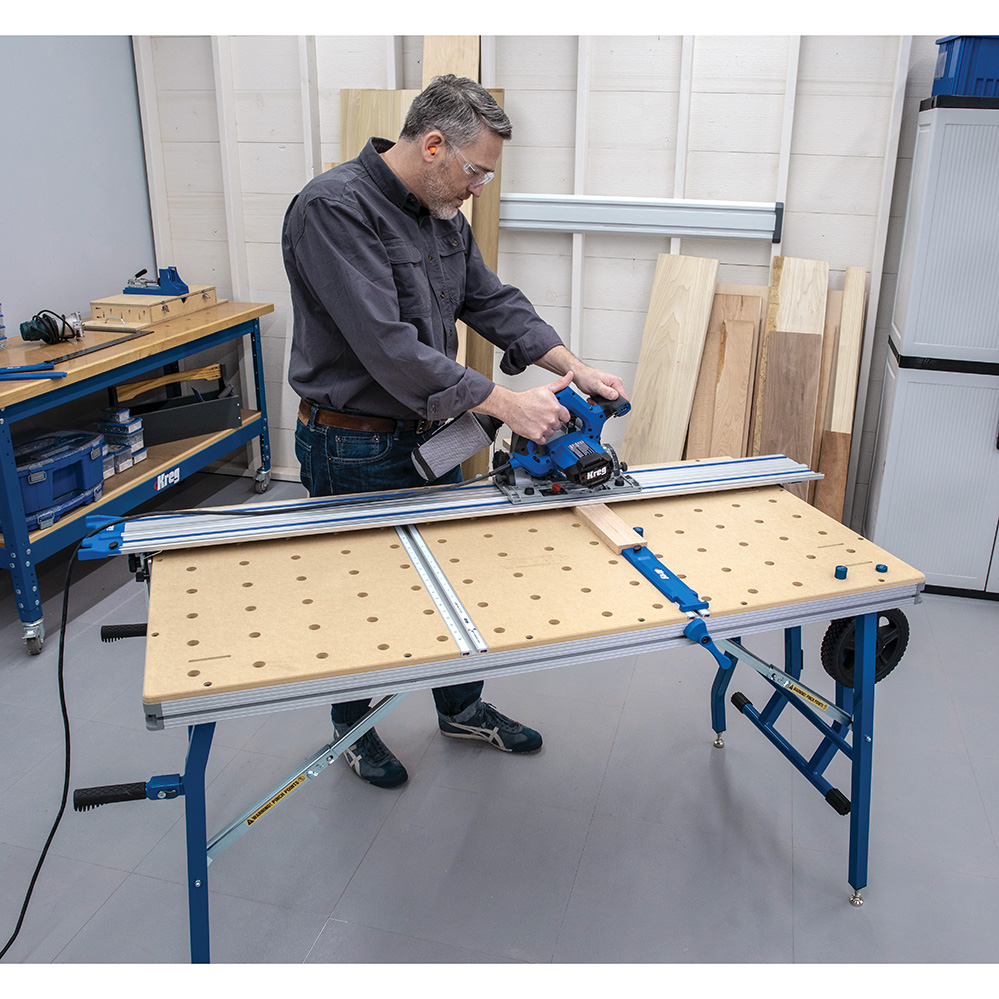

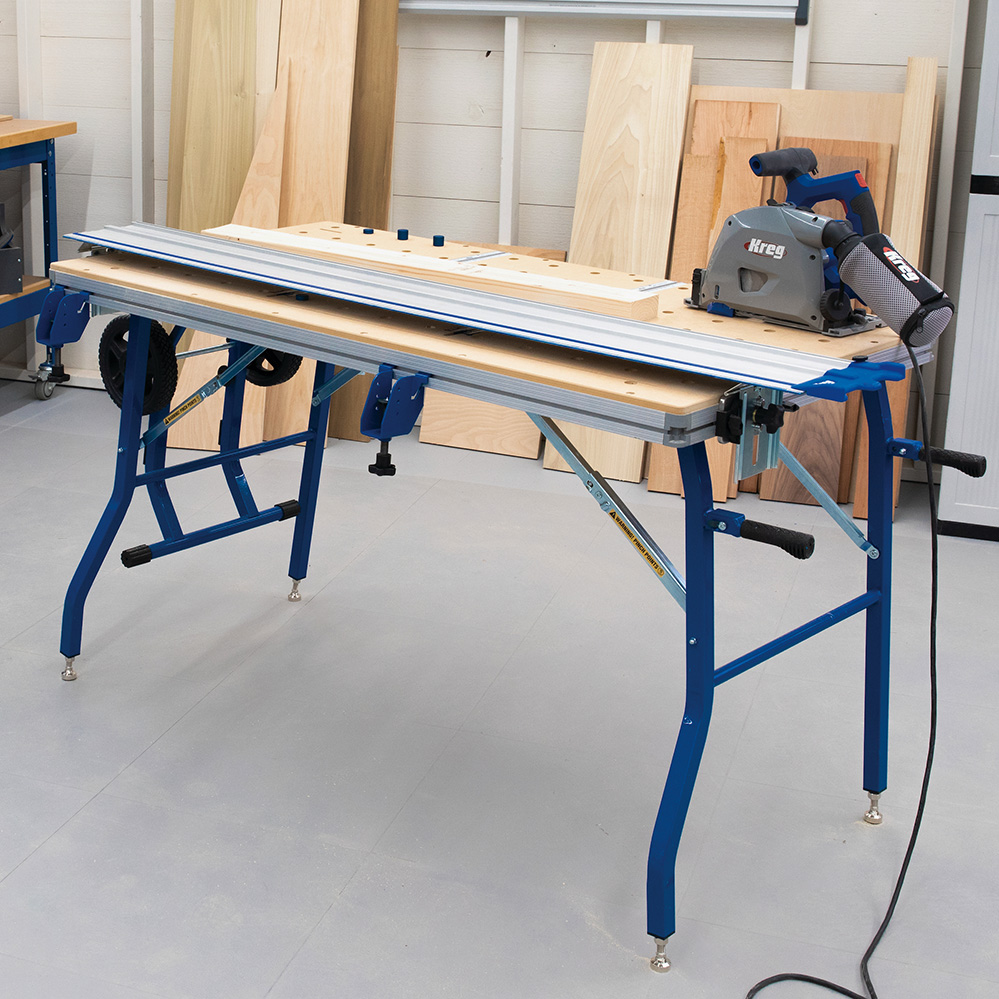

Kreg ACS Project Table Kit

Kreg's ACS Project Table Kit combines table and base, letting you quickly and precisely position solid stock and sheet goods for cutting with your Kreg Plunge Saw and 62'' Guide Track (both sold separately). The included folding/rolling base allows easy transport and vertical storage against the wall when not in use. A major feature of the top is the convenient hinge mechanism that lifts your Guide Track (sold separately) above the table so you can position your workpiece beneath it and remove it after cutting. Since the Guide Track remains in the same place, a kerf in the table shows where the cut line will be, and acts as a chip breaker for the bottom side. That means splinter-free cuts on both sides of the workpiece. Precisely positioned dog holes in the top make it easy to position the included Versa-Stops, while the scales and stops make it easy to perform repeated cuts.

Features:

• Supports and positions your work while cutting with the Kreg Adaptive Cutting System Plunge Saw and Guide Track
• Hinged track lifting mechanism make it easy to position boards under the Guide Track (sold separately)

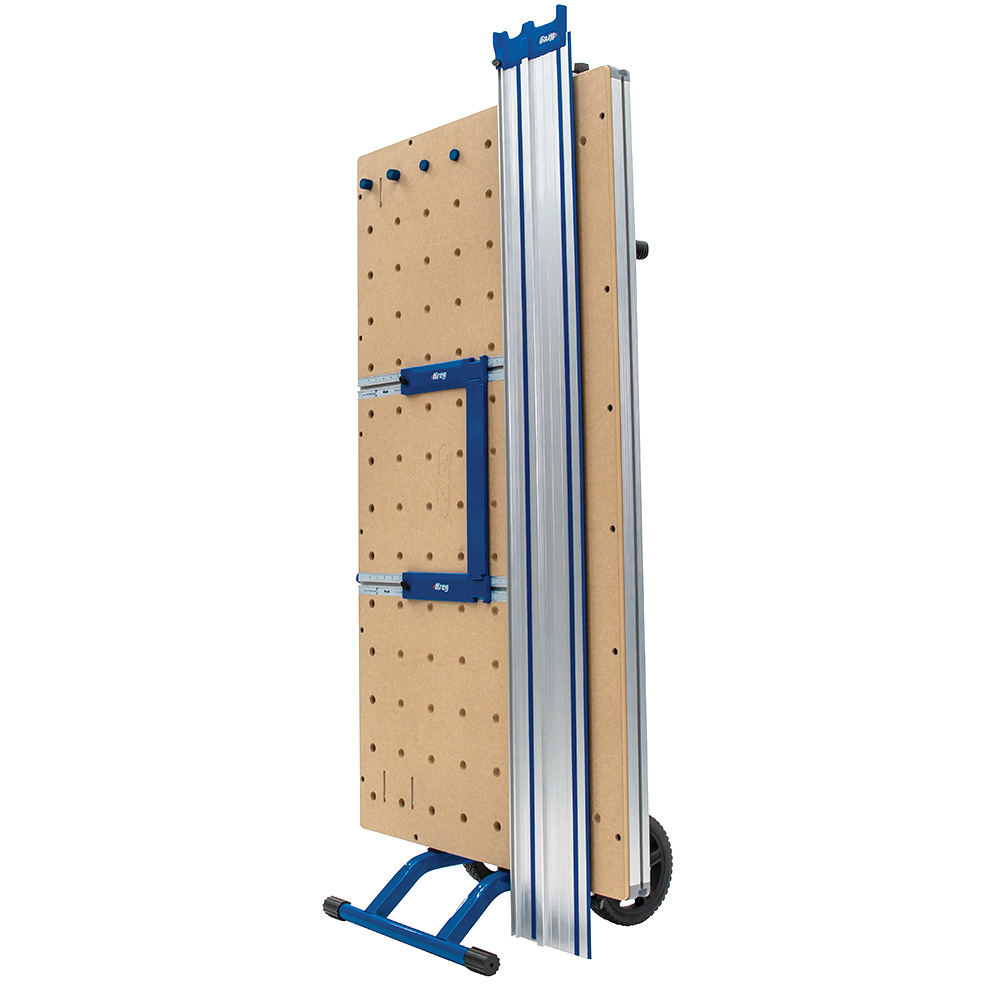

• Base folds so you can stand the table up vertically and roll it into a corner or onto the bed of your truck
• Project Table Top is made from flat, stable MDF with an aluminum frame for additional stiffness
• Large 55'' x 29-3/4'' surface supports large panels and sheet goods
• Integrated measuring scales ensure accurate, repeatable cuts and simple setups
• Precision-machined holes accept included Versa-Stops for precise material positioning at 90° and 45°
• Included adjustable stops and miter guide position and hold materials for a wide variety of accurate cuts
• Stand handles fold out for use when transporting; large wheels allow smooth rolling
• Adjustable leg levelers for stability on uneven floors

Note: Designed for use with the Kreg's ACS Plunge Saw and Guide Track (e.g. #63422, sold separately).

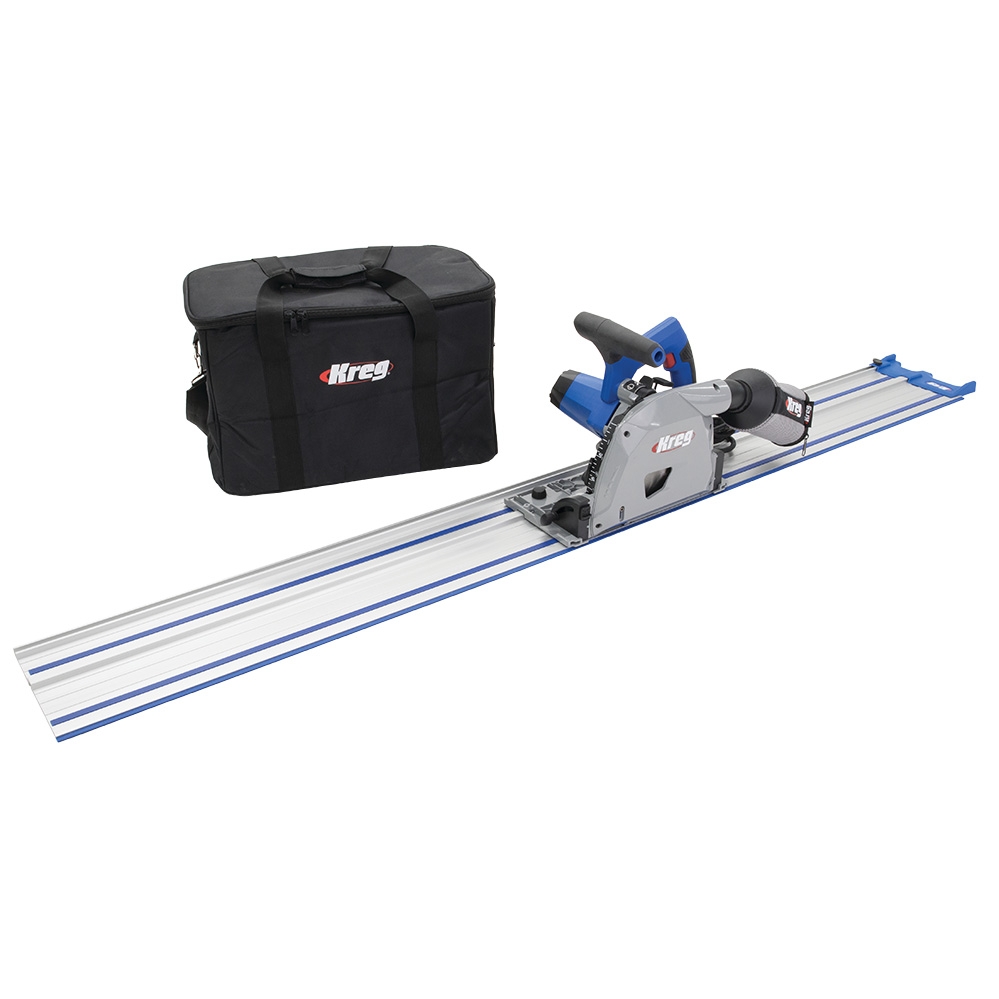

Kreg ACS Plunge Saw + Guide Kit

Armed with Kreg's ACS Plunge Saw and the included 62'' Guide Track, you'll be crosscutting, ripping, mitering and beveling both sheet stock and solid wood with ease and accuracy. Compact, versatile, portable and precise, it makes an excellent table saw substitute for small shops and site work. Simply lay the aluminum Guide Track where you want to cut, and it stays in place without clamps while the Plunge Saw rides along the track, producing a smooth, straight, splinter-free cut. The saw offers a powerful 12A motor with load compensation, variable speed and an electronic brake, plus a fully shrouded blade, retractable riving knife and an innovative switchable anti-kickback feature. An integral dust port and included bag let you collect chips to minimize mess, or connect a vacuum hose if desired.

Features:

• Everything needed to make straight, smooth, splinter-free cuts in plywood and solid wood
• Fully shrouded blade with retractable riving knife and selectable anti-kickback control
• Large, comfortable handles locate your hands away from the blade
• Replaceable splinter guards in the base of the plunge saw help minimize chip-out and splintering
• High-capacity cutting with 2-1/8'' maximum cut at 90° and 1-1/2'' at 45°
• Adjustable for making bevel cuts from -1° to 47°
• 50'' cutting capacity when a single Guide Track is used—expandable to 112'' by combining two tracks (additional Tracks sold separately)
• Capable of ripping, crosscutting, mitering and beveling with one system
• Integrated safety features include a fully-shrouded blade, a retractable riving knife and anti-kickback protection
• Includes a 48-tooth carbide-tipped blade
• Numerous Adaptive Cutting System accessories available, including a Project Table (e.g. #69044, sold separately)

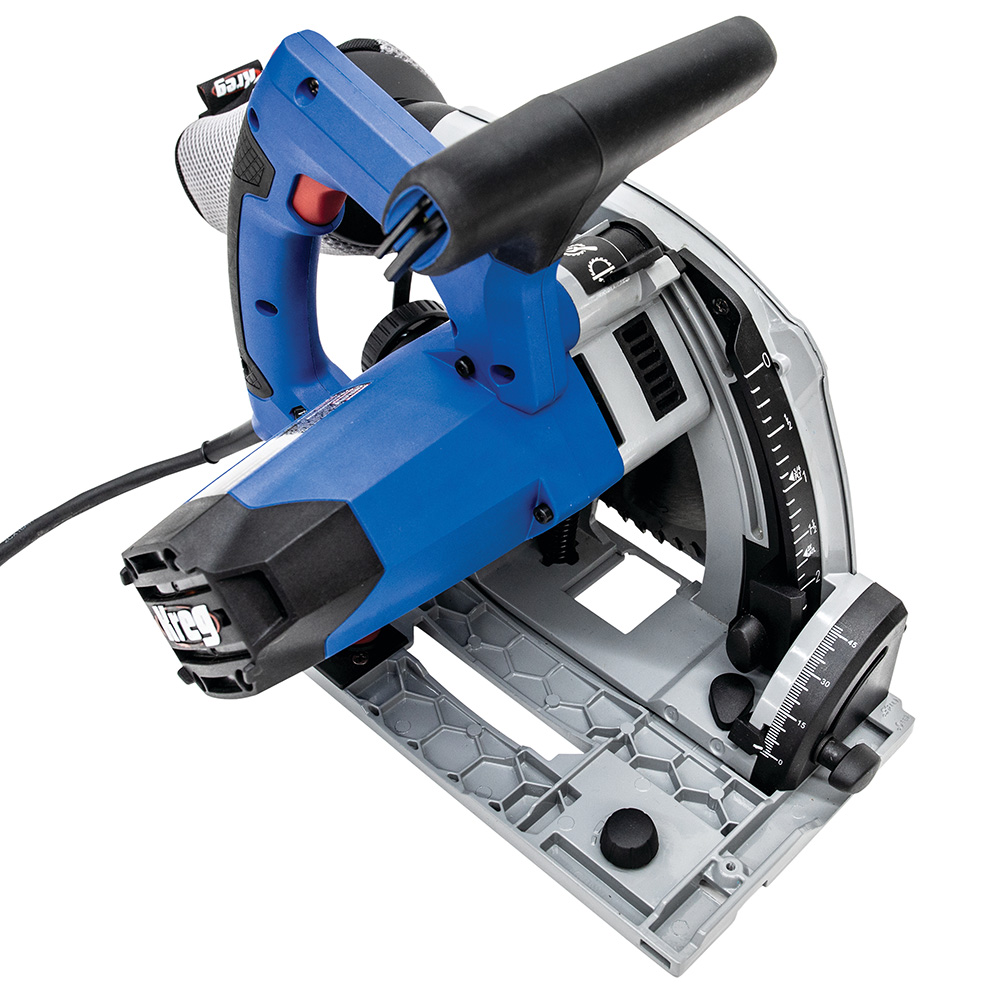

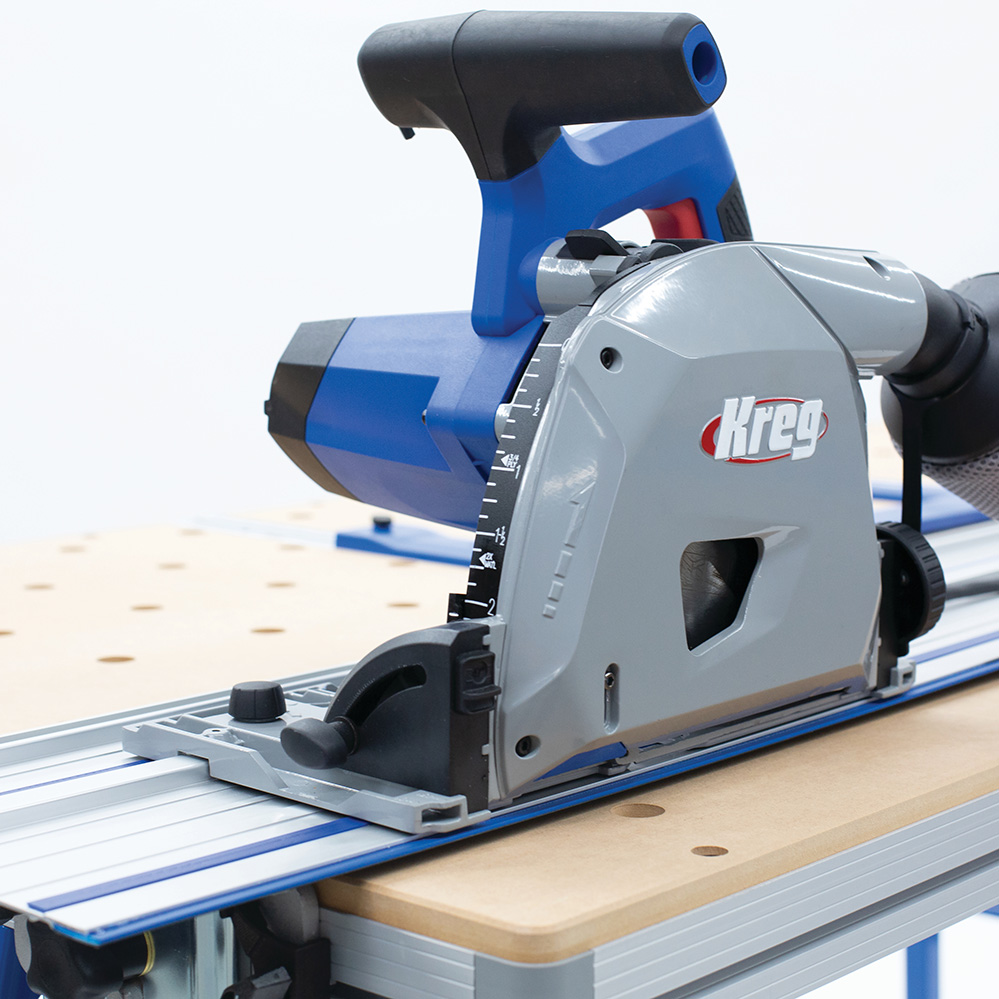

Kreg ACS Plunge Saw

Armed with Kreg's ACS Plunge Saw and a 62'' Guide Track (sold separately), you'll be crosscutting, ripping, mitering and beveling both sheet stock and solid wood with arrow-straight, splinter-free cuts. Compact, versatile, portable and precise, the Adaptive Cutting System makes an excellent table saw substitute for small shops and site work. It offers a powerful 12A motor with load compensation, variable speed and an electronic brake, plus a fully shrouded blade, retractable riving knife and an innovative switchable anti-kickback feature. An integral dust port and included bag let you collect chips to minimize mess, or connect a vacuum hose if desired. The track saw is designed to run along Kreg's matching 62'' tracks (sold separately).

Features:

• Precisely dimension plywood sheet goods and solid wood—a compact, powerful cutting solution
• Fully shrouded blade with retractable riving knife and selectable anti-kickback control
• Large, comfortable handles locate your hands away from the blade
• Replaceable splinter guards in the base of the plunge saw help minimize chip-out and splintering
• High-capacity cutting with 2-1/8'' maximum cut at 90° and 1-1/2'' at 45°
• Adjustable for making bevel cuts from -1° to 47°
• 50'' cutting capacity when a single Guide Track is used—expandable to 112'' by combining two tracks
• Capable of ripping, crosscutting, mitering and beveling with one system
• Integrated safety features include a fully-shrouded blade, a retractable riving knife and anti-kickback protection
• Includes 48-tooth carbide-tipped blade
• Use with Kreg's joinable 62'' Guide Tracks (sold separately) for straight, smooth cuts
• Numerous accessories available, including a Project Table

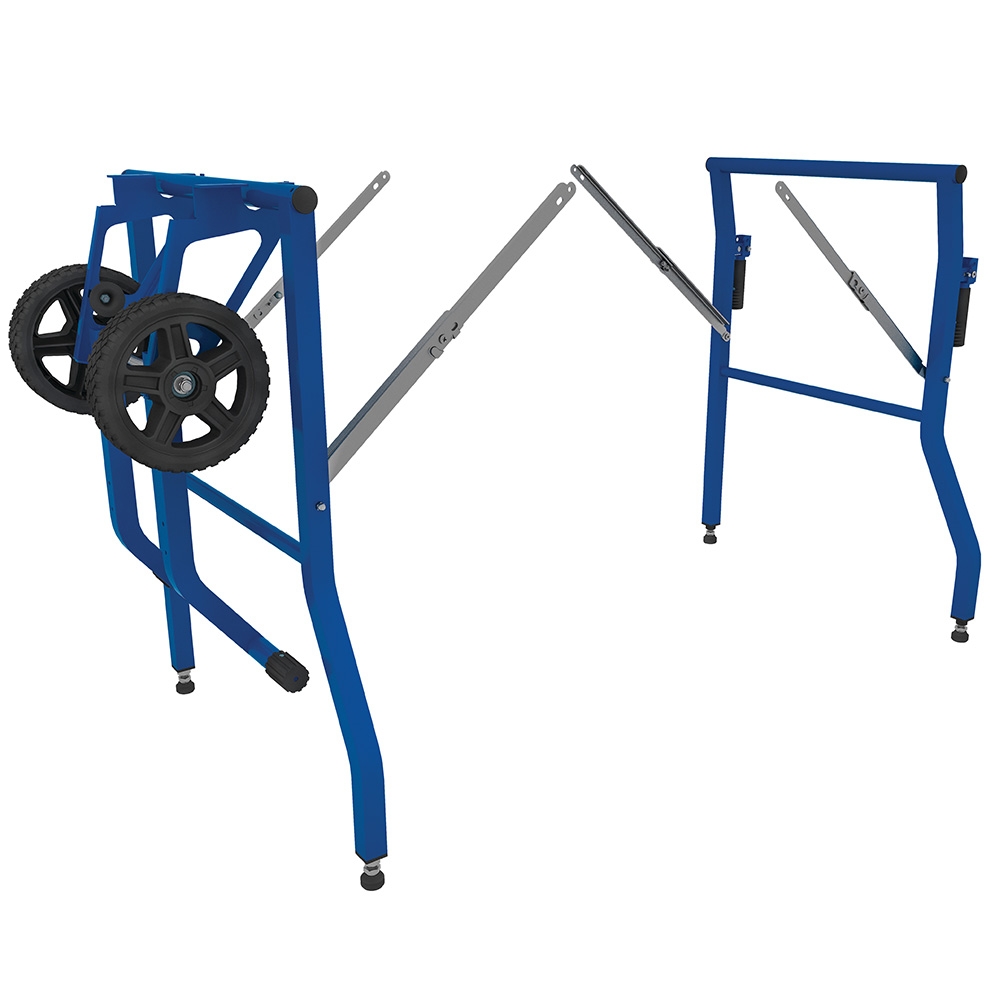

Kreg ACS Project Table Base

The Kreg ACS Project Table Base offers solid support for the Adaptive Cutting System Project Table Top (#65683, sold separately). It allows you to roll the entire cutting system into a corner for compact vertical storage or onto the bed of your truck for transport. Large rubber wheels and folding handles make it easy to roll over varying terrain. Constructed from heavy-gauge steel for durability. Positive locking supports keep the legs open, while catches hold everything in place against the underside of the table during storage or transport. Adjustable levelers let you fine-tune the height, and eliminate rocking on uneven floors.

Features:

• Folding, rolling stand for the Adaptive Cutting System Project Table Top (#65683, sold separately)
• Attaches to the Project Table Top to allow the table to fold vertically and roll for easy storage or transport
• Handles fold out for use when transporting; large wheels for smooth rolling

• Heavy-duty steel construction for strong, stable support
• Adjustable leg levelers for stability on uneven floors
• Stable leg braces lock in position to ensure solid footing

Note: Designed for use with the Adaptive Cutting System Project Table Top

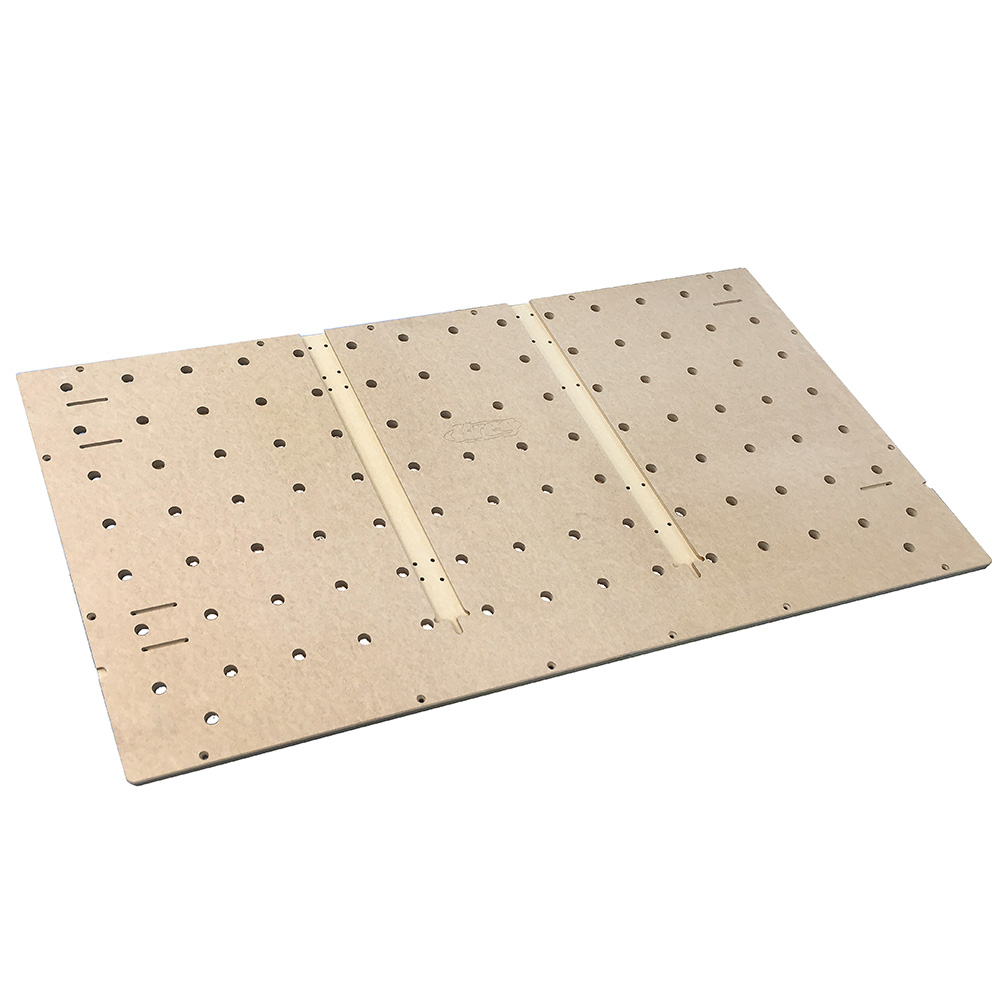

Kreg ACS Project Table Replacement MDF Top

When the MDF top on your Kreg ACS Project Table gets worn or damaged, this replacement top is perfectly machined to slide right in. It is machined to the same precision as the original, with matching slots, dog holes and mounting holes. Includes all necessary mounting hardware.

Features:

• Precision-machined replacement MDF top for the Adaptive Cutting System Project Table
• Identical to the original equipment table surface that came with your top
• Includes mounting hardware and instructions

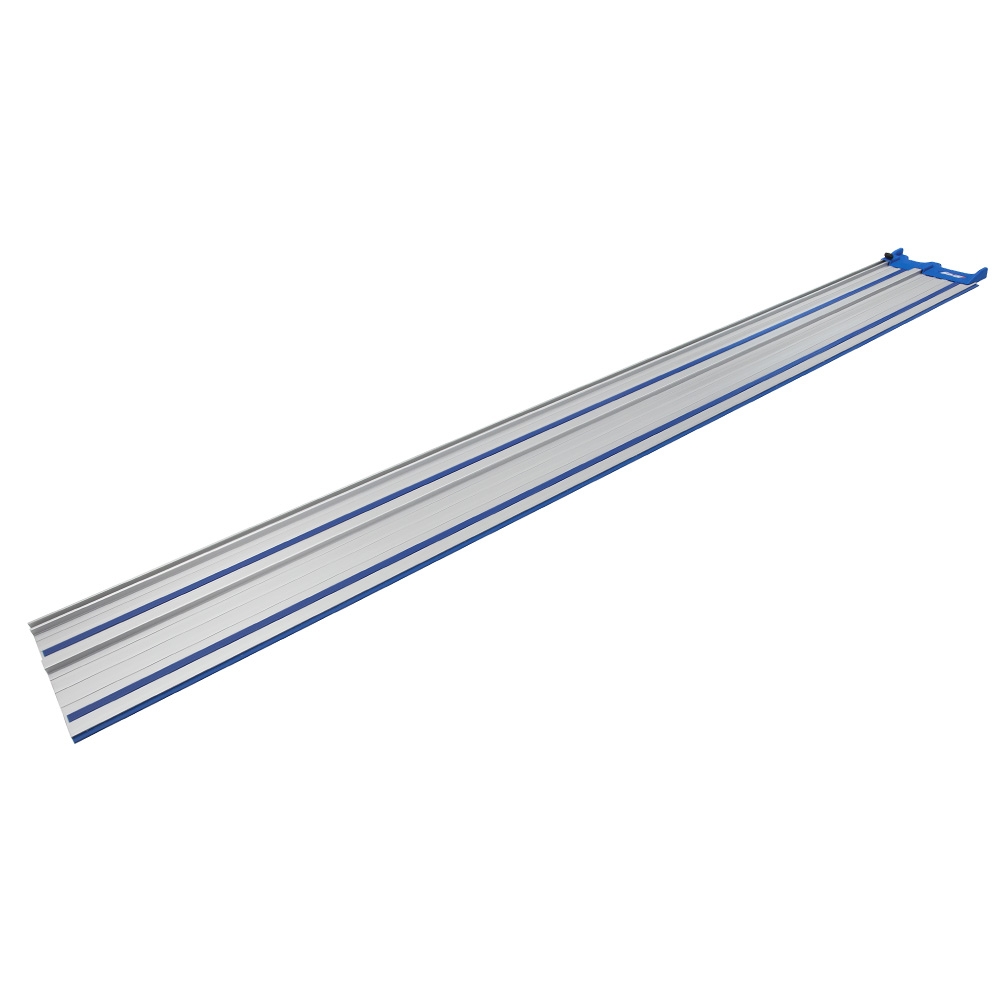

Kreg ACS 62'' Guide Track

Guide your Kreg ACS Plunge Saw (sold separately) along this smooth, precision 62'' Guide Track and enjoy arrow-straight, splinter-free cuts. The extruded aluminum track features an anti-chip strip that prevents splintering on the top side of the cut, while anti-slip strips hold the track in place without the need for clamps. Low-friction glide strips guide the saw smoothly along the track. The zero-offset design aligns the edge of the track exactly with the cutline to ensure easy, accurate positioning. A cord manager helps guide the saw cord while cutting, as well as a dust-collection hose if the saw is connected to a shop vacuum.

Features:

• Aluminum track guides your Kreg Plunge Saw in a precise straight line
• Use alone without clamps, or with the Adaptive Cutting System Project Table (sold separately)
• Splinter-free cutting thanks to the anti-chip strip that hugs the blade and cutline
• Anti-slip strips keep the track in place without clamps on most materials
• For off-table cutting, two tracks can be combined together for 112'' of cutting capacity (see the Connector kit #64822, sold separately)
• Durable construction provides years of dependable use

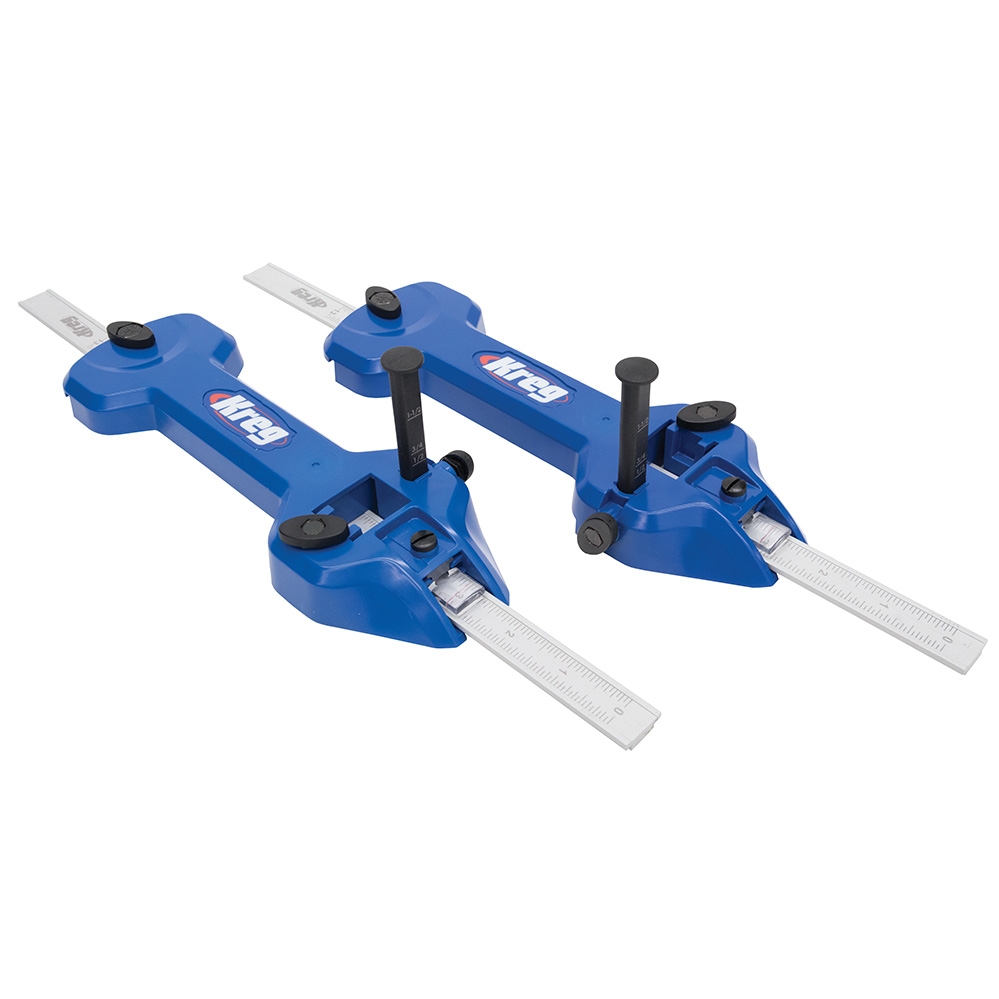

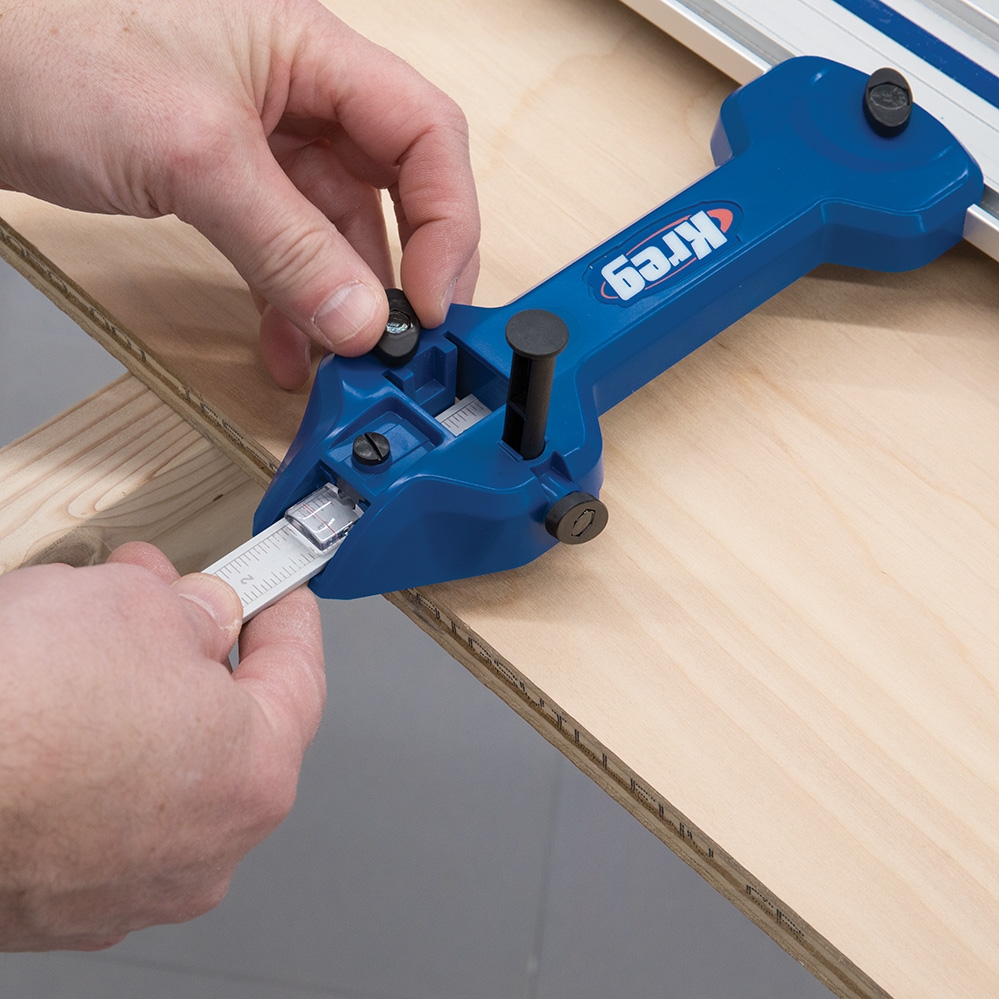

Kreg ACS Rip Guides

Kreg's ACS Rip Guides attach quickly and easily to your ACS Guide Track (sold separately) to provide accurate, repeatable cuts up to 13'' wide in solid wood, plywood, and other sheet goods. They are used when cutting without the ACS Project Table, and eliminate the hassle and potential inaccuracies of measuring and marking every cut. Rip Guides lock onto the 62'' Guide Track, and have aluminum bars that extend under the track. That makes it possible to lock in the desired measurement up to 13'', and then make one or many cuts at the same setting. Sold as a pair.

Features:

• For making accurate, repeatable cuts up to 13'' wide when using the Adaptive Cutting System Plunge Saw and Guide Track
• Precise measurements with built-in adjustable guides and hairline indicators
• Attach quickly when needed, and easily remove without losing calibration
• Adjustable leveling pins keep the Guide Track level on varying material thicknesses

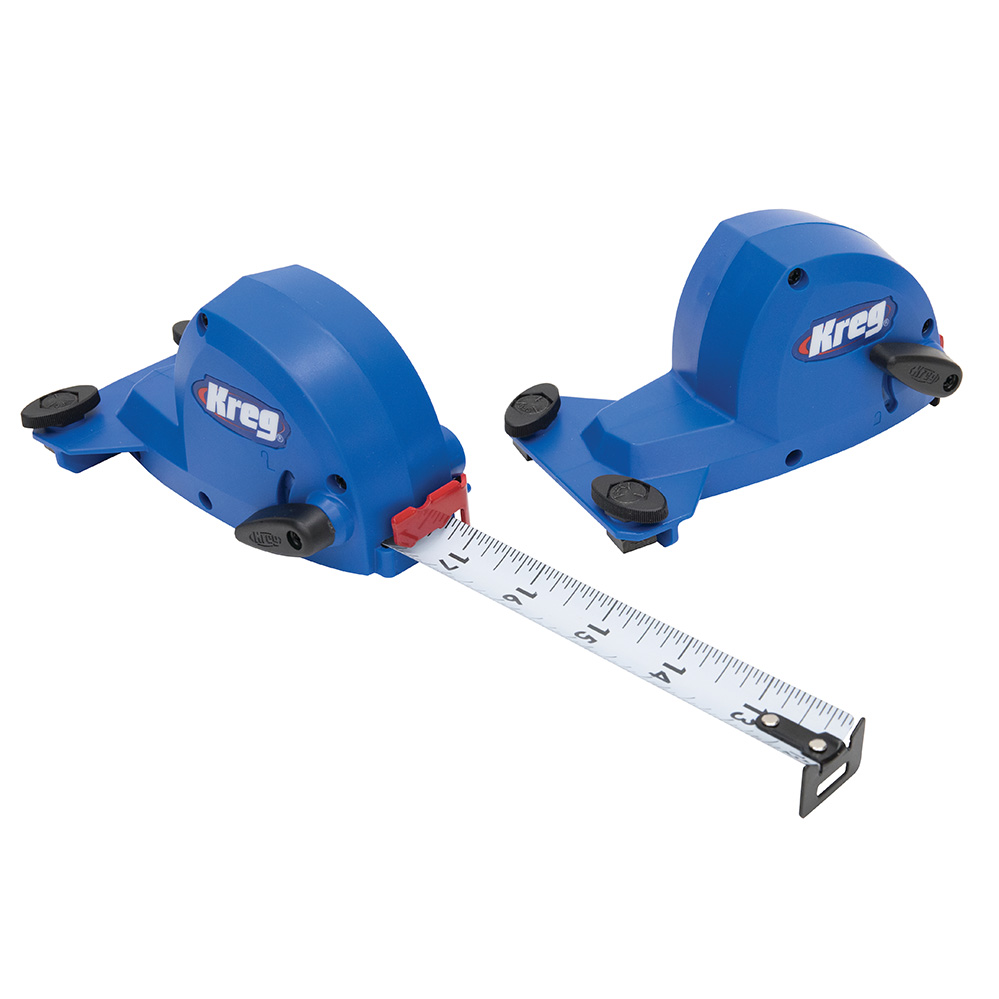

Kreg ACS Parallel Guides

Kreg's ACS Parallel Guides attach quickly and easily to your ACS Guide Track (sold separately) to provide accurate, repeatable cuts from 12'' to 96'' wide in solid wood, plywood, and other sheet goods. They are used when cutting without the ACS Project Table, and eliminate the hassle and potential inaccuracies of measuring and marking every cut. The precision measuring tapes extend for cuts up to 96'' wide. Heavy-duty blade brakes lock in your measurements for excellent repeatability. Sold as a pair.

Features:

• For making accurate, repeatable cuts from 12'' to 96'' wide when using the Adaptive Cutting System Plunge Saw and Guide Track
• Precise, easy-to-read multipurpose measuring rules
• Attach quickly when needed, and easily remove without losing calibration
• Compact design stays out of the way while cutting, and allows Parallel Guides to be stored easily in Plunge Saw case

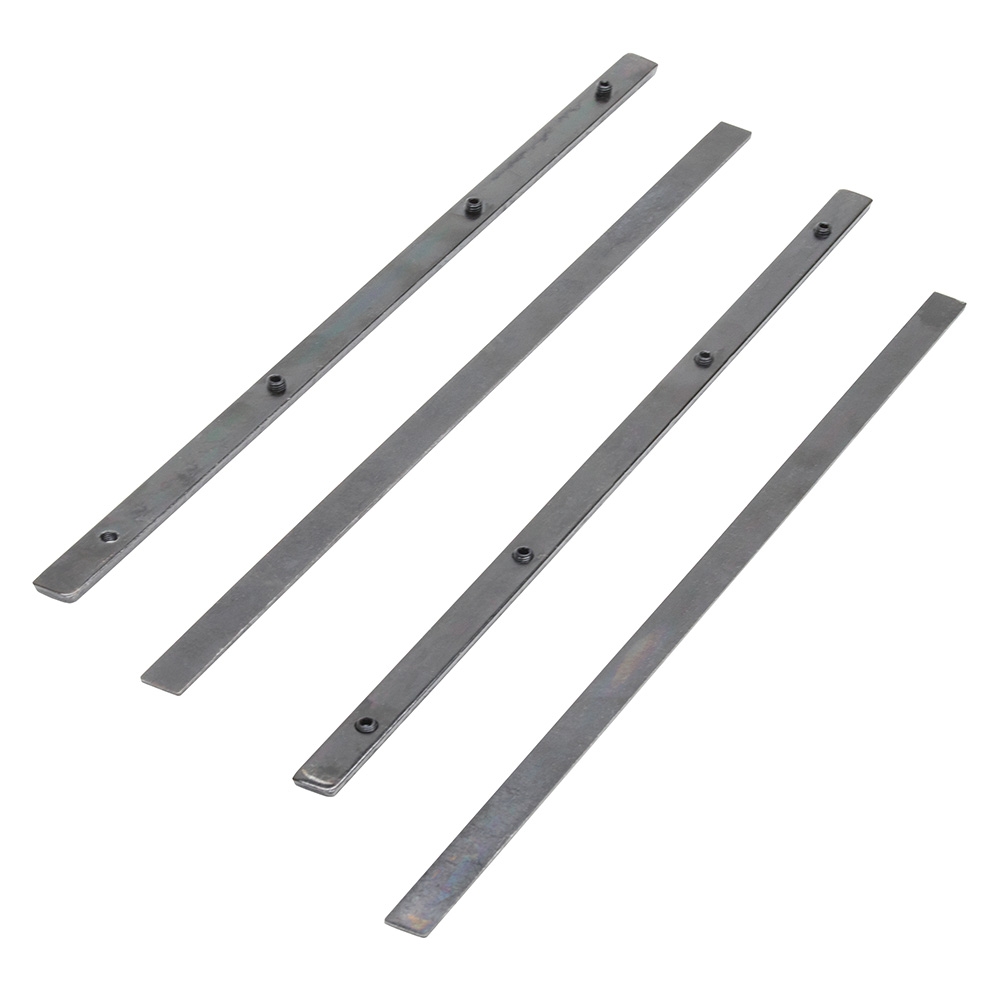

Kreg ACS Guide Track Connector Kit

Connect two 62'' Adaptive Cutting System Guide Tracks for an extended rip capacity of up to 112''. These steel connectors lock the tracks securely together using a two-piece design that prevents marring the aluminum tracks. Designed for use with the Adaptive Cutting System 62'' Guide Track (sold separately). Sold as a pair.

Features:

• Joins two Adaptive Cutting System 62'' Guide Tracks together
• Provides extended rip capacity of up to 112''
• Two-piece design holds securely without marring aluminum tracks
• Durable steel construction

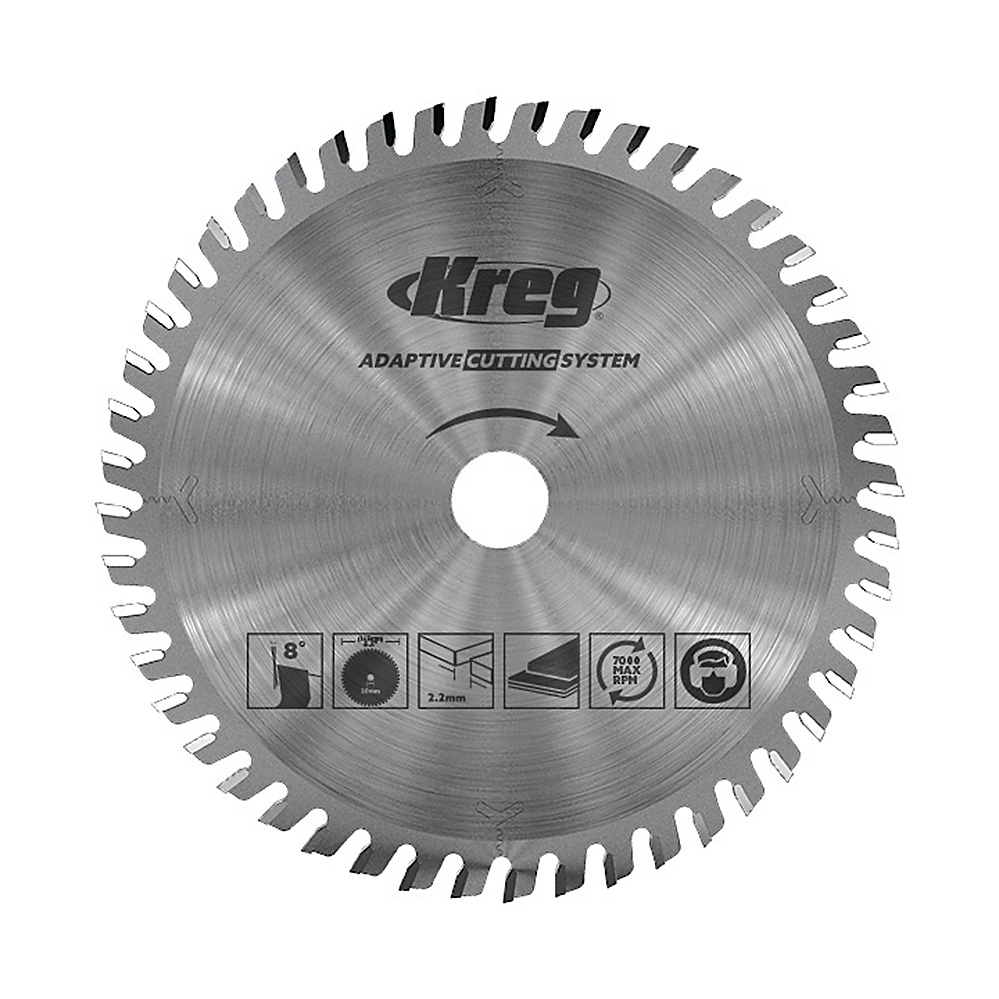

Kreg ACS 48-Tooth Saw Blade

Keep a sharp blade on hand to ensure the finest cuts from your Kreg ACS Plunge Saw. This high-performance, 48-tooth, carbide tipped blade is the same one that's included with the Adaptive Cutting System Plunge Saw. The laser-cut body ensures flatness, while anti-vibrations slots ensure smooth, quiet cutting. The blade is designed to offer optimum performance when ripping and crosscutting solid wood as well as plywood and other sheet goods.

Features:

• 48-tooth, carbide-tipped saw blade for excellent durability and all-around performance
• Great for ripping or crosscutting solid wood, plywood, and other sheet goods
• Laser-cut steel body with anti-vibration slots for smooth, quiet operation

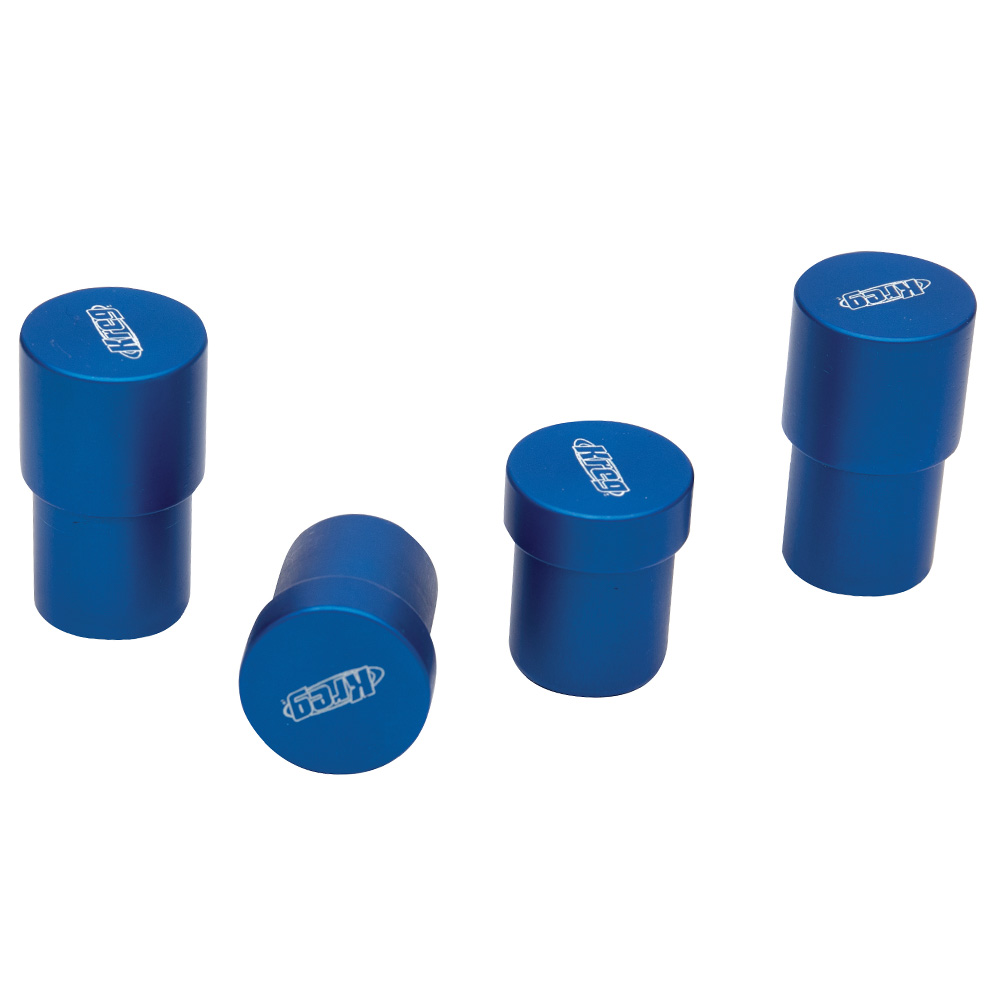

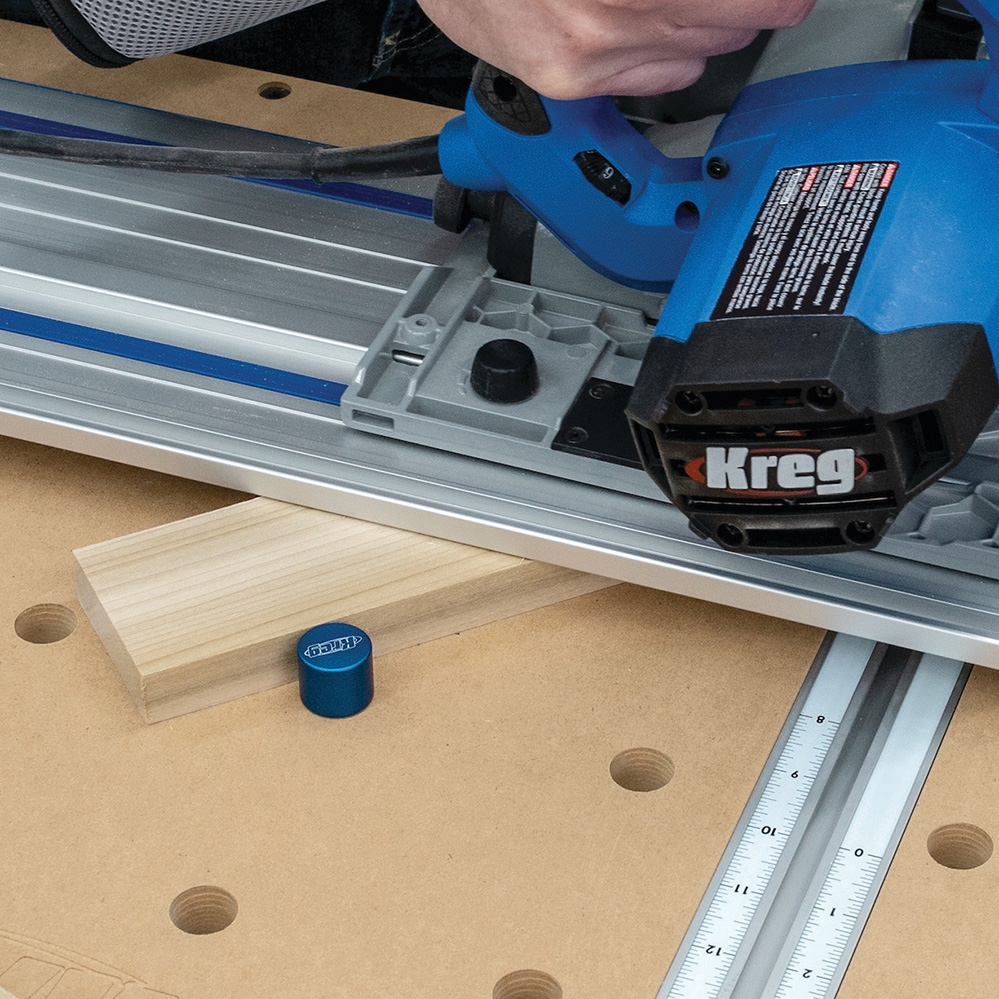

Kreg ACS Versa-Stops

Versa-Stops fit precisely into the holes machined in your ACS Project Table (sold separately). Install them in whatever configuration you need to position your work for 90° and 45° cuts. This set of four is the same assortment that is included with the Adaptive Cutting System Project Table: two tall (3/4'' projection) and two short (5/16'' projection). The short models are designed to slip easily under the Guide Track, while the tall models are used elsewhere on the Project Table, providing additional vertical contact. Made from durable anodized aluminum.

Features:

• Use as bench dogs in any top with 3/4'' diameter dog holes
• Aluminum is strong, but won’t damage bits or blades in the event of accidental contact
• Includes two tall (3/4'' projection) and two short (5/16'' projection) Versa-Stops

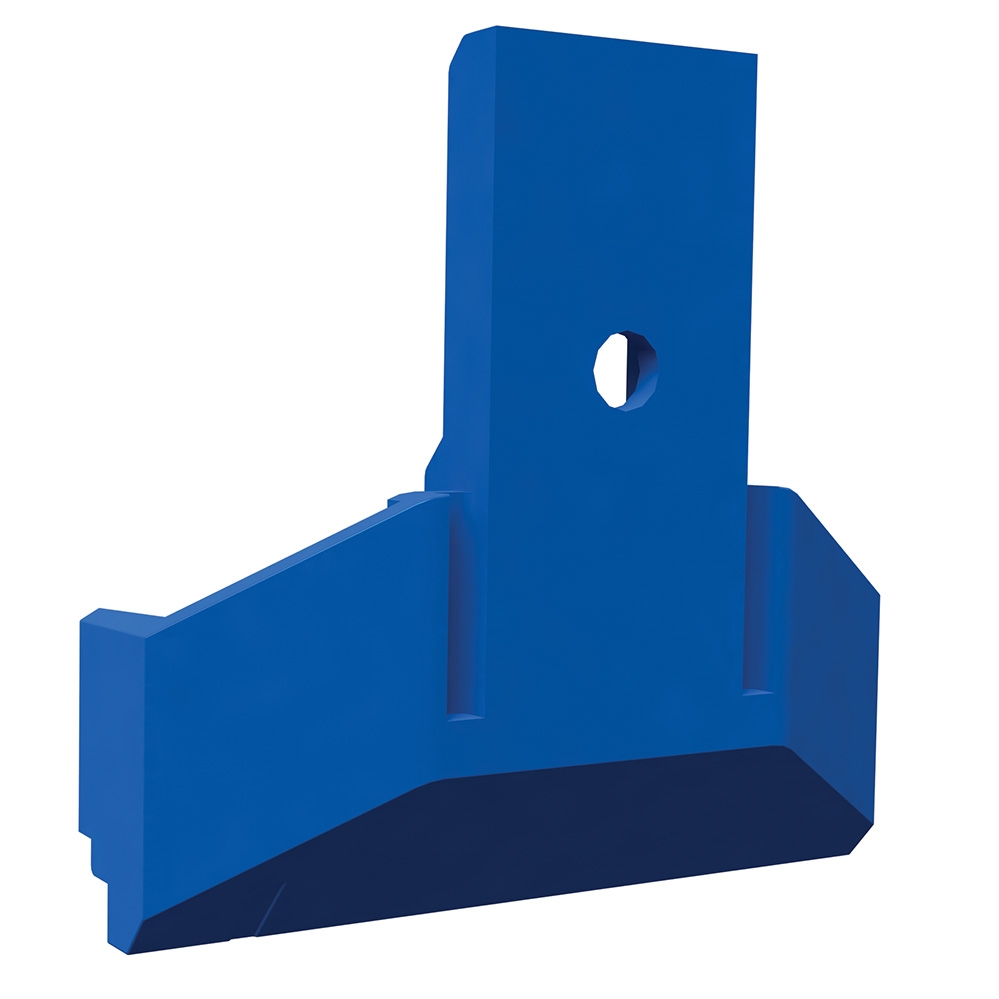

Kreg ACS Splinter Guards

This pack of three replacement Kreg Splinter Guards will ensure scores of splinter-free cuts. Each Splinter Guard mounts in the shroud of your Adaptive Cutting System (ACS) Plunge Saw, acting as a zero-clearance insert for the non-track side of the blade. When used on the Guide Track, it ensures splinter-free cuts on both sides of the blade. Over time, as cutting forces wear away at the Splinter Guard, the guard may not fit as tightly against the blade. Replacing the Splinter Guard restores splinter-free cutting on this side of the blade. Includes three Splinter Guards.

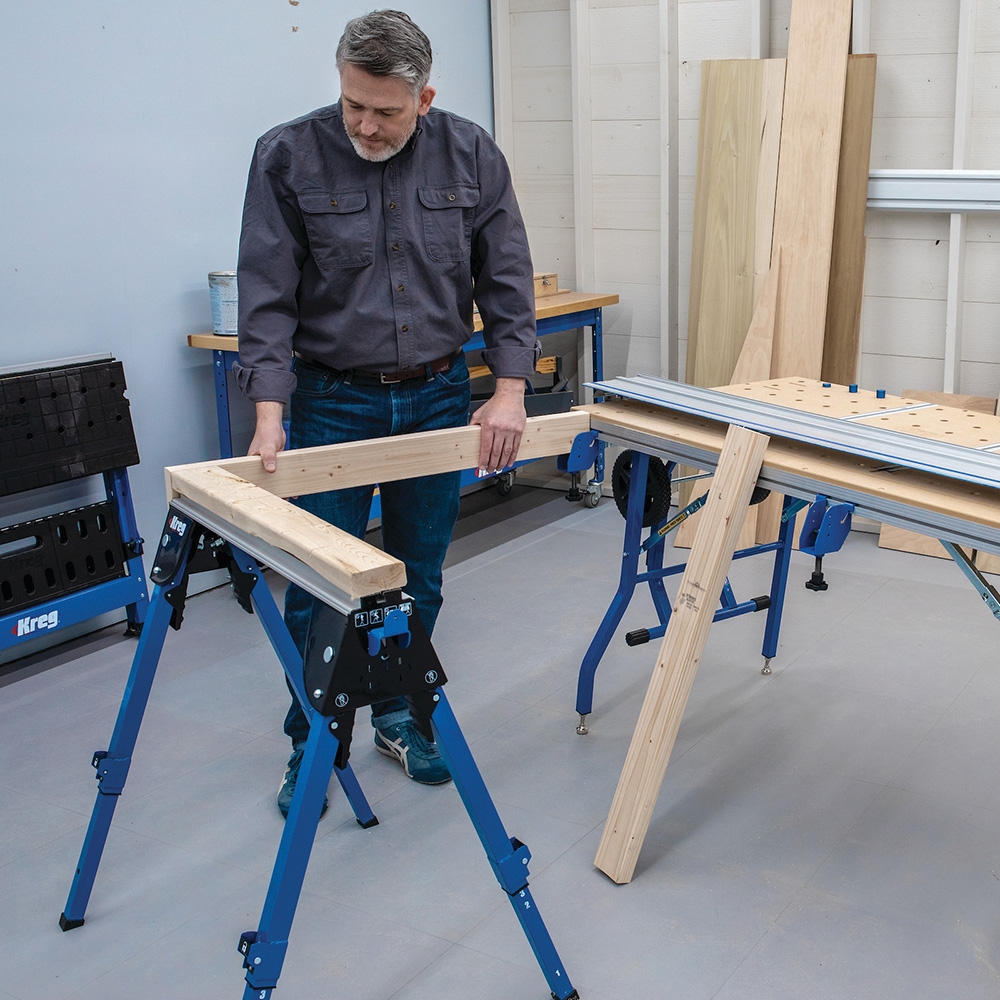

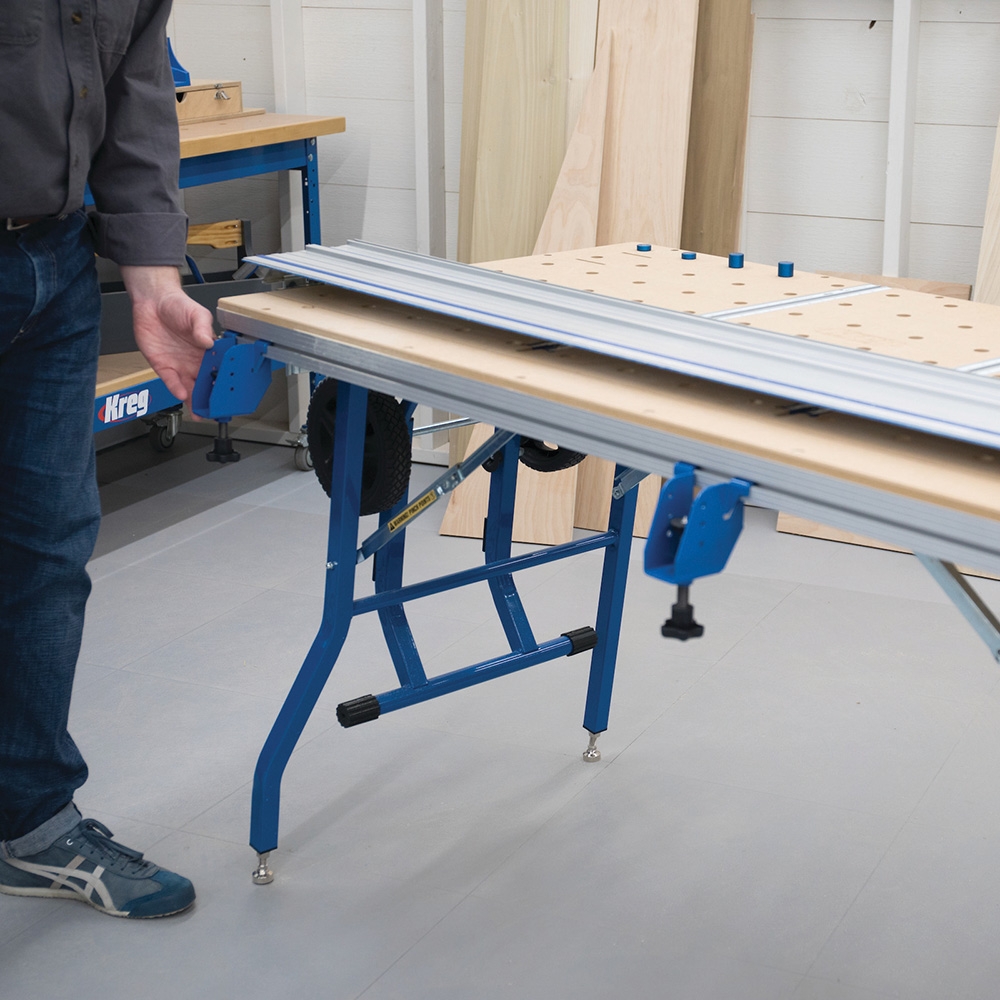

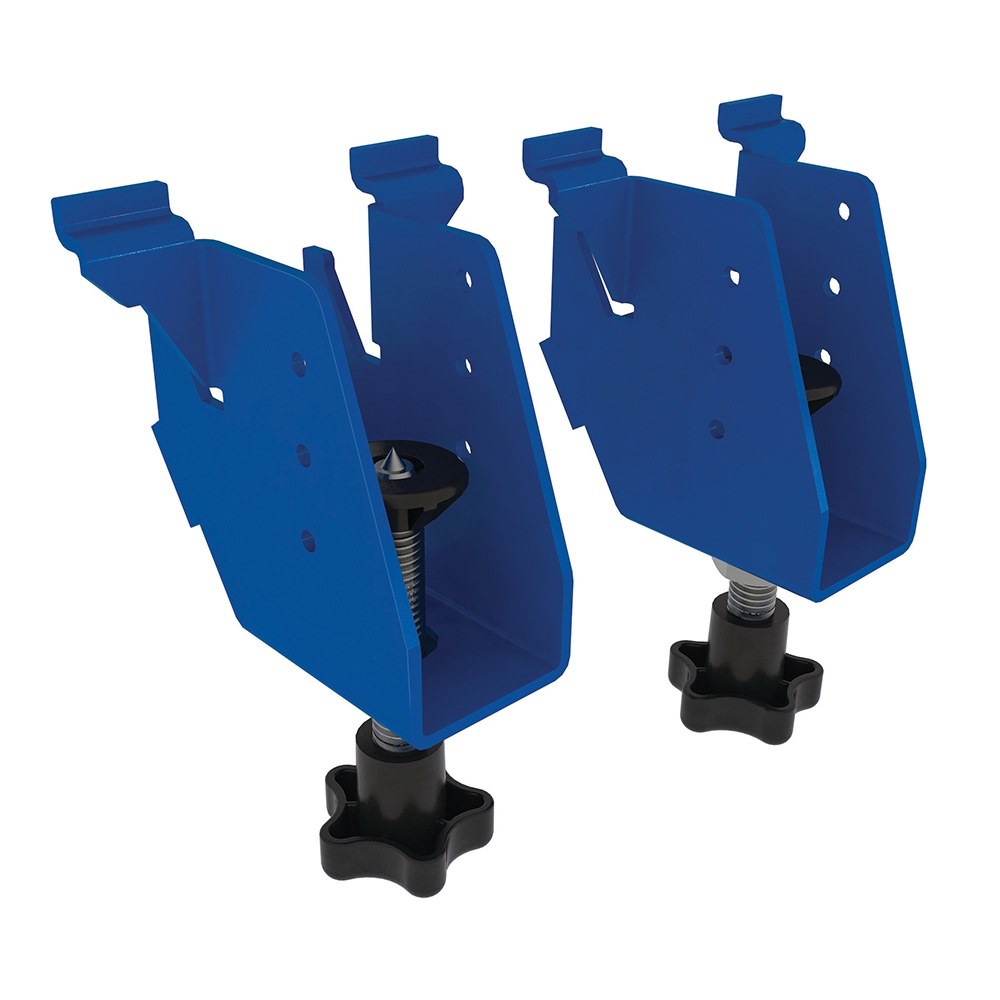

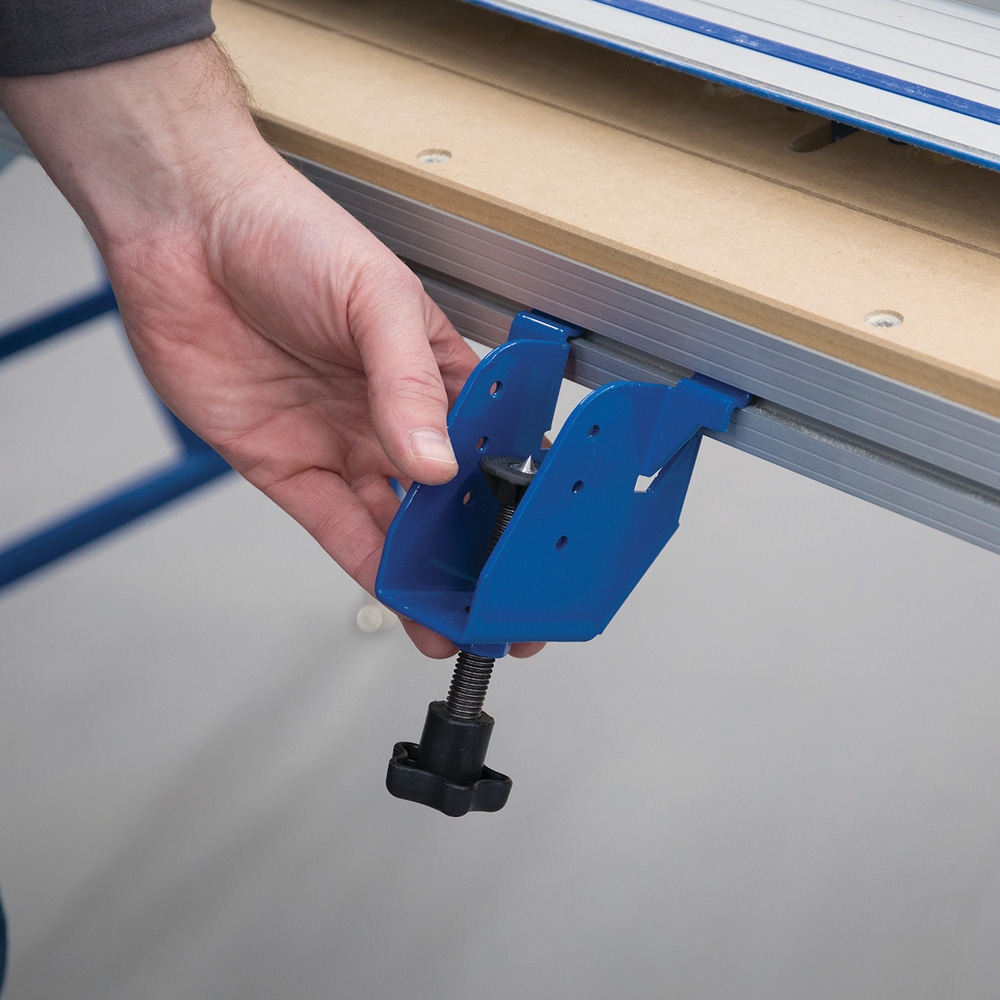

Extension Brackets for Kreg ACS Project Table Kit

Use these brackets to add an extension table to your Adaptive Cutting System Project Table (e.g. #69044, sold separately). Just clip them into the aluminum perimeter of the Project Table and slide in some 2x4s, which can be supported at the other end by a Kreg® Track Horse, Mobile Project Center, or another work support. Handling large sheets of plywood and long boards will be far easier. Made from thick steel, the brackets can position the 2x4s in two ways: flush with the surface of the Project table, or 3/4'' below the surface, which lets you add a plywood top to the enlarged table. Holes in the sides of the brackets let you drive the included screws into the 2x4s. Sold as a pair.

Features:

• Lets you extend your Adaptive Cutting System Project Table
• Brackets mount in aluminum table edge and accept 2x4 boards to extend your work area
• 2x4s can be supported at the other end by a Kreg® Track Horse, Mobile Project Center or a shop-made support
• Adjustable to position 2x4s either flush with table, or 3/4'' below the table for adding a plywood top
• Durable, heavy-gauge steel construction
