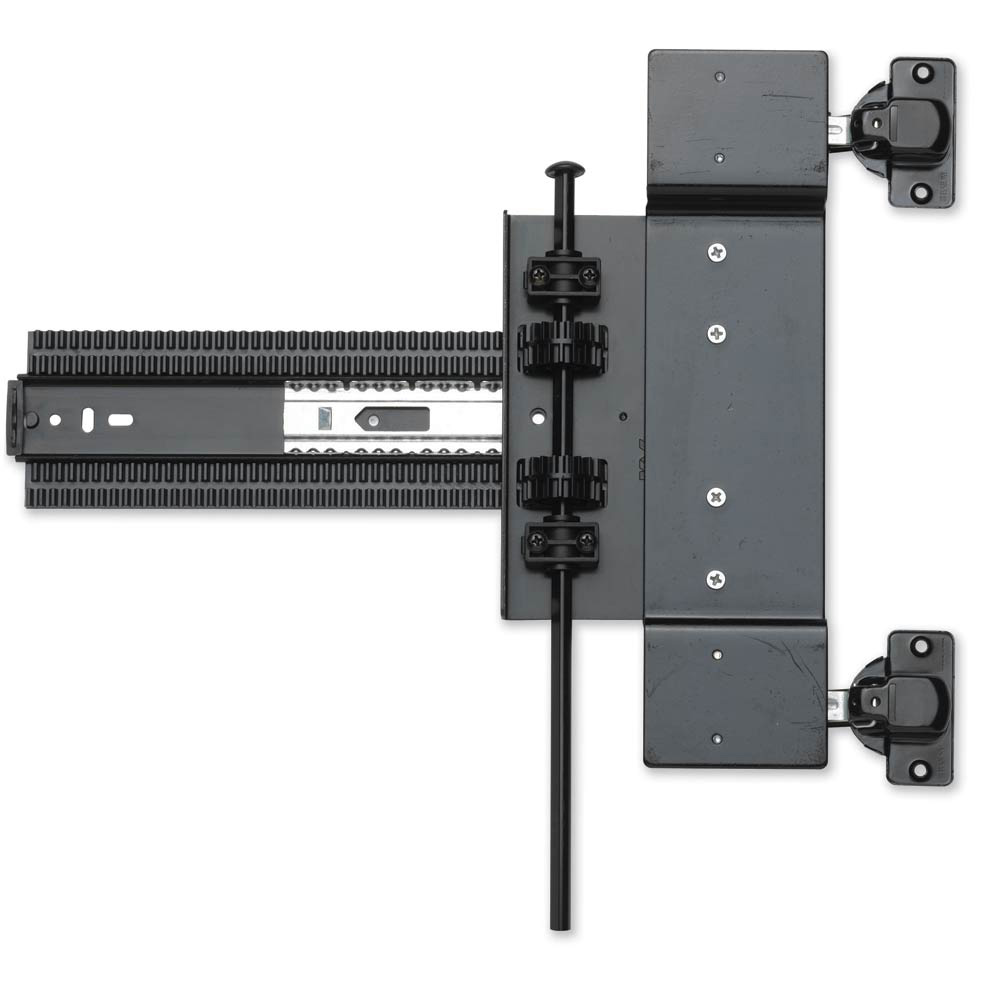

KV8091 Slides & Pocket Door System - Pocket Door Slides (Pair)

This pocket door system us specially designed to hold over-sized full overlay doors as well as inset, thick door inset and partial overlay doors up to 75 lbs. and 72" high. Sold as a pair.

Pocket Door Slide Features:

• Ideal for use in entertainment and home theater cabinets
• Heavy-duty slides feature dual rack and pinion system that virtually eliminates door sag
• Precision steel ball bearings provide smooth and quiet operation
• Innovative indexing pin allows easy alignment and installation

Required for full overlay installation:

• Pocket Door Slides: Available in various lengths, one set required per door
• Full Overlay Hinge Kit (#20072, Sold separately): provides a full overlay on 3/4" thick doors. Kit includes two full overlay brackets, four 40mm overlay hinges, four hinge bases, cover caps, instructions, felt pads and mounting hardware.
• 72" Long Follower Rod (#21087, Sold separately): can be cut to desired length.

Optional Hinges:

Pocket Door Slides can be fitted to more applications than just full overlay. Also available are Inset/Face Frame hinges (27906), Partial Overlay hinges (#25929, sold separately), or Thick Door Inset Hinges (#26446, sold separately) for thick door applications (1-1/4" Maximum Thickness). 2 packs required per door.
