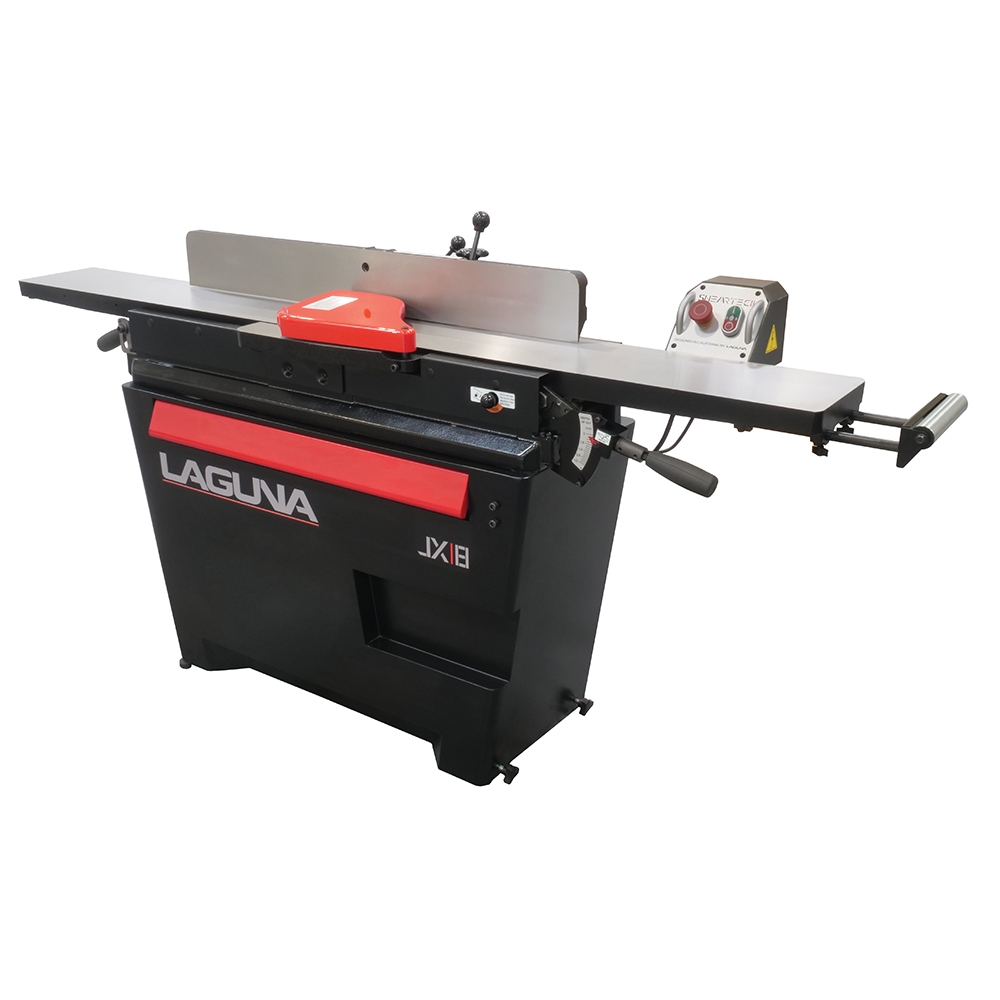

Laguna JX|8 QuadTec I 1.75HP 1-Phase 8'' Jointer

Name: Laguna JX|8 QuadTec I 1.75HP 1-Phase 8'' Jointer
Brand: Laguna
SKU: 69803
Price: 2749 USD
Availability: InStock

Item #

69803

$2,749.00 Each

8'' QuadTec I cutterhead with 4-sided carbide inserts for supremely clean, quiet cuts—knee-activated stop bar runs the full length of the body.

More details

How do you want your item?

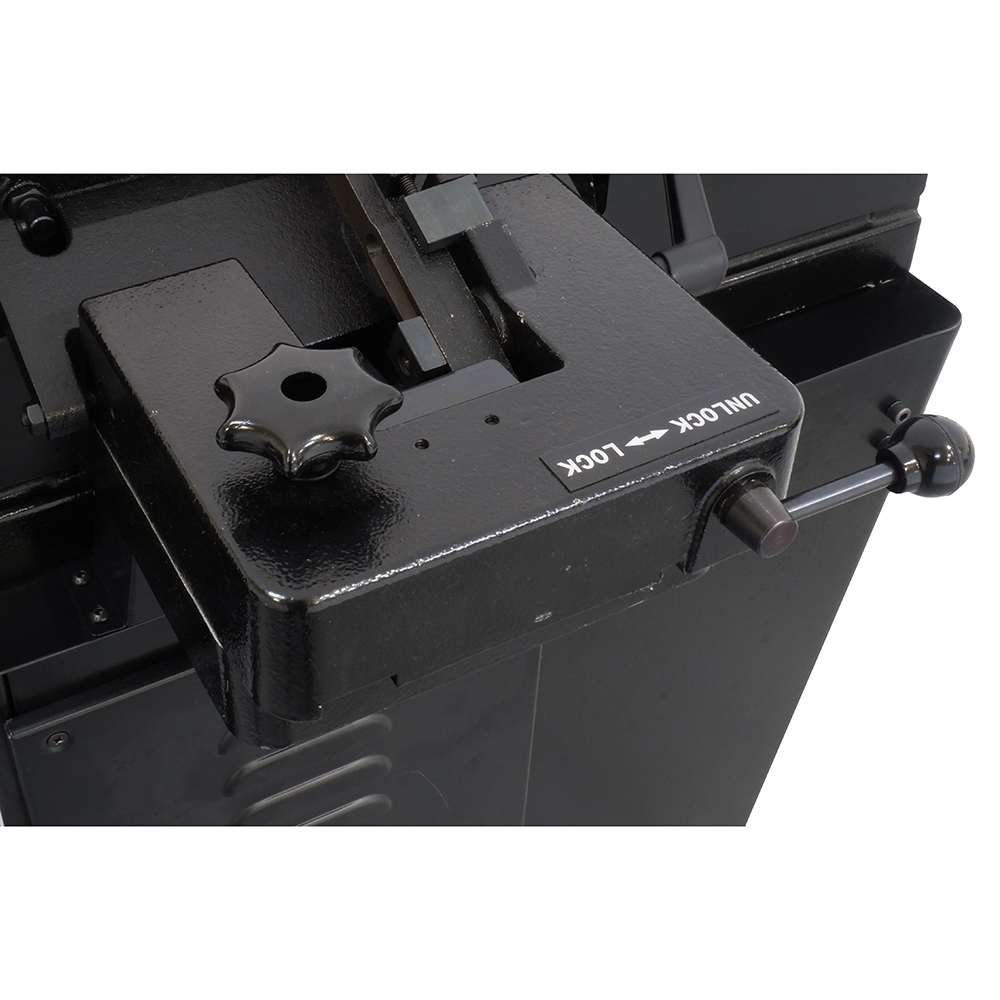

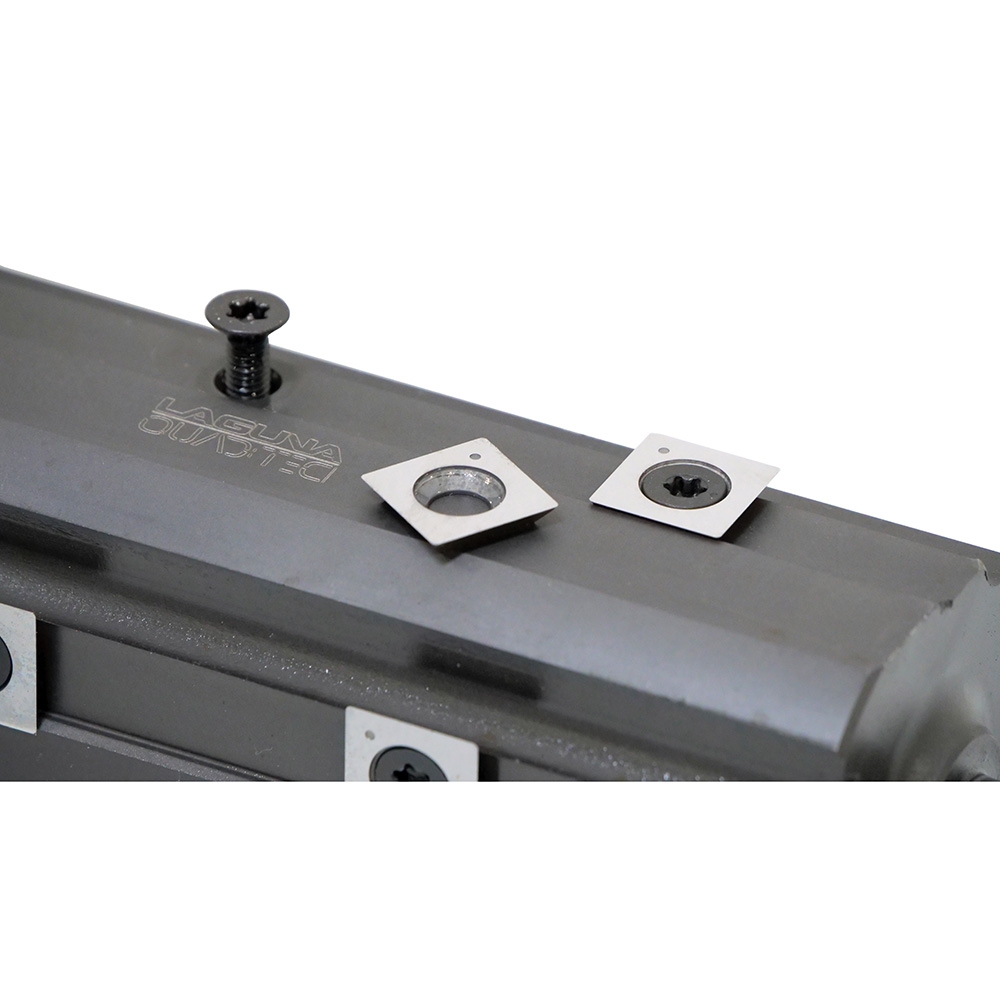

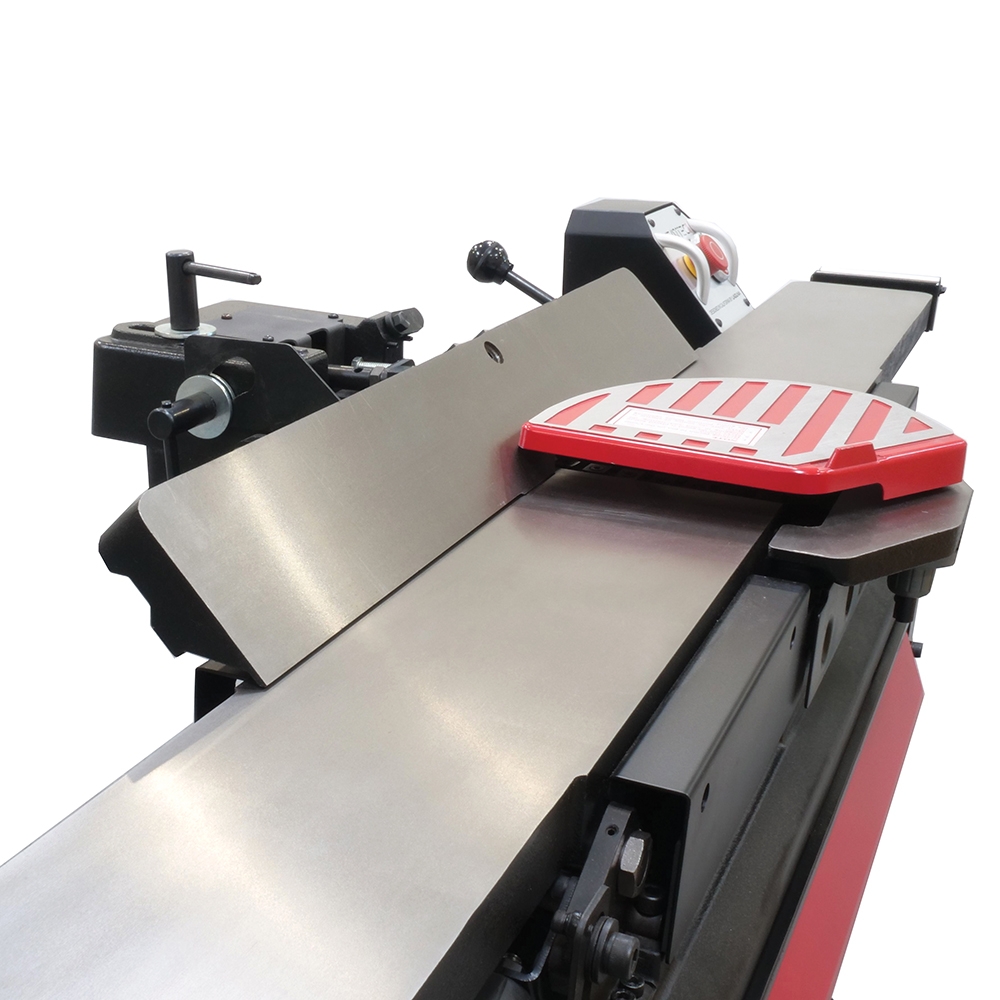

The Laguna JX|8 QuadTec I 1.75HP jointer is loaded with premium features for convenience and accuracy. The JX|8 depth is adjusted with a precision parallelogram system and the jointer comes standard with built-in wheels and a cast iron fence. A knee-activated stop bar runs the length of the body, letting you quickly stop the machine from any position without letting go of your work. The body is ergonomically designed to allow the operator's feet to slide under the machine, and the infeed table is now fitted with a pull-out roller support for long workpieces. The QuadTec I cutterhead features 4-sided solid carbide inserts that can be rotated when needed.

Features:

Parallelogram table adjustments travel along an arc to keep the same distance to the cutterhead through its travel
Knee stop uses a full-length bar at knee height to shut off the jointer
Body is designed with a toe-kick to allow the user to stand closer for more comfortable material feeding
Infeed table is fitted with pull-out support roller to help support longer materials

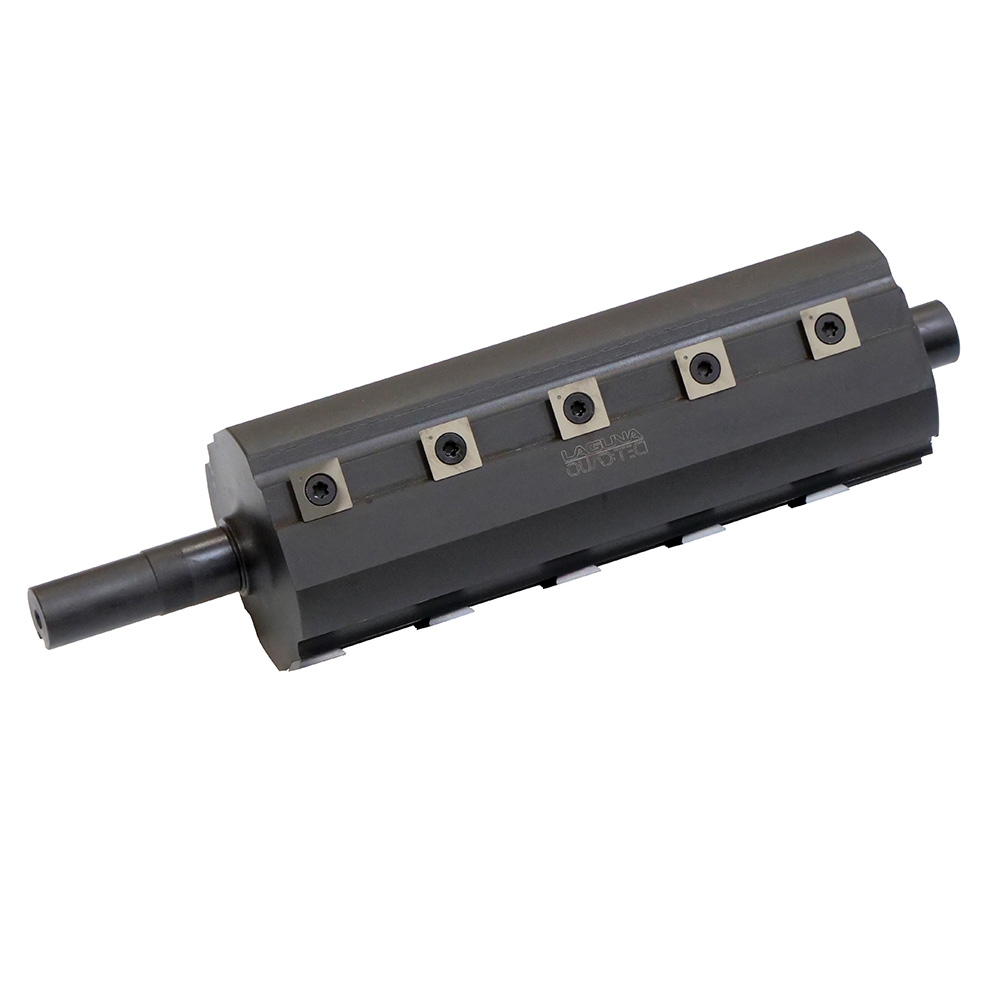

QuadTec I cutterhead comes as standard equipment for smooth cuts and less noise

WARNING:: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood

Return Policy

More Information
Brand	Laguna
Manufacturer Part Number	MJ8X72E-0130
Weight	495.00
Tech Spec	Brand: Laguna Manufacturer Part Number: MJ8X72E-0130 Motor: 110V 1.75HP 1 Phase 60hz/15 Amp Bed Size: 8'' x 72'' Infeed Table Pull-Out Extension: 8'' Rabbetting Capacity: 1/2'' Fence Size: 38'' x 4-3/4'' Cast Iron Fence Tilt: ±45/90° Max. Depth Of Cut: 1/8'' Table Height From Floor: 31'' Safety Bar Shut-Off: Yes Bracket To Mount Light: No 110V Outlet For Light: No Bracket To Mount Feeder: No Dust Port Diameter: 4'' Plug (NEMA 5-15P): Yes Cutterhead Insert #: 20 x 4-Sided Carbide, 4-Row Cutterhead RPM: 5500 Cutterhead Diameter: 3-1/8'' Bed Adjustment: Parallelogram Assembled Dimensions (Approx): 75-1/2'' x 26-1/2'' Dimensions Shipping: 76'' x 25'' x 41'' Net/Ship Weight: 380/495 Lbs. (1 Box)
Unit of Measure	Each

This item will ship directly from the manufacturer.
Must be shipped within the 48 contiguous United States.
Please allow up to 7 business days for your shipment to be prepared.
Additional shipping charges may apply and will be noted below the price.
Items shipped by truck are delivered to the curbside only.
25% restocking fee on all returned merchandise.
Please call customer service before returning product.

This item will ship directly from the manufacturer.
Must be shipped within the 48 contiguous United States.
Please allow up to 7 business days for your shipment to be prepared.
Additional shipping charges may apply and will be noted below the price.
Items shipped by truck are delivered to the curbside only.
25% restocking fee on all returned merchandise.
Please call customer service before returning product.

With the Rockler Protection Plan you'll get accidental damage coverage immediately upon purchase of your tool. Plus we will extend the manufacturer's warranty for your choice of an additional 1 or 2 years. We'll take care of all parts and labor for any repairs with no deductibles and no hassles. If your tool can not be repaired we'll gladly replace it. Available in the US only. Click here to learn more.
Standard Manufacturer's Warranty: 24 months once registered in the first 30 days

With the Rockler Protection Plan you'll get accidental damage coverage immediately upon purchase of your tool. Plus we will extend the manufacturer's warranty for your choice of an additional 1 or 2 years. We'll take care of all parts and labor for any repairs with no deductibles and no hassles. If your tool can not be repaired we'll gladly replace it. Available in the US only. Click here to learn more.

Standard Manufacturer's Warranty: 24 months once registered in the first 30 days

Laguna JX|8 QuadTec I 1.75HP 1-Phase 8'' Jointer

Customer Service

Company

Promos & Specials

Contact Us

Laguna JX|8 QuadTec I 1.75HP 1-Phase 8'' Jointer

Product Details

What's Included (1) Laguna JX|8 QuadTec I 1.75HP 1-Phase 8'' Jointer(1) Set of leveling feet and casters(1) Dust port(2) Push blocks
