Lateral Opening Door Hinge Set

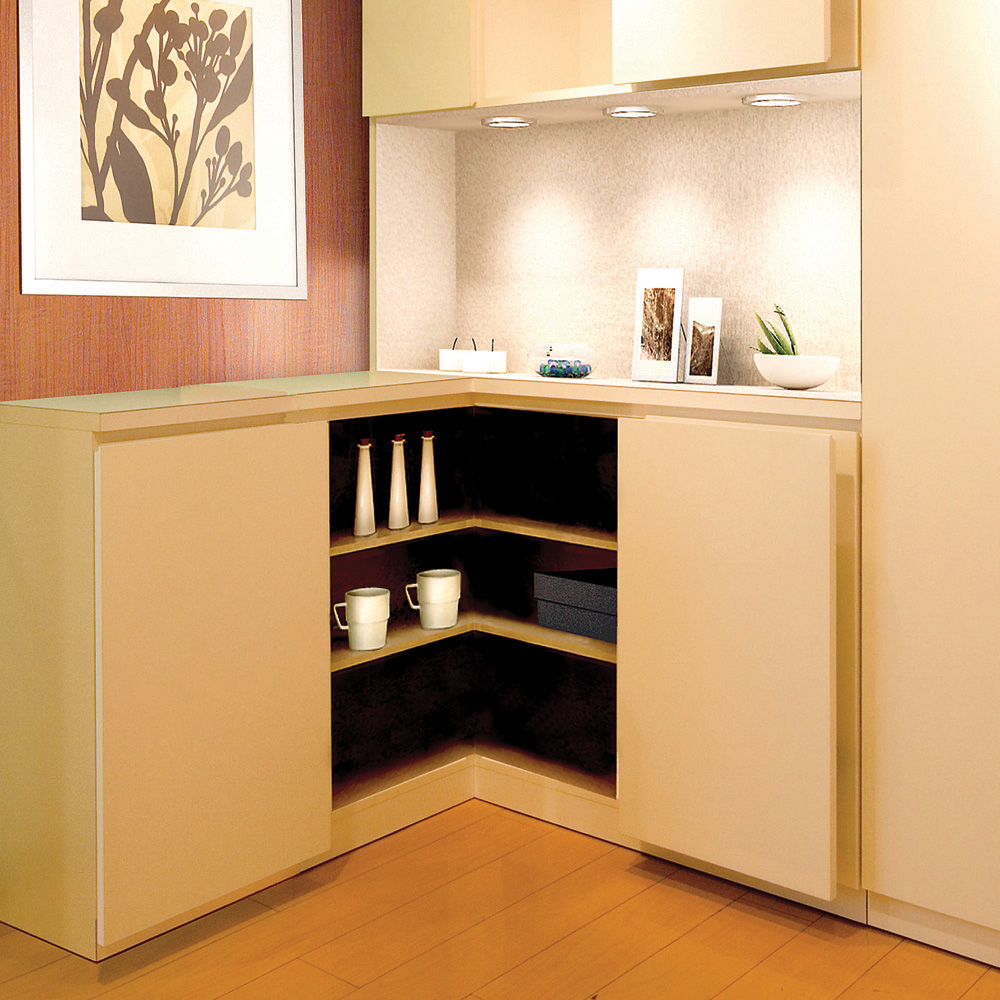

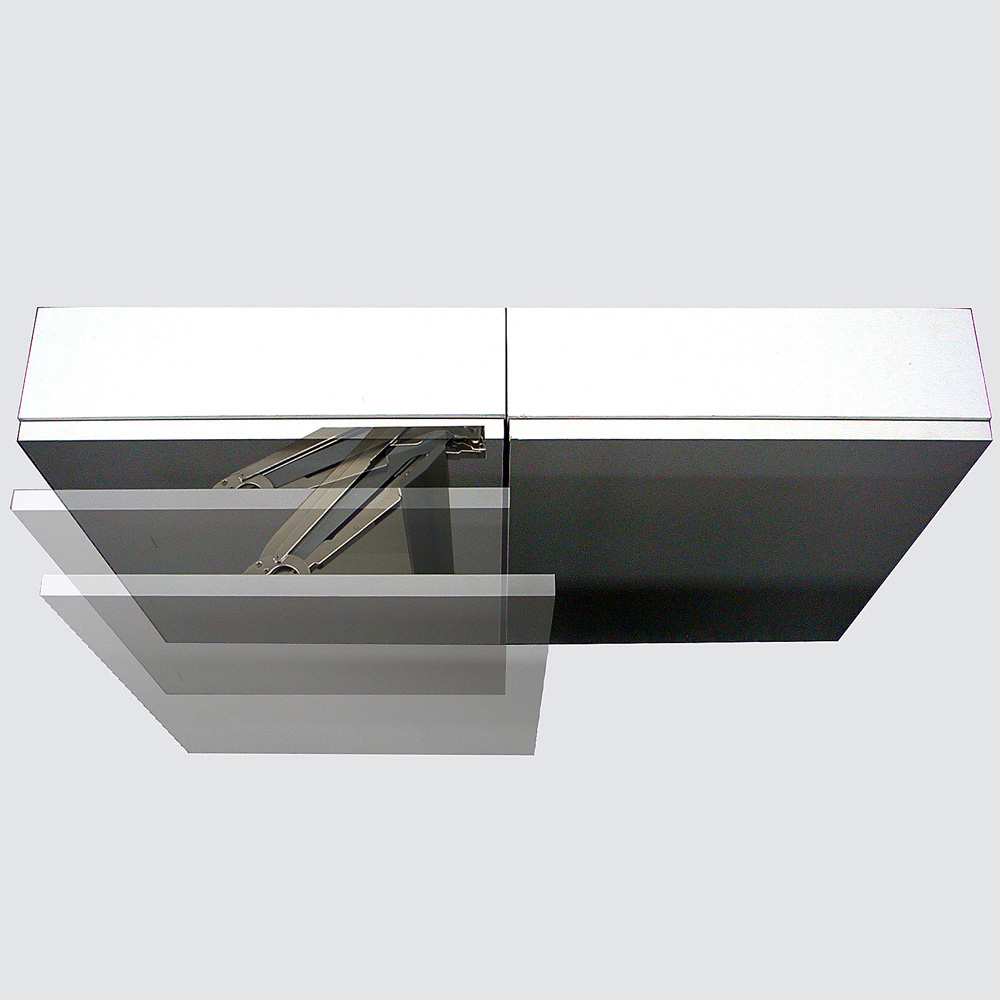

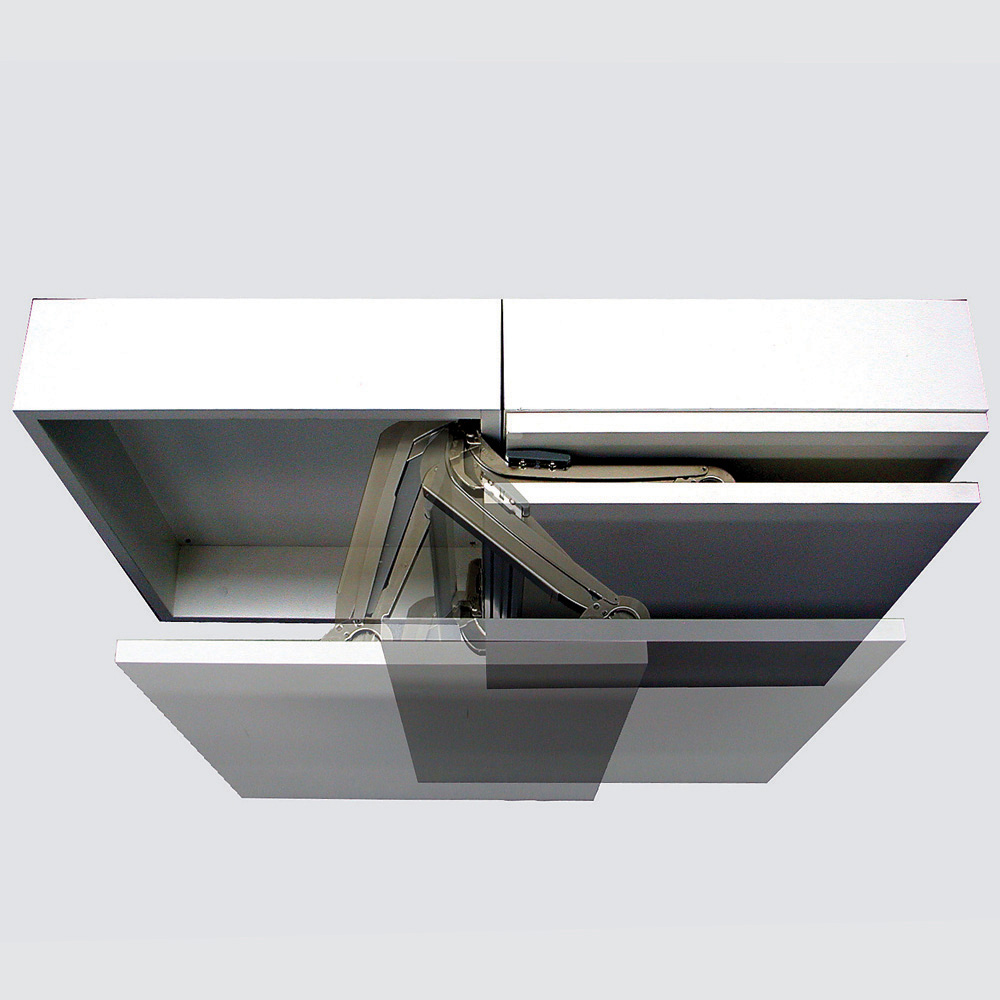

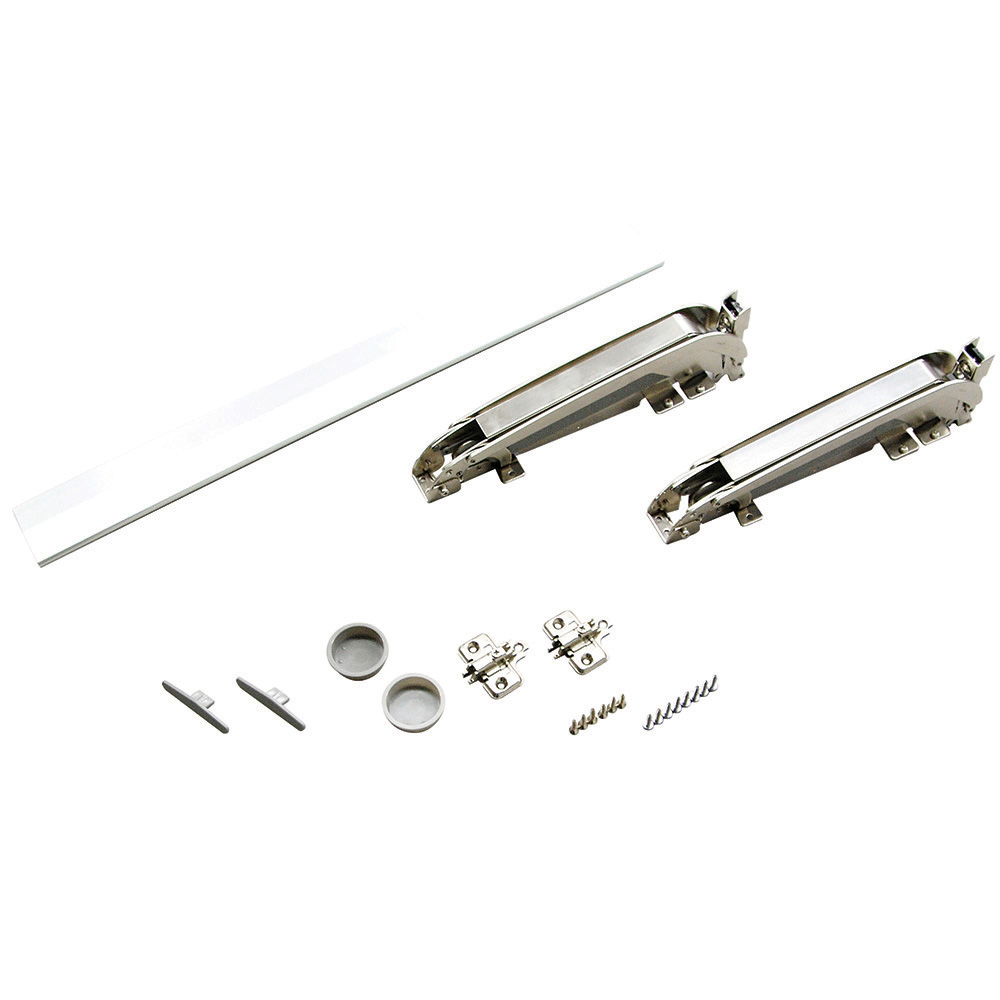

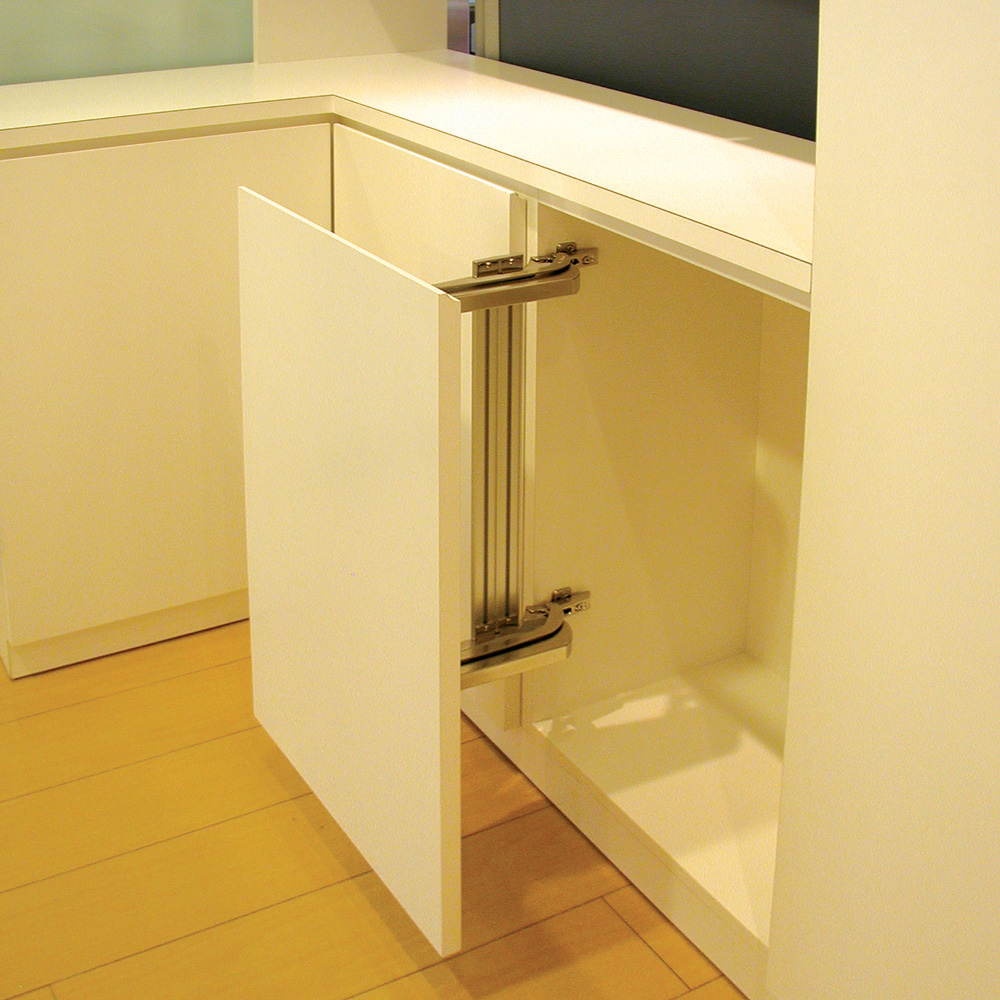

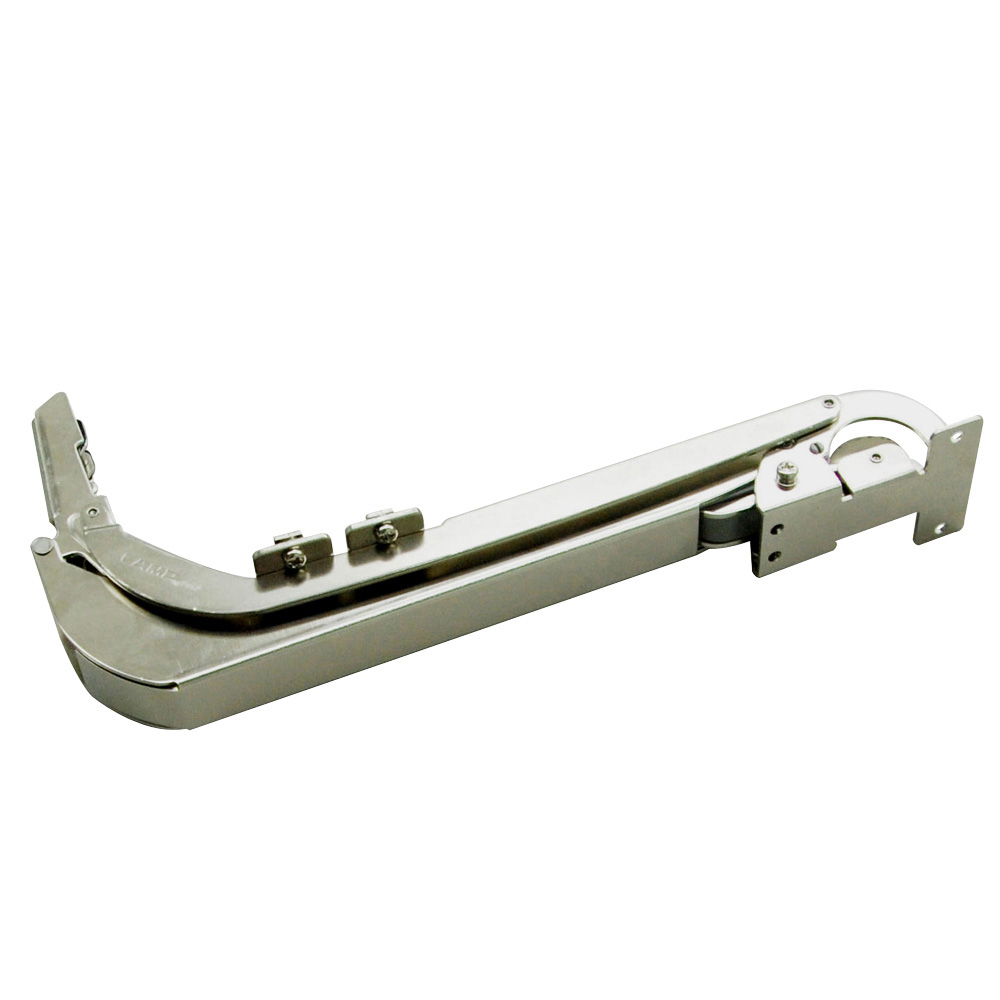

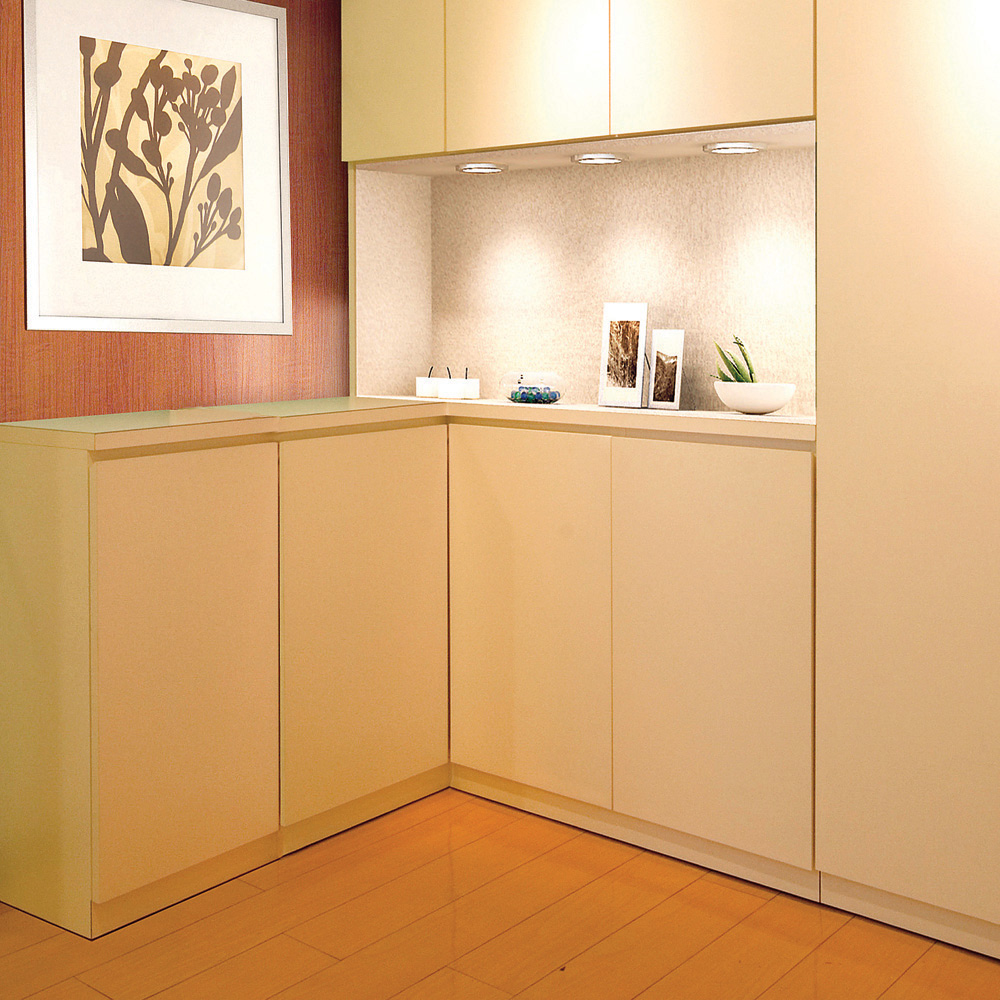

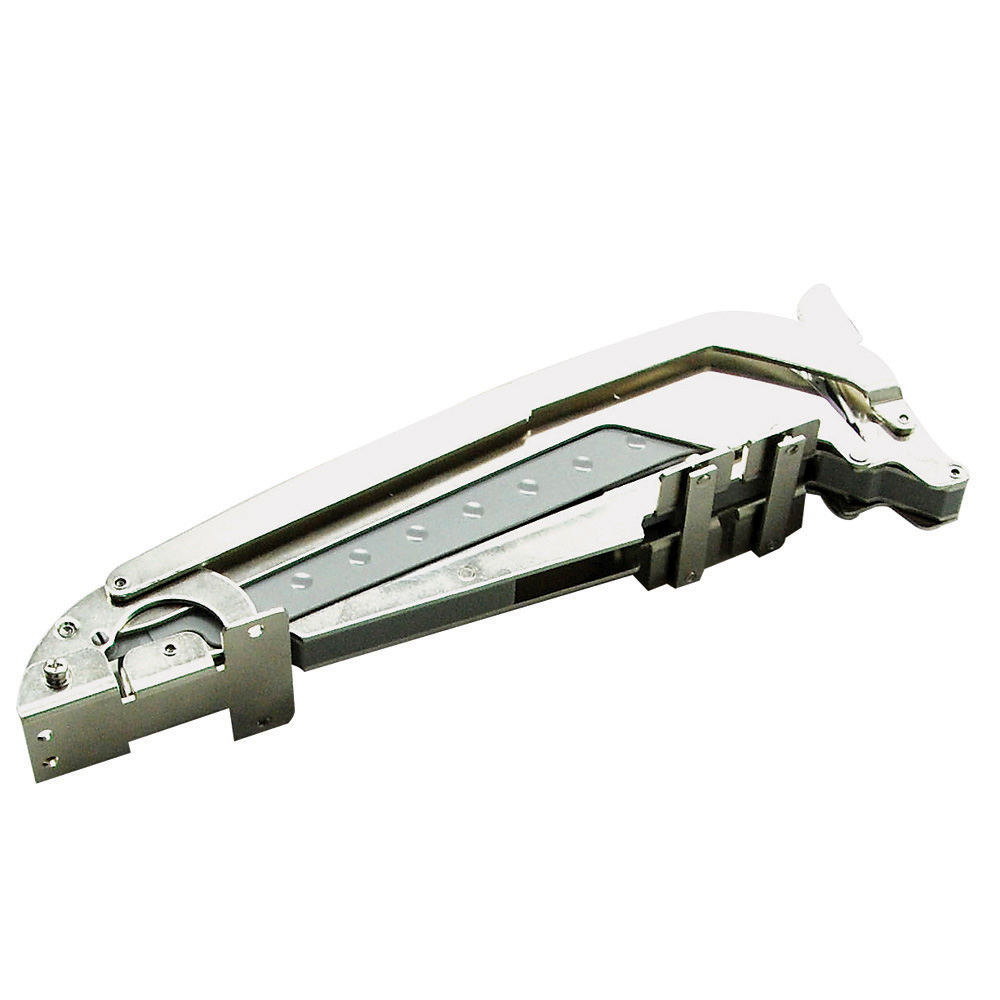

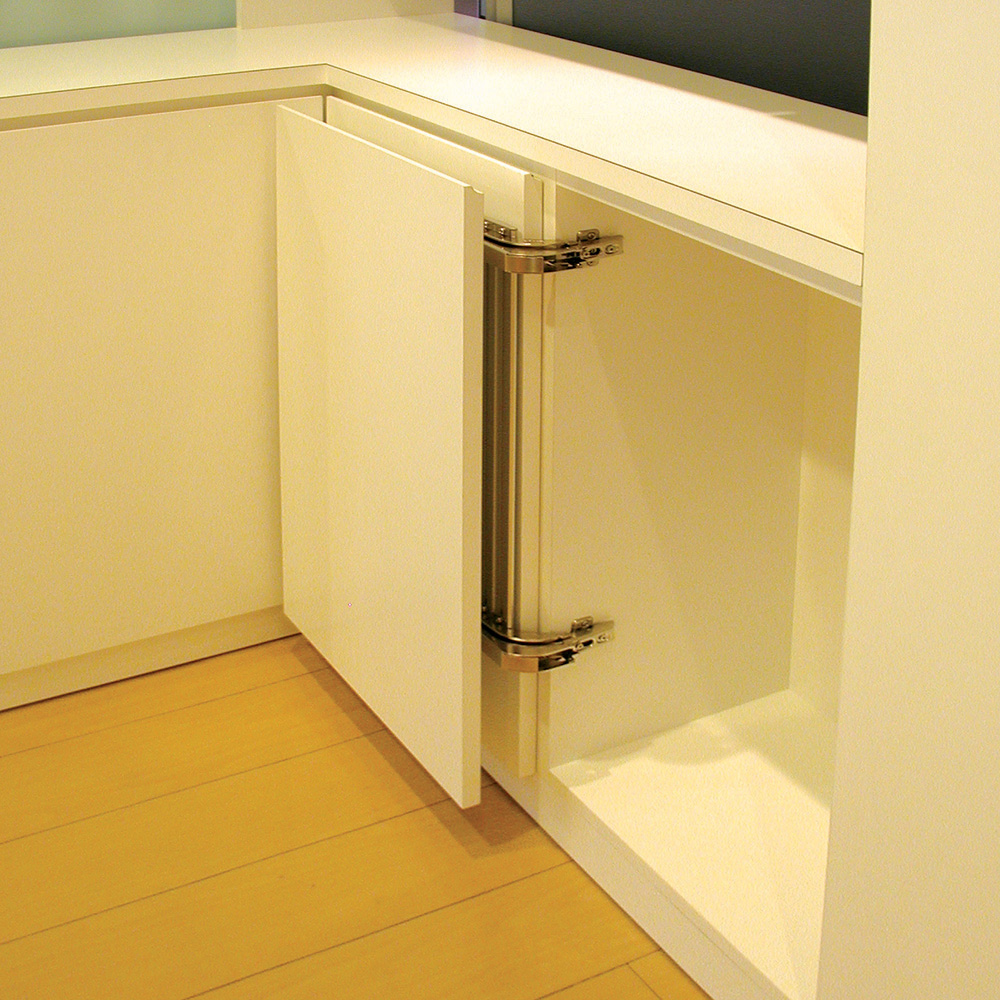

Having problems opening large cabinet doors in tight corners and with limited front space? Solved! These hinges are built with a unique lateral swing mechanism that trims the opening radius of cabinet doors dramatically, requiring less than 10" of front space to open doors from 15-3/4" to 19-11/16" wide. A single hinge set opens one cabinet door. Doors pull out slightly and then swing out to the side. Soft-closing dampers eliminate door slamming, yet your doors will close flush and have a clean look with no external hardware. Easy to set up in single or double door configurations for corners, side-by-sides and kitchen islands. Set contains all hardware needed for one door.

Additional features:

• Hinge stops in any position
• Designed for standard 32 system mounting

Specifications:

• door height range: 23-5/8" to 35-7/16"
• door width range: 15-3/4" to 19-11/16"
• door thickness range: 19/32"to 61/64"
• Maximum door weight: 15.4 lbs
