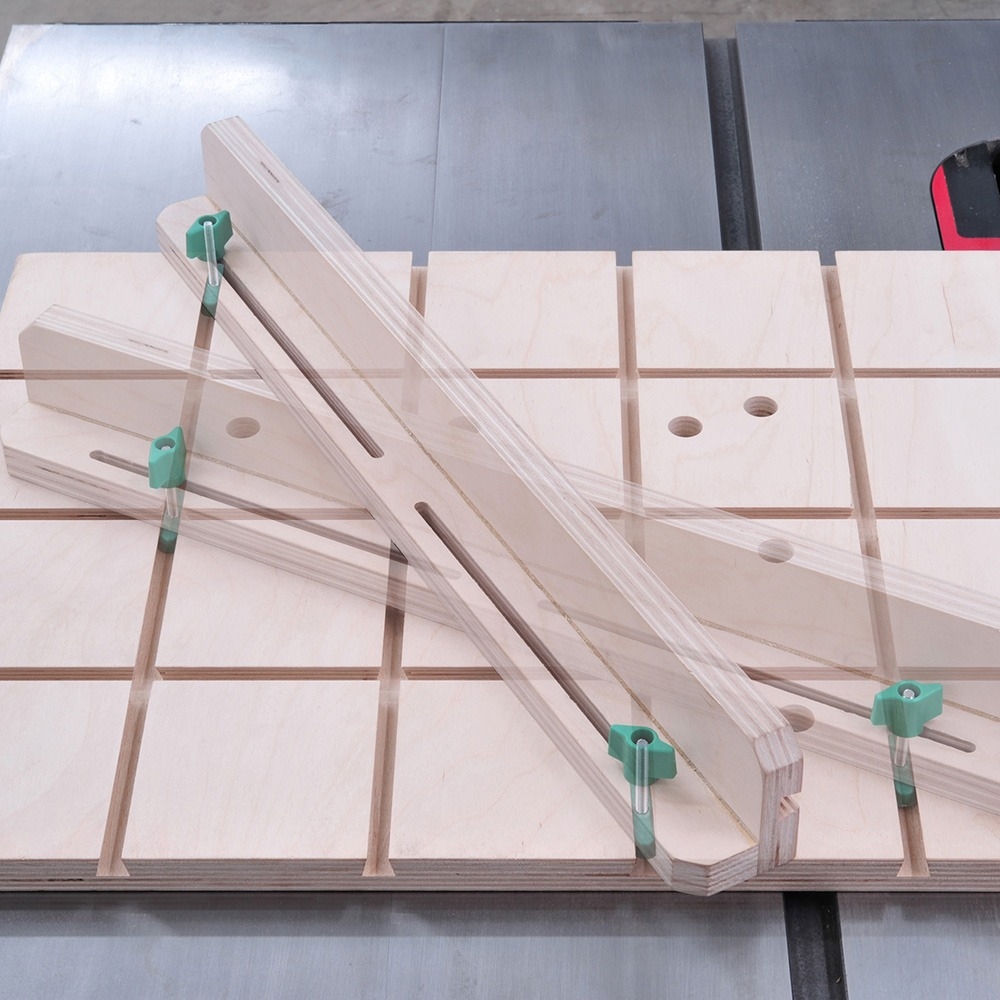

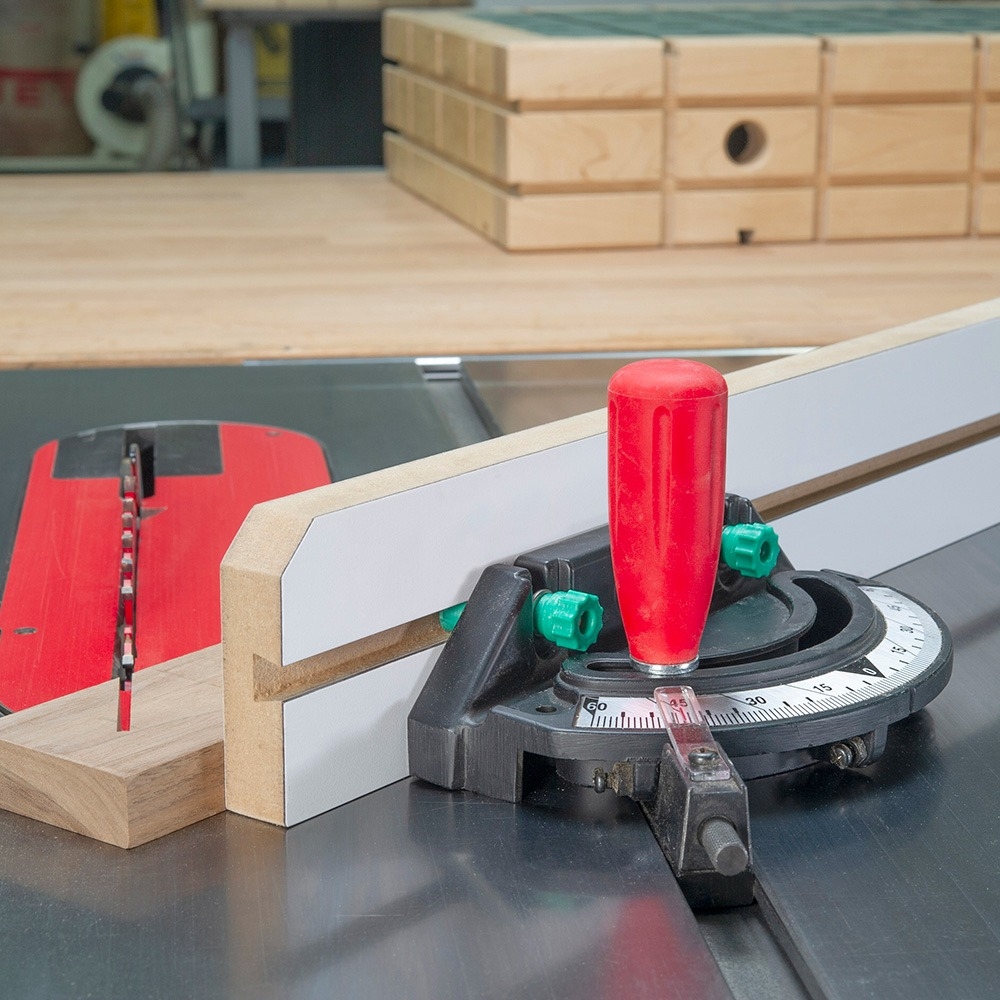

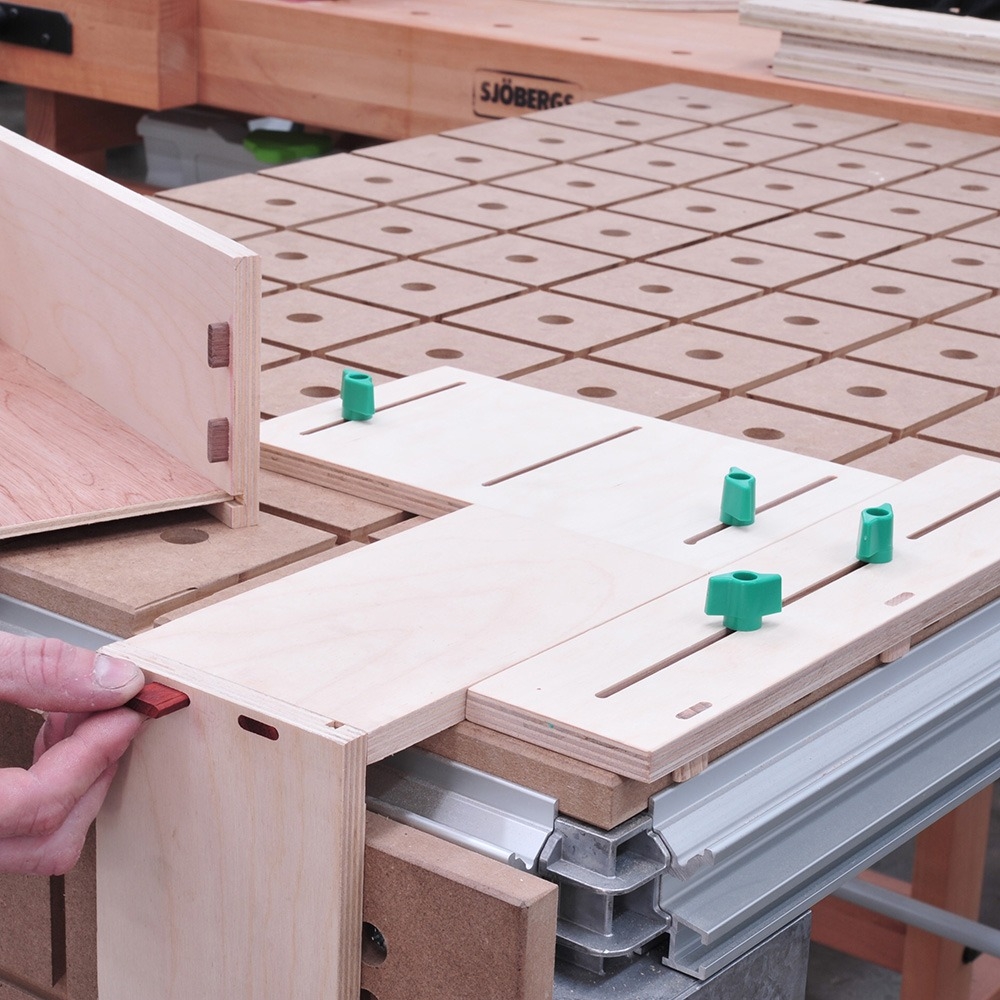

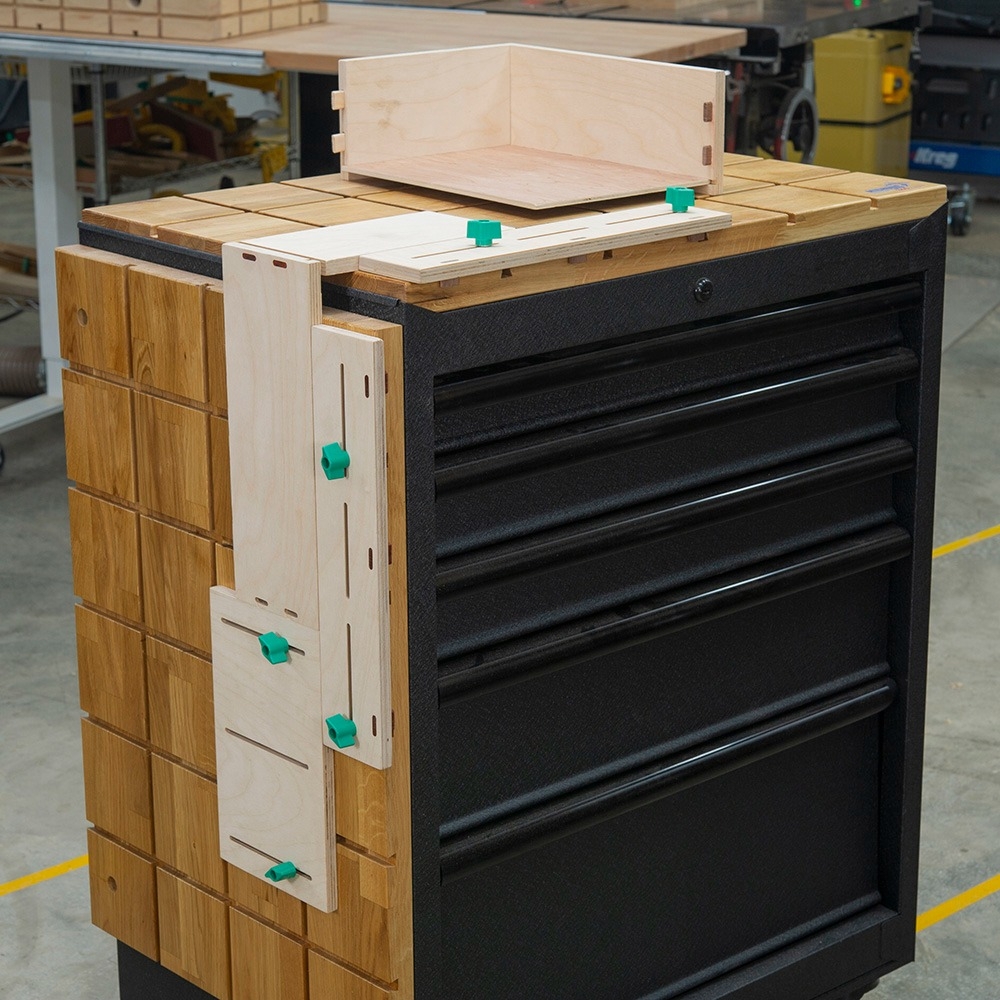

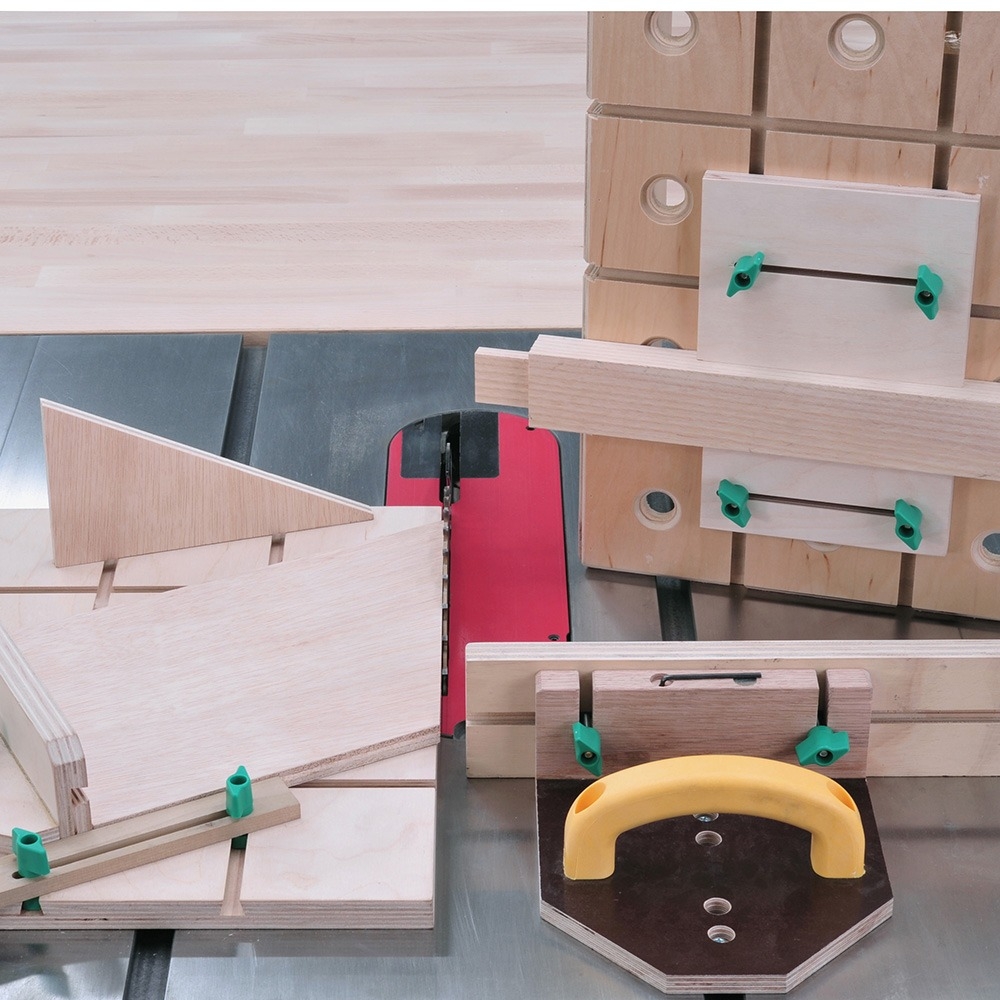

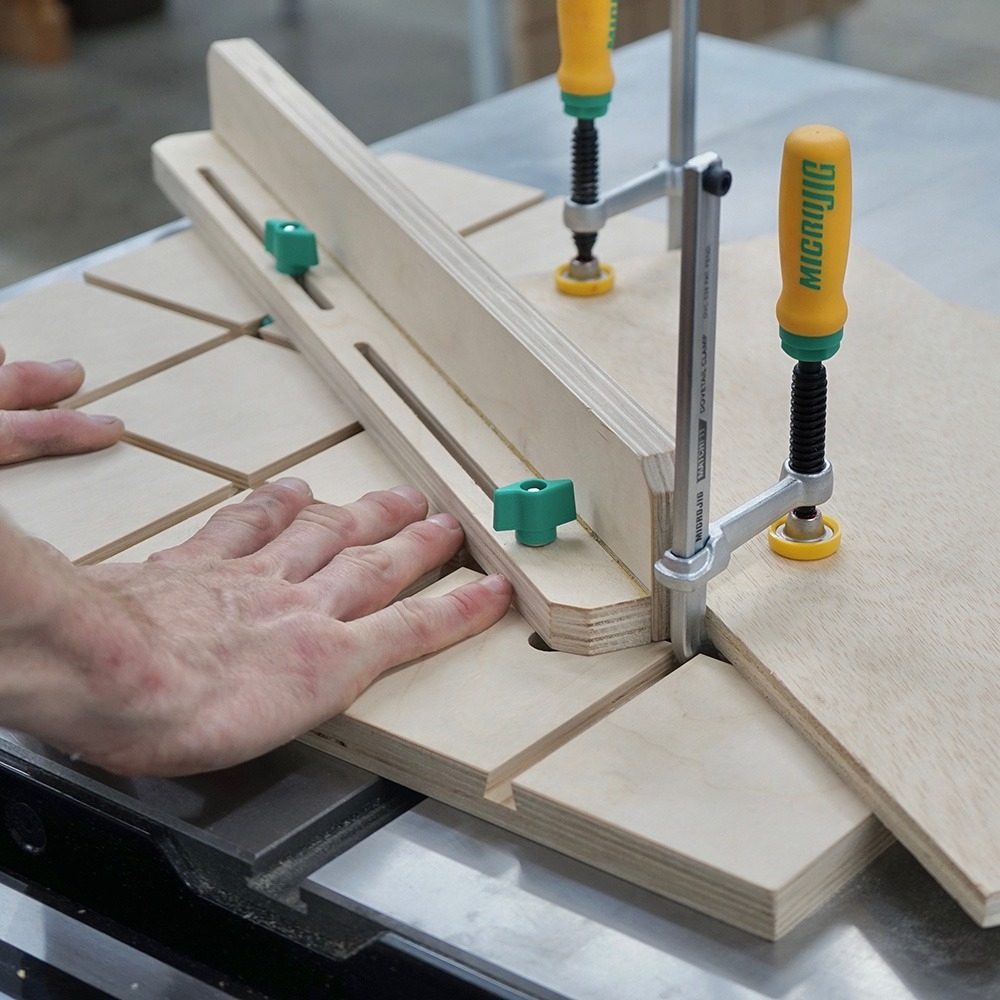

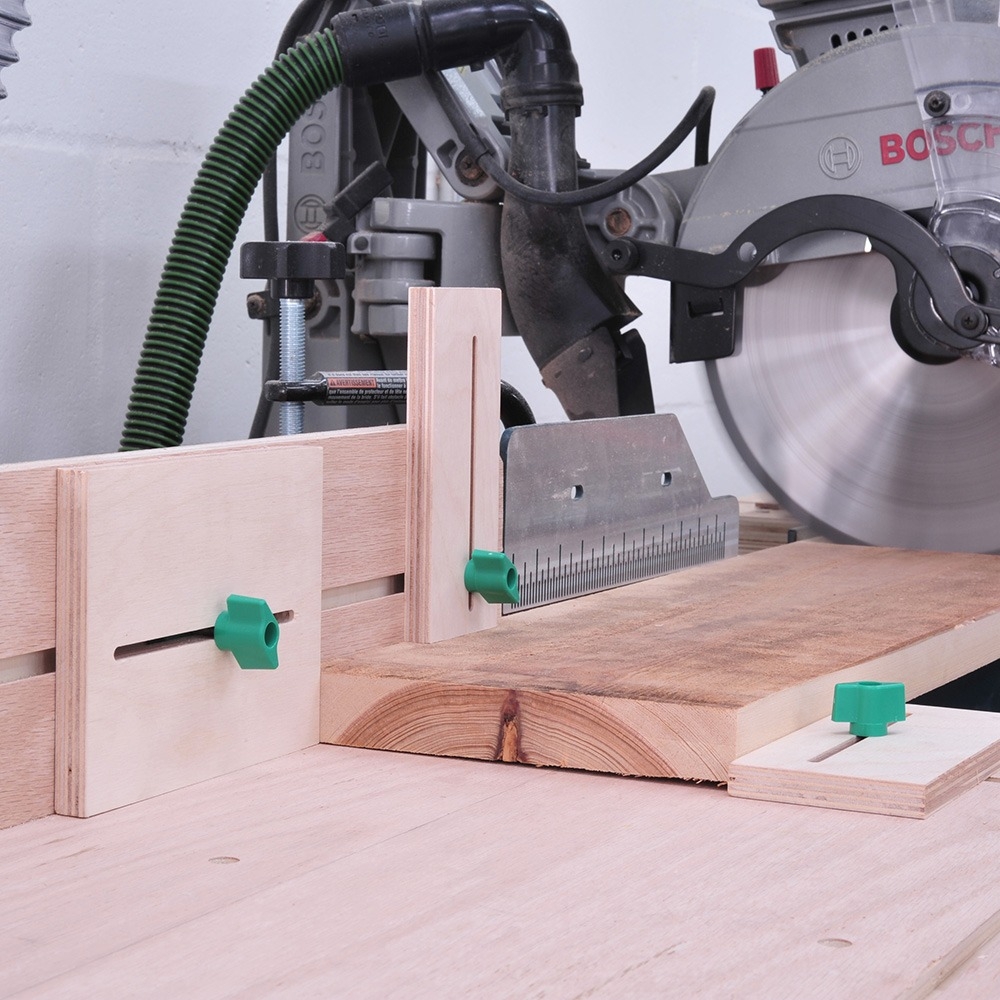

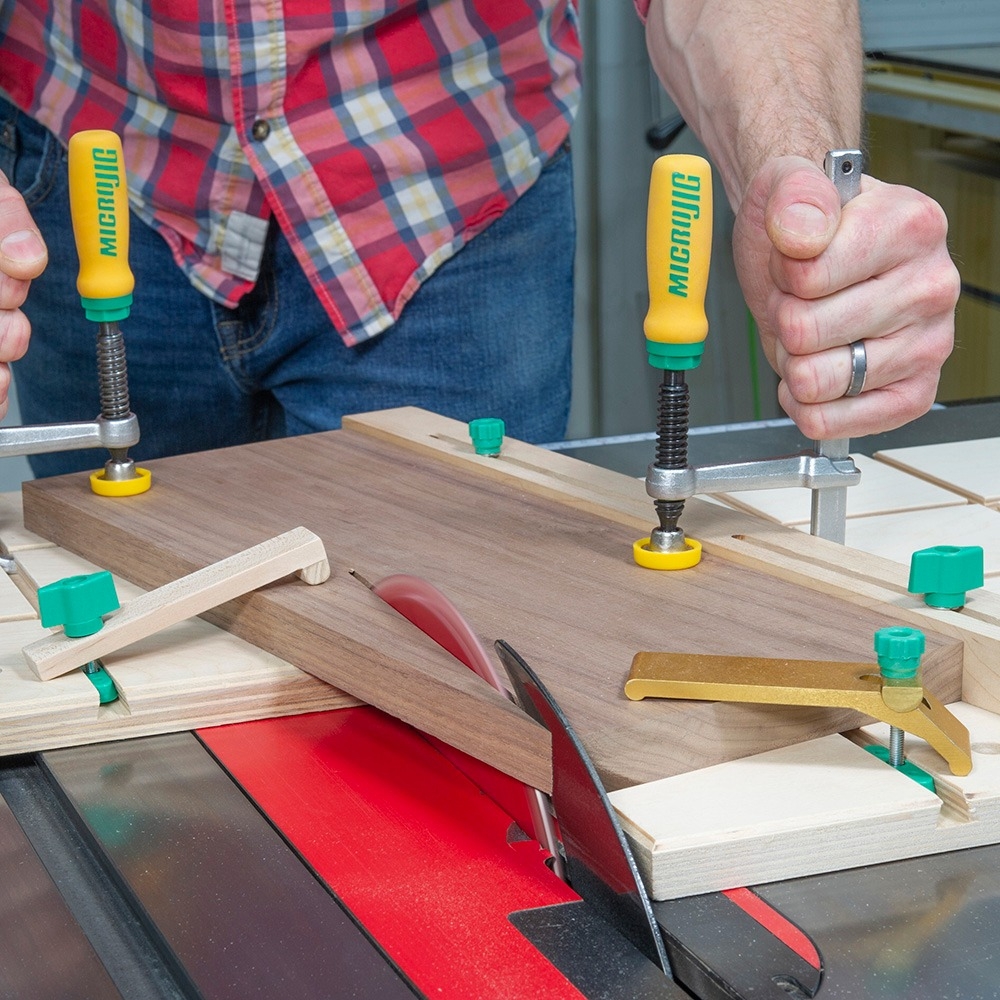

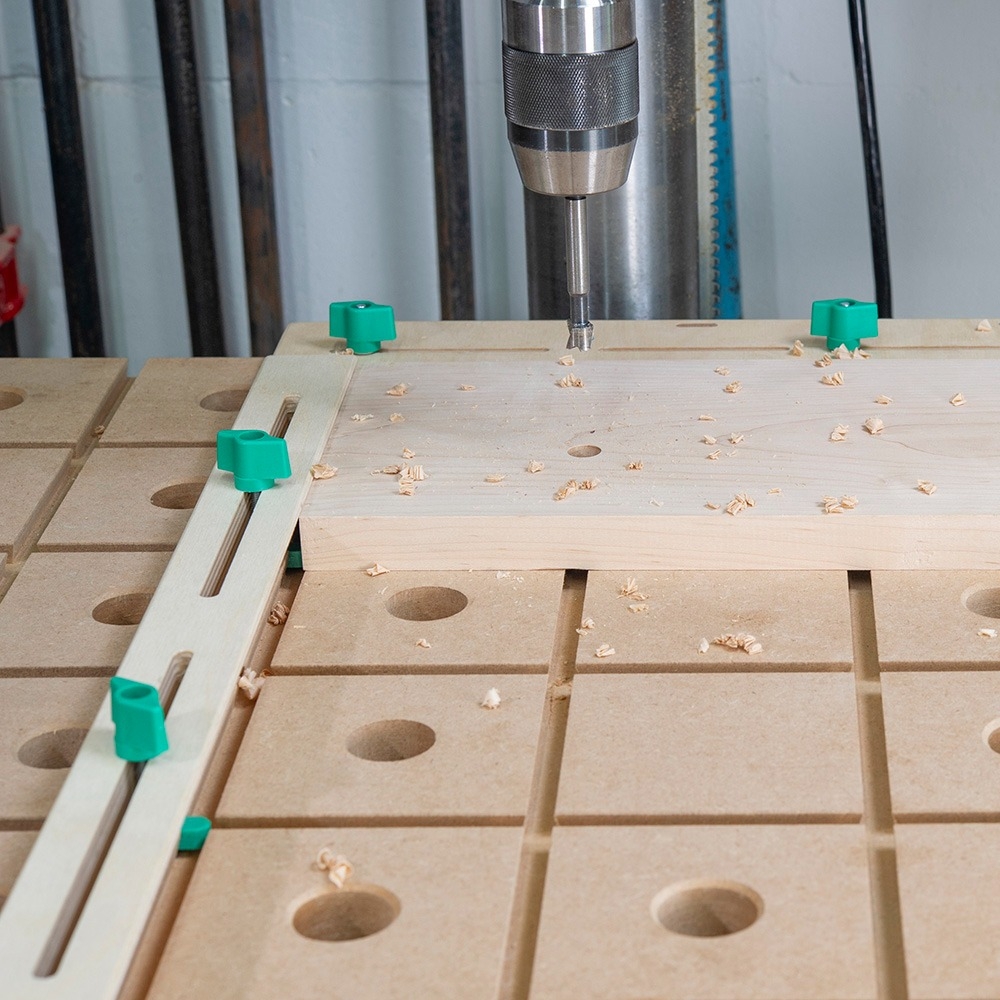

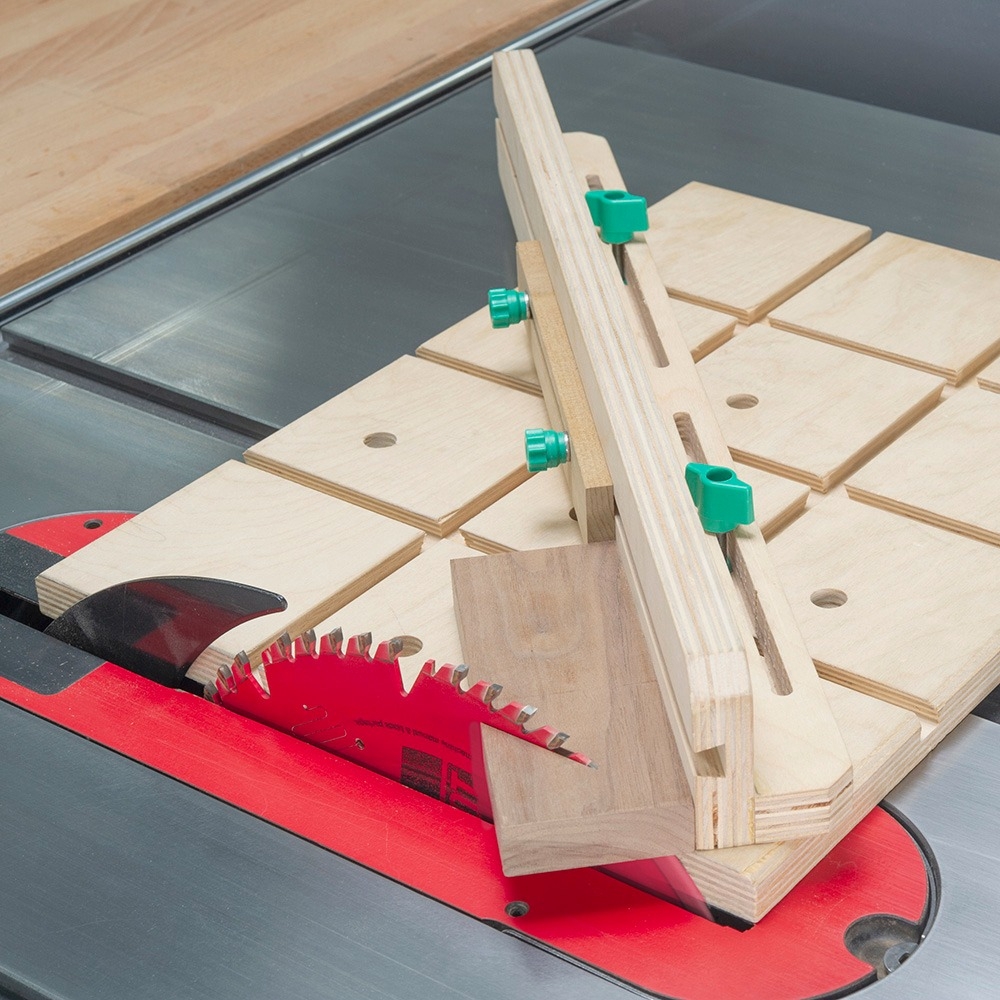

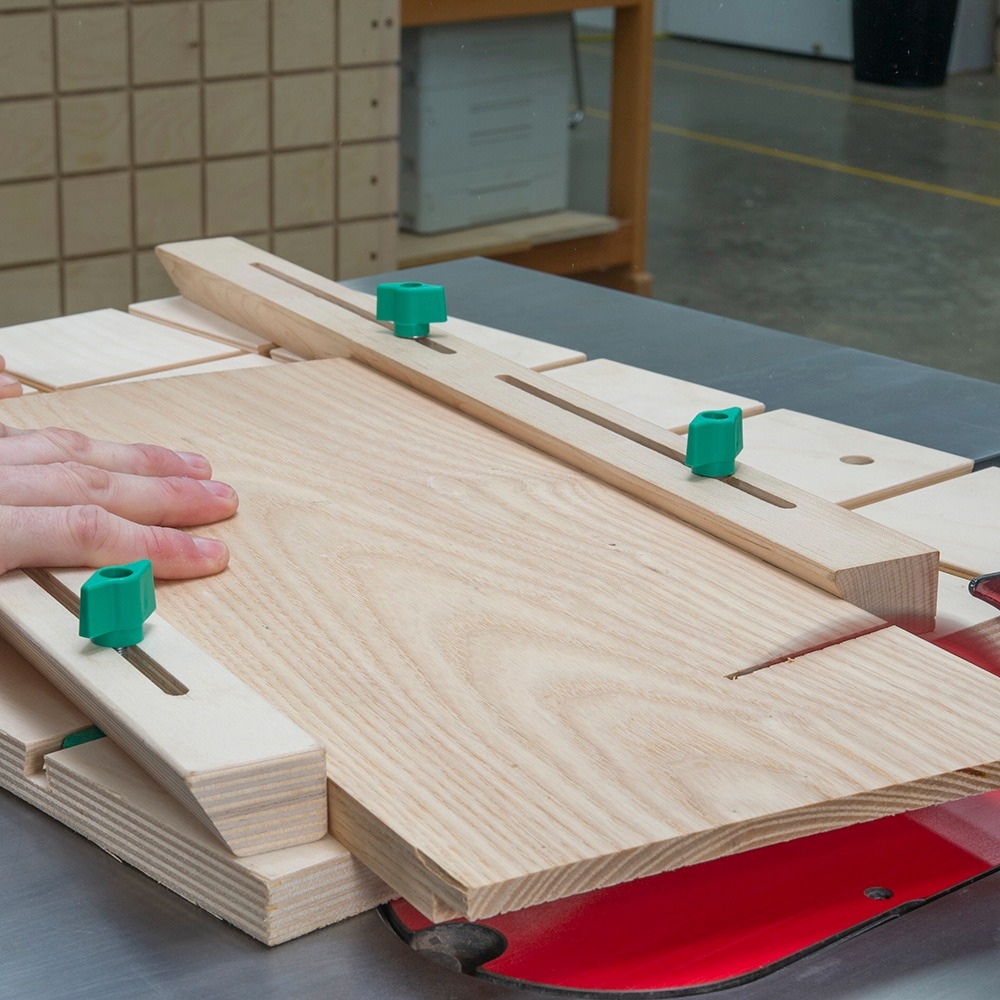

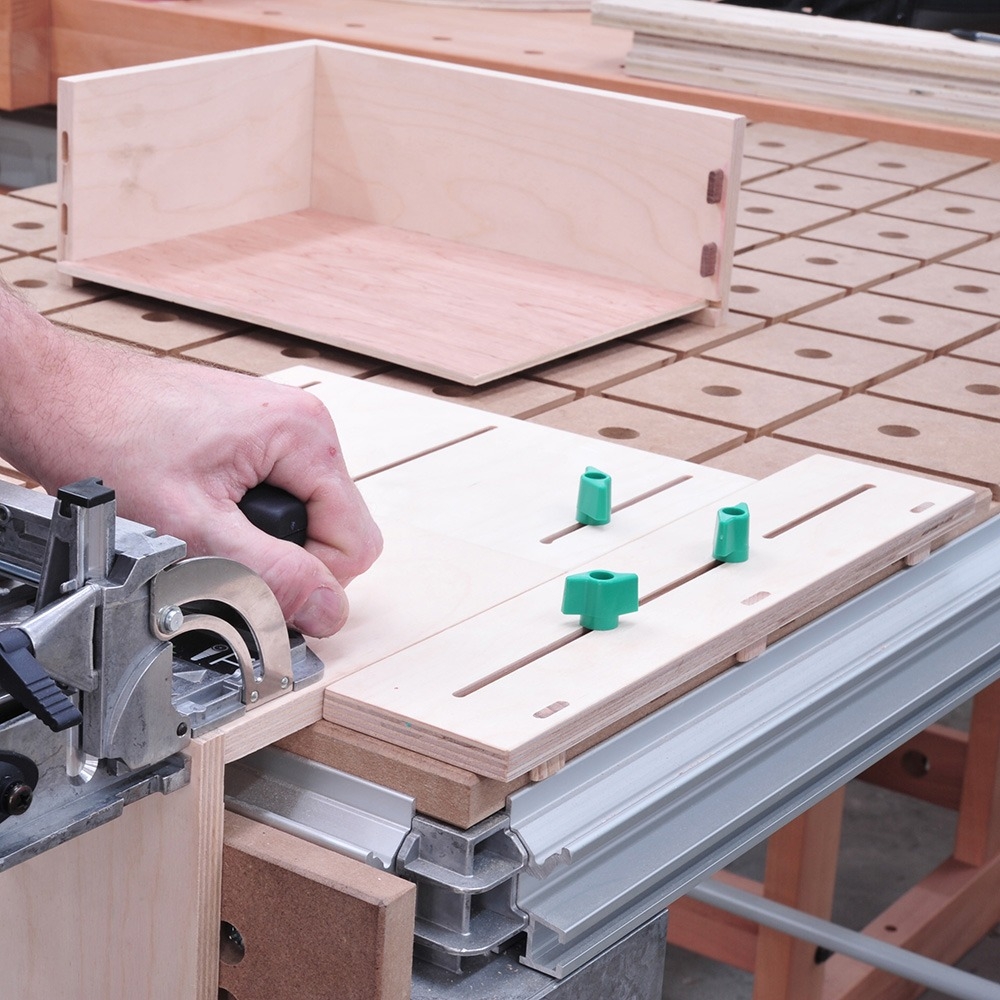

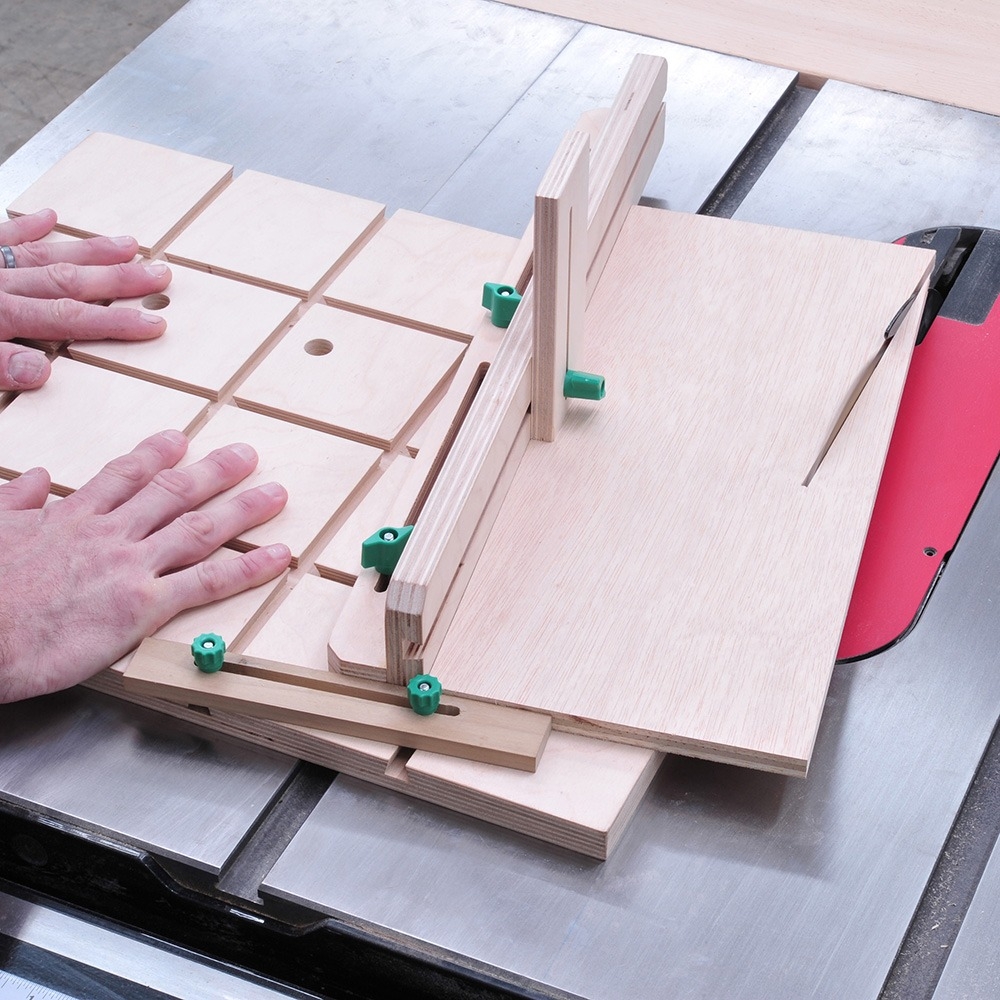

Wherever you can rout a 1/2'' x 14° dovetail groove, you can install this collection of MatchFit Dovetail Hardware to attach stops, fence attachments and other clamps or hold-downs to your jigs, worktables and workbench—no T-track required! Made of even stronger resin than Micro Jig's original dovetail hardware, this kit includes all the components you'll need to create eight points of attachment with a green dovetail-shaped insert on one end:

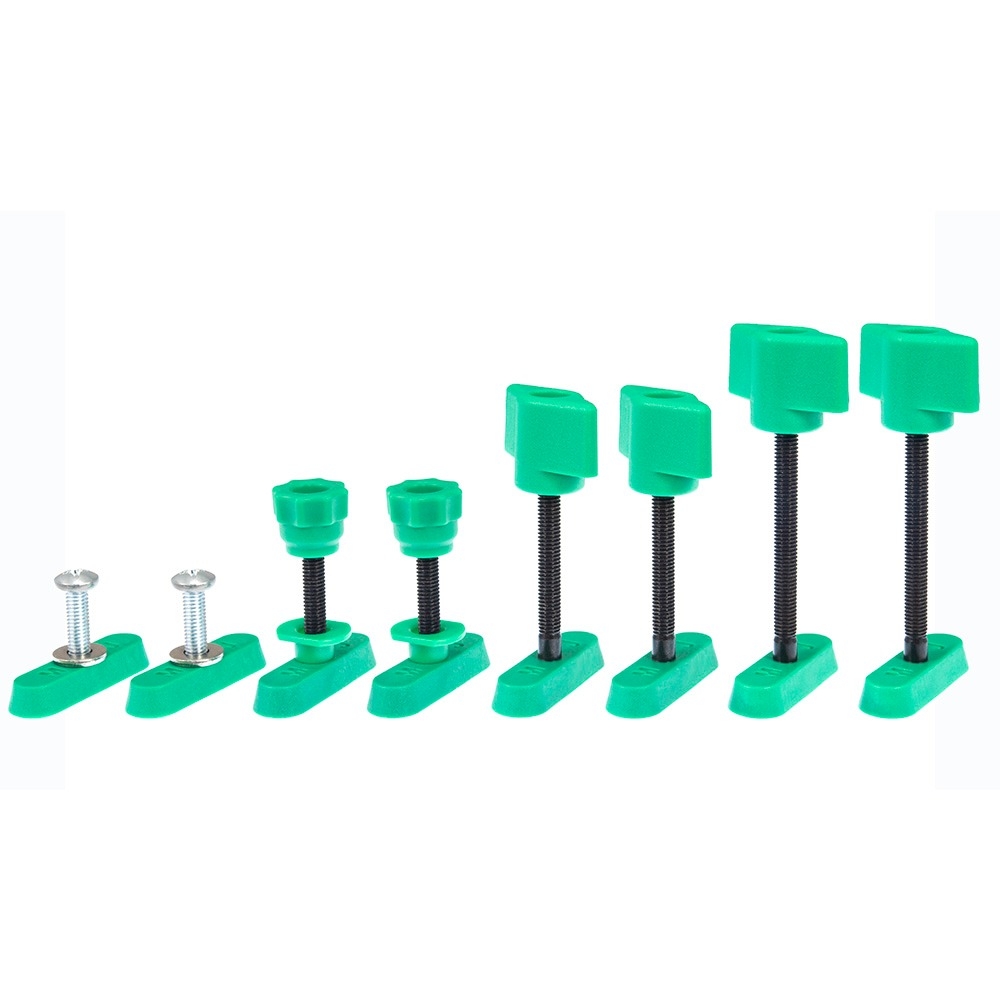

(2) Track Nuts with threaded inserts, steel washers and 10-32 x 3/4'' panhead screws (2) 10-32 x 1'' Track Screws with shoulder washers and round knobs (2) 10-32 x 1-1/2'' Track Screws with wing knobs (2) 10-32 x 2'' Track Screws with wing knobs
Hardware assortment lets you install stops, fence attachments and other hold-downs on any surface you can rout a 3/8''-deep dovetail track
Green dovetail-shaped resin inserts hold securely

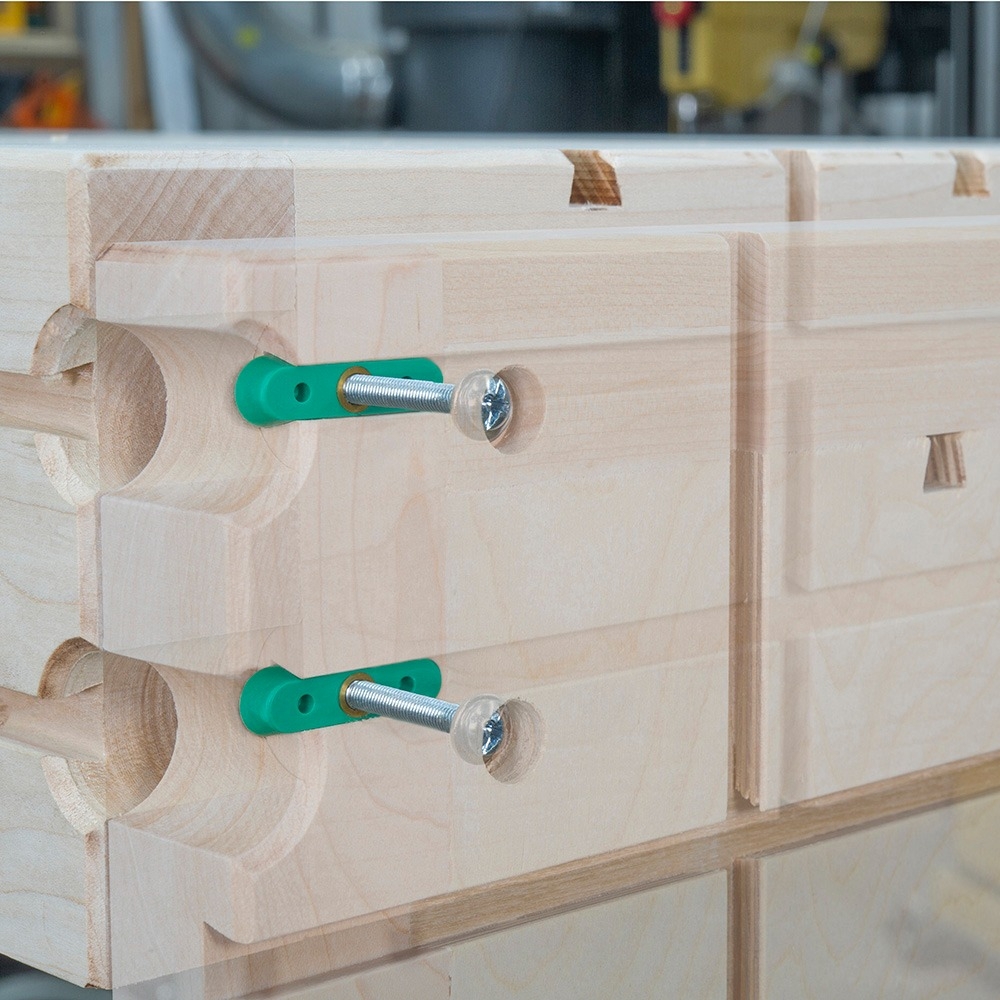

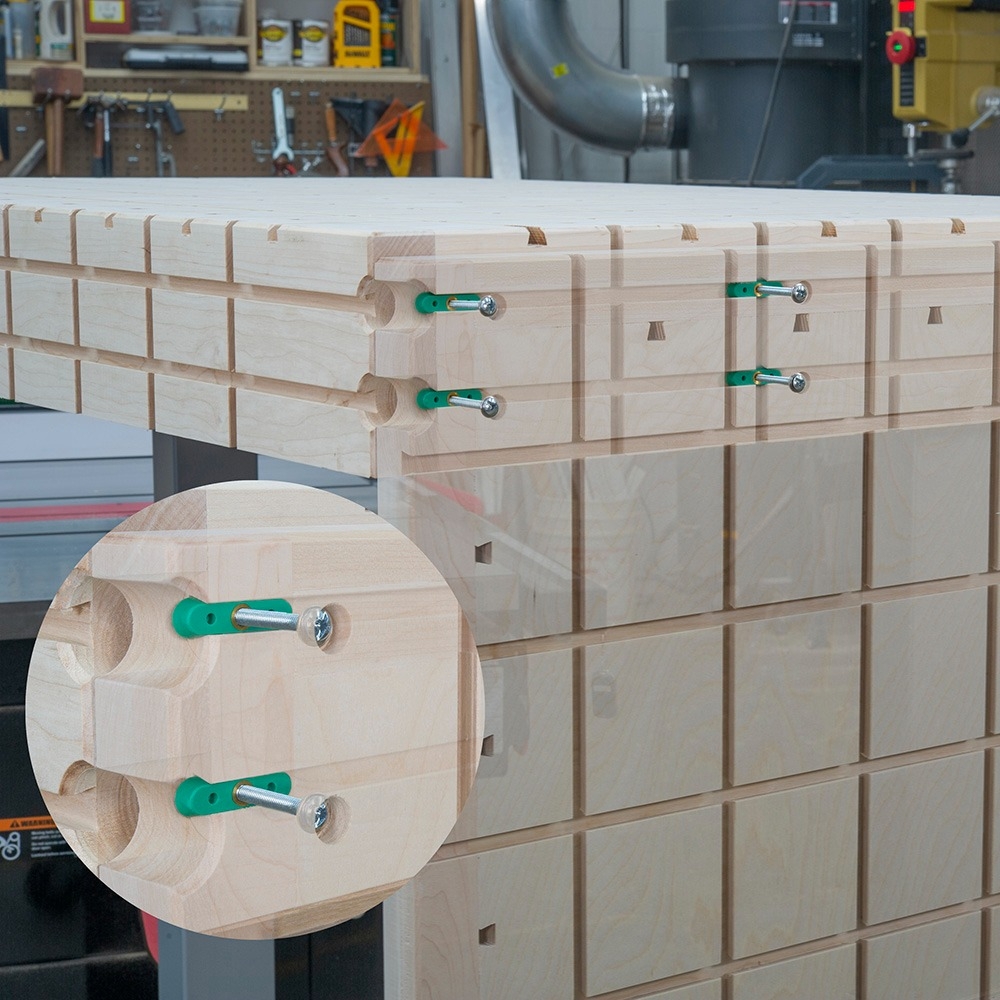

Track Nuts with threaded inserts and panhead screws are handy for making hidden or permanent stops that don't interfere with other jig features or operation
1'' Track Screws hold workpieces up to 3/4'' thick
1-1/2'' Track Screws hold workpieces up to 1-1/4'' thick
2'' Track Screws hold workpieces up to 1-3/4'' thick
1-1/2'' and 2'' Track Screws are ideal for high-torque applications and making thick stops, fences and strong hold-downs

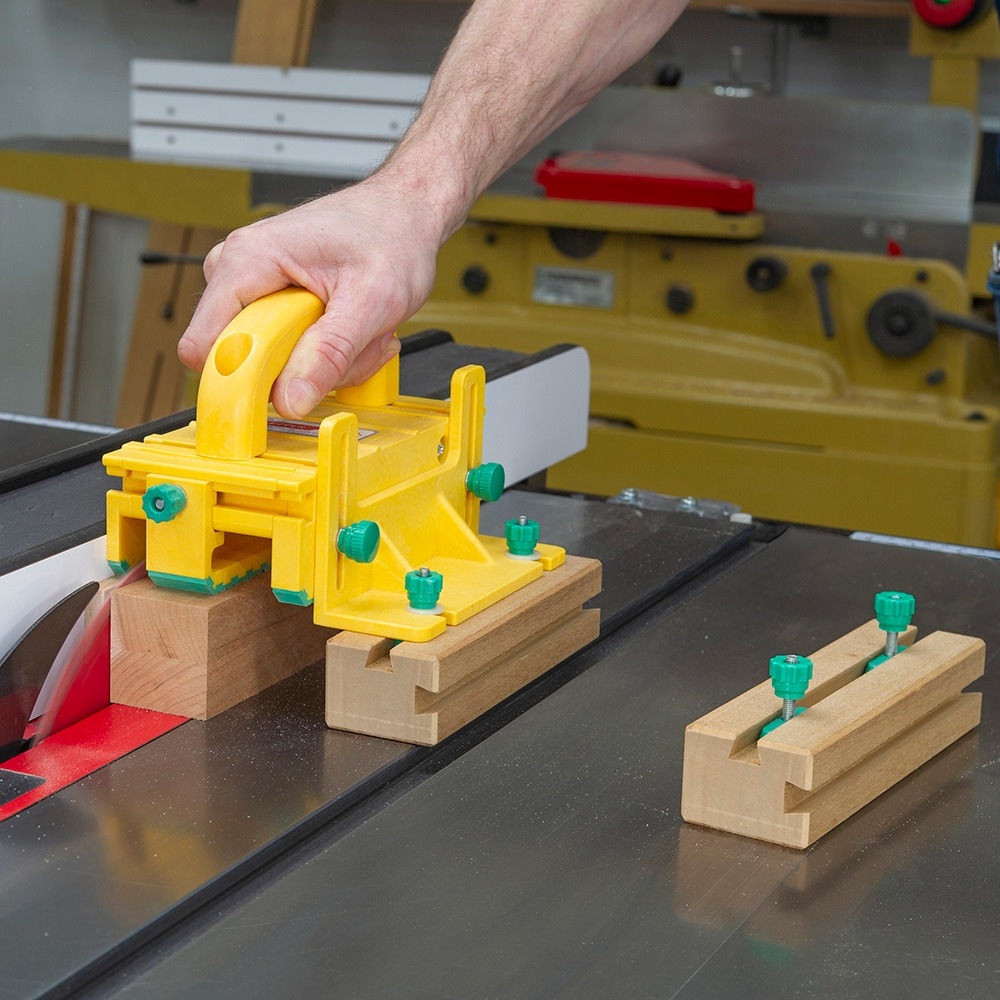

Shoulder washers are compatible with the Micro Jig Grr-Ripper push block system
Track screws are threaded along their full length to maximize clamping range
This product can expose you to chemicals including styrene, which is known to the State of California to cause cancer, and butadiene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/wood
