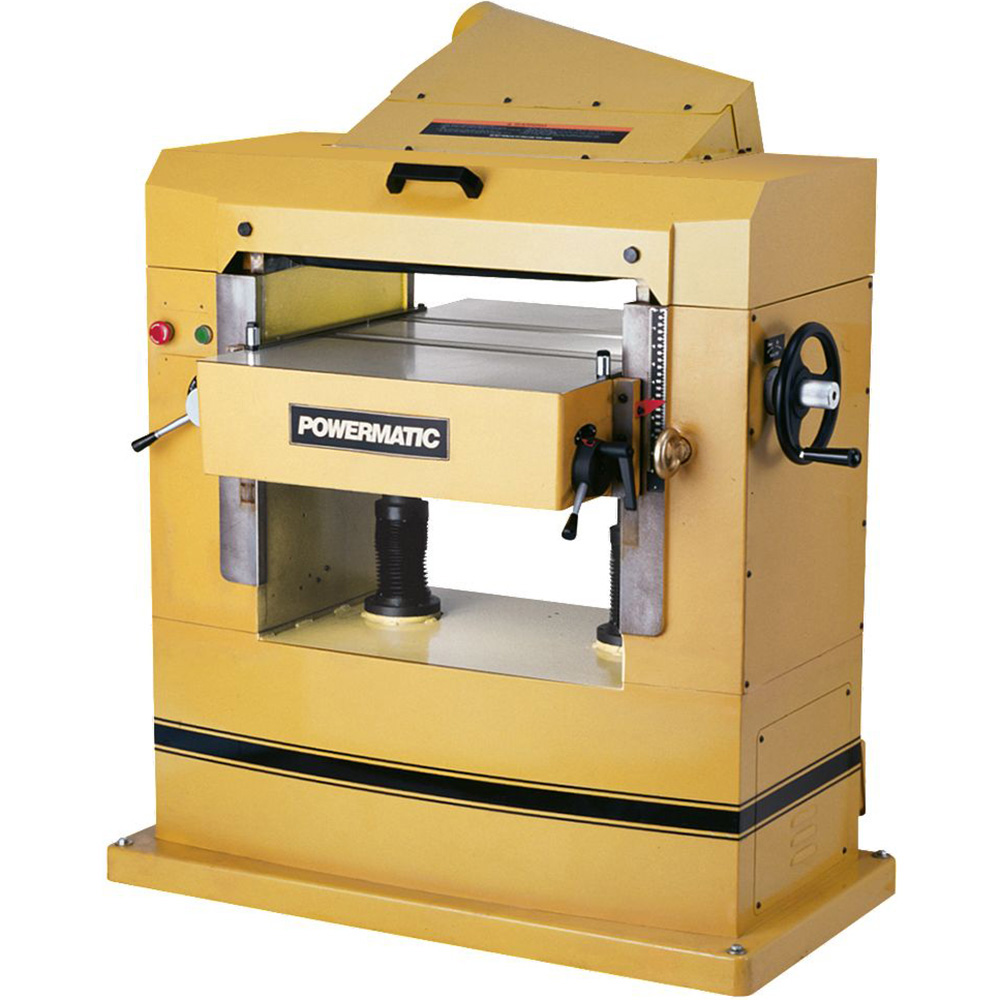

Powermatic 201 Planer, 7.5HP 1PH 230V

Name: Powermatic 201 Planer, 7.5HP 1PH 230V
Brand: Powermatic
SKU: 1002443
Price: 9899 USD
Availability: InStock

Item #

1002443

$9,899.00 Each

Cast iron 1300 lb. construction for solid performance without vibration

More details

How to get the most out of your planer

How do you want your item?

Powermatic 201 Planer, 7.5HP 1PH 230V

Features:

Cast iron 1300 lb. construction for solid performance without vibration
2 feed speeds - 20/30 fpm - accommodates rough and fine finish work
Segmented infeed roller with sectional chipbreaker allows multiple board planing

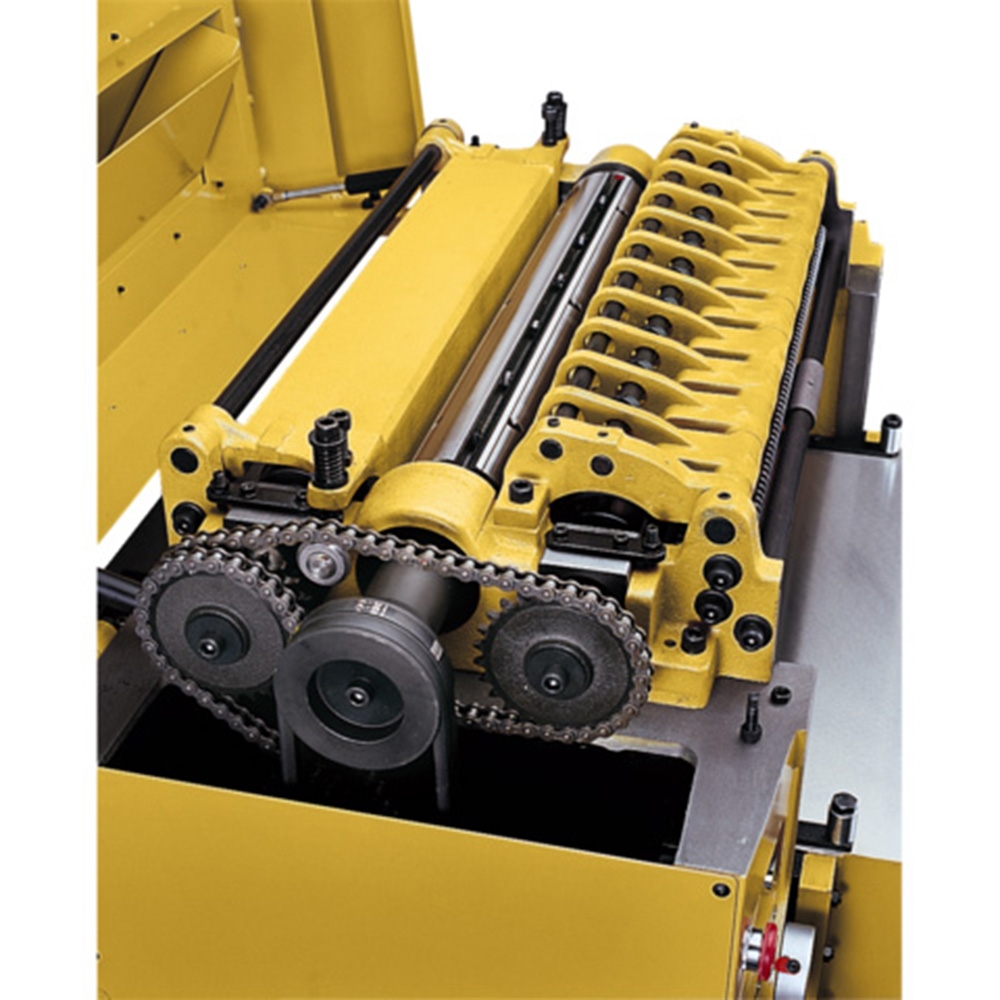

4-knife head offers 19,200 cuts per minute and widest capacity in its class
Roller bearing-mounted feed rollers for long life
Adjustable bed rollers allow smooth feeding of rough or finished workpieces

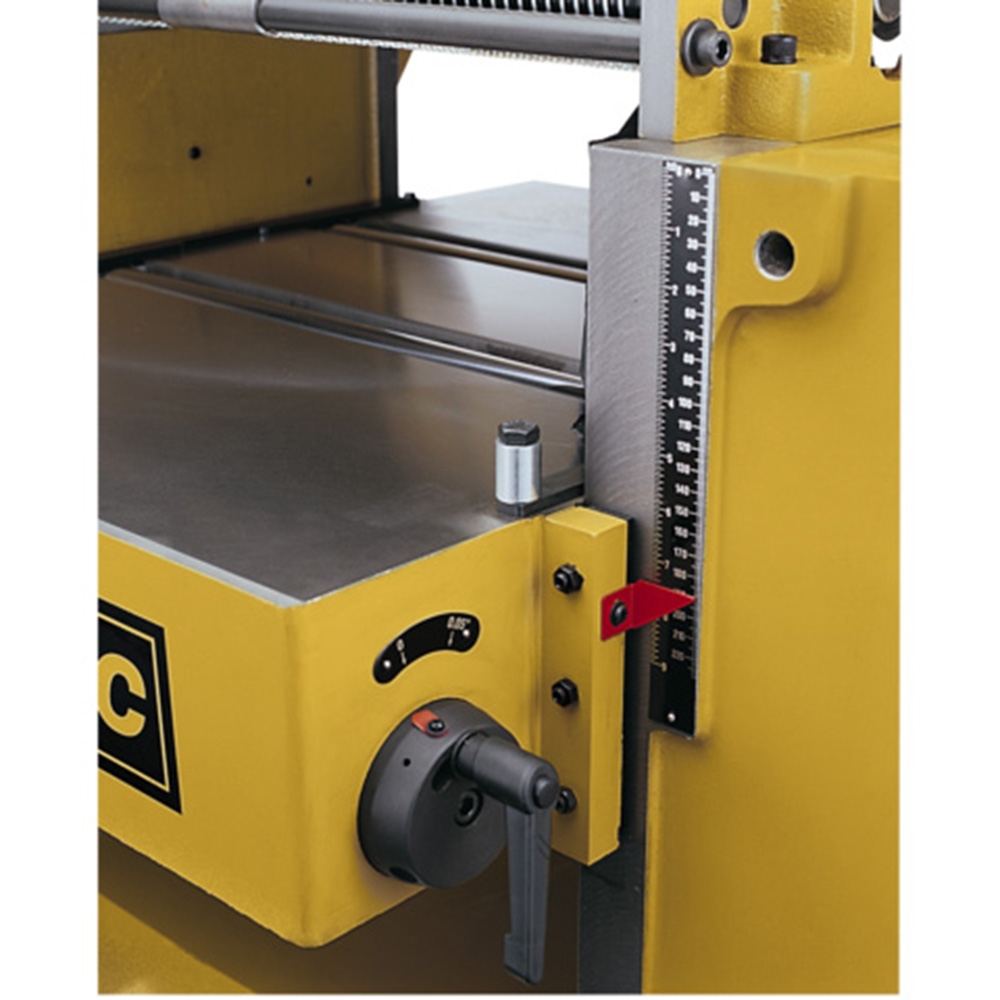

Oversized cast iron table travels on 2 large lead screws for heavy duty support
Dust collection chute with 5" port
Adjustable foot pads
Knife setting gauge
Tool kit (6, 8, and 10mm wrenches, 12-14mm, and 22-24mm combination wrenches)

Technical Documents

Powermatic 201 Planer Manual

WARNING This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product

Return Policy

More Information
Brand	Powermatic
Manufacturer Part Number	PM9-1791261
Weight	1,550.00
Tech Spec	Bed Rollers Adjustable from Front: 2 Cuts Per Minute:19,200 Cutterhead Diameter: 3-1/4" Cutterhead Speed (RPM): 4800 Dust Collection Minimum CFM Required: 900 Dust Port Diameter (OD/in.): 5 Feed Rate (FPM): 20 and 30 Height: 59" Infeed Roller Diameter (in): n.a. Length: 42" Maximum Depth of Cut: 3/16" Maximum Full Width Depth of Cut (in.): n.a. Maximum Opening (in.): n.a. Maximum Planing Thickness: 9-1/4" Maximum Planing Width: 22" Minimum Planing Length: 10" Model Number: 201 Motor Phase: 1Ph Motor Voltage: 230V Movement - Horizontal (in.): n.a. Movement - Vertical (in.): n.a. Movement - Vertical (in.): n.a. Number of Speeds: two Outfeed Roller Diameter: 3" Overall Dimensions:42 x 49 x 59 Planing Thickness Range (in.): n.a. Prewired: n.a. Range of Speeds (FPM): n.a. Readout Scale: mm/in Rollers (in.): n.a. Rotation (Forward/Reverse): n.a. Segmented Infeed Roller Diameter: 3" Ship Weight: 1430pound Swing (deg.): n.a. Table Height Adjust Manual: 1 Turn = 1/16 Table Size: 32-1/4" x 24" Table Support: 2-column Tool Supplied: Yes Width: 49"
Important Message	How to get the most out of your planer
Unit of Measure	Each
Planer Blade Size	22"
Planer Cutter Head Speed	4800 RPM
Dust Collection	5" Port
Maximum Depth of Cut	3/16"
Number of Knives	4

This item will ship directly from the manufacturer.
Must be shipped within the 48 contiguous United States.
Please allow up to 7 business days for your shipment to be prepared.
Additional shipping charges may apply and will be noted below the price.
Items shipped by truck are delivered to the curbside only.
25% restocking fee on all returned merchandise.
Please call customer service before returning product.

This item will ship directly from the manufacturer.
Must be shipped within the 48 contiguous United States.
Please allow up to 7 business days for your shipment to be prepared.
Additional shipping charges may apply and will be noted below the price.
Items shipped by truck are delivered to the curbside only.
25% restocking fee on all returned merchandise.
Please call customer service before returning product.
