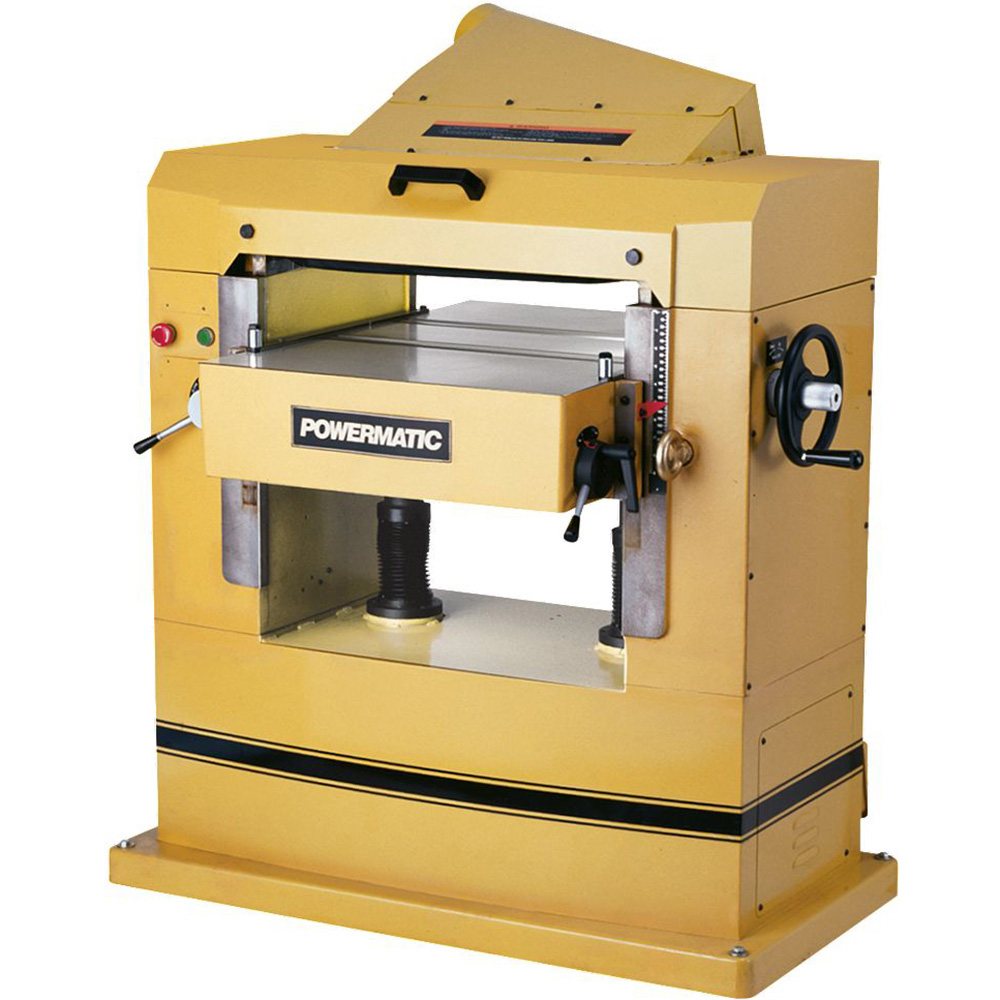

Powermatic 201HH, 22'' Planer, 7.5HP 3PH 230V, helical Cutterhead

Name: Powermatic 201HH, 22'' Planer, 7.5HP 3PH 230V, helical Cutterhead
Brand: Powermatic
SKU: 1002446
Price: 12539 USD
Availability: InStock

Item #

1002446

$12,539.00 Each

Helical cutterhead with knife inserts provides smoother, quieter cutting and finer finish than conventional systems

More details

How to get the most out of your planer

How do you want your item?

Powermatic 201HH, 22' Planer, 7.5HP 3PH 230V, helical cutterhead.

Features:

Helical cutterhead with knife inserts provides smoother, quieter cutting and finer finish than conventional systems
Cast iron 1300 lb. construction for solid performance without vibration
2 feed speeds - 20/30 fpm - accommodates rough and fine finish work
Segmented infeed roller with sectional chipbreaker allows multiple board planing
Roller bearing-mounted feed rollers for long life
Adjustable bed rollers allow smooth feeding of rough or finished workpieces
Oversized cast iron table travels on 2 large lead screws for heavy duty support
Dust chute with 5" port for dust collection
Standard Equipment:
Dust collection port
Adjustable foot pads
Tool kit

Purchase Note: This machine requires 3-phase power. Most residential power is single or 1-phase. Verify your power requirements before ordering.

Technical Documents

Powermatic 201HH, 22'' Planer Manual

WARNING This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product

Return Policy

More Information
Brand	Powermatic
Manufacturer Part Number	PM9-1791268
Weight	1,550.00
Tech Spec	Bed Rollers Adjustable from Front: 2 Blade Size: 0.59 L x 0.59 W x 0.10 Th Column Diameter: 2-1/2" Cuts Per Minute: n.a. Cutterhead Diameter: 3-1/4" Cutterhead Speed (RPM): 4800 Distance Between Rollers - Center to Center (in.): n.a. Dust Collection Minimum CFM Required: 900 Feed Rate (FPM): 20 and 30 Height: 59" Infeed Roller Diameter: 3" Length: 42" Maximum Depth of Cut: 3/16" Maximum Full Width Depth of Cut (in.): n.a. Maximum Height of Rollers Parallel to Tabletop (in.): table rollers - 0.05 Maximum Opening (in.): n.a. Maximum Planing Thickness: 9-1/4" Maximum Planing Width: 22" Minimum Planing Length: 10" Model Number: 201HH Motor Phase: 3PH Motor Voltage: 230V Movement - Horizontal (in.): n.a. Movement - Vertical (in.): n.a. Movement - Vertical (in.): n.a. Net Weight: 1350 lbs Number of Knives: 150 four-sided inserts Number of Speeds: two Outfeed Roller Diameter: 3" Overall Dimensions: 42" x 49" x 59" Planing Thickness Range (in.): n.a. Prewired: n.a. Range of Speeds (FPM): n.a. Readout Scale: mm/in Rollers (in.): n.a. Rotation (Forward/Reverse): n.a. Segmented Infeed Roller Diameter: 3" Ship Weight: 1430pound Swing (deg.): n.a. Table Height Adjust Manual: 1 Turn = 1/16 Table Size: 32-1/4" x 24" Table Support: 2-column Tool Supplied: yes Width: 49"
Important Message	How to get the most out of your planer
Unit of Measure	Each
Planer Blade Size	22"
Planer Cutter Head Speed	4800 RPM
Dust Collection	5" Port
Number of Knives	150
