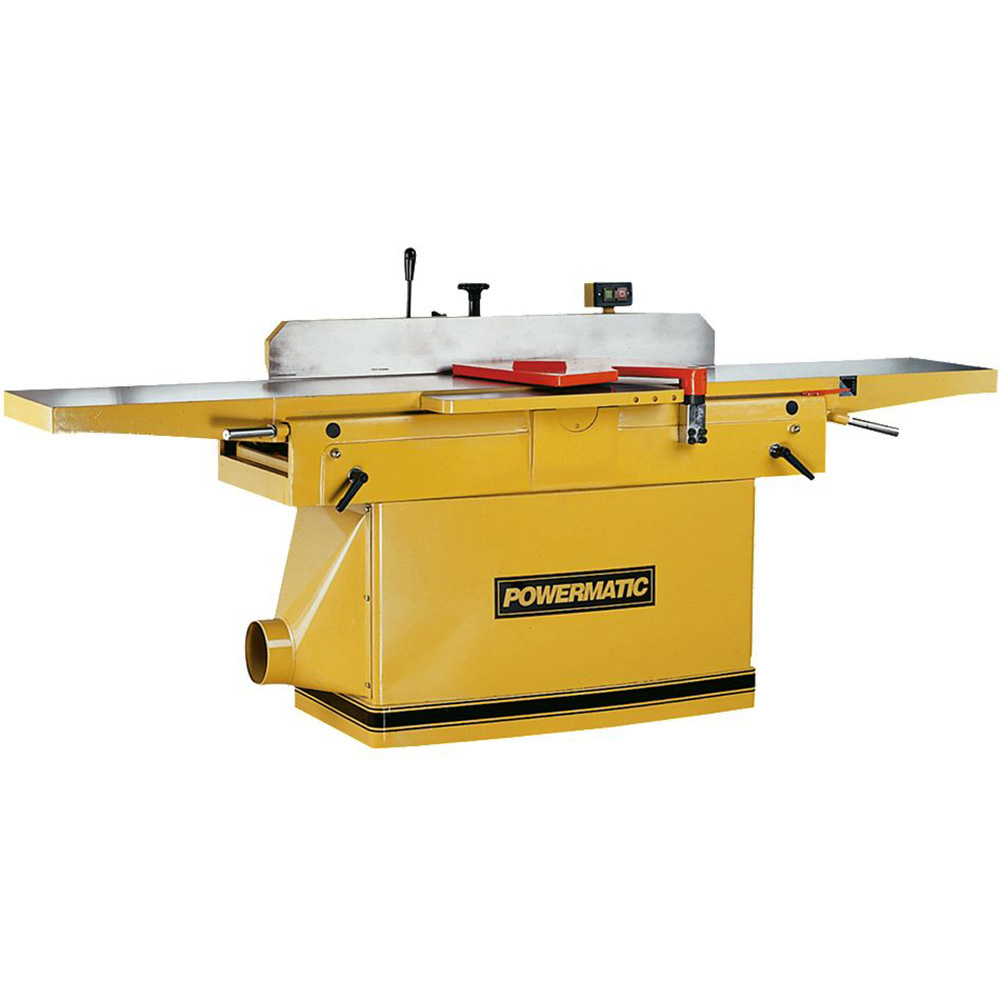

Powermatic PJ1696 16" Jointer, 7.5HP 3PH 230/460V, Helical Head

Name: Powermatic PJ1696 16" Jointer, 7.5HP 3PH 230/460V, Helical Head
Brand: Powermatic
SKU: 1002500
Price: 11499 USD
Availability: InStock

Item #

1002500

Special Price $11,499.00 Each Regular Price $13,804.00 Save $2,305.00

Helical cutterhead with 2-sided knife inserts reduces noise, eliminates adjustments and speeds knife changes

More details

How do you want your item?

Powermatic PJ1696 16' Jointer.

Features:

Helical cutterhead with 2-sided knife inserts reduces noise, eliminates adjustments and speeds knife changes
Parallelogram construction maintains close table-to-cutterhead proximity and ensures table parallelism
Large 96" x 16" table surface for maximum support and fine finish

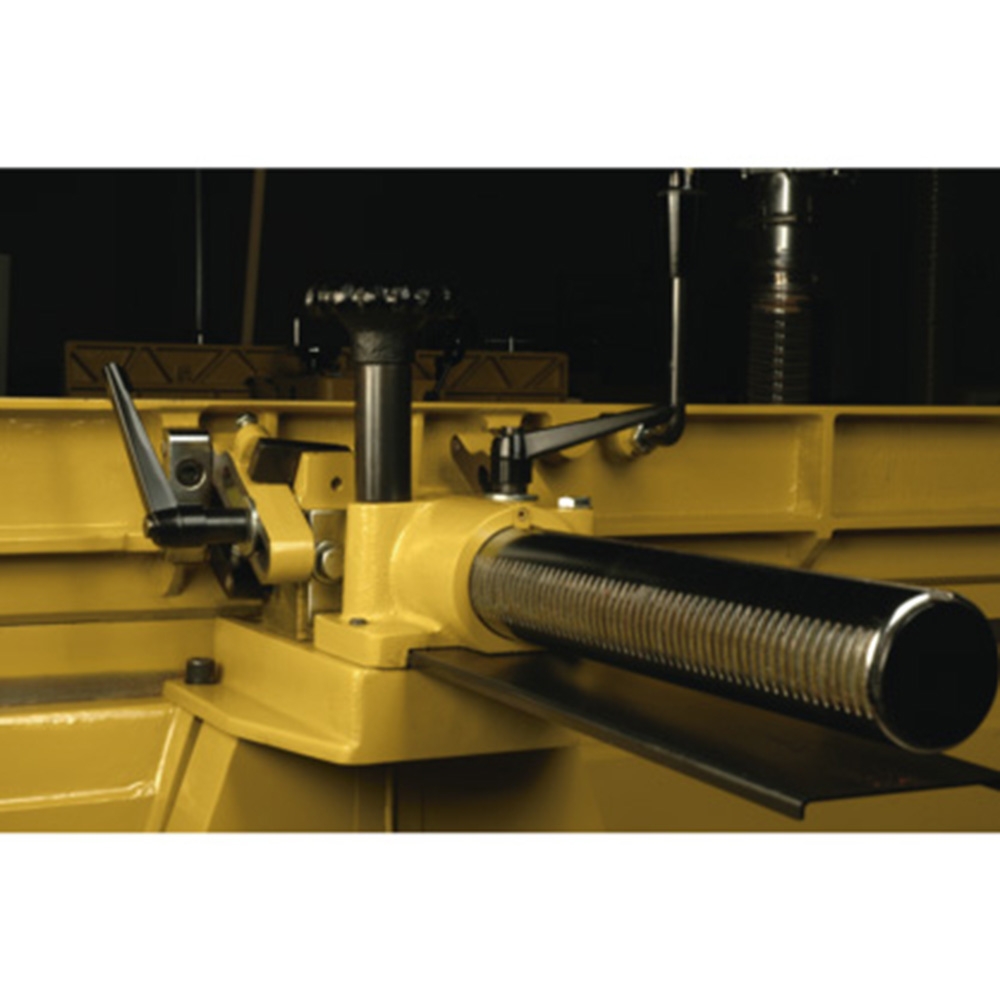

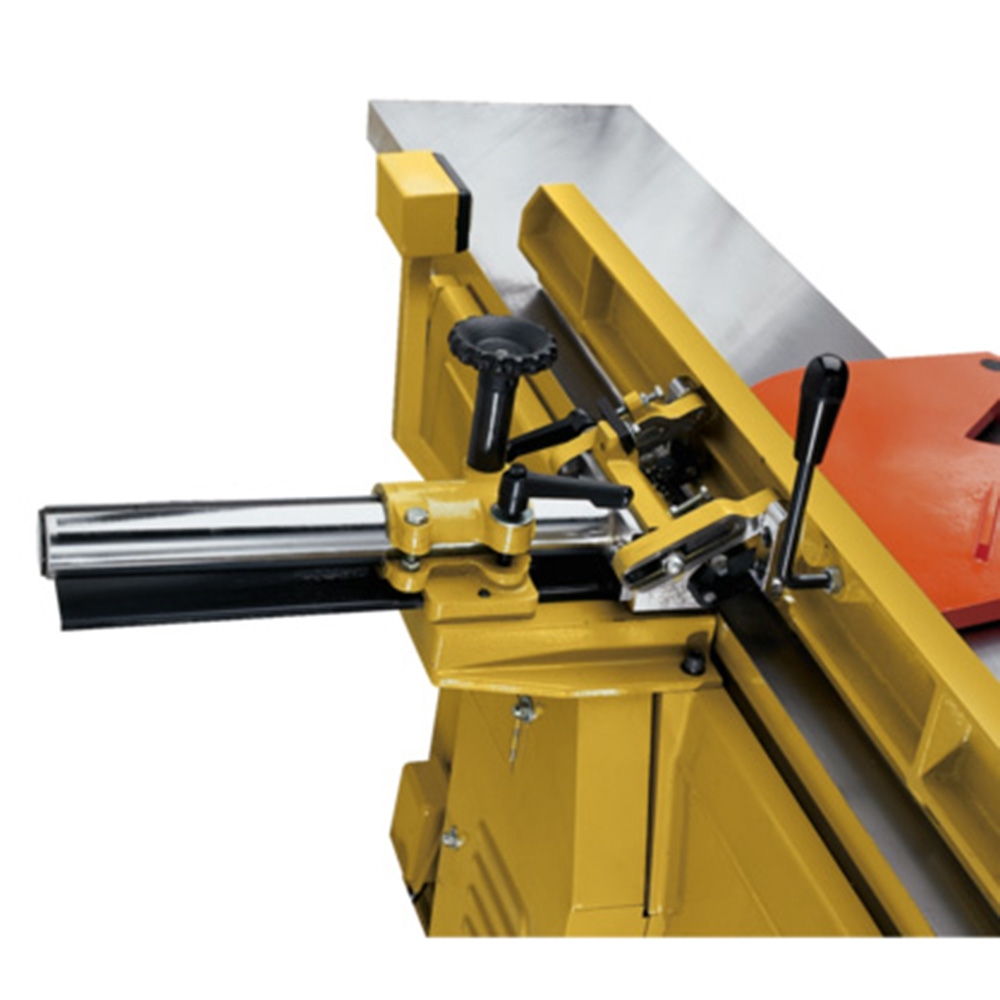

Rack and pinion adjustable cast iron fence system for smoother fence positioning and sturdy work support
Full size rabbeting table supports large workpieces for rabbets up to 3/4" deep
7.5HP Motor for industrial duty
Standard Equipment:
Helical cutterhead with inserts
Tilting fence
Dust collection adaptor
Cutterhead guard
Tool kit

Purchase Note: This machine requires 3-phase power. Most residential power is single or 1-phase. Verify your power requirements before ordering.

Technical Documents

Powermatic PJ1696 16" Jointer, 7.5HP 3PH 230/460V, Helical Head Manual

WARNING This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product

Return Policy

More Information
Brand	Powermatic
Manufacturer Part Number	PM9-1791283
Weight	1,280.00
Tech Spec	Cuts Per Minute: 20800 Cutterhead Diameter: 4" Cutting Capacity: 16" W x 3/4" D Dust Collection Minimum CFM Required: 800 Dust Port Diameter: 6" Fence Positive Stops (deg.):45, 90 and -45 Fence Size: 47-1/4" L x 5-1/4" H Fence Tilts (deg.): 45 in/out Height: 43" Infeed Table Length (in.):47-1/2 Length:96inch Model Number: PJ1696 Motor Phase: 3Ph Motor Voltage: 230/460V Net Weight: 1280 lbs Number of Knives (Helical/Standard): 58 two-sided inserts (includes 2 rabbeting) Outfeed Table Length: 47-1/4" Overall Dimensions: 96" x 46" x 43" Prewired: prewired 230V Rabbeting Capacity: 3/4" Rabbeting Ledge: 5" x 24-1/2" Ship Weight: 1400 lbs Standard Knife Size (L x W x T/in.): 30" x 12" x 2" mm Table Height: 37-1/2" Table Size: 96" L x 16" W Width: 46"
Unit of Measure	Each
Jointer Cutterhead Speed	5200 RPM
Dust Collection	6" Port
Size	16"

This item will ship directly from the manufacturer.
Must be shipped within the 48 contiguous United States.
Please allow up to 7 business days for your shipment to be prepared.
Additional shipping charges may apply and will be noted below the price.
Items shipped by truck are delivered to the curbside only.
25% restocking fee on all returned merchandise.
Please call customer service before returning product.

This item will ship directly from the manufacturer.
Must be shipped within the 48 contiguous United States.
Please allow up to 7 business days for your shipment to be prepared.
Additional shipping charges may apply and will be noted below the price.
Items shipped by truck are delivered to the curbside only.
25% restocking fee on all returned merchandise.
Please call customer service before returning product.
