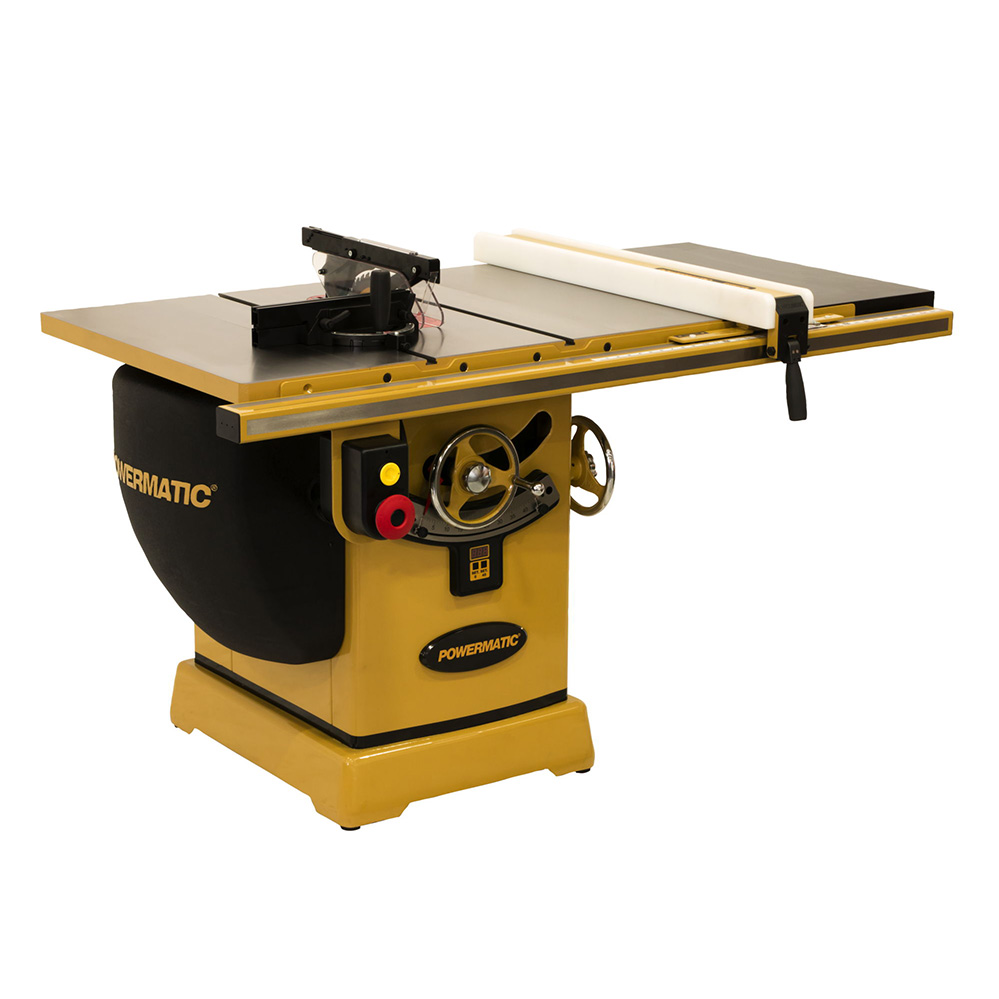

Powermatic's PM2000B table saw is the latest update to the popular PM2000 series. It adds numerous improvements to an already award-winning platform, including a digital readout for precise blade angle adjustments and a hydraulic caster system that lifts your saw higher than previous models—important when moving the saw over a threshold. The redesigned arbor lock lever eliminates the need for two wrenches, and is easily accessible from above the table. Of course, the PM2000B retains all of its most-loved attributes, including a massive body, powerful motor, and oversized precision-ground cast iron tables with smooth bevels on the front and rear edges. The one-piece cast iron box trunnion provides maximum rigidity for consistency and durability, while concave teeth on the trunnion gears promote easier raising and tilting of the blade. Thanks to the Poly-V drive belt, you'll enjoy quieter, more efficient power transfer, virtually no vibration and less heat build-up. The oversized dust chute provides maximum dust collection efficiency. All controls are thoughtfully designed, including a stop button that can be easily knee-activated when necessary.
Features:
Integrated Digital Read Out and adjustable angle indicators for accurate, repetitive bevel cuts
Redesigned integrated hydraulic casters feature more lift than previous model

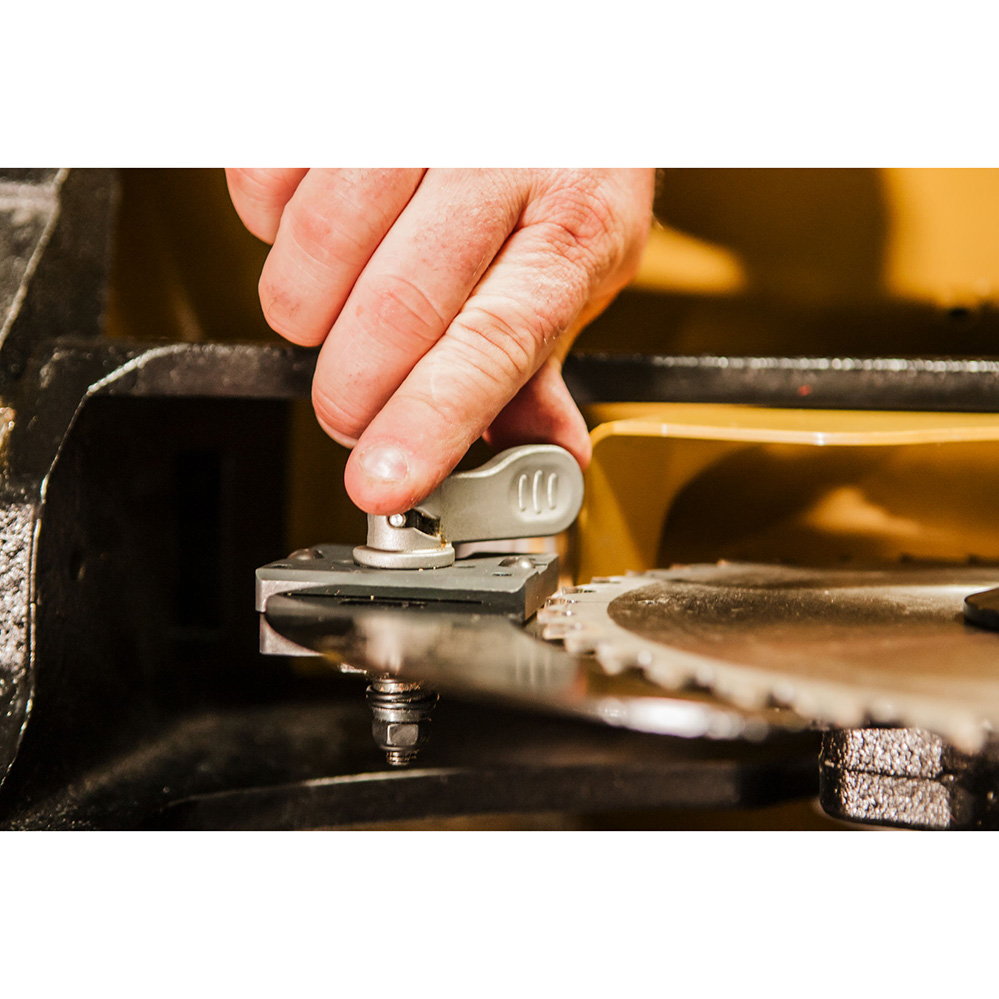

New and improved arbor lock for fast, easy blade changes
Improved dust collection inside and outside of the cabinet
Quick-release riving knife lever for hassle-free riving knife changes
Wider stance, box trunnion design for maximum rigidity
Newly designed Accu-Fence® system for convenient, precise dimensioning capability
Matching beveled edge between table and extension wings
Powermatic PM2000B Table Saws are CSA Certified, and adhere to strict guidelines and electrical requirements
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
Table in Front of Saw Blade at Maximum Depth of Cut (In.): 11-1/4
Maximum Rip Right of Blade (In.): 30
Maximum Rip Left of Blade (In.): 13-1/2
Table Type: Cast Iron
Table Height from Floor (In.): 35
Table Size (In.): 22 x 30-1/2
Table Size with Extensions (In.): 42 x 30-1/2
Table T-Slot (In.): 3/4 x 3/8
Dust Collection Minimum CFM Required (CFM): 400
Dust Port Outside Diameter (In.): 4
Motor Power (HP): 5
Motor Phase: 1
Motor Voltage (V.): 230
Motor Current (Amps): 21
Recommended Circuit Size (Amps.): 30
Unit of Measure
Each
With the Rockler Protection Plan you'll get accidental damage coverage immediately upon purchase of your tool. Plus we will extend the manufacturer's warranty for your choice of an additional 1 or 2 years. We'll take care of all parts and labor for any repairs with no deductibles and no hassles. If your tool can not be repaired we'll gladly replace it. Available in the US only. Click here to learn more.
Standard Manufacturer's Warranty: 12 months
