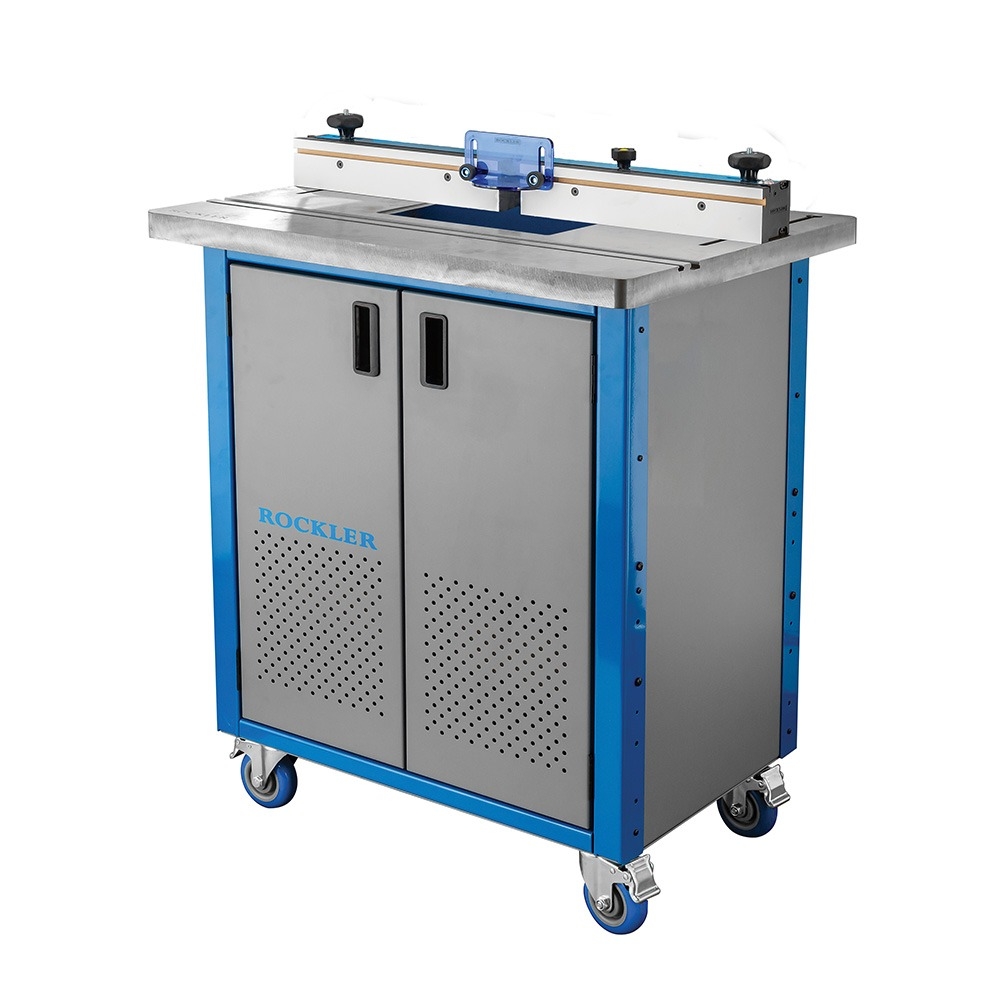

Rockler Cast Iron Router Table with ProMax Fence and Cabinet Value Pack
Tailored for those who will not accept compromise, this router table package features our premium ProMax Cast Iron Table Top, microadjustable ProMax Fence with jointer bars, top-mounted Easy-to-Grip knobs and a dust port, plus a rugged steel cabinet with a dust bucket to catch shavings above and below the table. Nothing beats cast iron when it comes to a sag-free, dead flat surface and reliable performance year in and year out. A one-piece top weighing in at over 50 pounds and measuring a full 32'' wide, it provides vibration-dampening heft for the smoothest possible cuts. Spin the largest bits your plate and router can accept—the table is up to the task. Premium features include our Dual Track accessory/miter slot, 10-point plate leveling system and pre-tapped holes to accept our optional Dado Dust Chute. The included ProMax Fence features built-in microadjustability, a jointing system that shaves off material in precise increments and easy-access, top-mounted knobs for comfortable adjustments. Accessory T-tracks accept various optional stops and featherboards. A bit guard and dust port are included.
Rockler Cast Iron Router Table with ProMax Fence and Cabinet Details:

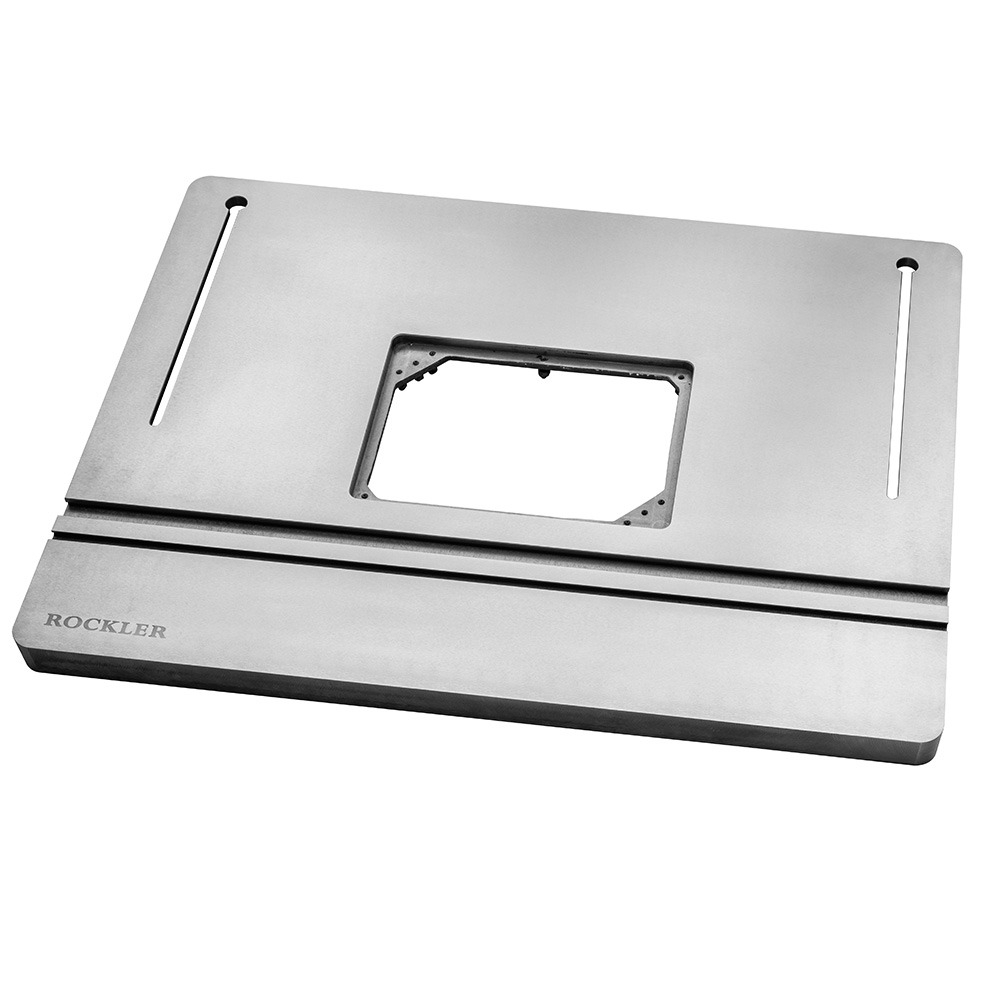

Strong, durable 1-1/2'' thick solid cast iron table is machined flat and weighs over 50 pounds to reduce vibration for smooth routing results
32'' x 24'' tabletop provides more than five square feet of work surface and is designed to stand up to heavy use
Dual Track with Universal T-track and ''T'' miter slot is machined directly into the table's surface
Opening in top fits 8-1/4''W x 11-3/4''L router table insert plates, sold separately
10-point plate-leveling and locking system maintains a perfectly flush surface and prevents plate from shifting during cut
Underside of tabletop features tapped holes (and included screws) for mounting our Dado Dust Chute (#57495, sold separately)
Melamine-coated sub-fences adjust without tools, perfect for zero-clearance setup
Jointer bars slide into slots in the fence to shave off material in precise increments

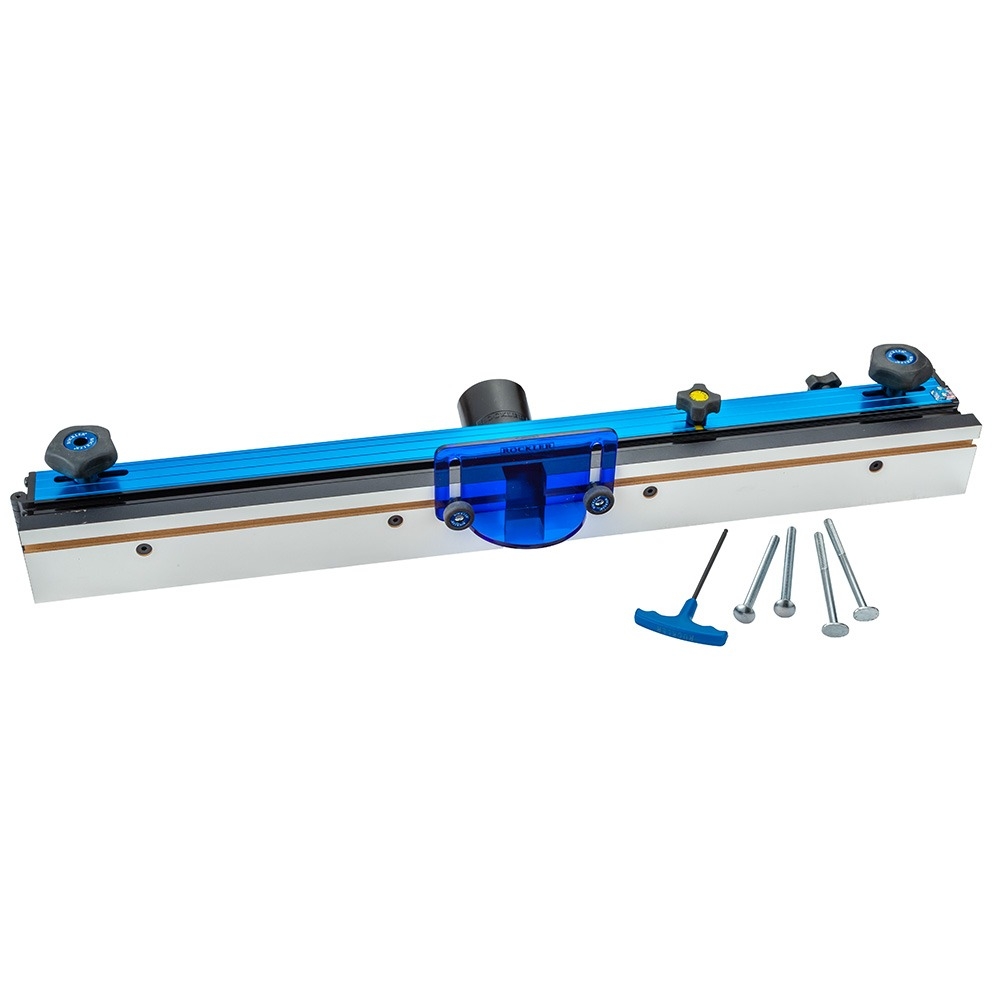

ProMax Fence features exclusive microadjust knobs for easy, precise fence adjustments
Top-mounted fence knobs provide easier access to adjustments from the front of the table
ProMax Fence also features Universal T-tracks that accept 1/4'' and 5/16'' T-bolts as well as 1/4'' hex bolts - perfect for hold-downs, stops and other accessories such as featherboards

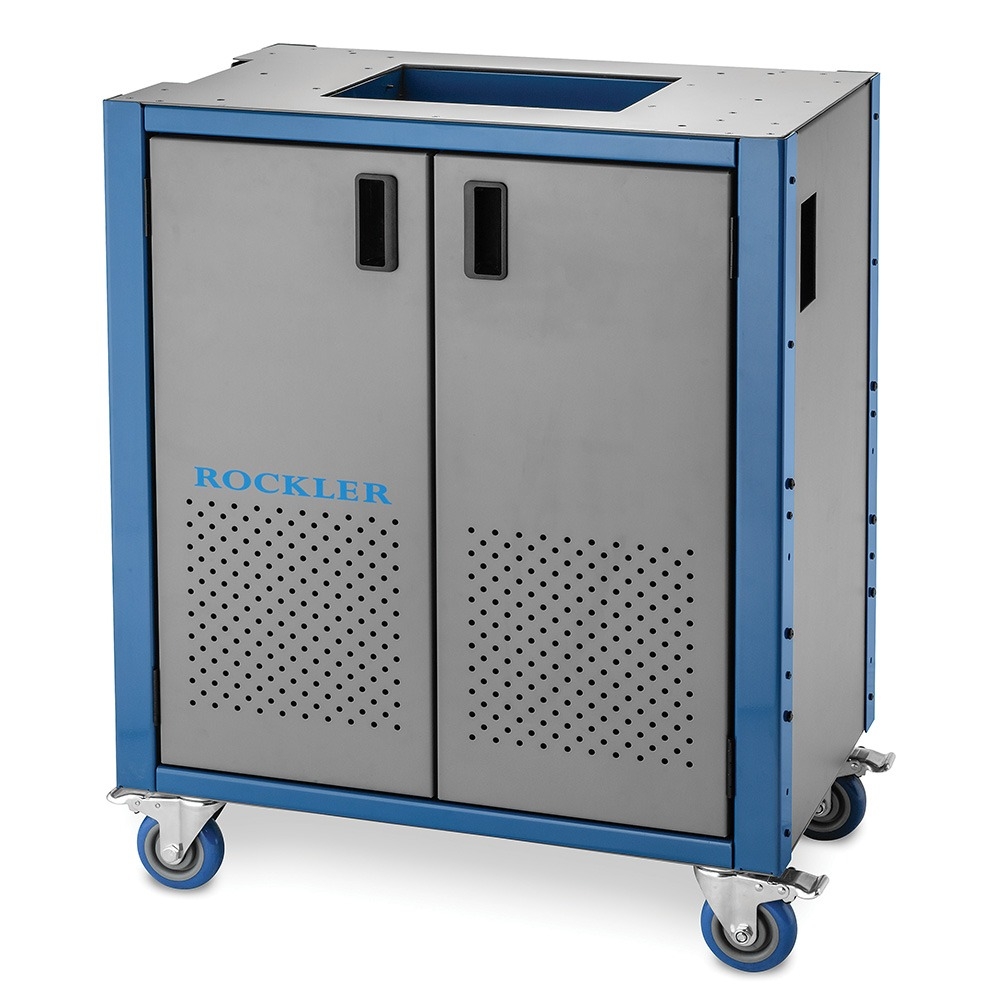

Top is pre-drilled for the included Steel Cabinet
Cabinet provides ample internal storage space for routing accessories
Large swiveling polyurethane casters allow easy mobility and lock in place for stability during routing
TO COMPLETE YOUR PACKAGE, ADD A LIFT OR A PLATE.
Two lifts are available—both include their own plate:
The Pro Lift, which accepts large router motors up to 4.2'' in diameter (optional reducers available), and features 2-speed Quick-Gear lifting action, Snap-Lock insert rings and a 3/8'' aluminum plate.
The SL Lift, which accepts mid-sized 3-1/2'' router motors, and features Snap-Lock insert rings and a 3/8'' phenolic plate.
If you DON'T need a lift, plates are available in two materials:
Aluminum Pro Plates, 1/4'' thick, for the ultimate in flatness and stability
Phenolic Plates, 3/8'' thick, for low cost and low friction
All plates measure 8-1/4'' x 11-3/4'' and include a pattern routing pin and a 1-1/2'' ID insert ring. Additional insert ring sizes are available separately. Plates A & B accept Standard-sized (4'') rings. Plates C & D accept Large-sized (4-3/8'') rings.
To choose a pre-drilled plate, find your router below. Note that you may have to drill for the height adjustment rod on your router, if it has one. We are not able to pre-drill for all possible rod locations, since that would compromise the stiffness of the plates.
If your router is not listed: Choose the non-drilled plate with a 4'' insert ring (#57293) and drill the plate to fit your router.
Router Plate A:
Bosch MRC23 Series, 1617-1618
DeWalt 616-618
Hitachi M12VC (fixed and kit)
Makita 1100
Milwaukee 5615-5624
Porter-Cable 690
Porter-Cable 890
Porter-Cable 7529
Porter-Cable 97529
Porter-Cable 8529
Ridgid 2930 Combo Kit
Note: Current models of the Porter-Cable 892 require at least two screws to be 1/2" long versus 5/8".
Router Plate B (available in Phenolic only, #50007):
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Rockler Cast Iron Router Table with ProMax Fence and Rock-Steady Stand (1) Rockler ProMax Cast Iron Router Table Top (#63481) (1) Rockler Steel Router Table Cabinet (#54931) (1) Rockler Router Table ProMax Fence (#53798)
Insert Plate (sold separately; choose from phenolic or aluminum to fit your router) (1) Router Plate (1) Insert ring (1-1/2'' ID) (1) Pattern routing pin
Router Lift (sold separately; choose from Pro Lift or SL Lift) (1) Router lift (1) Router plate (3/8'' thick) (1) Insert ring (1-1/2'' I.D.)
Rockler Cast Iron Router Table with ProMax Fence and Rock-Steady Stand (1) Rockler ProMax Cast Iron Router Table Top (#63481) (1) Rockler Steel Router Table Cabinet (#54931) (1) Rockler Router Table ProMax Fence (#53798)
Insert Plate (sold separately; choose from phenolic or aluminum to fit your router) (1) Router Plate (1) Insert ring (1-1/2'' ID) (1) Pattern routing pin
Router Lift (sold separately; choose from Pro Lift or SL Lift) (1) Router lift (1) Router plate (3/8'' thick) (1) Insert ring (1-1/2'' I.D.)
Brand Rockler
More Information
Brand
Rockler
Tech Spec
Brand: Rockler
Top Dimensions: 24''W x 32''L x 1-1/4'' Thick
Top Material: Solid one-piece cast iron
Compatible Router Insert Plate Dimensions: 8-1/4'' x 11-3/4''
Plate Leveling: Yes; 10-point leveling
Fence Material: Aluminum, MDF
Fence Length: 32''
Effective Fence Height: 4-1/2''
T-Track Compatibility: 5/16'' T-bolts, 1/4'' T-bolts and 1/4'' hex bolts
Cabinet Material: Steel
Cabinet Finish: Durable powder coat
Cabinet Assembled Dimensions: 28-1/2''W x 20''D (including port) x 36''H
