Rockler Clamp-It Cabinet Assembly Value Pack, 16-Piece

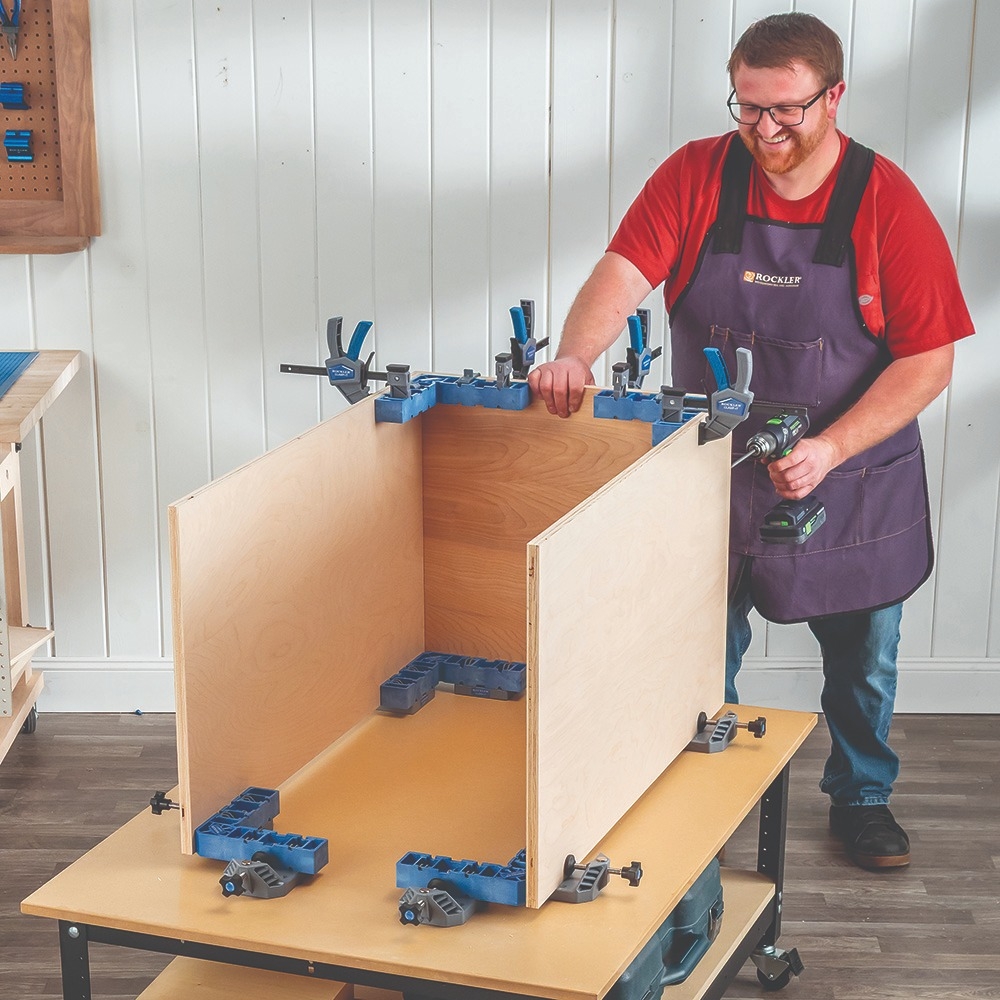

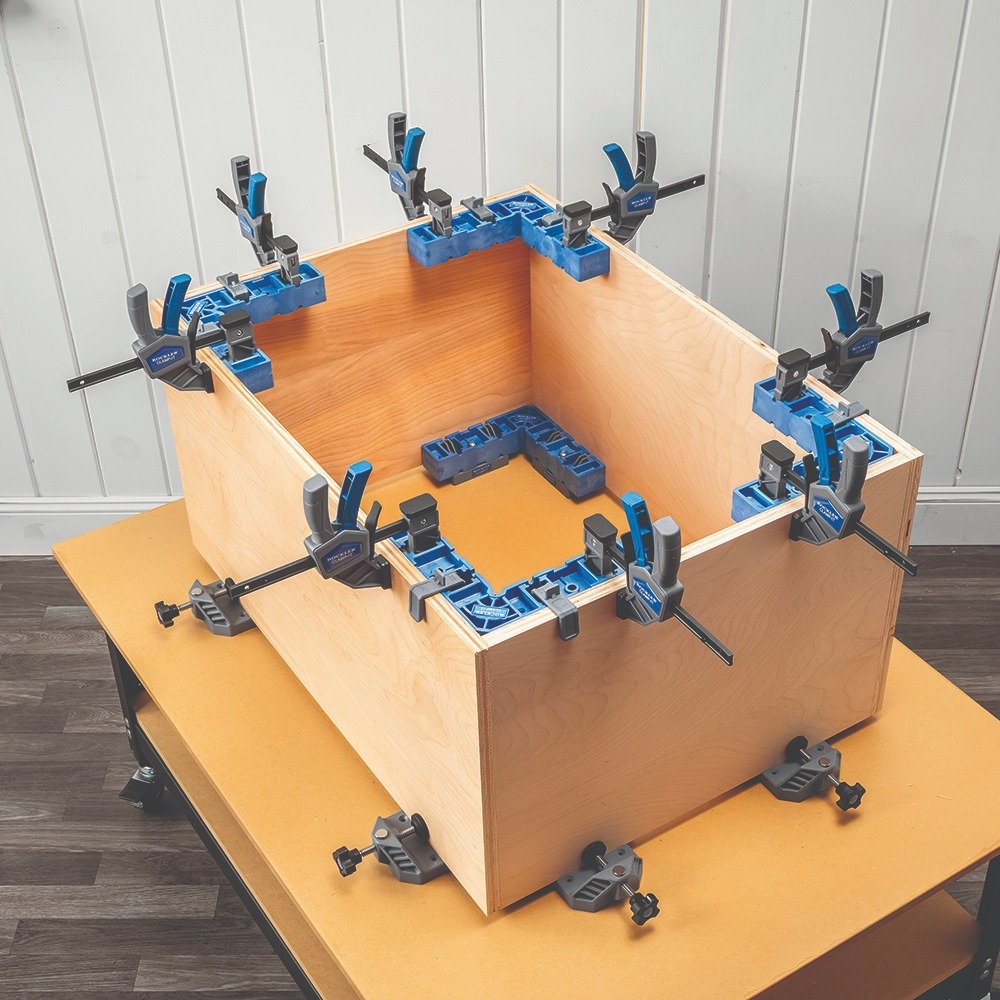

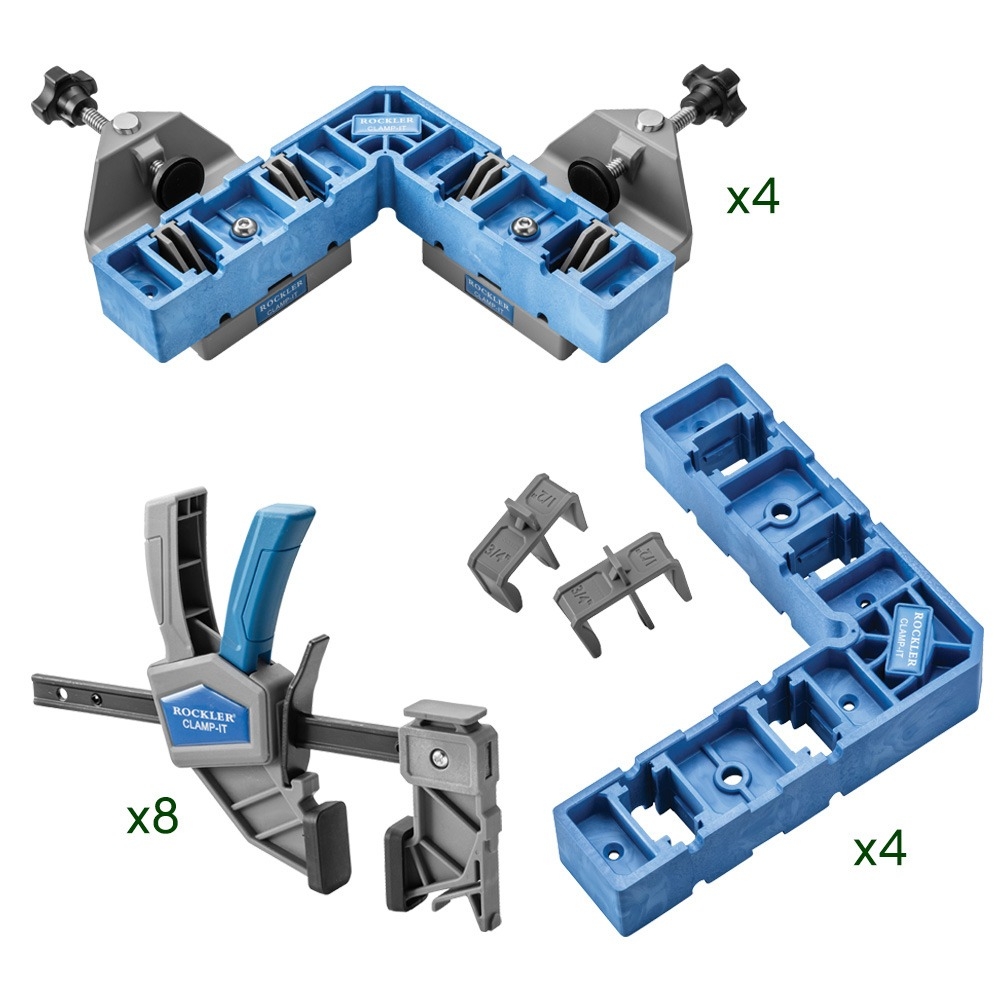

Clamping cabinet carcasses is never easy to do when you're working alone. But with this collection of Clamp-It Corner Clamping Jigs, Assembly Squares and Trigger Clamps, positioning and cinching joints squarely and tightly on any size cabinet you're building will be considerably easier than before.

We've redesigned our Clamp-It Corner Clamping Jigs with updated features to securely hold the bottoms of cabinet panels together, upright and square. When positioned on a work surface, the jigs let you stand pairs of panels on-edge and clamp each corner together at the bottom, so you can focus your attention on one corner at a time. Once tightened, the 90° design of these jigs ensures that your panels remain vertical and squarely in register.

For additional top clamping, we've including four of our customer-favorite Clamp-It Assembly Squares. They feature four docking slots and a pair of positioning clips to make their installation easier on complex assemblies. The gray clips engage in the docking slots so you can hang the square from the edges of either 1/2'' or 3/4'' material. These docking slots also fit the heads of our dedicated Clamp-it Trigger Clamps, holding them at the ready so corner joints are easy to cinch tight. Eight clamps are included in this value pack. Just pump their four-finger triggers to apply clamping pressure, and depress the single-finger trigger to release.

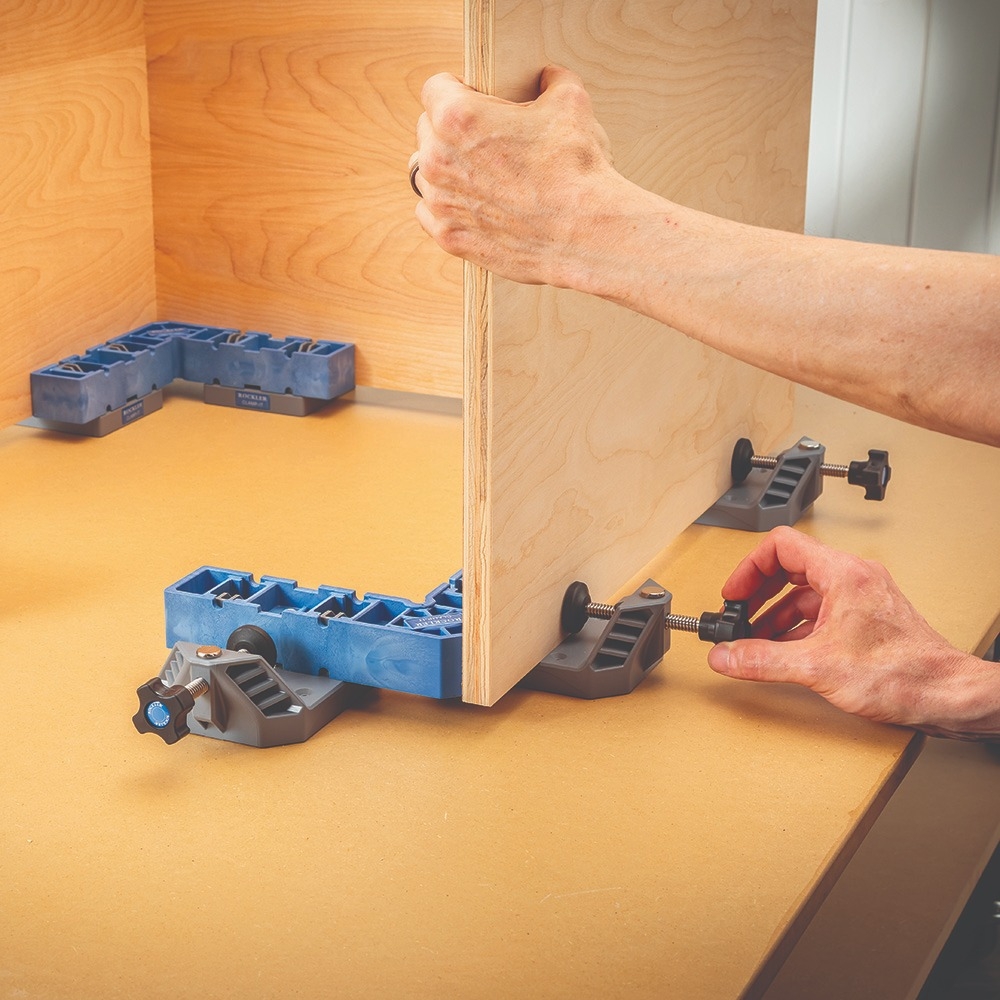

Rockler Clamp-It Corner Clamping Jig Details:

• Supportive enough to hold an entire cabinet or case upright as it is being assembled
• Wide, stable bases have high walls and strong threaded clamp screws to hold panels securely
• Quick-release buttons allow fast adjustments without threading or unthreading
• Easy-to-grip 4-Star Knobs
• Bases accommodate workpieces up to 1-1/2'' thick
• Cushioned clamp pads prevent marring
• Non-slip pads keep clamping jigs from shifting during use
• Jig holds panels 3/4'' off the worksurface
• Height offset matches our original Clamp-It Corner Clamping Jigs, so they can be used together
• Mounting holes let you attach Corner Clamping Jigs to a worksurface with #8 screws, to create assembly stations

Rockler Clamp-It Assembly Square Details:

• Flat, square faces hold parts at a precise 90° angle while you clamp, drive fasteners or wait for glue to dry
• Corner relief areas allow for obstruction-free clamping
• Inner-corner relief area also has tape-measure reference mark
• Same 8'' x 8'' outer dimensions, 1-1/2'' height and 2''-wide arms as our classic black Clamp-It Assembly Square

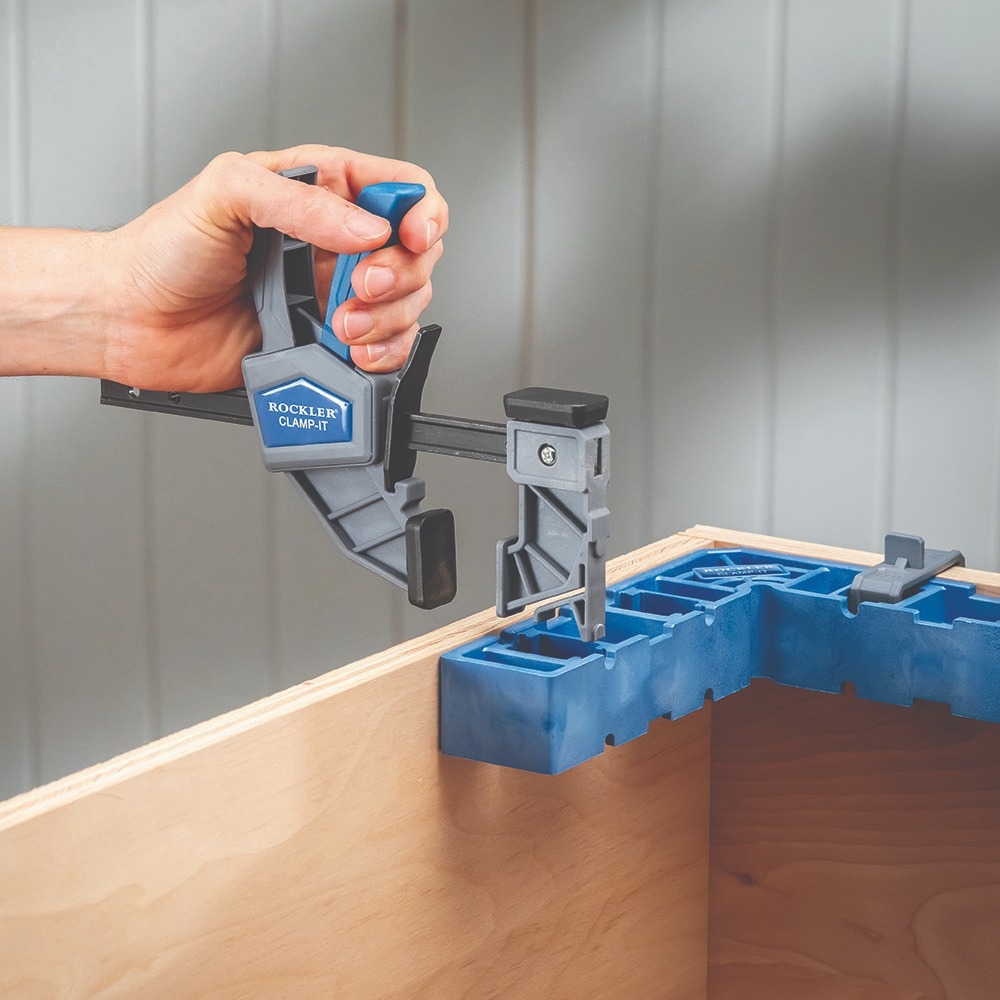

• Docking slots engage the heads of our dedicated Clamp-it Trigger Clamps and hold them in place on the assembly square for quick and easy tightening
• Gray positioning clips snap into docking slots for attaching assembly square to the edges of 1/2'' and 3/4'' thick material
• Docking holes also fit round bars of our Universal Fence Clamps and Quick-Release Multi Clamps (#75668 and #68612, both sold separately) as well as T-bolts
• Positioning clips can be mounted to the underside of square for hanging band clamp straps
• Notches and predrilled holes for #8 screws let you mount assembly square either flat or standing up—great for building jigs and other right-angle assembly fixtures
• Positioning clips lock assembly squares together conveniently for storage

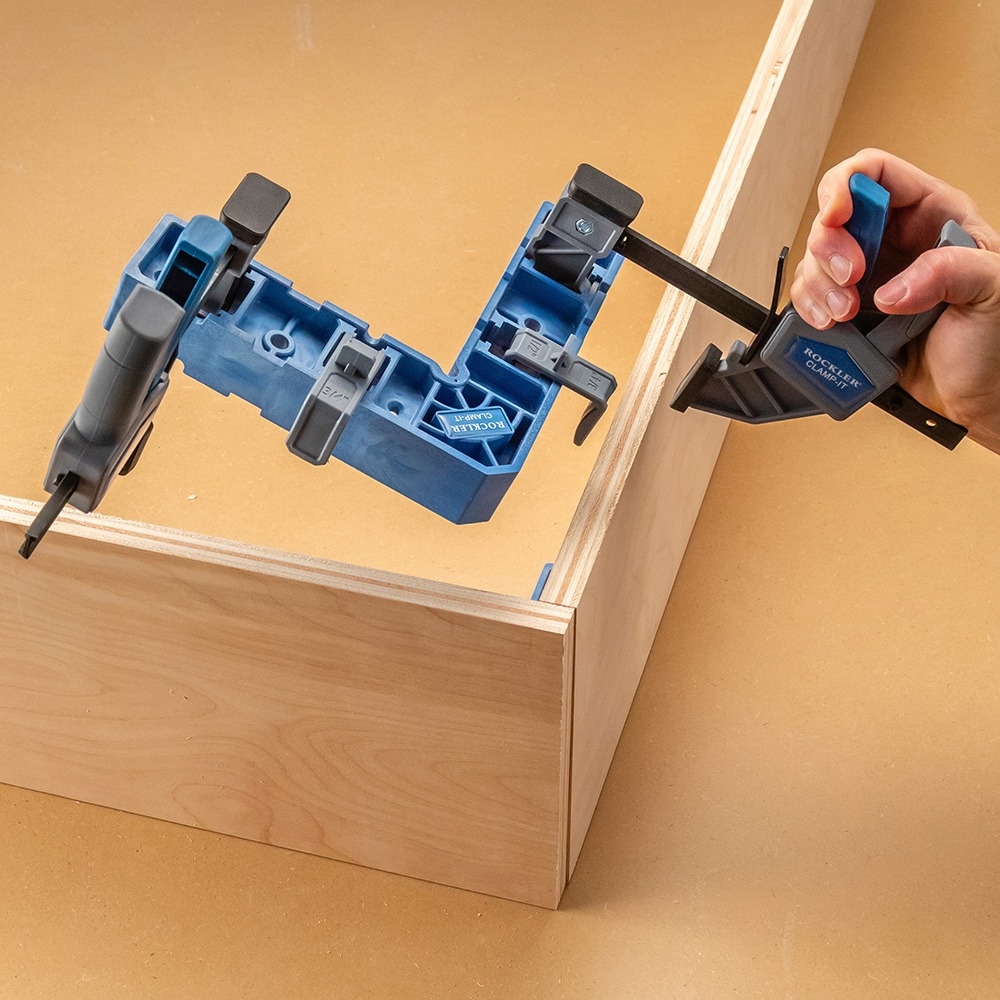

Rockler Clamp-It Trigger Clamps Details:

• Specially designed head snaps into the docking slots of our updated Clamp-It Assembly Squares and Adjustable Assembly Squares (#78646, sold separately) for a unique, integrated clamping/squaring solution
• Shorter bar length cinches clamp tight in just a few trigger pumps
• Feet have non-marring pads to help protect the workpiece (one pad is removed when attaching the clamp to the assembly square)
• Heat treated I-beam bar for added strength and durability
• Includes a dedicated spot for storing the non-marring pad while the clamp is being used on the assembly square
