Rockler HPL Router Table with Fence and Rock-Steady Stand Value Pack
Item #
KIT-RTHPL2
Starting at$414.97
Budget-friendly package with a high-pressure laminate top, our standard fence and the Rock-Steady stand—choose a lift or plate to complete your package.
Rockler HPL Router Table with Fence and Rock-Steady Stand Value Pack

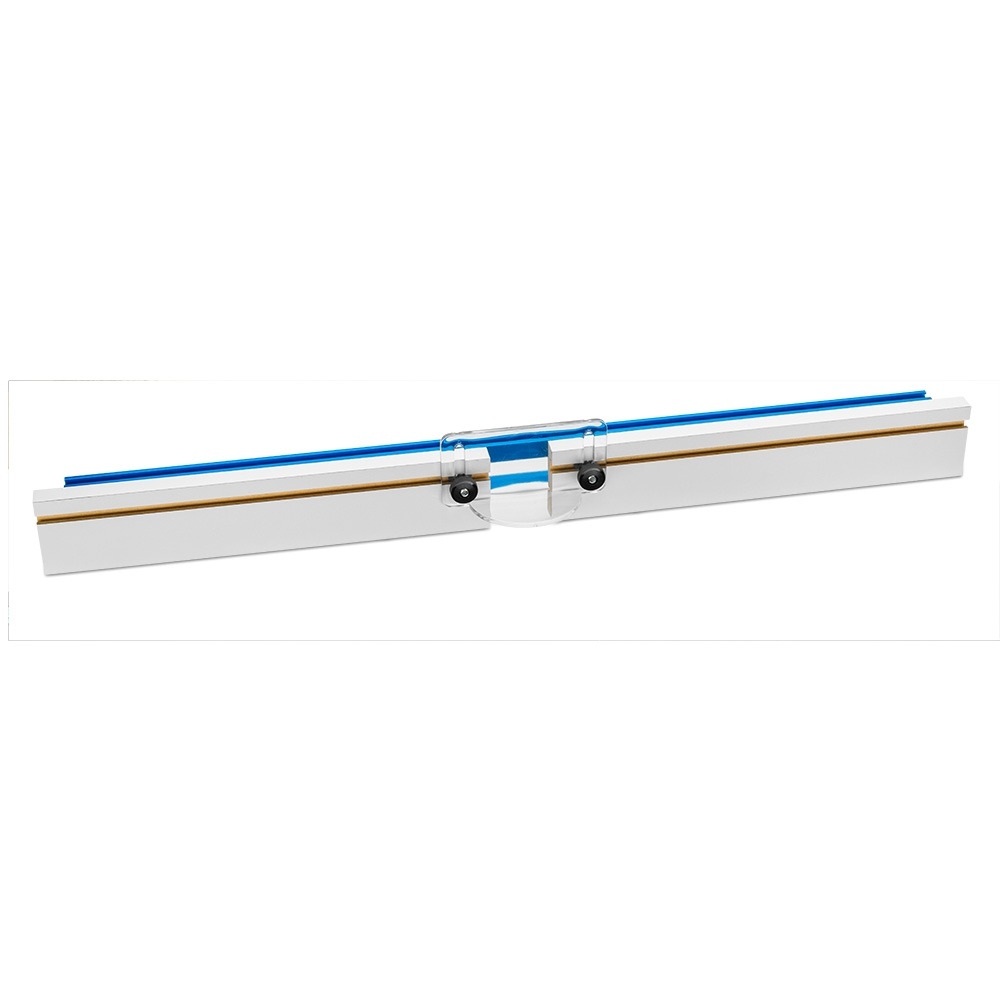

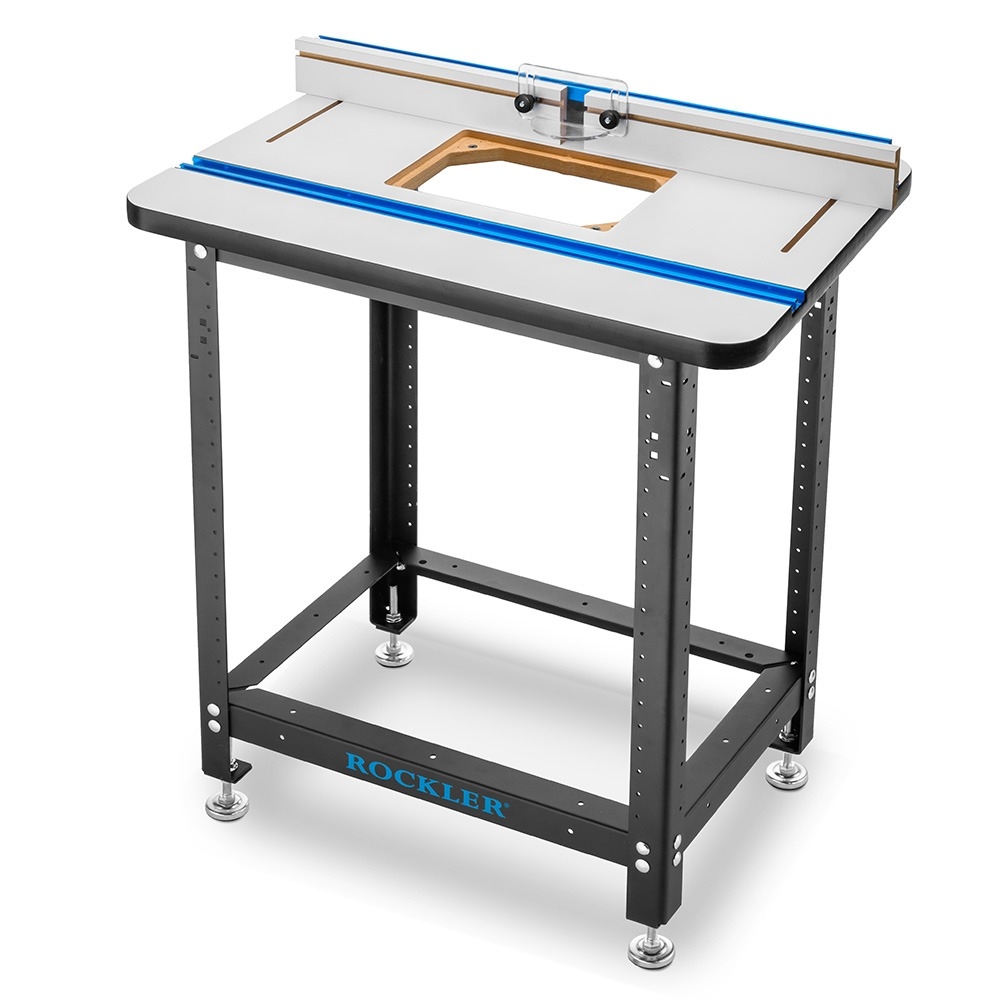

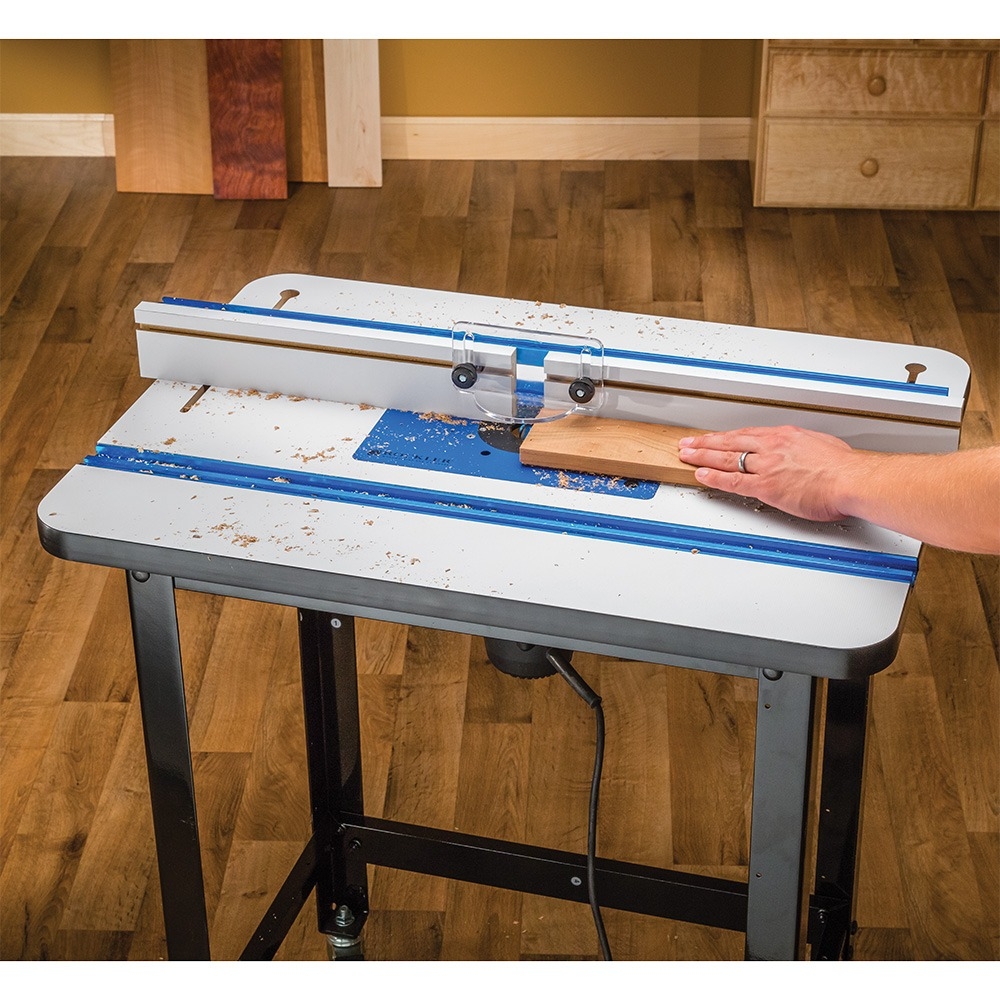

This package combines our High Pressure Laminate Router Table with our basic fence and Rock-Steady steel stand (#65001). To complete your order, choose a lift or plate (see below). Our HPL tables feature dual-track miter slots in the table, and a whiter, brighter finish for improved visibility. The 3/4'' T-profile miter slot allows you to use precision aftermarket miter gauges, while universal T-tracks in both the fence and table accept stops, hold-downs, featherboards and more. The included fence features two adjustable white melamine MDF faces, accessory T-tracks and an included bit guard.
Features:

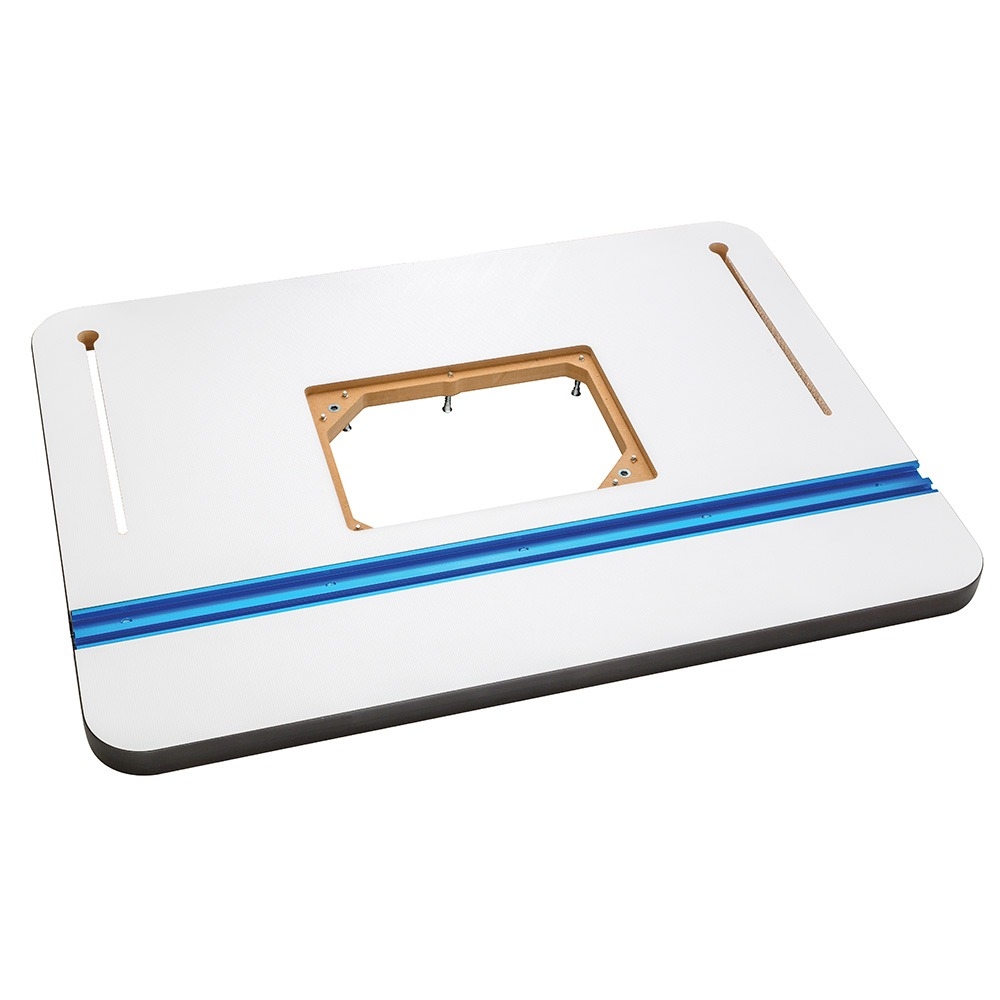

Top is 1-1/8'' thick MDF sandwiched between high pressure laminates for smooth low-friction routing
Tool-free knobs for easy fence adjustment
Includes bit safety guard to help keep fingers away from the cutting area
Extruded aluminum fence backer for straight, accurate cuts
Adjustable opening in fence for large or small router bits

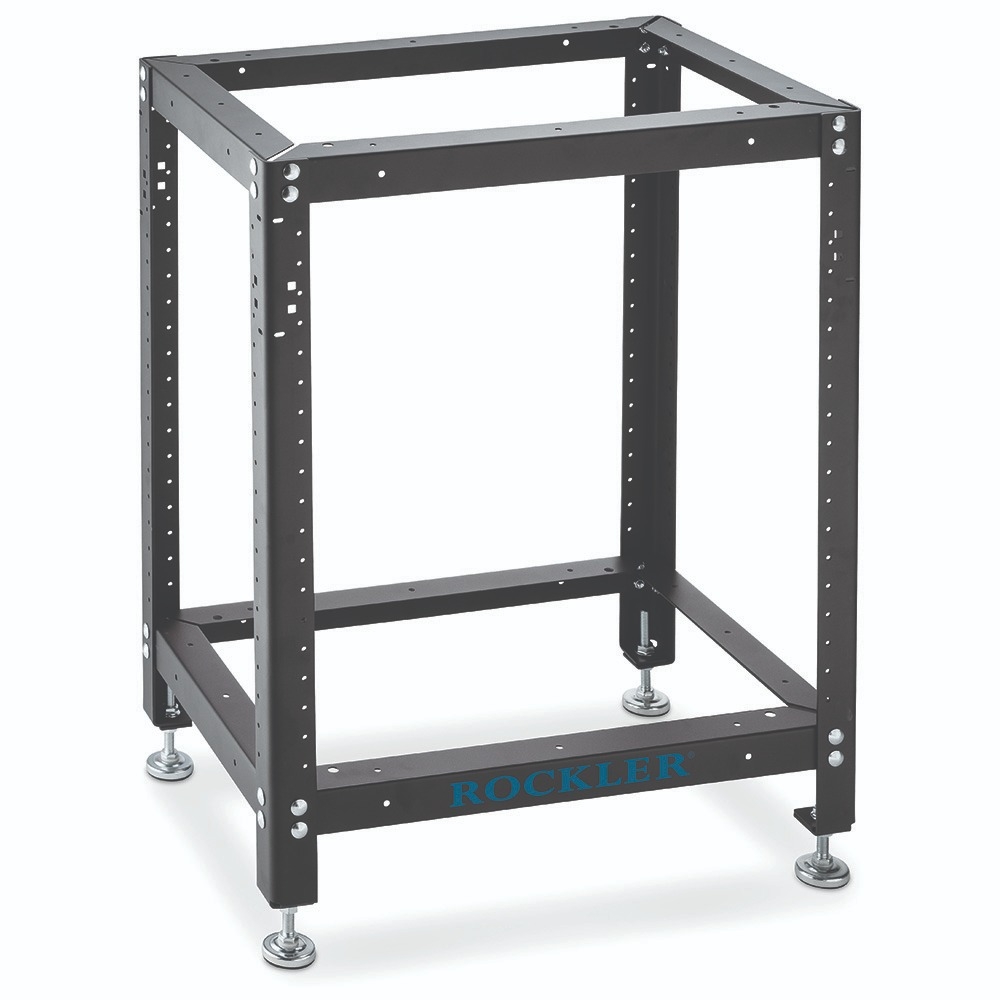

Steel stand has adjustable feet for stability on uneven floors, and pre-drilled holes for adding a shelf and sides
Heavy-duty steel stand with powder-coat finish: 14-gauge for stretchers, 10-gauge for legs
Holes in legs are spaced 32mm apart for attaching optional hinge brackets, drawer slide/shelf brackets and panels
TO COMPLETE YOUR PACKAGE, ADD A LIFT OR A PLATE.
Two lifts are available—both include their own plate:
The Pro Lift, which accepts large router motors up to 4.2'' in diameter (optional reducers available), and features 2-speed Quick-Gear lifting action, Snap-Lock insert rings and a 3/8'' aluminum plate.
The SL Lift, which accepts mid-sized 3-1/2'' router motors, and features Snap-Lock insert rings and a 3/8'' phenolic plate.
If you DON'T need a lift, plates are available in two materials:
Aluminum Pro Plates, 1/4'' thick, for the ultimate in flatness and stability
Phenolic Plates, 3/8'' thick, for low cost and low friction
All plates measure 8-1/4'' x 11-3/4'' and include a pattern routing pin and a 1-1/2'' ID insert ring. Additional insert ring sizes are available separately. Plates A & B accept Standard-sized (4'') rings. Plates C & D accept Large-sized (4-3/8'') rings.
To choose a pre-drilled plate, find your router below. Note that you may have to drill for the height adjustment rod on your router, if it has one. We are not able to pre-drill for all possible rod locations, since that would compromise the stiffness of the plates.
If your router is not listed: Choose the non-drilled plate with a 4'' insert ring (#57293) and drill the plate to fit your router.
Router Plate A:
Bosch MRC23 Series, 1617-1618
DeWalt 616-618
Hitachi M12VC (fixed and kit)
Makita 1100
Milwaukee 5615-5624
Porter-Cable 690
Porter-Cable 890
Porter-Cable 7529
Porter-Cable 97529
Porter-Cable 8529
Ridgid 2930 Combo Kit
Note: Current models of the Porter-Cable 892 require at least two screws to be 1/2" long versus 5/8".
Router Plate B (only available in phenolic, #50007):
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
Rockler HPL Router Table with Fence and Basic Stand (#65001) (1) Rockler HPL Router Table Top (1) Rockler Router Table Fence (1) Bit guard (1) Steel Stand with leveling feet and hardware
Insert Plate (sold separately; choose from phenolic or aluminum to fit your router) (1) Router Plate (1) Insert ring (1-1/2'' ID) (1) Pattern routing pin
Router Lift (sold separately; choose from Pro Lift or SL Lift) (1) Router lift (1) Router plate (3/8'' thick) (1) Insert ring (1-1/2'' I.D.)
Rockler HPL Router Table with Fence and Basic Stand (#65001) (1) Rockler HPL Router Table Top (1) Rockler Router Table Fence (1) Bit guard (1) Steel Stand with leveling feet and hardware
Insert Plate (sold separately; choose from phenolic or aluminum to fit your router) (1) Router Plate (1) Insert ring (1-1/2'' ID) (1) Pattern routing pin
Router Lift (sold separately; choose from Pro Lift or SL Lift) (1) Router lift (1) Router plate (3/8'' thick) (1) Insert ring (1-1/2'' I.D.)
Brand Rockler
More Information
Brand
Rockler
Tech Spec
Brand: Rockler
Manufacturer Part Number: 58215, 65117, 46924
Top Dimensions: 24''D x 32''W x 1-1/8'' thick
Top Material: MDF with high-pressure laminate top and bottom
Compatible Plate Dimensions: 8-1/4'' x 11-3/4''
Stand Dimensions: 18''D x 26''W x 32''H
Stand Material: Steel
Fence Material: Aluminum and MDF
Fence Length: 32''
Effective Fence Height: 3''
Plate Leveling: Yes; 10-point leveling
T-Track Compatibility: 5/16'' T-bolts, 1/4'' T-bolts, and 1/4'' Hex bolts
