Rockler HPL Router Table with Fence and Rock Steady Folding Stand Value Pack

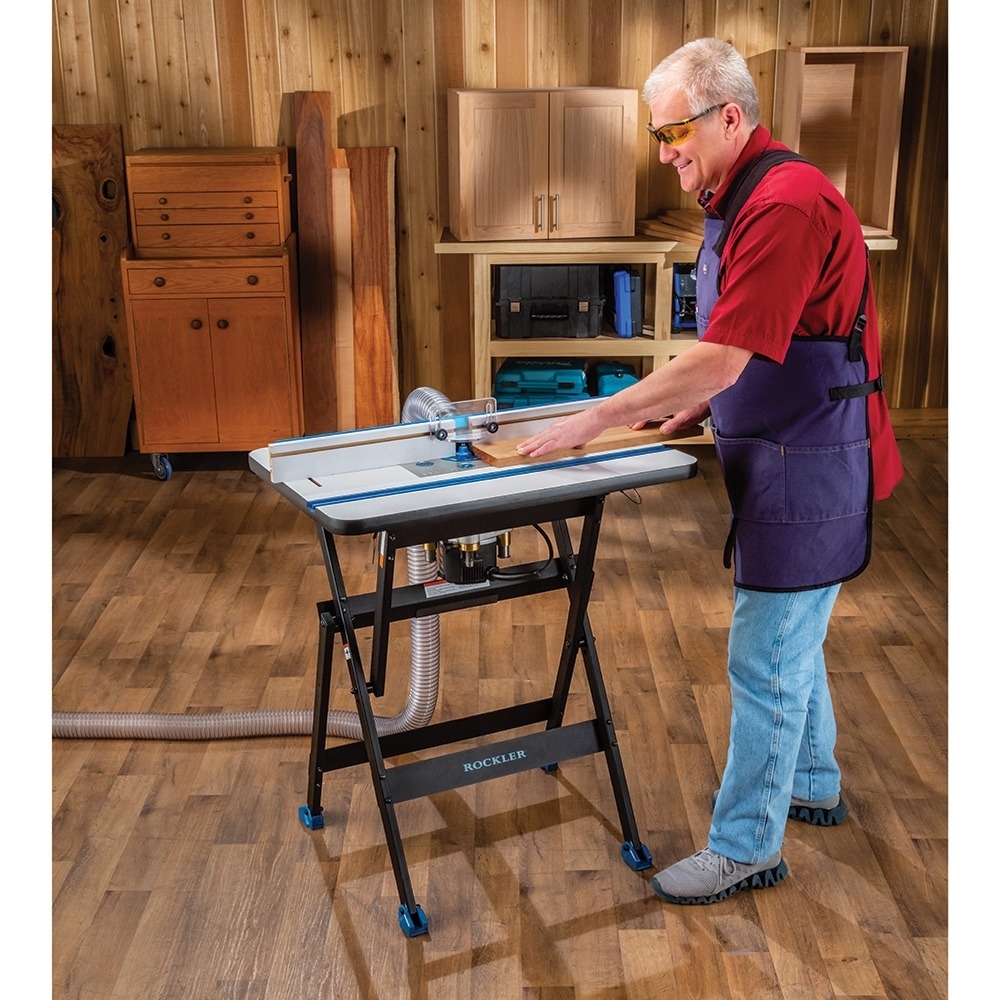

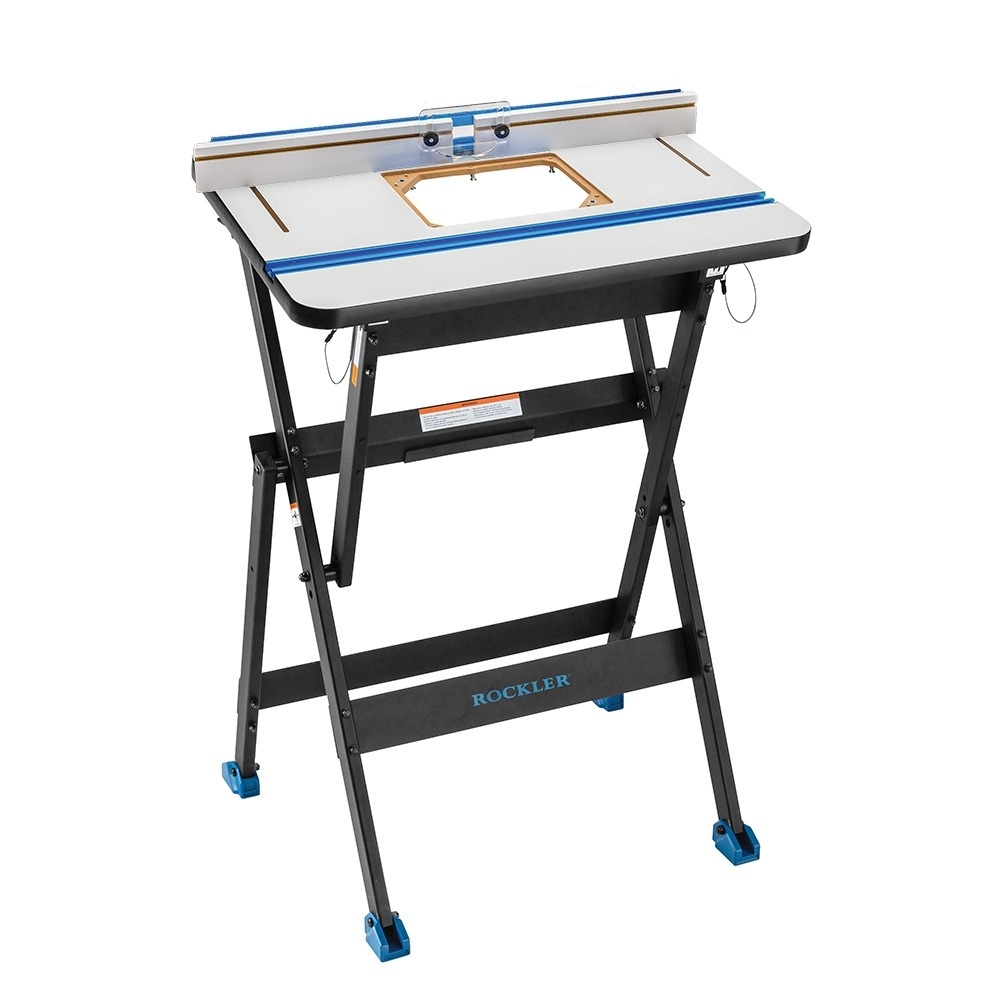

This package combines our High Pressure Laminate Router Table with our basic fence and the Rock Steady Folding Steel Stand (#62791). To complete your order, choose a lift or plate (see below). Our HPL tables feature dual-track miter slots in the table, and a whiter, brighter finish for improved visibility. The 3/4'' T-profile miter slot allows you to use precision aftermarket miter gauges, while universal T-tracks in both the fence and table accept stops, hold-downs, featherboards and more. The included fence features two adjustable white melamine MDF faces, accessory T-tracks and an included bit guard. Finally, the stand folds down to less than 3'' deep—ideal for garage shops, or wherever space is tight.

Features:

• Top is 1-1/8'' thick MDF sandwiched between high pressure laminates for smooth low-friction routing
• Tool-free knobs for easy fence adjustment
• Includes bit safety guard to help keep fingers away from the cutting area
• Extruded aluminum fence backer for straight, accurate cuts
• Adjustable opening in fence for large or small router bits

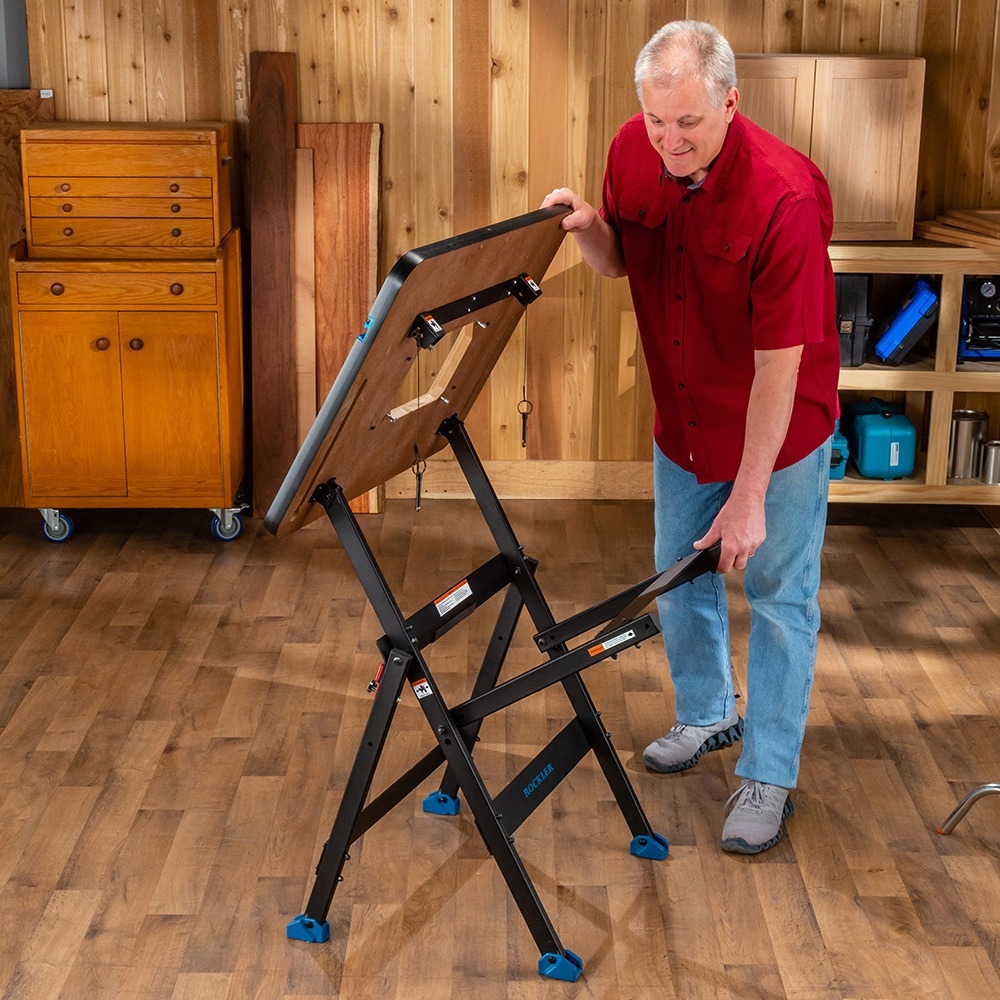

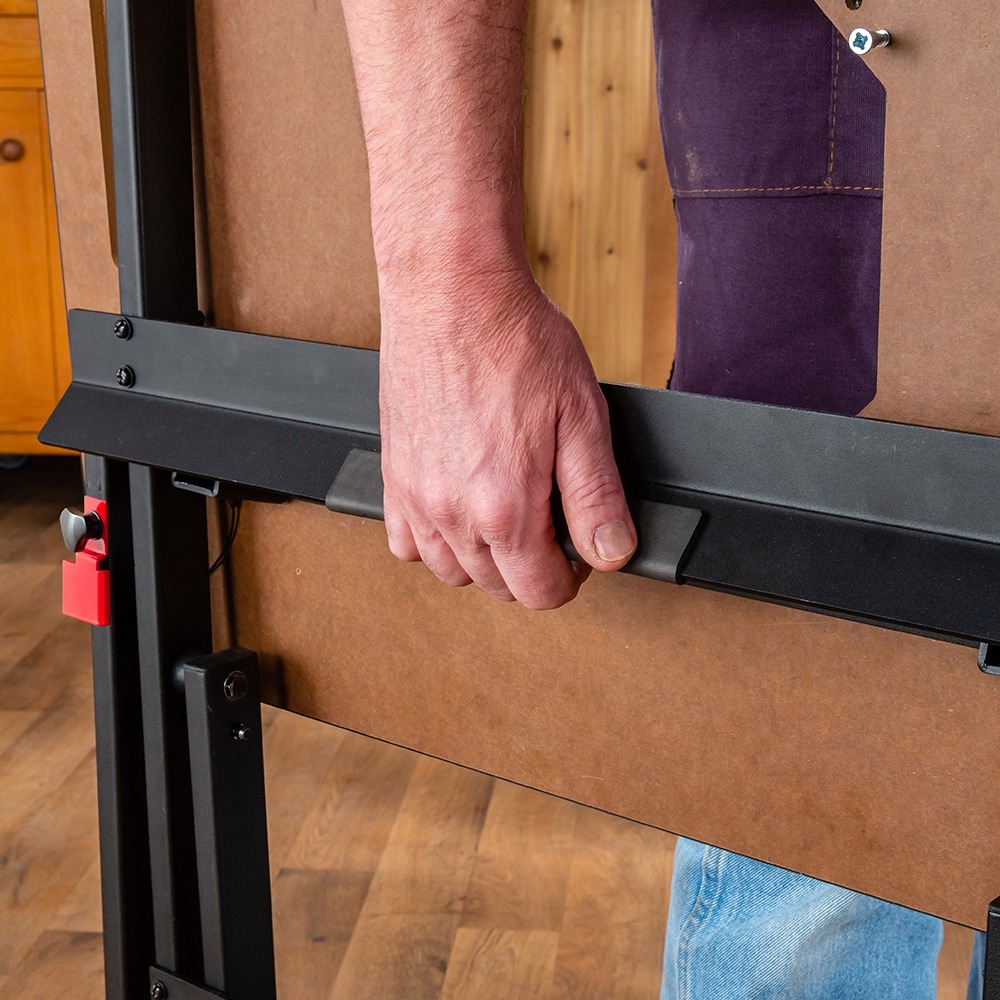

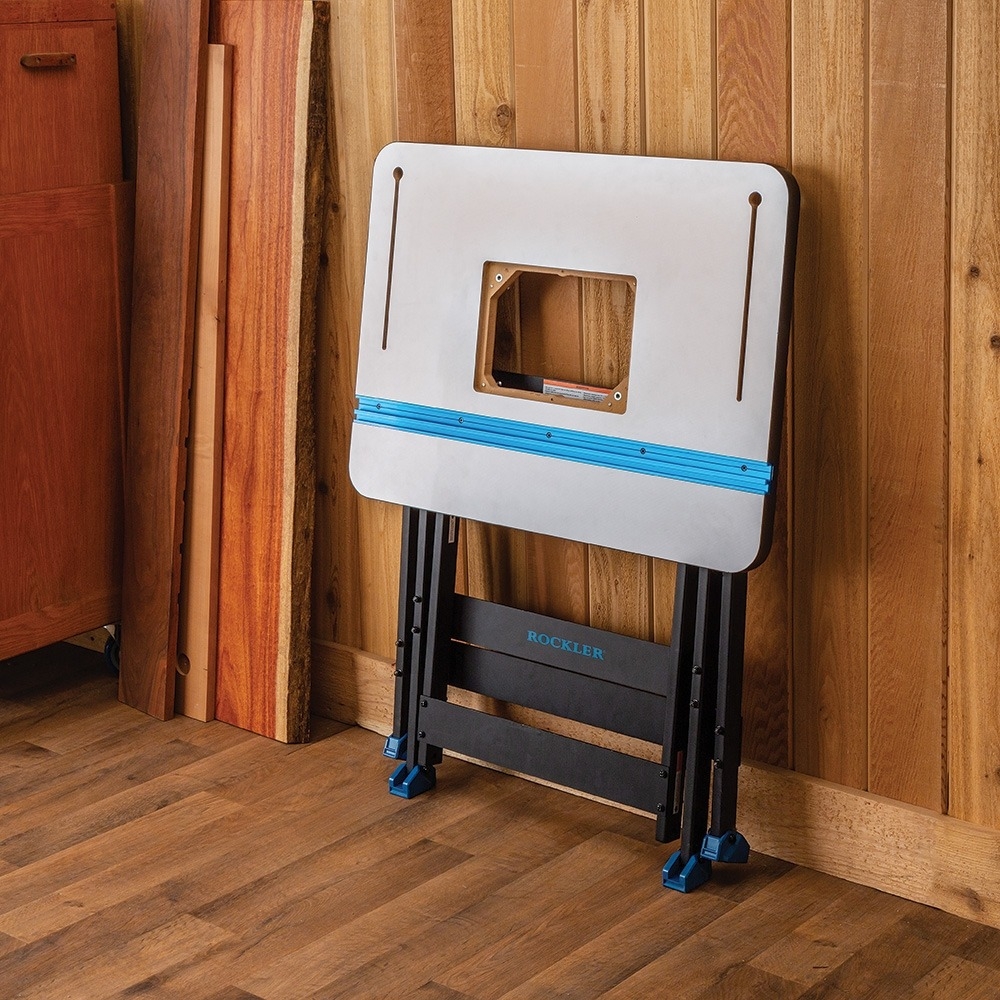

• Folding stand lets you store the table when not in use

TO COMPLETE YOUR PACKAGE, ADD A LIFT OR A PLATE.

Two lifts are available—both include their own plate:

• The Pro Lift, which accepts large router motors up to 4.2'' in diameter (optional reducers available), and features 2-speed Quick-Gear lifting action, Snap-Lock insert rings and a 3/8'' aluminum plate.
• The SL Lift, which accepts mid-sized 3-1/2'' router motors, and features Snap-Lock insert rings and a 3/8'' phenolic plate.

If you DON'T need a lift, plates are available in two materials:

• Aluminum Pro Plates, 1/4'' thick, for the ultimate in flatness and stability
• Phenolic Plates, 3/8'' thick, for low cost and low friction
• All plates measure 8-1/4'' x 11-3/4'' and include a pattern routing pin and a 1-1/2'' ID insert ring. Additional insert ring sizes are available separately. Plates A & B accept Standard-sized (4'') rings. Plates C & D accept Large-sized (4-3/8'') rings.

To choose a pre-drilled plate, find your router below. Note that you may have to drill for the height adjustment rod on your router, if it has one. We are not able to pre-drill for all possible rod locations, since that would compromise the stiffness of the plates.

If your router is not listed If your router is not listed: Choose the non-drilled plate with a 4'' insert ring (#57293) and drill the plate to fit your router.

Router Plate A:

• Bosch MRC23 Series, 1617-1618
• DeWalt 616-618
• Hitachi M12VC (fixed and kit)
• Makita 1100
• Milwaukee 5615-5624
• Porter-Cable 690
• Porter-Cable 890
• Porter-Cable 7529
• Porter-Cable 97529
• Porter-Cable 8529
• Ridgid 2930 Combo Kit

Note: Current models of the Porter-Cable 892 require at least two screws to be 1/2" long versus 5/8".

Router Plate B (available in Phenolic only, #50007):

• Craftsman Standard
• DeWalt DW621
• DeWalt DW621K
• Freud FT 1700E
• Freud 1702VCEK
• Skil RT1322-00
• Skil RT1323-00

Router Plate C:

• Milwaukee 5625-20
• Porter-Cable 7518
• Porter-Cable 7519
• Porter-Cable 7538
• Porter-Cable 7539
• Triton TRA001
• Triton MOF001

Router Plate D:

• Bosch 1619-1619EV
• DeWalt 625
• Freud FT2000
