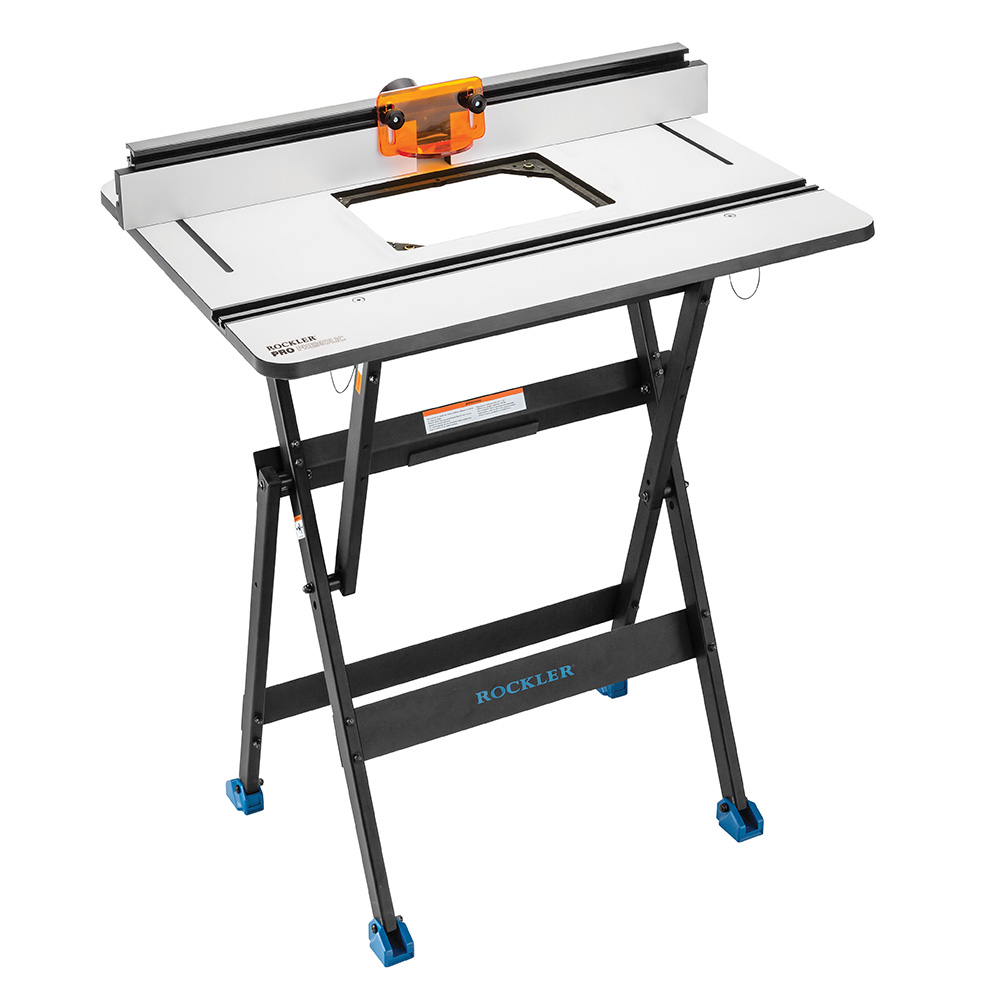

Rockler Phenolic Router Table with Pro Fence and Rock-Steady Folding Stand

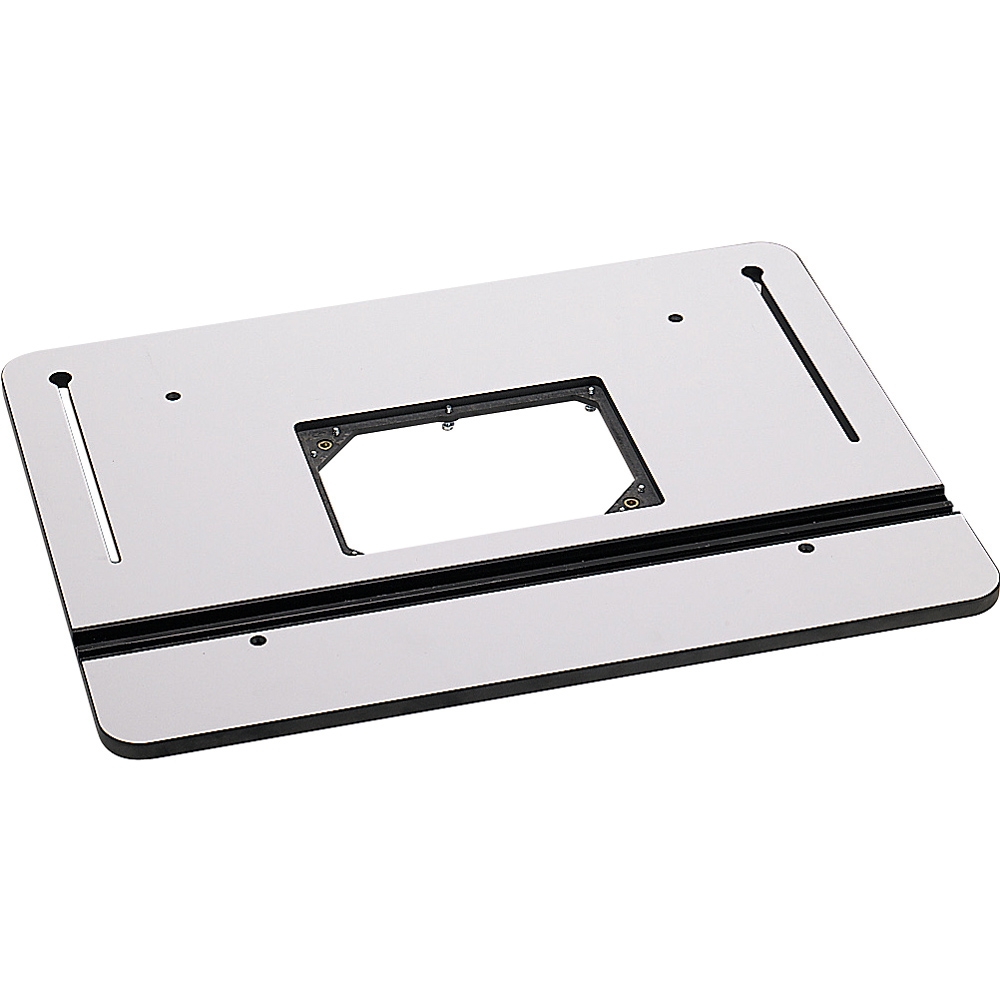

If your shop's floor space is limited, here's a router table that offers top-quality features and folds flat for storage. We combine a Phenolic Router Table Top with Pro Fence and Rock-Steady Folding Steel Stand. Solid phenolic provides an ultra-flat, low-friction table surface that won't warp, dent, scratch or delaminate. The fence's one-piece rugged aluminum frame is fully machined on the bottom and front faces to ensure flatness and squareness to the table. Included jointer bars enable fence to be used for jointing operations. A 3/4'' T-profile miter slot fits standard miter gauges, while universal accessory T-tracks in both the top and fence accept stops, hold-downs, featherboards and more. When you're done using the router table, just pull the stand's pins, lift up on the table and close the legs for storage.

Rockler Phenolic Router Table with Pro Fence and Rock-Steady Folding Stand Details:

• Large, low-friction table provides over five square feet of surface area
• Phenolic top is impervious to water, so it will not swell, delaminate or rust
• 8-point plate leveling system with two locking points
• Opening in top fits 8-1/4''W x 11-3/4''L router table insert plates, sold separately

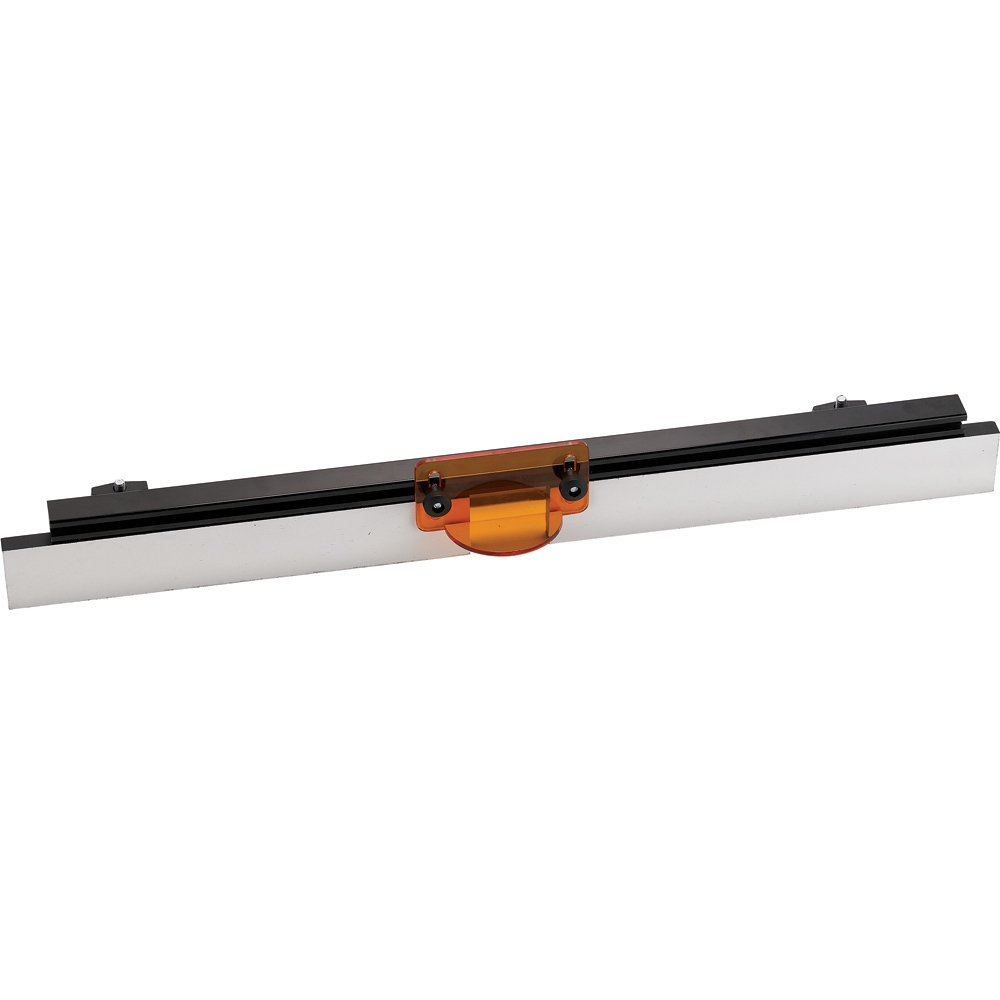

• One-piece aluminum fence frame with melamine-coated MDF fence faces for accuracy and durability
• Includes bit safety guard and 2-1/2''-diameter dust port
• Jointer bars expand fence's versatility for edge-jointing operations
• Tall, ergonomic T-knobs for easy, tool-free fence adjustment from the front of the table
• Accessory T-track slots in top and fence accept 5/16'' T-bolts, 1/4'' T-bolts and 1/4'' hex bolts

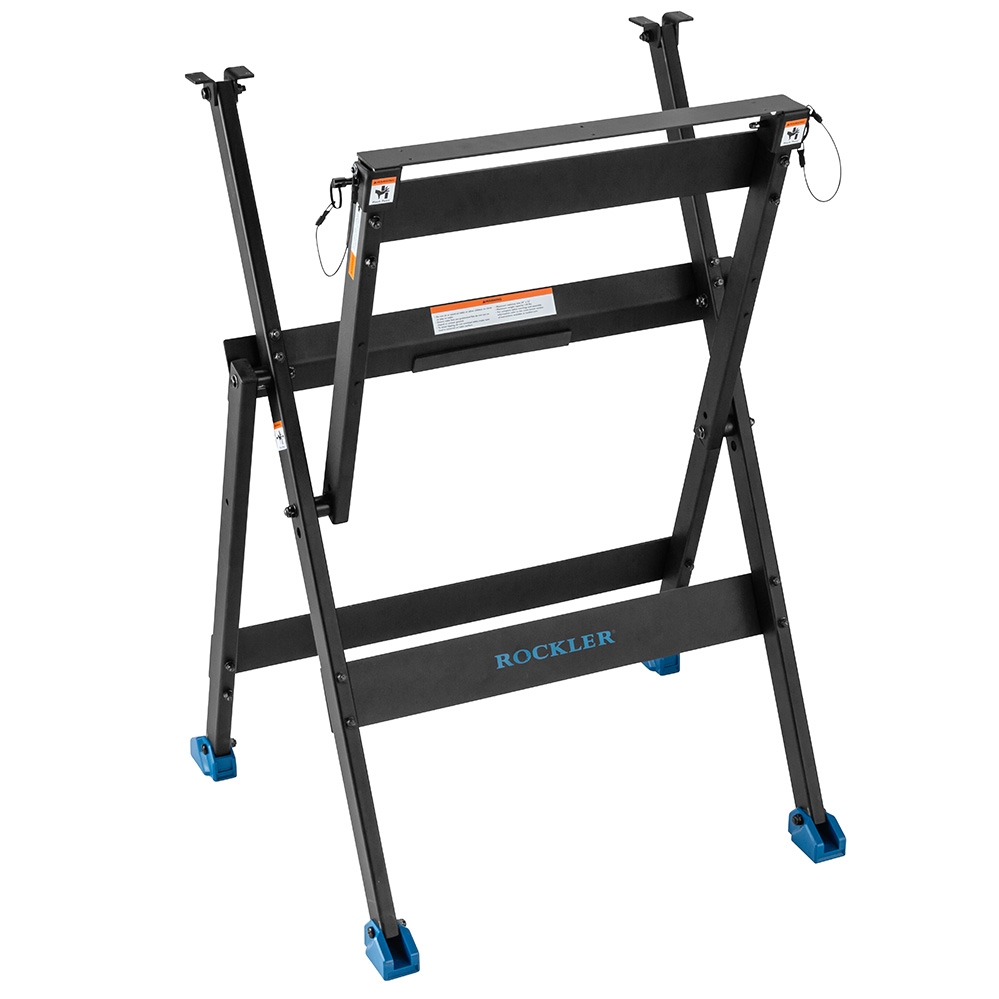

• Heavy-duty steel folding stand with powder-coat finish: 14-gauge for legs, 10-gauge for supports
• Stand is strong and stable in use—folds to less than 3'' deep and supports up to 200 pounds
• Locking pins secure stand in both open and closed positions—pins are tethered to the frame for easy access
• Rugged pivoting feet feature non-slip pads for stability

TO COMPLETE YOUR PACKAGE, ADD A LIFT OR A PLATE.

Two lifts are available—both include their own plate:

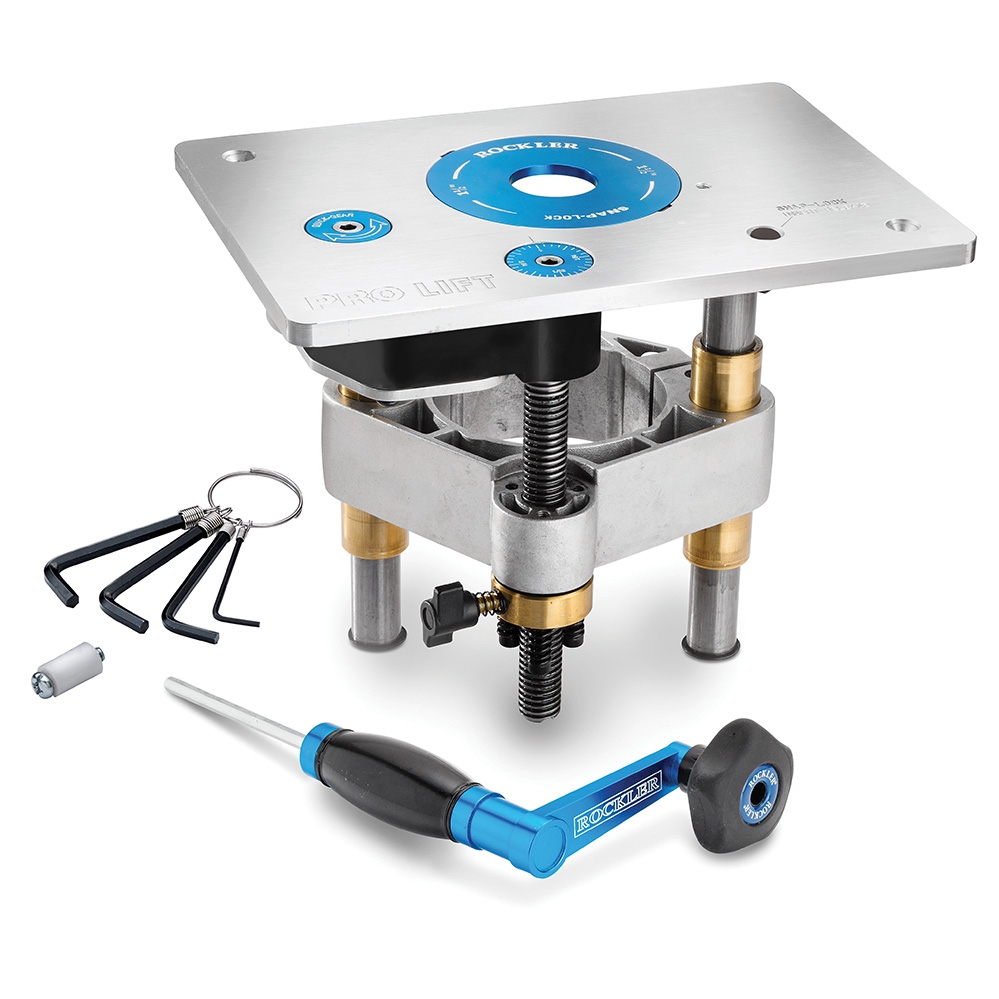

• The Pro Lift, which accepts large router motors up to 4.2'' in diameter (optional reducers available), and features 2-speed Quick-Gear lifting action, Snap-Lock insert rings and a 3/8'' aluminum plate.

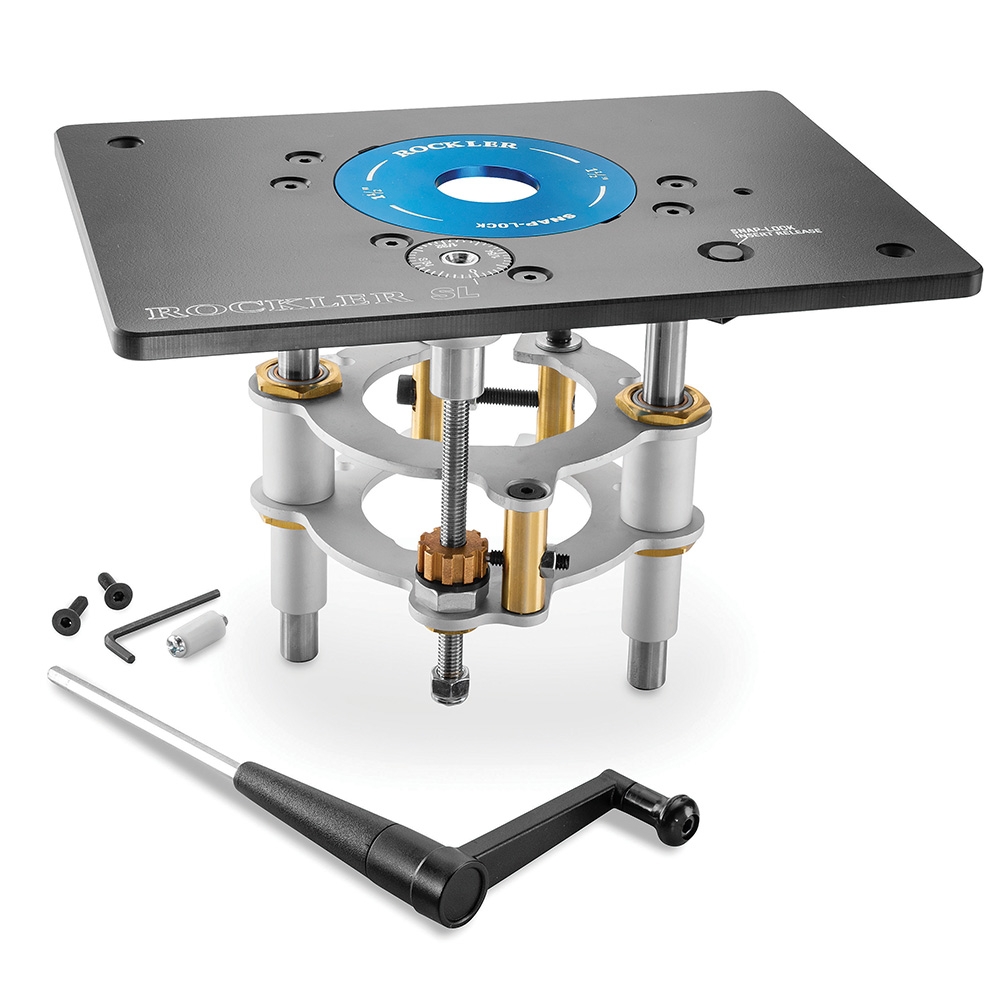

• The SL Lift, which accepts mid-sized 3-1/2'' router motors, and features Snap-Lock insert rings and a 3/8'' phenolic plate.

If you DON'T need a lift, plates are available in two materials:

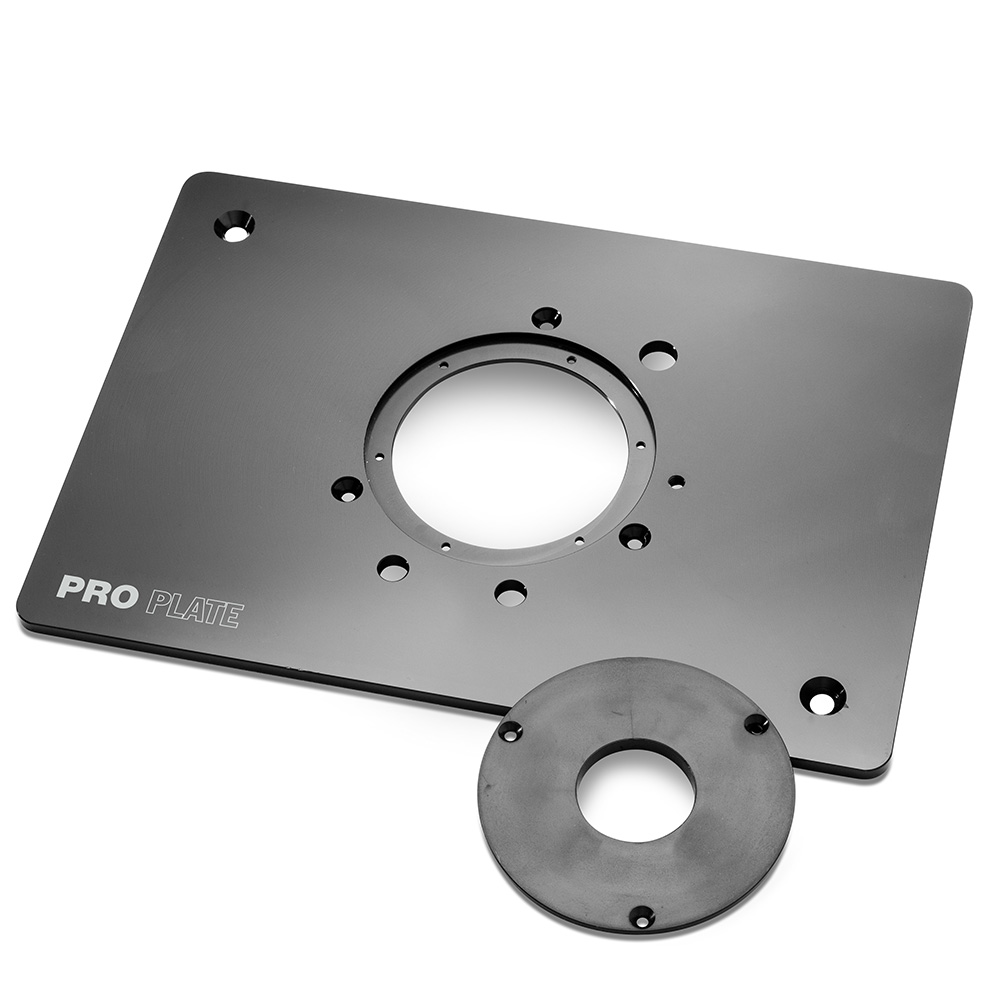

• Aluminum Pro Plates, 1/4'' thick, for the ultimate in flatness and stability

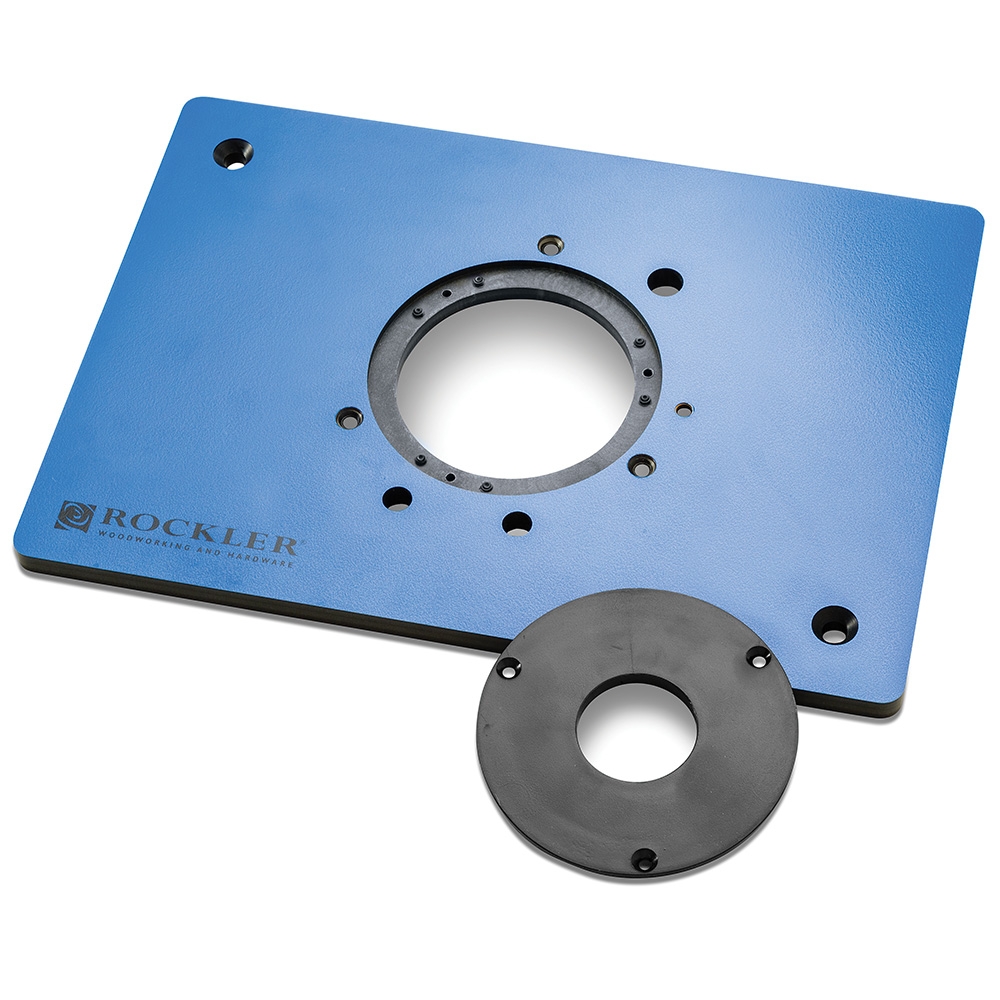

• Phenolic Plates, 3/8'' thick, for low cost and low friction
• All plates measure 8-1/4'' x 11-3/4'' and include a pattern routing pin and a 1-1/2'' ID insert ring. Additional insert ring sizes are available separately. Plates A & B accept Standard-sized (4'') rings. Plates C & D accept Large-sized (4-3/8'') rings.

To choose a pre-drilled plate, find your router below. Note that you may have to drill for the height adjustment rod on your router, if it has one. We are not able to pre-drill for all possible rod locations, since that would compromise the stiffness of the plates.

If your router is not listed: Choose the non-drilled plate with a 4'' insert ring (#57293) and drill the plate to fit your router.

Router Plate A:

• Bosch MRC23 Series, 1617-1618
• DeWalt 616-618
• Hitachi M12VC (fixed and kit)
• Makita 1100
• Milwaukee 5615-5624
• Porter-Cable 690
• Porter-Cable 890
• Porter-Cable 7529
• Porter-Cable 97529
• Porter-Cable 8529
• Ridgid 2930 Combo Kit

Note: Current models of the Porter-Cable 892 require at least two screws to be 1/2" long versus 5/8".

Router Plate B (available in Phenolic only, #50007):

• Craftsman Standard
• DeWalt DW621
• DeWalt DW621K
• Freud FT 1700E
• Freud 1702VCEK
• Skil RT1322-00
• Skil RT1323-00

Router Plate C:

• Milwaukee 5625-20
• Porter-Cable 7518
• Porter-Cable 7519
• Porter-Cable 7538
• Porter-Cable 7539
• Triton TRA001
• Triton MOF001

Router Plate D:

• Bosch 1619-1619EV
• DeWalt 625
• Freud FT2000
