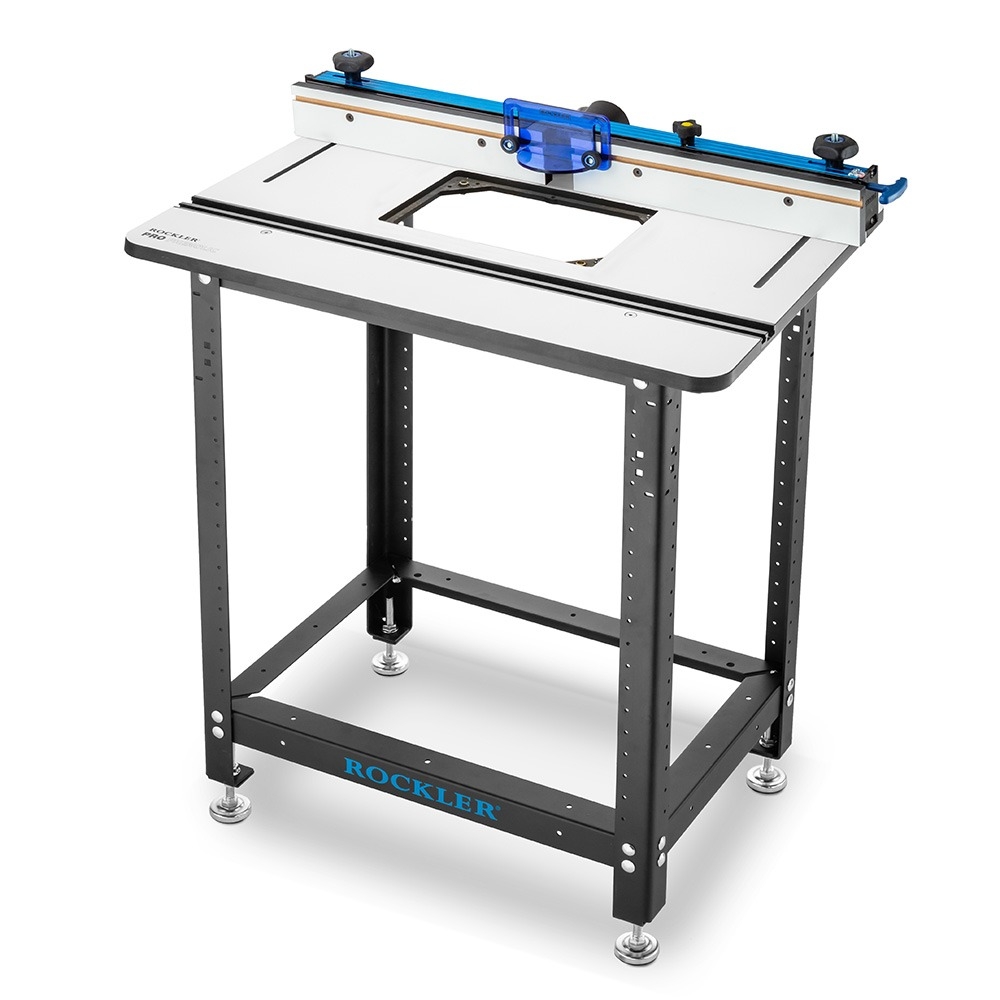

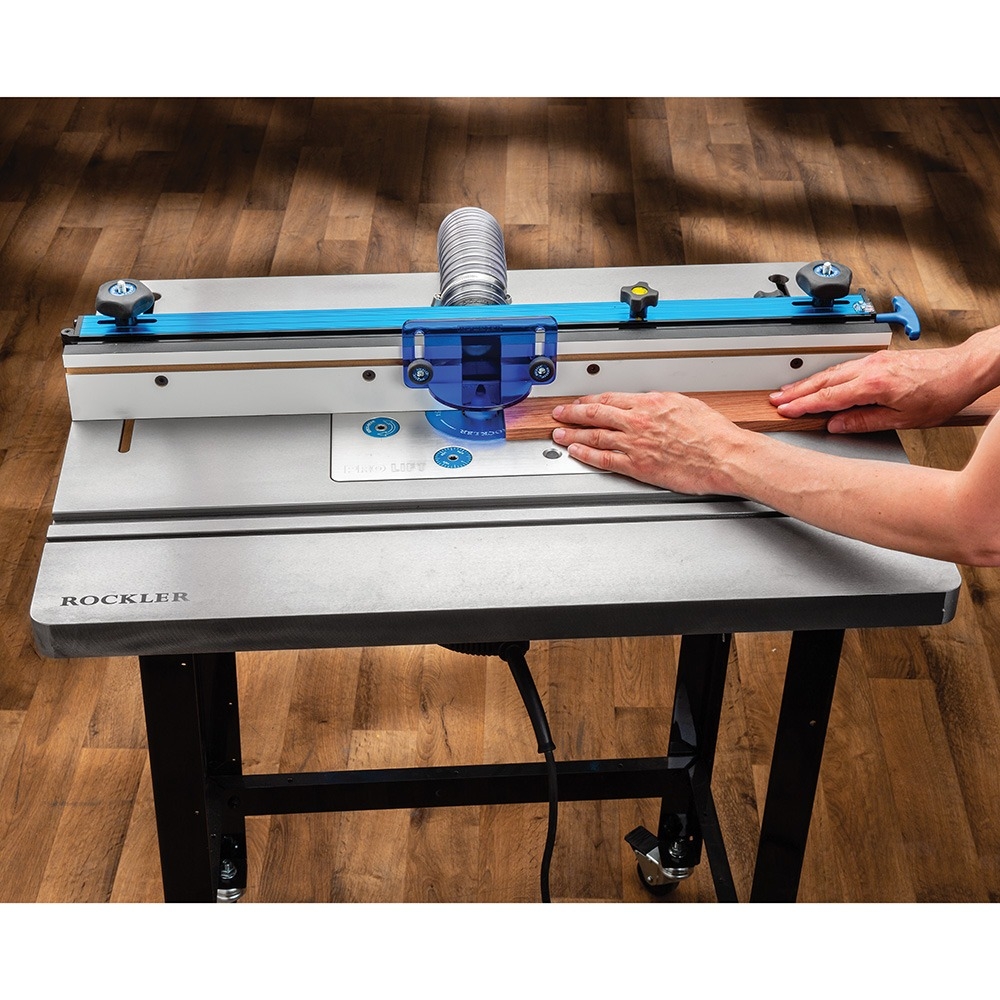

This package combines our tough, low-friction Phenolic Router Table with our top-of-the-line ProMax Fence and our Rock-Steady steel stand (#69049 ). To complete your order, choose a lift or plate (see below). Our Pro Phenolic Router Tables feature one-piece 3/4'' solid phenolic construction for an ultra-flat, low-friction surface that won't warp, dent, scratch or delaminate. The whiter, brighter finish enhances visibility, while the 3/4'' T-profile miter slot allows you to use precision aftermarket miter gauges. The included ProMax Fence features built-in microadjustability, a jointing system that shaves off material in precise increments, and easy-access, top-mounted knobs for comfortable adjustments. Universal accessory T-tracks accept various optional stops and featherboards. A bit guard and dust port are both included.
Features:
- Large, low-friction table provides over five square feet of surface area
- 8-point plate leveling system with two locking points
- Includes Rockler ProMax Fence with micro-adjustment knob and integral jointing system
- Top-mounted T-knobs for easy, comfortable fence adjustments
- Opening in fence is easily adjustable to accommodate large router bits
- Accessory T-tracks in ProMax Fence accept 5/16'' T-bolts, 1/4'' T-bolts, and 1/4'' hex bolts
- Fence includes a 2-1/2'' OD (2-1/4'' ID) dust port
- Bit safety guard helps keep fingers away from the cutting area
- Heavy-duty steel stand with powder-coat finish: 14-gauge for stretchers, 10-gauge for legs
- Holes in legs are spaced 32mm apart for attaching optional hinge brackets, drawer slide/shelf brackets and panels
TO COMPLETE YOUR PACKAGE, ADD A LIFT OR A PLATE.
Two lifts are available—both include their own plate:
- The Pro Lift, which accepts large router motors up to 4.2'' in diameter (optional reducers available), and features 2-speed Quick-Gear lifting action, Snap-Lock insert rings and a 3/8'' aluminum plate.
- The SL Lift, which accepts mid-sized 3-1/2'' router motors, and features Snap-Lock insert rings and a 3/8'' phenolic plate.
If you DON'T need a lift, plates are available in two materials:
- Aluminum Pro Plates, 1/4'' thick, for the ultimate in flatness and stability
- Phenolic Plates, 3/8'' thick, for low cost and low friction
- All plates measure 8-1/4'' x 11-3/4'' and include a pattern routing pin and a 1-1/2'' ID insert ring. Additional insert ring sizes are available separately. Plates A & B accept Standard-sized (4'') rings. Plates C & D accept Large-sized (4-3/8'') rings.
To choose a pre-drilled plate, find your router below. Note that you may have to drill for the height adjustment rod on your router, if it has one. We are not able to pre-drill for all possible rod locations, since that would compromise the stiffness of the plates.
If your router is not listed Choose the non-drilled plate with a 4'' insert ring (#57293) and drill the plate to fit your router.
Router Plate A:
- Bosch MRC23 Series, 1617-1618
- DeWalt 616-618
- Hitachi M12VC (fixed and kit)
- Makita 1100
- Milwaukee 5615-5624
- Porter-Cable 690
- Porter-Cable 890
- Porter-Cable 7529
- Porter-Cable 97529
- Porter-Cable 8529
- Ridgid 2930 Combo Kit
Note: Current models of the Porter-Cable 892 require at least two screws to be 1/2" long versus 5/8".
Router Plate B (available in Phenolic only, #50007):
- Craftsman Standard
- DeWalt DW621
- DeWalt DW621K
- Freud FT 1700E
- Freud 1702VCEK
- Skil RT1322-00
- Skil RT1323-00
Router Plate C:
- Milwaukee 5625-20
- Porter-Cable 7518
- Porter-Cable 7519
- Porter-Cable 7538
- Porter-Cable 7539
- Triton TRA001
- Triton MOF001
Router Plate D:
- Bosch 1619-1619EV
- DeWalt 625
- Freud FT2000
