Build the framework for a heavy-duty, customizable workbench with lots of storage possibilities—tip-up extension hardware lets you add even more worktop space!

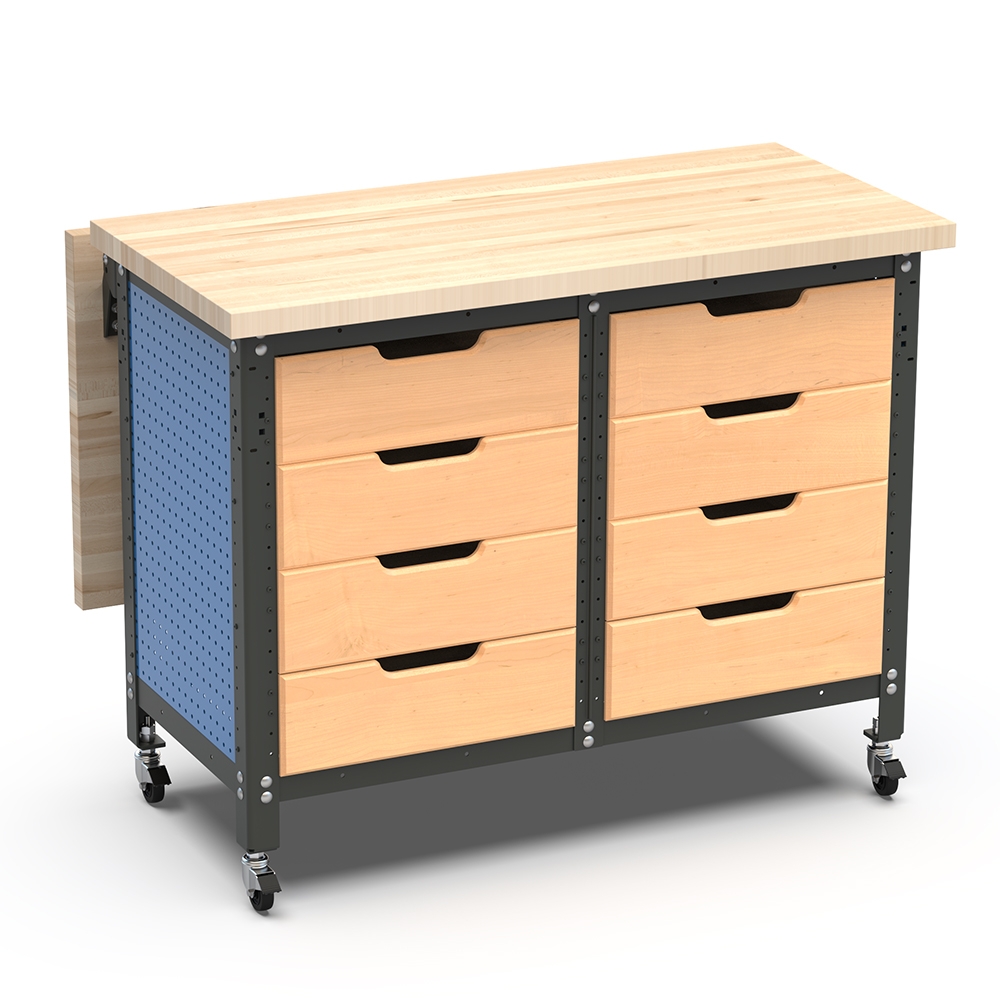

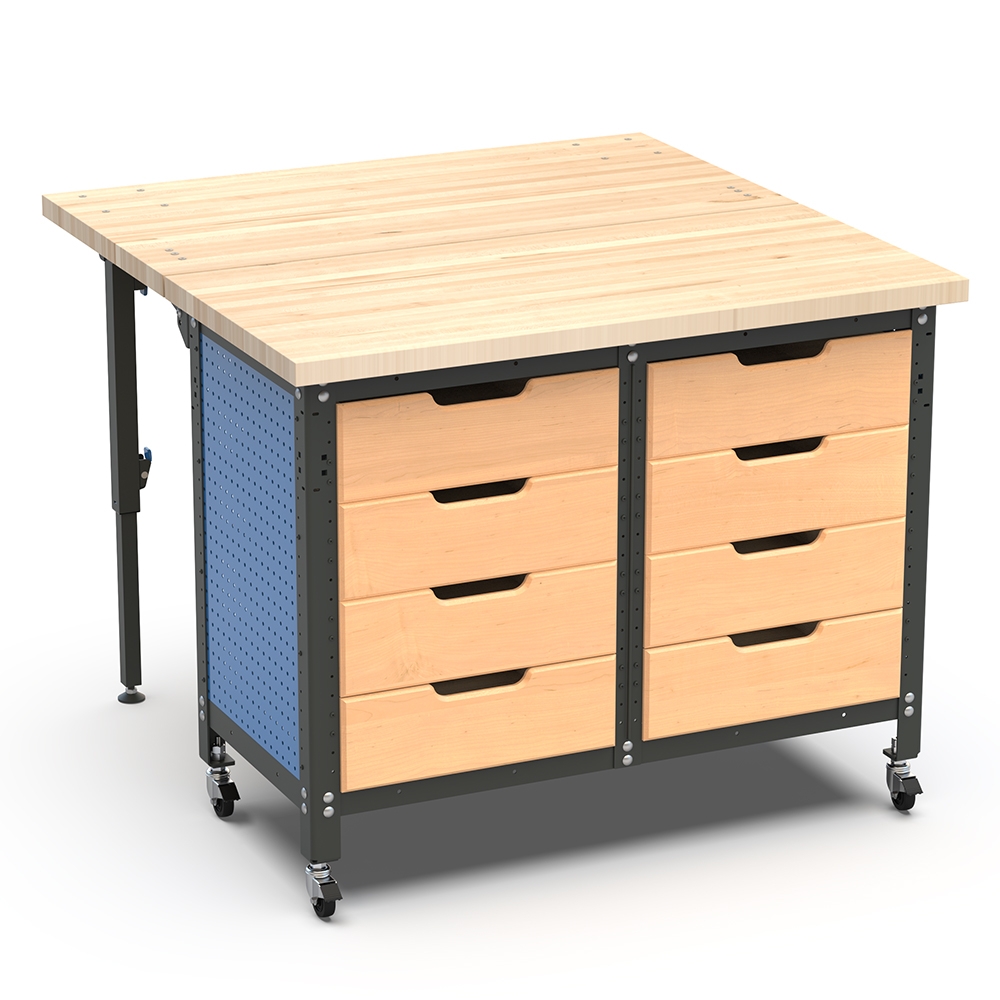

This selection of our popular Rock-Steady heavy-duty stand components will let you construct a sturdy steel framework for a workbench measuring 20''W (plus even more width with the tip-up extension you make) x 44''L x 32''H, not counting the height of the included casters, plus a benchtop you build yourself. A pair of center supports divides up the length of the bench where you wish for installing cabinet doors or banks of shelves and drawers. Eight pairs of drawer/shelf brackets will make that even easier, and the brackets are pre-drilled for drawer slide hardware (sold separately). Two steel pegboard side panels enclose the ends of the bench while adding lots of storage space for hanging tools or accessories. For even more helpful worktop real estate, you also get a Folding Top Extension Kit, which includes a pair of hinge brackets and telescoping legs to create an additional length of tip-up benchtop. Here's one of the fastest ways to add a fully customizable bench system with plentiful storage possibilities to your shop!

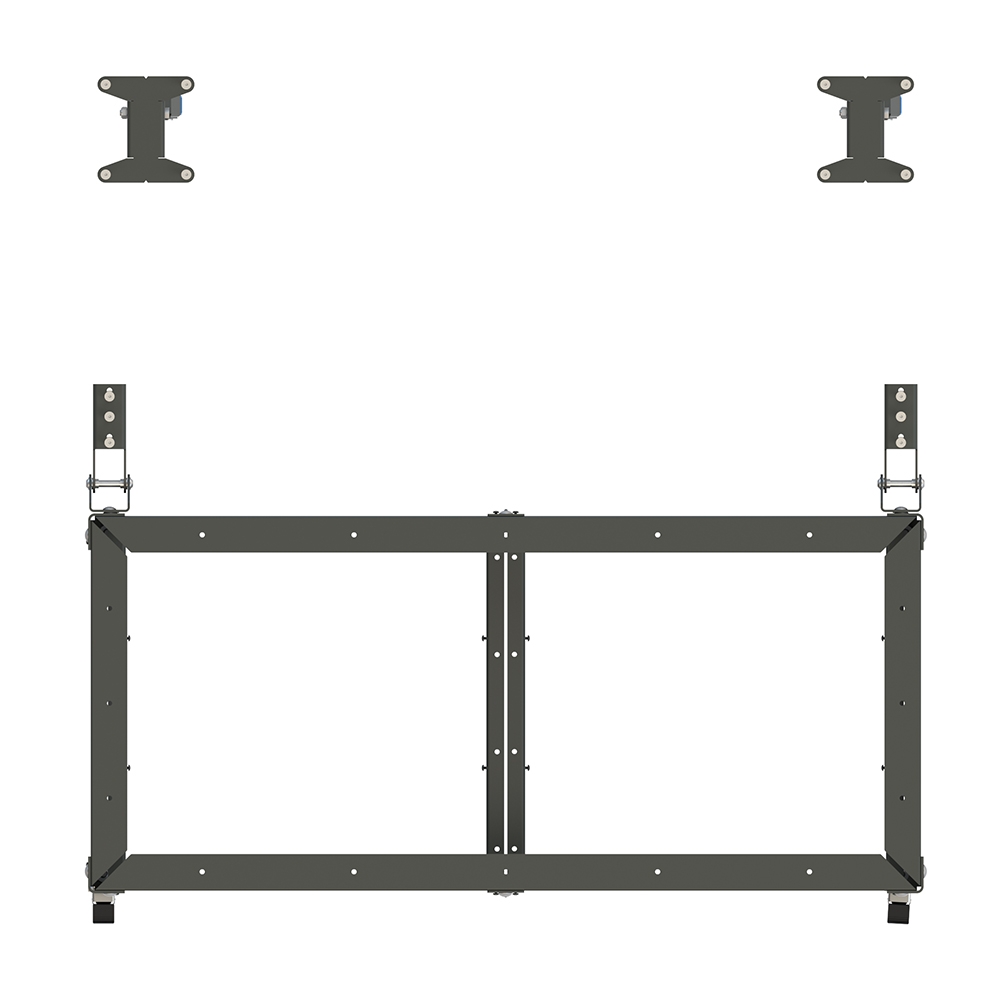

Legs are heavy-duty 10-gauge steel; stretchers are 14-gauge steel—all have a durable powder-coat finish
Legs have holes spaced 32mm apart for attaching accessories, shelves and panels
Swiveling, locking casters measure 3-1/2'' tall; load rating is 110 lbs. per caster

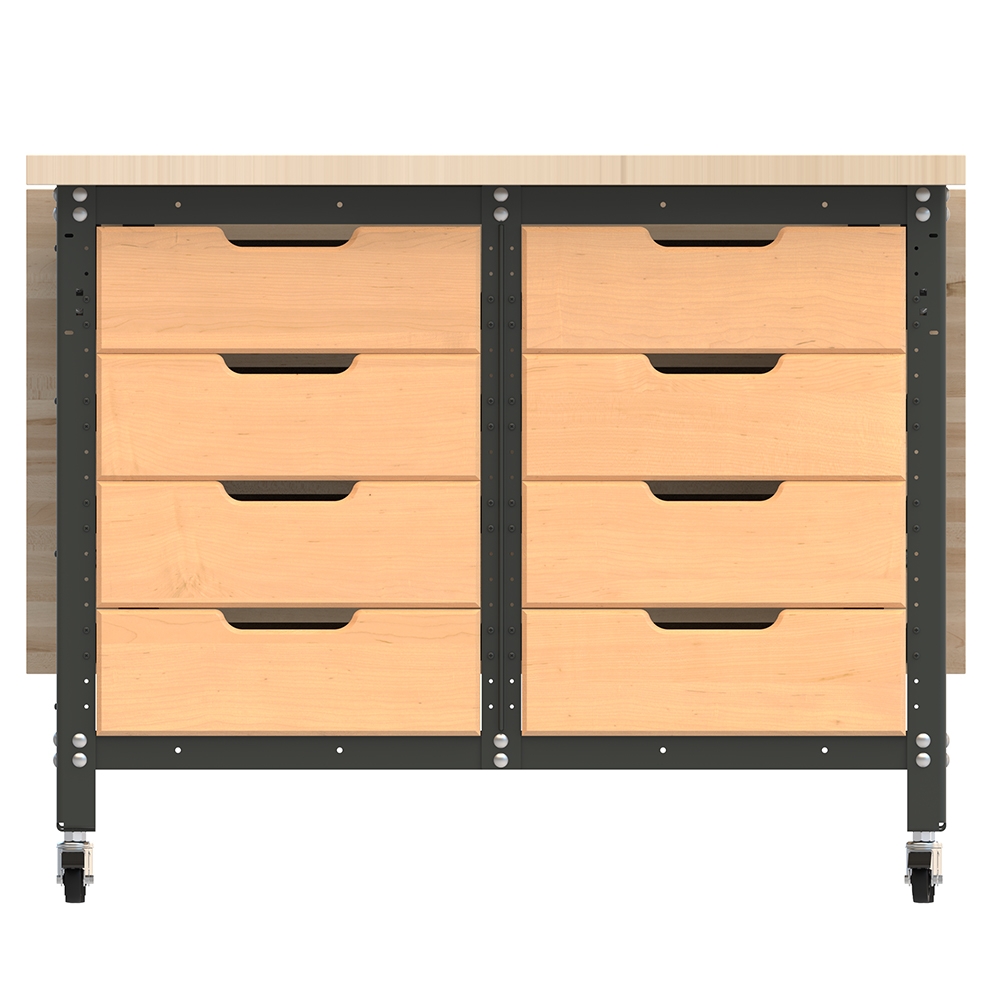

Drawer/Shelf Brackets are pre-drilled for most ball-bearing and epoxy drawer slides (sold separately)
Pegboard panels are 1/16''-thick solid-steel with 1/4'' holes spaced 1'' on-center to securely hold pegboard accessories
All required fastener hardware for assembling bench (screws, bolts, nylon lock nuts, washers) is included
Mount cabinet doors to your bench with our Hinge Brackets (#50676, sold separately)
Make your own benchtop and a top for the tip-up extension, or choose from our wide selection of pre-made wooden tops
Rockler Rock-Steady Folding Top Extension Kit Details:

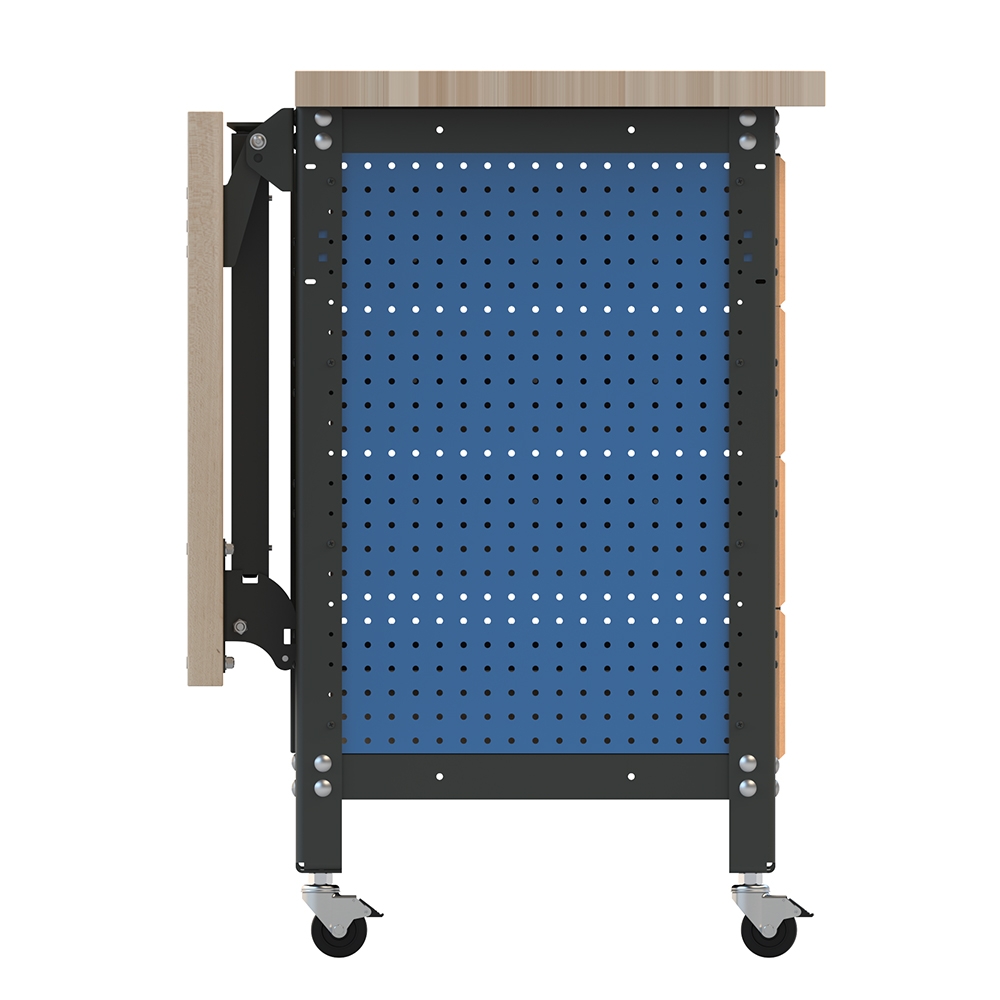

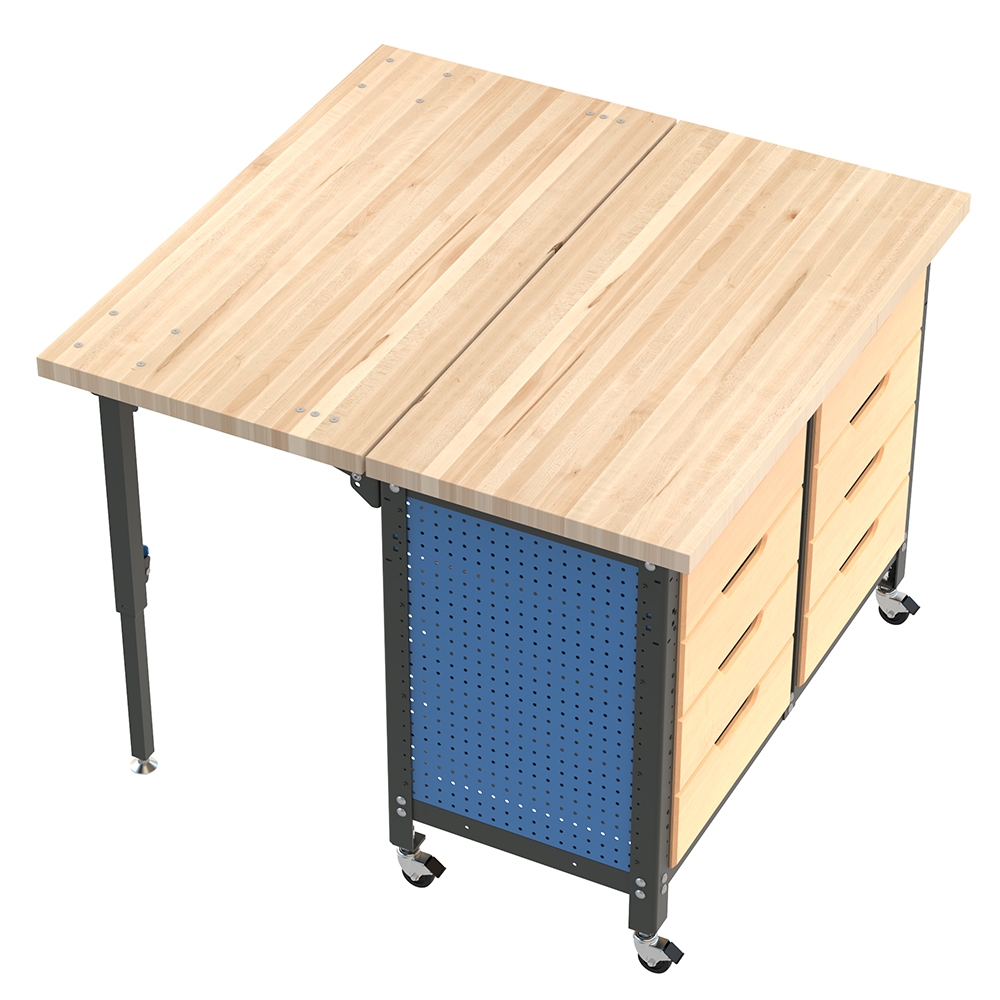

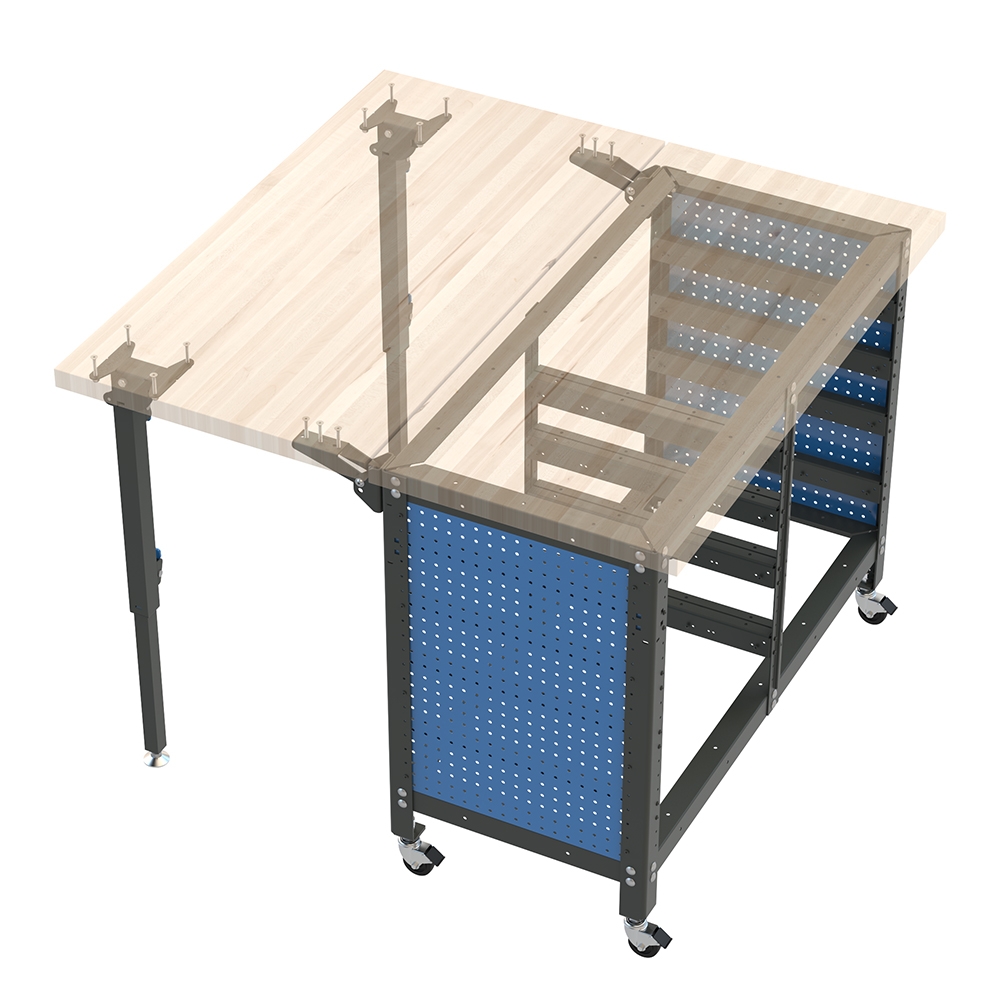

Expands the work surface of your workbench—just bolt to the stand or benchtop for a fold-down worktop extension

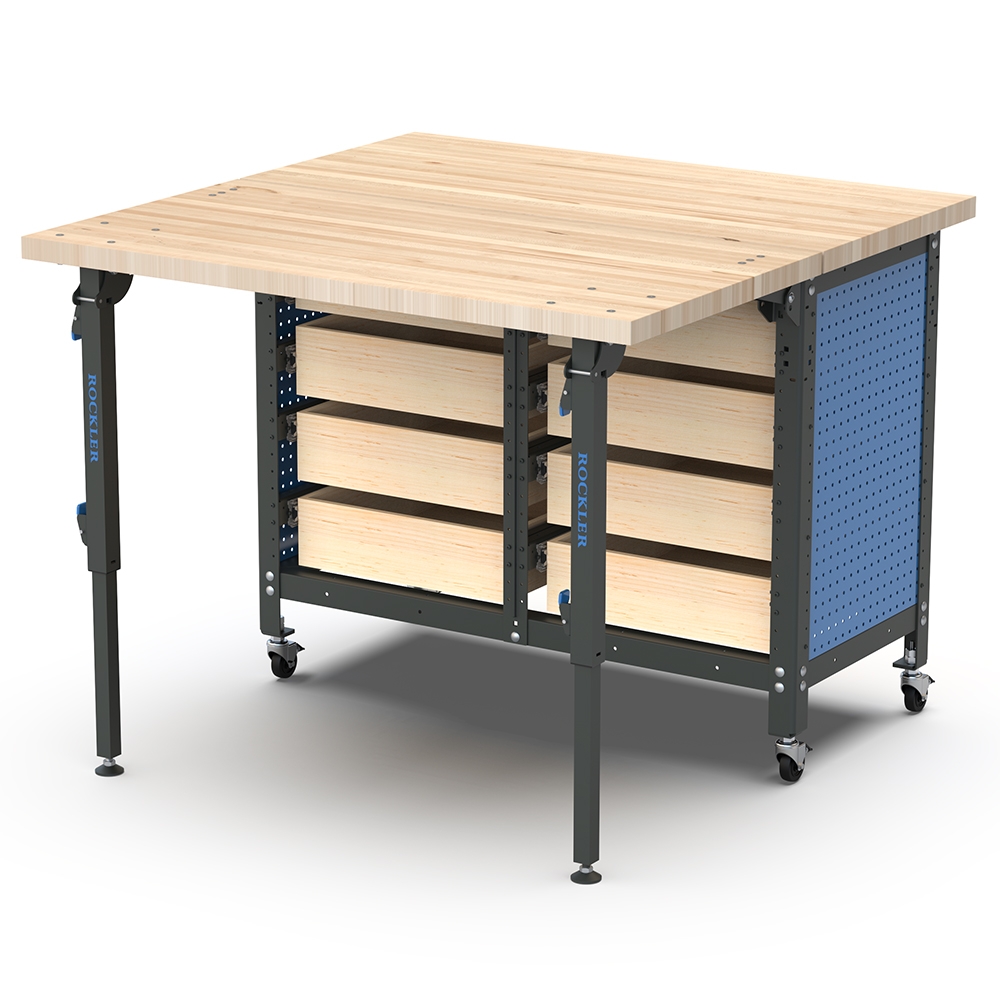

High-strength, adjustable legs fold out to provide sturdy support for heavy items, and adjust from 22-5/8'' to 37-5/8'' in 1'' increments
Legs lock in both open and closed positions for stability in use and in storage

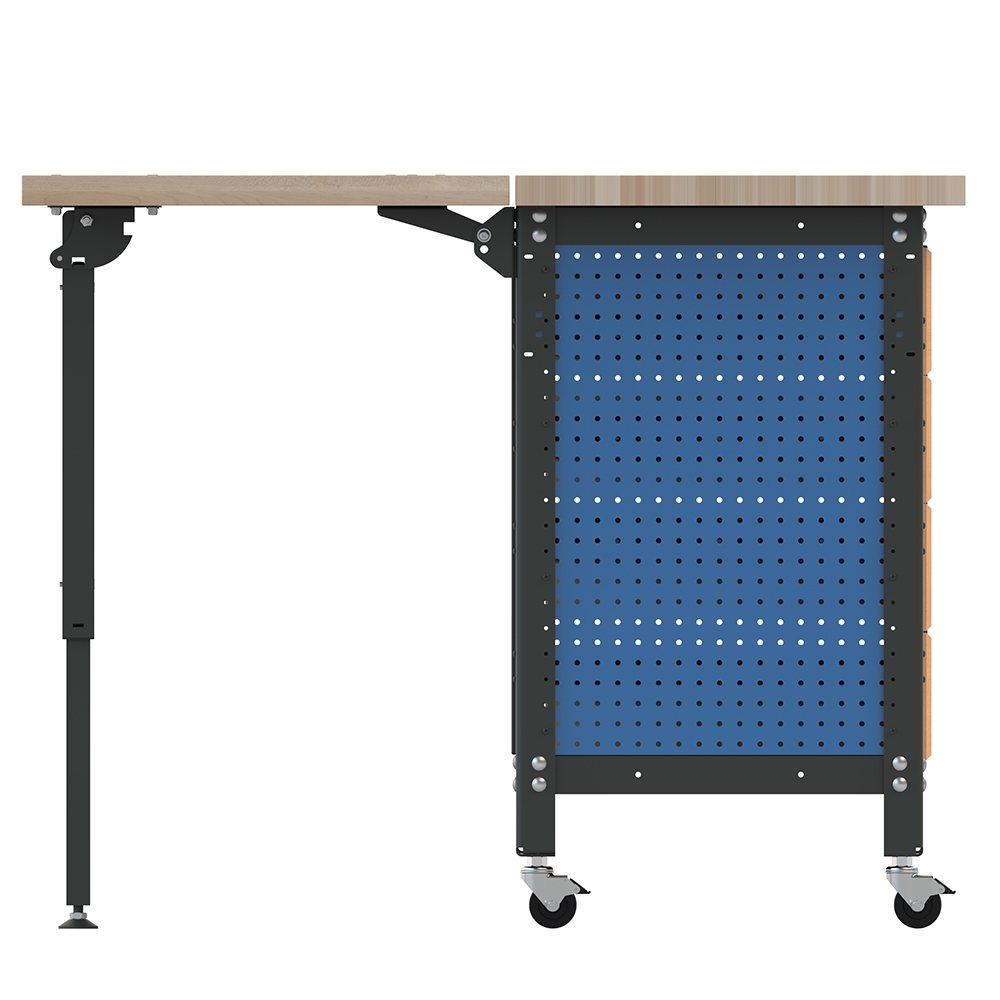

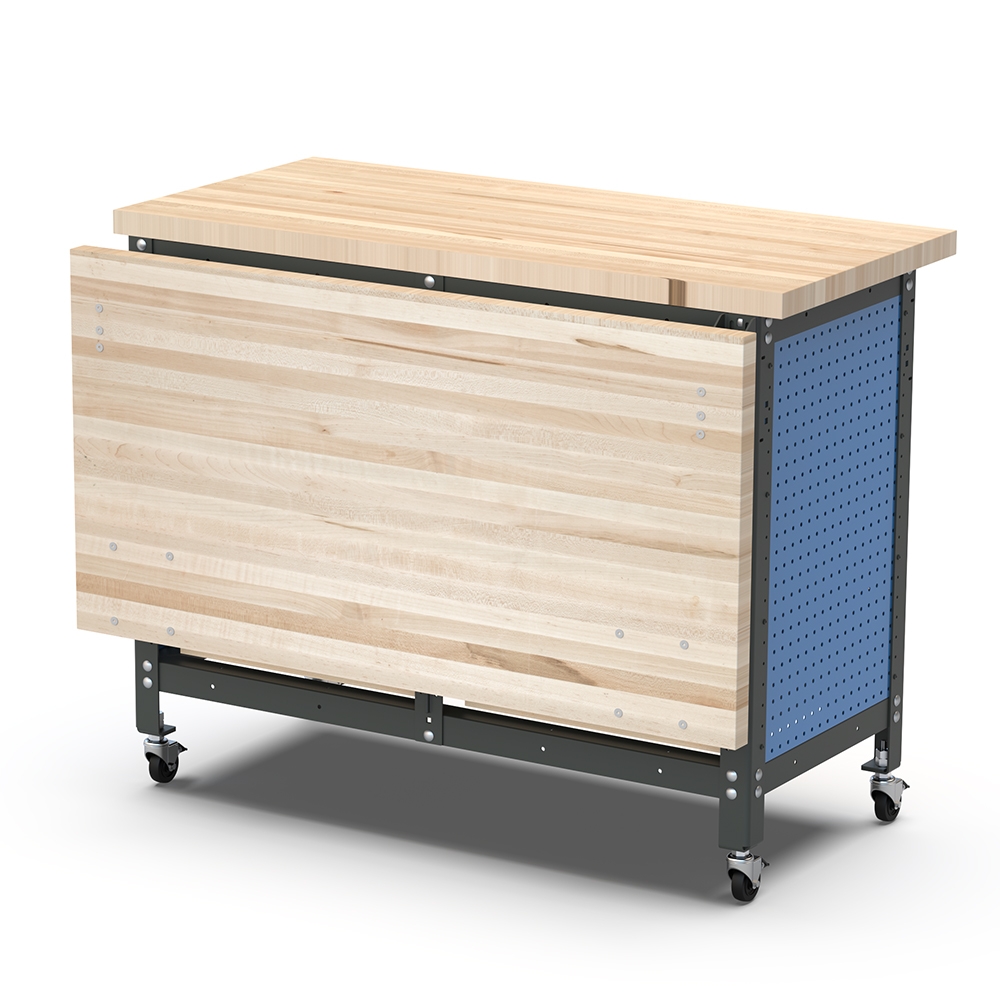

Heavy-duty hinge assemblies provide rock-solid support for the worktop in the open position, then allow top to fold against the stand when not in use
Includes two hinge assemblies, two folding steel legs and mounting hardware
1/2'' leveling feet allow fine-tuning of height
Heavy-duty steel construction; benchtop not included
Note: Rock-Steady stands are NOT compatible with previous Rockler stands, nor are the accessories interchangeable. Accessories that fit these components will be clearly marked as fitting ''Rock-Steady'' stands. Completed drawers are not included.
