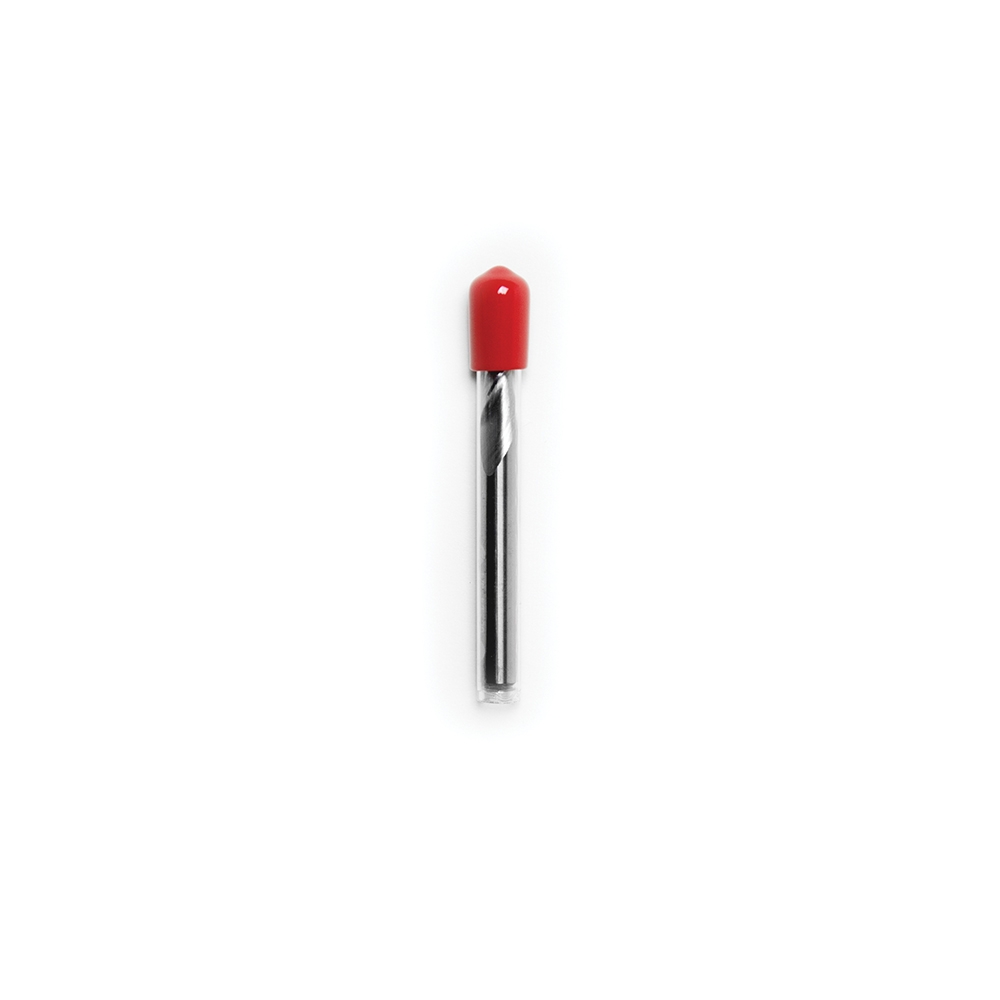

Router Bits for Shaper Origin with cover on - image

Router Bits for Shaper Origin in package - image

Router Bits for Shaper Origin with package - image

See all

Skip to the beginning of the images gallery

Router Bits for Shaper Origin

Item #

GRP40915

1/8'' diameter is well-suited for cutting finer details—dual spiral flutes eject material from the cut rapidly for less heat build-up.

More details

Select the quantity of the different items you need, then add them all to your cart at once!

Engraving Router Bit for Shaper Origin Item #69595

$21.00 Each

Qty

1/8'' Up-Spiral Router Bit for Shaper Origin Item #63330

$25.99 Each

Qty

1/4'' Up-Spiral Router Bit for Shaper Origin Item #67734

$25.99 Each

Qty

1/8'' Collet and Nut for Shaper Origin Item #63684

Notify me when it's back in stock

$49.99 Each

Qty

Your Package:

Total $0.00

How do you want your item?

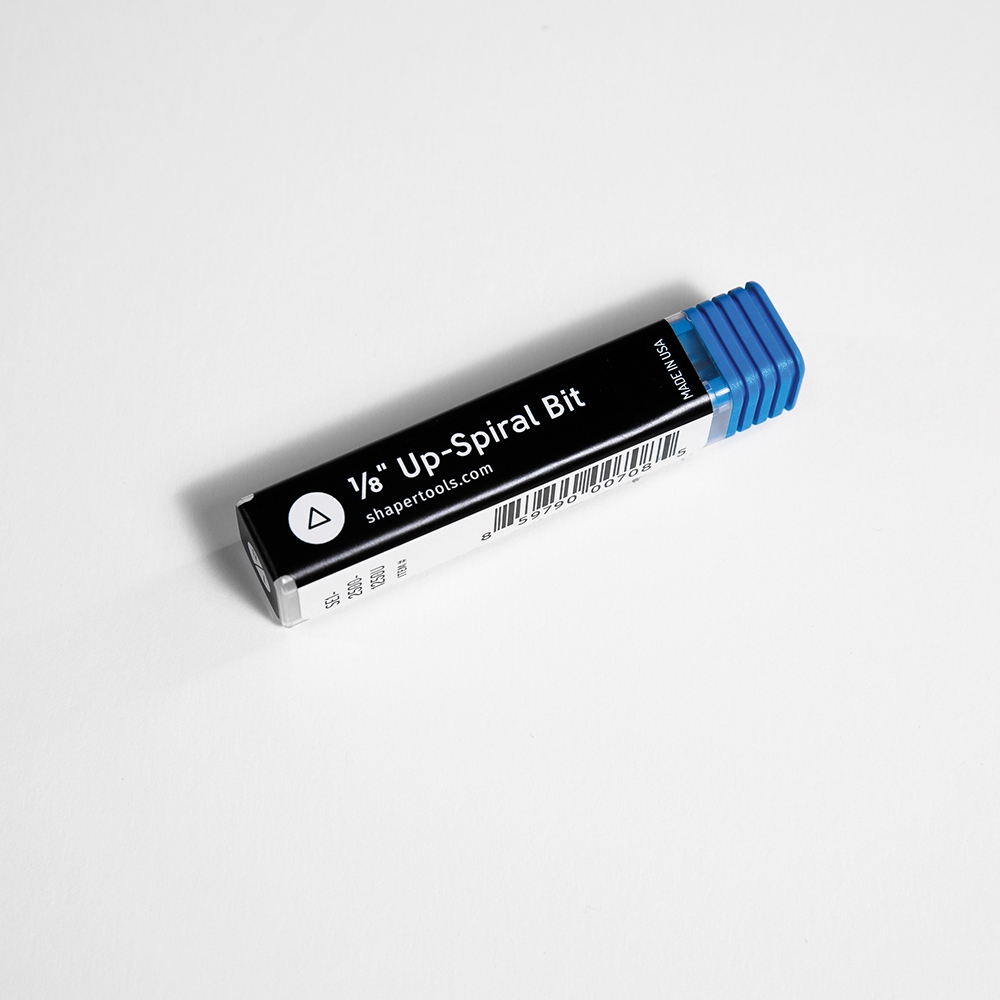

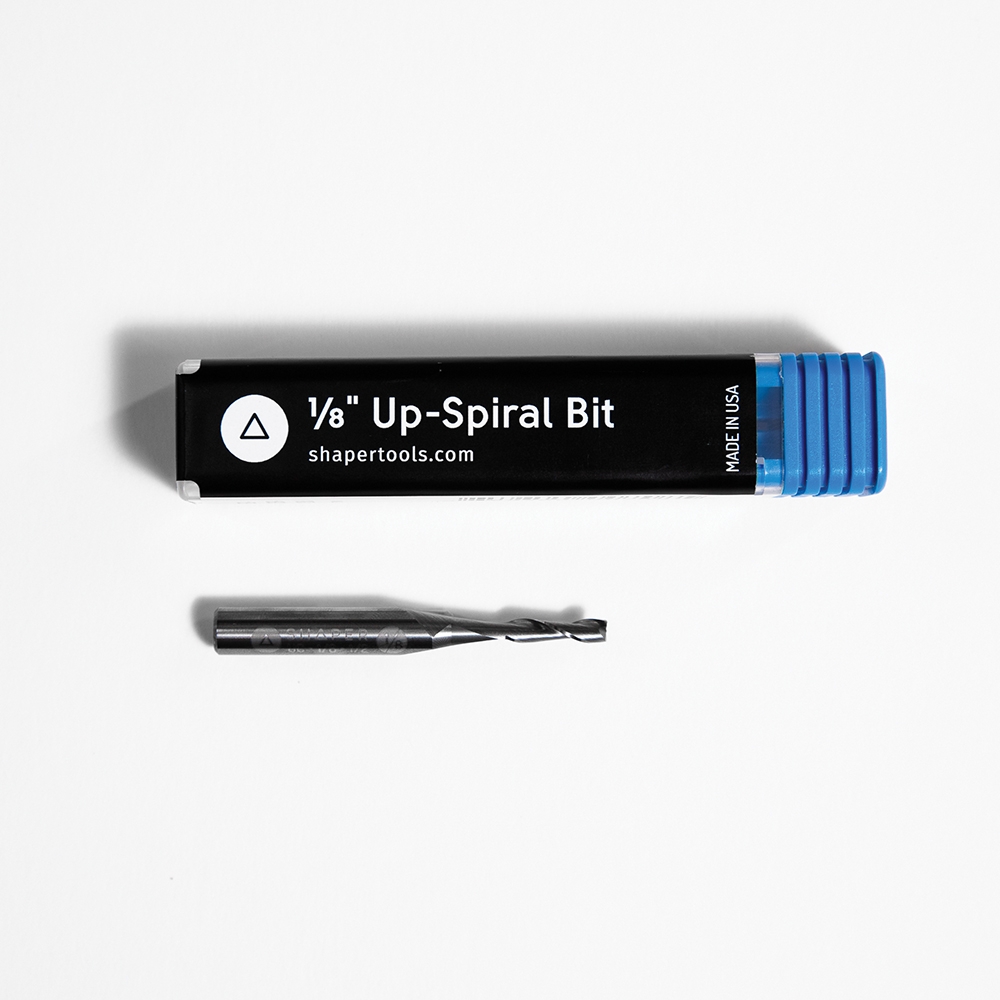

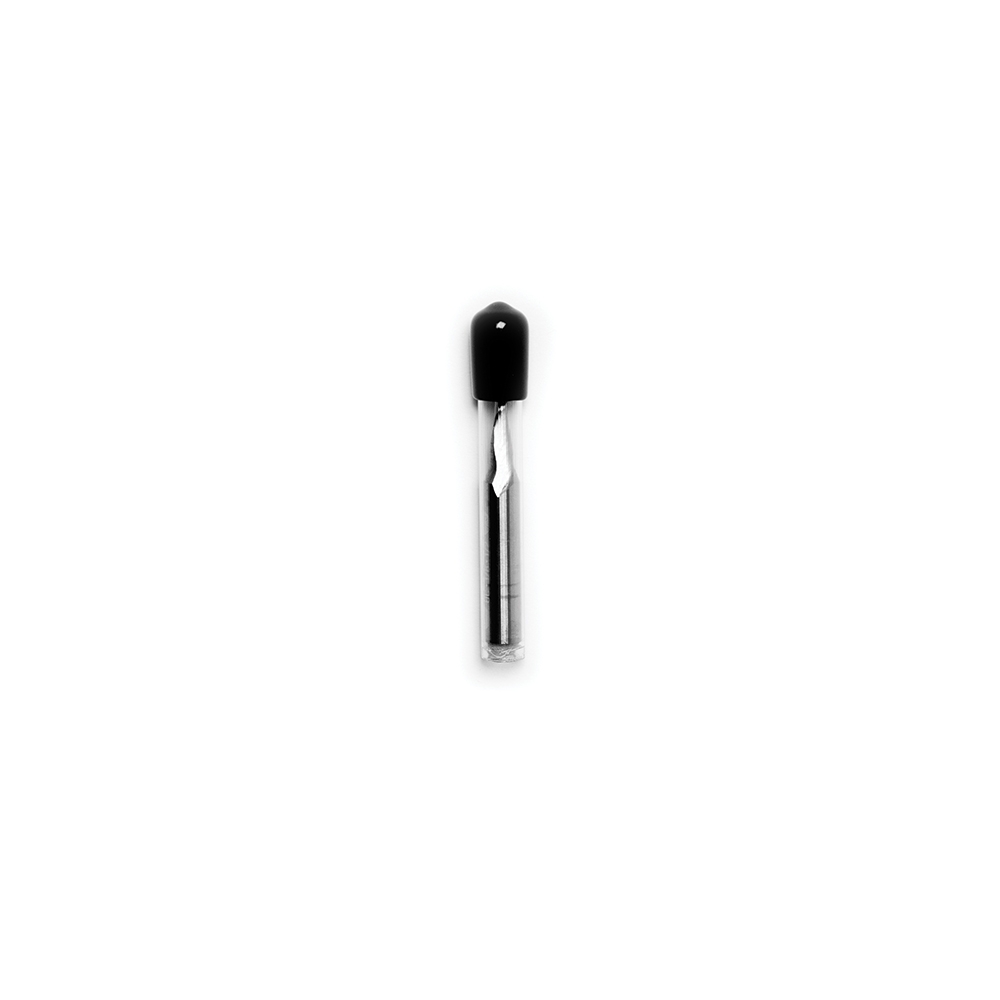

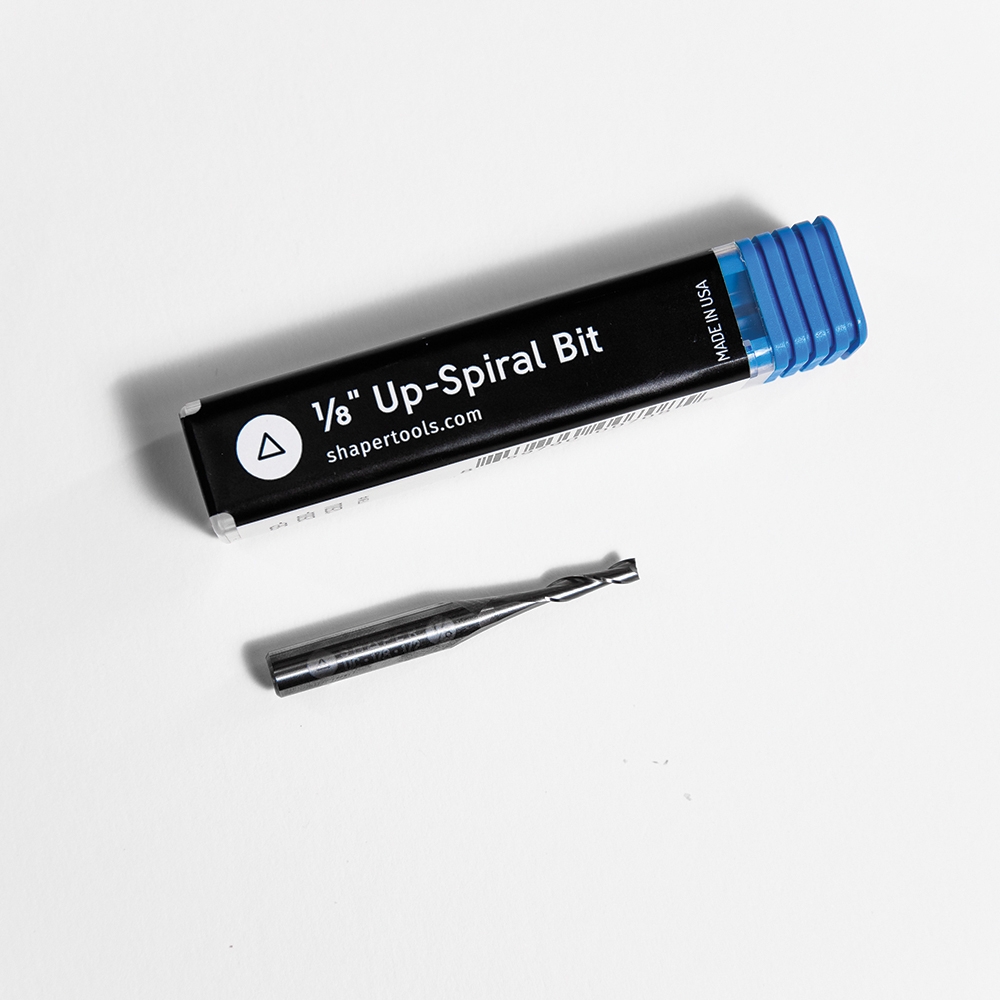

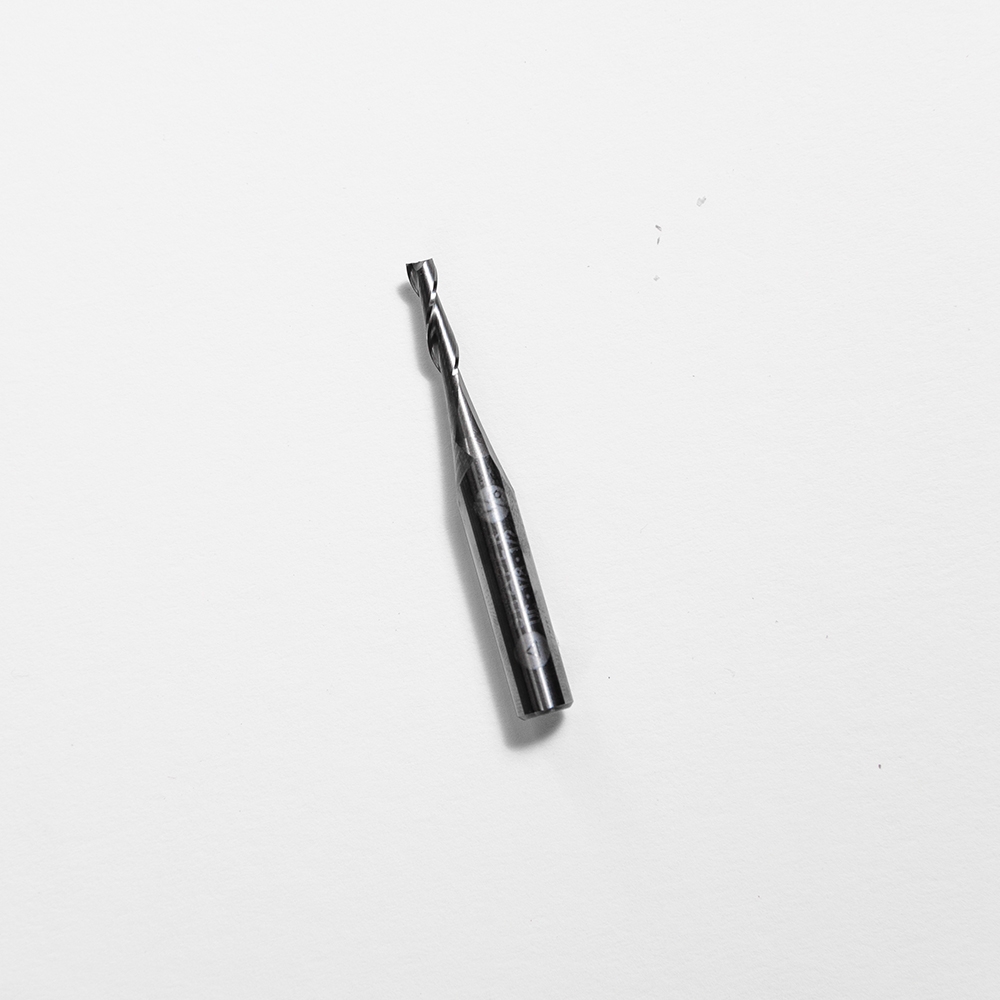

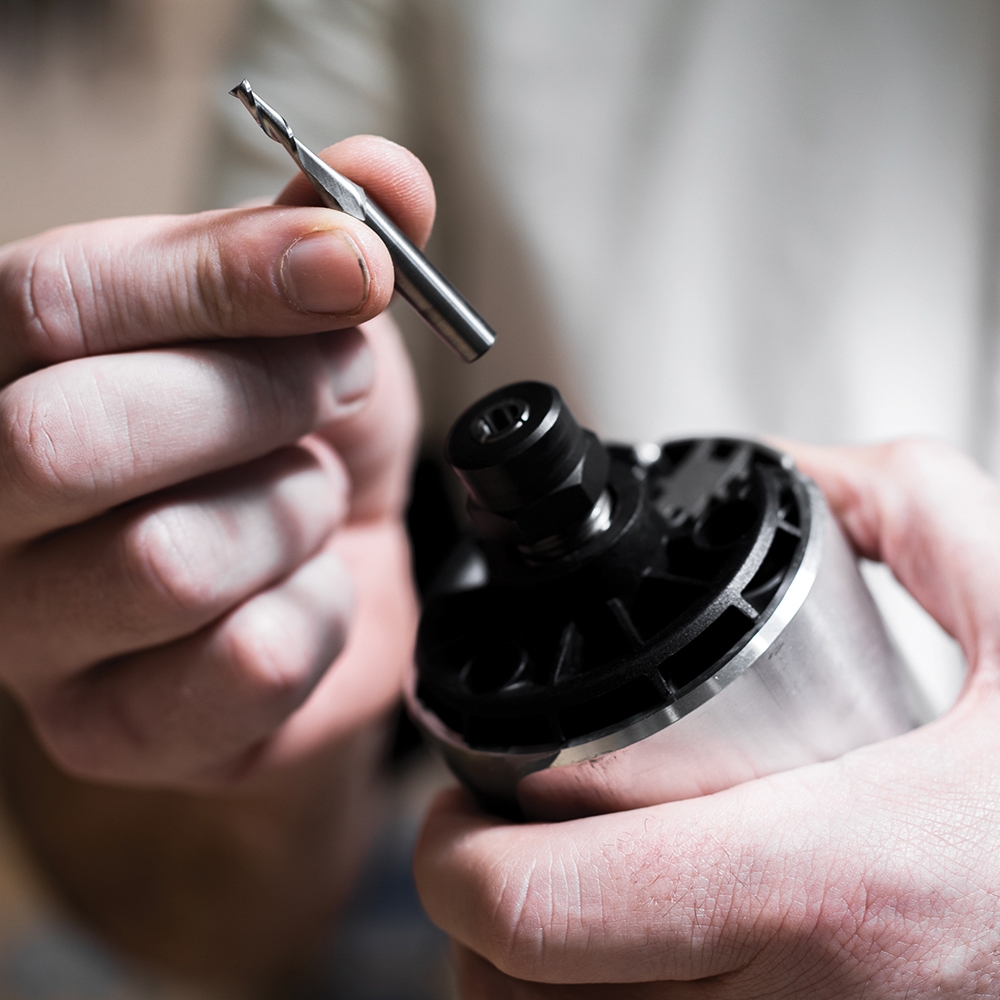

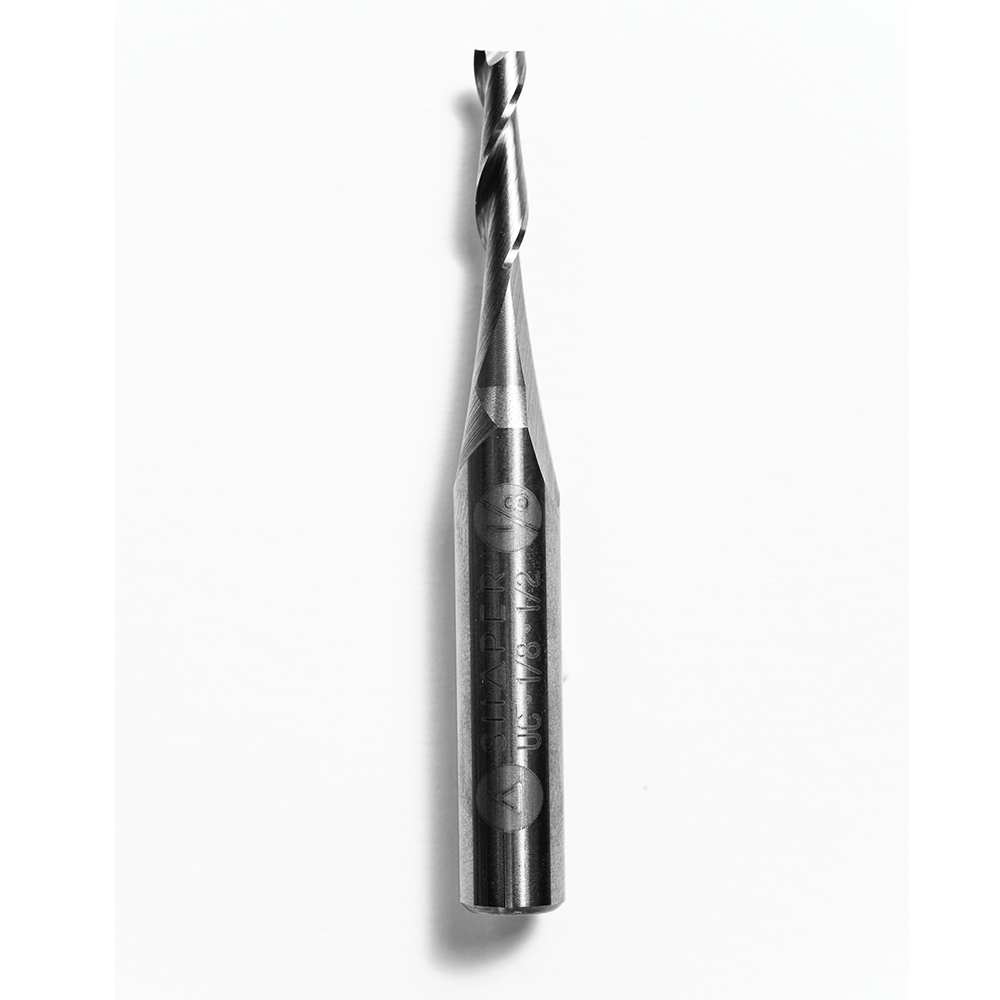

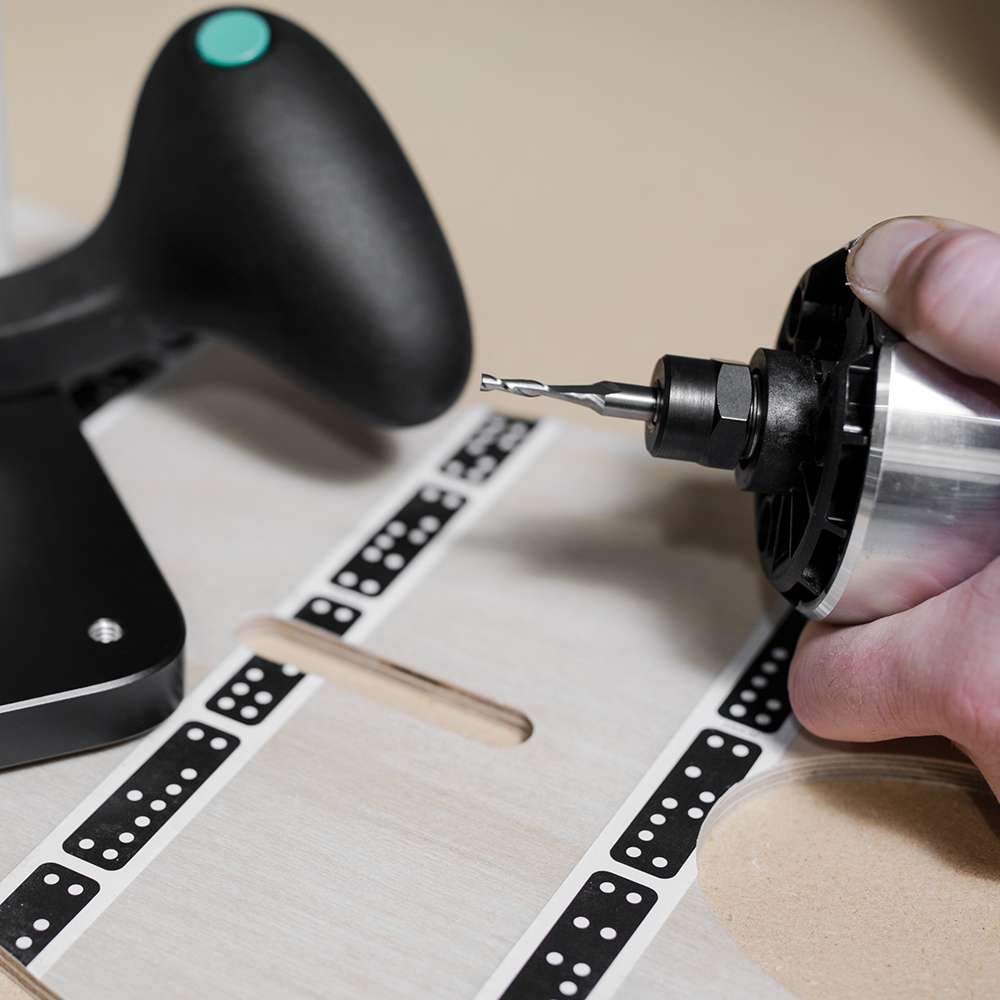

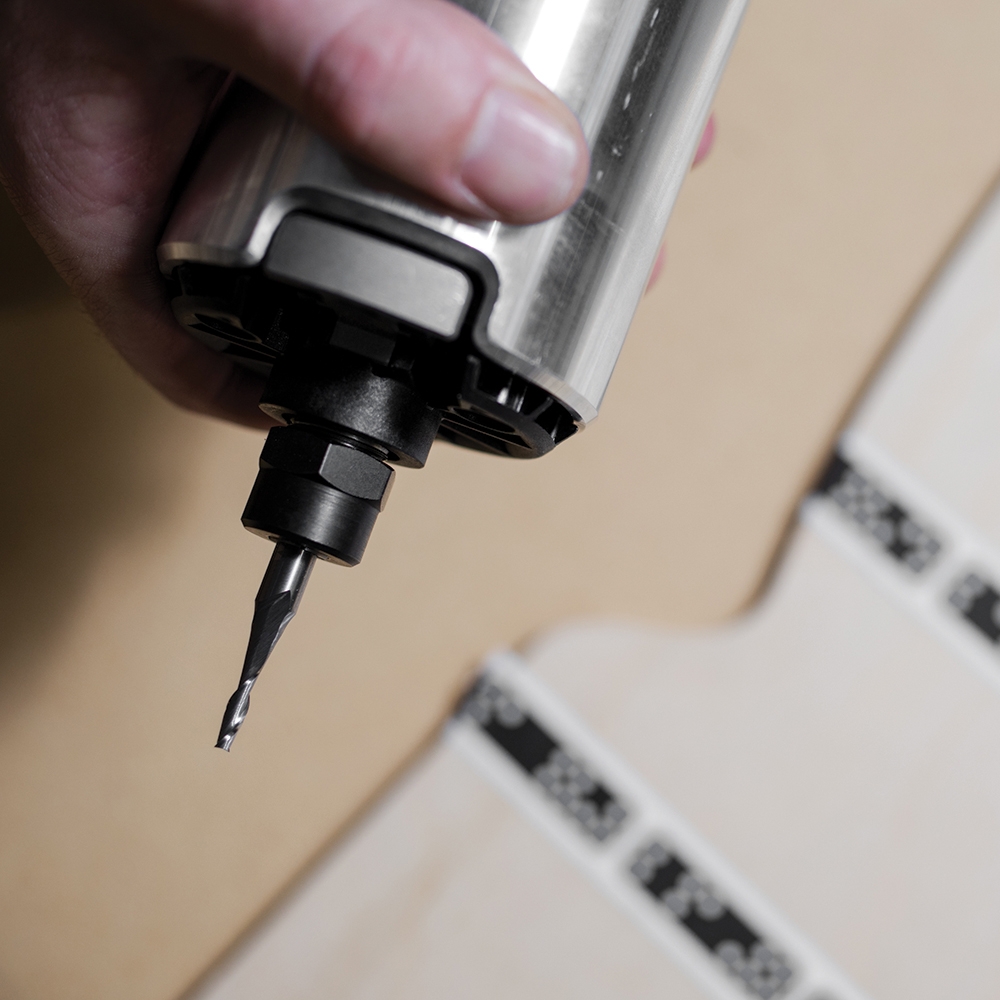

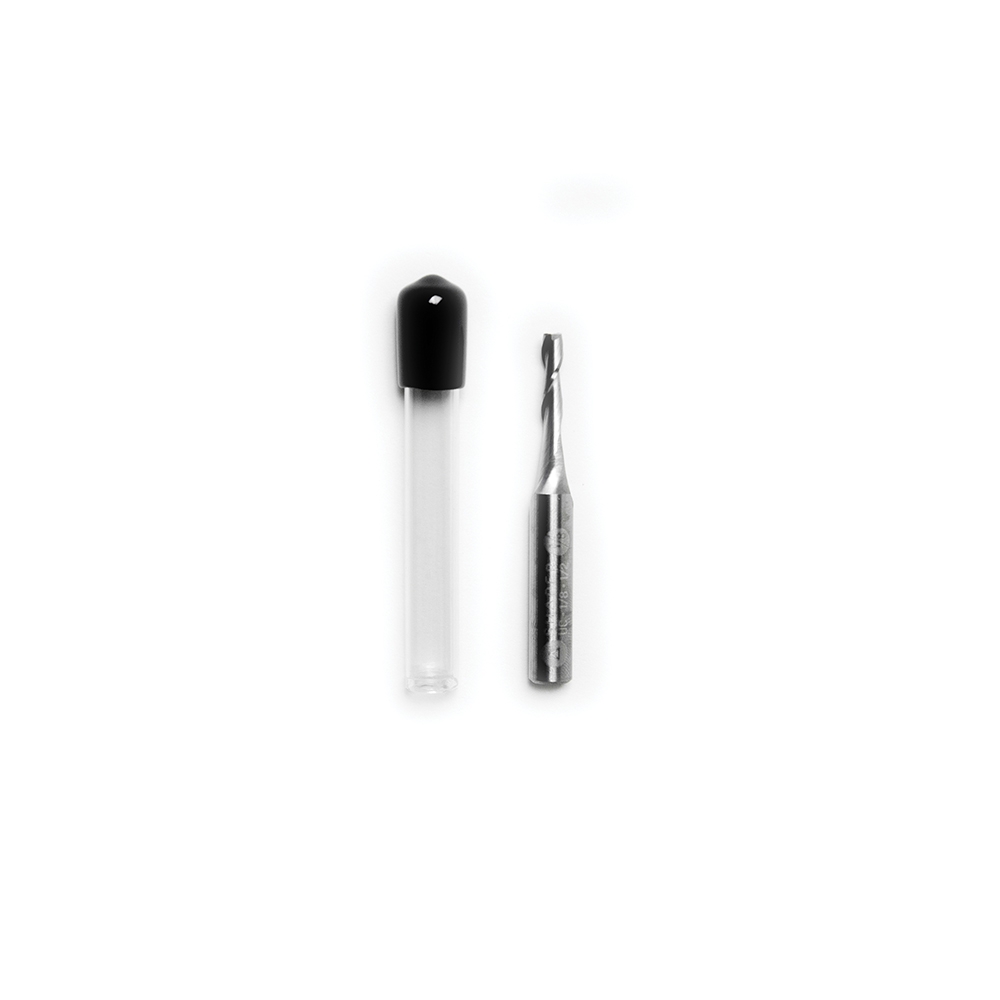

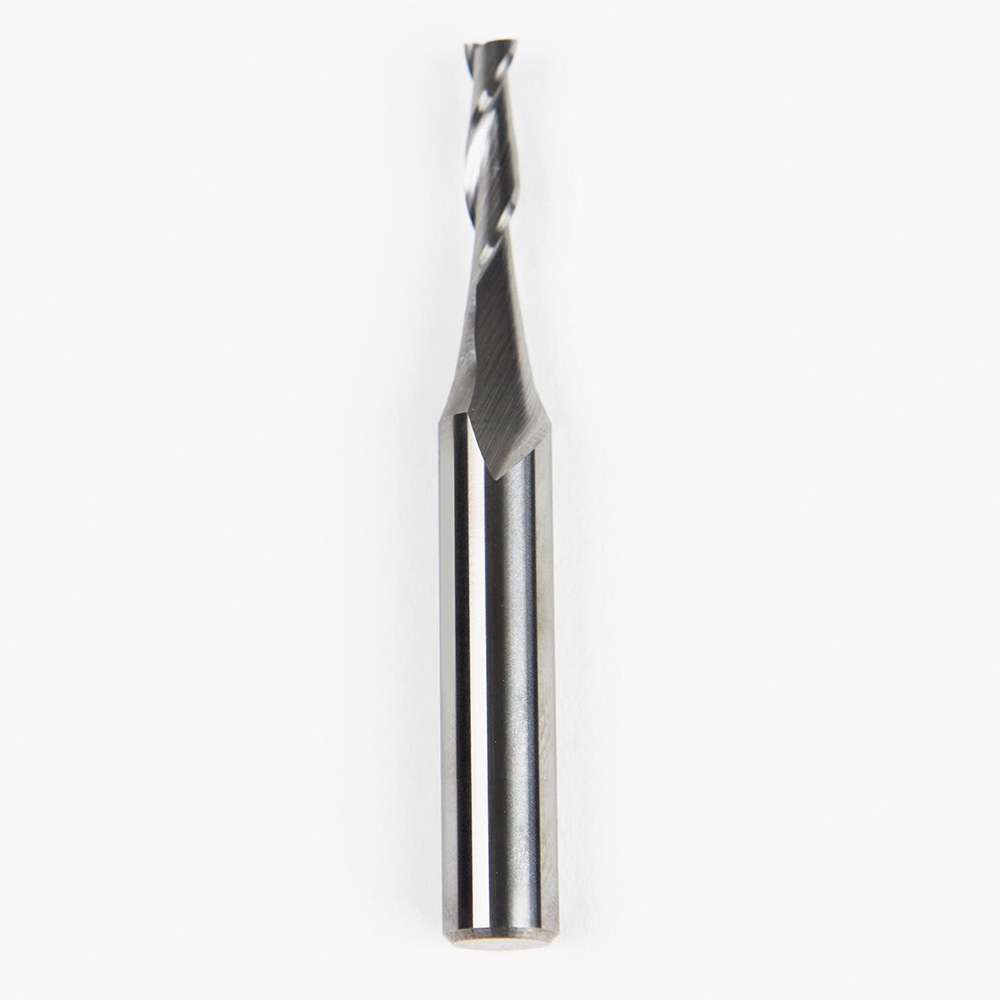

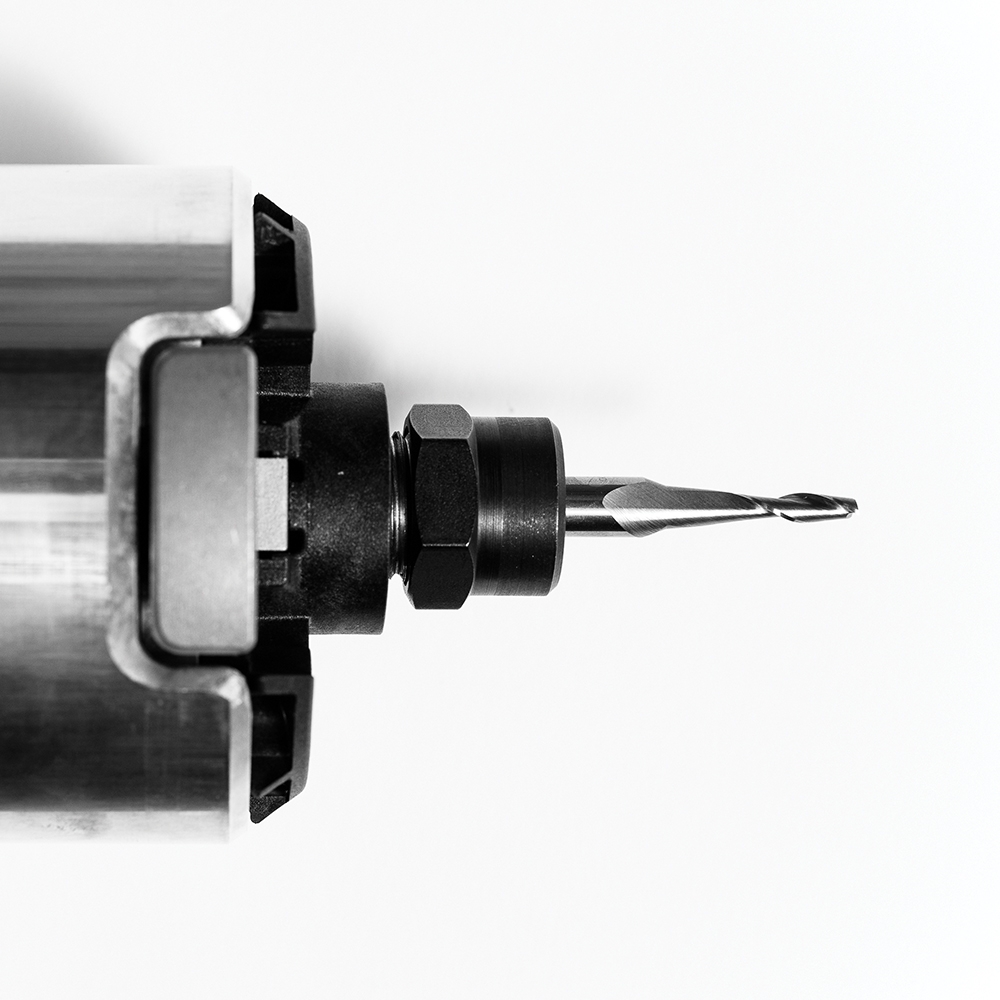

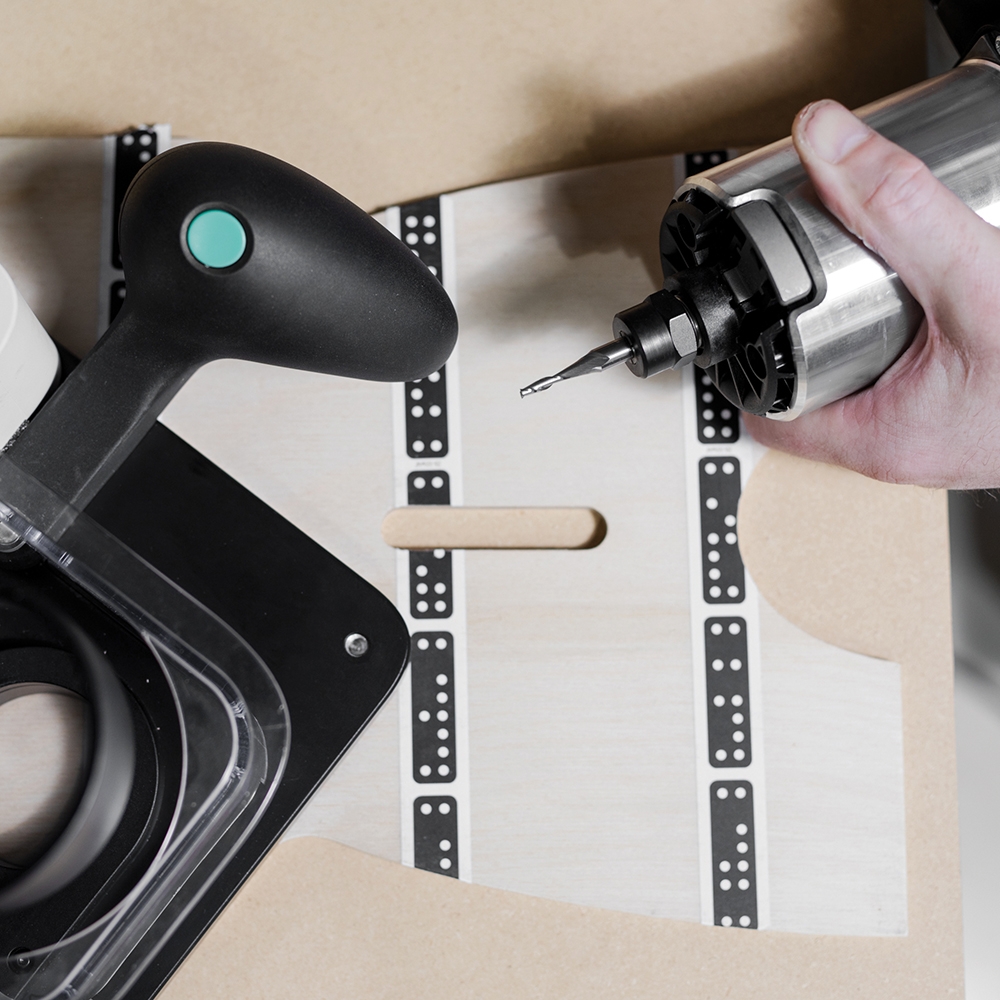

1/8'' Up-Spiral Router Bit for Shaper Origin

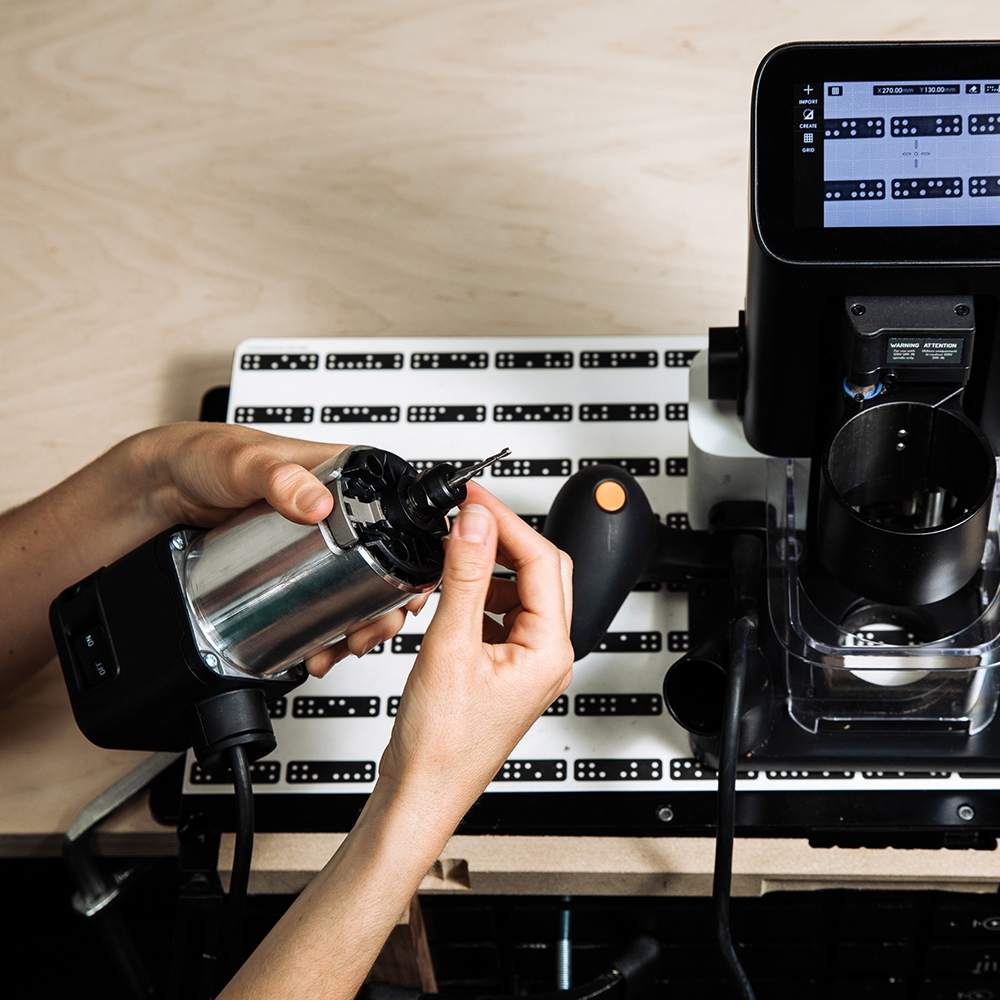

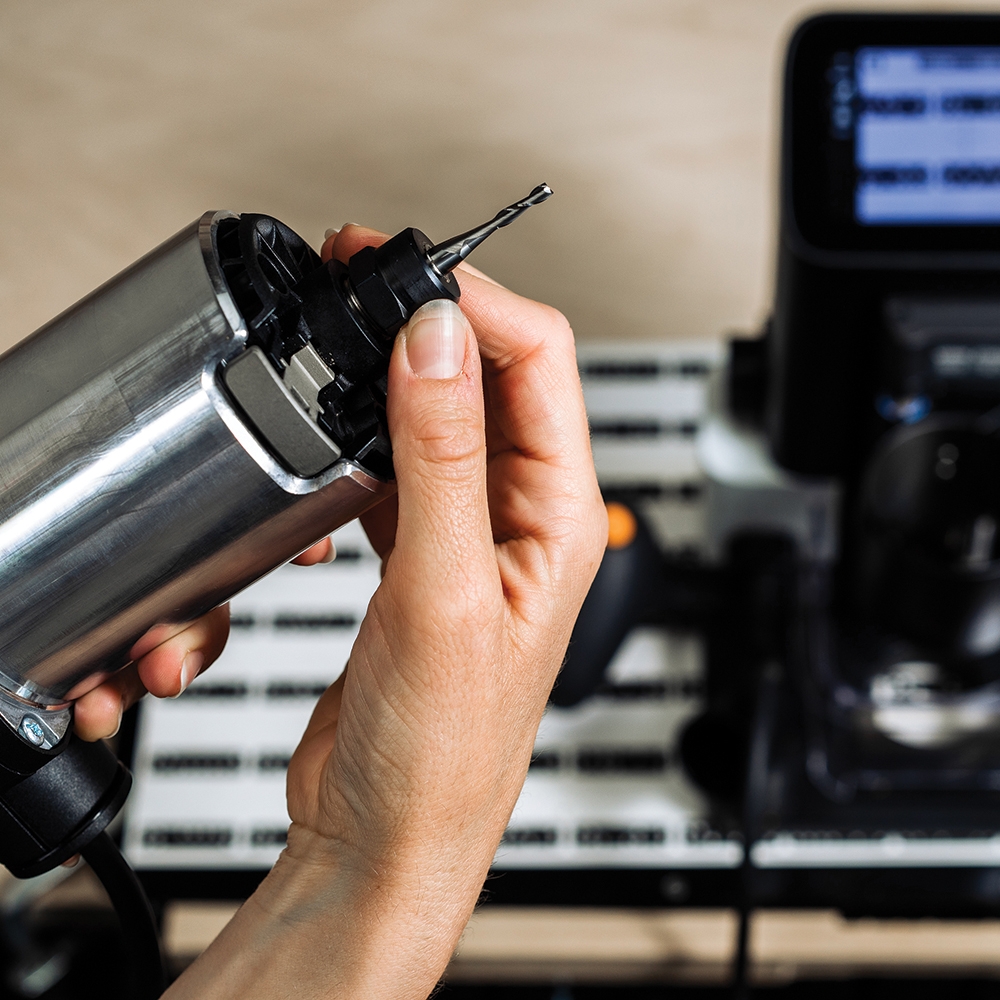

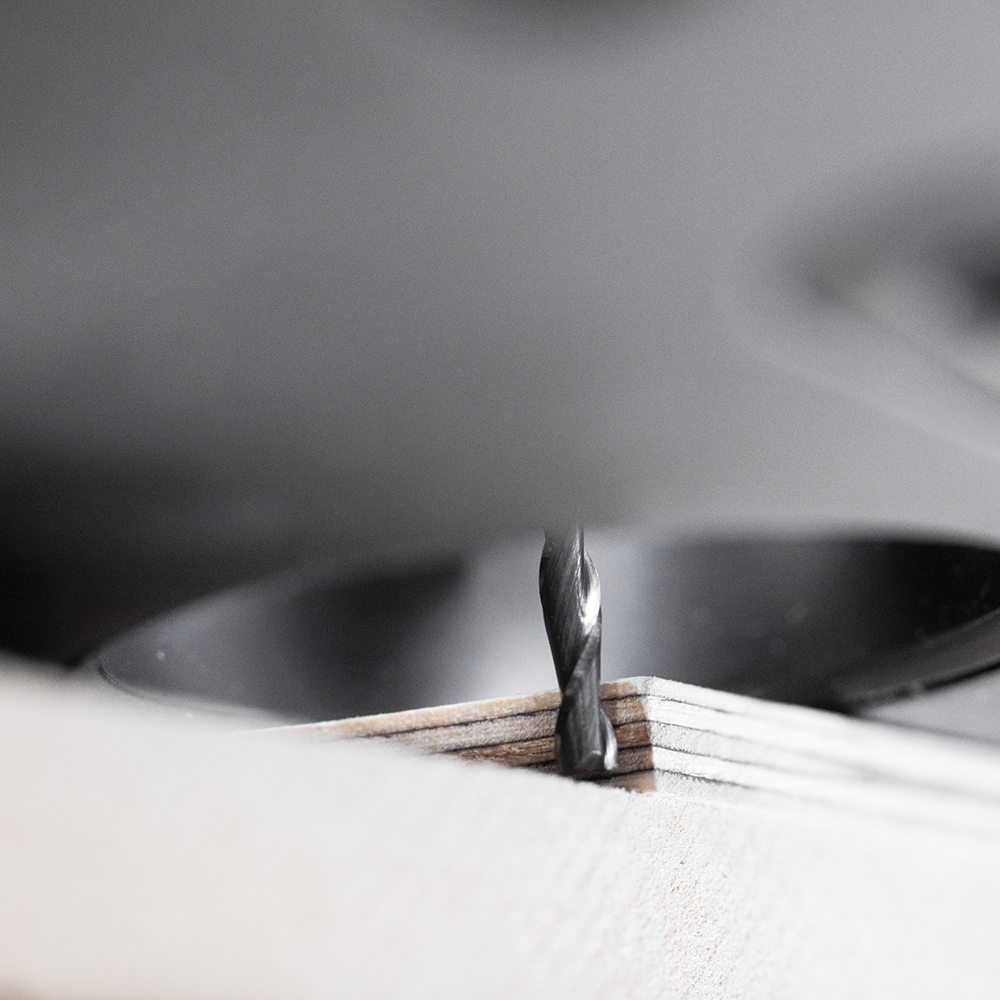

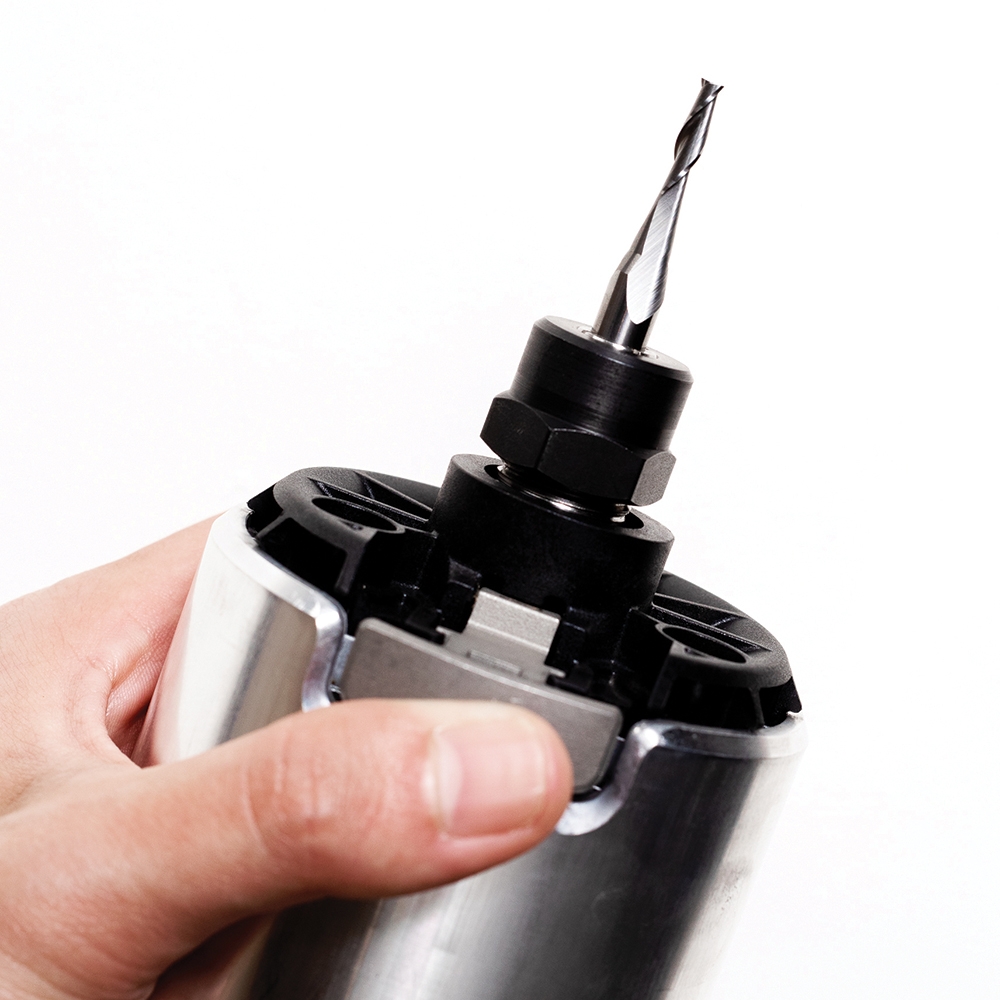

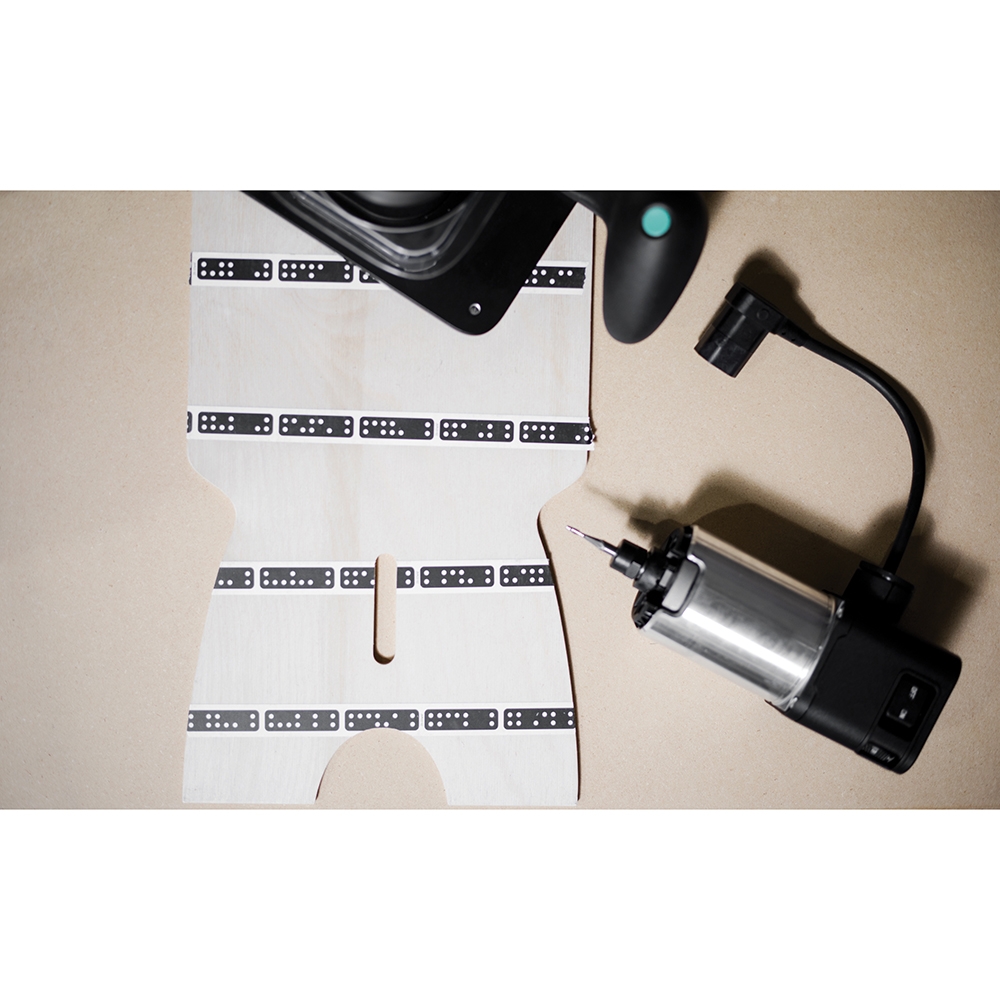

The 1/8'' up-spiral straight bit is used for cutting finer details with the Shaper Origin Handheld CNC (#67155, sold separately). The 1/8'' cutter diameter fits into tight spaces, and can cut grooves up to 1/2'' deep. Two spiral cutting flutes help to eject material rapidly from the cut for less heat build-up. Made from solid carbide, known for maintaining a sharp cutting edge for a long time.

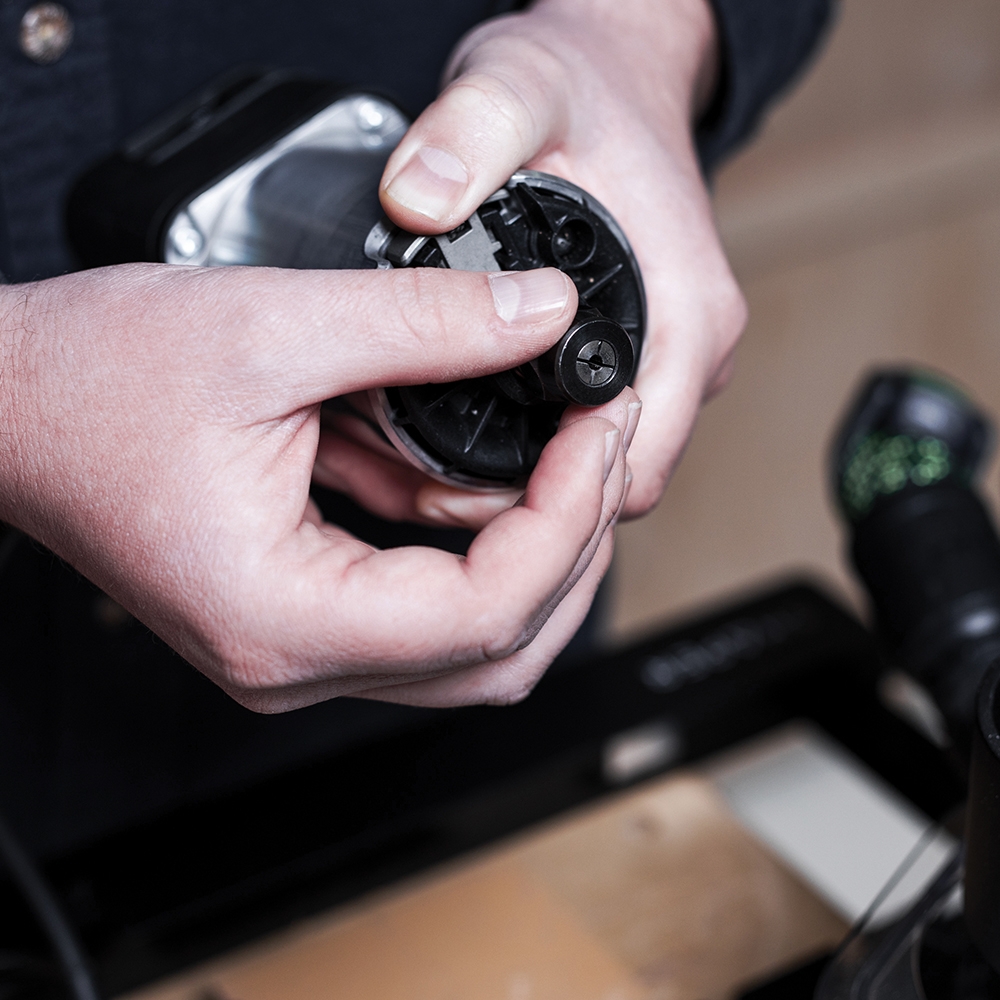

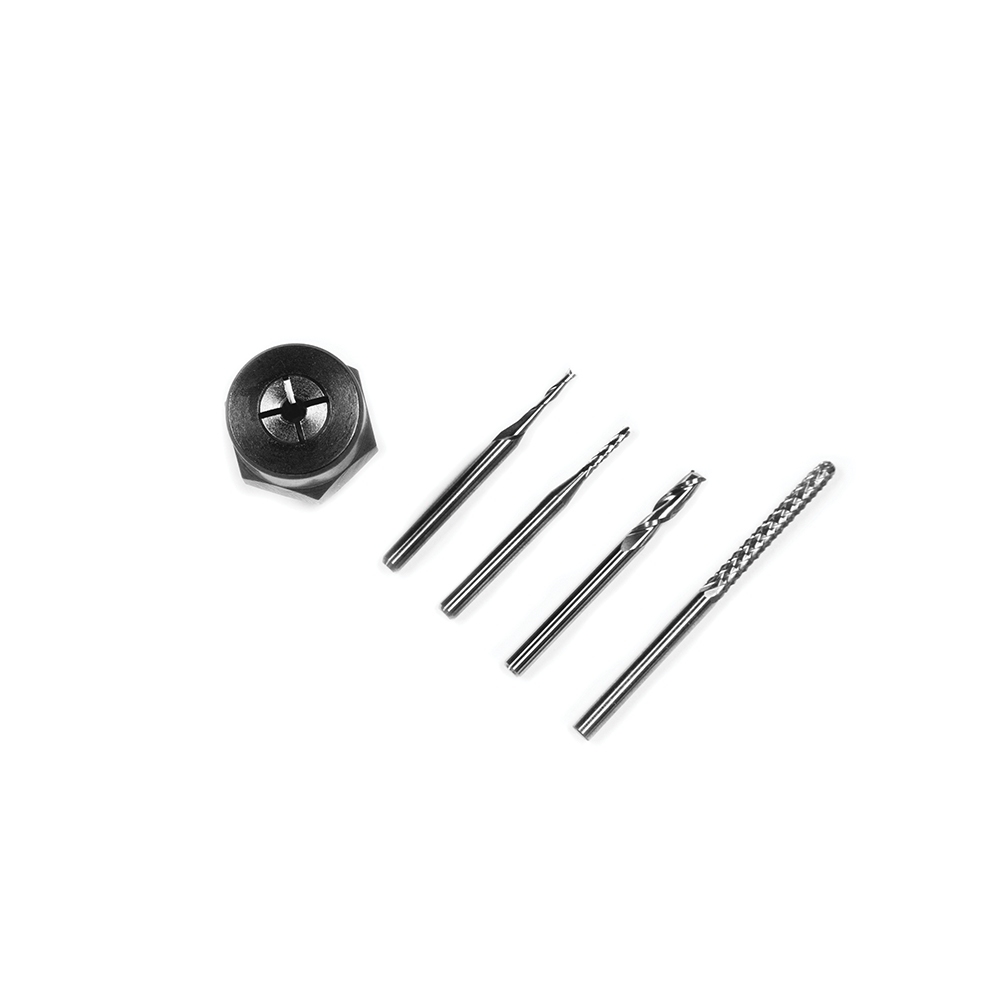

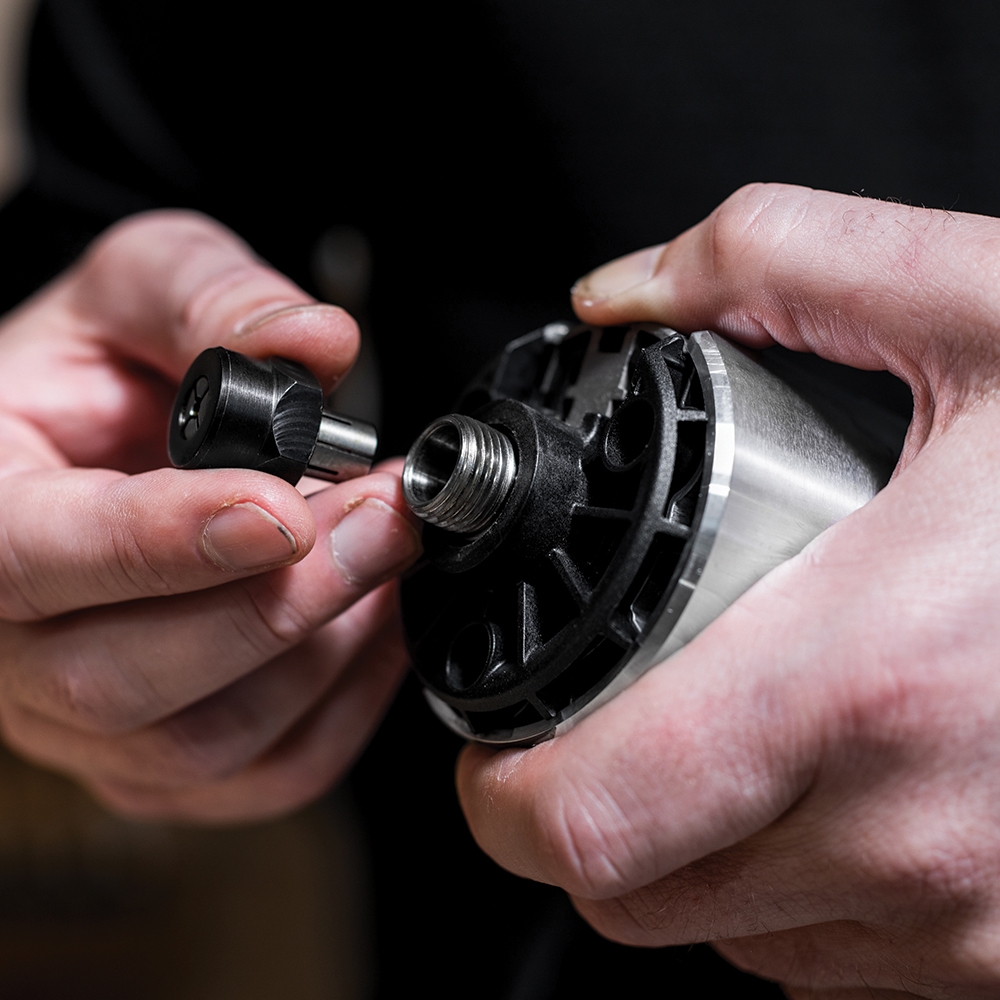

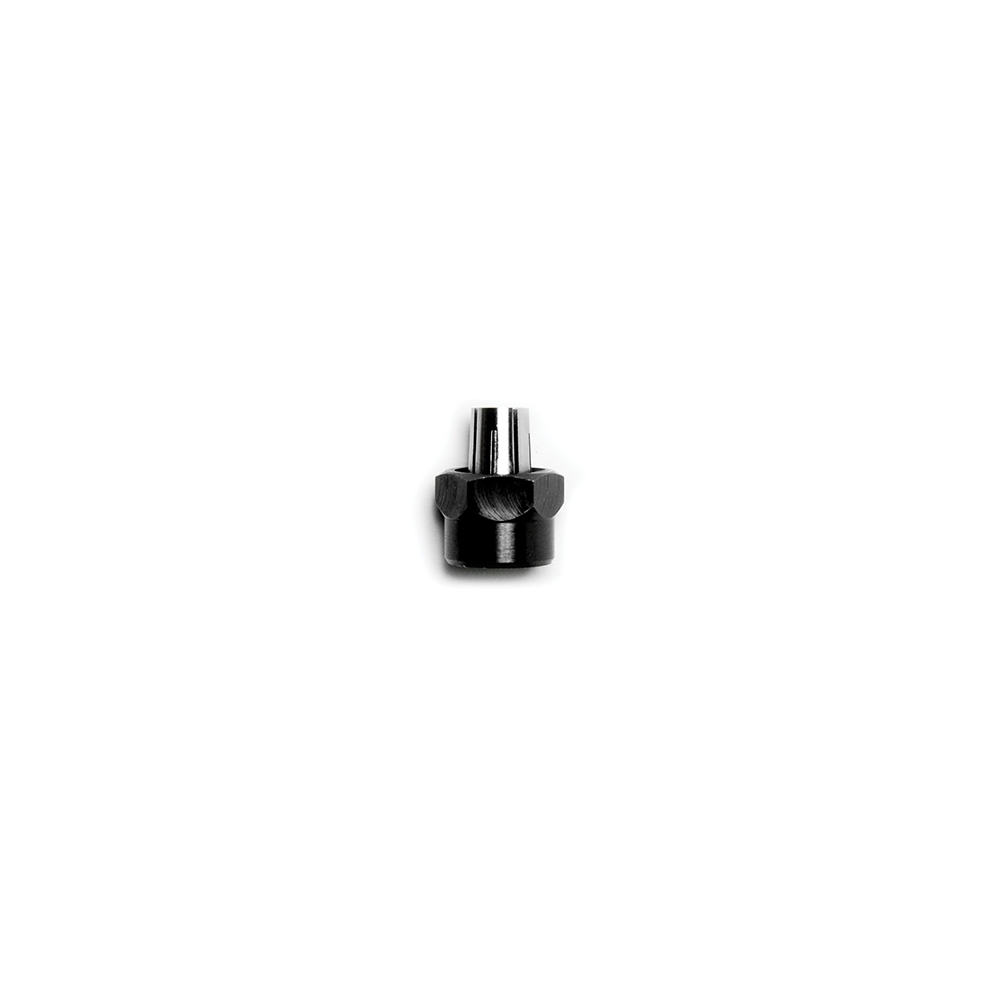

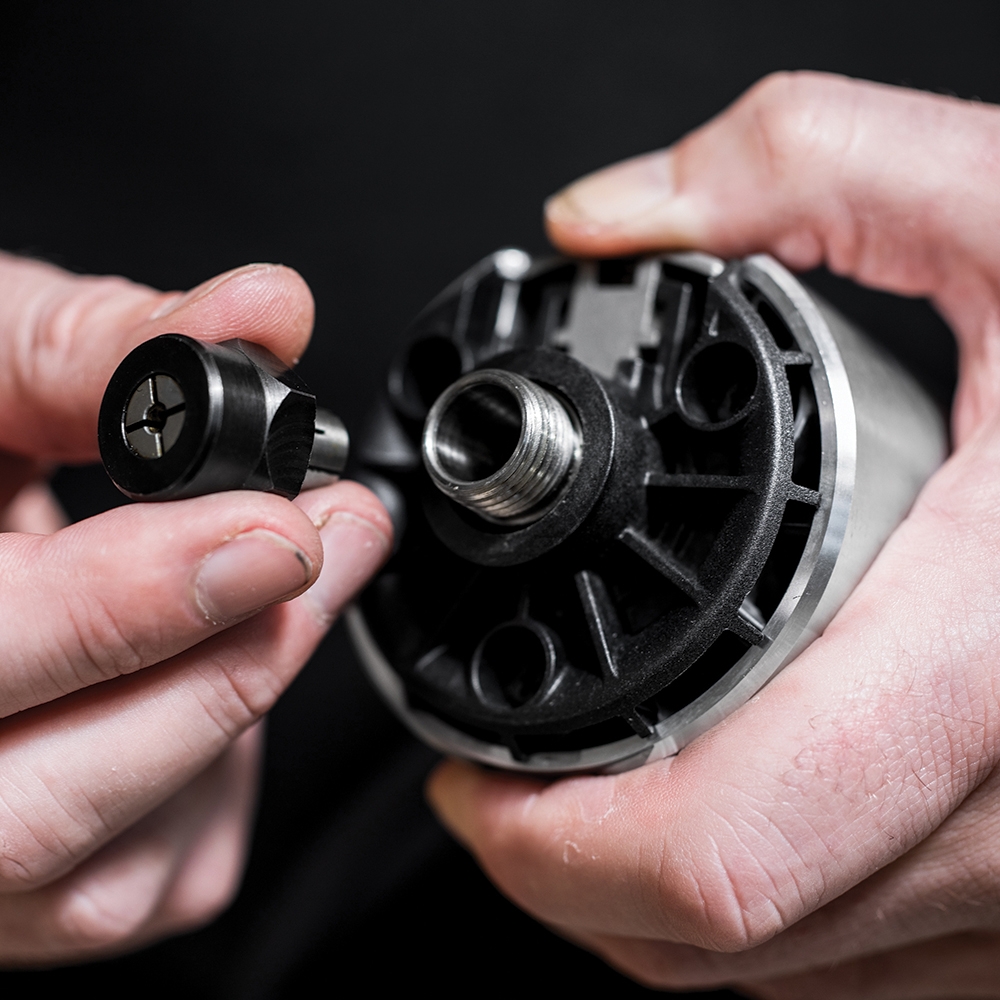

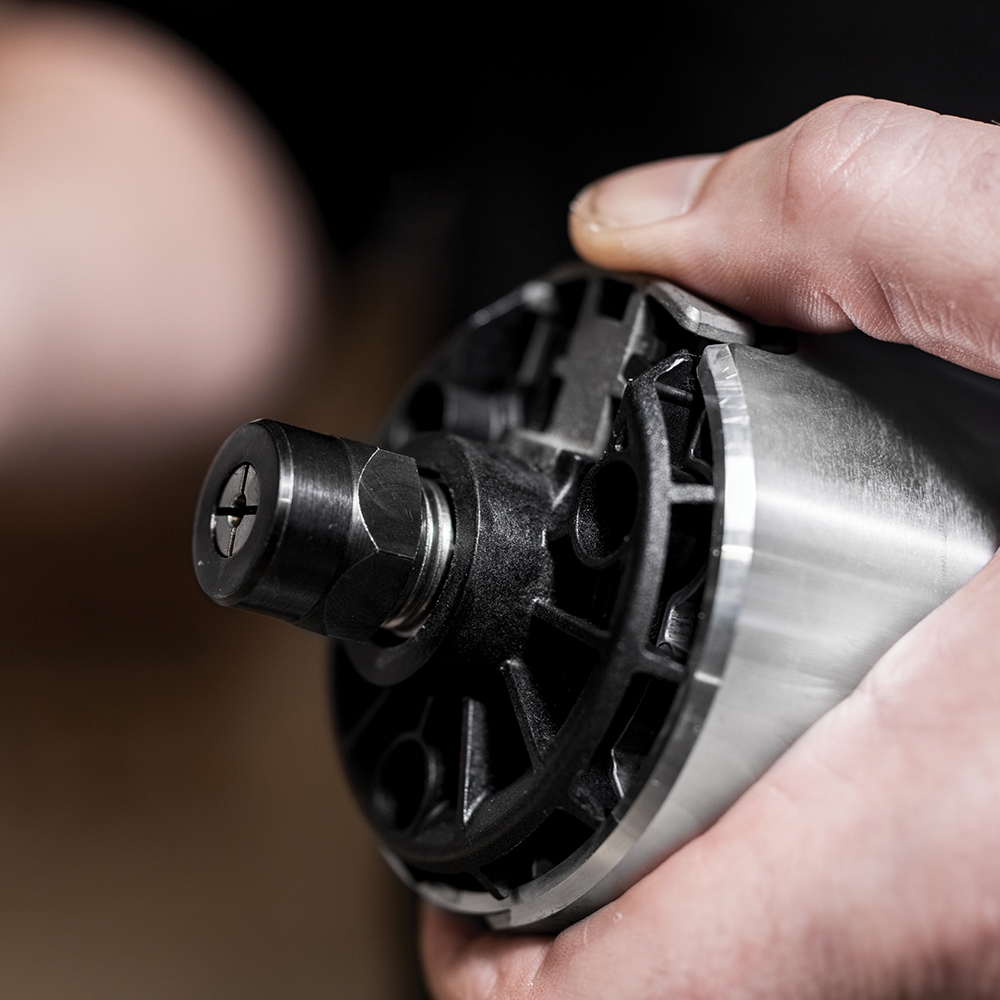

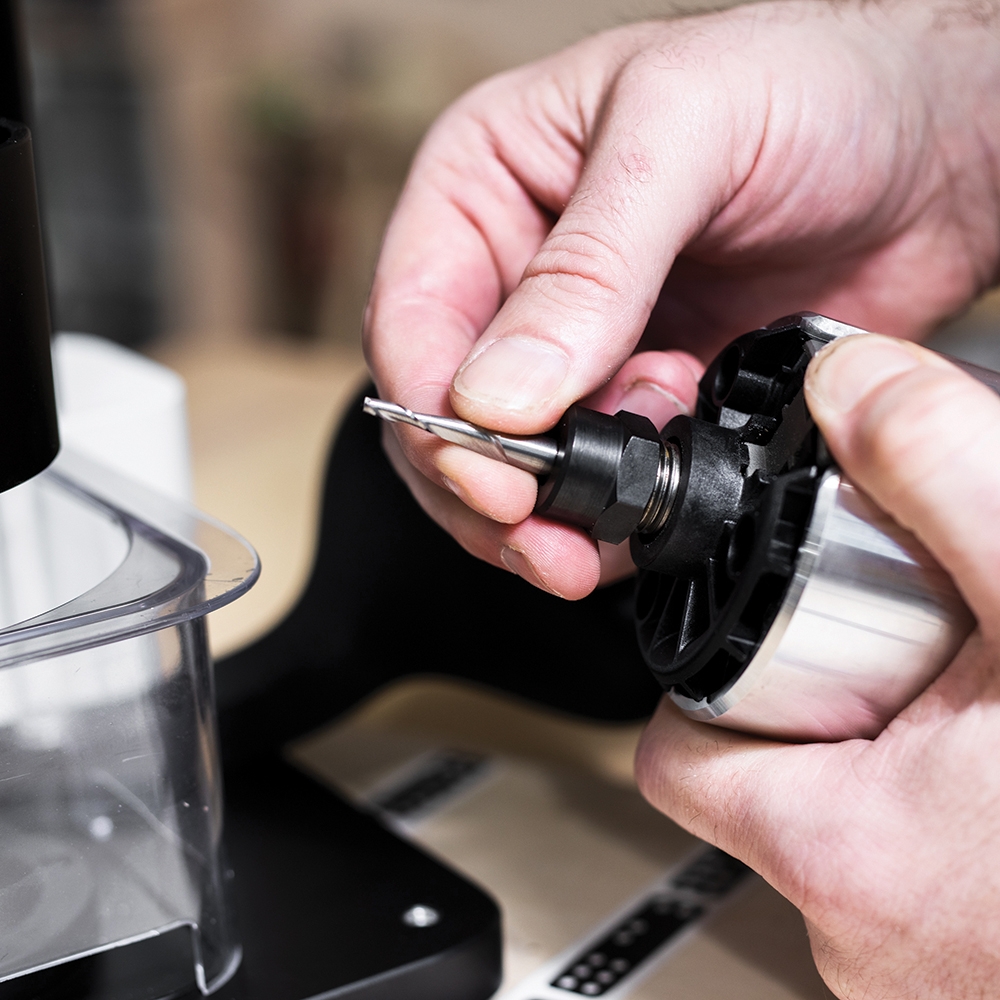

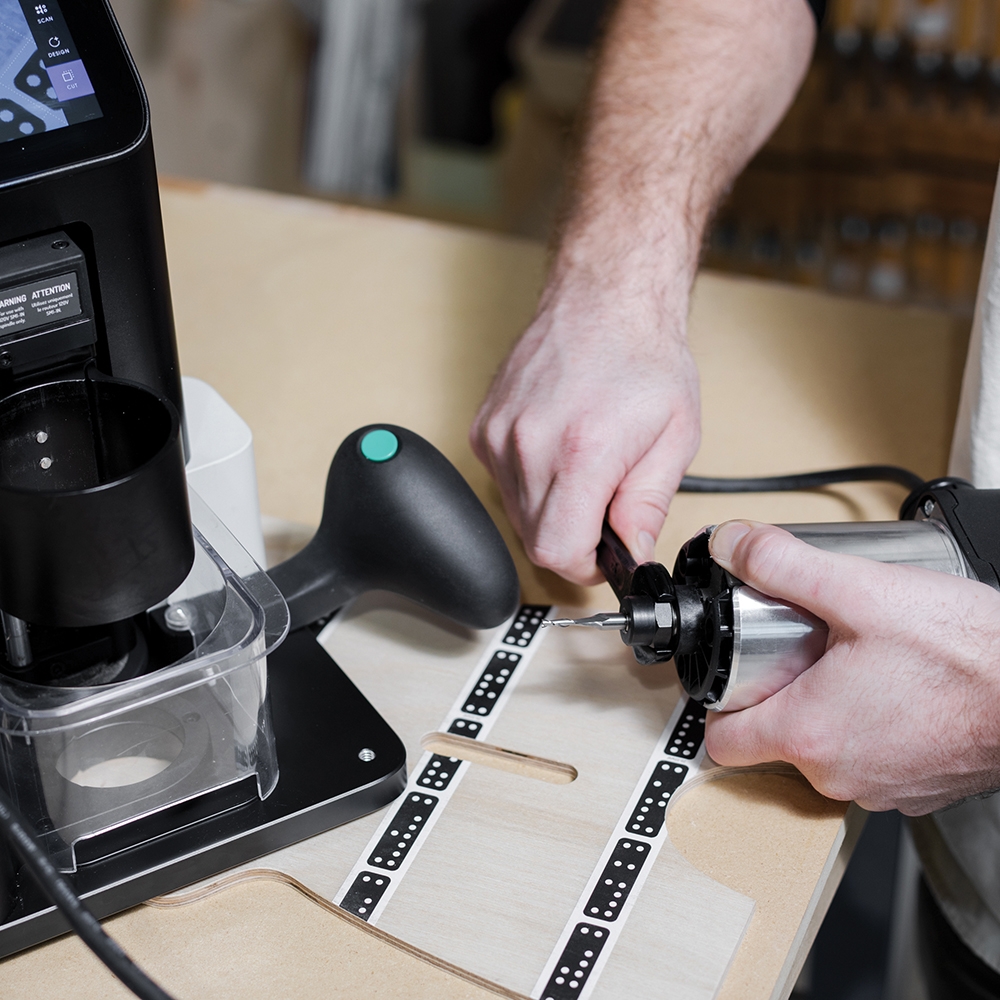

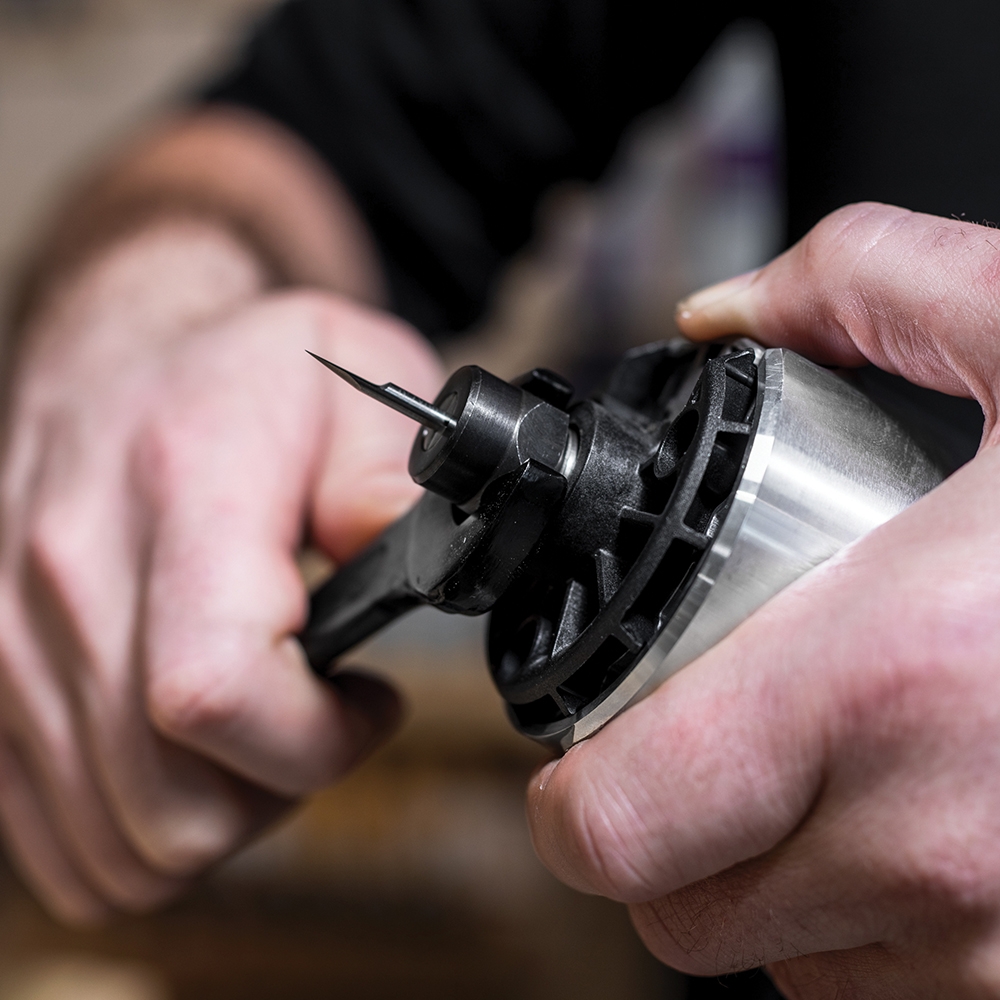

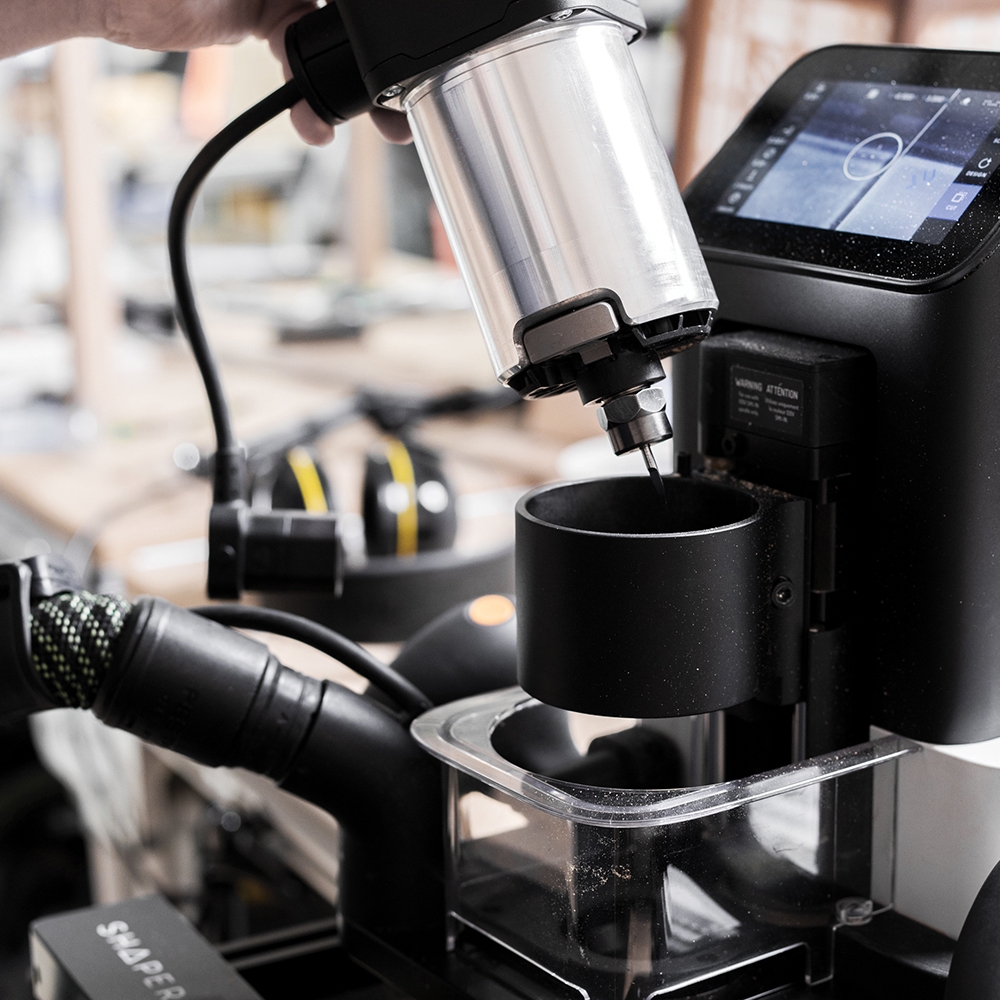

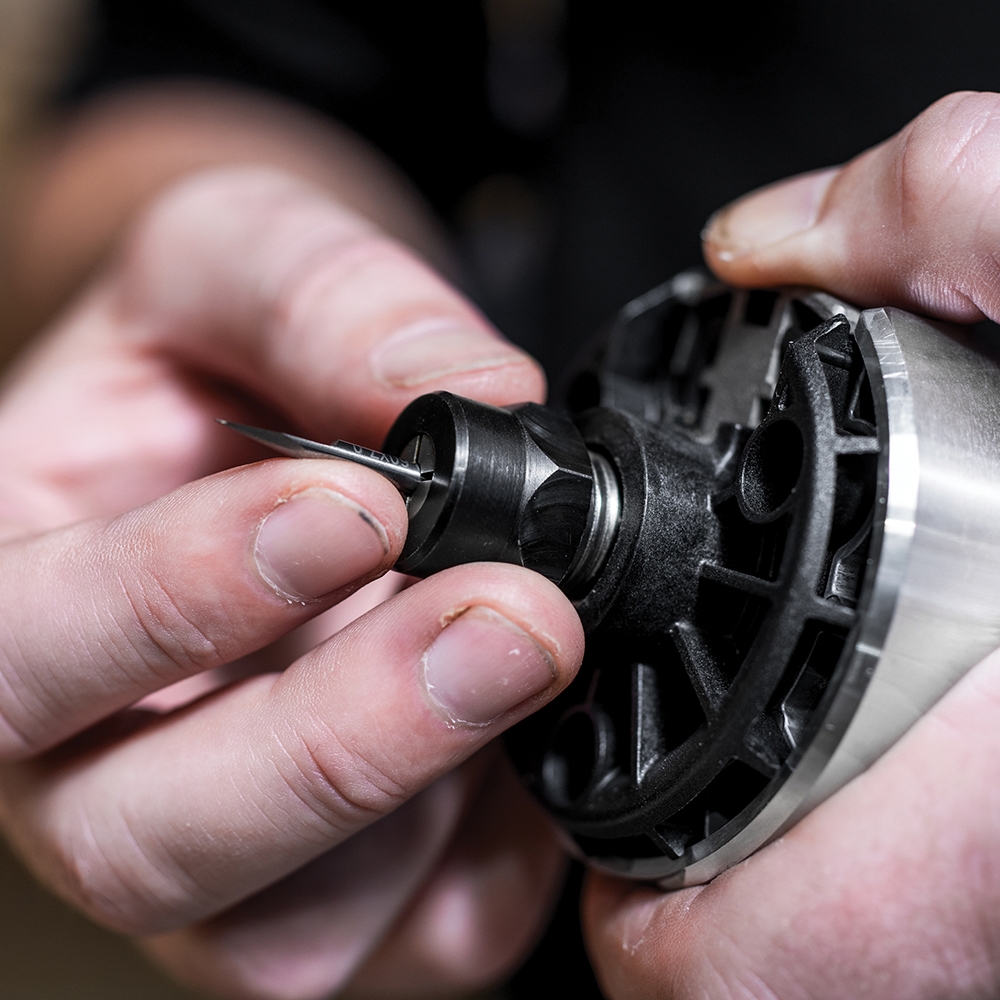

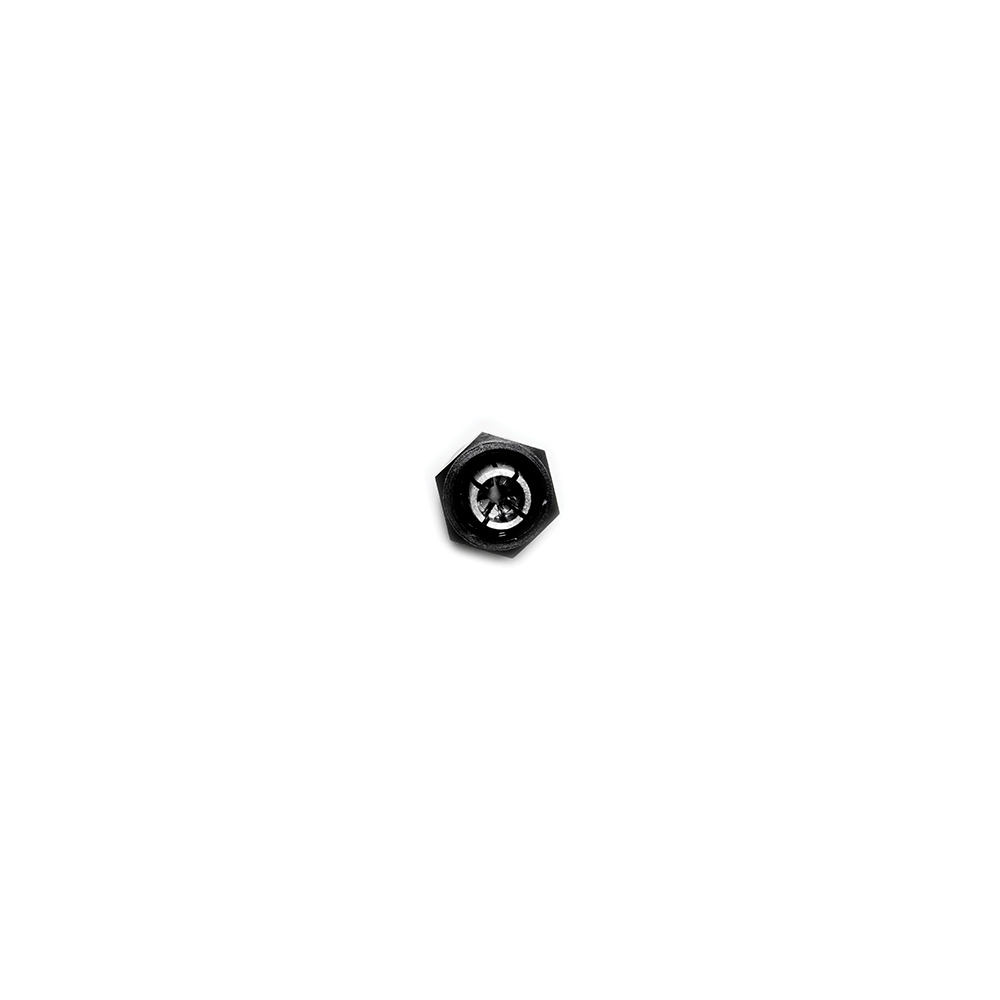

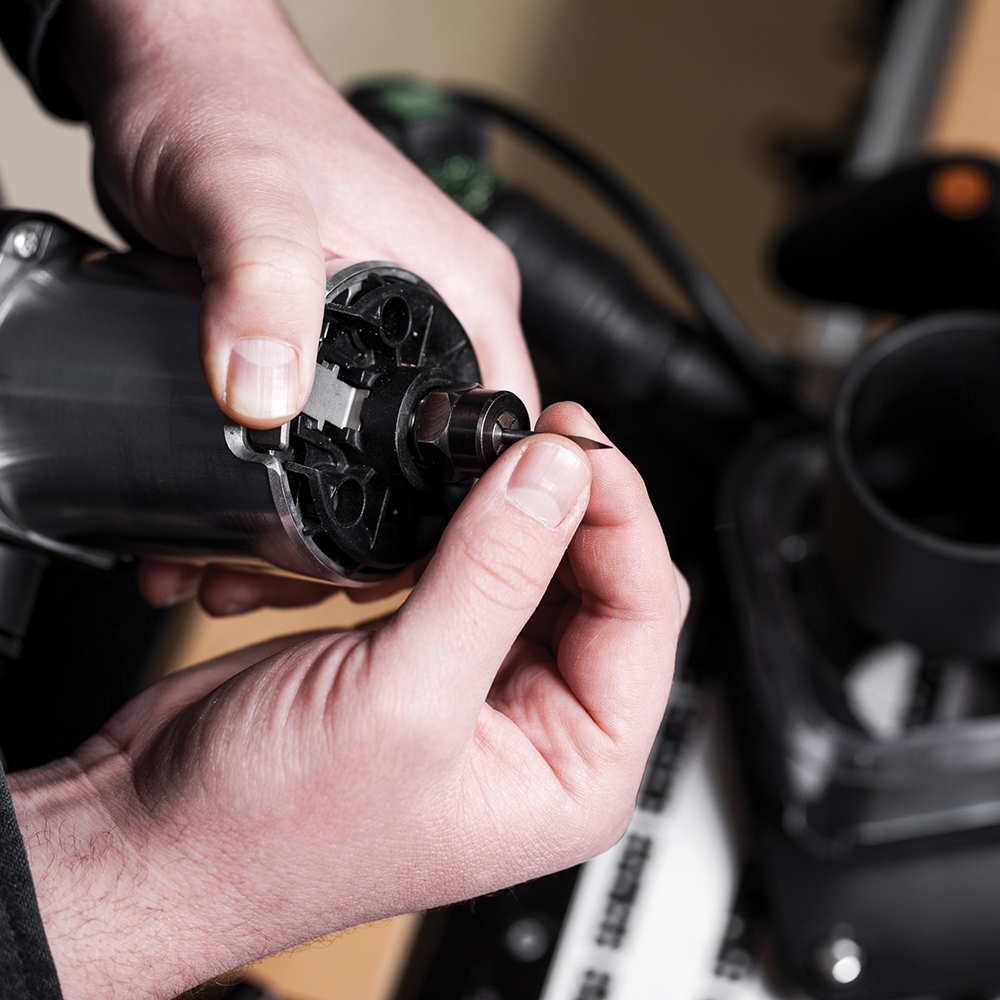

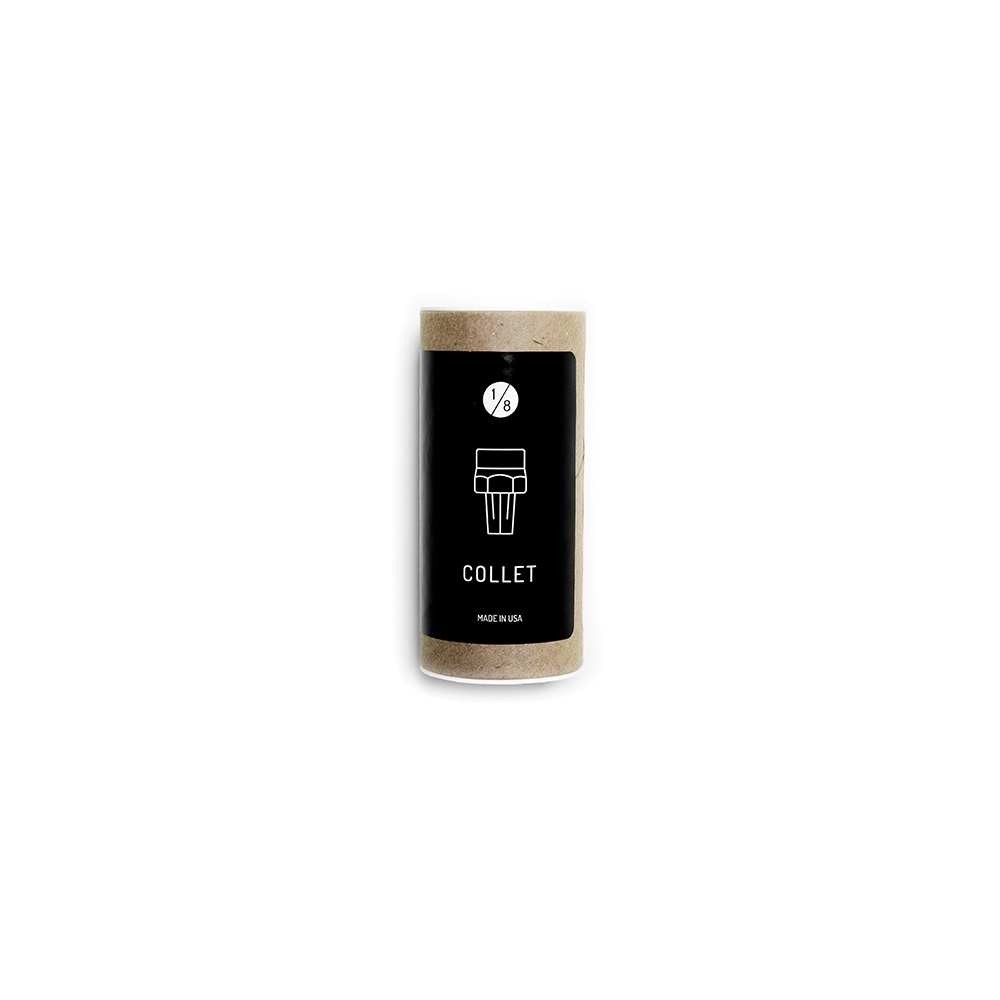

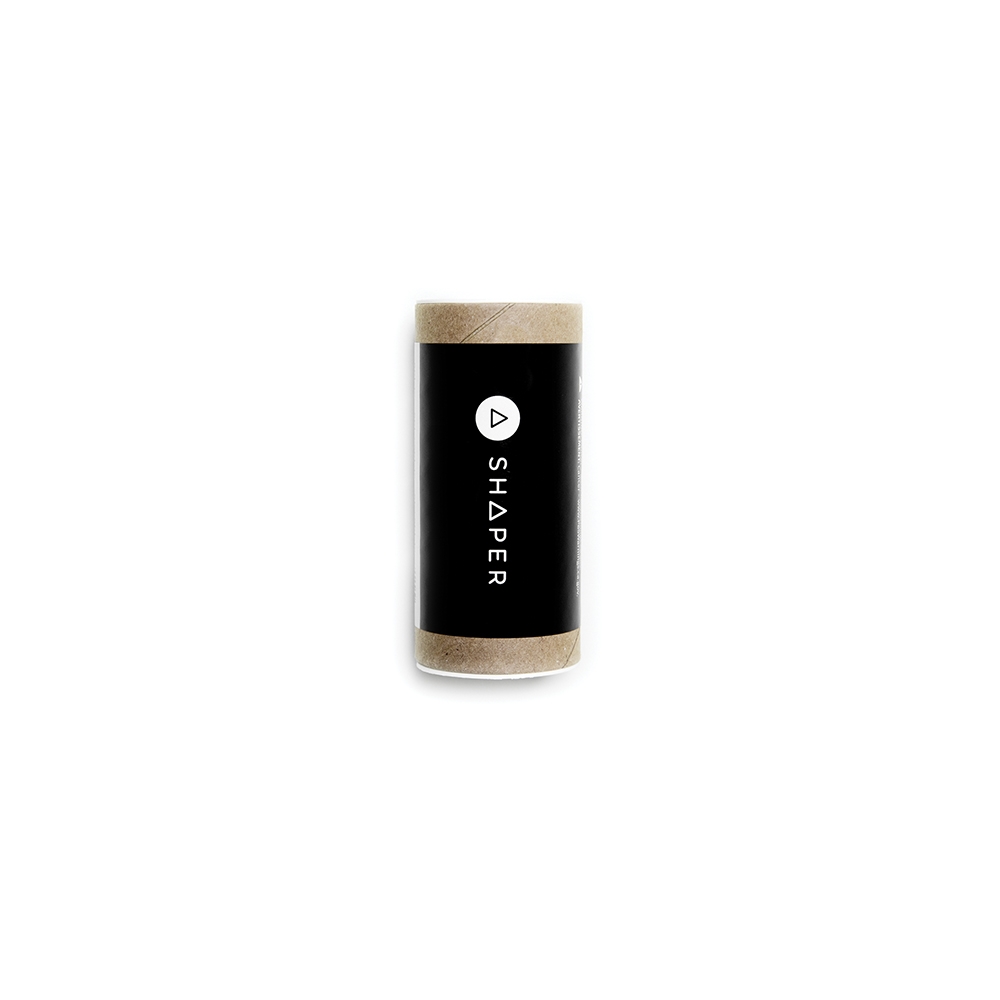

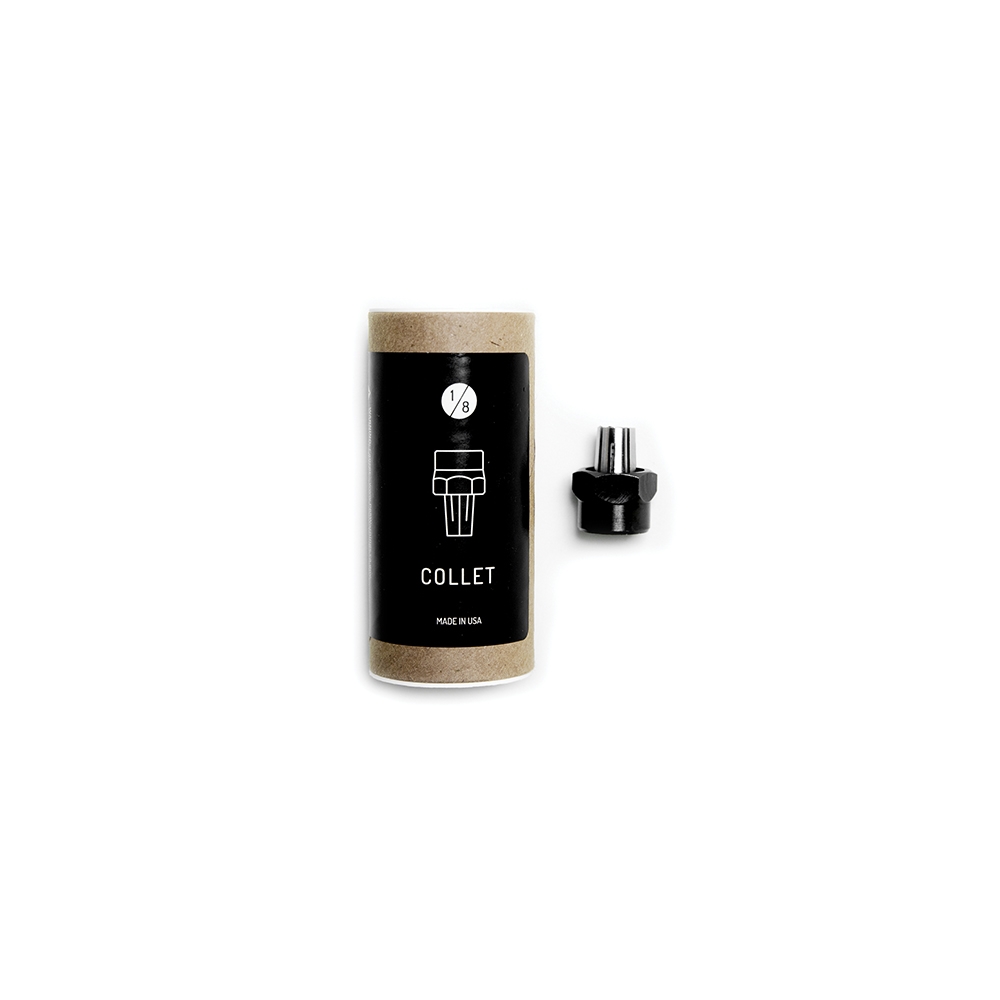

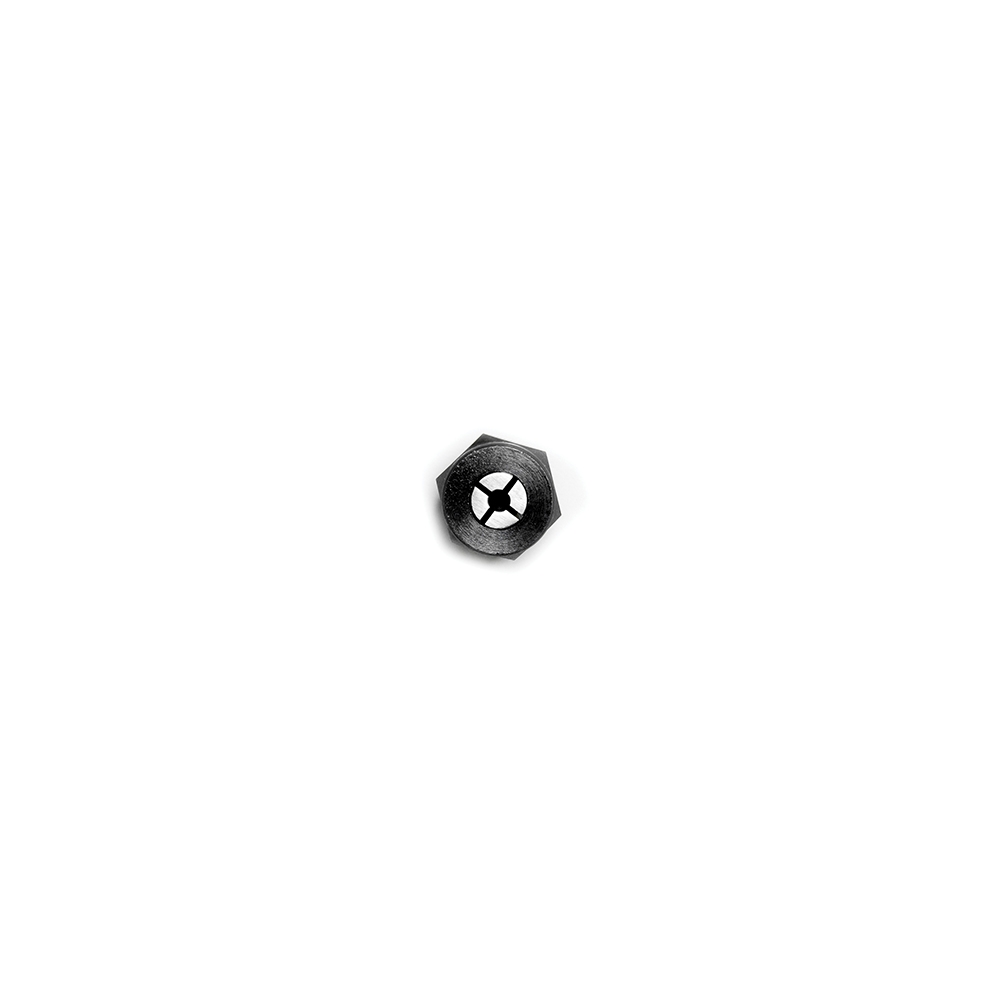

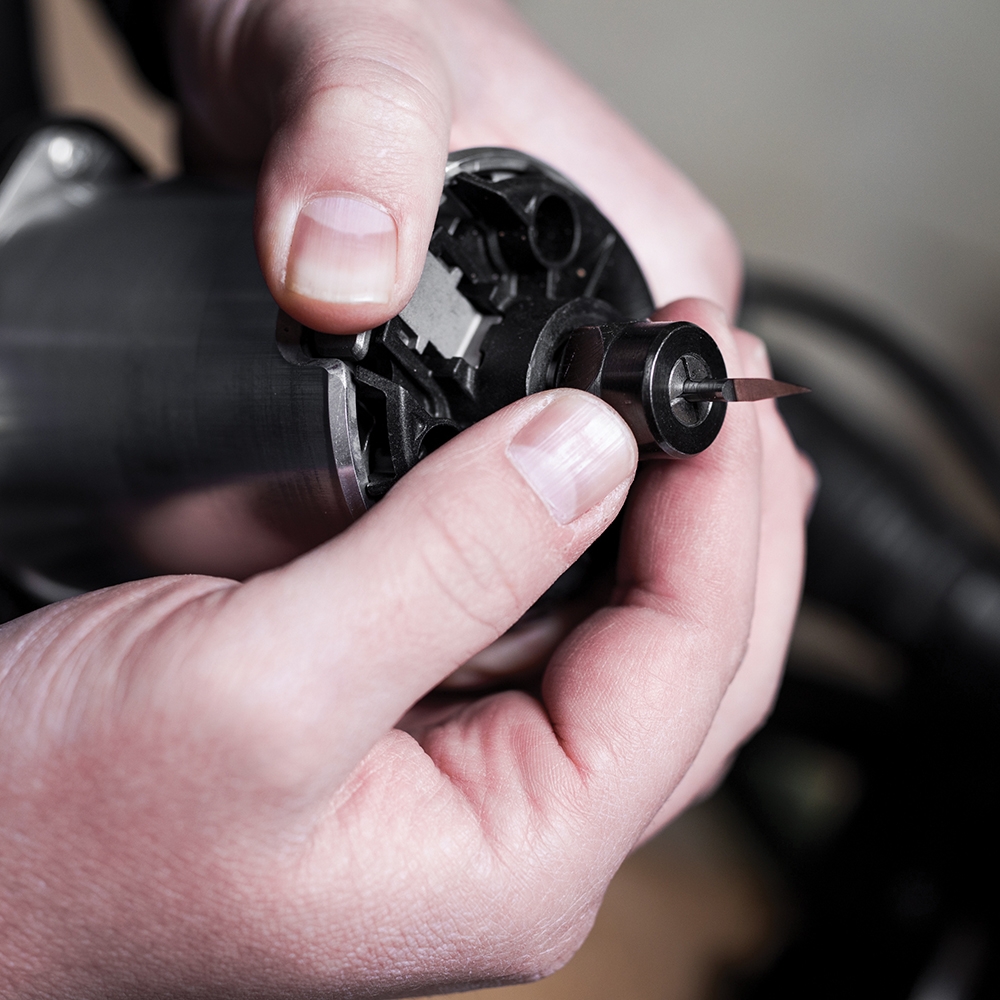

1/8'' Collet and Nut for Shaper Origin

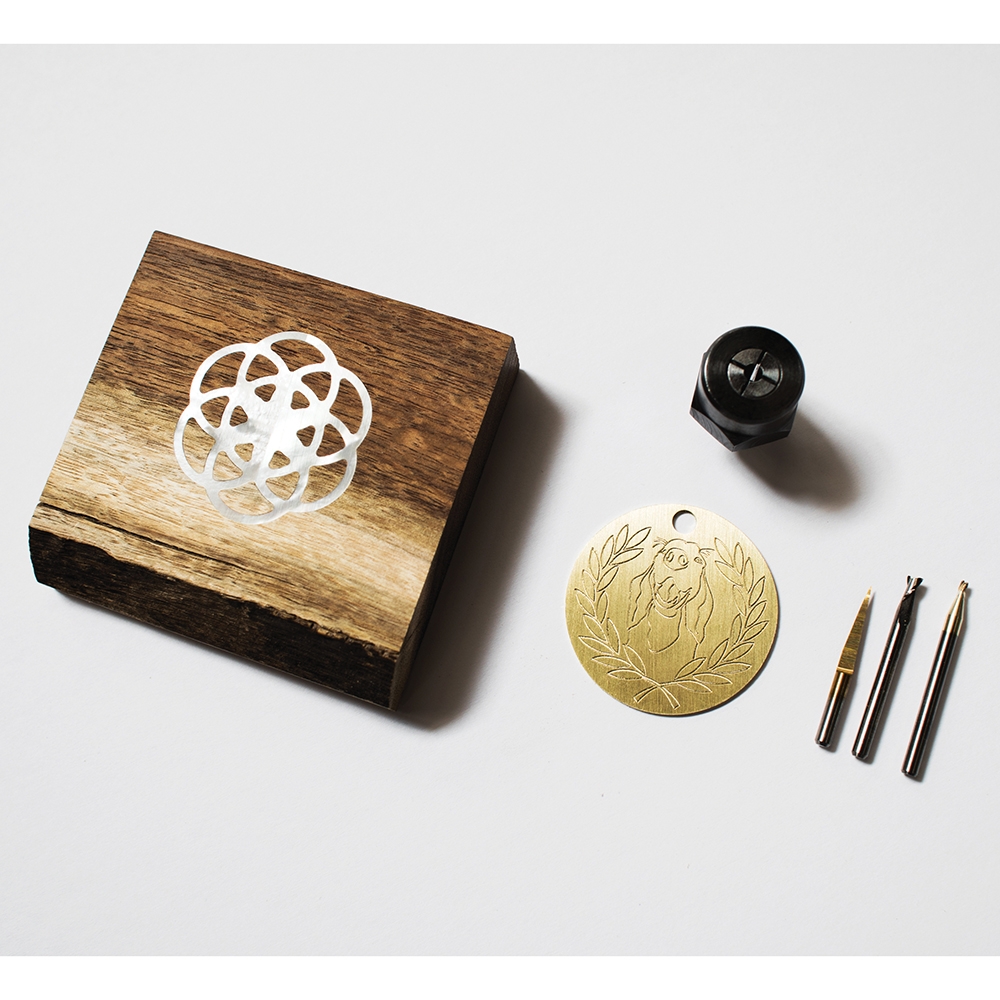

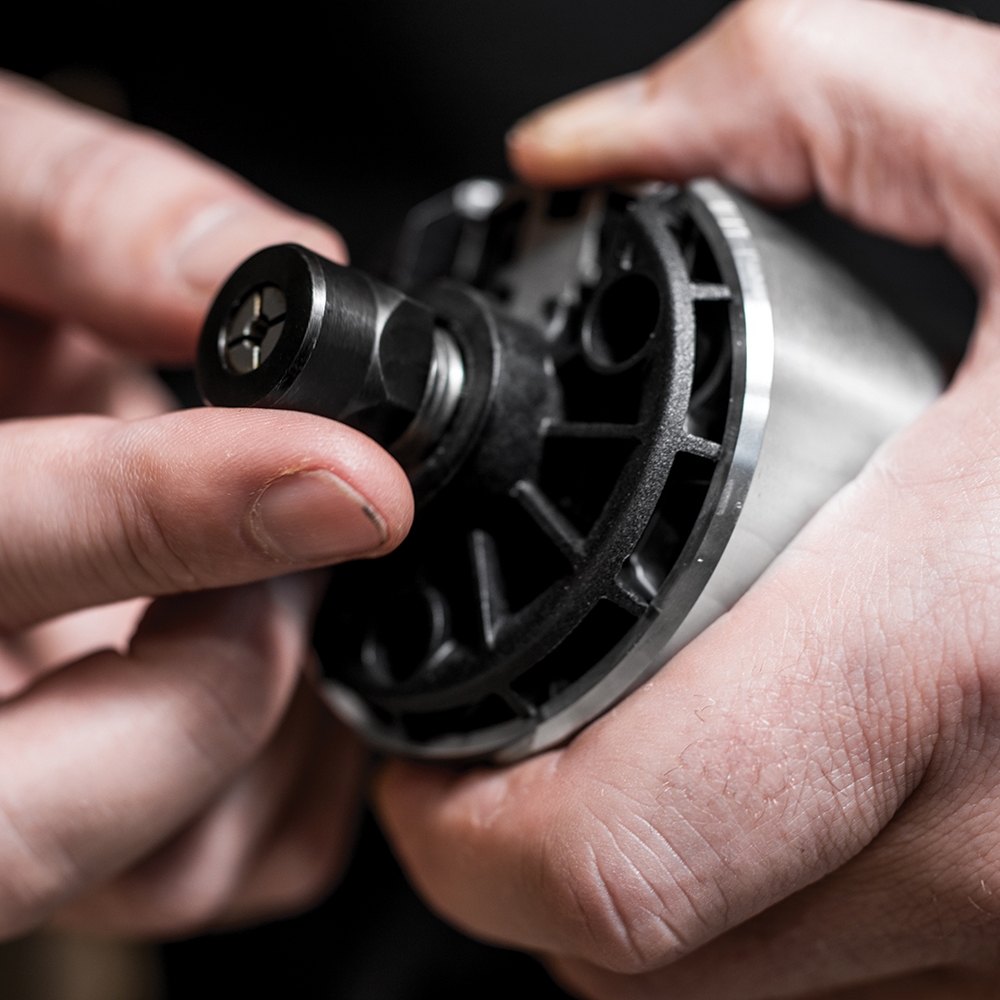

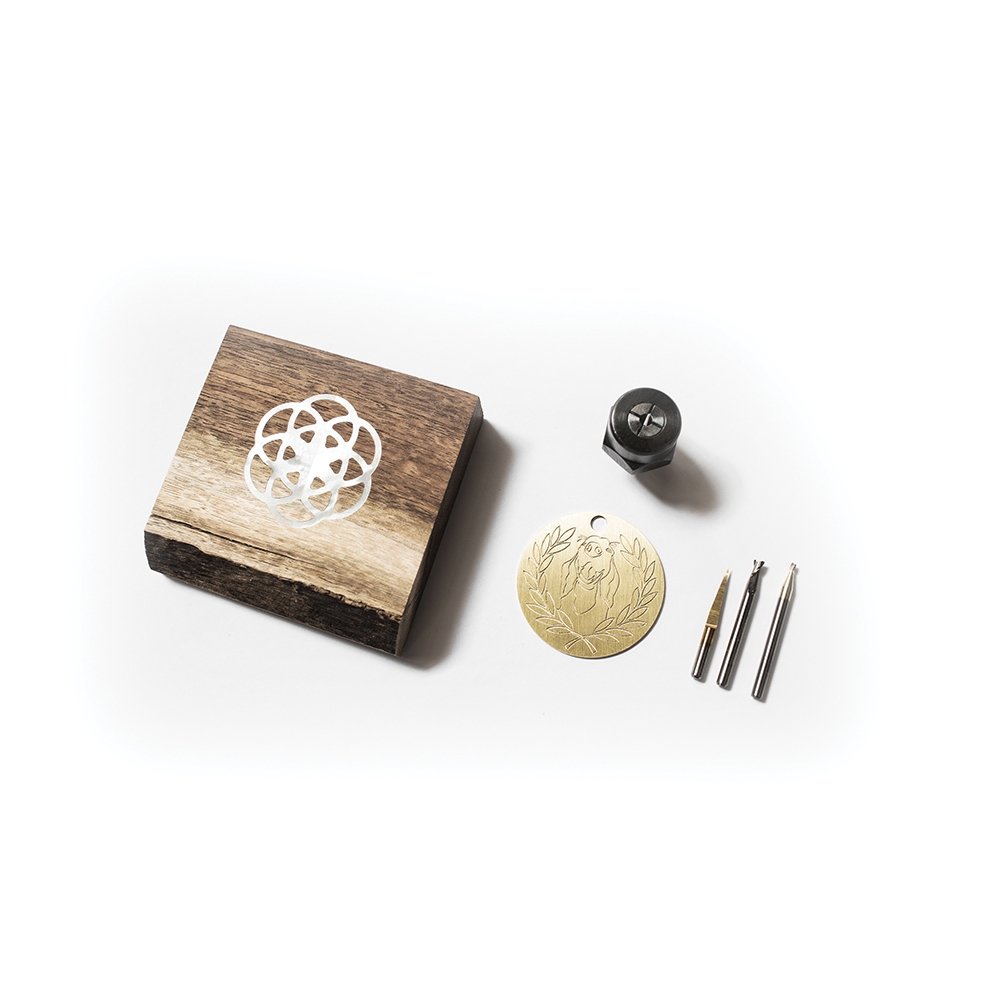

This 1/8'' collet works with the Shaper Origin Handheld CNC Router (#67155, sold separately). By allowing you to use narrow 1/8'' shank router bits, it greatly increases the potential variety and intricacy of your Origin projects. In addition, this collet gives you access to a range of other specialty bits with 1/8'' shanks, opening up a wide range of creative possibilities. Use it for inlays, fretwork, detailed engraving and more. Compatible with Shaper SM1 Spindle. Made in USA.

Note: Router bit not included.

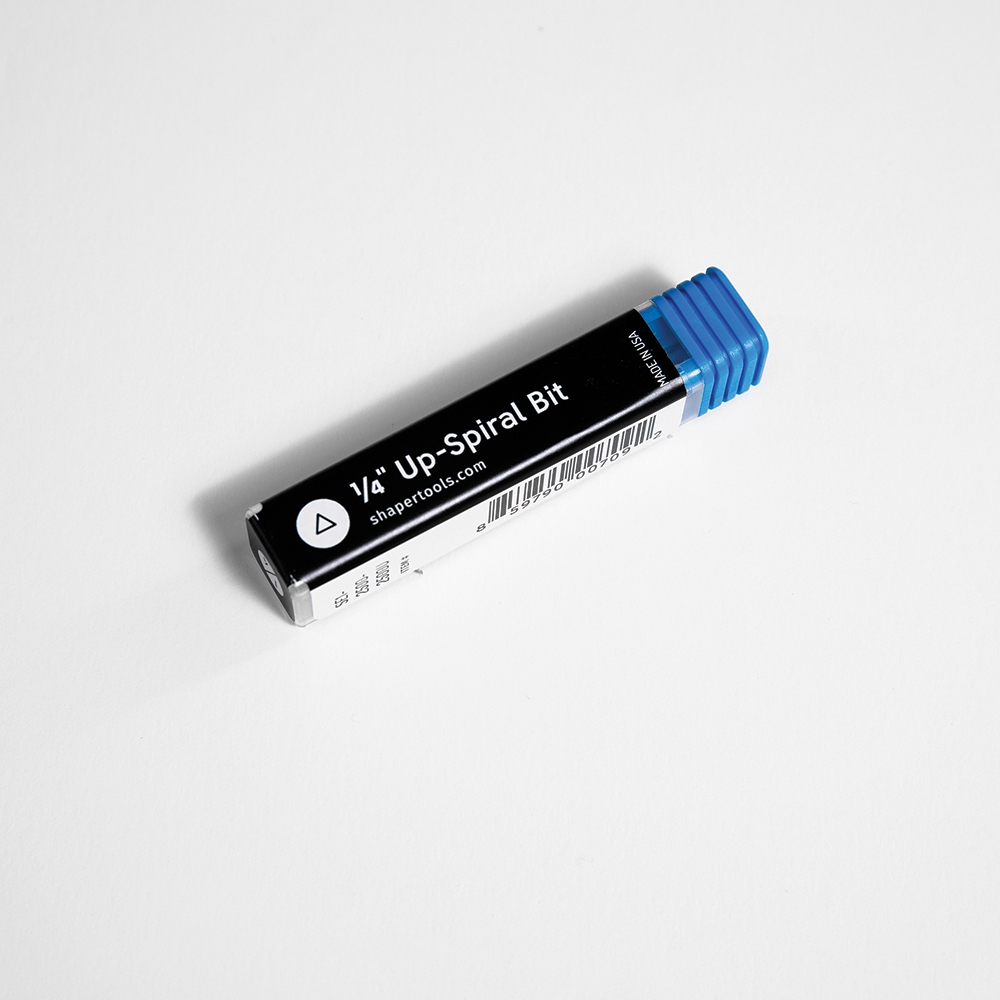

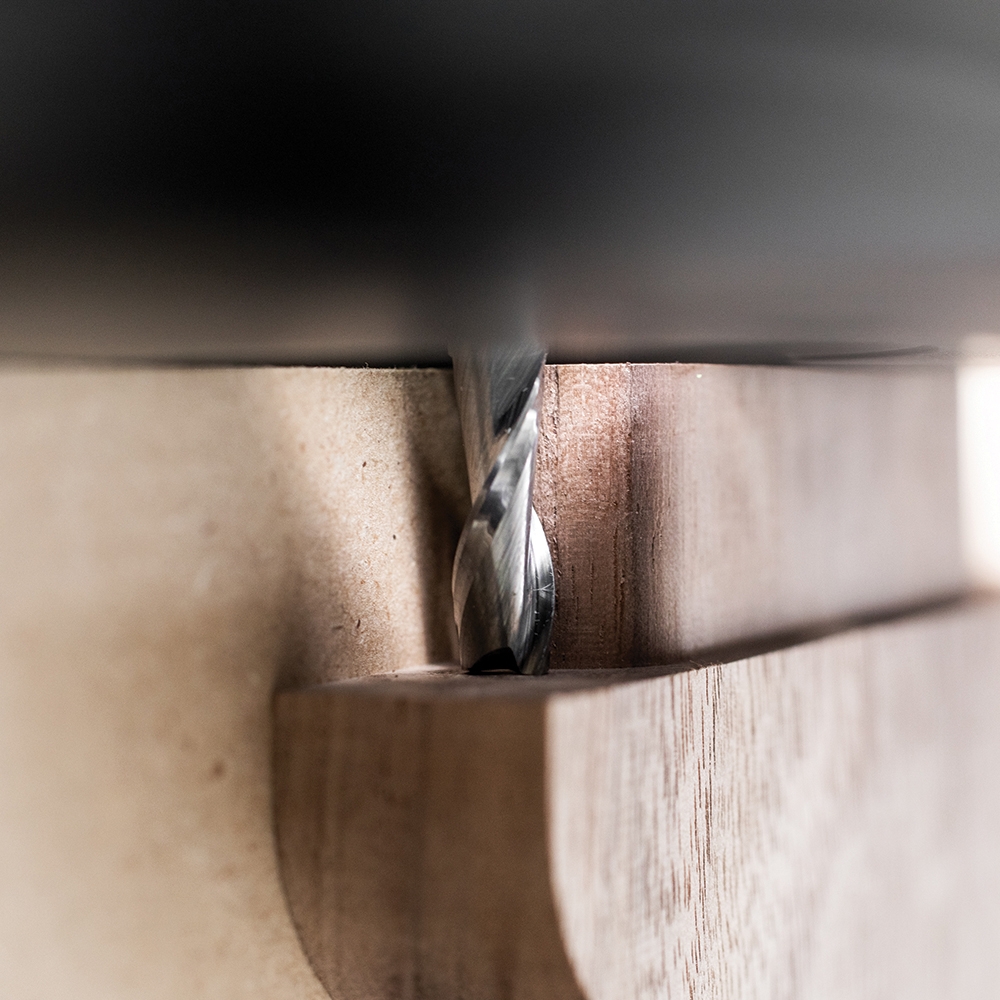

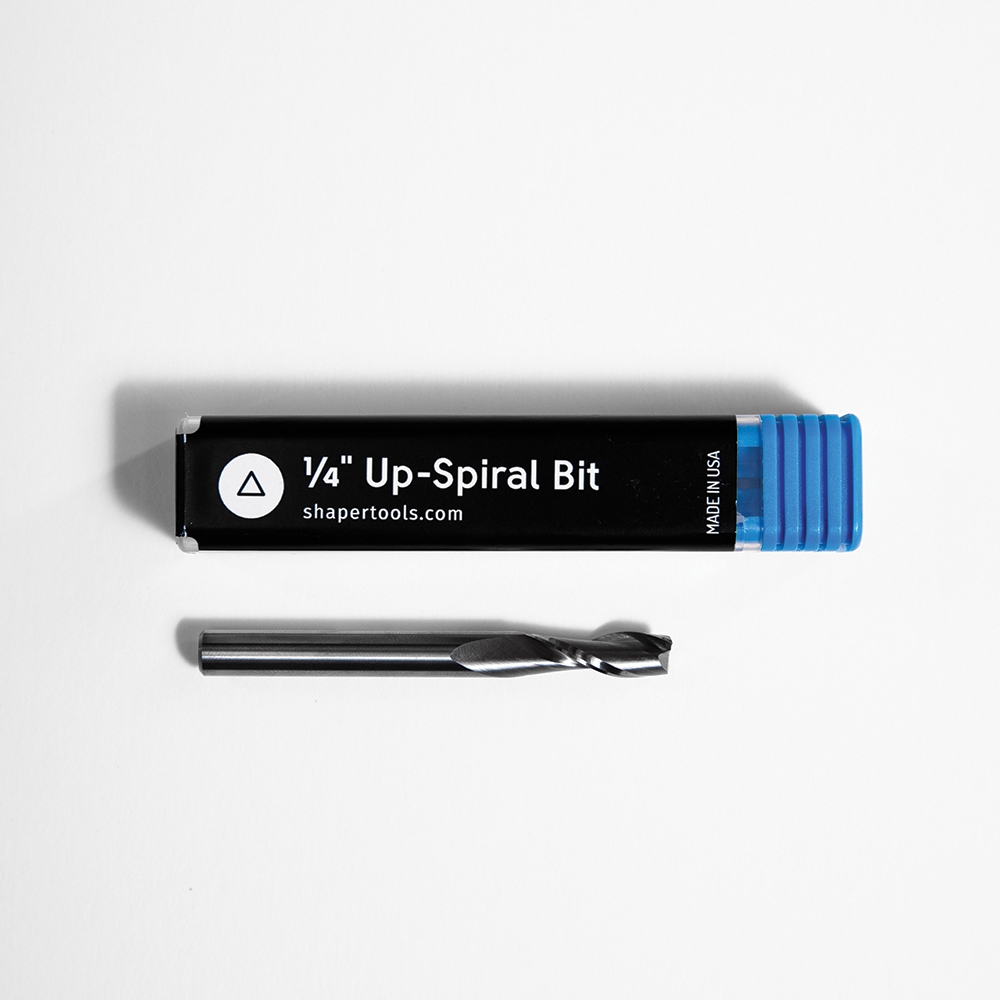

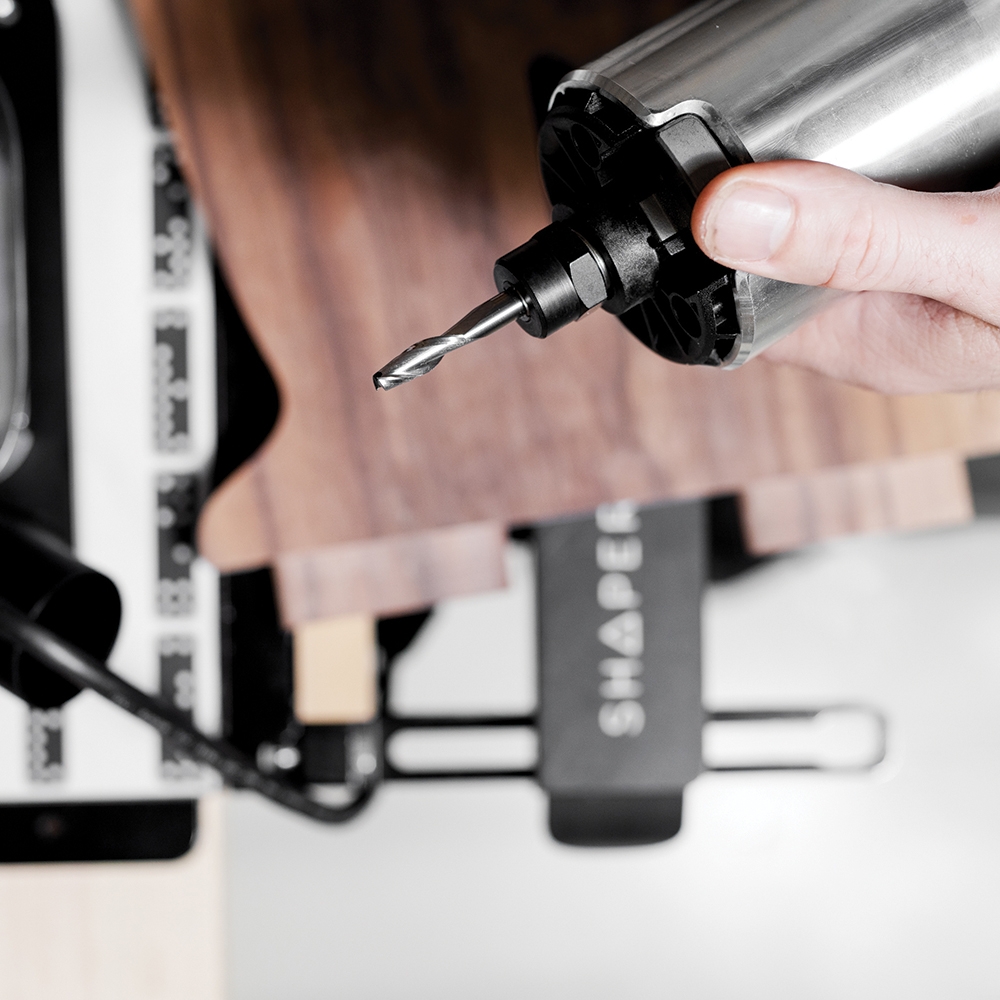

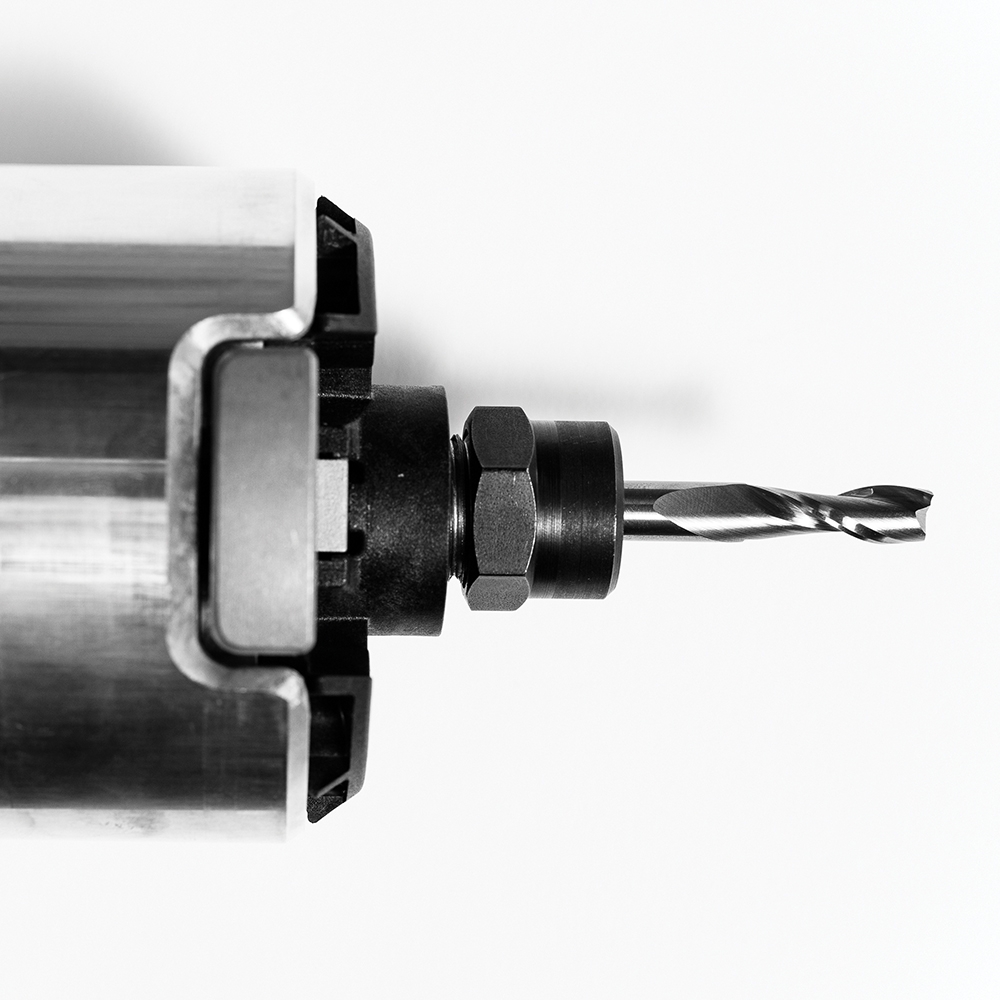

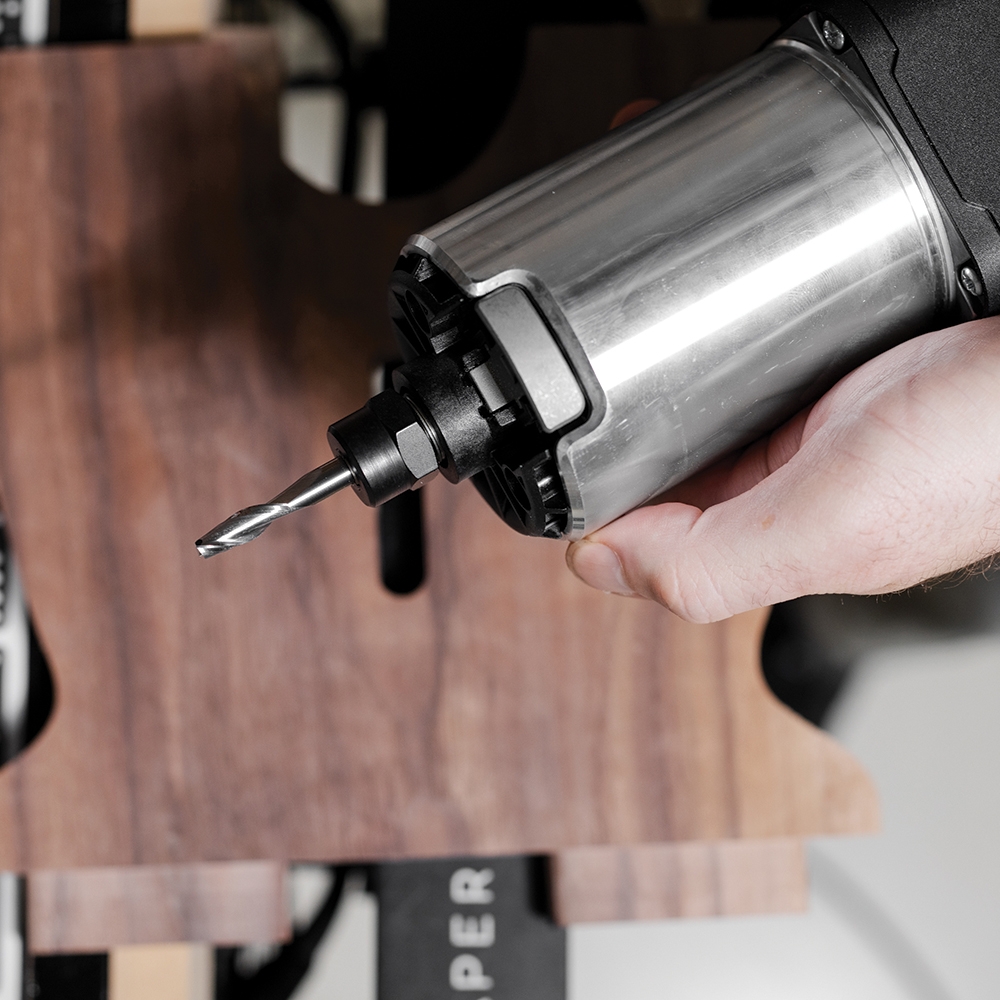

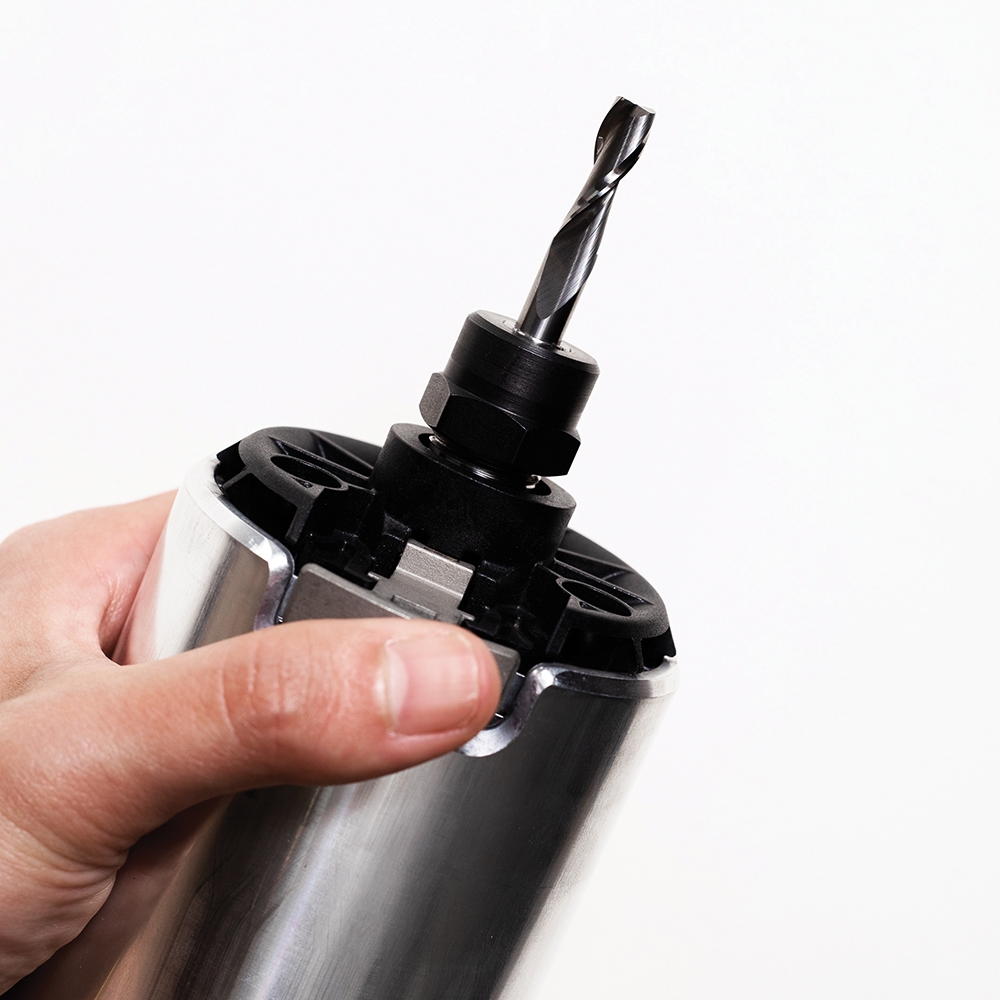

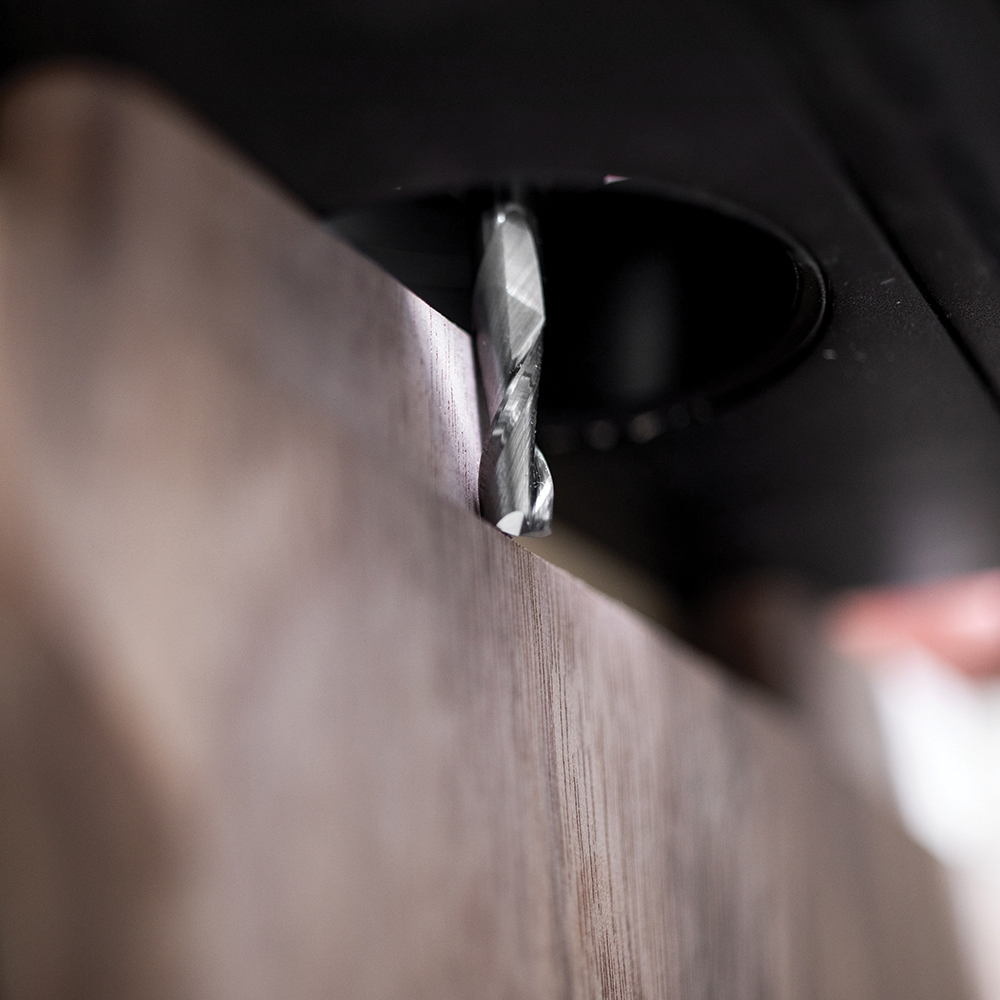

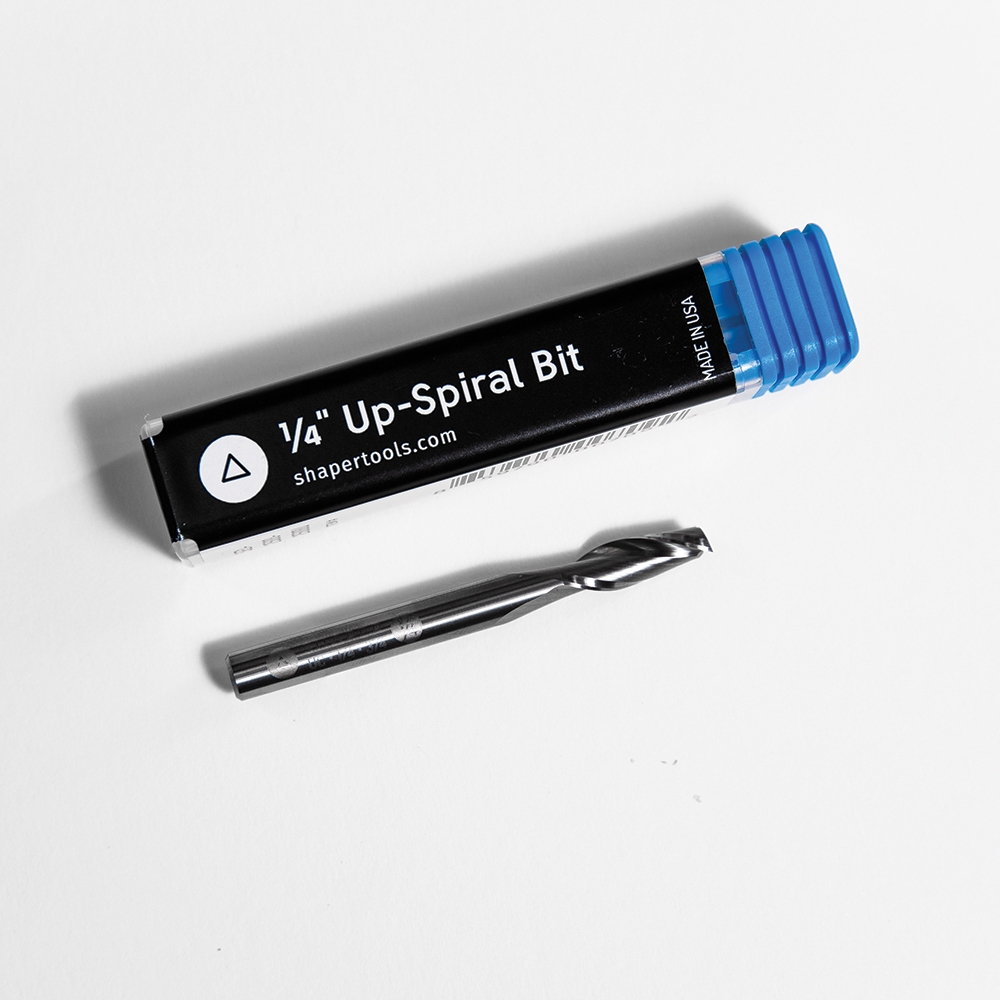

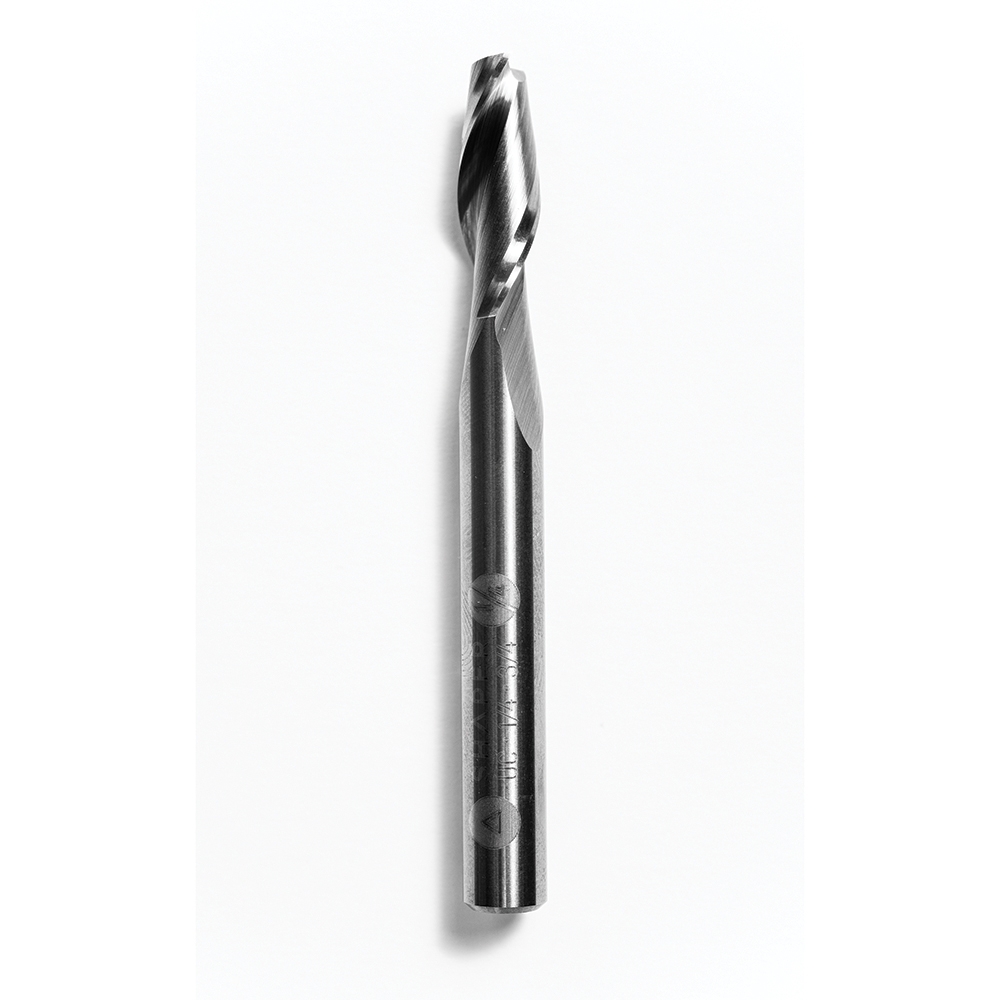

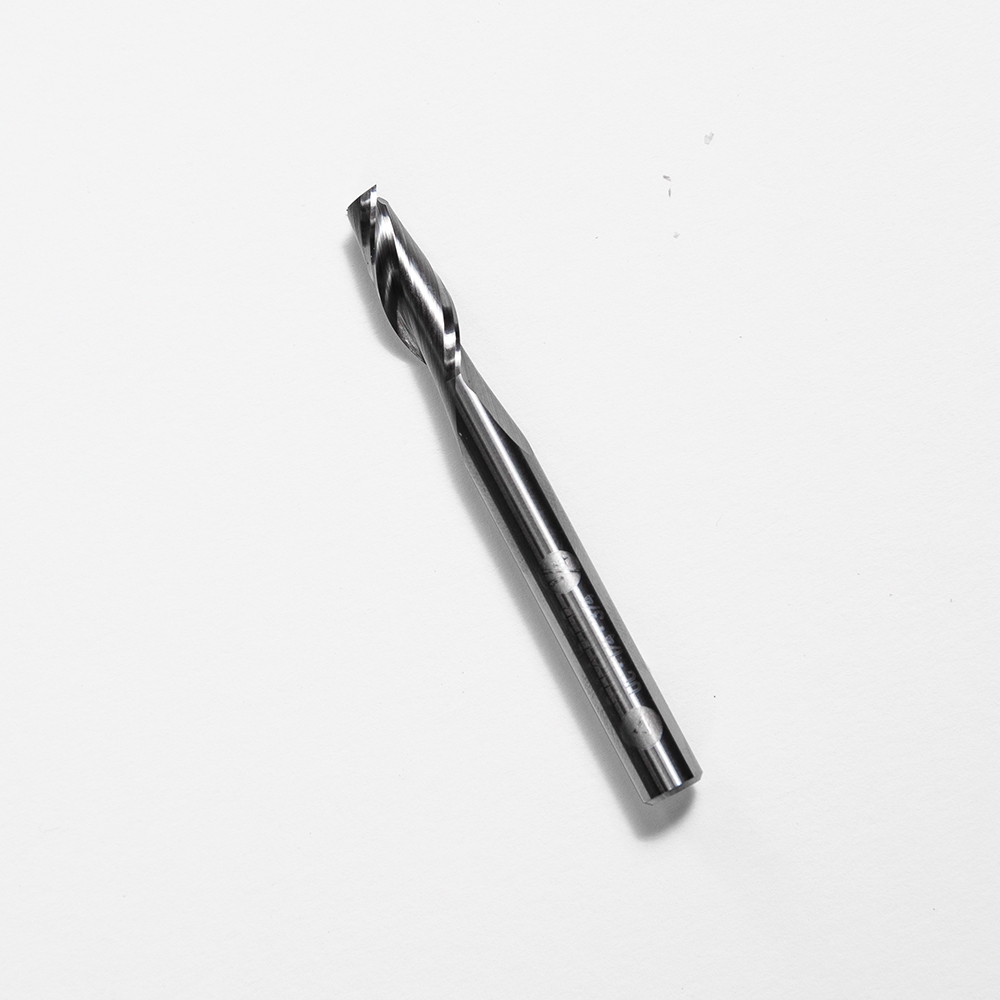

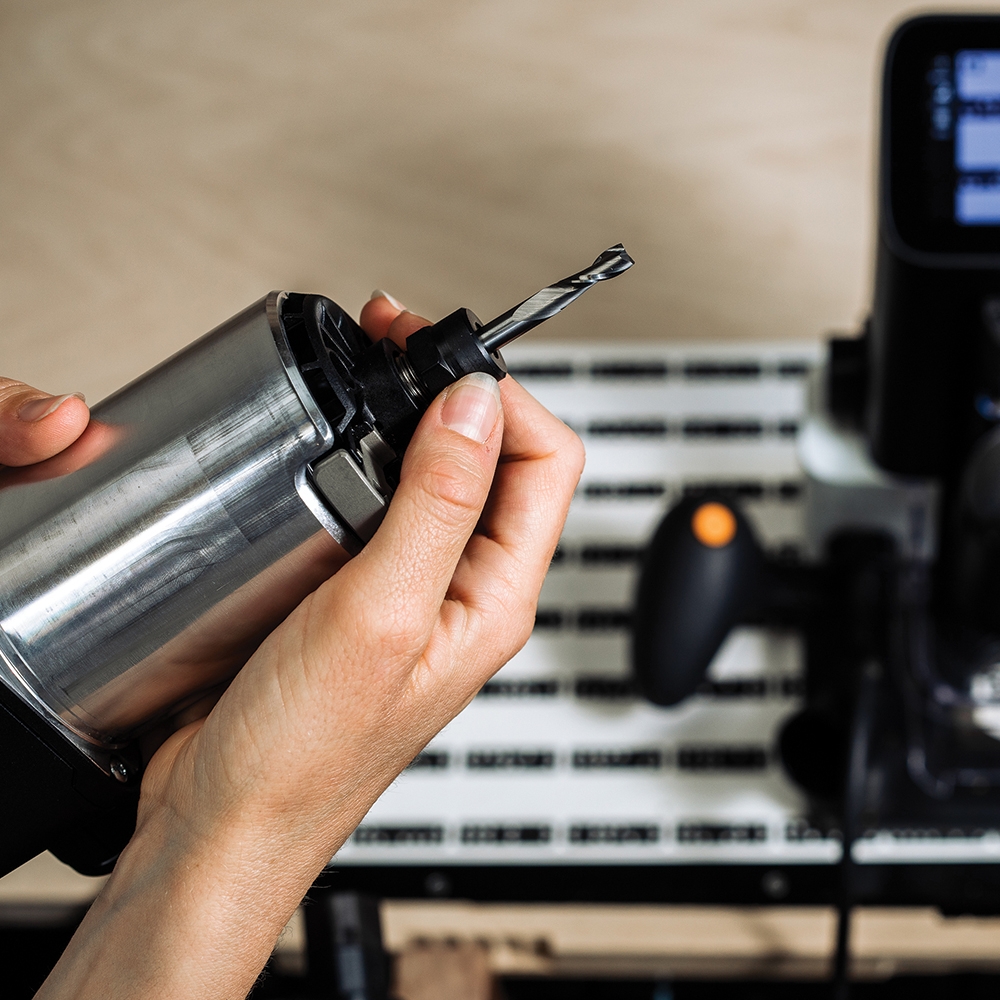

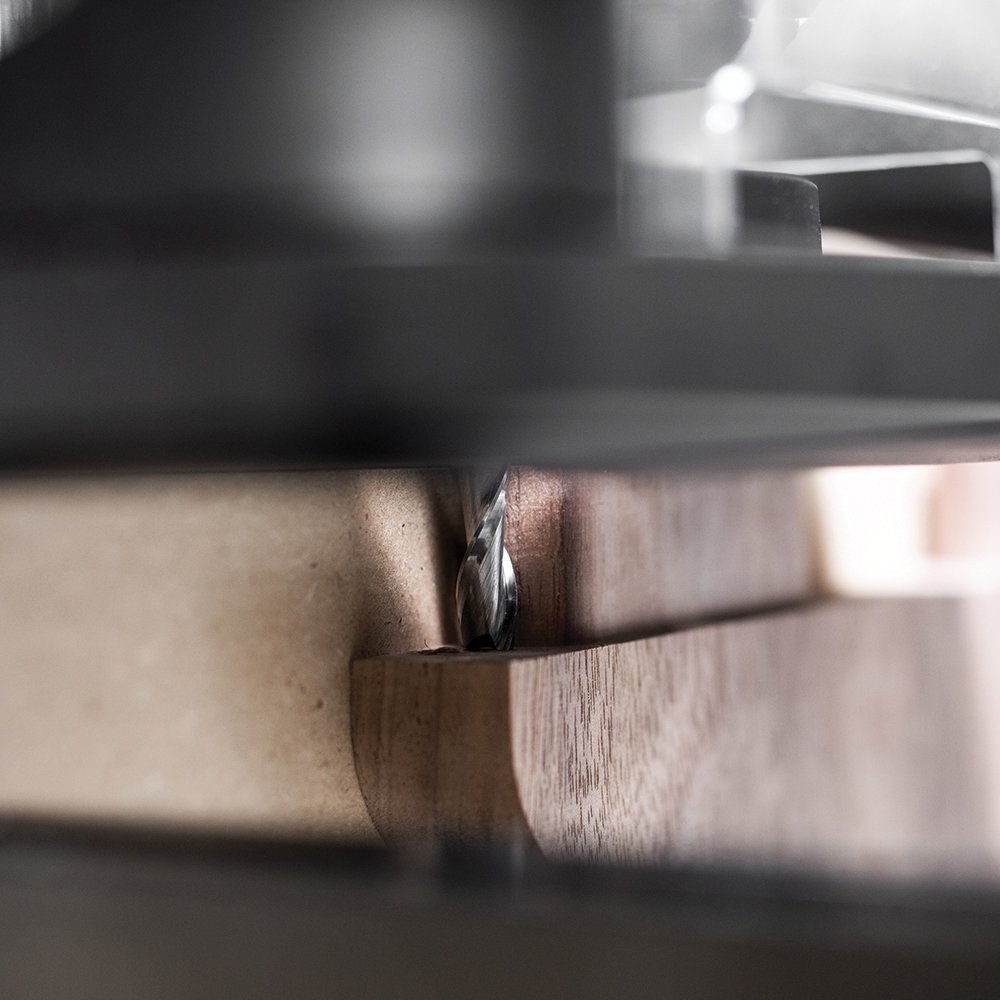

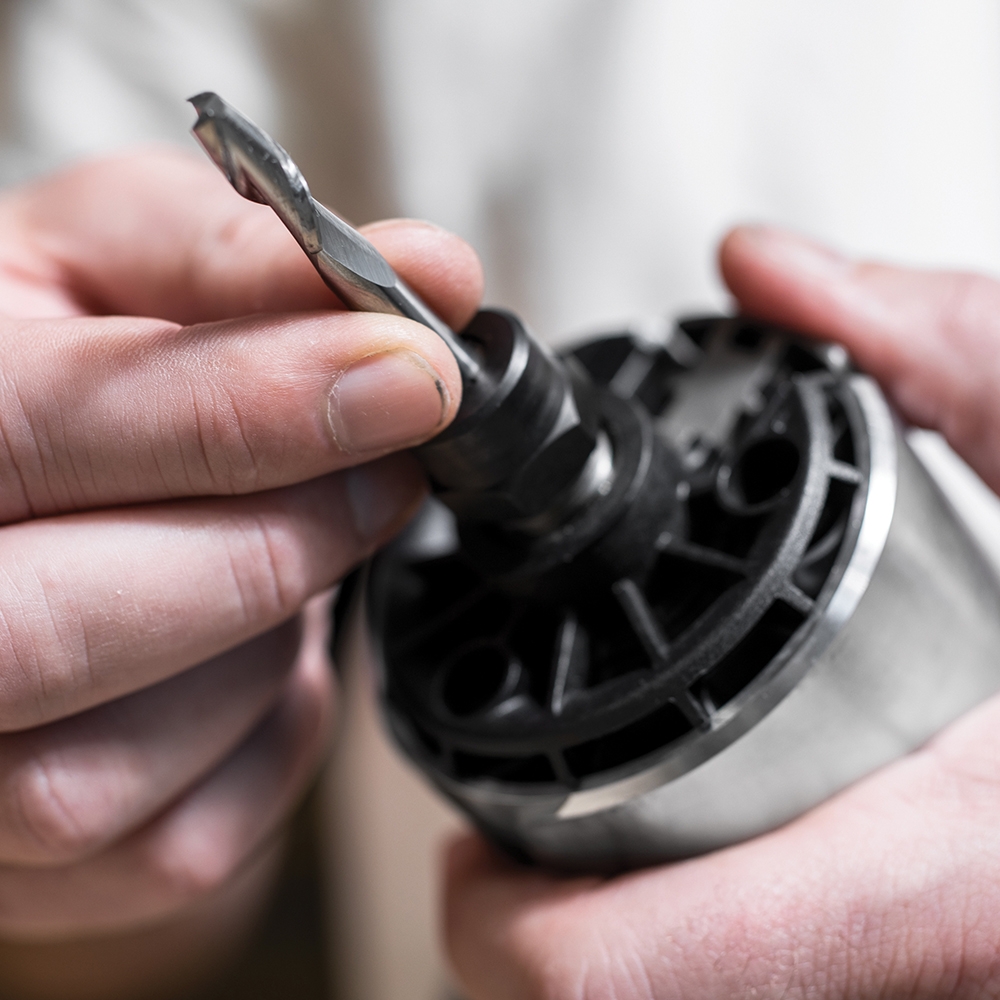

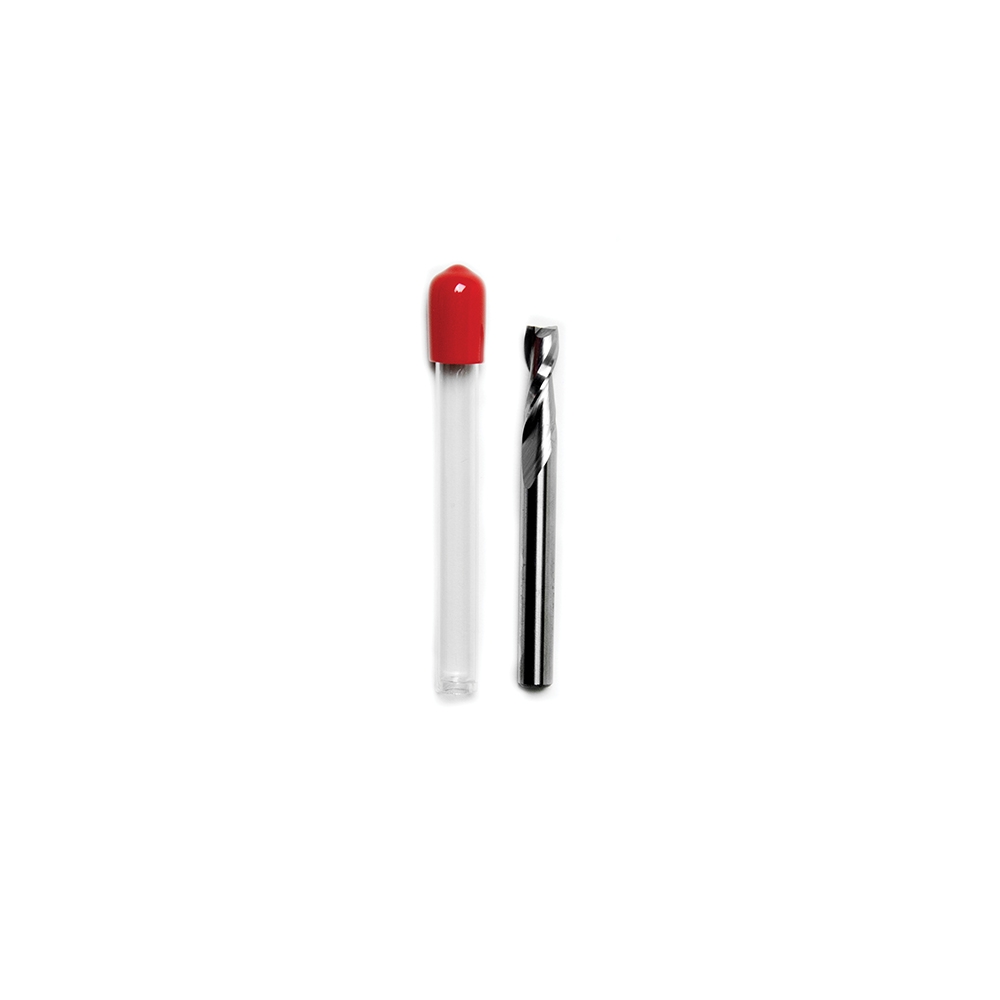

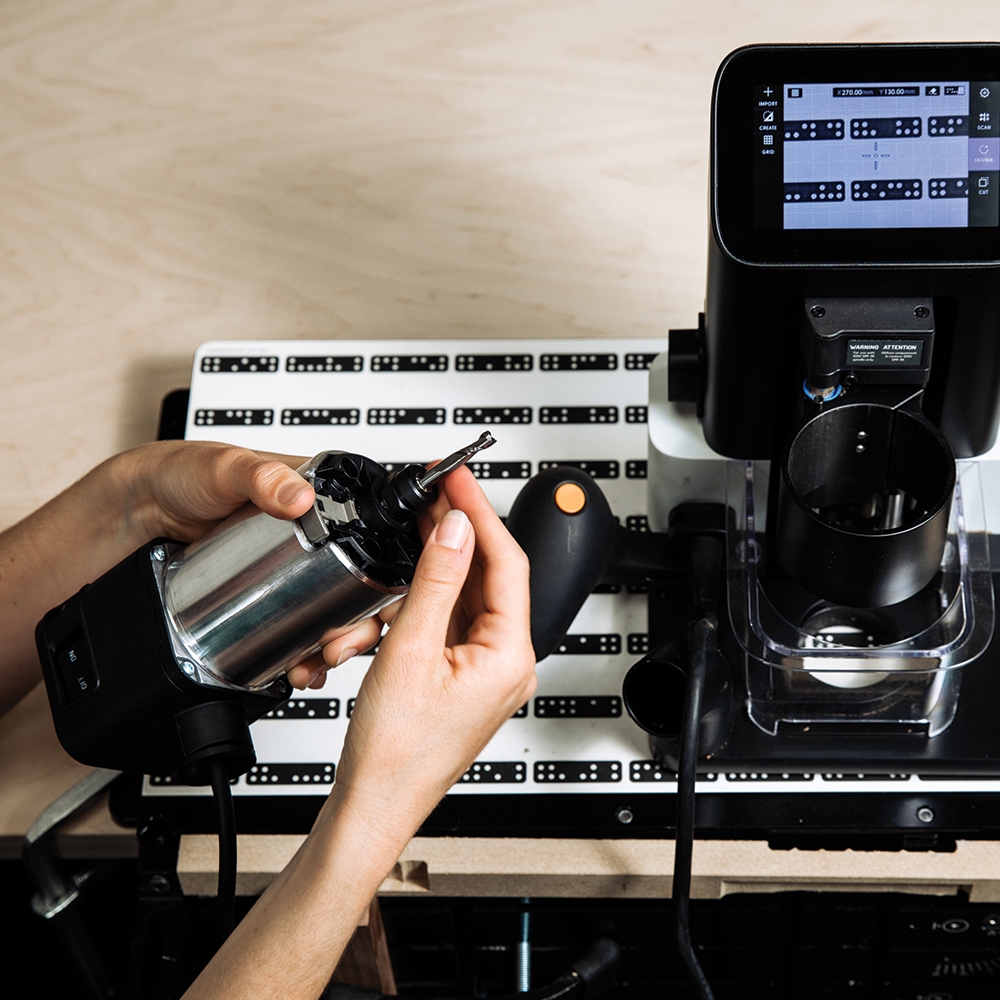

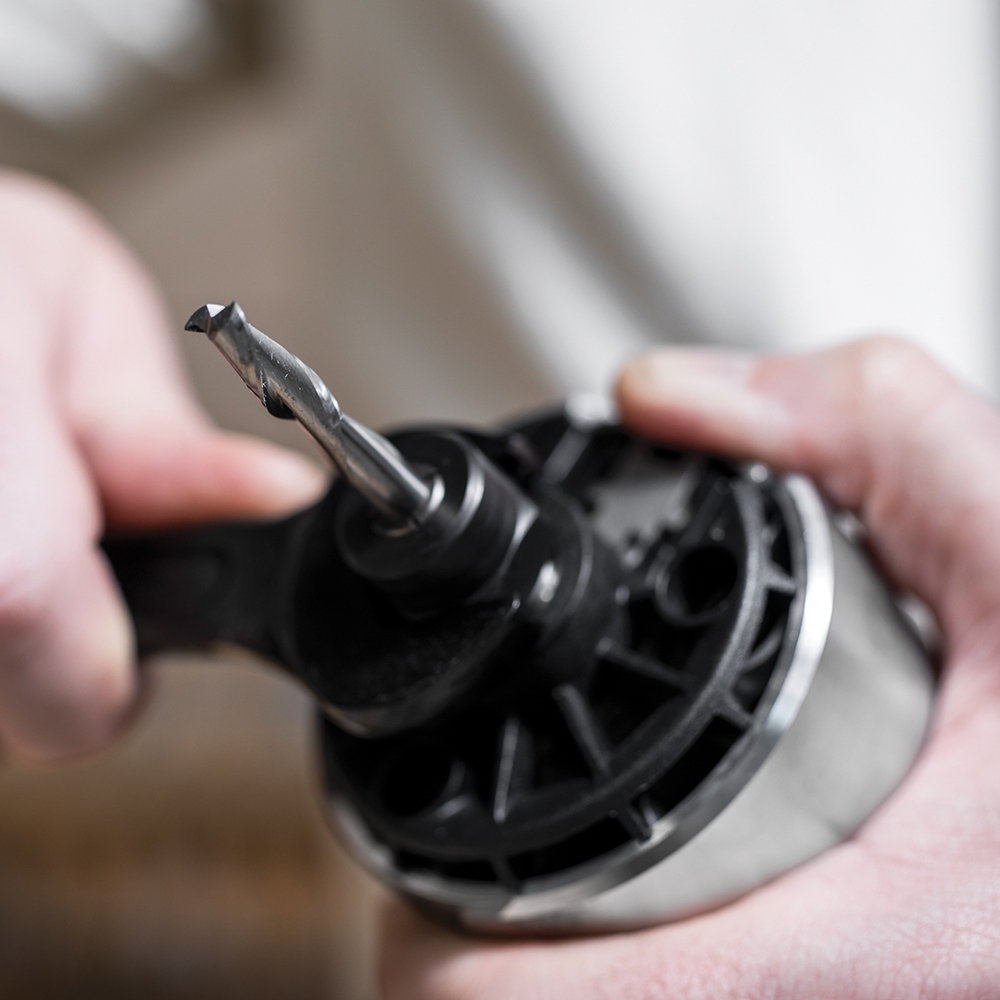

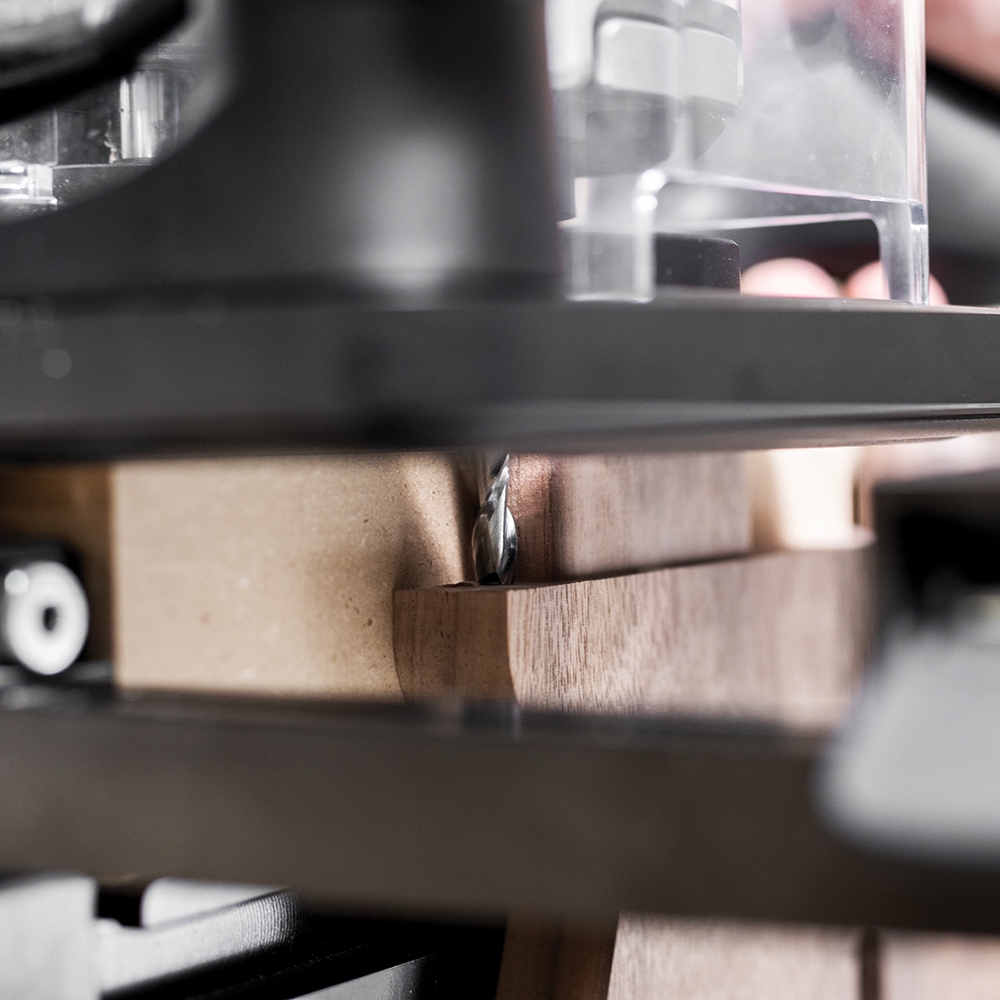

1/4'' Up-Spiral Router Bit for Shaper Origin

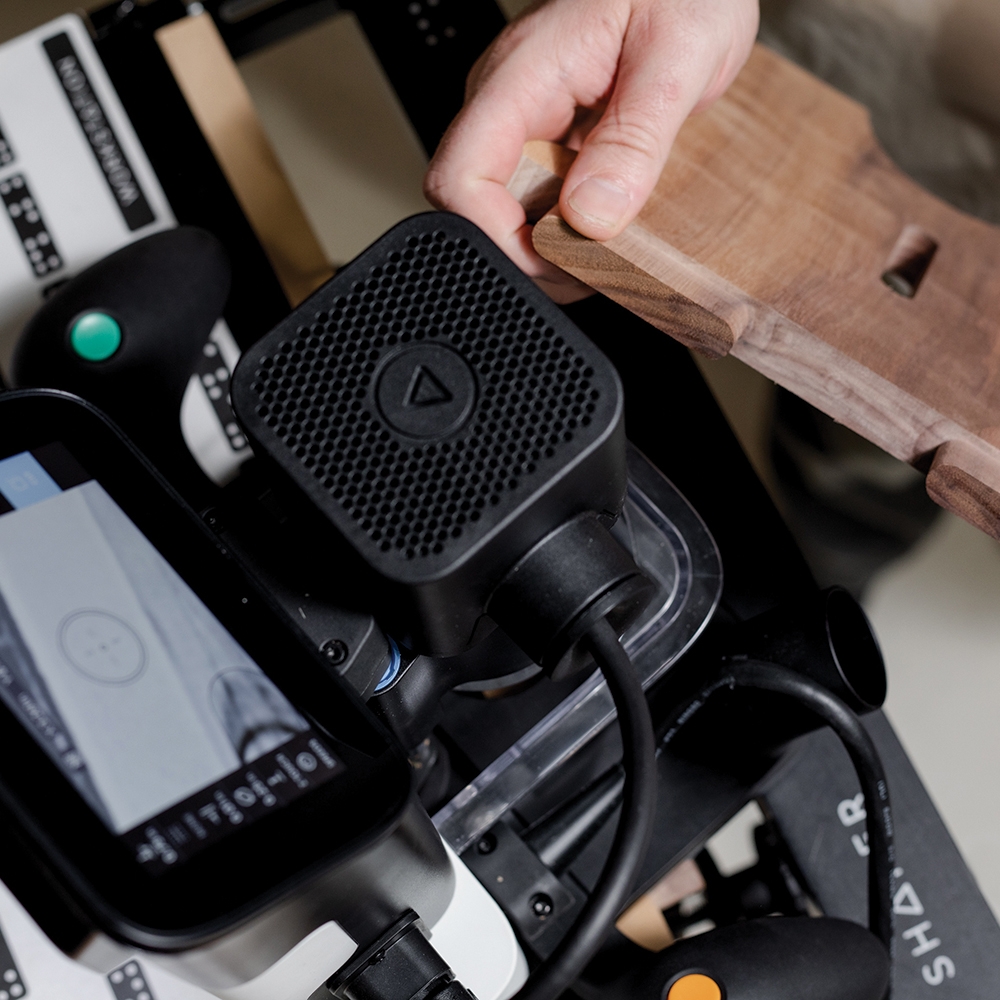

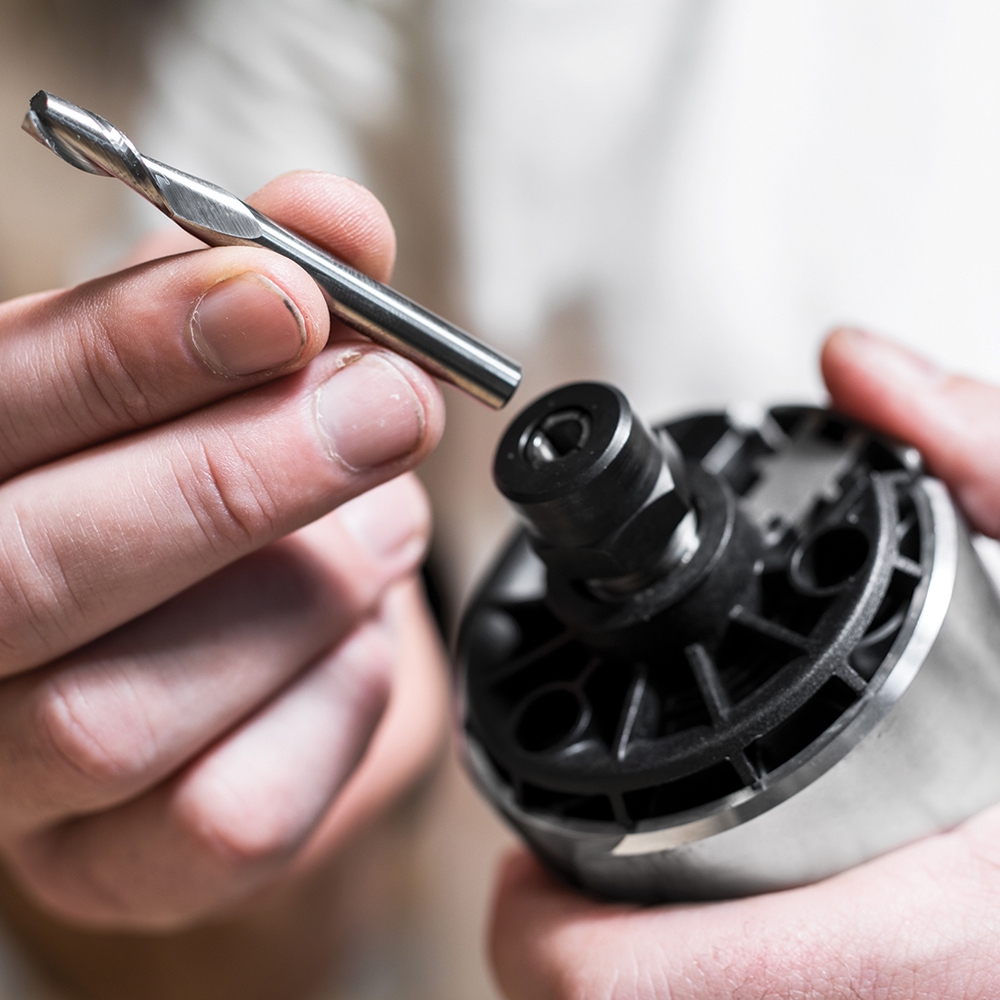

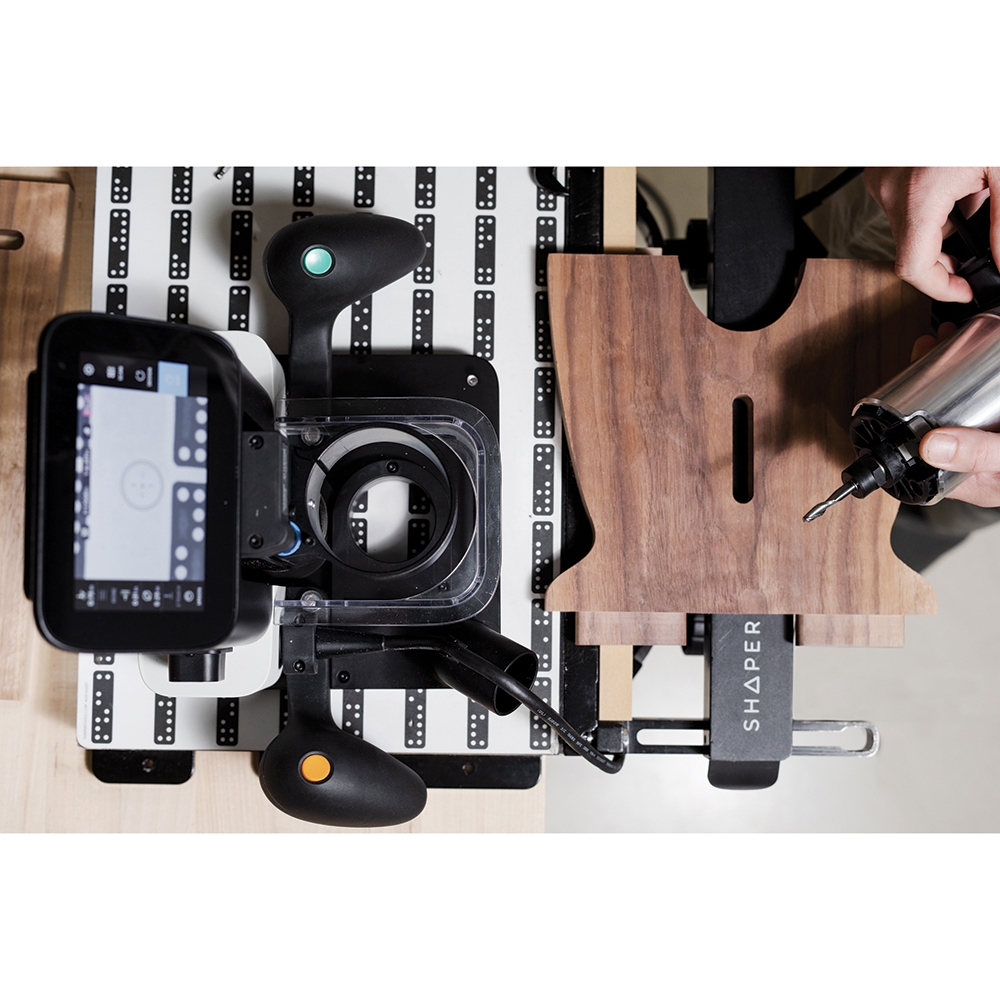

The 1/4'' up-spiral straight bit is the most commonly used cutter for the Shaper Origin Handheld CNC (#67155, sold separately). It is capable of cutting up to 1/4'' deep per pass, up to a maximum depth of 3/4''. Two cutting flutes enable the cutter to be moved rapidly through the material. Made from solid carbide, which is known for maintaining a sharp cutting edge for a long time.

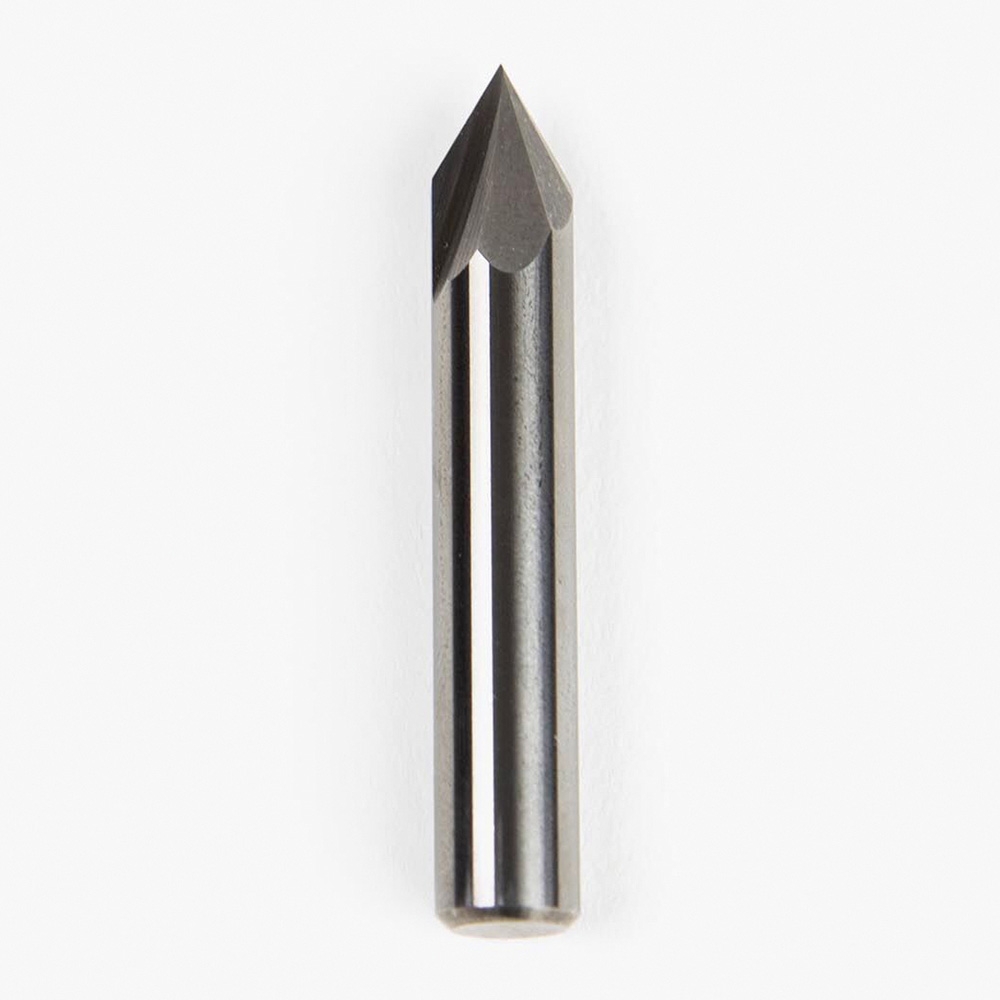

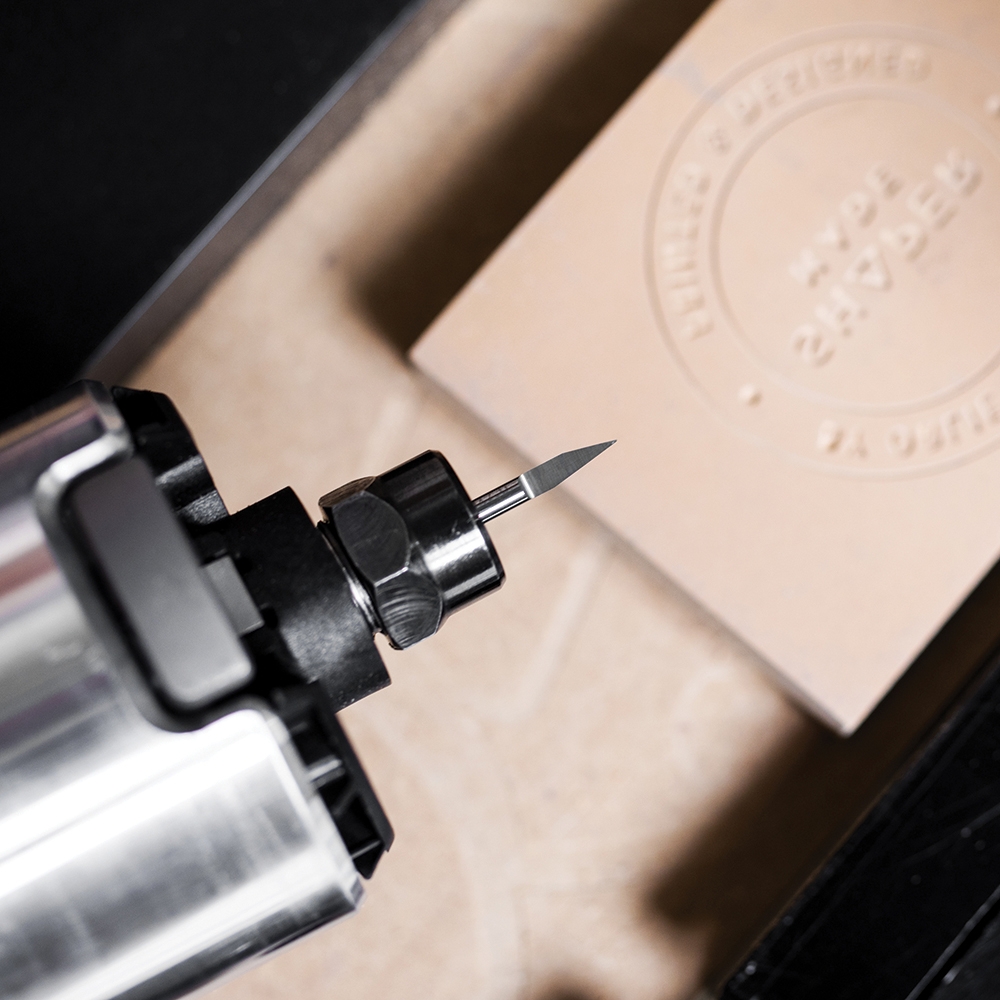

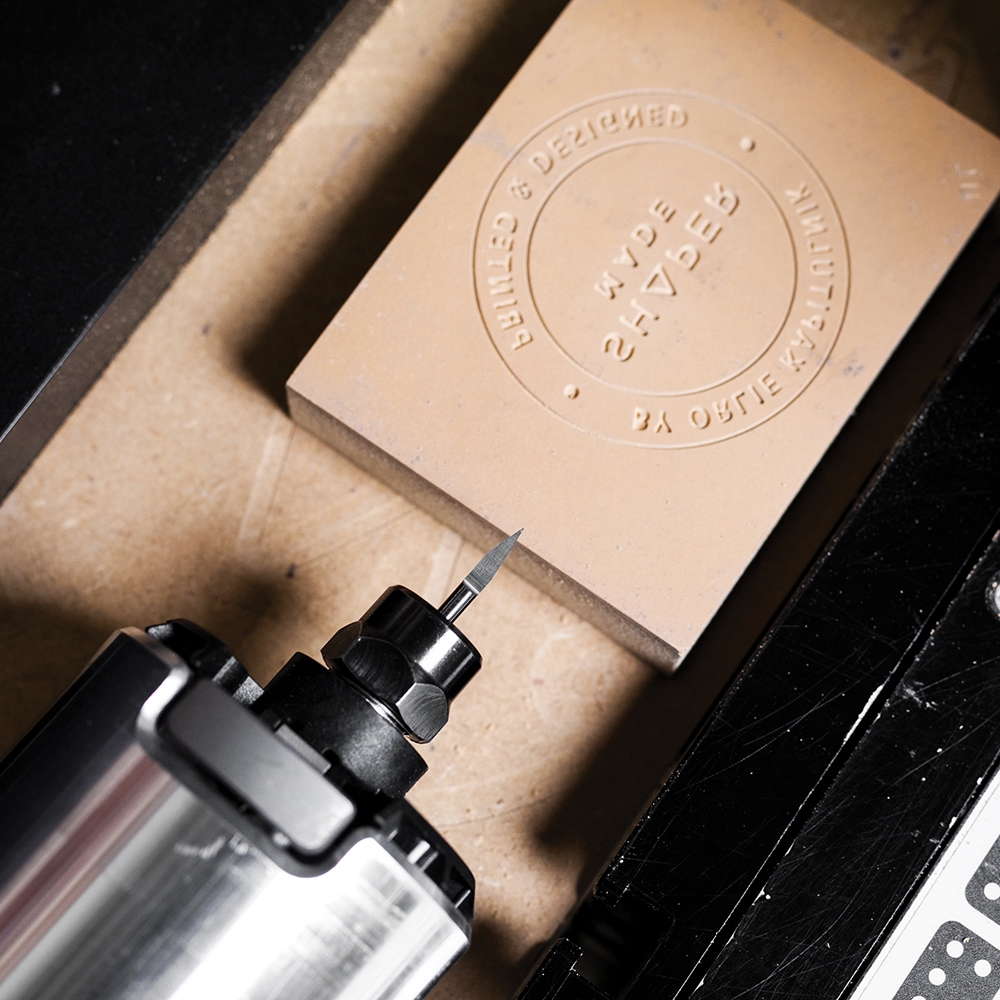

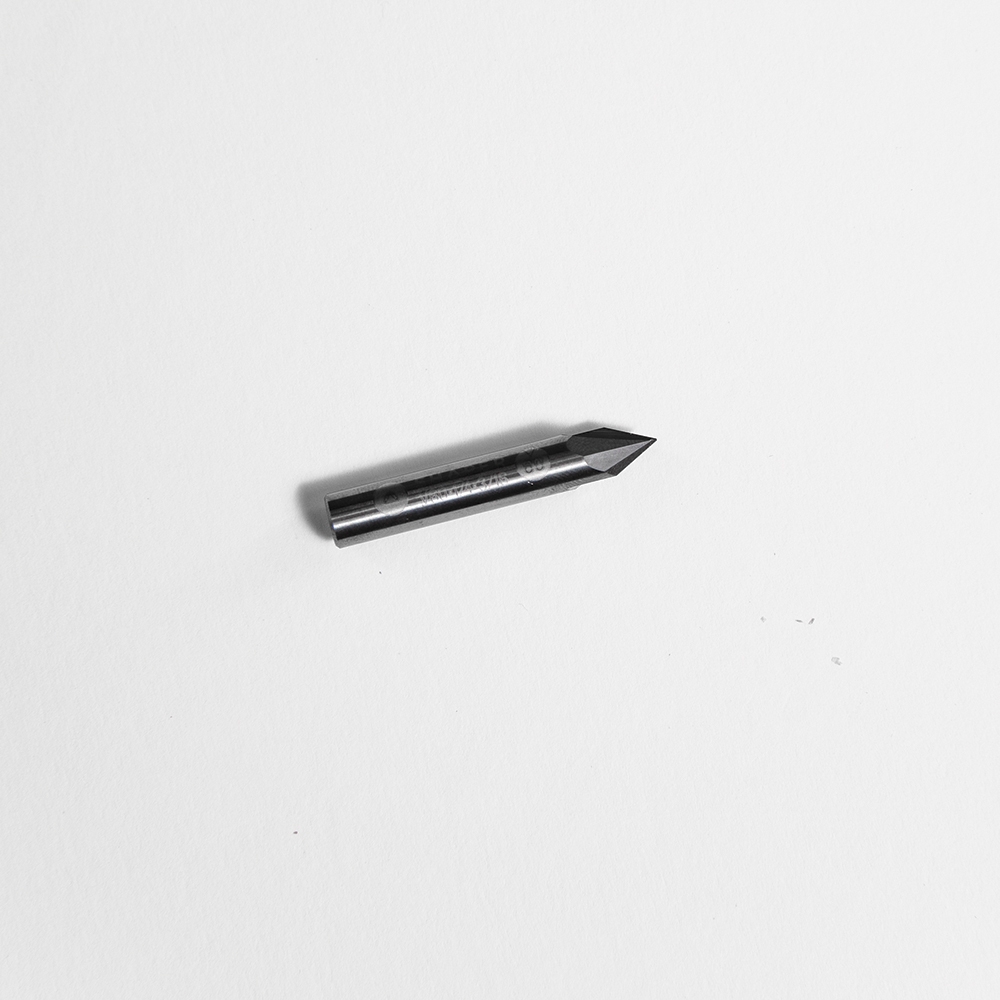

Engraving Router Bit for Shaper Origin

The 60° engraving bit is used for cutting fine lines in a variety of materials, including wood and soft metals. It has a 1/4'' shank, and fits the Shaper Origin Handheld CNC (#67155, sold separately) with the stock collet installed. The bit features dual flutes, and is made from solid carbide for maximum edge-holding durability.

WARNING:: Cancer and Reproductive Harm. For more information go to www.P65Warnings.ca.gov/product

Return Policy

More Information
Brand	Shaper
Tech Spec	1/8'' Up-Spiral Router Bit for Shaper Origin (#63330) Material: Solid Carbide Overall Length: 2'' Shank Diameter: 1/4'' Cutter Diameter: 1/8'' Cutter Length: 1/2'' Spiral Type: Upcut 1/8'' Collet and Nut for Shaper Origin (#63684) Compatible Bit Shank: 1/8'' Compatible Spindle: Shaper SM1 1/4'' Up-Spiral Router Bit for Shaper Origin (#67734) Material: Solid Carbide Overall Length: 2-1/2'' Shank Diameter: 1/4'' Cutter Diameter: 1/4'' Cutter Length: 3/4'' Max Cut Depth: 3/4'' Spiral Type: Upcut Engraving Router Bit for Shaper Origin (#69595) Material: Solid Carbide Overall Length: 1-1/2'' Shank Diameter: 1/4'' Cutter Diameter: 1/4'' Cutter Angle: 60° Bit Type: V-bit, engraving
Layout Alternate Message	No

Router Bits for Shaper Origin

Customer Service

Company

Promos & Specials

Contact Us

Router Bits for Shaper Origin

Product Details

What's Included (1) Router Bit or Collet for Shaper Origin

Specifications Brand Shaper
