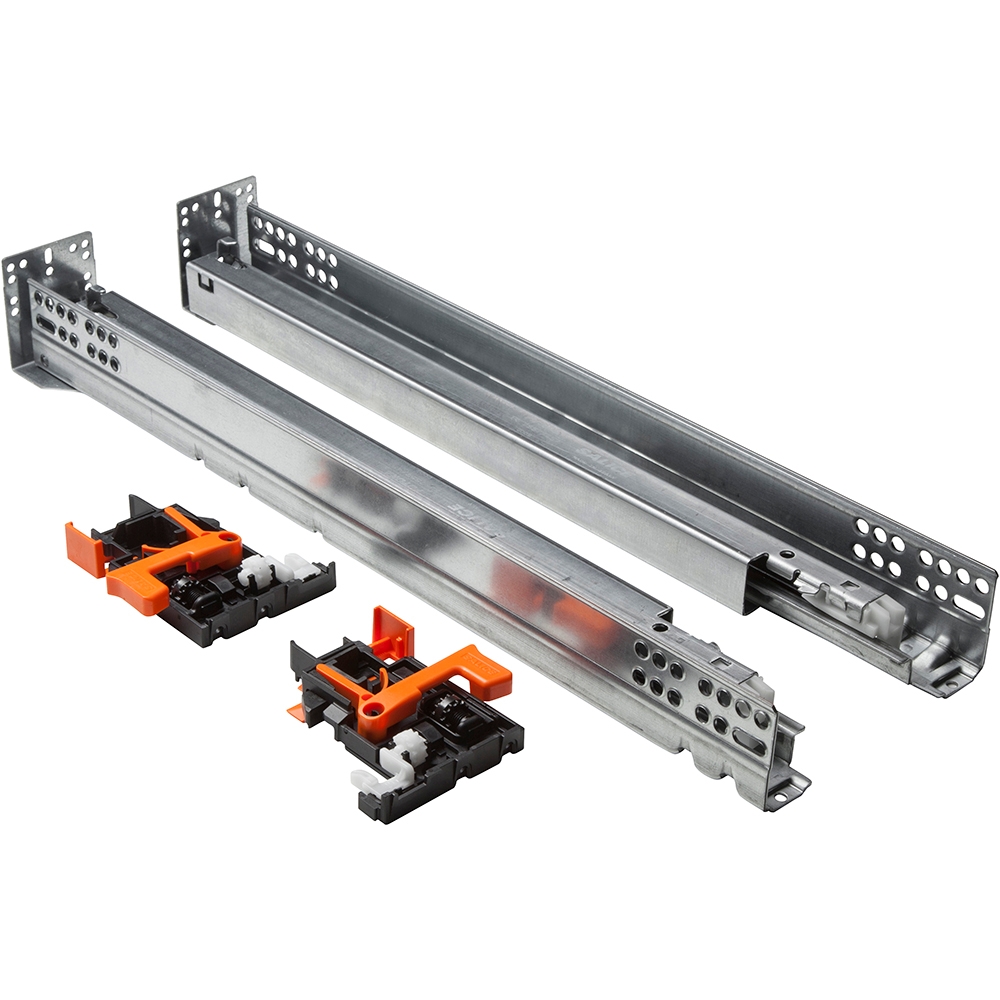

Just apply pressure to the drawer front and the drawer opens enough for you to pull it open on glassy smooth ball-bearing slides. The full-extension action provides easy access to the contents of the drawer. Push-open slides are ideal for cabinets without knobs or pulls, either for a clean, modern look, or where space is a concern, such as for boats and motor homes. Since they hold themselves shut, you also won't have to worry about drawers accidentally opening in a mobile environment. Salice Futura Push-to-Open Drawer Slides are fully concealed, with an undermount design that shows off the beauty of your workmanship. Sold in pairs.
Push-to-Open Drawer Slide Features:
Push-open action allows you to open the drawer without the need for pulls or knobs
Totally concealed undermount slides
Ultra-smooth gliding motion with excellent rigidity and stability
Included front release levers allow quick, easy drawer installation and removal
Drawer height adjustment with 3 mm range (about 1/8")
Drawer slides accept #6 wood screws or 6mm euro screws

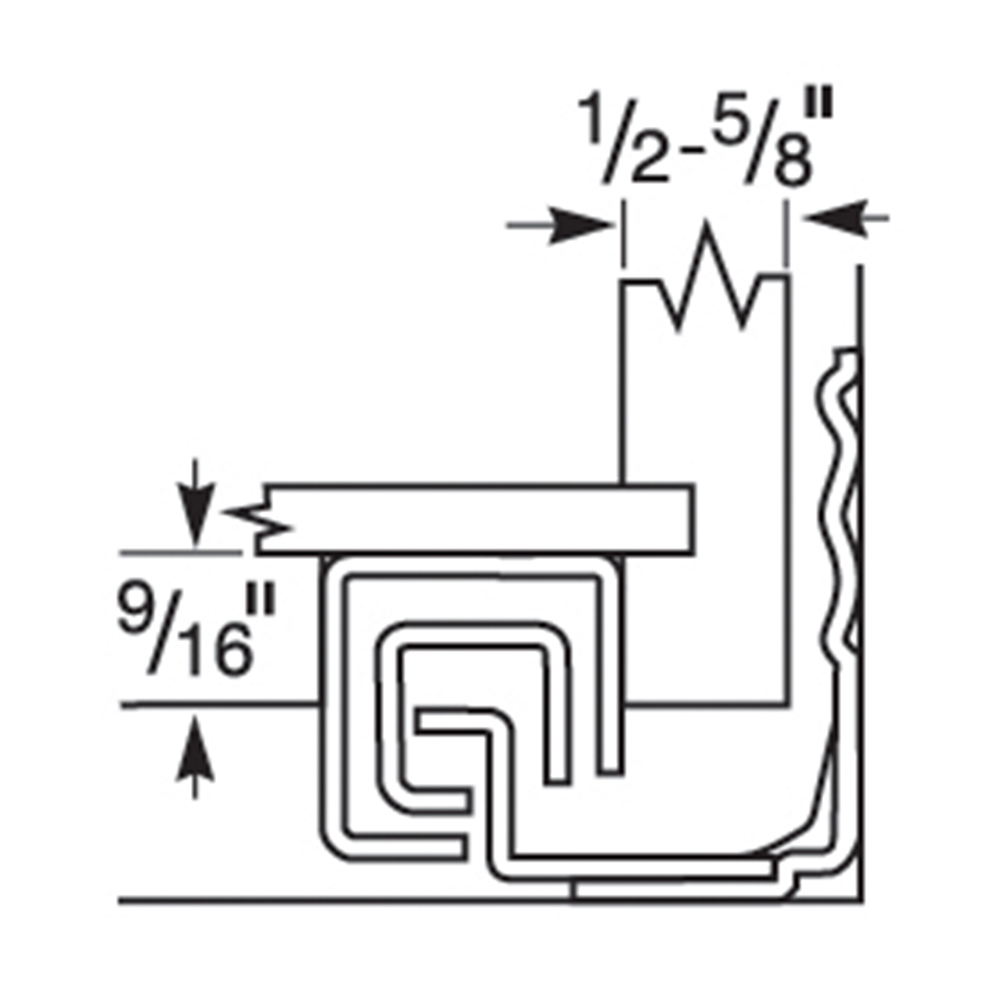

Minimum drawer side thickness is 1/2" (13mm)
Maximum drawer side thickness is 5/8" (16mm)
Load rating is 75 lbs dynamic, 100 lbs static
Drawer bottom must be recessed from bottom edge of drawer. Recess range is 3/8" to 9/16"
Length of drawer slide should equal the length of the drawer box
To find the minimum cabinet depth, add 7/8" to the length of the slide
To find maximum cabinet depth (relevant only when using rear mounting brackets), add 2-1/2" to the length of the slide
