Snap in cam lock bodies allow you to secure drawers, single cabinet doors and double doors by customizing your installation. Choose the Cam Lock body that works best for your application and then purchase the plug key you want to use with it. (Sold Separately)
This system allows you to choose from up to six different lock styles and six different finishes giving you up to 36 combinations that only need one key. Choose a lock body, finish and key option to build a custom lock. (Snap-In Lock Plug Keys are Sold Separately)
Choosing the Proper Style Cam Lock

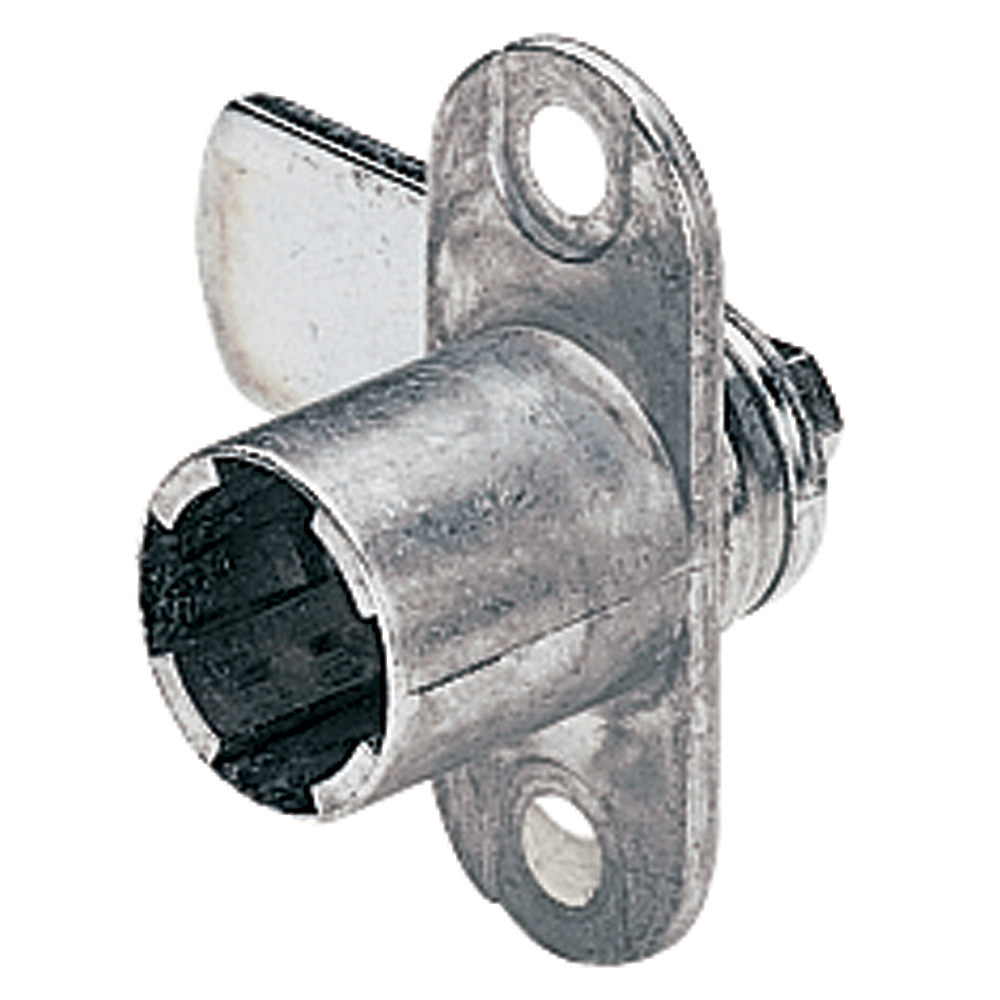

Drawers: Horizontal Cam locks are ideal for drawers. The lock mounts horizontally and when turned the locking mechanism will stop your drawer from opening. This cam lock installs in wood with a thickness up to 3/4''.

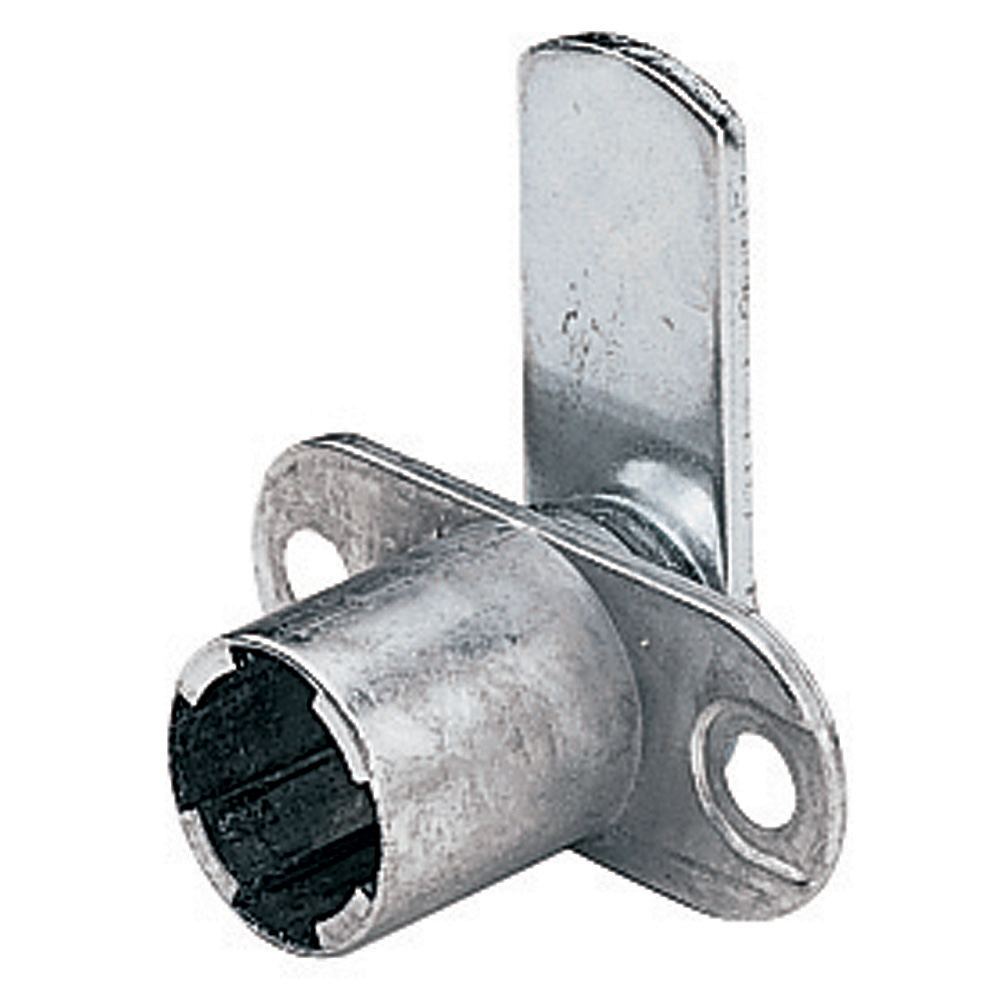

Cabinet Doors: Vertical cam Locks are ideal for Cabinets and other doors with a thickness up to 3/4''. Once installed the vertical cam lock will hold the closed when used on a single door application with a frame cabinet style.

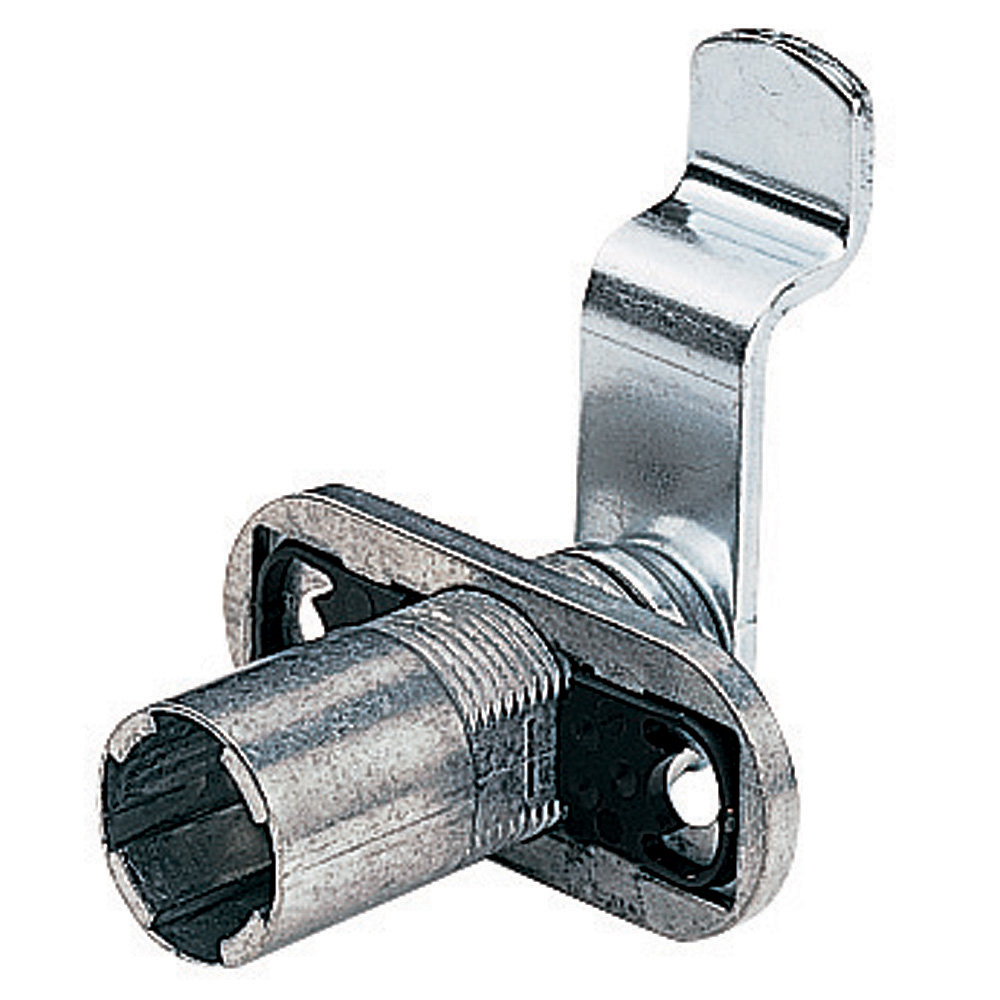

Doors with a thickness greater than 3/4'': the Universal cam body works for projects that have a thickness of 3/4" to 1-3/8" thick.

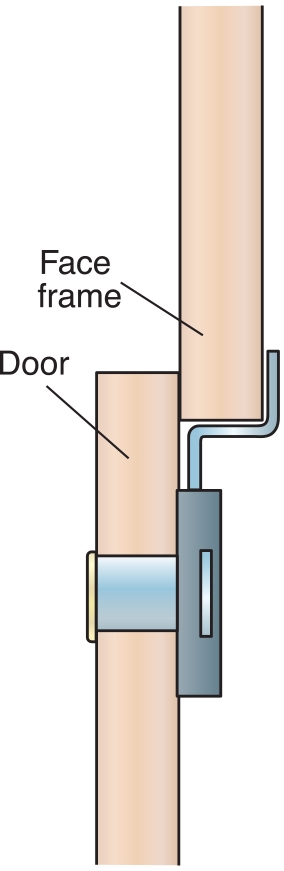

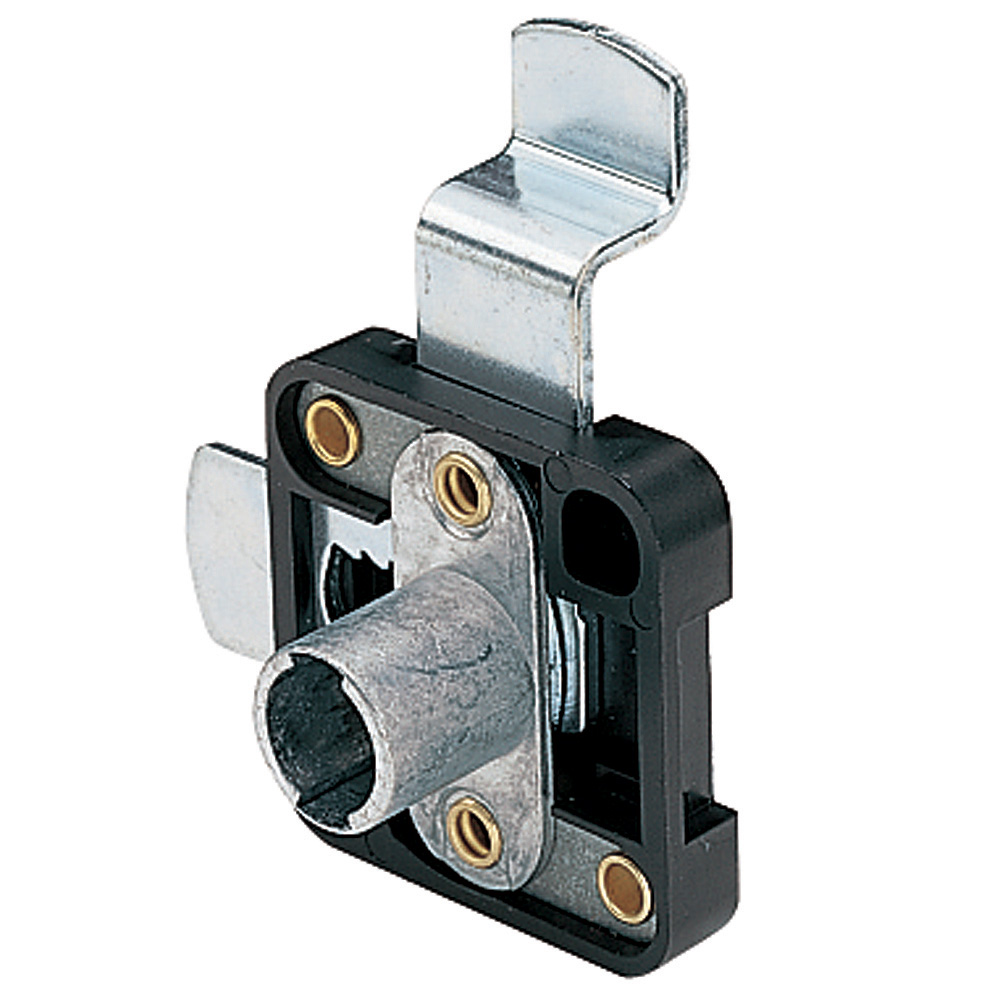

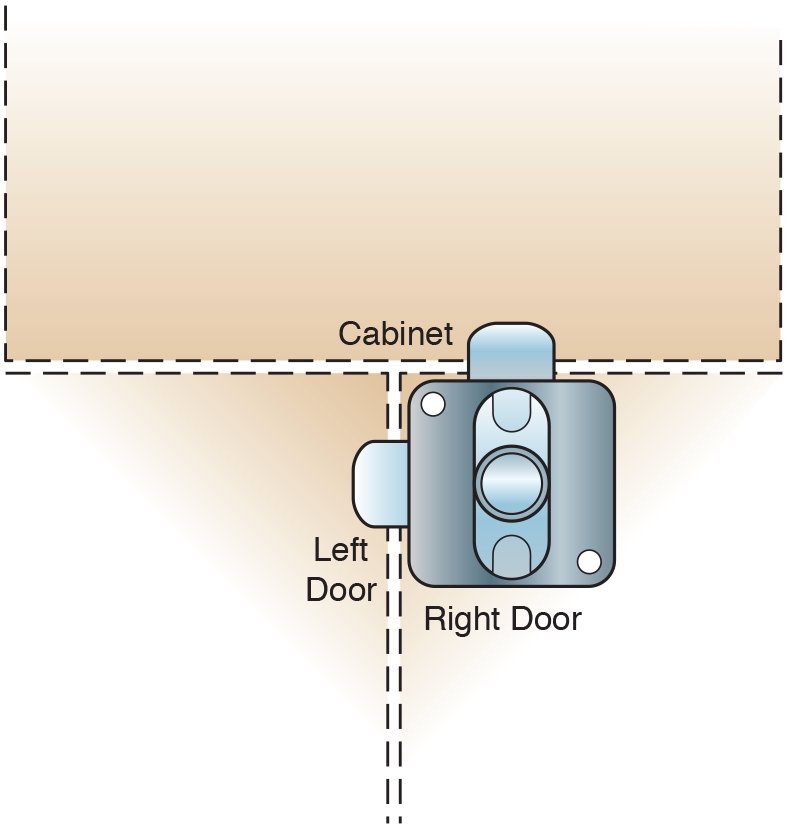

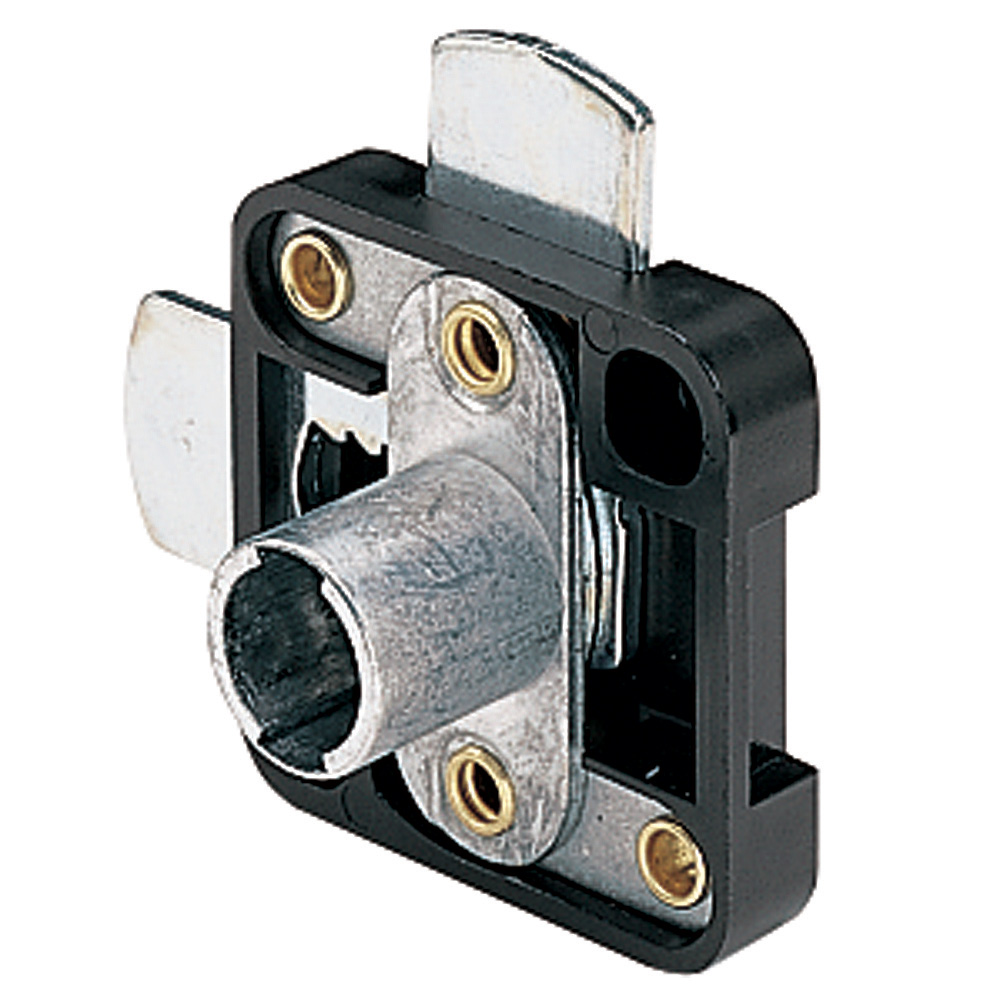

Double Doors: the Double Door Standard Cam Locks or the Double Door Offset Cam Locks will work for cabinets where you want to stop both doors from opening. One leg/arm stops the first door from opening by locking behind the frame of the cabinet and the other arm stops the second door from opening.
