Blum Compact Soft-Close BLUMotion Variable Overlay (1-3/8" Minimum) Hinge (Pair)

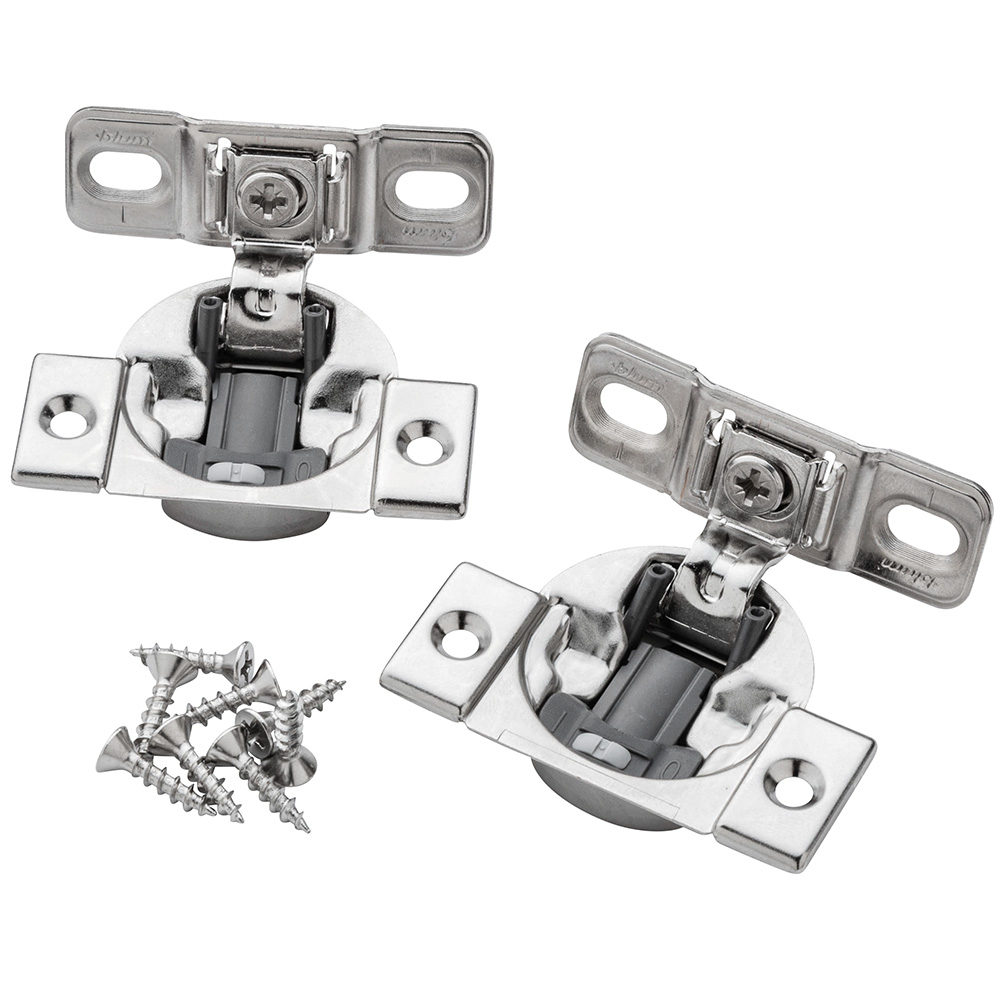

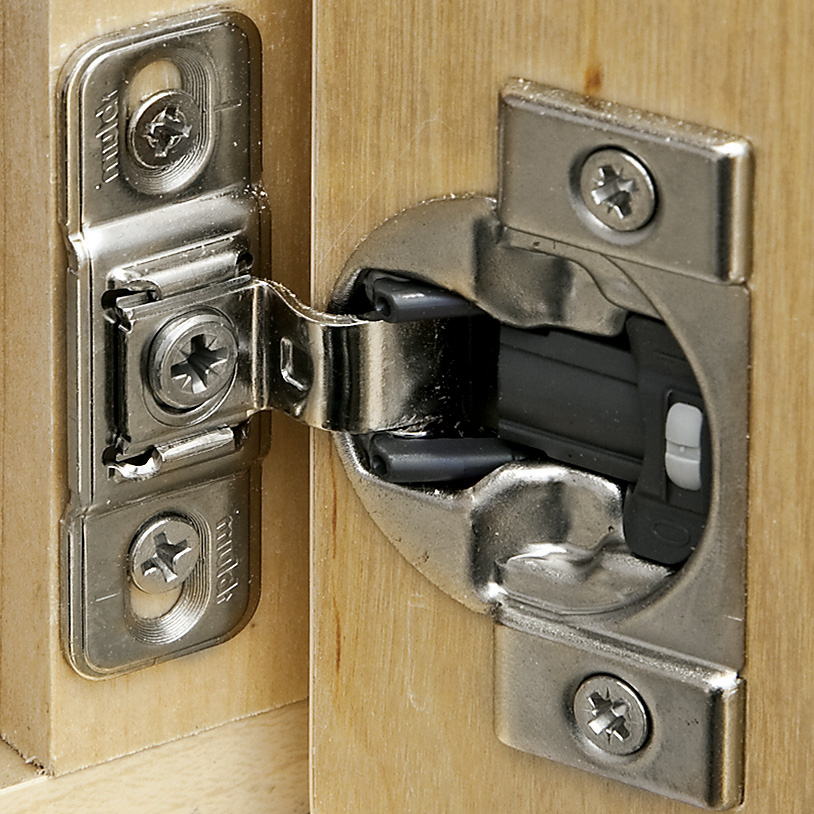

Now you can have the smooth, soft-closing action of BLUMotion in a compact, space-saving hinge! These face-mount cabinet hinges mount to the front of the face frame, providing excellent versatility, since the overlay can be adjusted by varying the mounting location. The hinges come as a set of two and are ideal for face-frame cabinets or where clearance on the inside of the cabinet is an issue. With Compact BLUMotion, the damping mechanism fits entirely within the hinge cup, allowing use of a smaller mounting plate. Each hinge has a switch for turning the soft-close feature off for use with small doors, and each can be used to adjust the door both up and down and side to side.

Hinge Technical Details:

• Ideal for large overlays, or when refacing cabinets
• Comes as a set of two
• 107° opening angle
• For small or lightweight doors, switch off the BLUMotion on one hinge per door
• Soft close feature engages at a generous 30 degrees for the gentlest close
• 35mm cup
• Restrictor Clips (#47937) are also available below for restricting the opening angle to 86 degrees. This prevents the door from banging into adjacent cabinets or cabinet doors.

Note: Item #43870 is a Variable Overlay Hinge that mounts to the front of a face frame.
