Axiom Iconic 8 CNC Router

Name: Axiom Iconic 8 CNC Router
Brand: Axiom
SKU: 64433
Price: 5999 USD
Availability: InStock

Item #

64433

Special Price $5,999.00 Each Regular Price $7,149.00 Save $1,150.00

Redefines ''entry level'' with an industrial-quality 1.1HP electro-spindle, pendant controller and rigid steel frame—expansive 24'' x 48'' capacity!

More details

Must be shipped within 48 Contiguous United States.
20% restocking fee on all returned merchandise.
Please call customer service before returning product.

Software is not included with the machine. We recommend the following software depending on your needs: Vetric VCarve Pro Software V10 (Item #58150), Vetric VCarve Desktop Software V10 (Item# 57318), Vetric Aspire V10 (Item# 59990), Vetric Photo VCarve Software (Item# 54822 )

How do you want your item?

Or Buy These Together

Please select at least one addon to add it to the cart.

Current Product

Axiom Iconic 8 CNC Router

Special Price $5,999.00 Each Regular Price $7,149.00 Save $1,150.00
Rolling Stand for Axiom Iconic 8 CNC Router

Special Price $593.99 Each Regular Price $659.99 Save $66.00
Toolbox for Axiom CNC Stands

Review: 5 stars out of 5

2 Reviews

Special Price $449.10 Each Regular Price $499.00 Save $49.90

Total Price Taxes estimated at checkout

$7,042.09

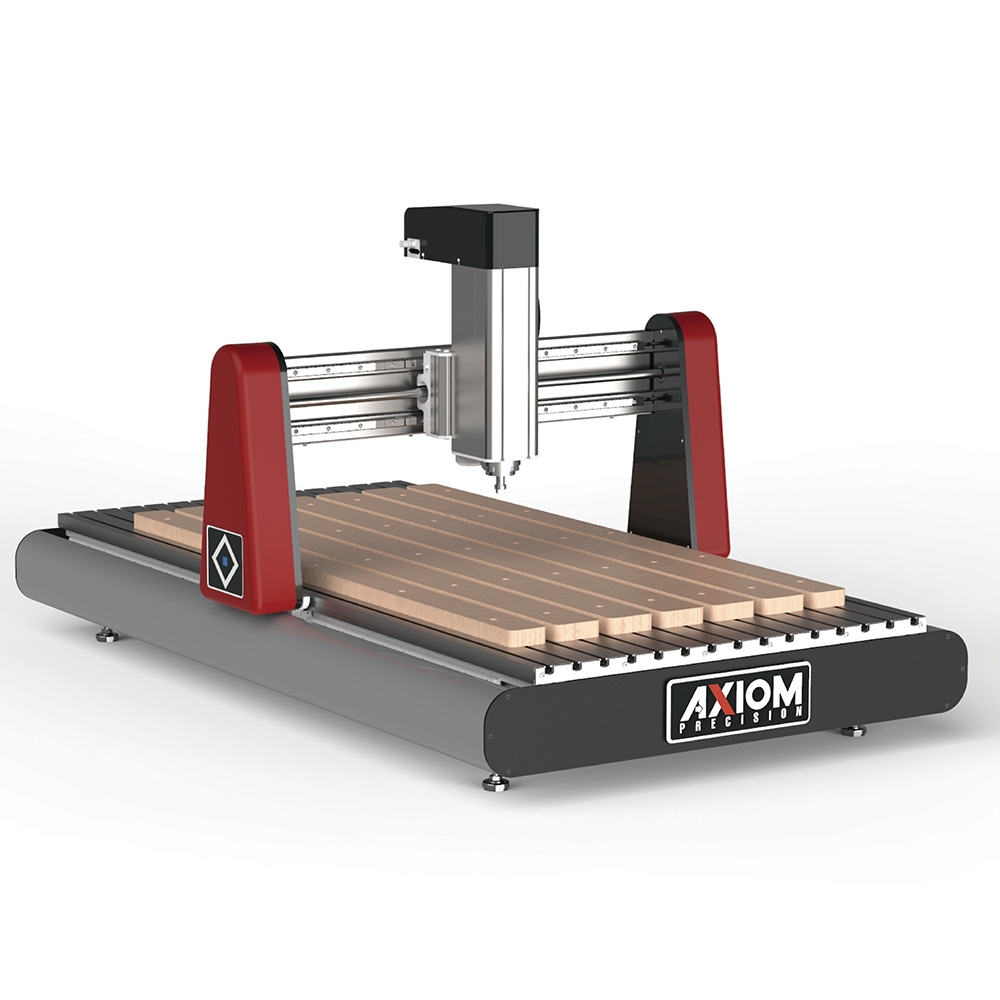

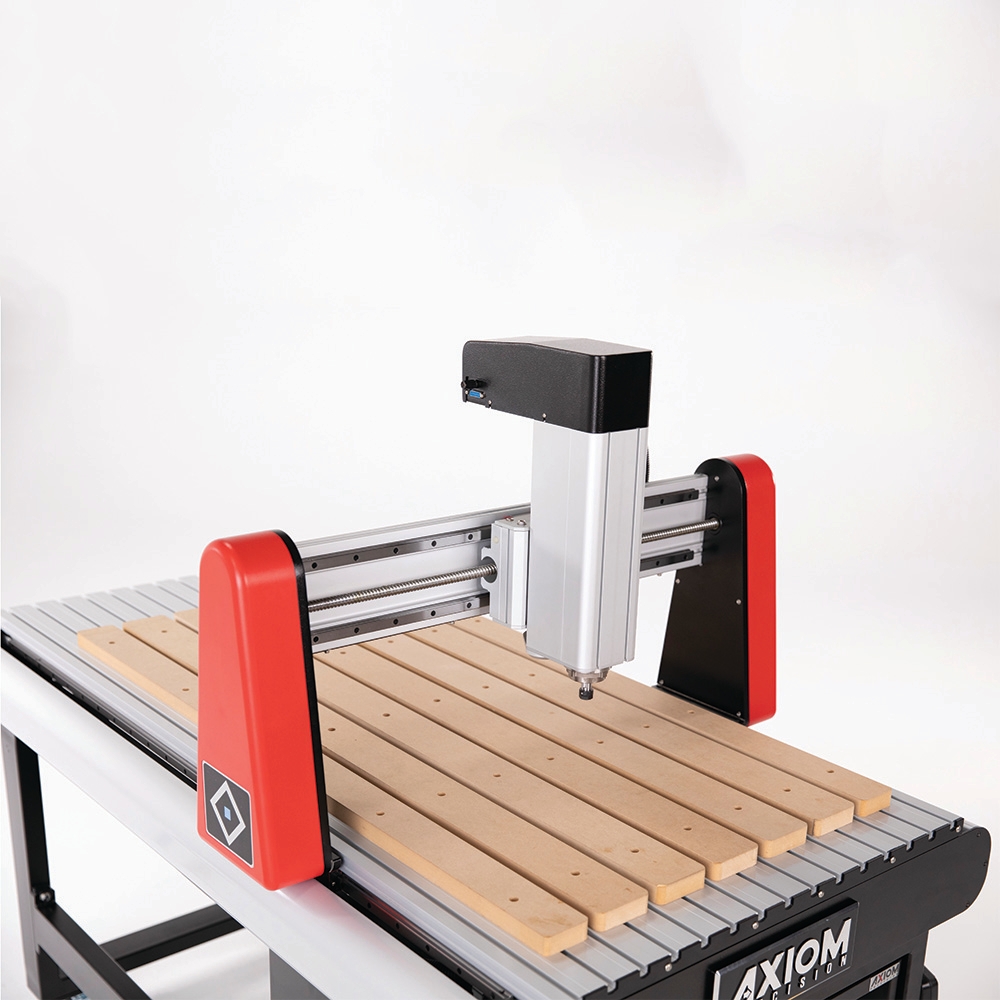

The Axiom Iconic CNCs redefine ''entry level'' with industrial-quality components and superior technology. Available in three sizes, the Iconic machines feature a 1.1HP electro-spindle, prismatic guides, ball screws, and the same powerful, yet easy-to-use DSP pendant controller used on the larger Axiom machines. Compact and cost-effective, they represent an ideal entry point to the world of CNC. Supported by a comprehensive manual, video library, lifetime technical support, and a full complement of available accessories, the Iconic series has the potential to dramatically shorten a new user's learning curve.

Features:

24'' x 48'' x 4'' working envelope (nominal)
USB port for easy file transfer (no PC required)

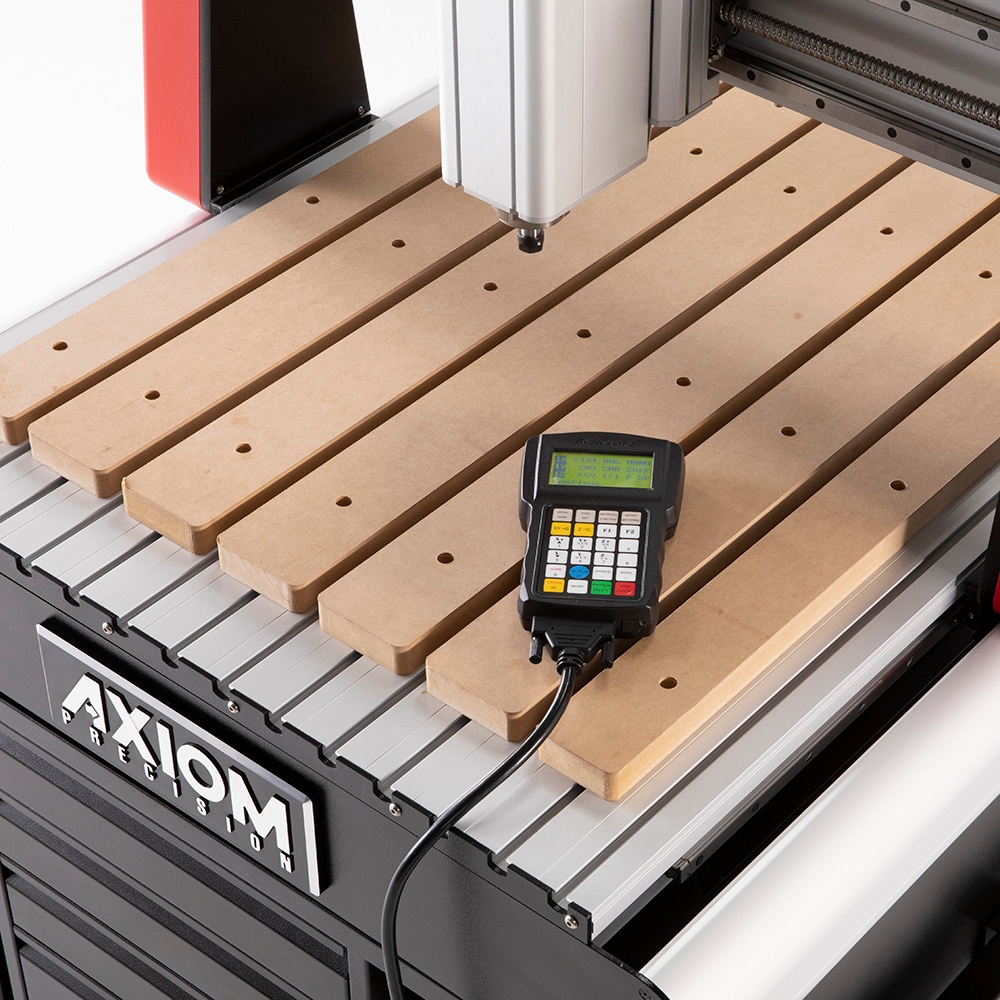

Pendant DSP included (no PC required)

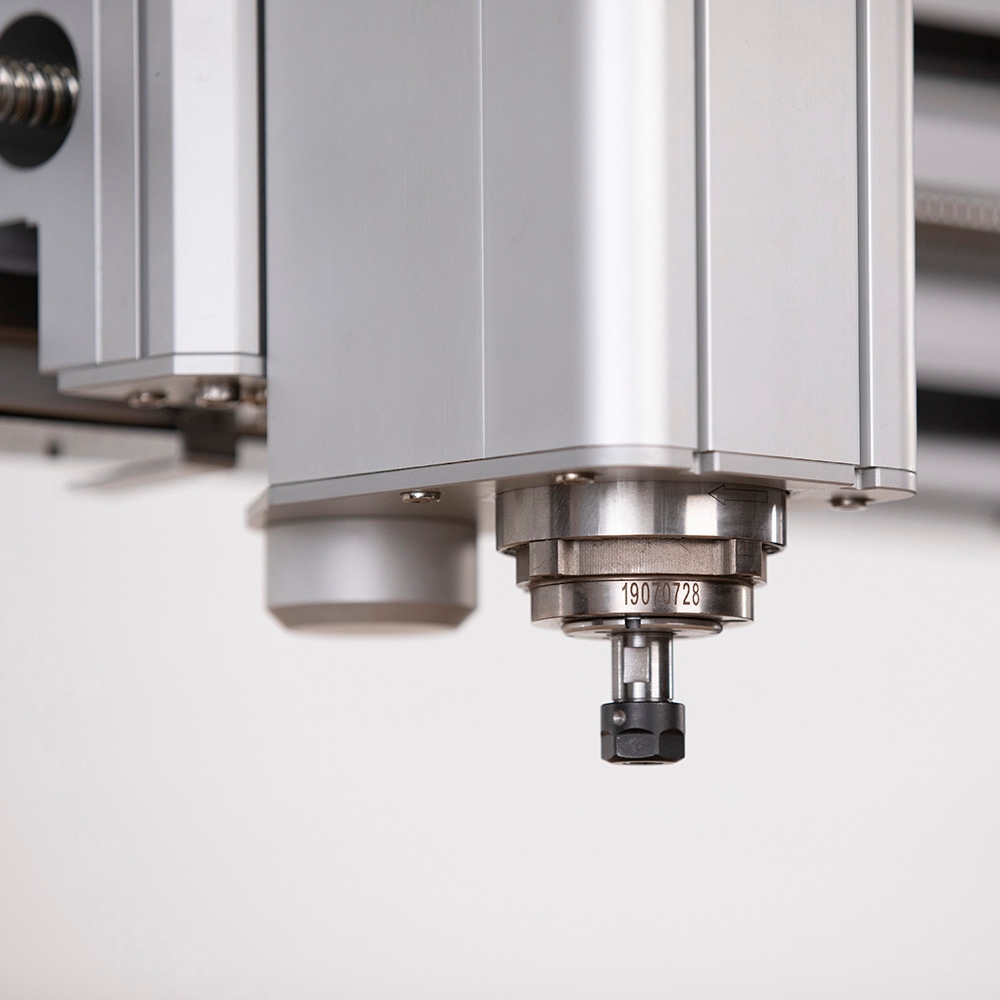

800W (1.1HP) electro spindle included
Sacrificial MDF spoilboard

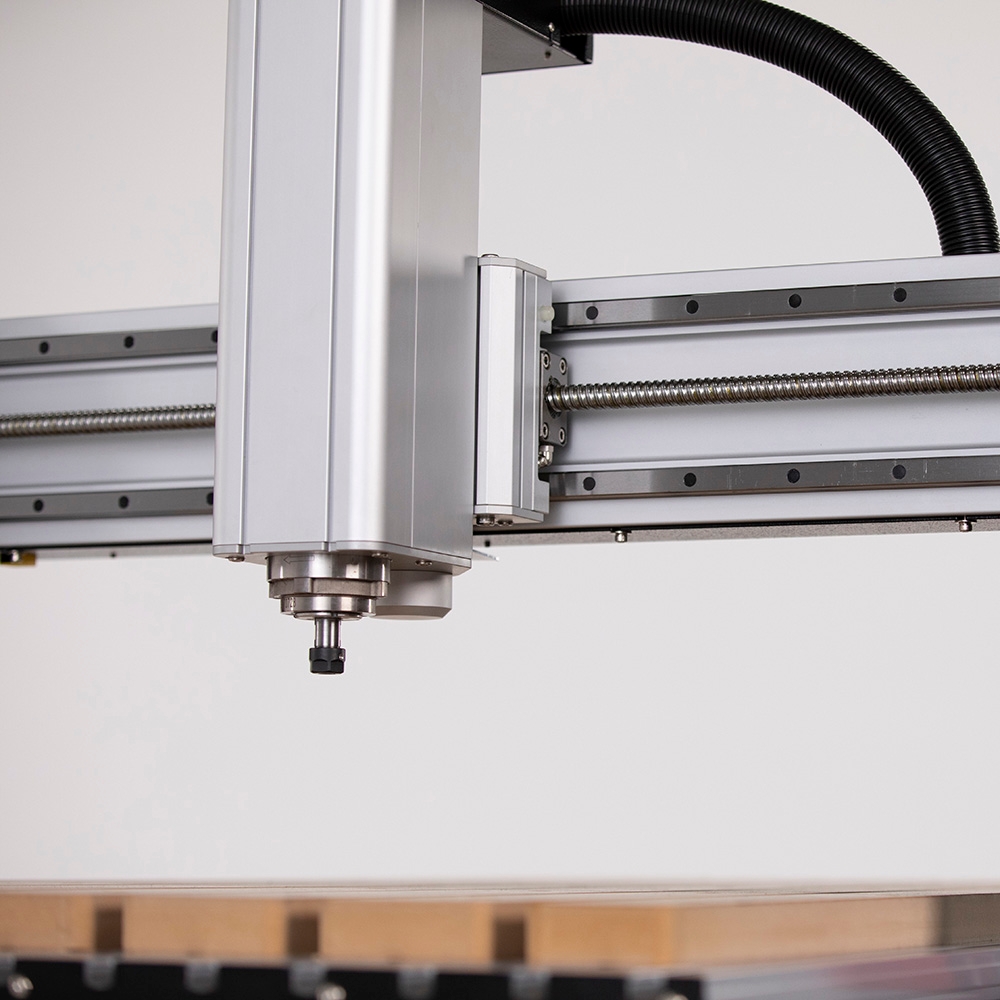

Ball screws in all axes

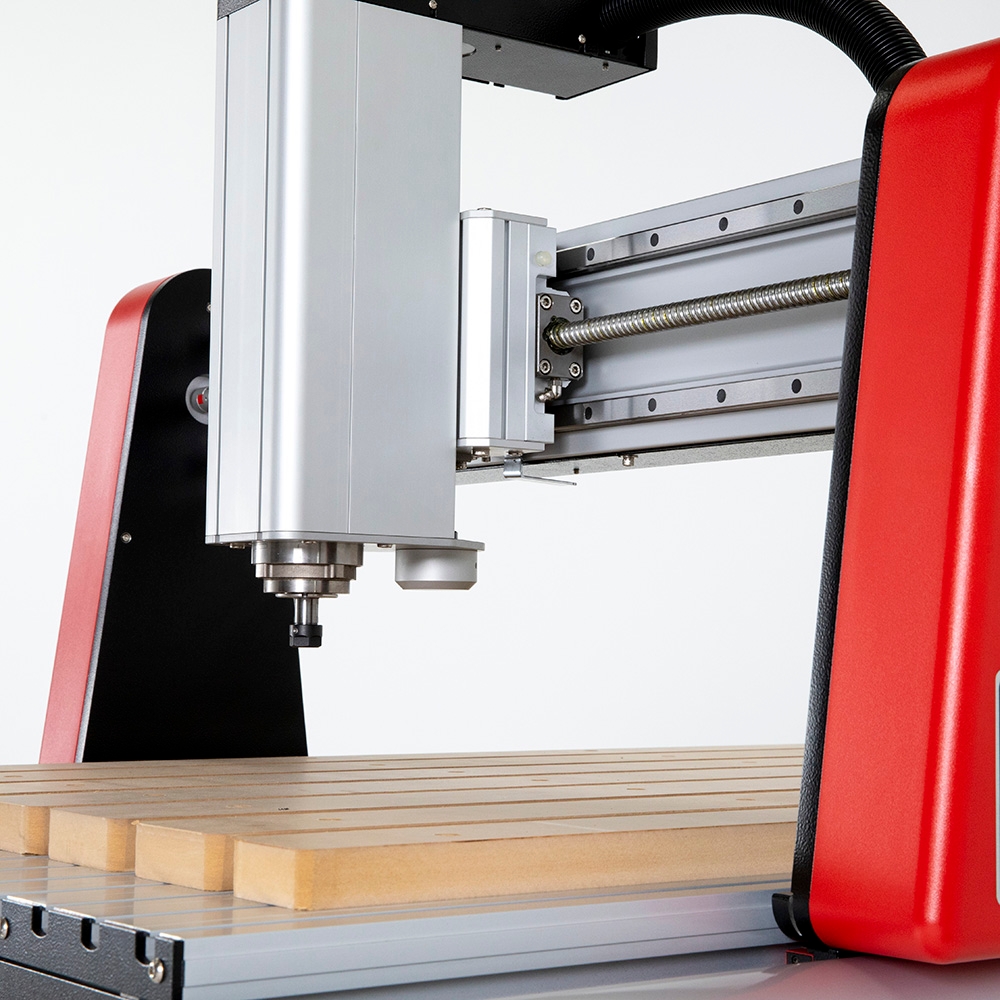

Prismatic guides in all axes
Magnetic proximity switches
Rigid steel frame
Robust extruded aluminum T-track table surface

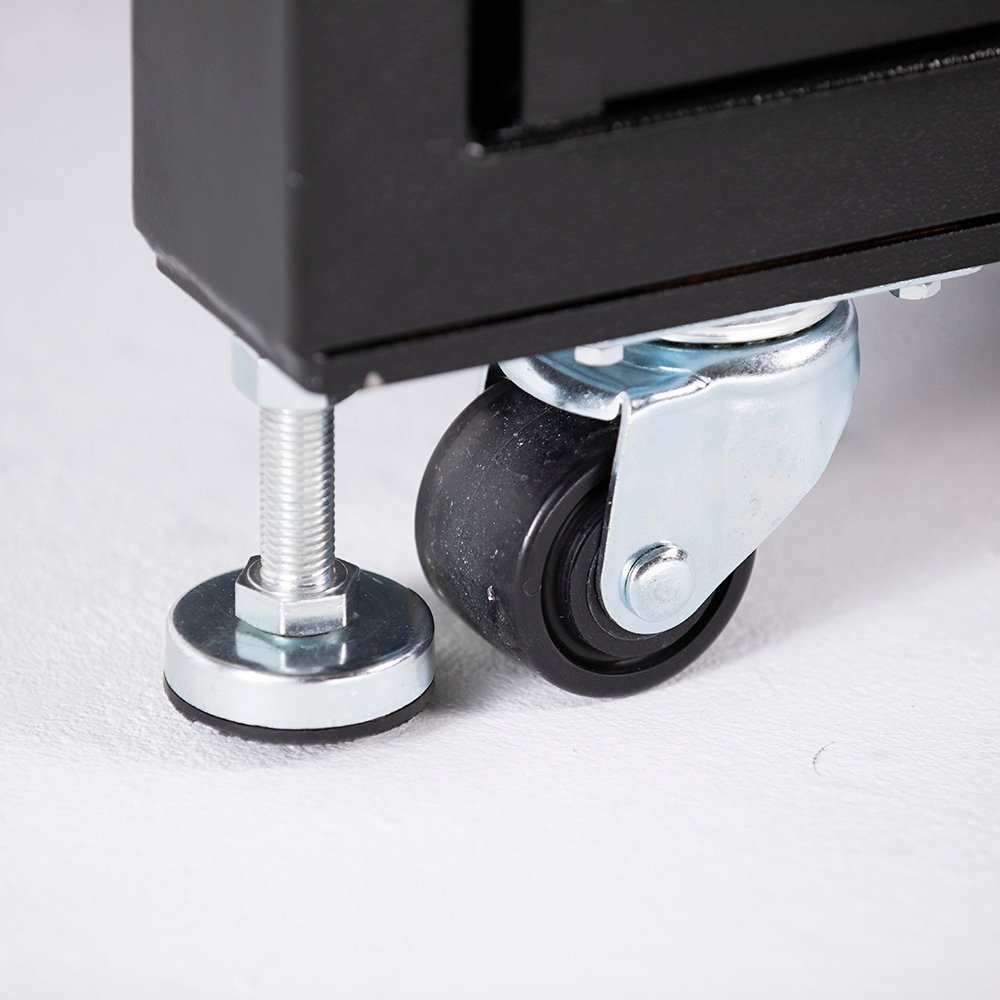

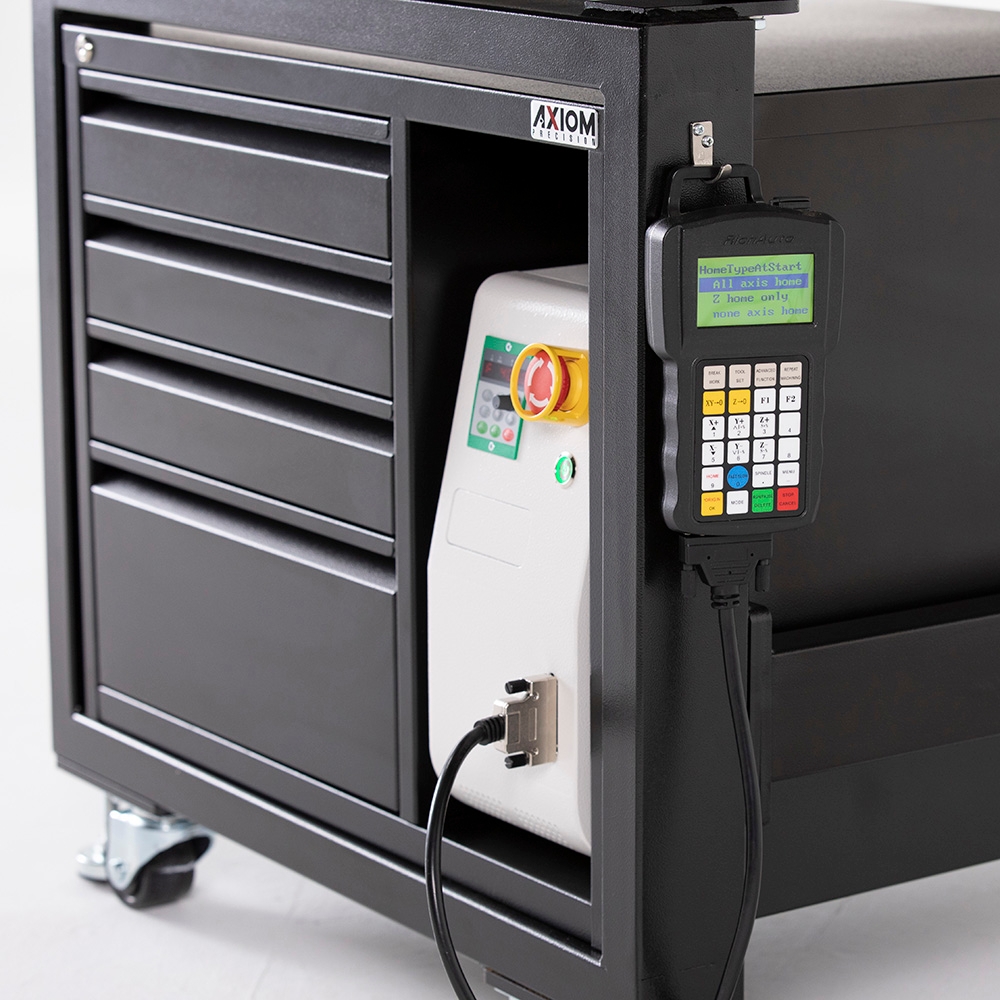

Optional stand and tool storage available
Lifetime technical support

Return Policy

More Information
Brand	Axiom
Manufacturer Part Number	ICONIC8
Weight	284.00
Tech Spec	X-Axis Travel: 23.81'' (605mm) Y-Axis Travel (Iconic-8): 47.63'' (1210mm) Z-Axis Travel: 3.937'' (100mm) Table Work Area (Iconic-8): 28.4'' X 61'' Electro Spindle: 800W (1HP) Includes Collets: 1/4'' and 1/8'' Spindle Speed: 0-24,000 RPM Rapid Feed Rate: 150 IPM (3.81 MPM) Precision Linear Guideway: X/Y/Z Precision Ball Screw: X/Y/Z Ball Screw Diameter: 16mm Positional Accuracy: +/- .00589'' (0.15mm) Power Requirements: 115V, 50~60Hz, 13A, 1-Phase Working Table: High Rigidity Aluminum Extrusion Gantry Bridge: High Rigidity Aluminum Extrusion Gantry Supports: Aluminum Billet Machined Max Gantry Clearance: 5 1/2'' (139.0mm) Gantry Clearance Above Spoil Boards: 4-1/2'' (114.3mm) Machine Base: All Welded Steel Frame Machine Dimensions (Iconic-8): 62''L X 35''W X 28''H Machine Weight (Iconic-8): 242 lbs Tool Touch Off: Included Controller: RichAuto B11 DSP
Important Message	Software is not included with the machine. We recommend the following software depending on your needs: Vetric VCarve Pro Software V10 (Item #58150), Vetric VCarve Desktop Software V10 (Item# 57318), Vetric Aspire V10 (Item# 59990), Vetric Photo VCarve Software (Item# 54822 )
Unit of Measure	Each

With the Rockler Protection Plan, you'll get accidental damage coverage immediately upon purchase of your tool. Plus, we will extend the manufacturer's warranty for your choice of an additional 1 or 2 years. We'll take care of all parts and labor for any repairs, with no deductibles and no hassles. If your tool can not be repaired, we'll gladly replace it. Available in the US only. Click here to learn more. Standard Manufacturer's Warranty: 12 months

With the Rockler Protection Plan, you'll get accidental damage coverage immediately upon purchase of your tool. Plus, we will extend the manufacturer's warranty for your choice of an additional 1 or 2 years. We'll take care of all parts and labor for any repairs, with no deductibles and no hassles. If your tool can not be repaired, we'll gladly replace it. Available in the US only. Click here to learn more. Standard Manufacturer's Warranty: 12 months

Axiom Iconic 8 CNC Router

Customer Service

Company

Promos & Specials

Contact Us

Axiom Iconic 8 CNC Router

Product Details

What's Included (1) Axiom Iconic 8 CNC Router(1) Tool touch-off device(1) DSP pendant controller(1) Electro spindle(1) Owner's manual

Specifications Brand Axiom

Shipping & Returns Must be shipped within 48 Contiguous United States.20% restocking fee on all returned merchandise.Please call customer service before returning product.
