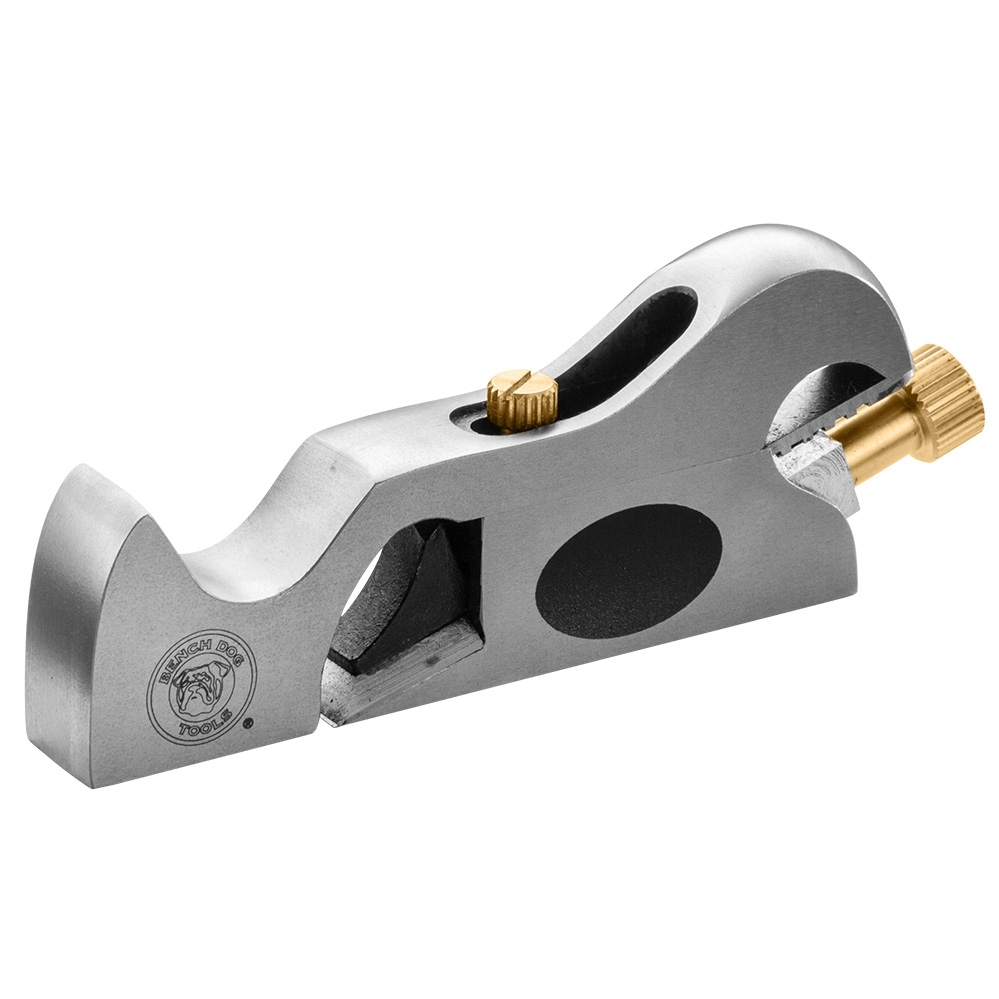

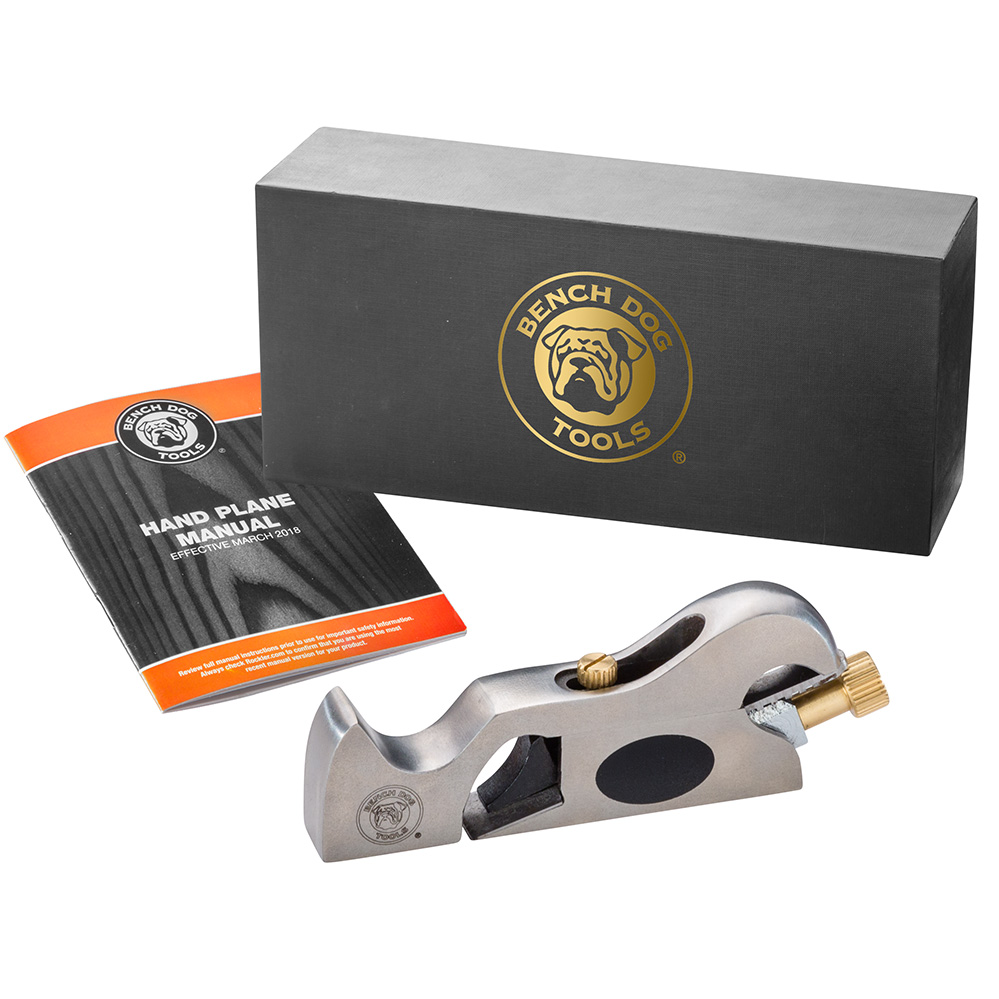

For fine-tuning tenons and cleaning up corners, rabbets and other joinery elements, the Bench Dog No. 92 Shoulder Plane is a shoe-in. The mouth of the plane is adjustable by sliding the upper section forward and back for fine or coarse shavings. In addition, the entire upper section can be removed for conversion to a chisel plane—great for nicking glue out of stile and rail corners. The 3/4'' blade is a hair wider than the full width of the plane body, ensuring clean, sharp corners without leaving a ridge. Like our other Bench Dog planes, both the sole of the plane and the back of the blade are precision ground and polished flat. The sides are machined square with the sole. Each plane includes a storage case and Certificate of Inspection with measurements specific to your plane for sole flatness and blade hardness.
Features:

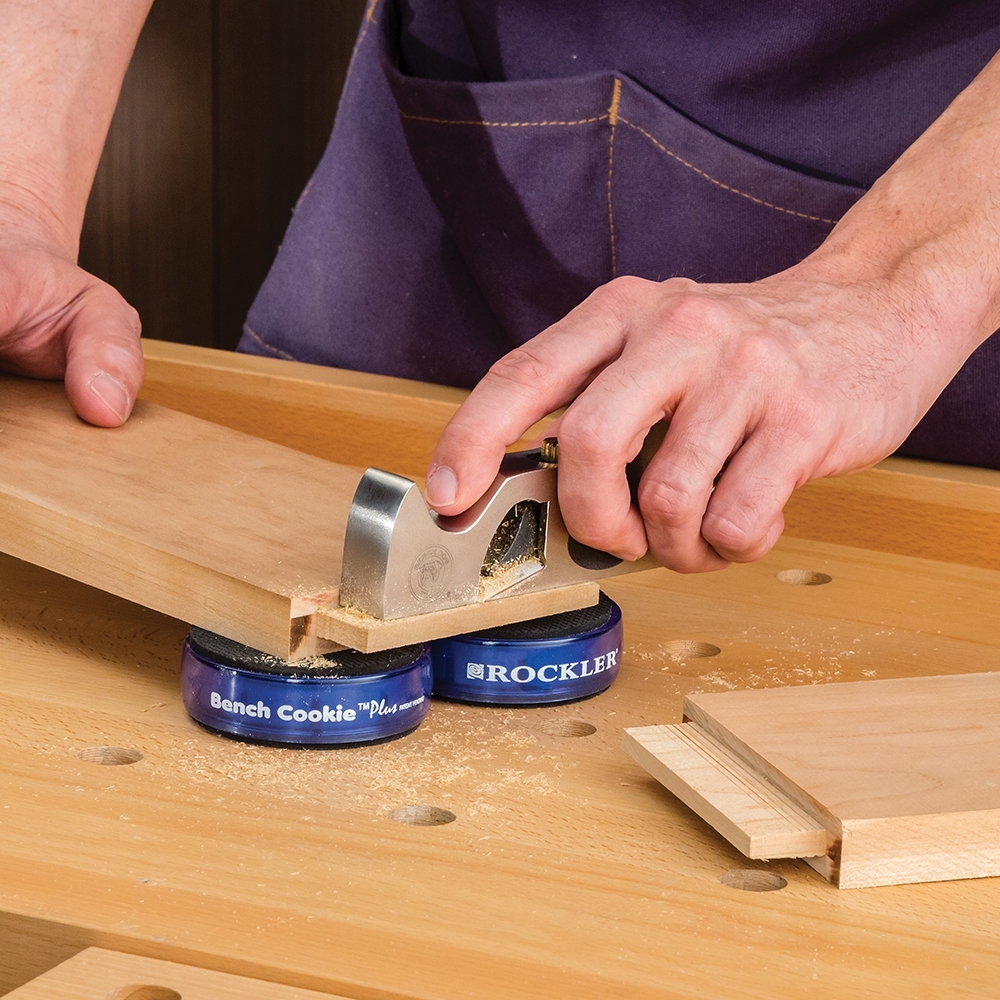

Ideal for trimming tenon shoulders and rabbets, and performing other precision work
Mouth is adjustable by sliding the upper section forward and back
Upper/front section can be removed for conversion to a chisel plane and easy access to corners
Setscrew in front section retains the mouth setting when reattaching the nose piece
Depth of cut is microadjustable with the precision brass knob
Finger recesses along the sides ensure a comfortable grip
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
