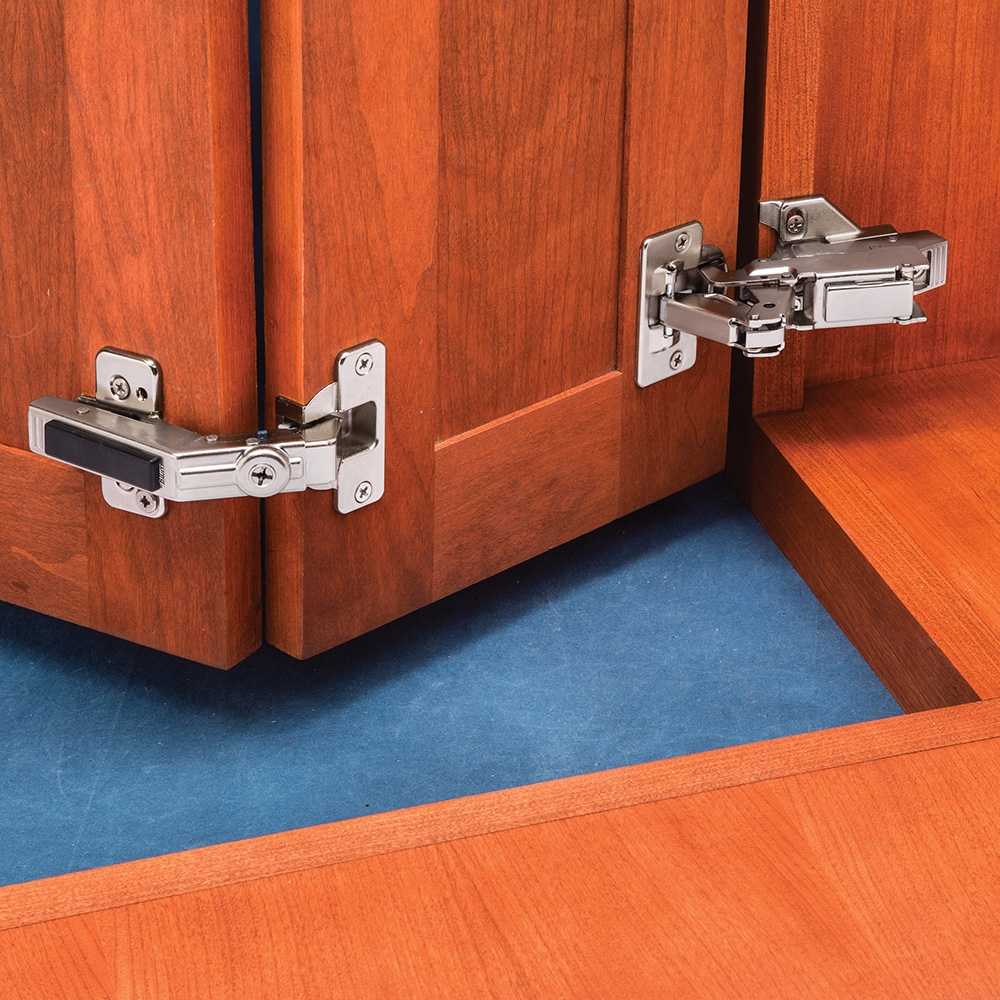

Installing doors on a corner cabinet—and choosing the hinges for it—can be confusing with all the compatibility variables. That's why we've made it easier by bundling together these corner cabinet hinge kits. Just select your desired overlay from two groups: face frame or frameless. Each kit includes four hinges: two to attach the wings of your bi-fold door together, and two to attach the assembled bi-fold door to the cabinet. They are for a standard 90° corner, and are sometimes called pie-cut hinges because the cabinet would use a pie-cut lazy susan (as opposed to a full-round one). Opening action is two stage: the bi-fold hinges open to 60° to clear any obstructions like adjoining doors or a stove, then the cabinet hinges open to a full 170° to allow easy access to the corner.
Pie Corner Hinge Kit Features:
Snap close feature self-closes at the end of the door's travel—no need for catches
3-way adjustability for consistent reveals and perfect alignment
Clip-on mounting and demounting—remove and reinstall the doors in seconds without tools
About The Rockler Advantage:
In one convenient package, Rockler Advantage hinge kits include all the hardware needed to hang an average-sized cabinet door: the hinges themselves, the required mounting plates for clip-on installation, sleek cover caps for a streamlined look, all required screws, plus detailed instructions for mounting. This makes it easy to order, and easy to install, cutting out the time and expense of hunting it all down online or at the hardware store.
WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.

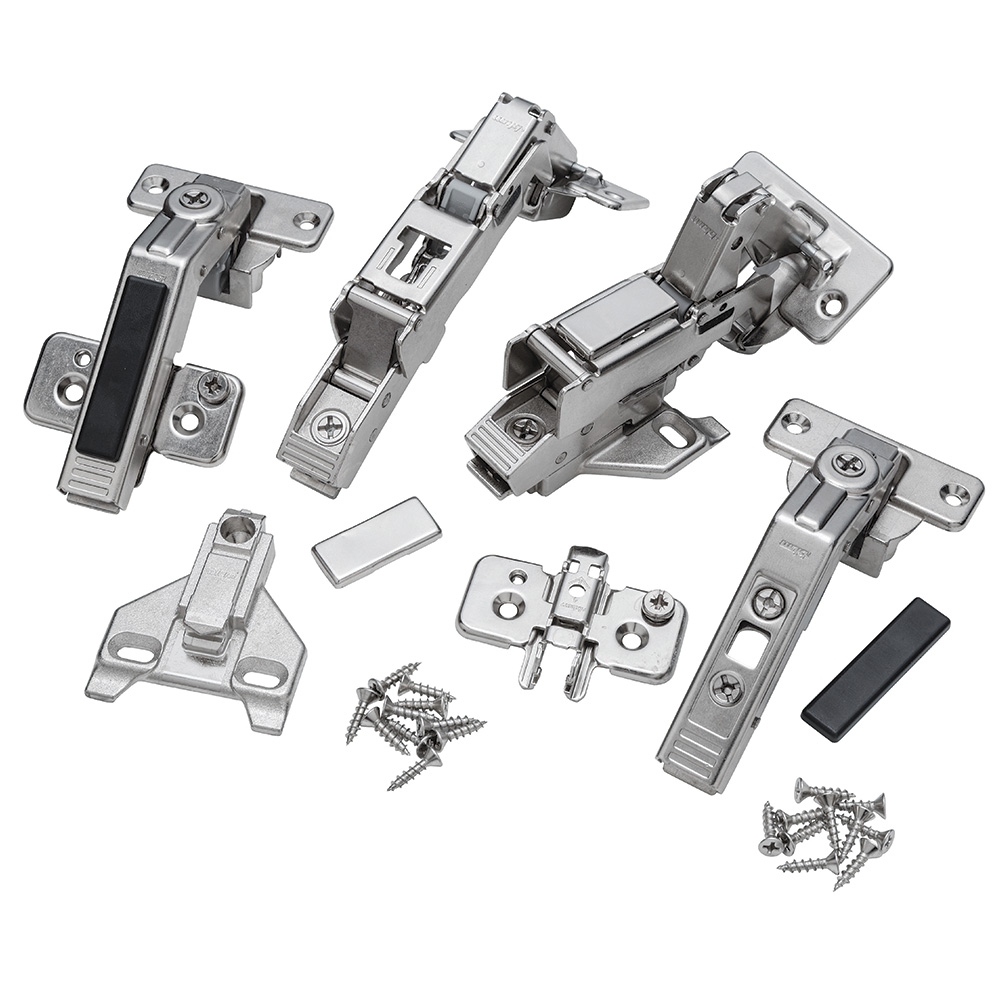

(1) Pair of Blum 170° Pie Corner Hinges (1) Pair of Blum 60° Bi-Fold Door Hinges (2) Pairs of ''clip-on'' mounting plates (1) Pair of sleek metal caps to cover 170° hinge arm adjustment screws (1) Pair of black caps to cover bi-fold hinge arm adjustment screws (2) Complete packs of mounting screws (1) Set of online installation instructions (see link)
(1) Pair of Blum 170° Pie Corner Hinges (1) Pair of Blum 60° Bi-Fold Door Hinges (2) Pairs of ''clip-on'' mounting plates (1) Pair of sleek metal caps to cover 170° hinge arm adjustment screws (1) Pair of black caps to cover bi-fold hinge arm adjustment screws (2) Complete packs of mounting screws (1) Set of online installation instructions (see link)
Brand Blum
More Information
Brand
Blum
Manufacturer Part Number
HNG PIECT CNRKT 1/2
Weight
1.50
Tech Spec
Cabinet Type: Face Frame or Frameless
Opening Angle: 170°
Overlay: Choose from Face Frame with 1/2'' or 5/8'', and Frameless with Full, Half or Inset
Movement: Snap Close
Finish: Nickel
Tab: 5mm
Cup Diameter: 35mm
Cup Depth: 11.7mm
Min. Door Thickness: 16mm
Max. Door Thickness: 24mm
Adjustments: Face Frame are 2-cam, 1-slot; Frameless are 3-way cam
Gap: 1mm
Demountable: With clip
Min. Reveal: 0mm
Hinge Type: Euro hinge, European hinge, concealed hinge
