Unique interlocking design of this stacked dado prevents blade teeth from contacting each other when assembled and used—sets up easily to cut wood, plywood and composites cleanly.
When typical dado blades are stacked on a saw arbor, there's nothing to prevent the teeth of one blade from inadvertently touching the teeth of the next blade. That can lead to inaccurate blade width settings and even damage the teeth when the arbor nut is tightened. The unique design of this Locked Pro Dado Blade Set solves that problem. Notches on the rims of the outer blades and chipper blades provide recesses for the sides of the teeth on adjacent blades, so the teeth can't touch and the blades fit together flush. It also automatically staggers the arrangement of the blade teeth in the stack.
Additionally, three included lock spacers have raised patterns on their faces that fit into matching cutouts in the bodies of the outer and chipper blades. When the lock spacers are used, they offset the position of the chipper teeth from one chipper to the next or between chippers and outer blades. Once properly loaded and tightened, all the blade components in the stack lock together to prevent shifting during cutting.

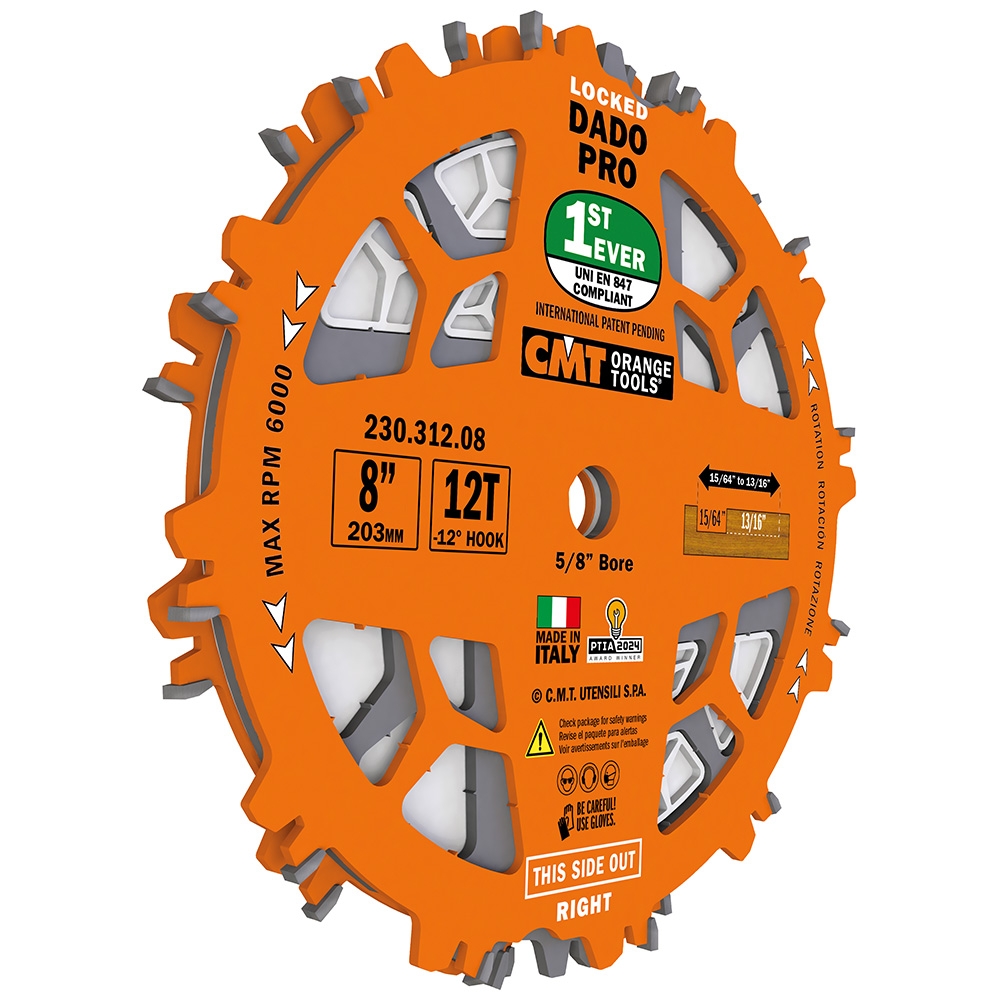

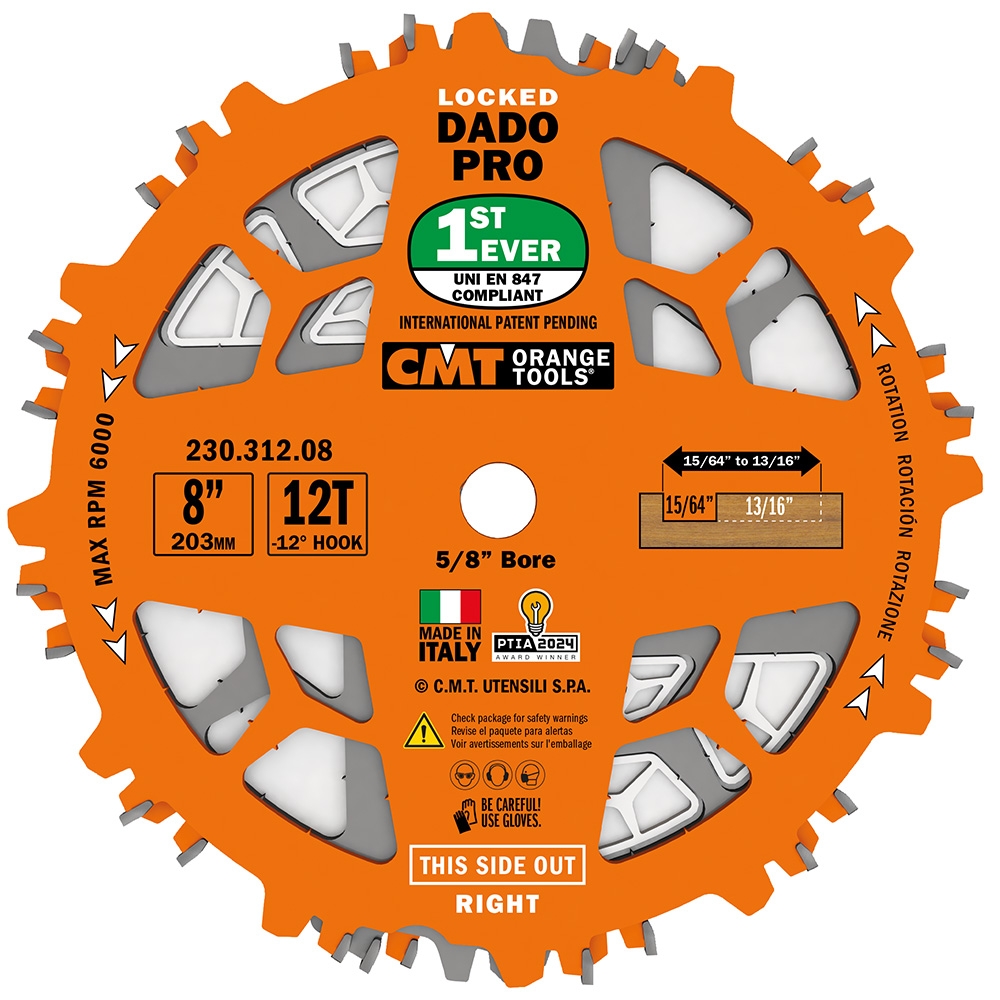

CMT 8'' Locked Dado Pro Blade Set Details:

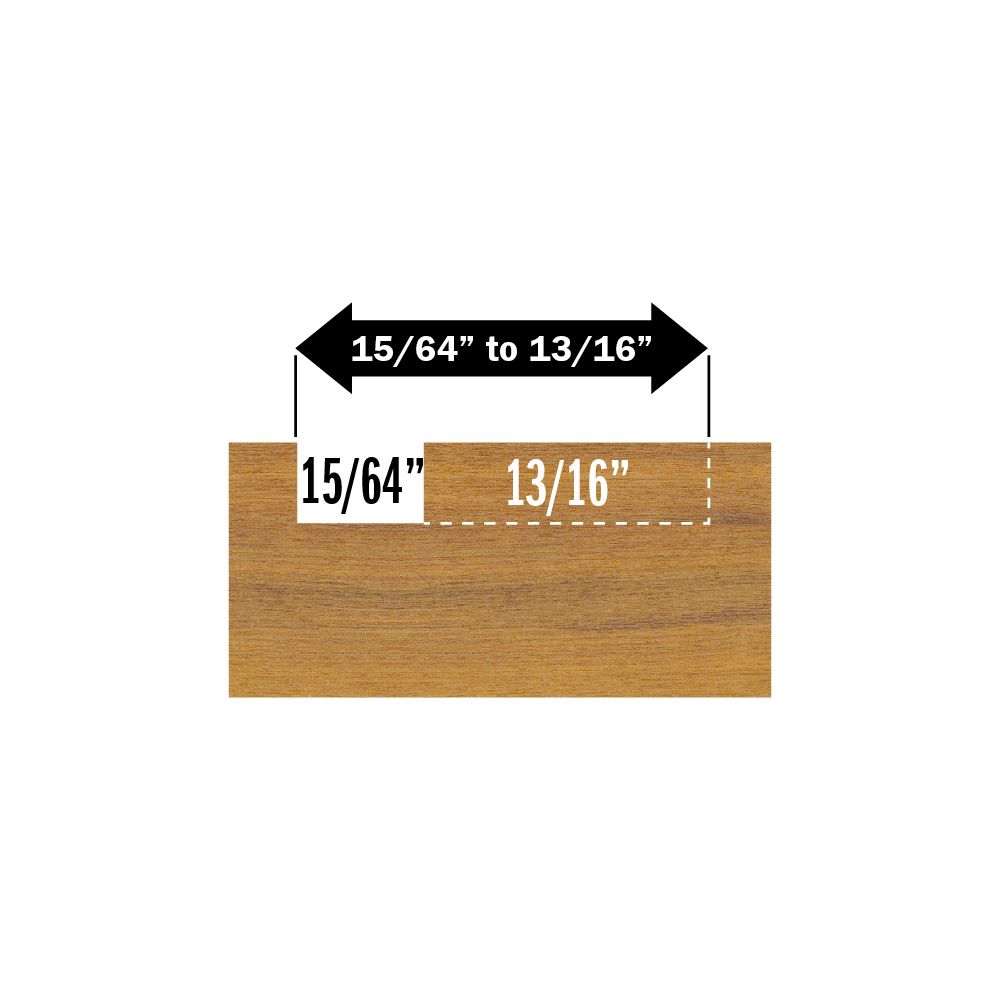

Cuts up to 19 different widths of dados and grooves ranging from 15/64'' to 13/16'' wide
Interlocking design automatically offsets blade teeth to prevent stacking errors and accidental tooth contact
Use the included spacers and shims to stack the blade to the precise cutting width you need

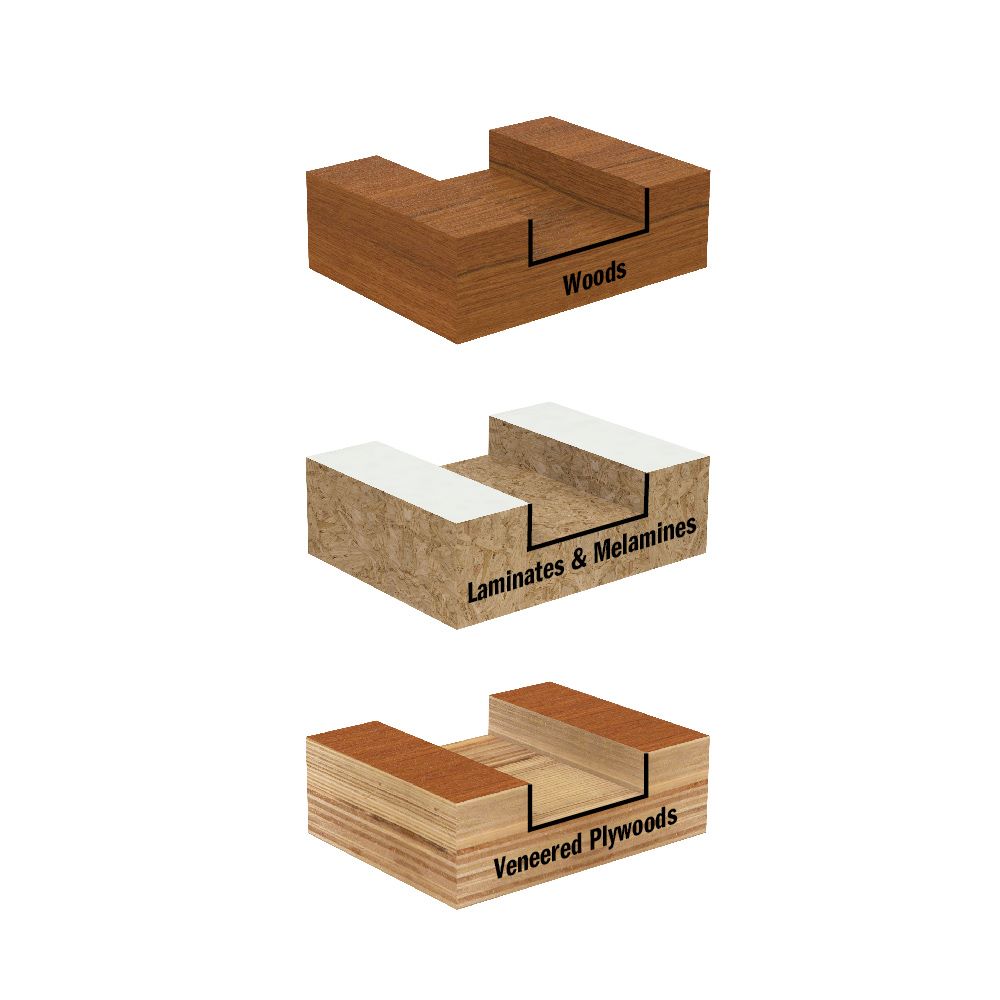

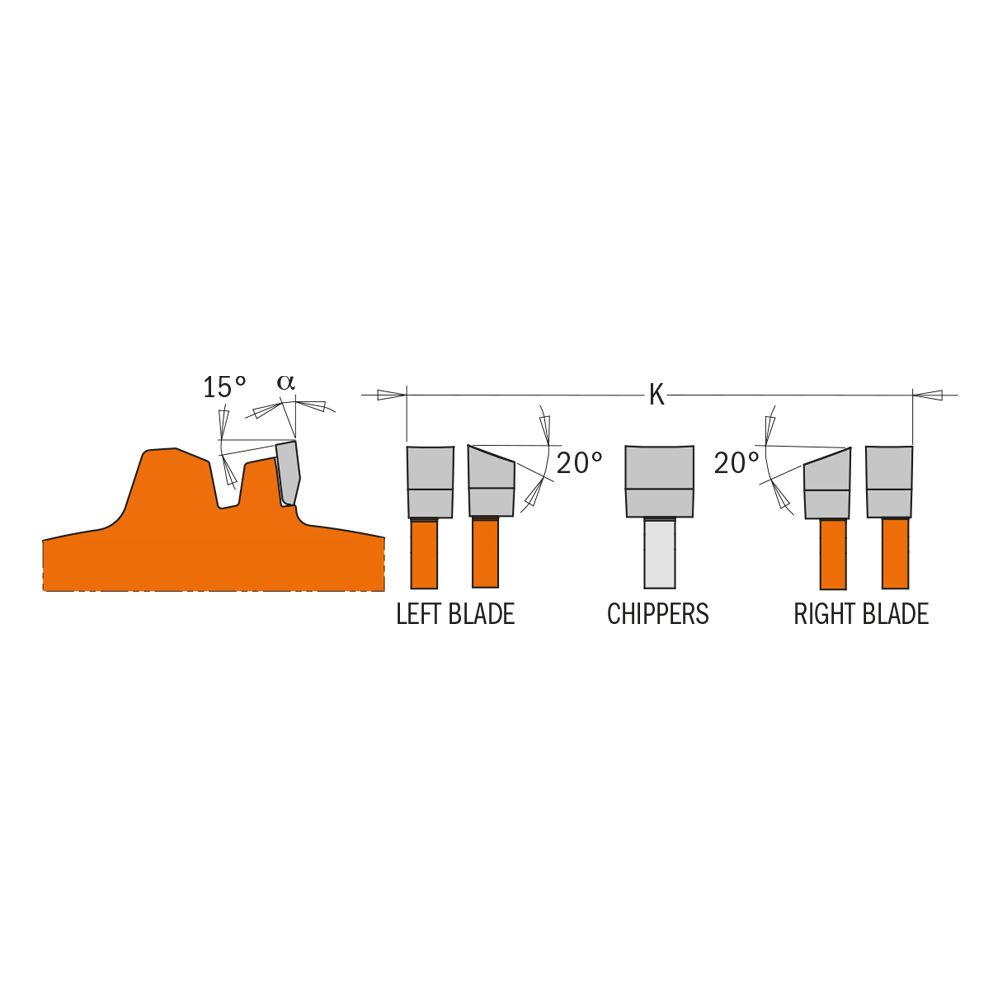

-12° hook angle is ideal for cutting solid wood, laminates, melamine and veneered plywood
Precision-machined to create crisp, flat-bottomed cuts

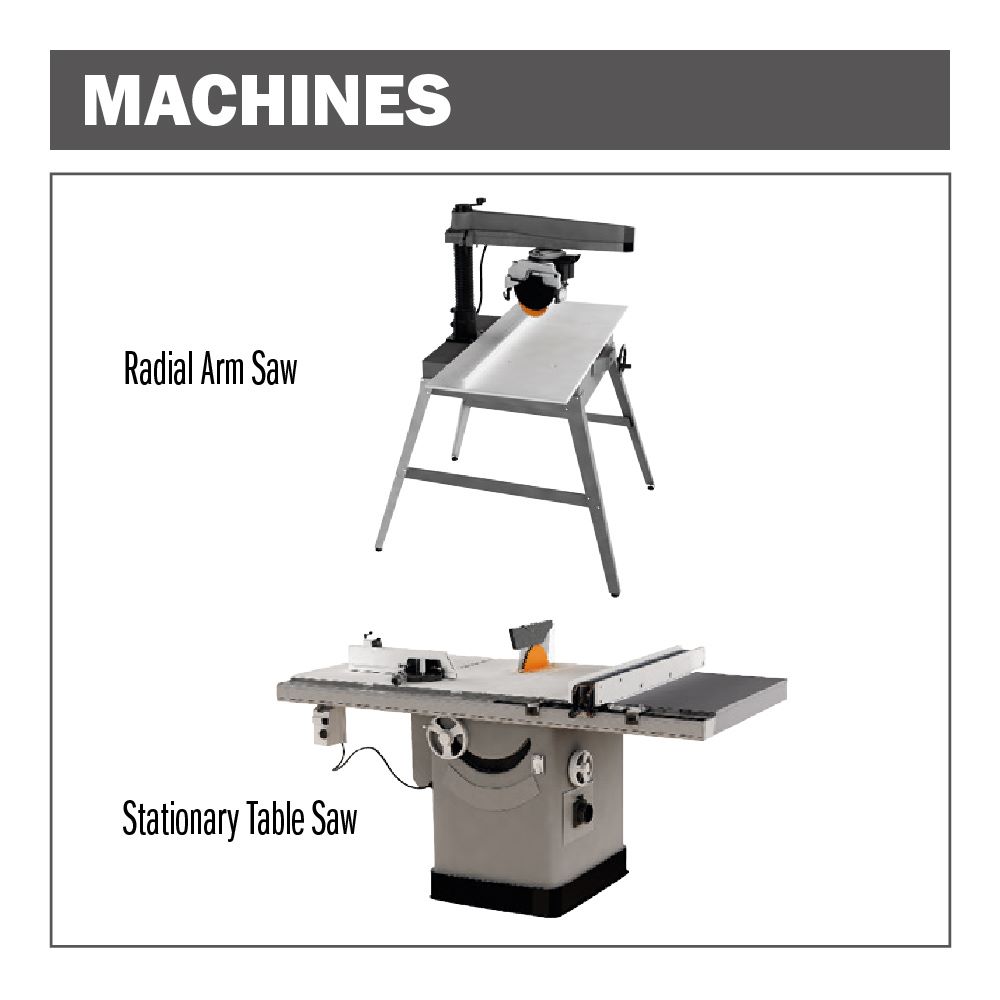

Works on 10'' table saws and radial arm saws approved for dado blade use
Orange shield coating protects from heat build-up, gumming and corrosion

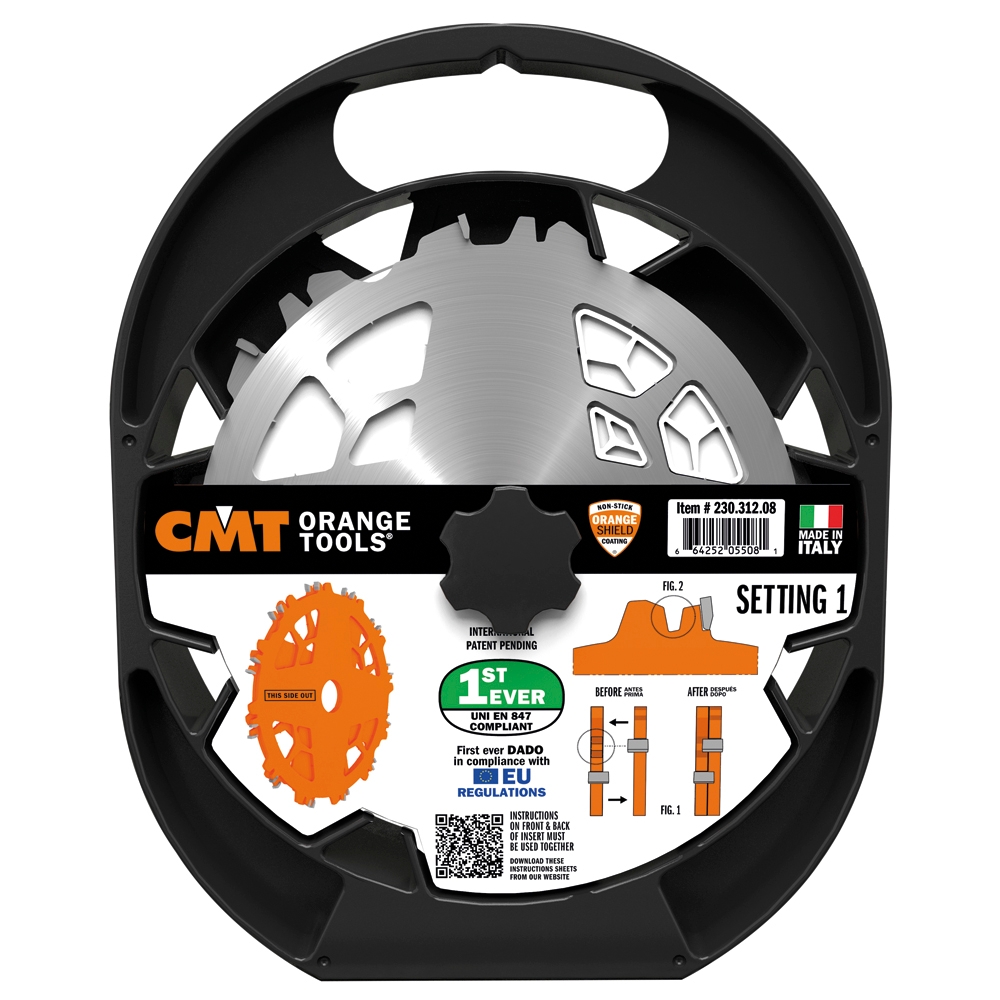

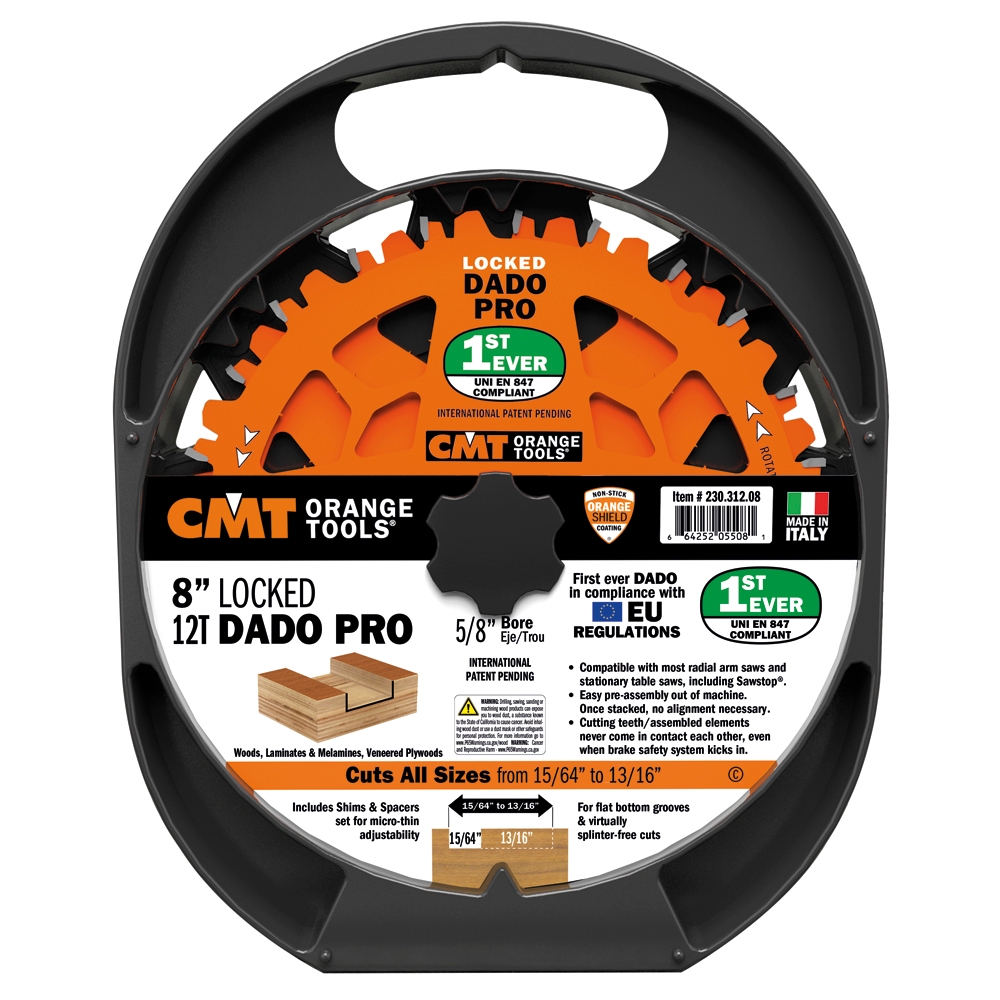

Durable plastic storage case protects teeth and keeps components organized
Complies with UNI EN 847 regulations
WARNING:
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood
