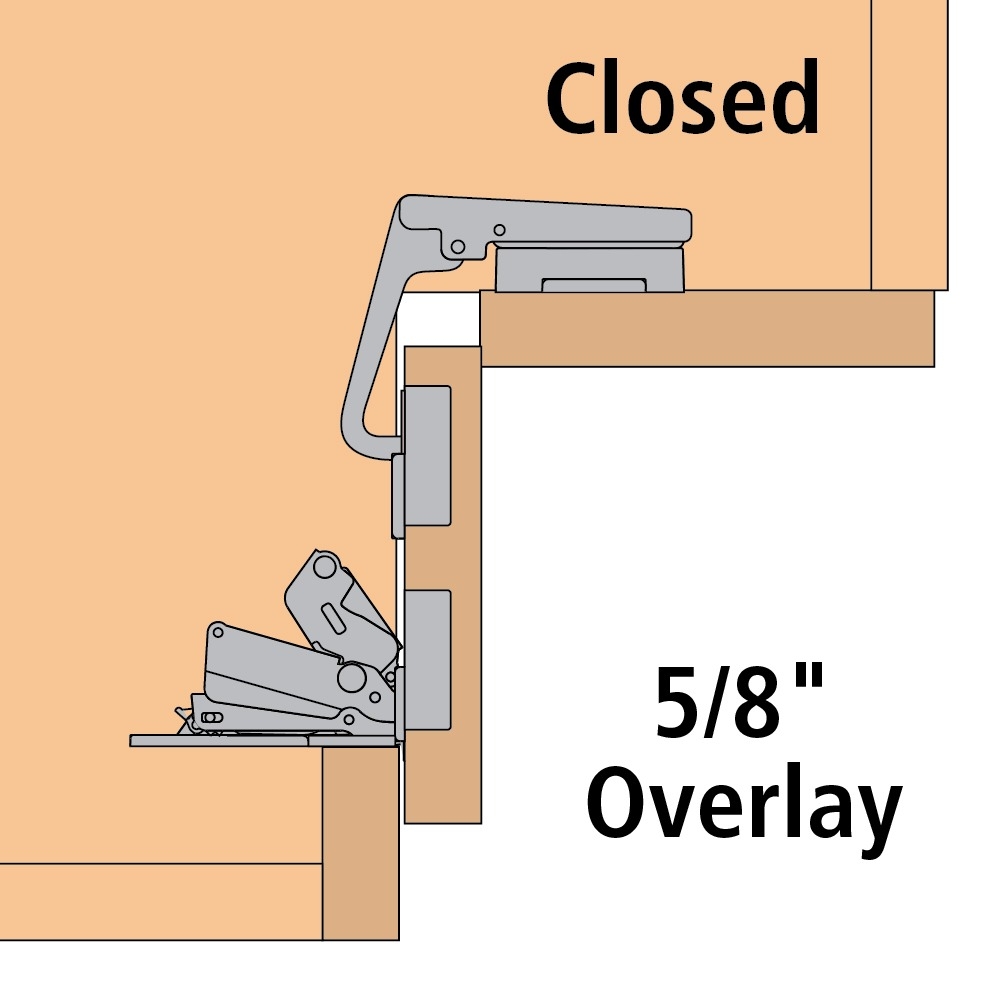

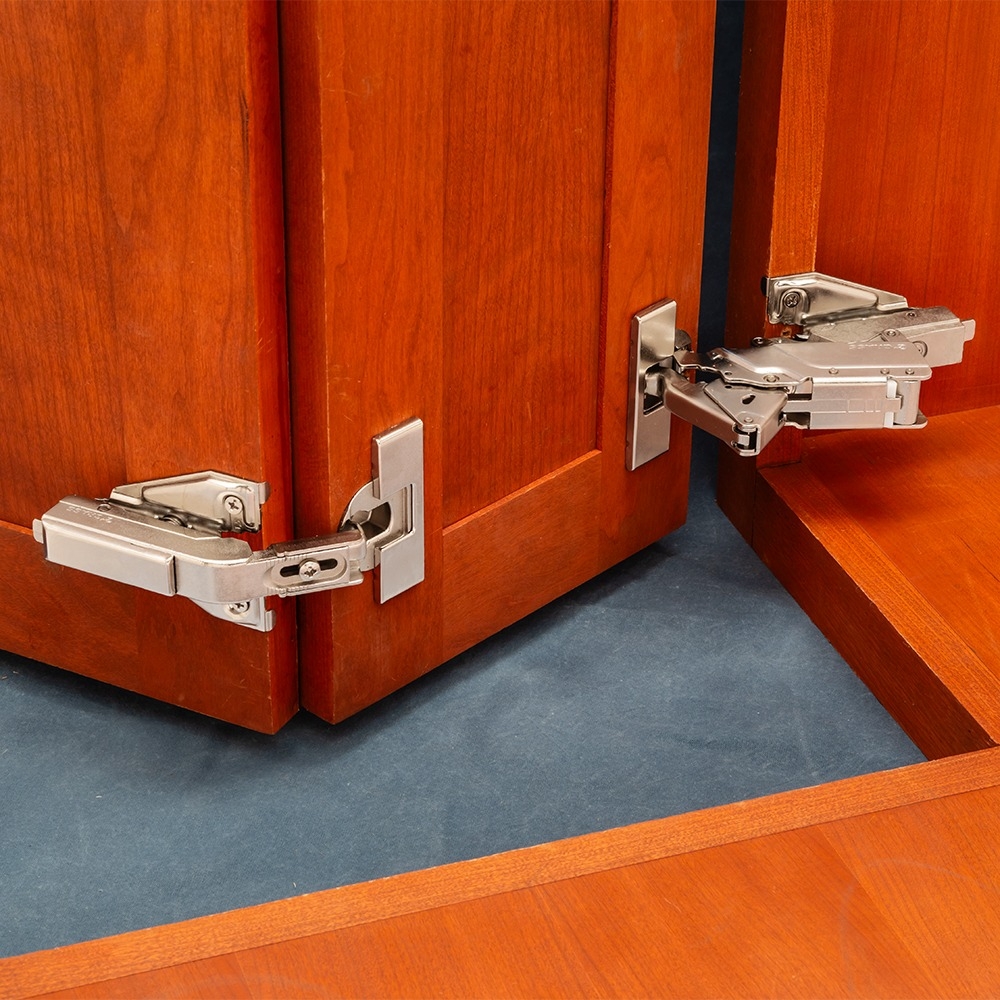

Designed for face frame corner cabinets that require folding doors, this Grass Tiomos Pie Cut Corner Hinge Kit includes four soft-close hinges: two to attach the wings of your bi-fold door together and two to attach the assembled bi-fold door to the cabinet. They are for a standard 90° corner and are sometimes called pie-cut hinges because the cabinet would use a pie-cut lazy Susan (as opposed to a full-round one).

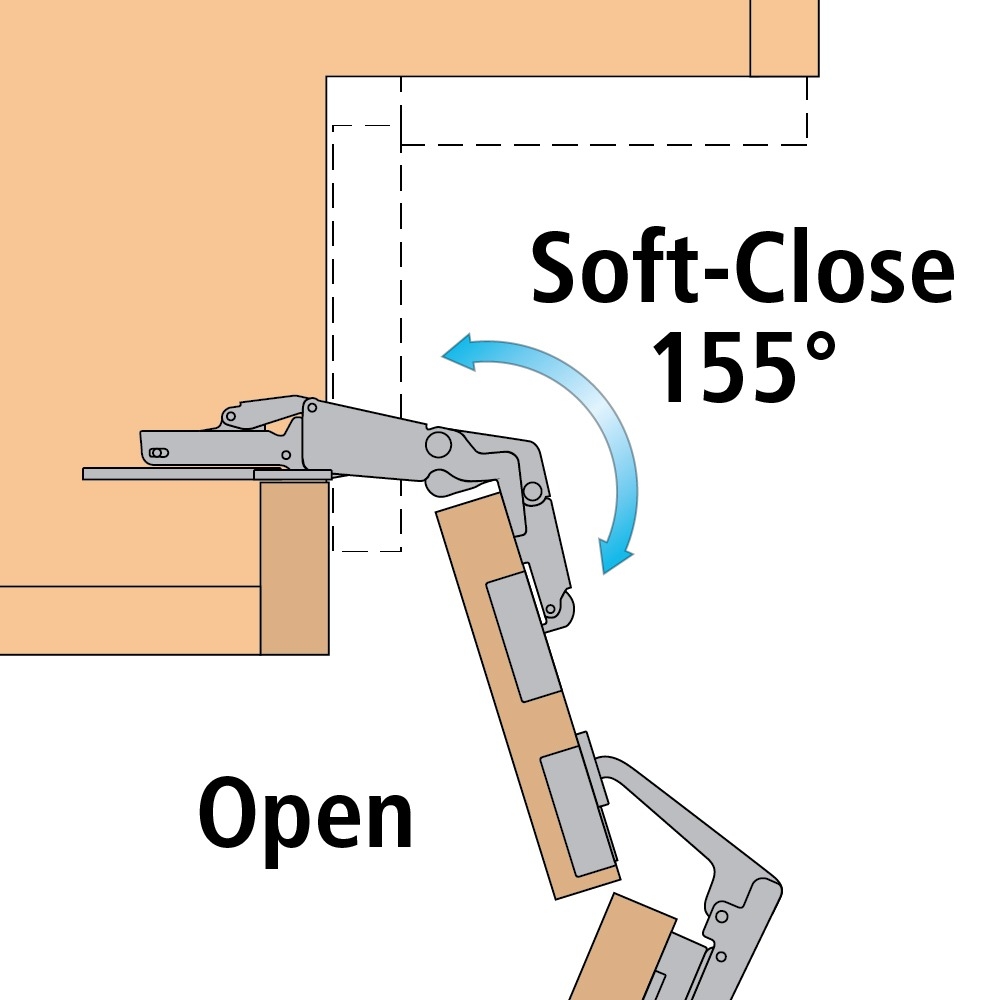

Tiomos hinges provide an elegant, versatile mounting solution for cabinet doors of any size, weight or material. They feature an integrated adjustable soft-close mechanism and can be fine-tuned in three dimensions—left/right, up/down and in/out. Adjusting the amount of soft-close tension is as easy as flipping a lever. It is set to medium at the factory, which is ideal for most cabinet doors. Flip to the strong setting to counteract the weight of heavy doors, or choose the light setting for closing smaller, lightweight doors.
We recommend using our JIG IT Deluxe Concealed Hinge Drilling System and 35mm Long-Shank Forstner Bit (#53420 and #10117, both sold separately), plus JIG IT Hinge Plate Template B (#57706, sold separately) to install these hinges accurately and easily.
Full Kit Grass Tiomos Soft-Close Hinges (Pair) for Face Frame, Pie Cut Corner Hinge, 155°, Details:
- Bi-fold door hinge system designed for face frame corner cabinets
- Adjustable three-tier soft-close mechanism is entirely concealed within the hinge arm
- Continuous, smooth closing action regardless of the door size, weight, or materials
- Soft-close mechanism can be adjusted easily and without tools, even after doors are installed
- Three-way adjustability for consistent reveals and perfect alignment
- 30% larger clip on the mounting plate provides improved stability
- Included metal caps to cover hinge cup installation screws
- Corrosion-resistant coating
About The Rockler Advantage:

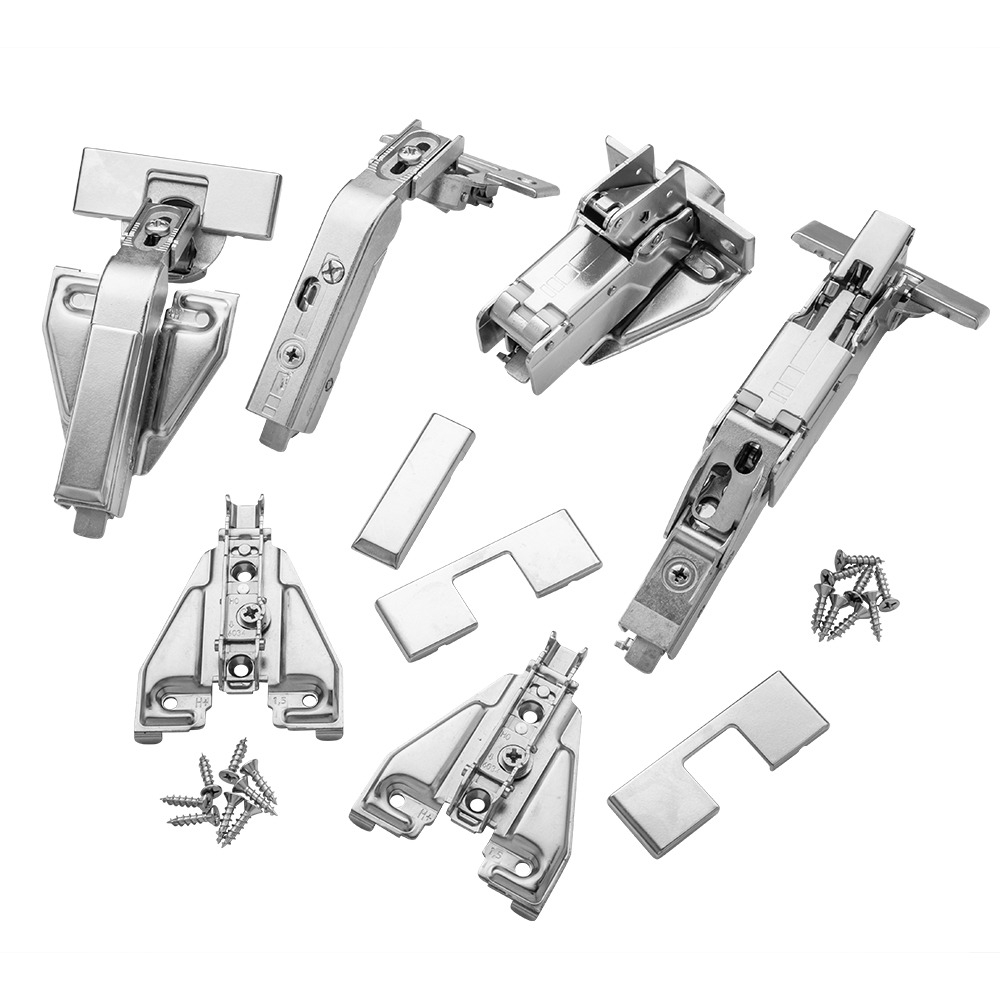

In one convenient package, Rockler Advantage hinge kits include all the hardware needed to hang an average-sized cabinet door: the hinges themselves, sleek cover caps for a streamlined look, all required screws, plus detailed instructions for mounting. This makes it easy to order and install, cutting out the time and expense of hunting it all down online or at the hardware store. Sold in pairs.
