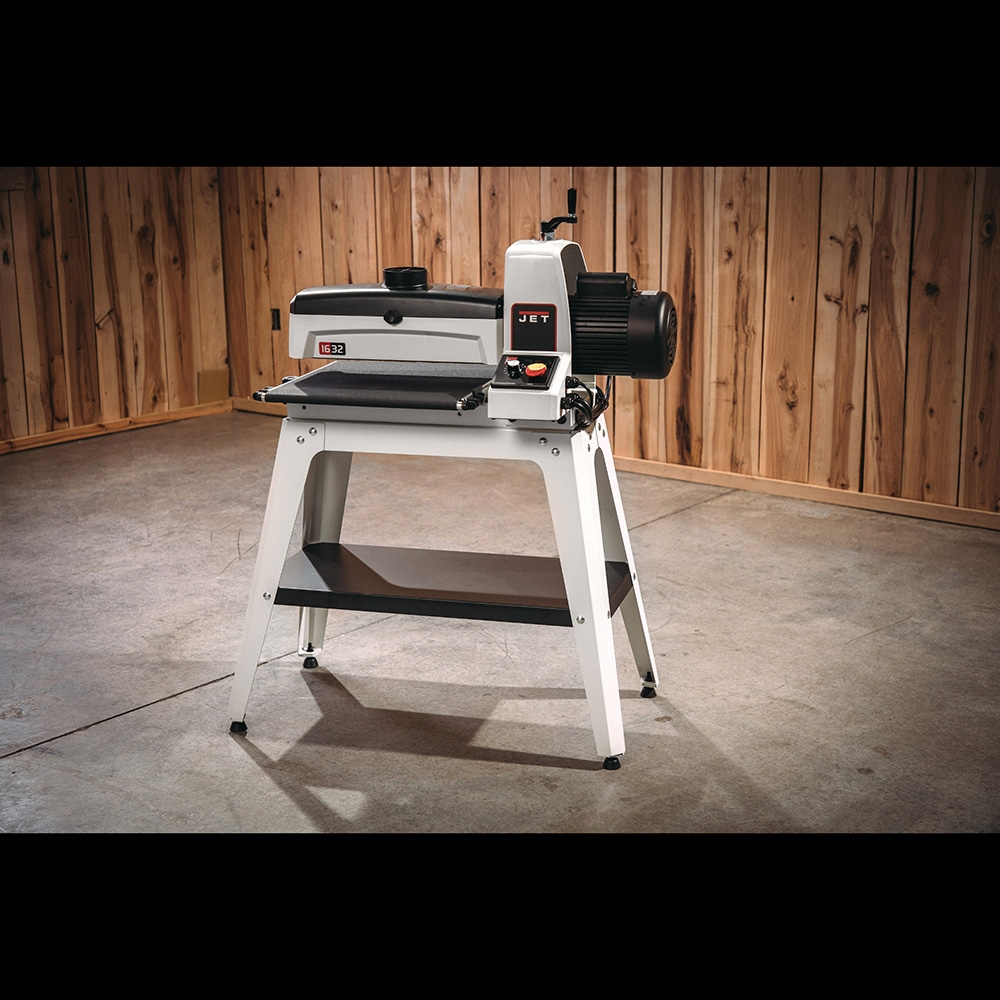

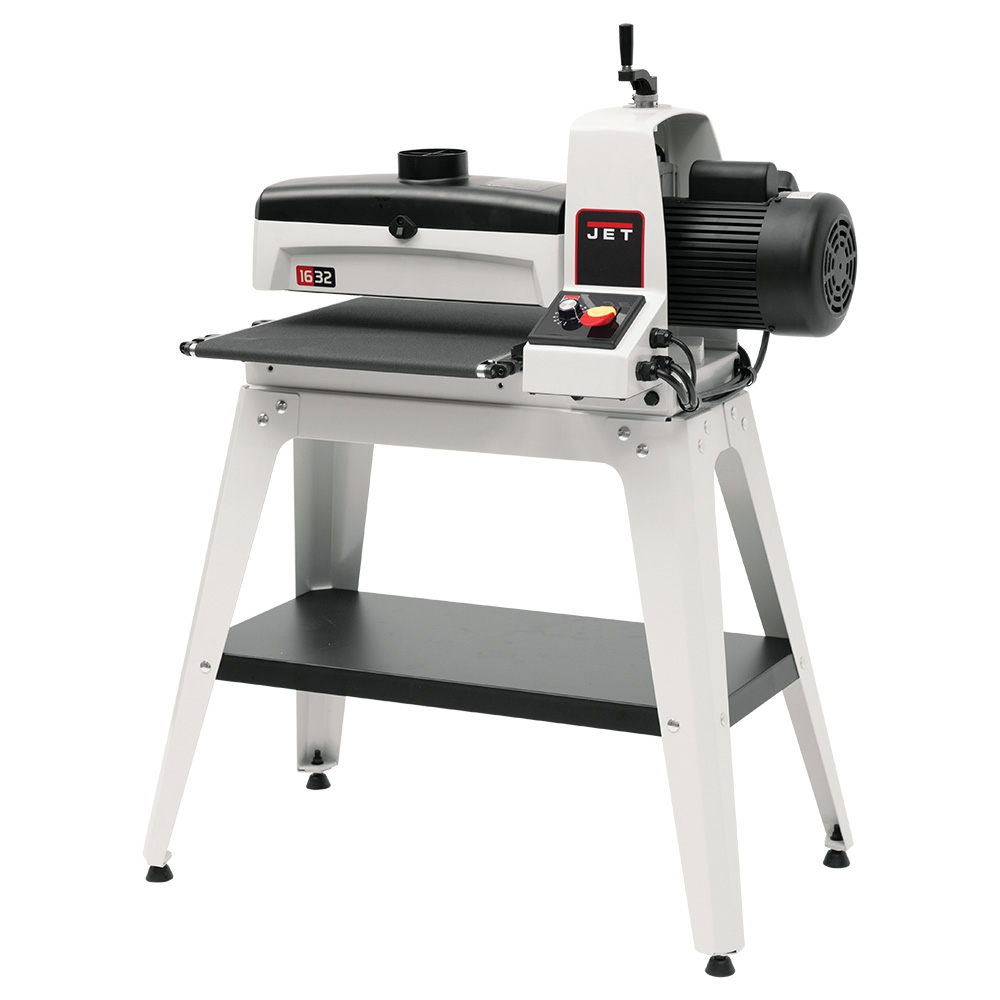

Jet Drum Sander JWDS-1632 with Stand
Sand smooth, perfectly flat panels in just a few easy passes with the Jet 1632 Drum Sander.
How do you want your item?
Jet Drum Sander JWDS-1632 with Stand
Or Buy These Together
Please select at least one addon to add it to the cart.
Addons Selected
$1,805.86
Total Price
Taxes estimated at checkout
$1,805.86
Product Details
Sand panels up to 32'' wide in just two easy passes with the Jet 16-32 Drum Sander. One pass will sand a panel up to 16'' wide. Simple tool-free knobs let you adjust the drum parallel to the table to eliminate crowning and unsightly lines in the middle of panels over 16'' wide. Variable-speed dial lets you choose the optimal feed rate for a wide range of projects and wood species. Sandsmart technology continuously monitors the load on the drum motor and adjusts the feed rate to prevent overload. The mirrored design of the dust hood optimizes dust flow. Try the Jet Drum Sander today to achieve effortless, professional-quality surfaces.

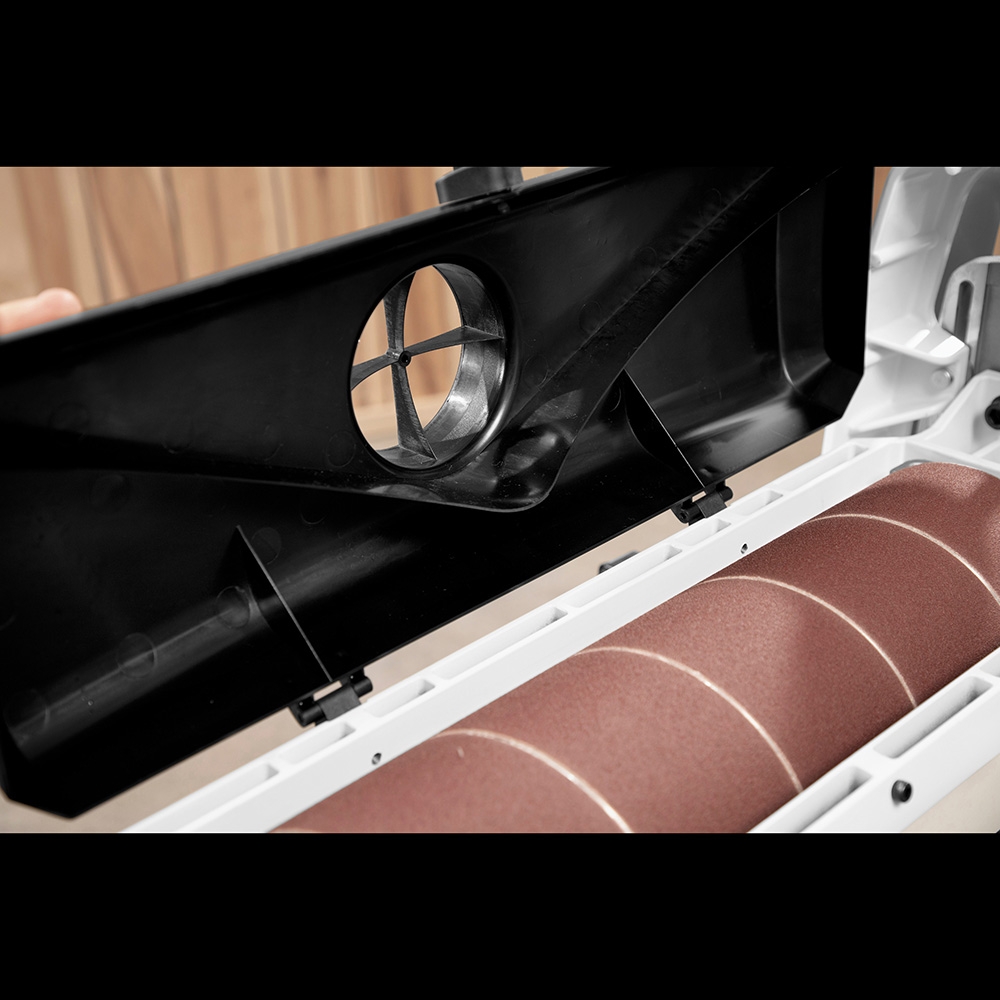

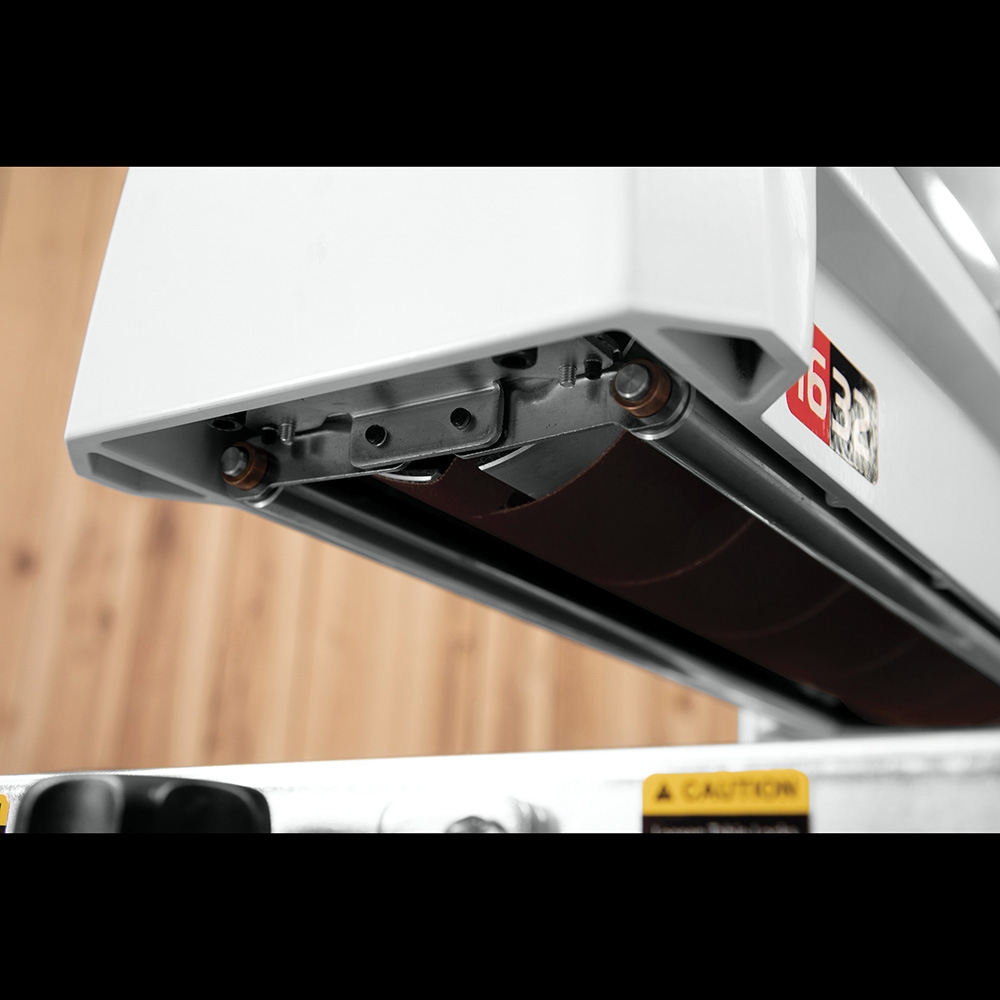

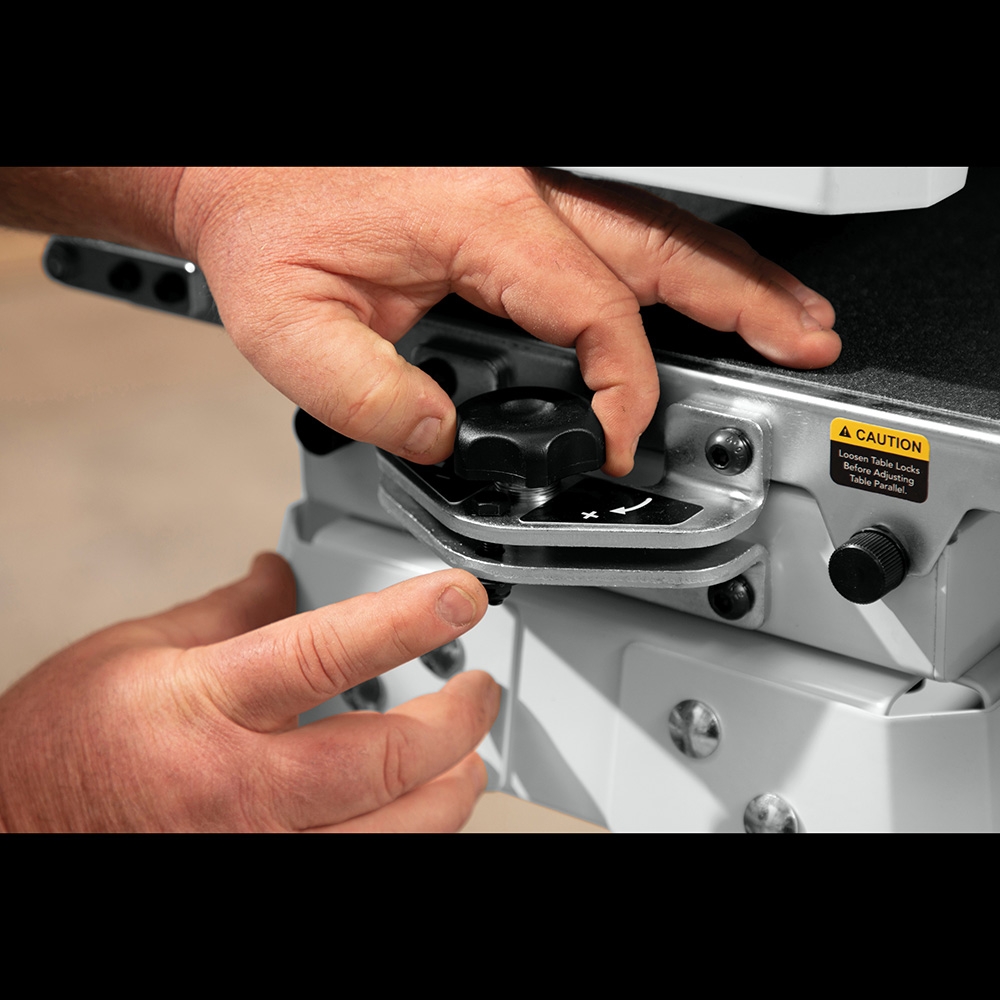

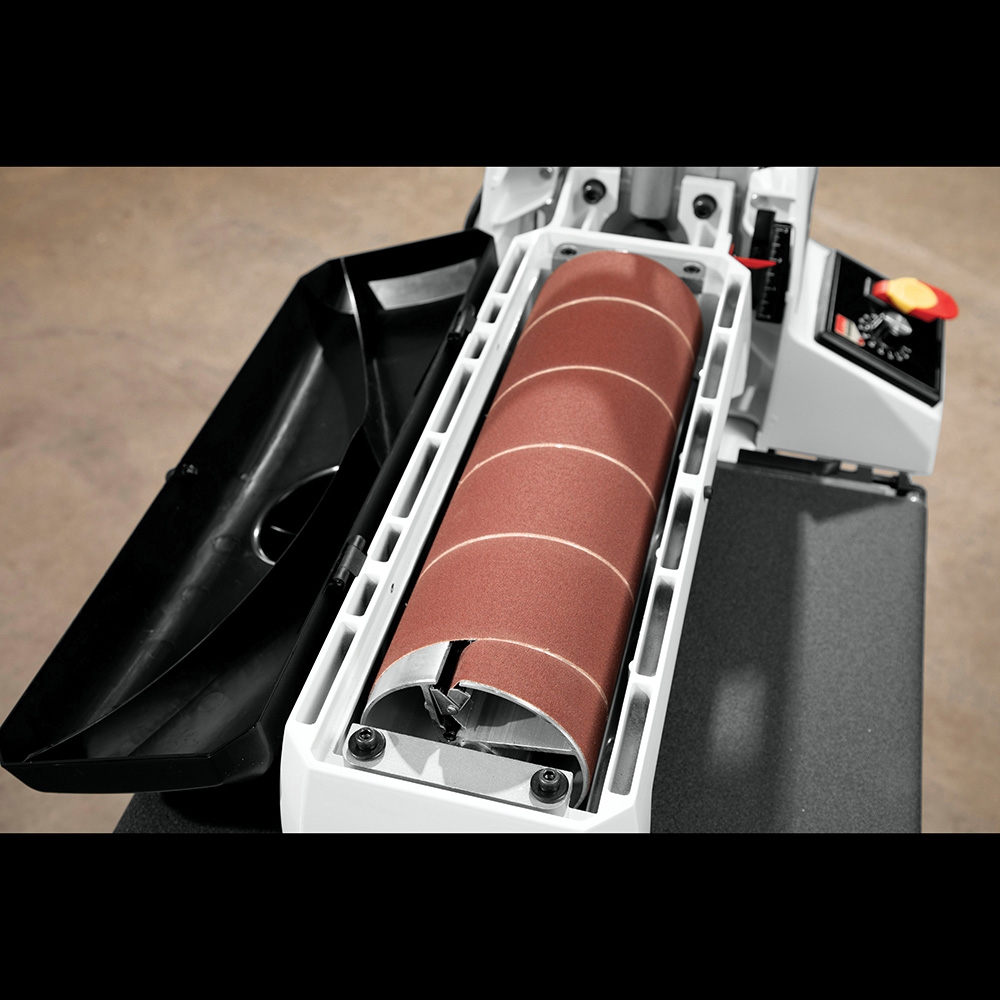

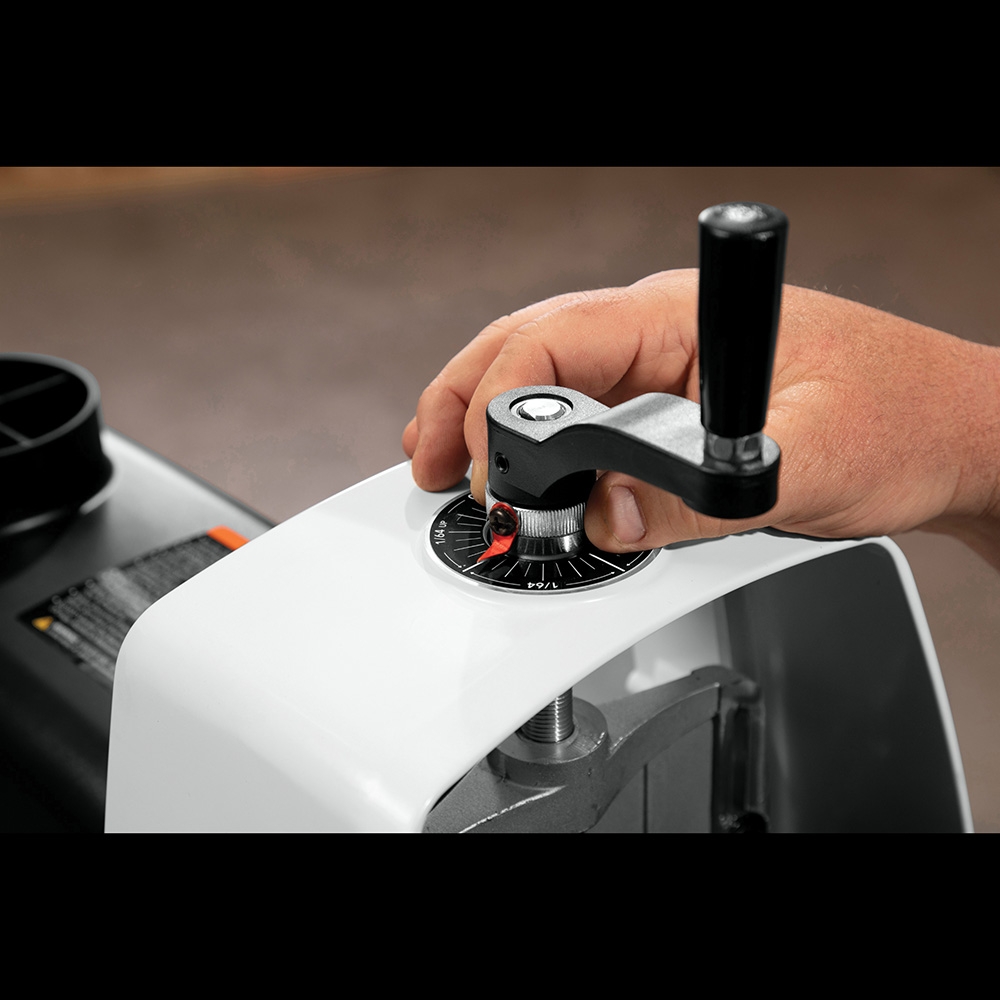

Features: Sandsmart technology continuously monitors drum load and adjusts conveyor speed accordingly Parallelism of conveyor and drum is easily adjusted by turning a dial—no tools required Stop on parallelism adjustment dial quickly returnss conveyor bed to flat position Dust hood channel mirrors the shape of the drum to direct chips and dust to the port Precision-machined extruded aluminum drum is designed to dissipate heat and minimize burning Precision-flattened reinforced steel conveyor bed Redesigned conveyor system pulls the workpiece through the sander instead of pushing One rotation of the top-mounted handwheel adjusts the drum height by 1/16'' Relative depth scale on handwheel lets the user reset and measure the depth for every project Infinitely variable speed control of up to 10 feet per minute allows optimal feed rate Tool-free abrasive take-up clips make abrasive changes quick and easy Snipe is virtually eliminated thanks to the adjustable tension rollers that apply downward pressure on the workpiece Separate feed and drum motors provide independent control of conveyor and drum speed Conveyor belt TRACKERS™ reduce the need for manual belt adjustments Conveniently located controls Stand has wide stance for stability, a storage shelf and pre-drilled holes for casters Drum is easily removable and utilizes sealed and permanently lubricated ball bearings for longer life
Return Policy
What's Included
(1) Jet 723520K 16-32 Drum Sander (1) Open Stand (1) 80-Grit Drum Wrap
(1) Jet 723520K 16-32 Drum Sander (1) Open Stand (1) 80-Grit Drum Wrap
Specifications
More Information
Brand
Jet
Manufacturer Part Number
JT9-723520K
Weight
182.00
Tech Spec
Stand Footprint: 20'' x 37'' Drum Length: 16'' Drum Speed: 1,720RPM Drum Diameter: 5'' Drum Bearing Diameter: 1'' Conveyor Motor 43 in.-lbs. torque, direct drive, DC Conveyor Speed: 0 - 10 FPM Maximum Board Thickness: 3'' Maximum Board Width: 32'' (two passes) Minimum Board Length: 2-3/8'' Minimum Board Thickness: 1/32'' Dust Collection Minimum CFM Required: 400 CFM Dust Port Outside Diameter: 4'' Motor Power: 1-1/2HP Motor Phase: 1 Motor Voltage: 115V only Motor Amps: 14 Recommended Circuit Size: 20A
Unit of Measure
Each
Shipping & Returns
This item will ship directly from the manufacturer. Must be shipped within the 48 contiguous United States. Please allow up to 7 business days for your shipment to be prepared. Additional shipping charges may apply and will be noted below the price. Items shipped by truck are delivered to the curbside only. 25% restocking fee on all returned merchandise. Please call customer service before returning product.
This item will ship directly from the manufacturer. Must be shipped within the 48 contiguous United States. Please allow up to 7 business days for your shipment to be prepared. Additional shipping charges may apply and will be noted below the price. Items shipped by truck are delivered to the curbside only. 25% restocking fee on all returned merchandise. Please call customer service before returning product.
