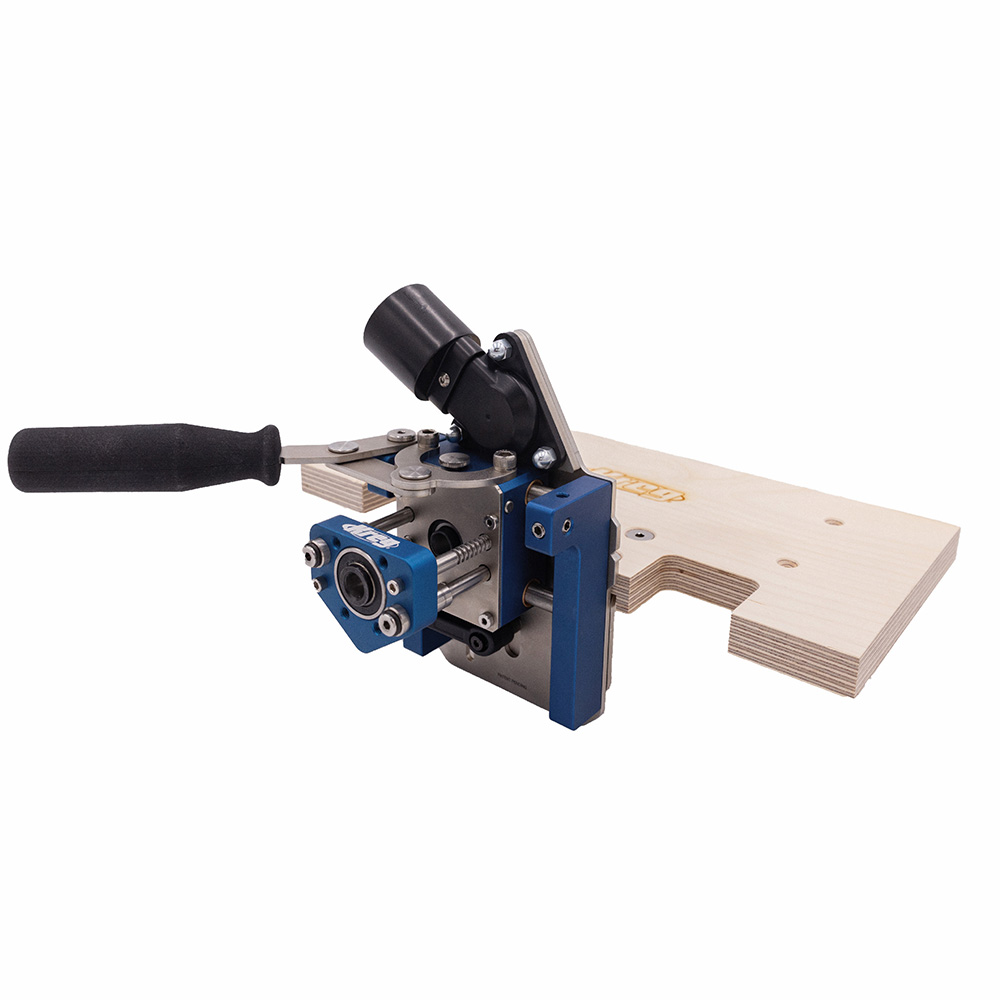

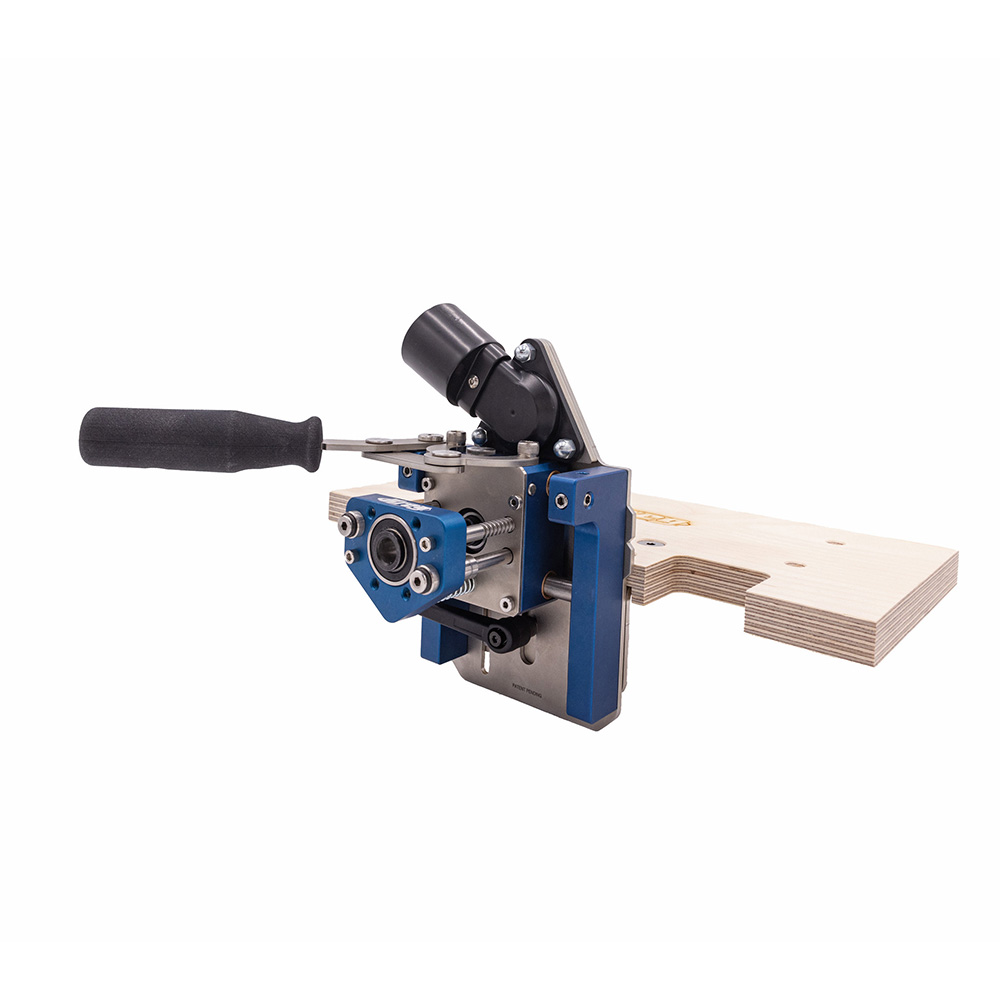

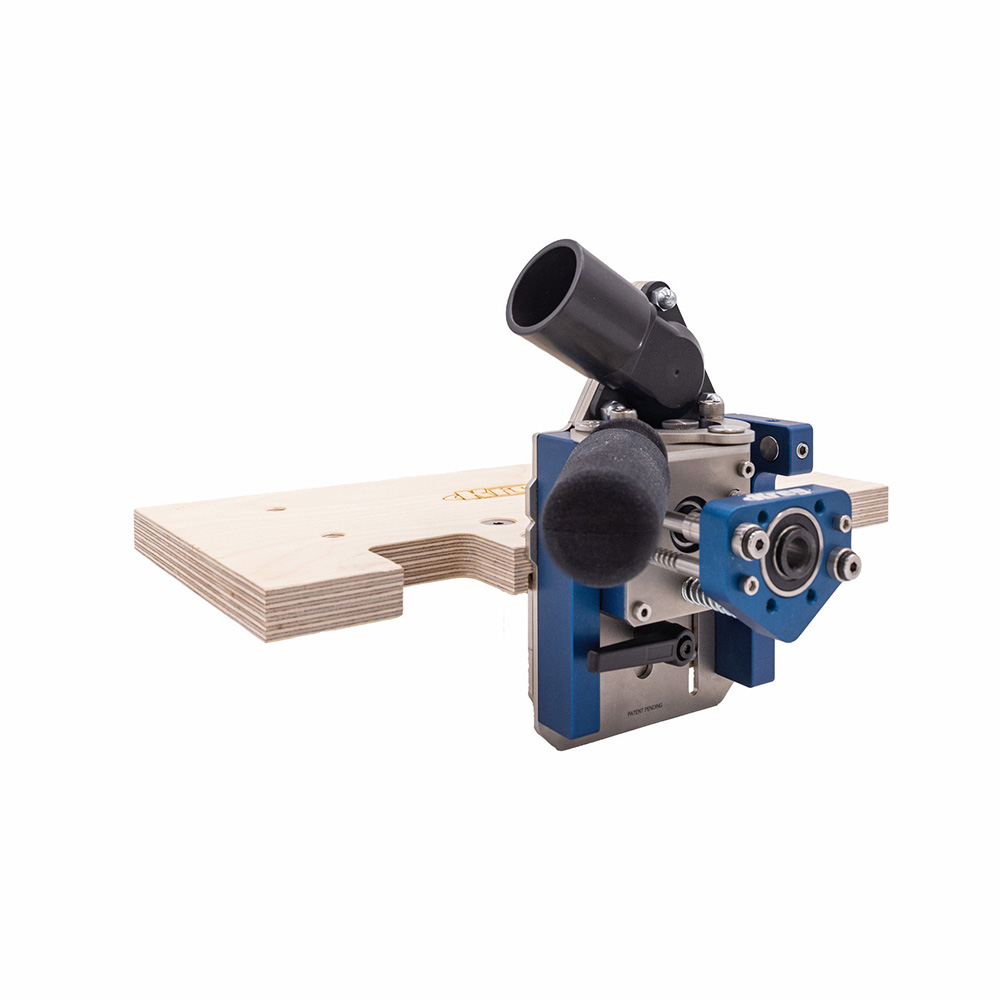

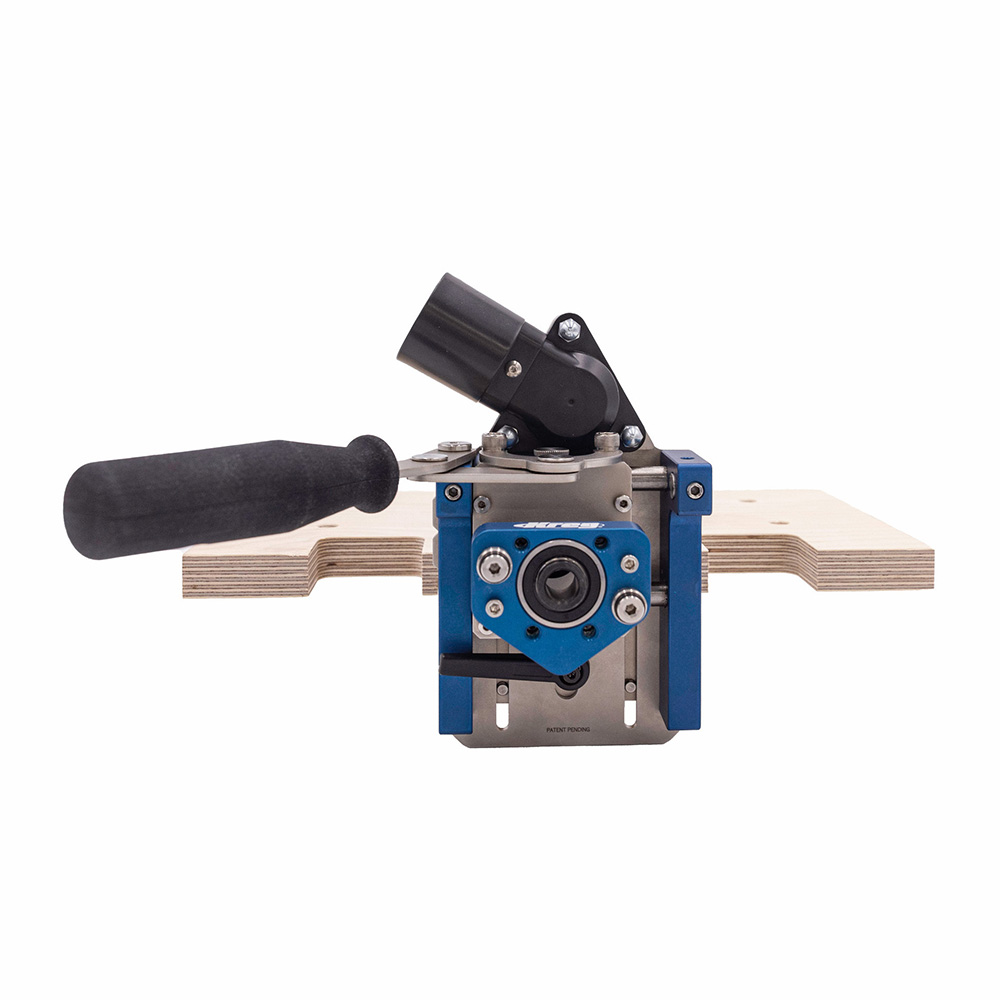

Kreg MortiseMate Loose Tenon Jig

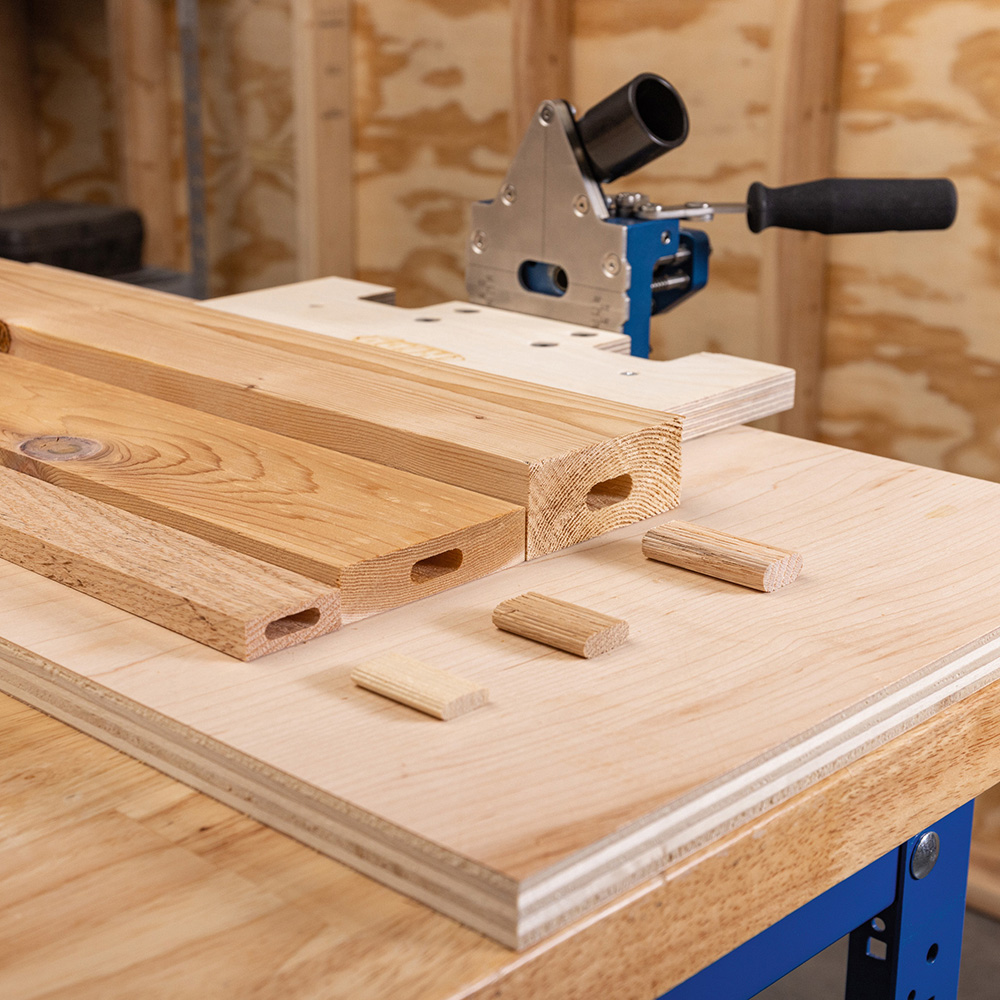

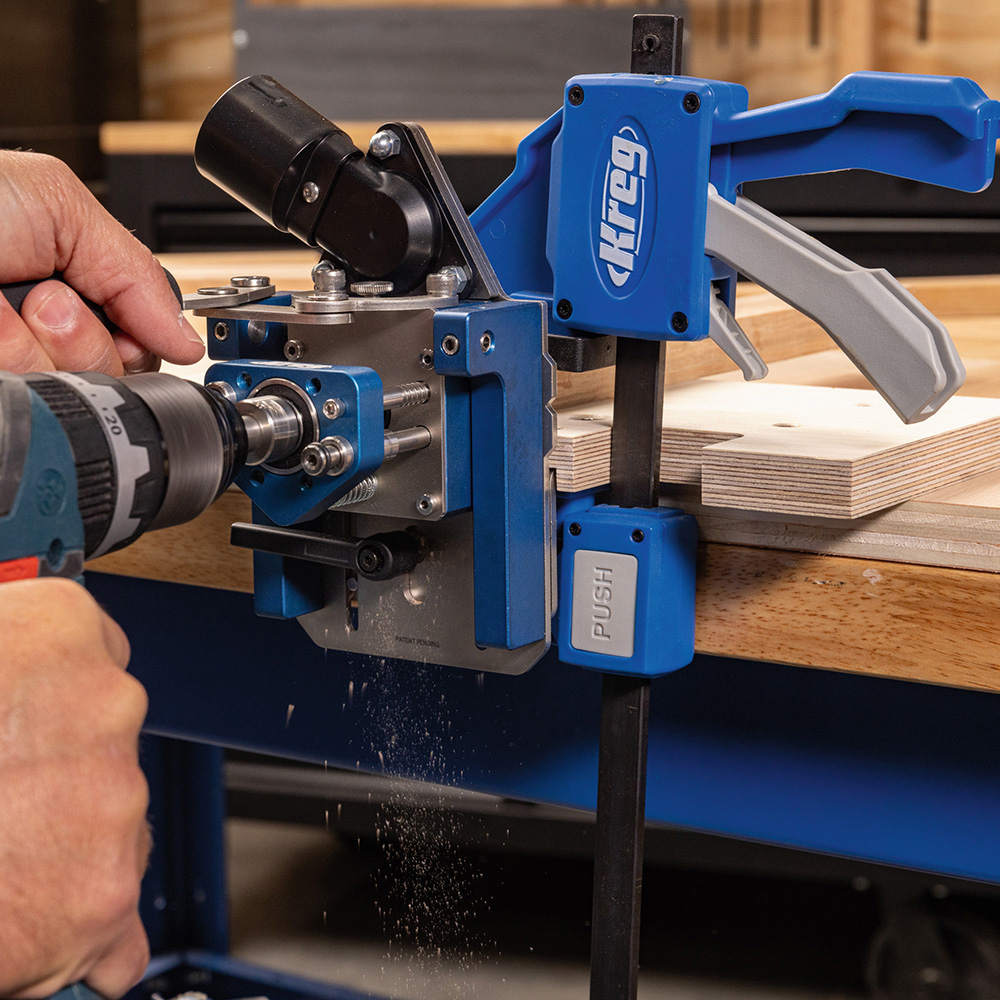

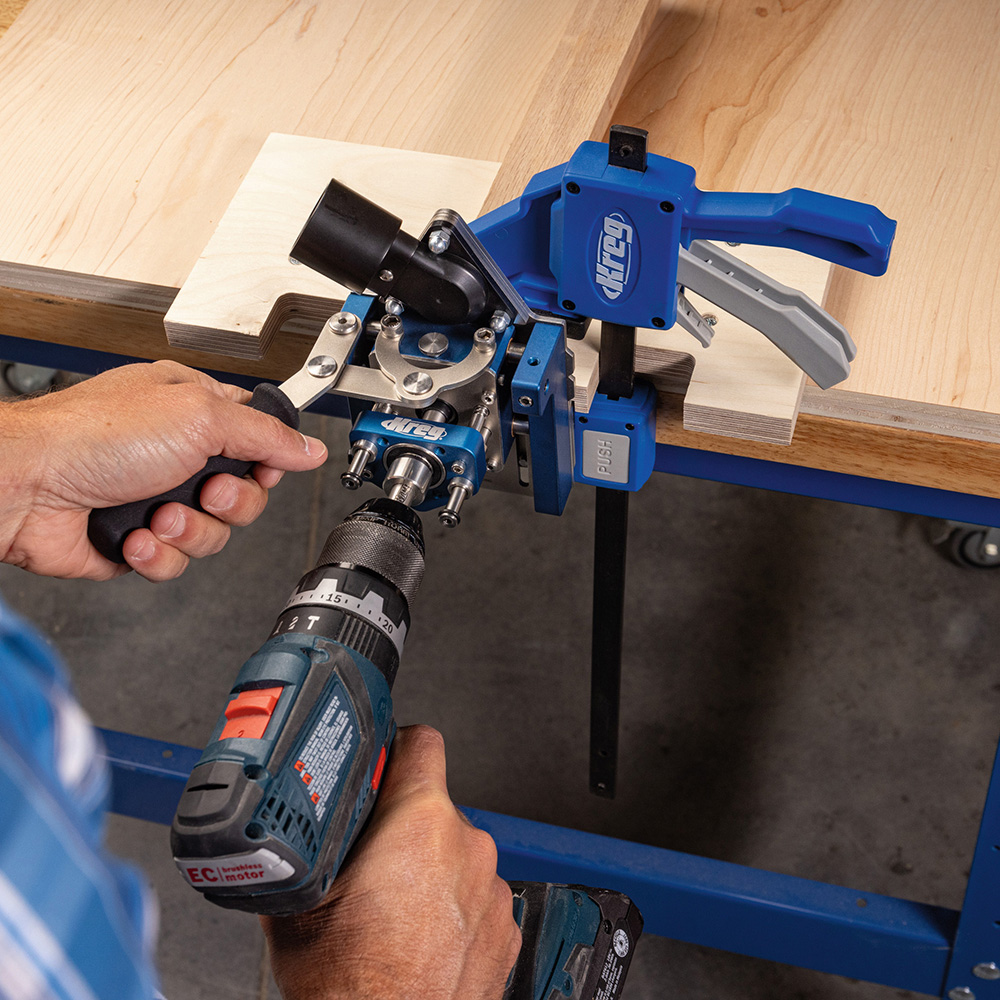

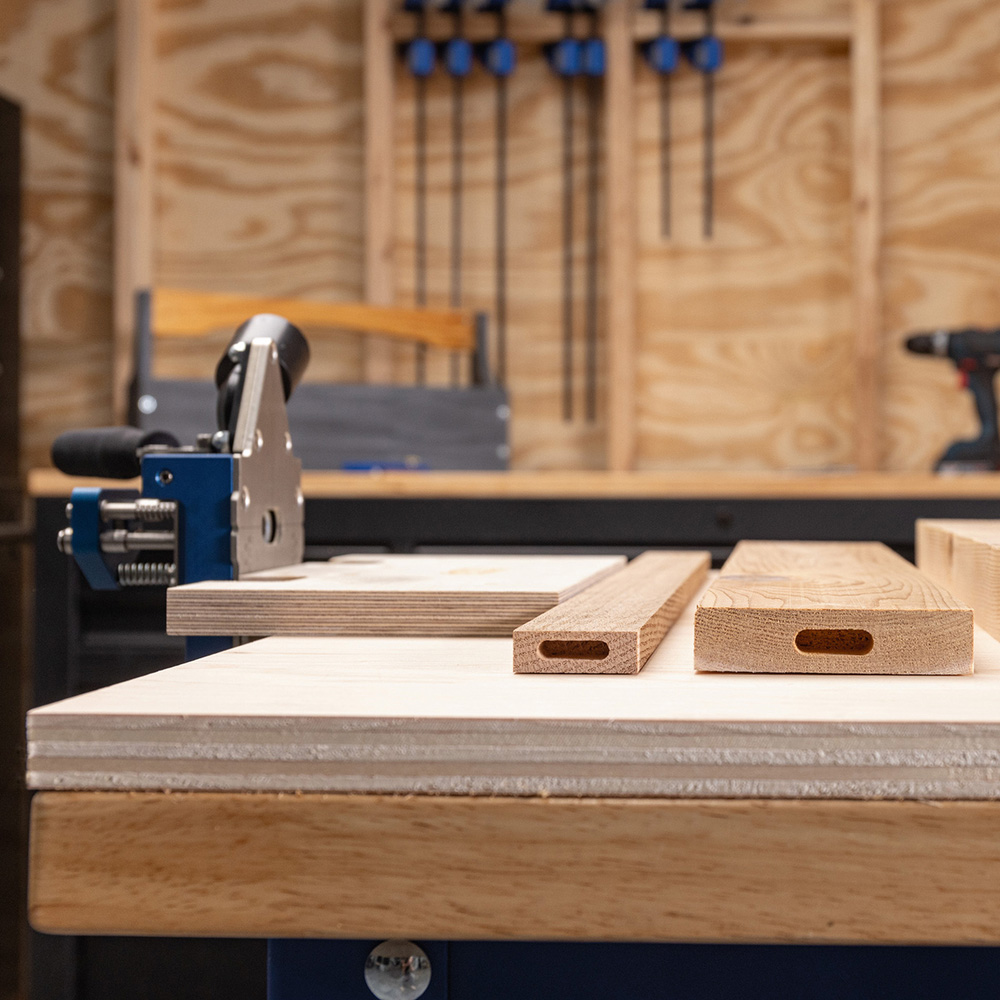

The Kreg MortiseMate Loose Tenon Jig lets you create loose tenon joints in end or edge grain with unmatched ease, combining the precision of a router with the simplicity of a drill. Its integrated plywood platform allows for clamping or fastening the jig to a worksurface as well as clamping workpieces in position for mortising. With a MortiseMate carbide-tipped cutter installed in your corded or cordless drill and its depth collar set to the mortise depth you need, boring a mortise is as easy as running the drill at full speed and swinging MortiseMate's handle to the left and right, repeatedly, to cut the mortise to width. Its exclusive auto-indexing step-down mechanism also advances the cutter deeper into the workpiece by 1/16'' (0.050'') per pass until the full mortise depth is reached. A pair of micro-adjustment screws let you adjust the width of the mortise as desired for a tighter fit with Kreg's 6mm, 8mm or 10mm hardwood loose tenons (#76762, #76416 or #72391, sold separately).

Kreg MortiseMate Loose Tenon Jig Details:

• Jig cuts mortises for loose-tenon joinery using your corded or cordless drill and interchangeable carbide-tipped cutters

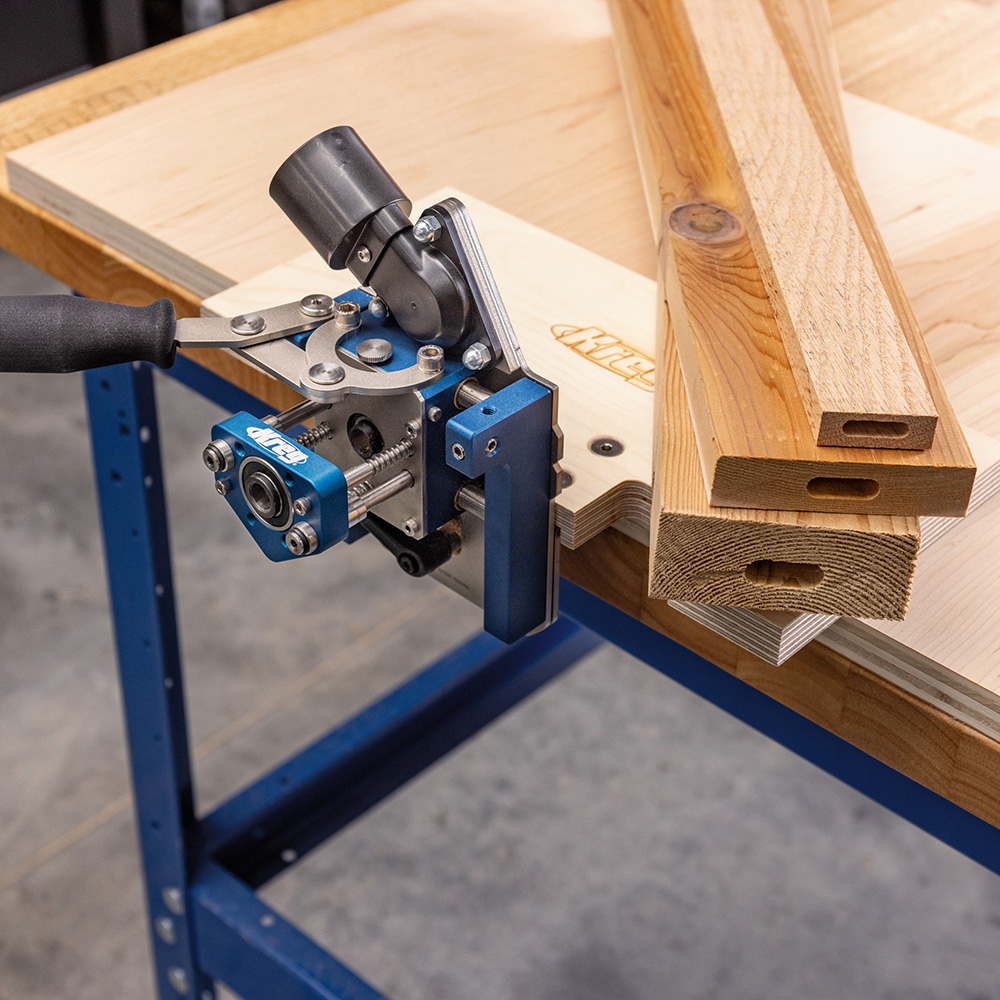

• Suitable for workpieces from 1/2'' to 1-1/2'' thick
• Auto-indexing step-down mechanism advances cutting depth in 1/16'' increments to bore clean, crisp mortises

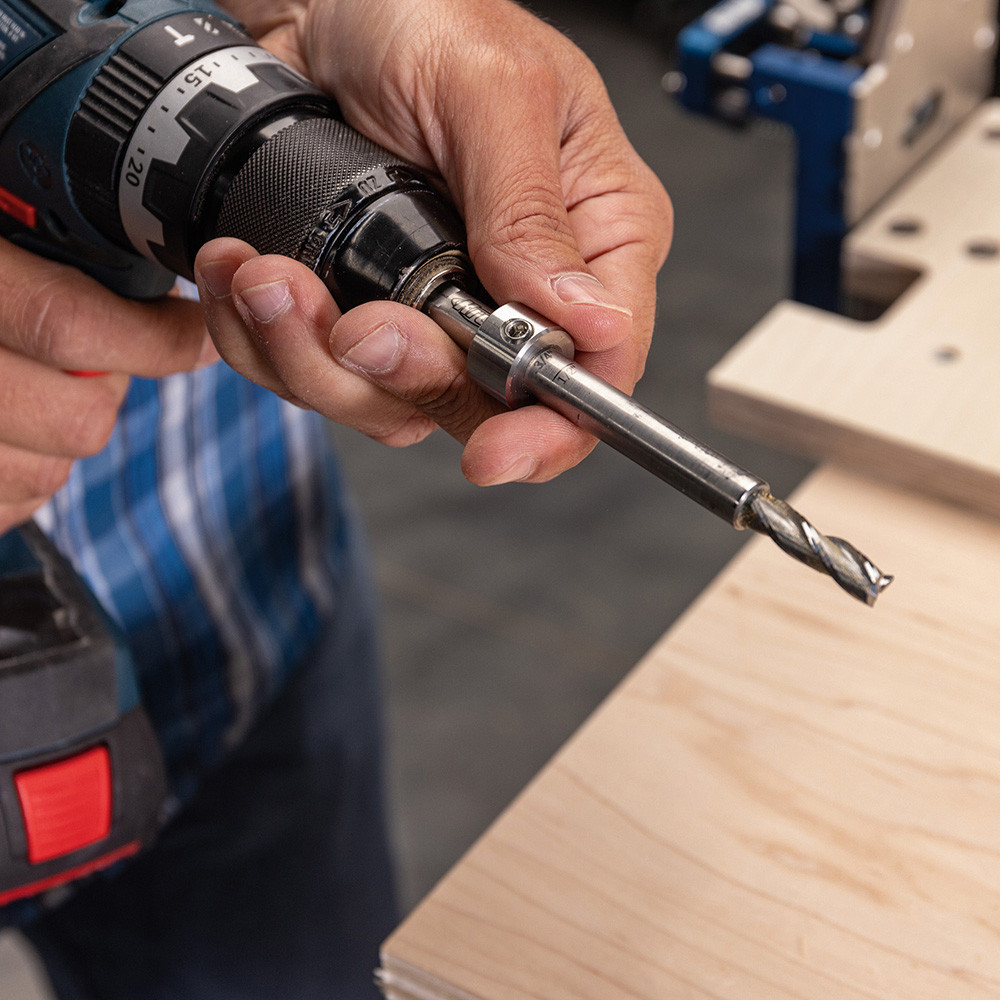

• Laser-etched markings on the cutter make it quick and easy to position the stop collar for common mortise depths
• Create narrower mortises for tighter-fitting tenons using two built-in micro-adjust screws

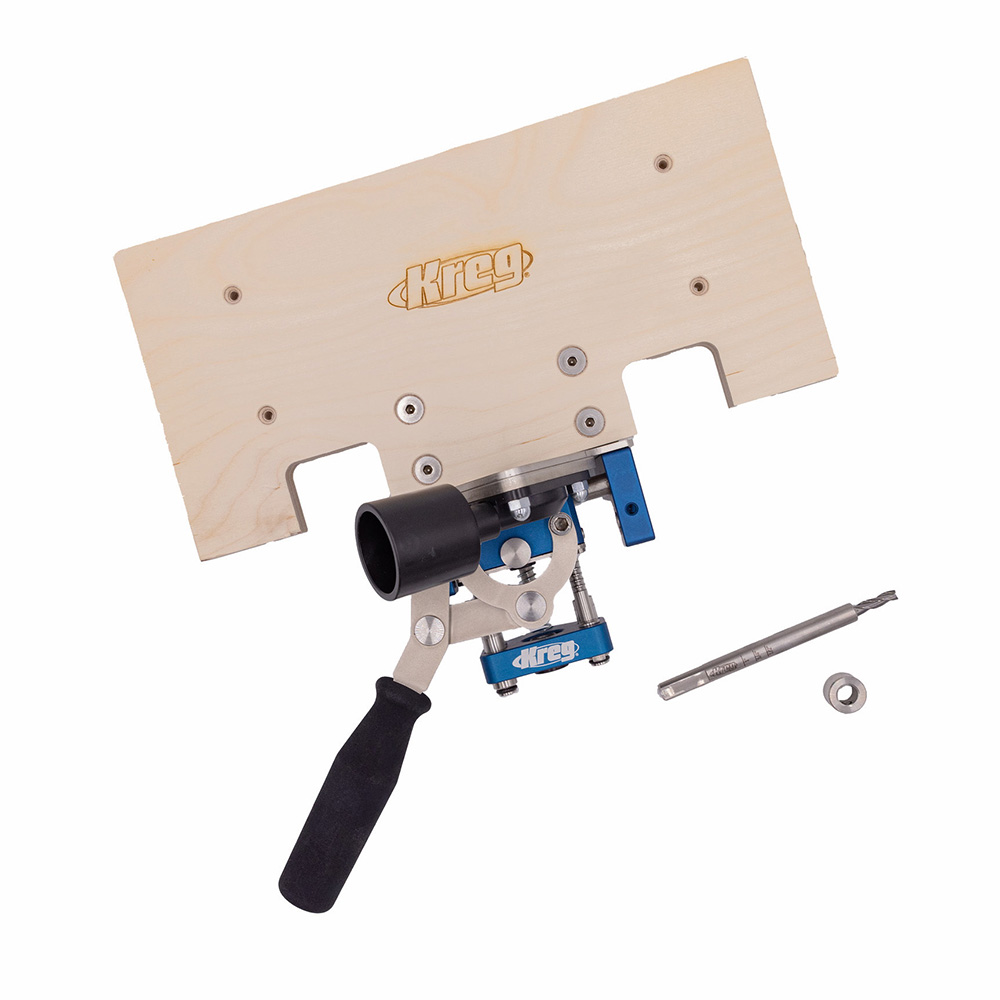

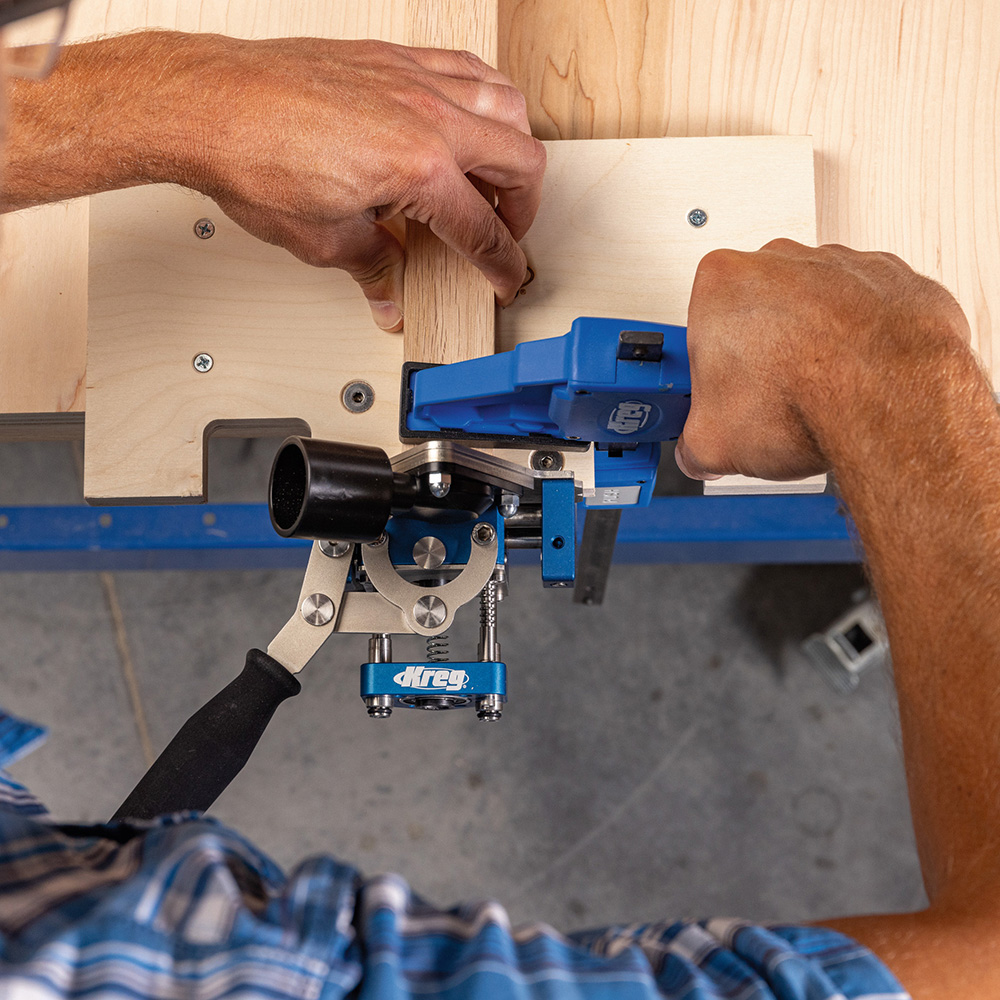

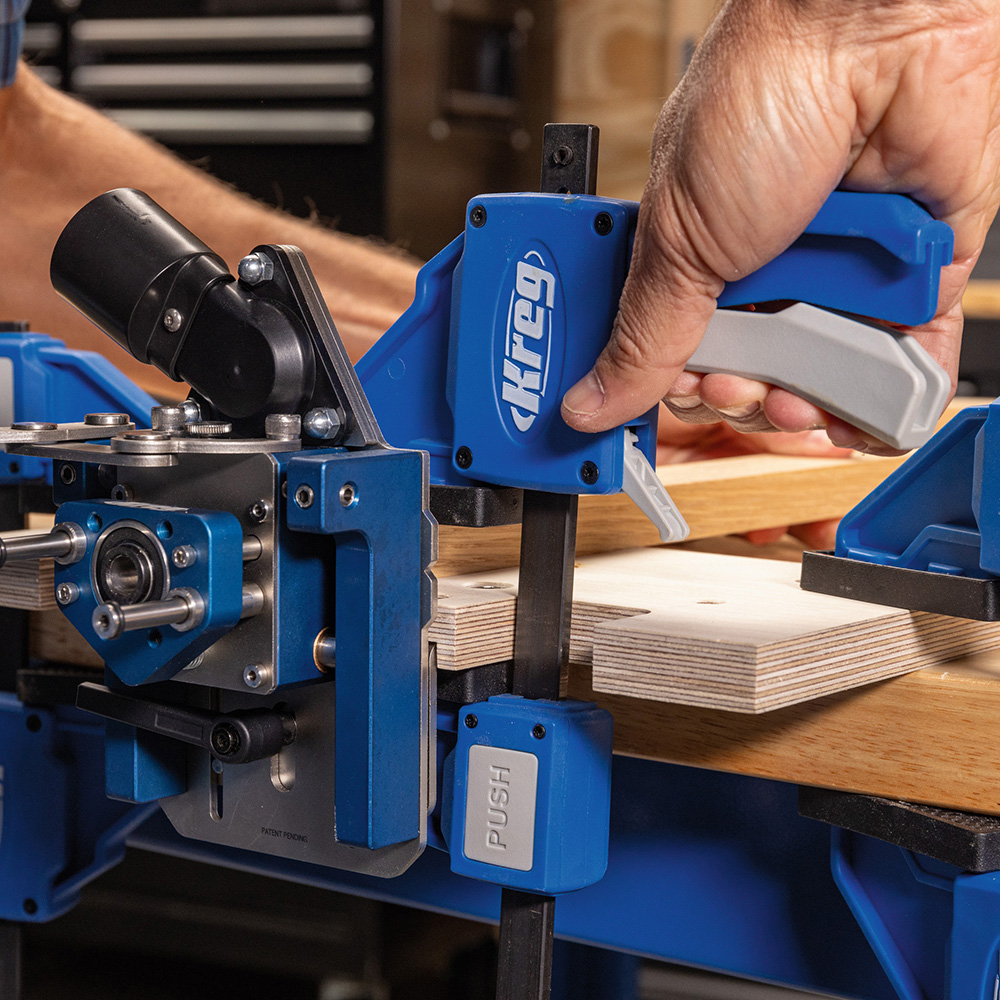

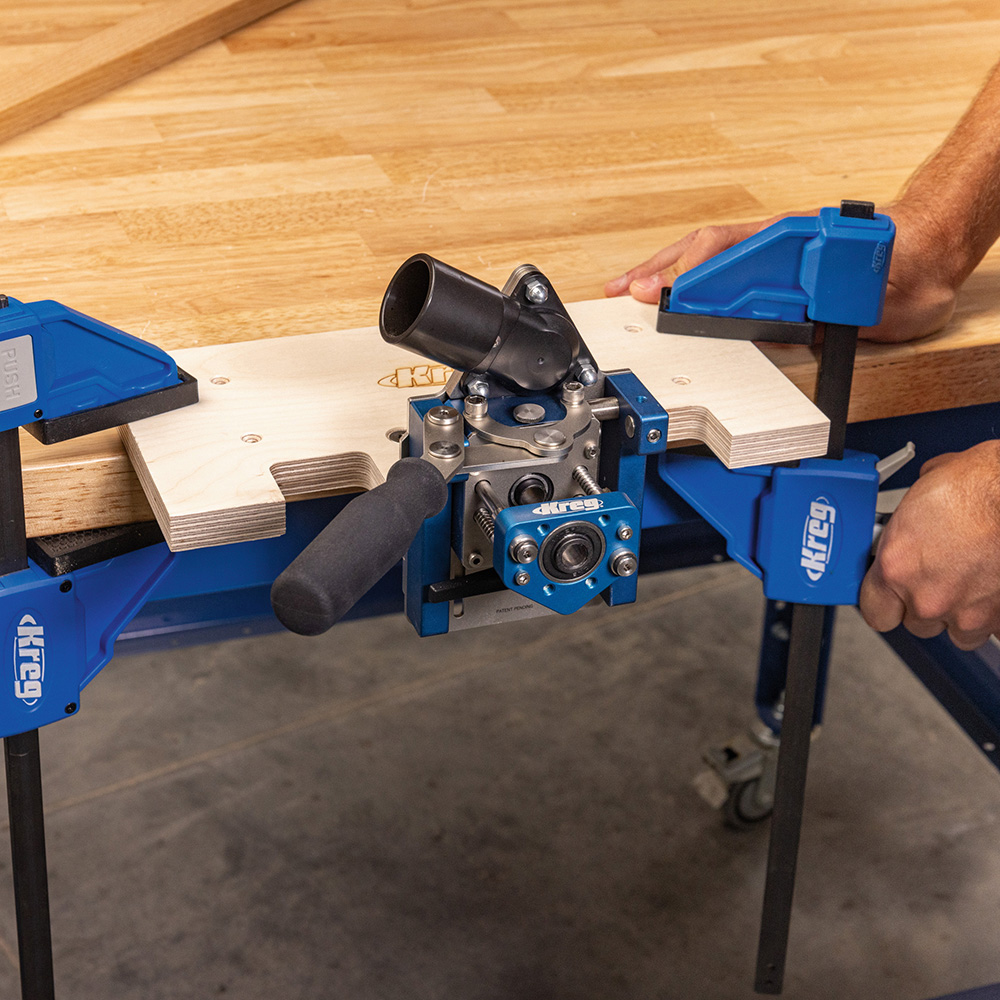

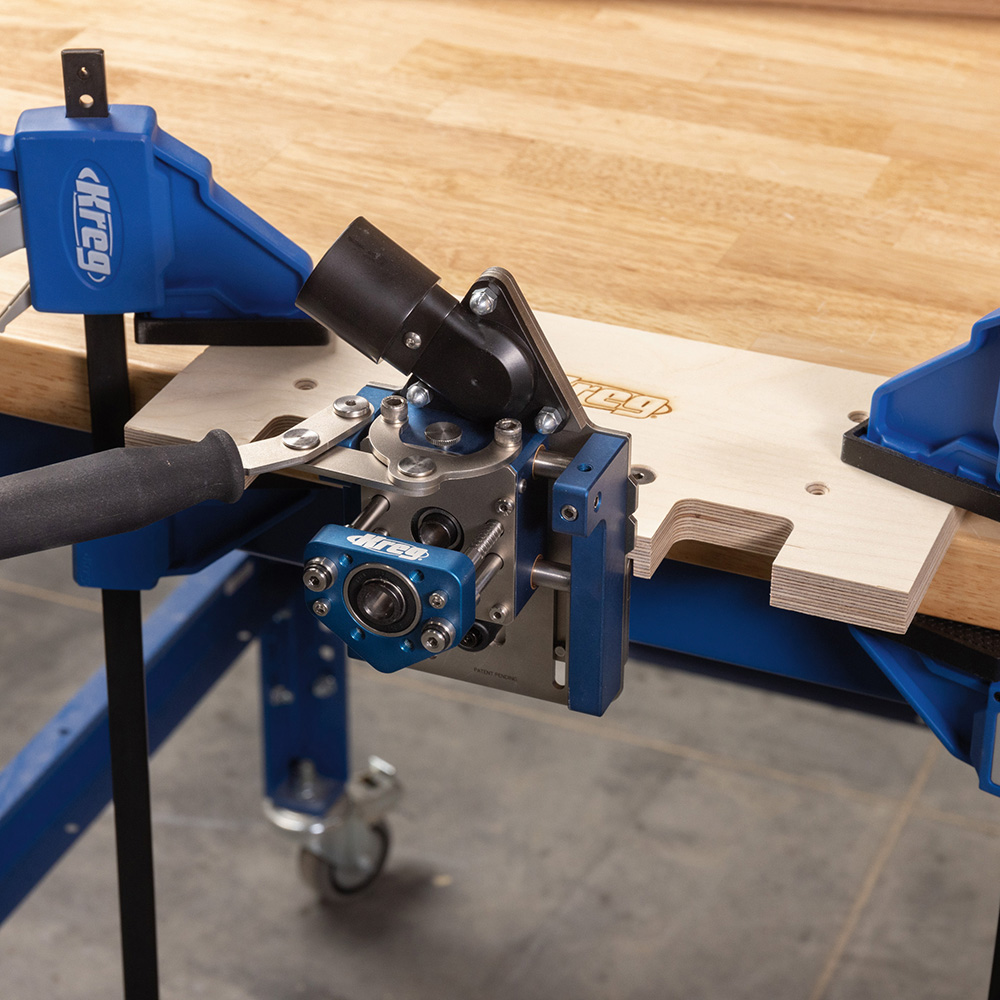

• Integrated plywood mini work surface makes setup simple and quick to clamp workpieces in place for drilling
• Laser-etched markings on jig enable accurate centering and workpiece placement

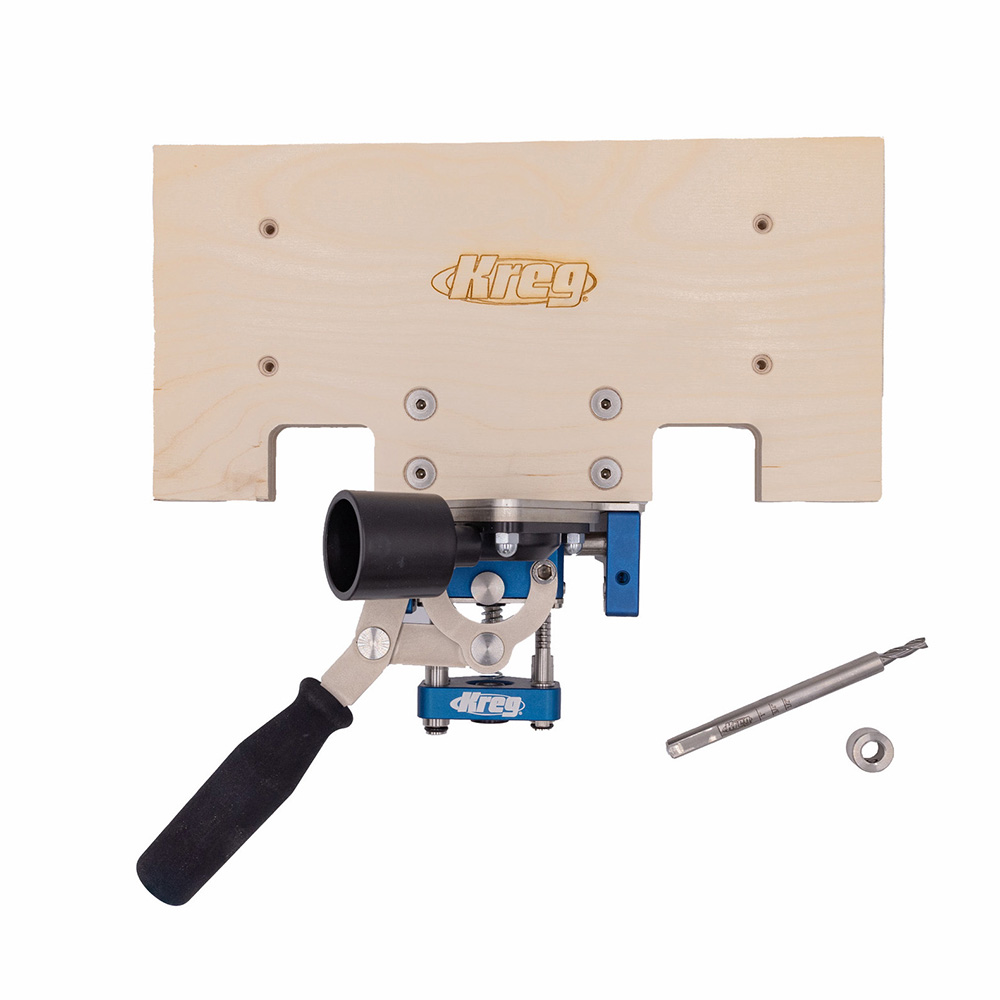

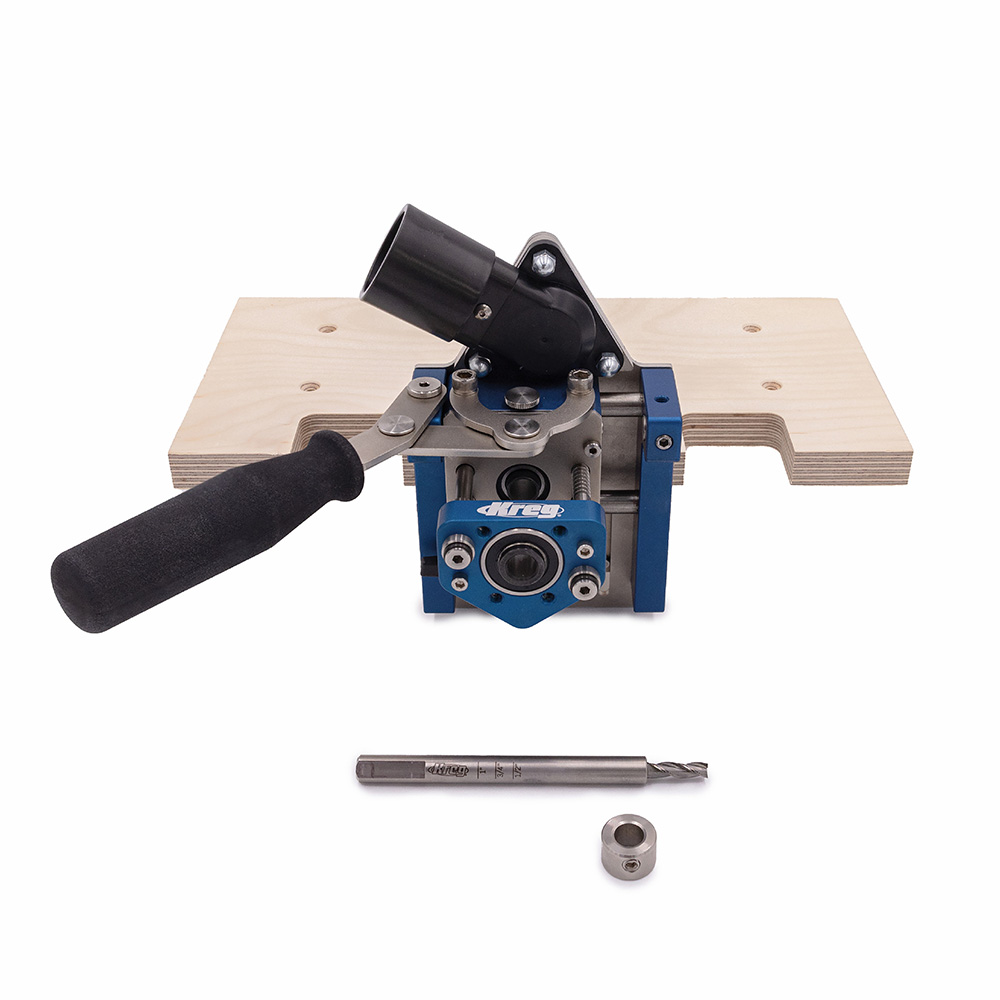

• 6mm Dia. cutter (#73589) included; 8mm (#77948) and 10mm (#73157) cutters are sold separately

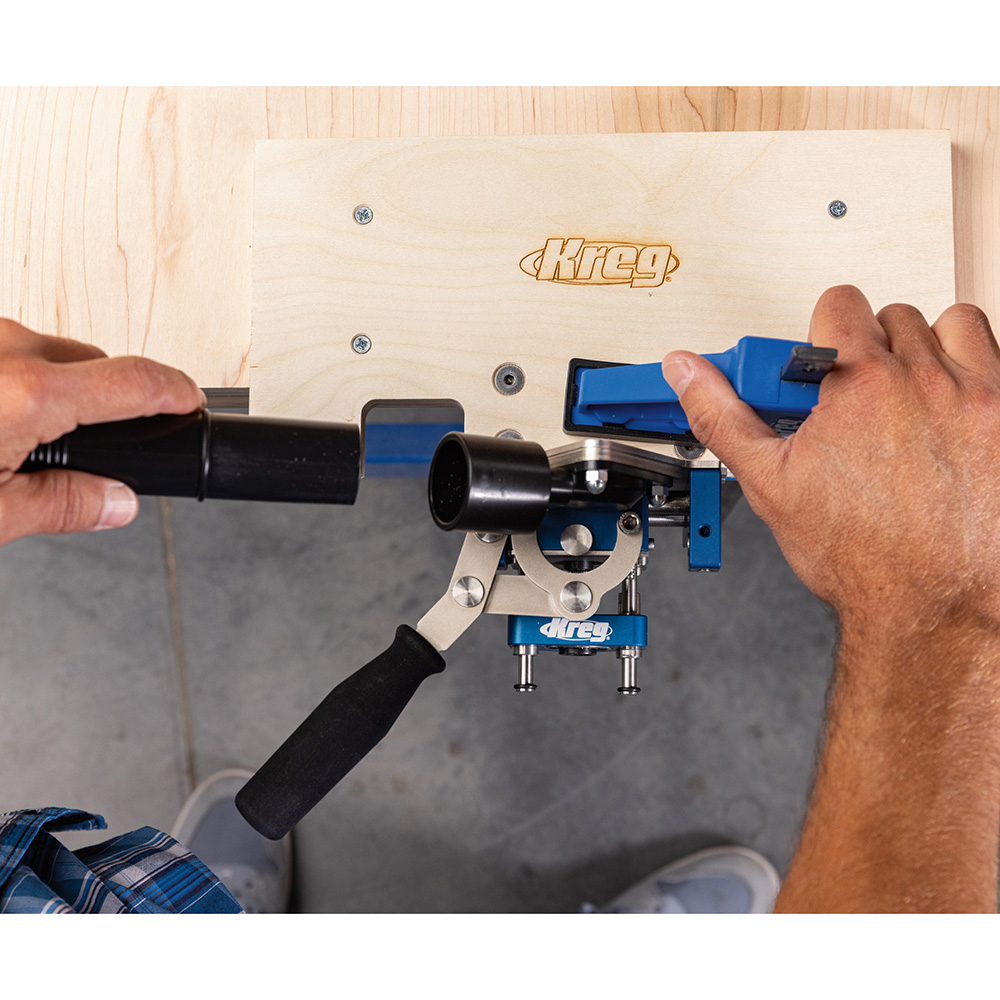

• 1-1/4'' I.D. dust port connects to your vacuum hose for clearing debris

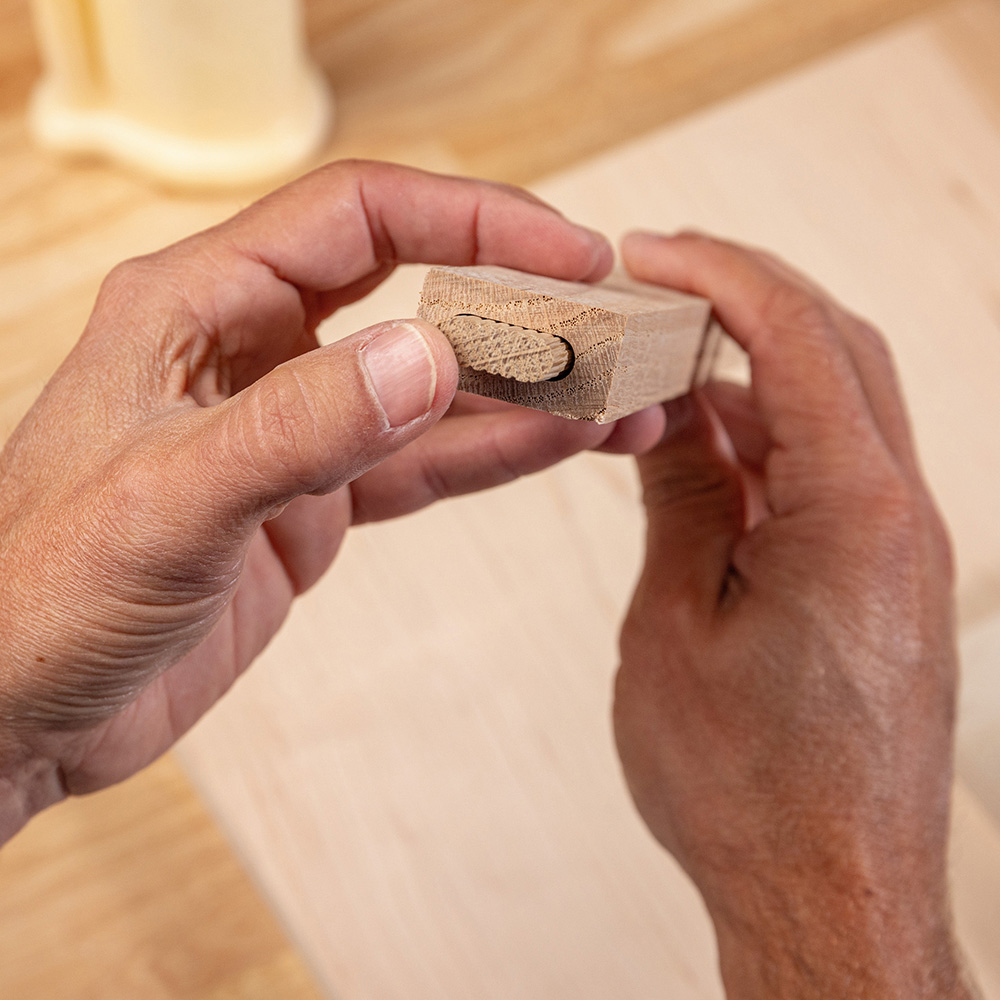

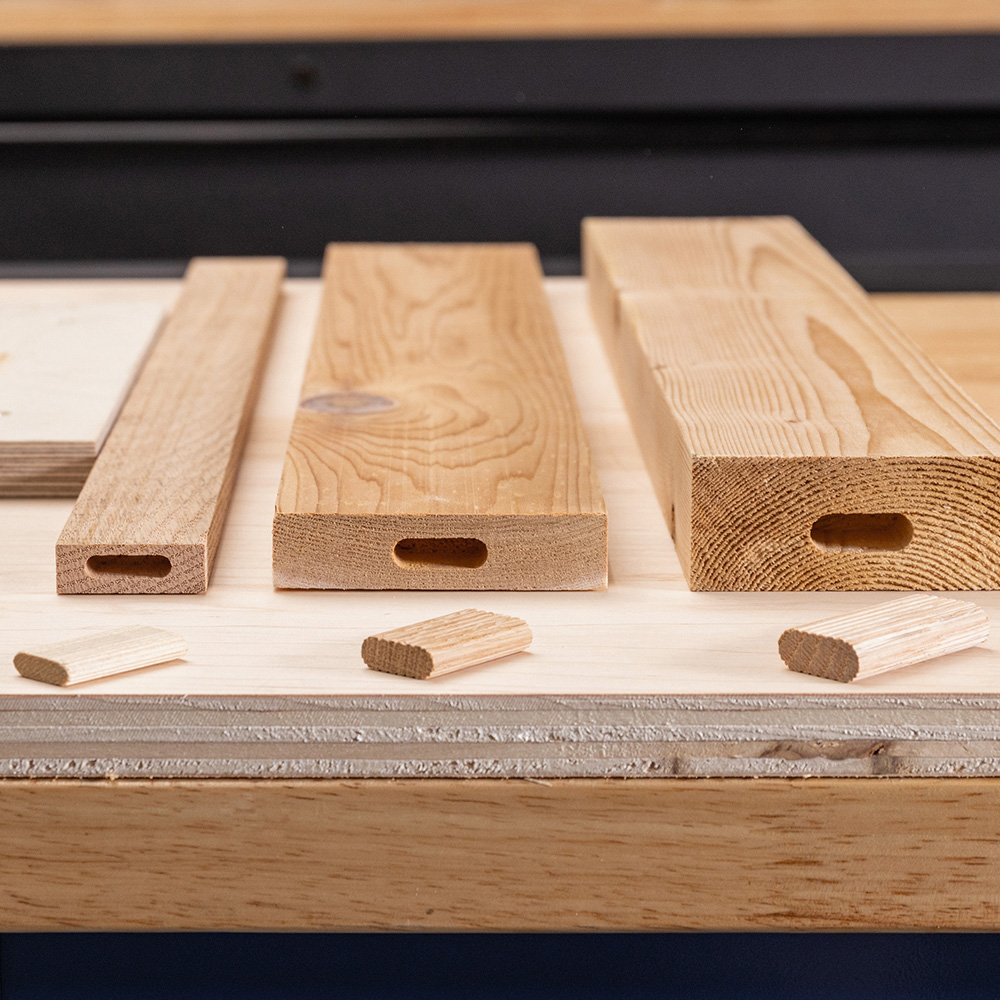

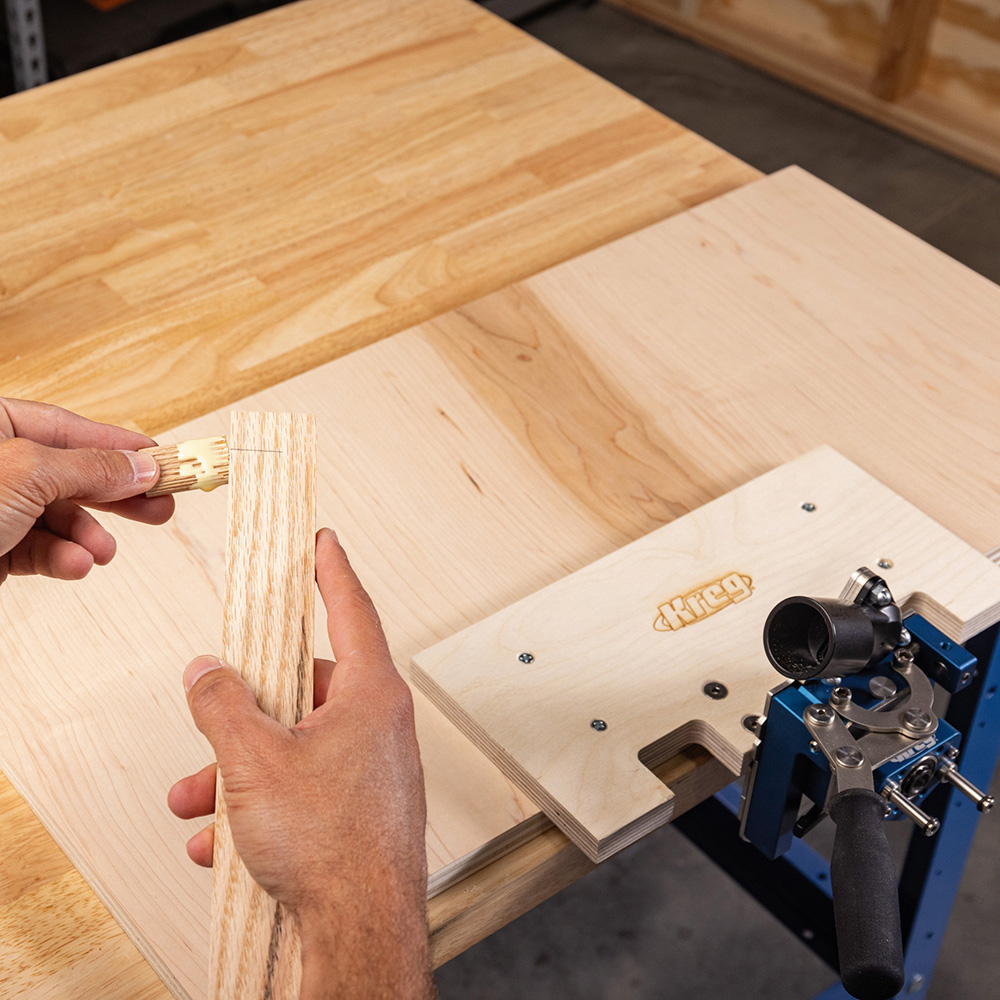

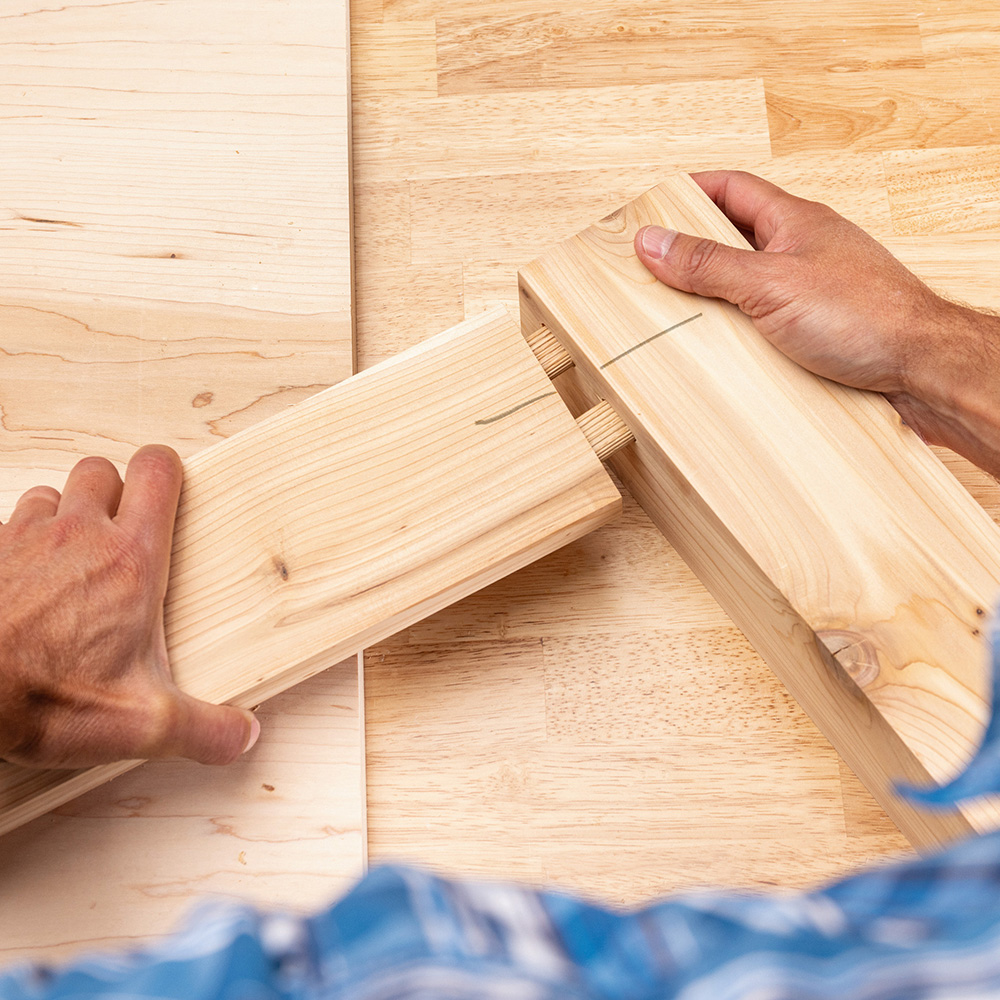

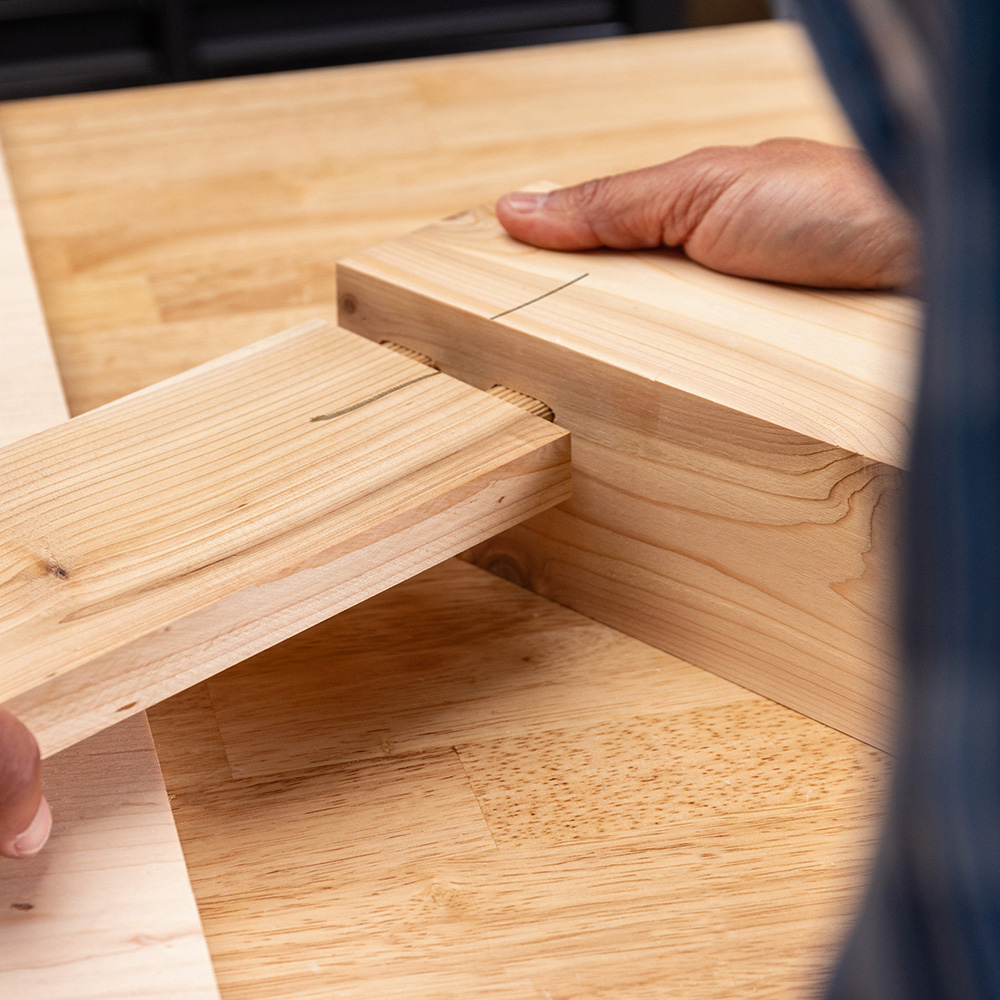

• Mortises fit MortiseMate 6mm, 8mm or 10mm fluted hardwood Loose Tenons (#76762, #76416 or #72391, all sold separately)
