Laguna Tools CNC Machine KX:24

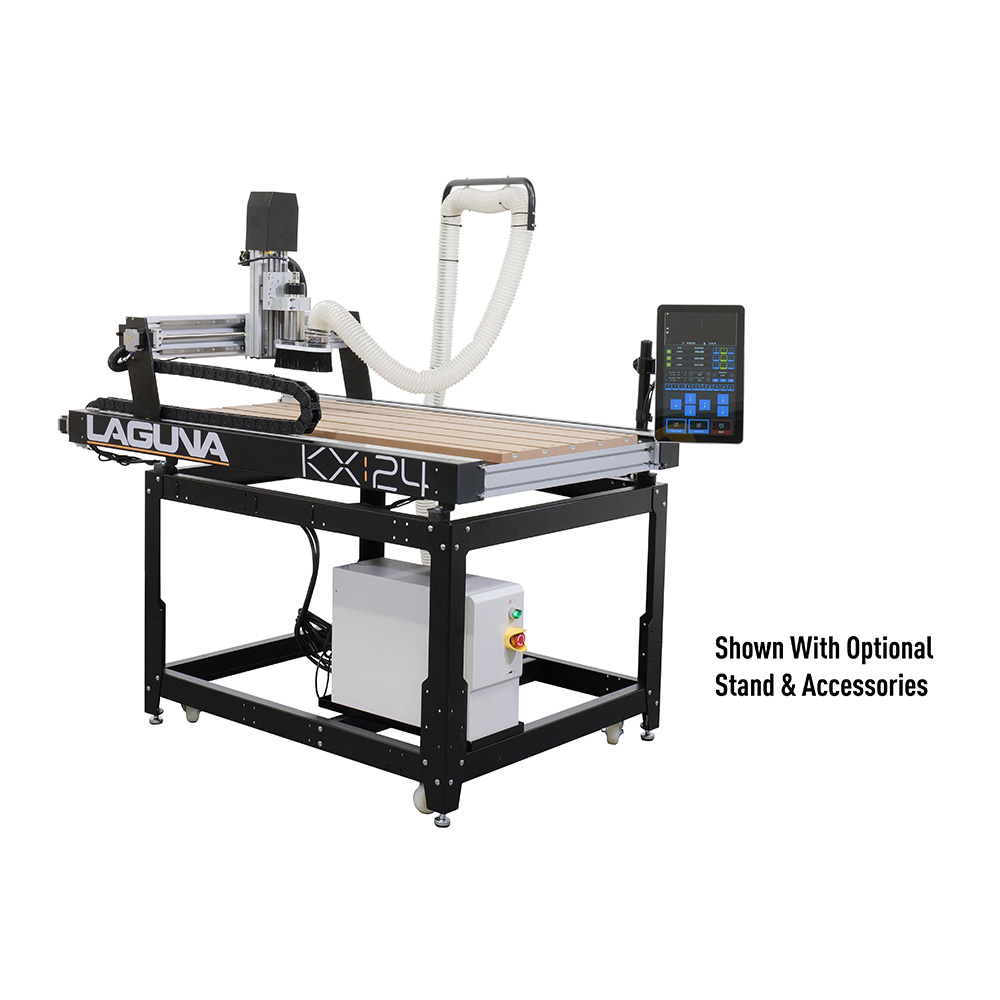

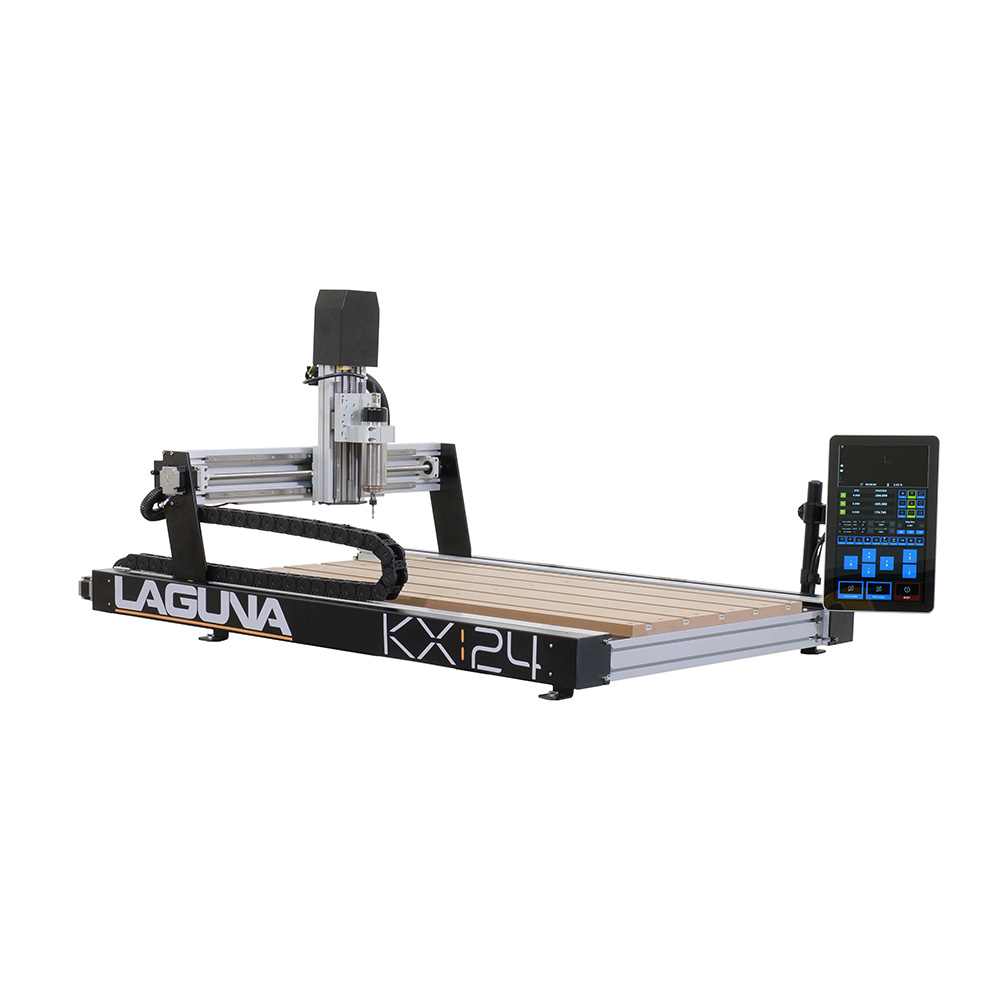

Laguna's KX:24 can help you take the big step into automated woodworking and rapid part duplication. Its robust aluminum-and-steel gantry is outfitted with an ultra-quiet, air-cooled electro-spindle that can rout wood, plastics, non-ferrous metals, foam and more. It's also capable of 3D cutting, carving and shaping. The gantry design and 39'' x 62'' table let you rout projects up to a generous 24'' x 48''. MDF spoil boards on the table can be resurfaced and replaced as needed, and they're embedded with aluminum T-slots for convenient material clamping. The KX:24 is controlled by an easy-to-use 15.1'' touch screen with graphical user interface—no extra computer is required. This large touch screen displays all the machine's controls and status in a clear, intelligible format.

Operational software is NOT included with a KX:24 CNC Machine purchase. However, both V-Carve Pro (#79708) and Aspire (#75880) software suites are available separately—see Optional Accessories, below. Please note that V-Carve Pro is also included with Accessory Bundle 2 (#70137, sold separately).

Laguna offers a variety of accessories to enhance the convenience and performance of the KX:24—see Optional Accessories, below. They can be purchased individually or as Accessory Bundle 1 (#71176) and Accessory Bundle 2 (#70137) for greater savings.

Laguna Tools CNC Machine KX:24 Details:

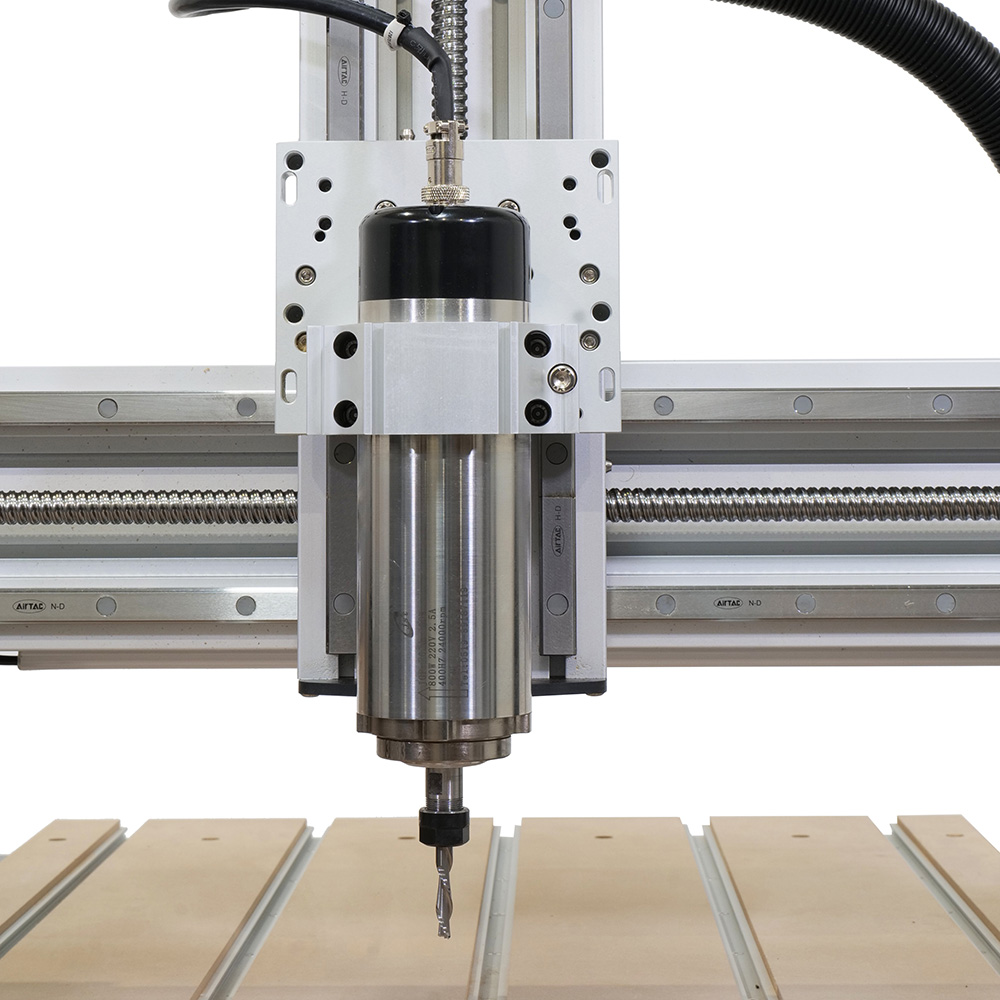

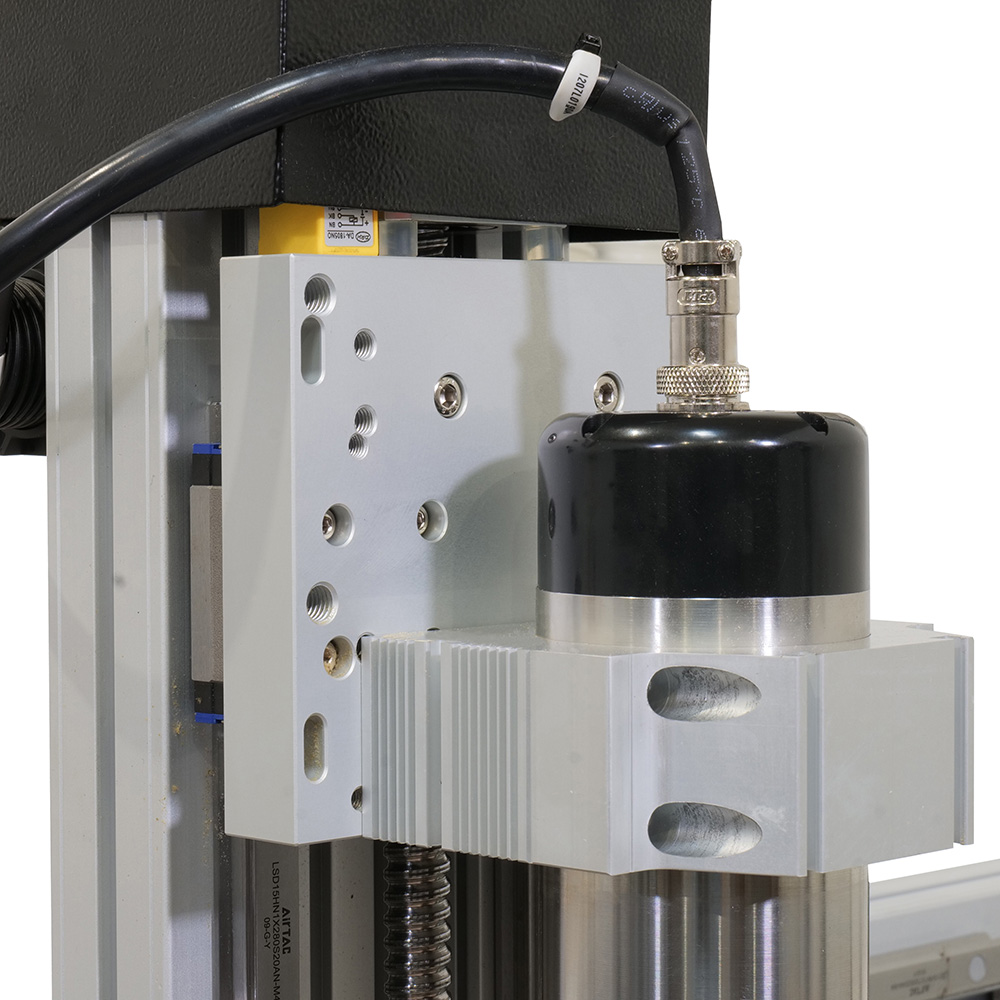

• Ultra-quiet, 1HP air-cooled CNC spindle with variable speed range up to 24,000 RPM

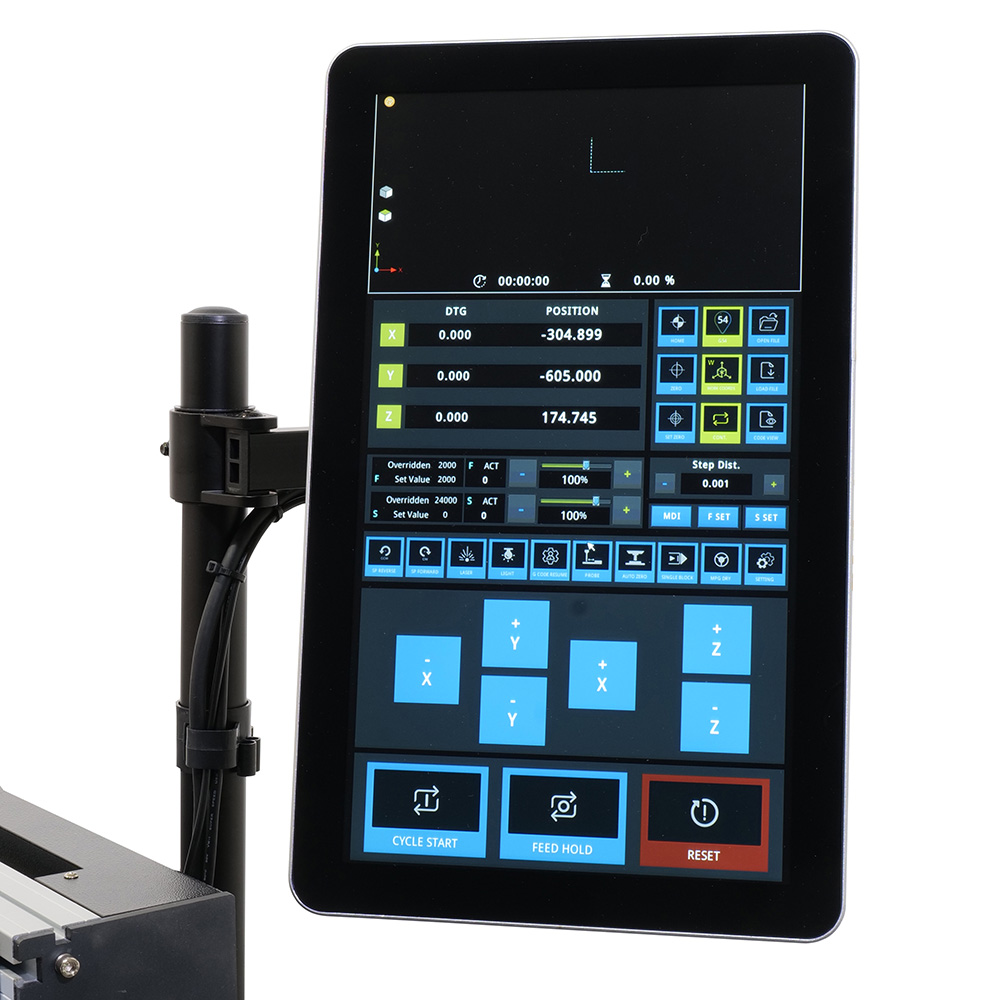

• 15.1'' touch screen with graphical user interface
• Spacious 39'' x 62'' table
• MDF spoil boards with embedded aluminum T-slots
• Rugged, all-metal gantry for precise, low-vibration machining

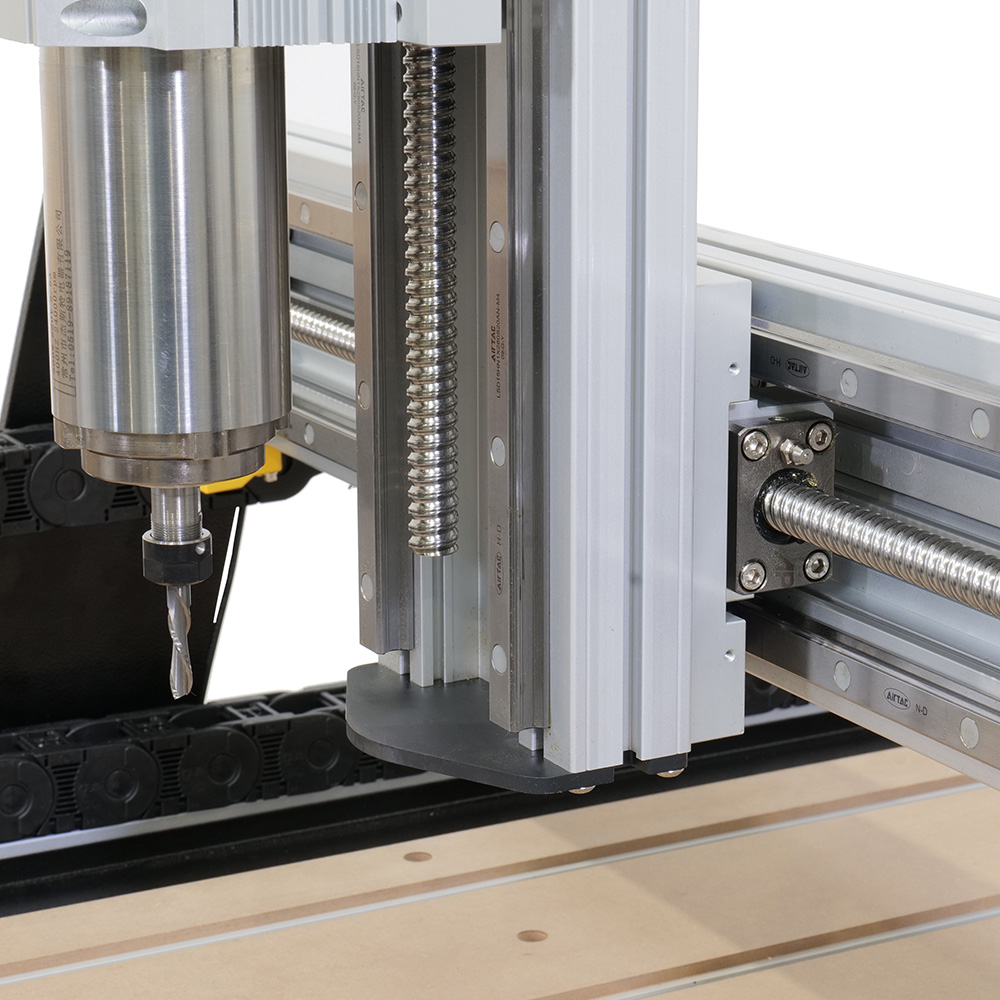

• Dual square rail linear guides and ball screws on X, Y and Z axes

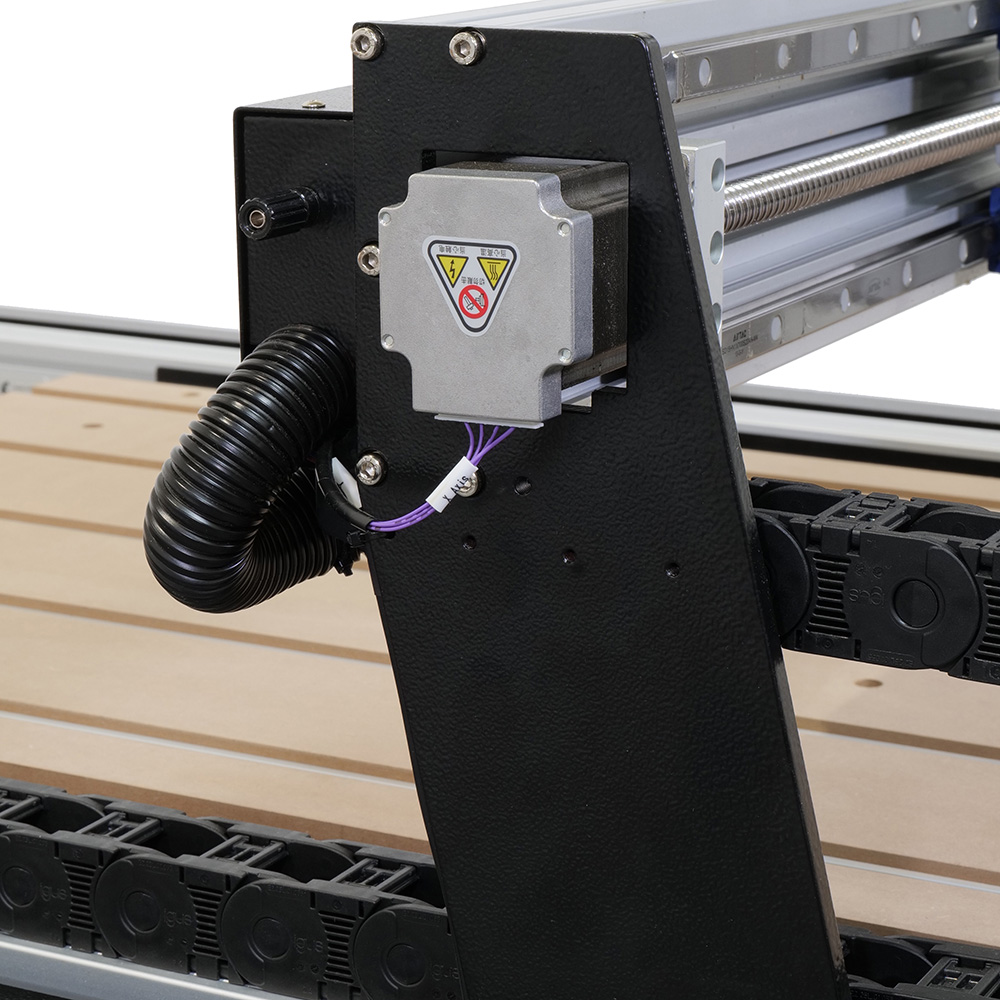

• Dual-drive Y-axis with 24-volt high-torque stepper motors keeps gantry moving evenly along full length of table—design also maximizes usable working area
• Heavy-duty swiveling touch screen controller bracket
• Automatic tool touch-off ensures that the bit is perfectly set for each job

Optional Accessories:

• Accessory Bundle 1 (#71176): Includes Mobile Stand, Overhead Dust Kit, Brushed Dust Shoe, Clamp Set, CNC LED
• Accessory Bundle 2 (#70137): Includes everything in Accessory Bundle 1 plus V-Carve Pro CNC Software
• Mobile Stand (#78883)
• Overhead Dust Kit (#75854)
• Brushed Dust Shoe (#71551)
• Clamp Set (#77426)
• CNC LED (#78564)
• V-Carve Pro CNC Software (#79708)
• Aspire CNC Software (#75880)
