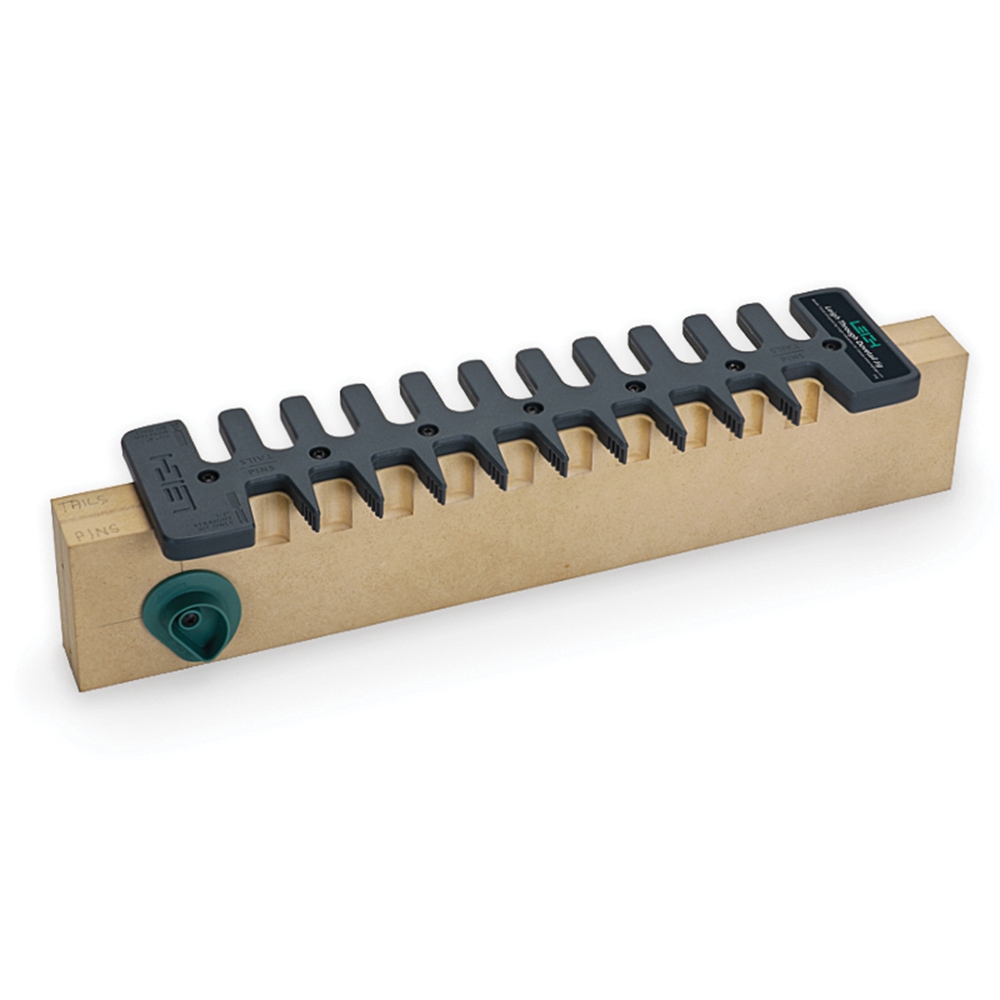

Leigh TD330 Through Dovetail Jig

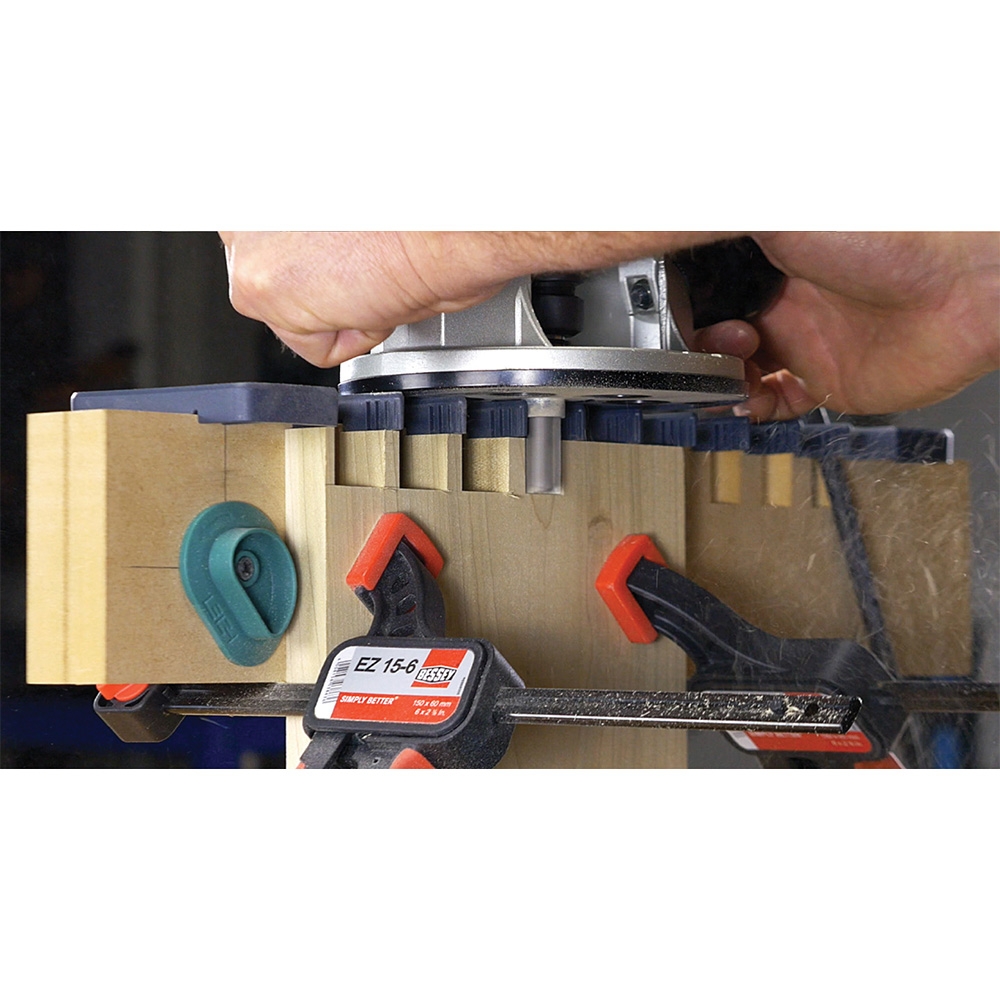

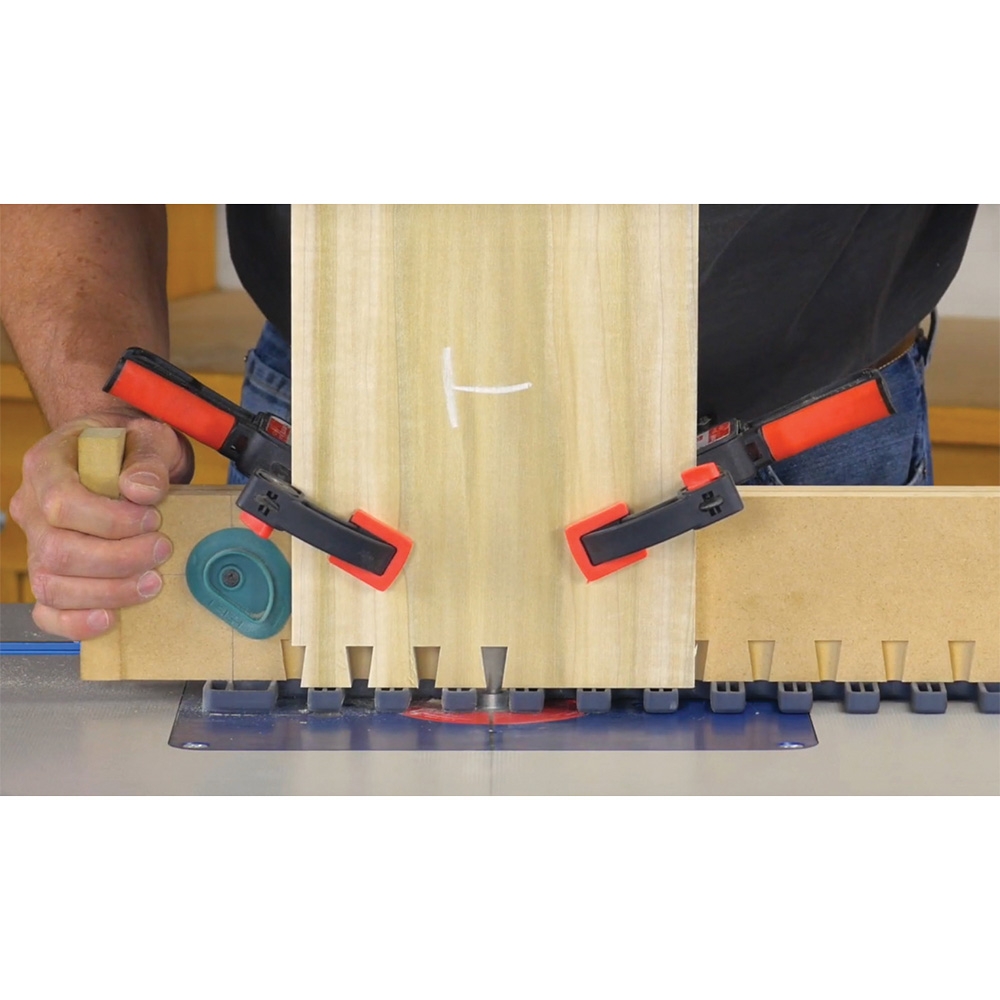

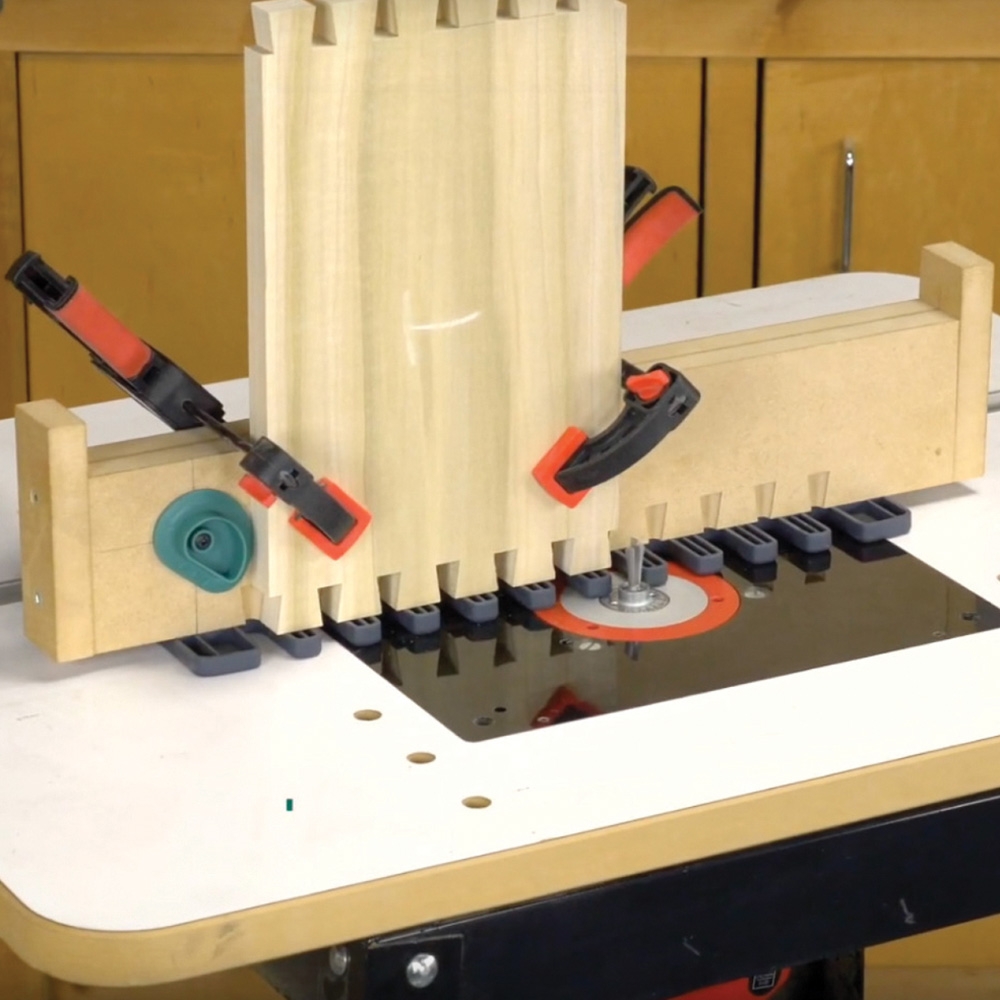

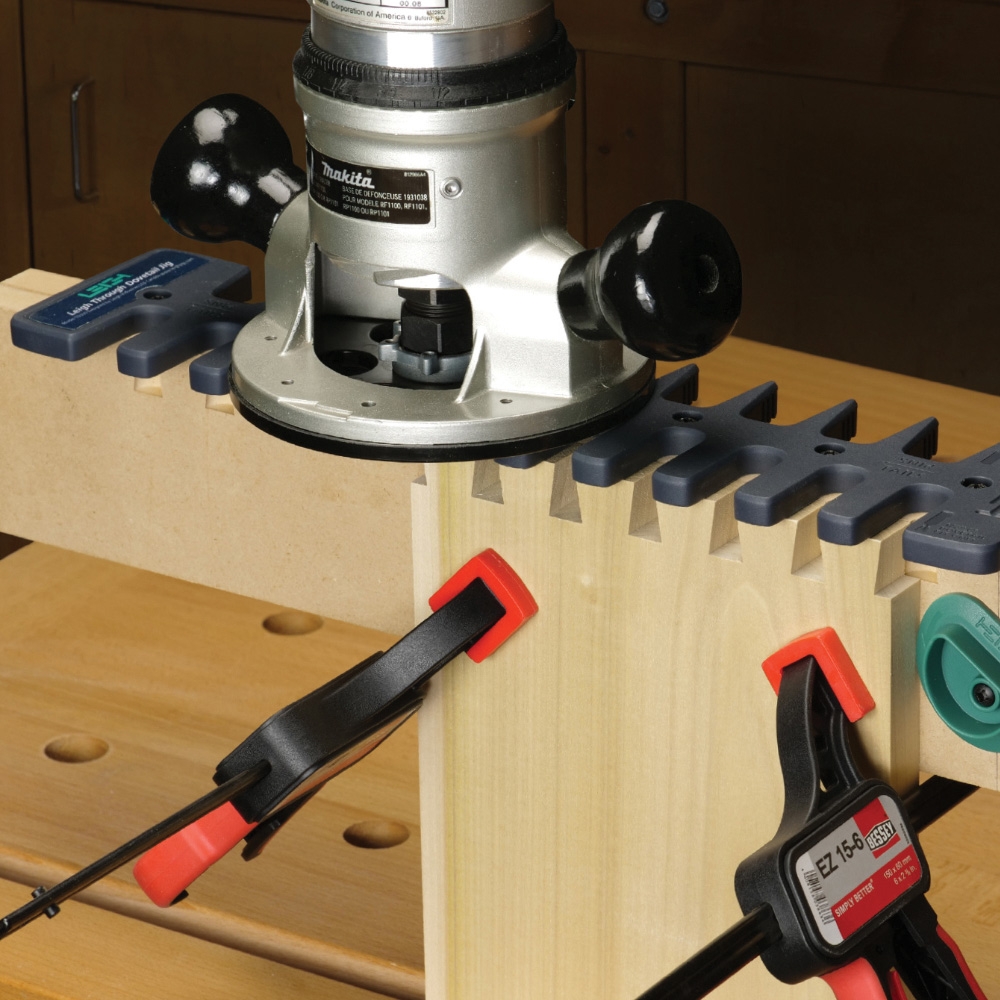

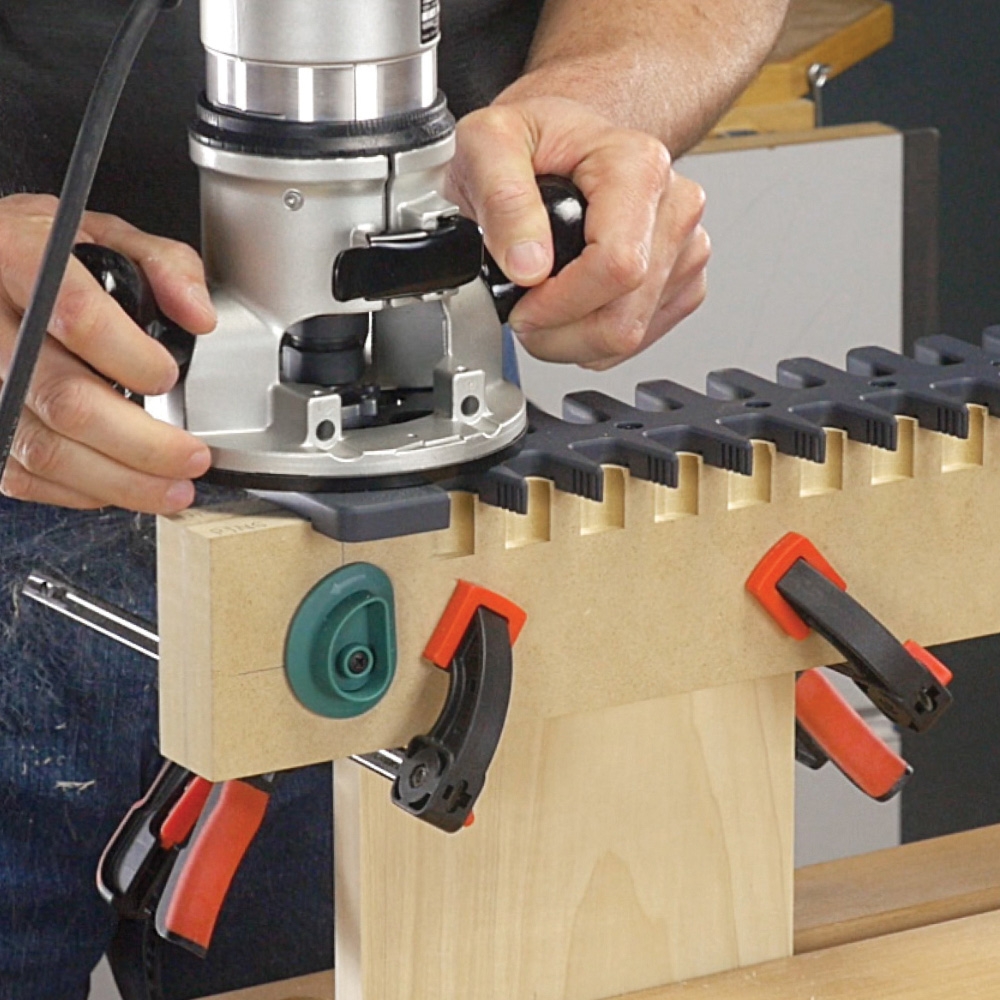

Ensure a snug fit of your pins and tails with the Leigh TD330 Through Dovetail Router Jig. Thanks to the included elliptical guide bushing, dialing in the perfect fit is as easy as turning the bushing to the left or right. The jig works with either your handheld router or your router table, and handles workpieces up to 12-7/8'' wide x 1/8'' to 13/16'' thick. You can use it to join boards of the same thickness for a wide range of boxes, chests and case goods, or different thicknesses, a common requirement for drawers with exposed tails. The template attaches to a simple shop-made beam. You'll need two clamps to fix your work in place, and depending on your router, you made need an adapter for a standard PC-style guide bushing.

Features:

• Patented e10 adjustable elliptical guide bushing system lets you dial in the perfect fit in increments of 0.001''

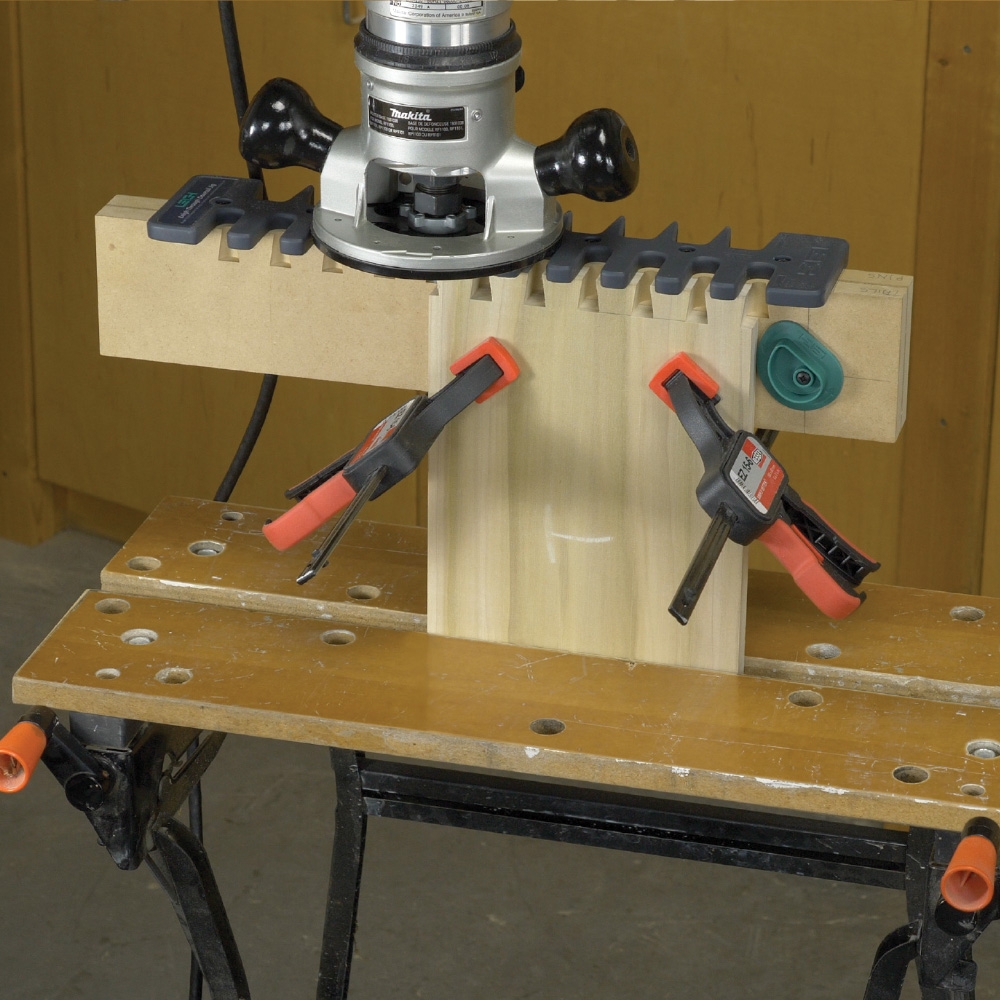

• Template and stops attach to a simple user-made beam—you supply the clamps

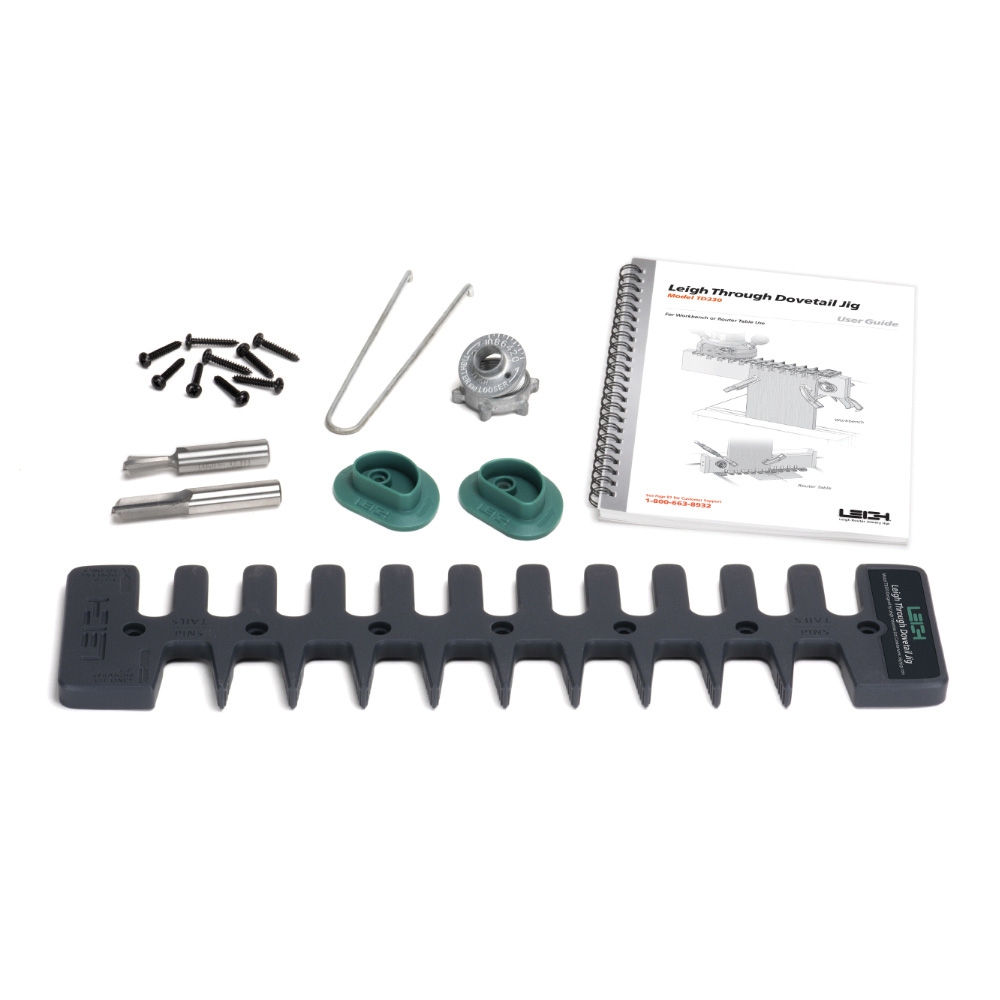

• Includes a fully-illustrated User Guide
• 1-1/4'' (32mm) pin centers

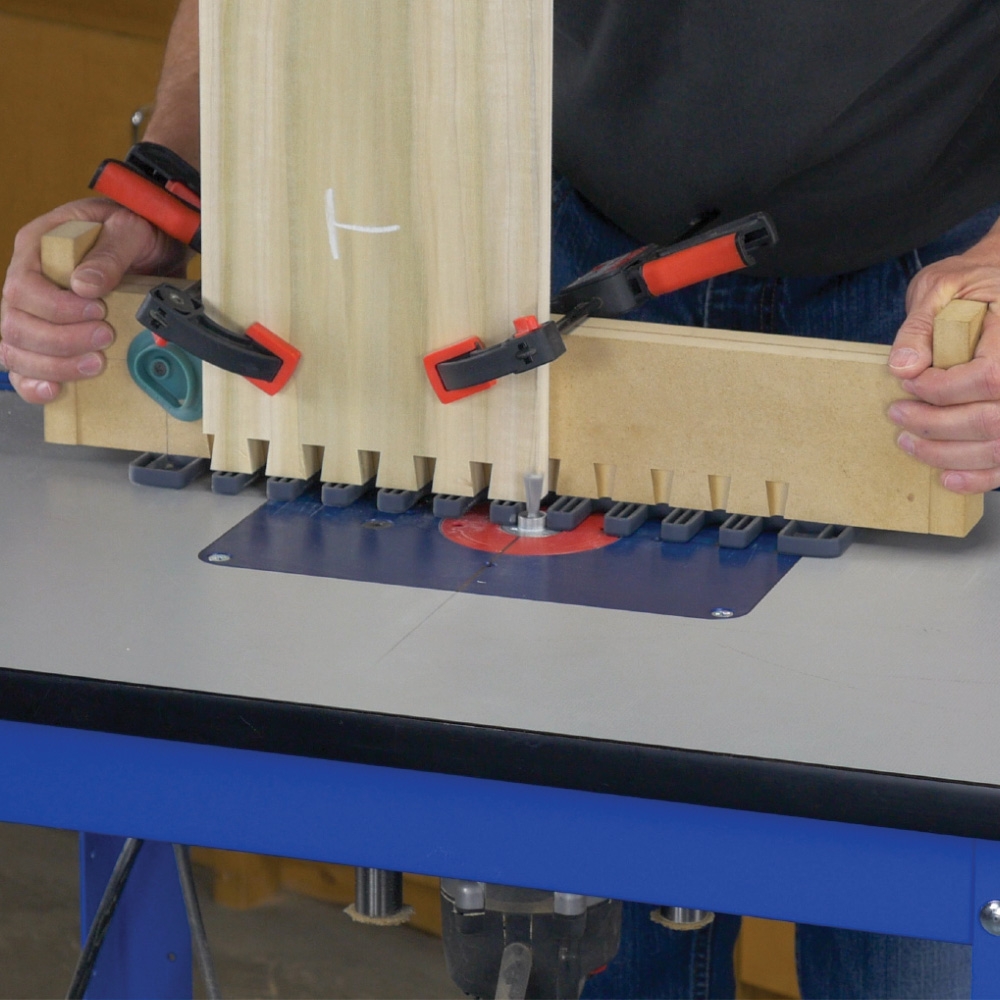

Important Note: Your router must be able to accept a standard PC-style 1-3/8'' O.D. guide bushing. Adapters are commonly available. For router table use, you will need an insert ring that accepts the same PC-style guide bushing.

WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov

WARNING: Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
