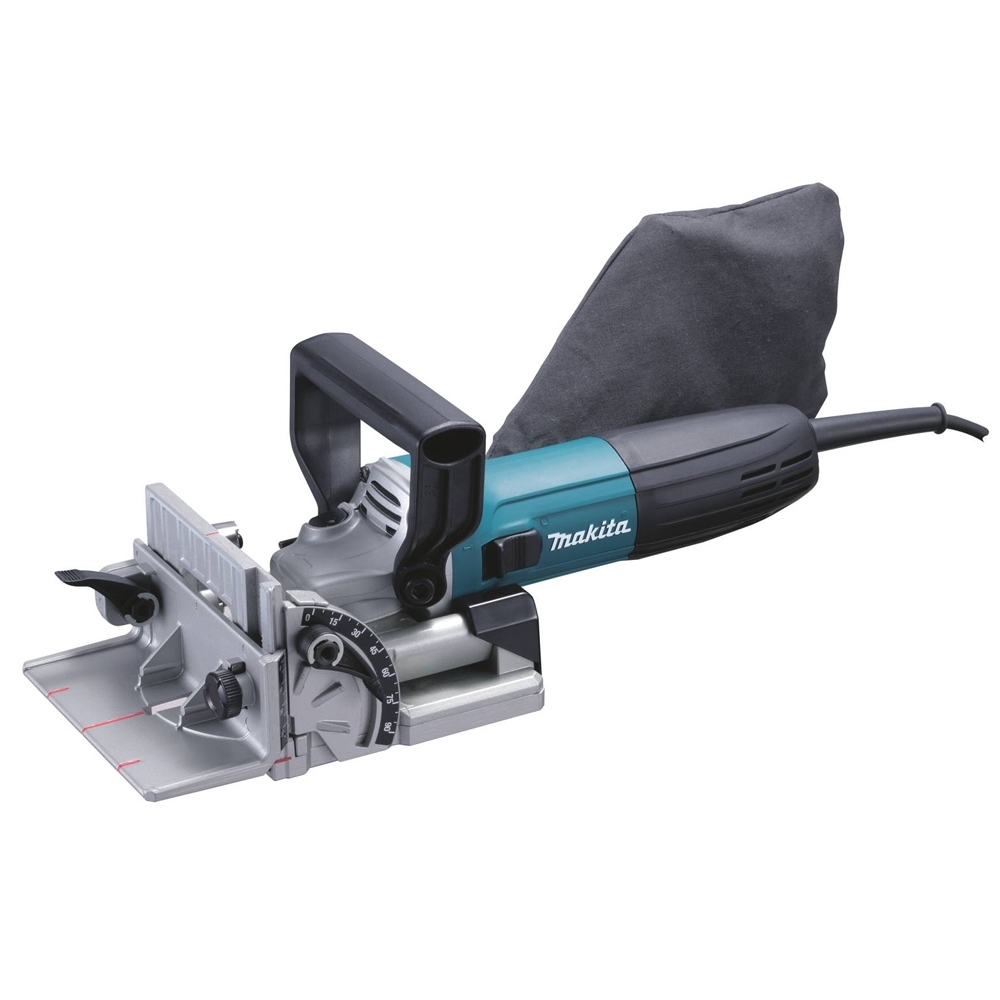

Makita's PJ7000 Plate Joiner combines power, precision and ease-of-use features to produce strong, accurate biscuit joints. Its powerful 5.6-amp motor generates 11,000 RPM for quick and precise cutting in a variety of woods. The rack-and-pinion vertical fence system is engineered for accurate fence adjustments, and the cast aluminum pivoting fence has three positive stops at 0, 45, and 90 degrees. The blade diameter is 4'' with a maximum cutting depth of 3/4'', and there are six depth settings with one-touch stops for the most common biscuit sizes, including #0, #10 and #20. The non-marring rubber inserts on the shoe are engineered to prevent material from slipping, and the ''tool-less'' blade cover and shaft lock allow for easy blade changes. Additional features include easy-to-operate cam locks for quick fence adjustments, a large top-mounted handle for improved handling, and a slim ergonomic body design.
Features:

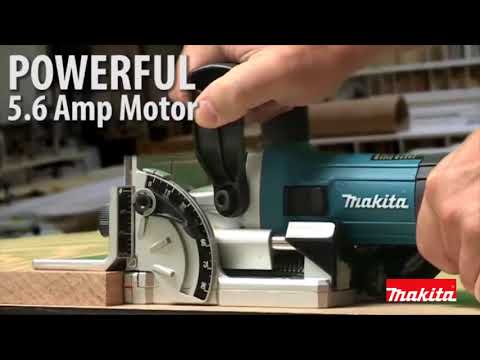

Powerful 5.6 AMP motor delivers 11,000 RPM for quick, precise cutting in a wide range of wood species
Cast aluminum pivot fence with three positive stops at 0°, 45° and 90°
Six depth settings with one-touch stops for most common biscuits sizes, including #0, #10, and #20
Larg, easy-to-operate cam locks for fence adjustments
Rack-and-pinion vertical fence system for accurate fence adjustments
Large top handle for improved handling
Slim, ergonomic body design for added comfort
''Tool-less'' blade cover and shaft lock for fast, easy blade changes
Non-marring rubber inserts on shoe help prevent material from slipping
Cast aluminum front body for added durability
Designed for making strong biscuit joints in a minimum amount of time
(1) Makita PJ7000 Plate Joiner (1) 4'' Carbide-Tipped Blade for Plate Joiner (A-95118) (1) Angle Guide (123148-2) (1) Dust Bag (123150-5) (1) Set Plate (415579-2) (1) Lock Nut Wrench (782401-1) (1) Tool Case (821509-7)
(1) Makita PJ7000 Plate Joiner (1) 4'' Carbide-Tipped Blade for Plate Joiner (A-95118) (1) Angle Guide (123148-2) (1) Dust Bag (123150-5) (1) Set Plate (415579-2) (1) Lock Nut Wrench (782401-1) (1) Tool Case (821509-7)
Brand Makita
More Information
Brand
Makita
Manufacturer Part Number
PJ7000
Weight
12.56
Tech Spec
Blade Diameter: 4''
Max. Cutting Depth: 3/4''
No Load Speed: 11,000 RPM
Motor Amps: 5.6
Overall Length: 11-7/8''
Net Weight: 5.5 lbs.
Fits Biscuit Sizes #0, #10, #20: Yes
Maximum No-Load Speed: 11,000 RPM
Power Type: Corded
Unit of Measure
Each
With the Rockler Protection Plan you'll get accidental damage coverage immediately upon purchase of your tool. Plus we will extend the manufacturer's warranty for your choice of an additional 1 or 2 years. We'll take care of all parts and labor for any repairs with no deductibles and no hassles. If your tool can not be repaired we'll gladly replace it. Available in the US only. Click here to learn more.
Standard Manufacturer's Warranty: 12 months
