Rockler Pro Shelf Drilling Jig

Name: Rockler Pro Shelf Drilling Jig
Brand: Rockler
SKU: 31571
Price: 124.99 USD
Availability: InStock

Item #

31571

$124.99 Each

Eliminate the possibility of misaligned shelves and cut your setup time in half with the easy-to-use Pro Shelf Drilling Jig!

More details

Notify me when it's back in stock

How do you want your item?

Or Buy These Together

Please select at least one addon to add it to the cart.

Total Price Taxes estimated at checkout

$169.96

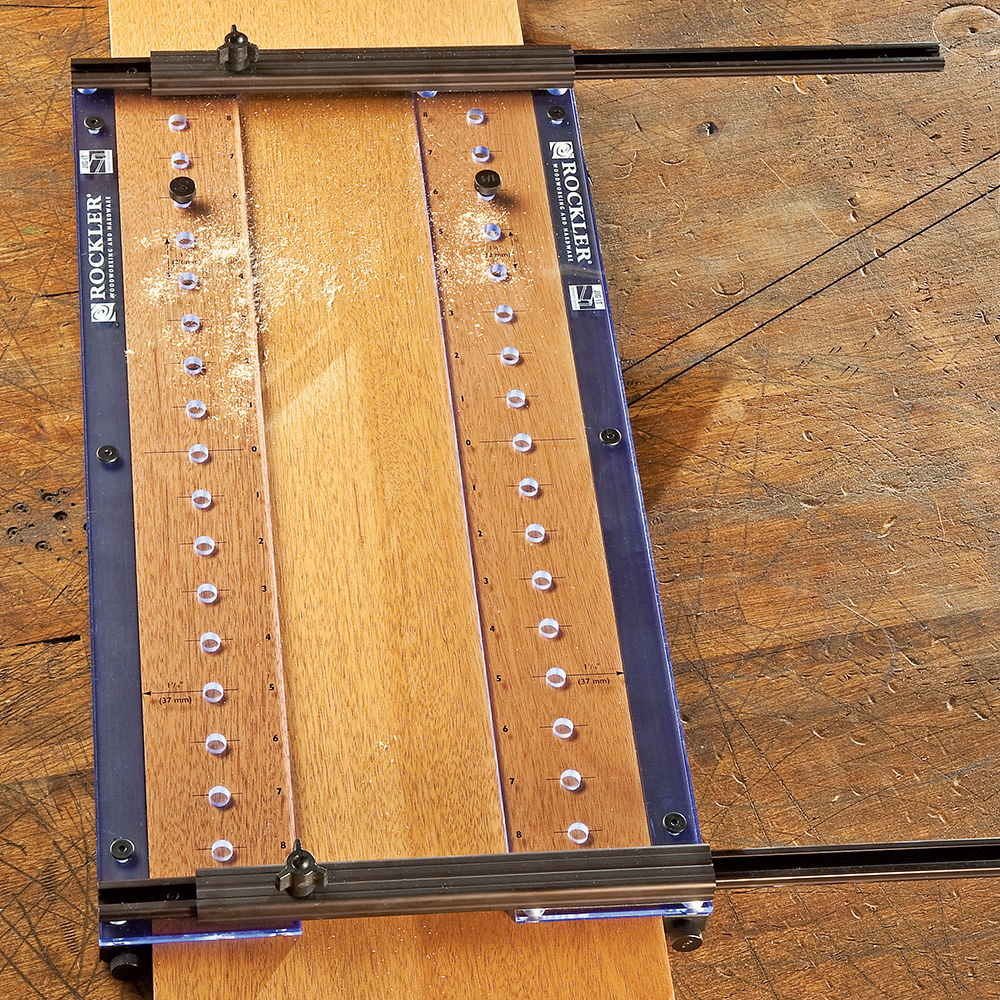

Just lay the jig on your stock, tighten the two horizontal tracking knobs and start drilling error-free rows.

Features:

Guarantees each row is perfectly in line

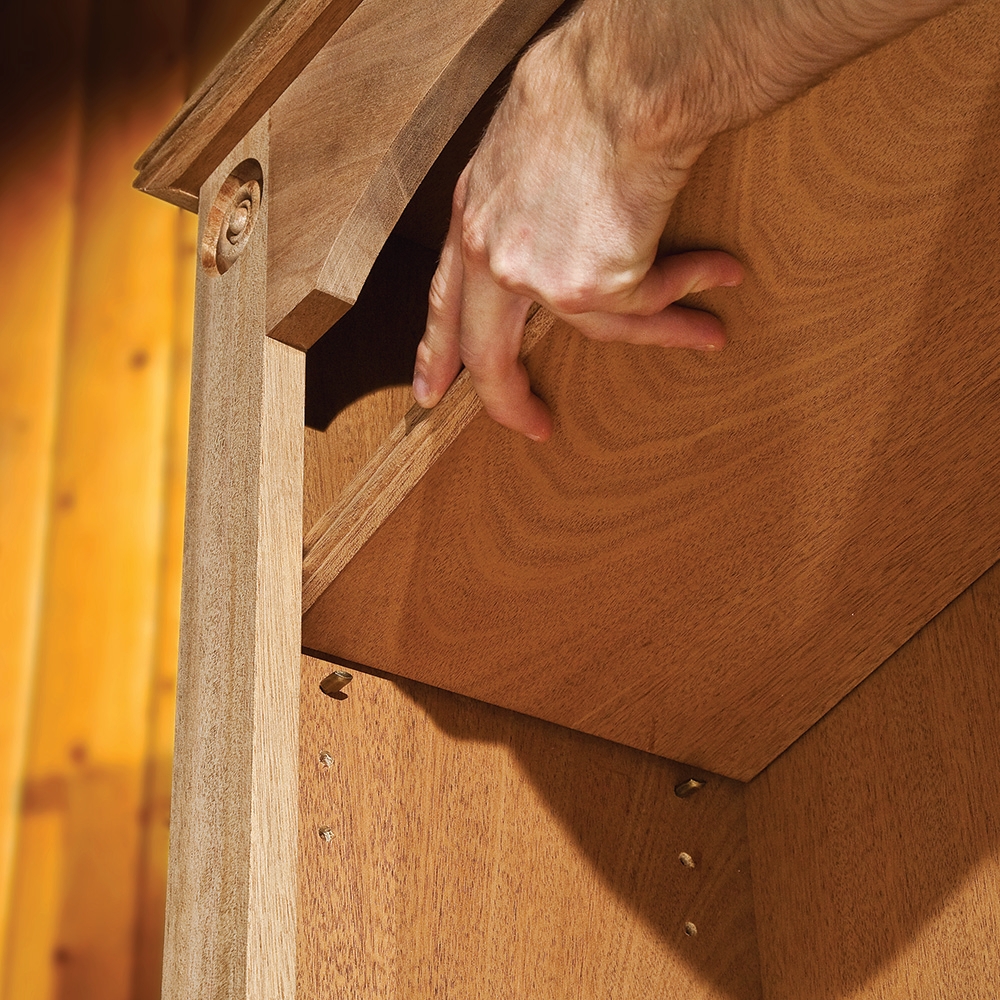

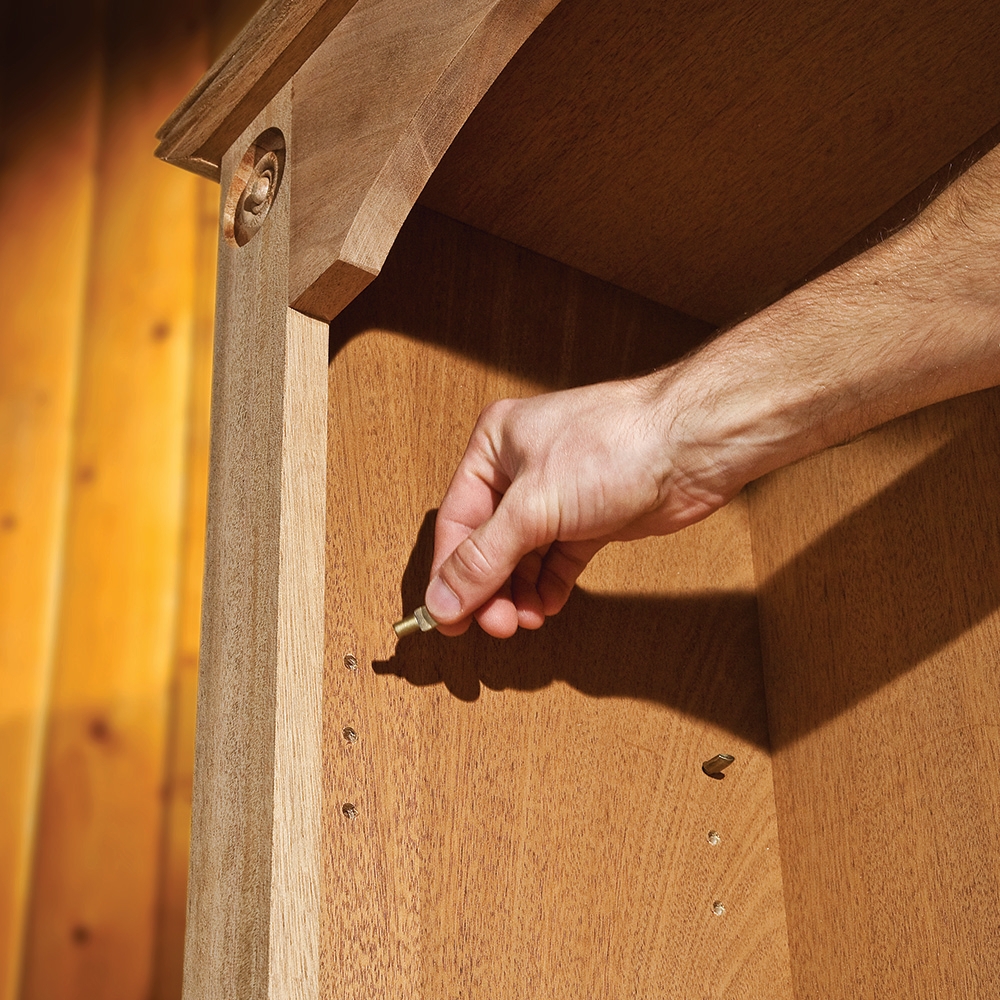

Removes the chance of misaligned shelf pin holes, which means no wobbly shelves
Spaces each hole exactly 37mm from the edge of your stock
Jig is easy to set up and easy to adjust for multiple rows
Rows are spaced exactly 1-1/4" (32mm) apart
Pin holes are set back exactly 1-7/16" (37mm) from each edge
32mm spacing and 37mm setback are fully compatible with the Euro hinge system

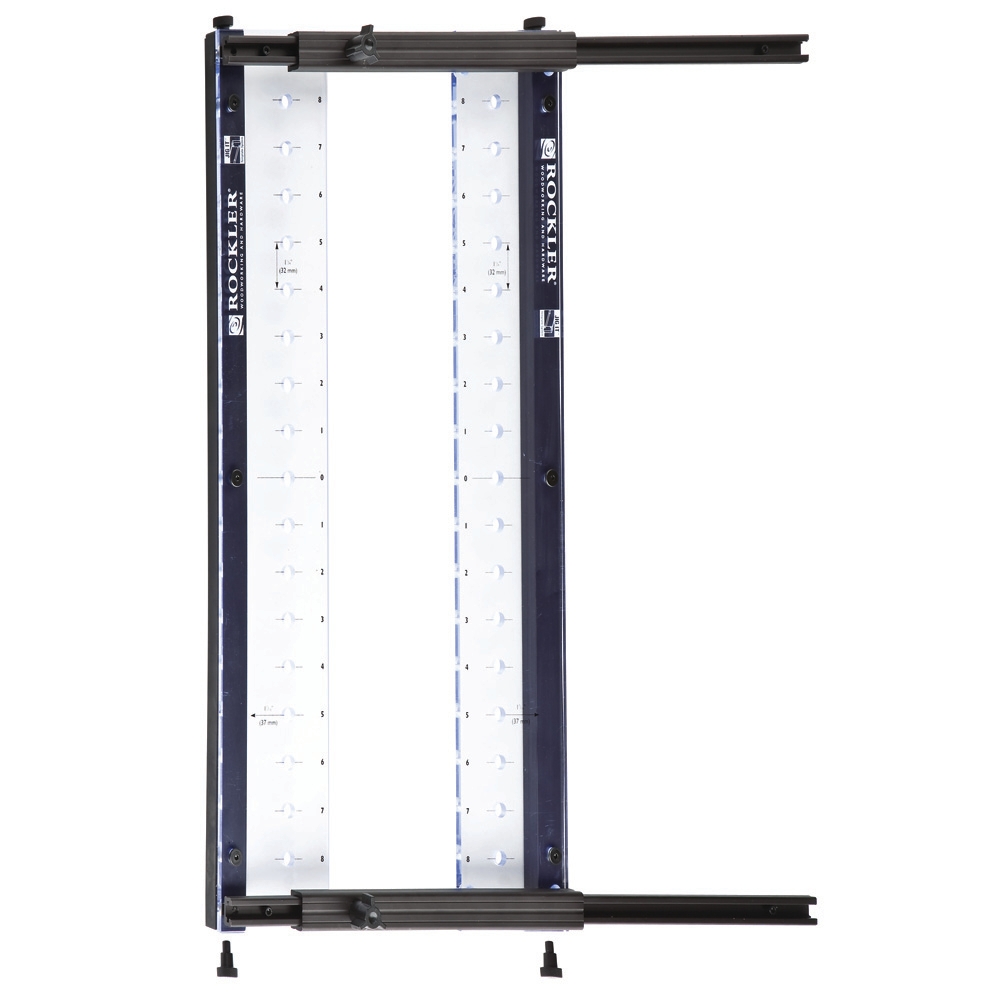

24" long twin template tracks are joined by rigid rails that lock in place for error-free drilling

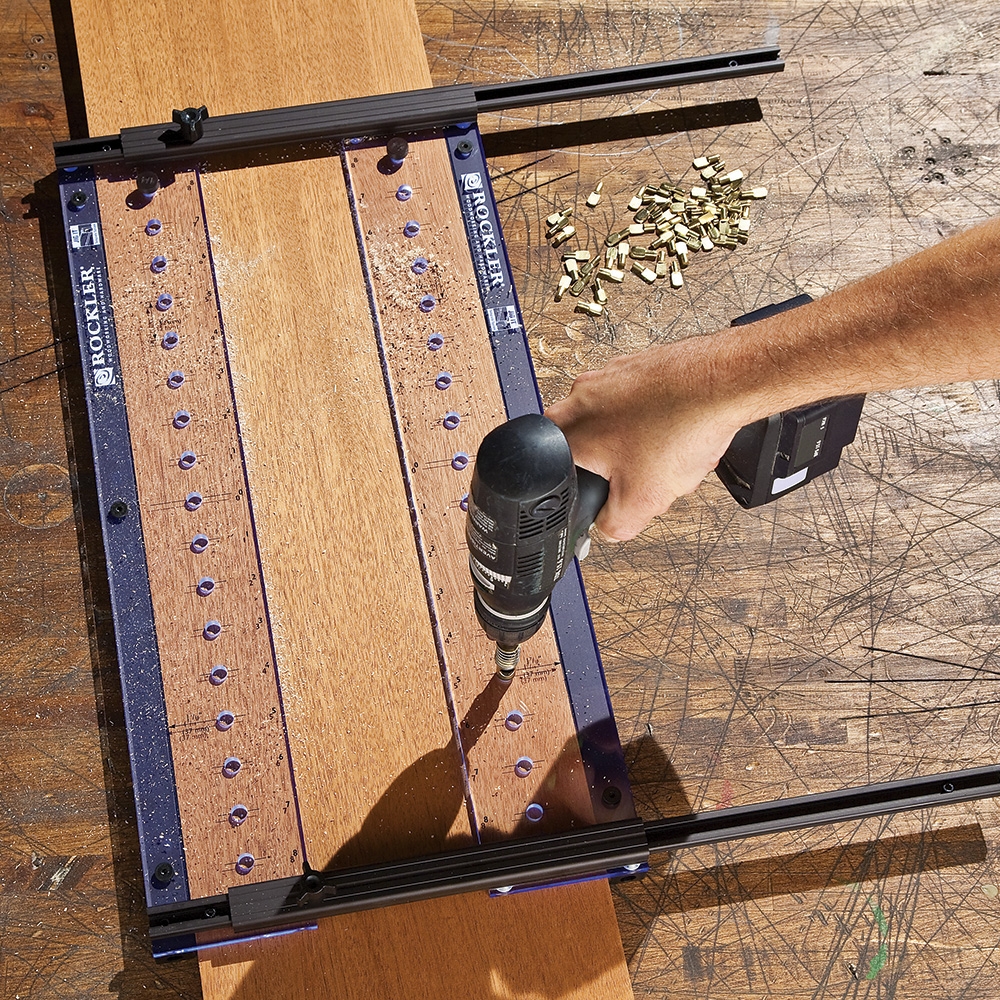

Drill two rows with one jig to save time and ensure accuracy

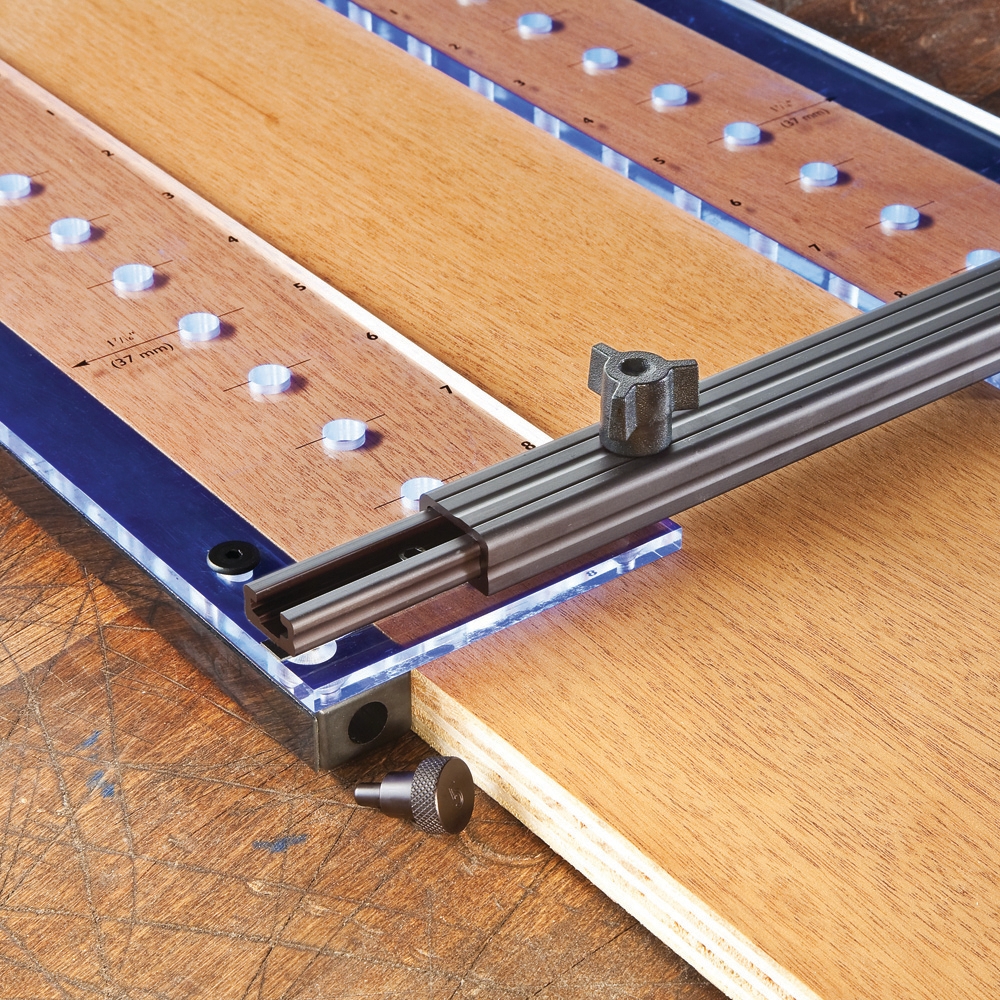

Locking 3-star tracking knobs allow for adjustments and ensure the jig stays firmly in place
Reversible guide rails have a smooth aluminum surface on one side and a rubber fence on the other for better gripping power
Includes two 5mm and two 1/4" indexing pins that eliminate the need for clamps and allow you to extend long rows of holes indefinitely
Included indexing pins store conveniently in the ends of each guide rail when not in use
Drilling template is made of thick acrylic for durability
Designed for un-assembled cabinet components from 8-1/4"W to 25-1/4"W

Note: Not included with bit.
