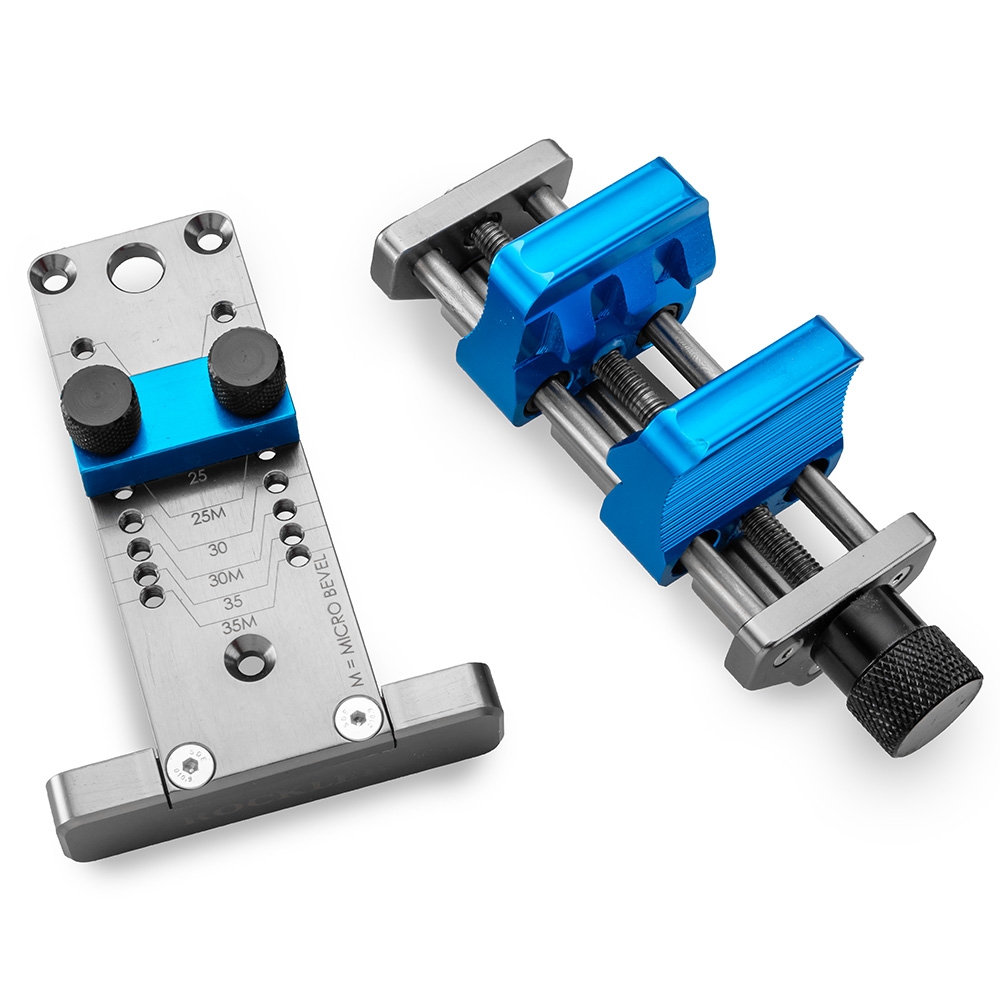

Rockler Deluxe Honing Guide and Setup Gauge

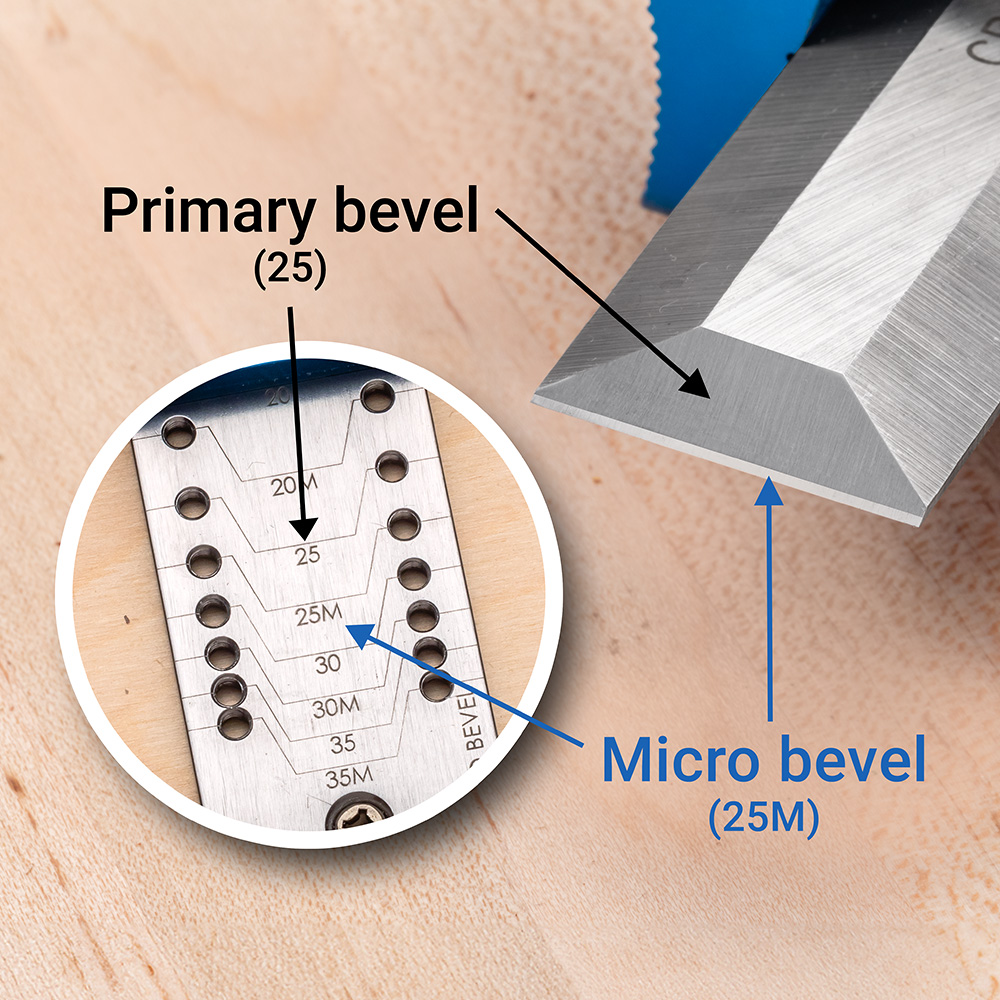

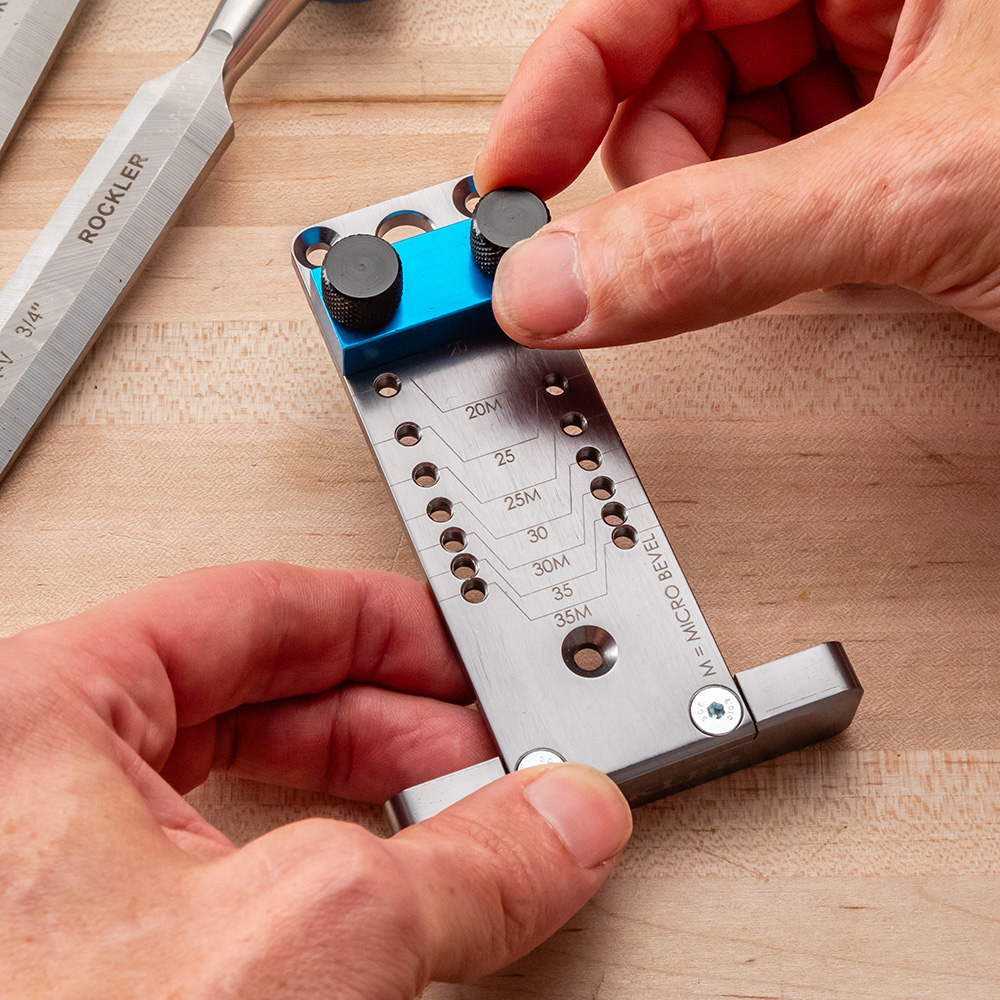

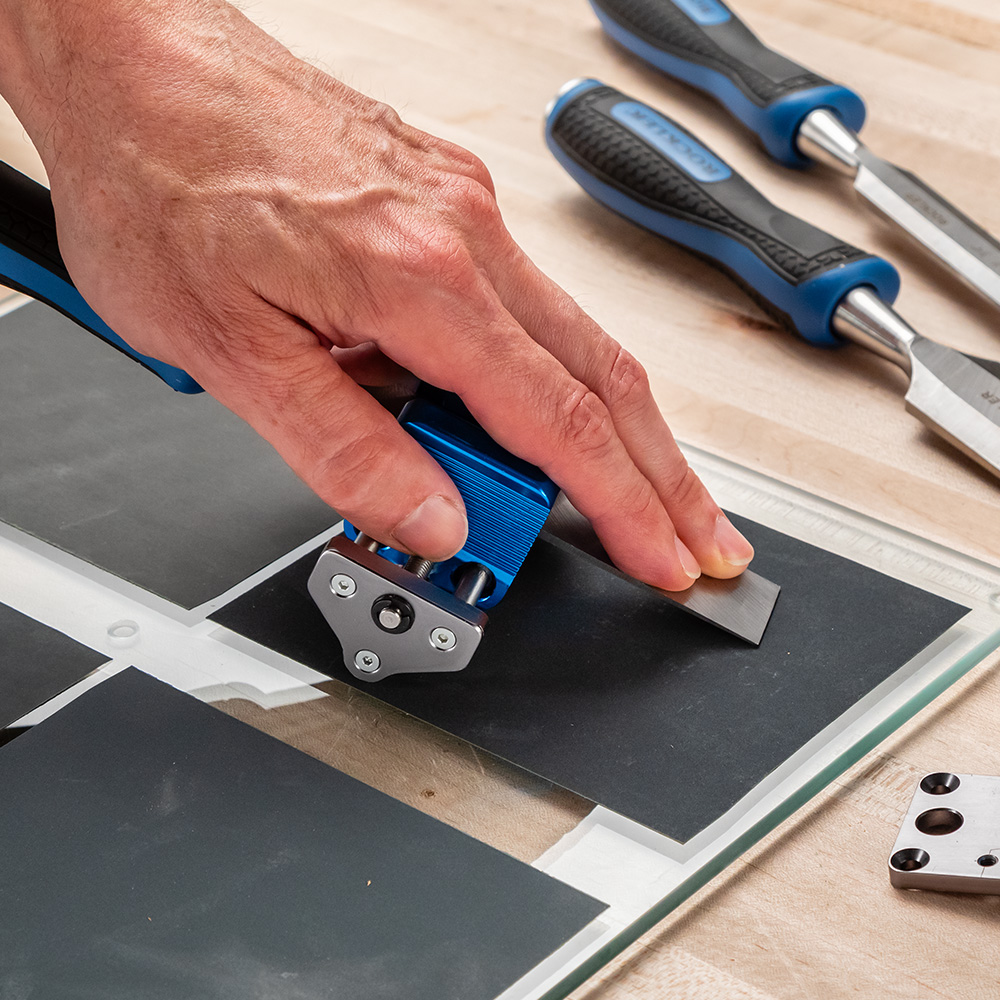

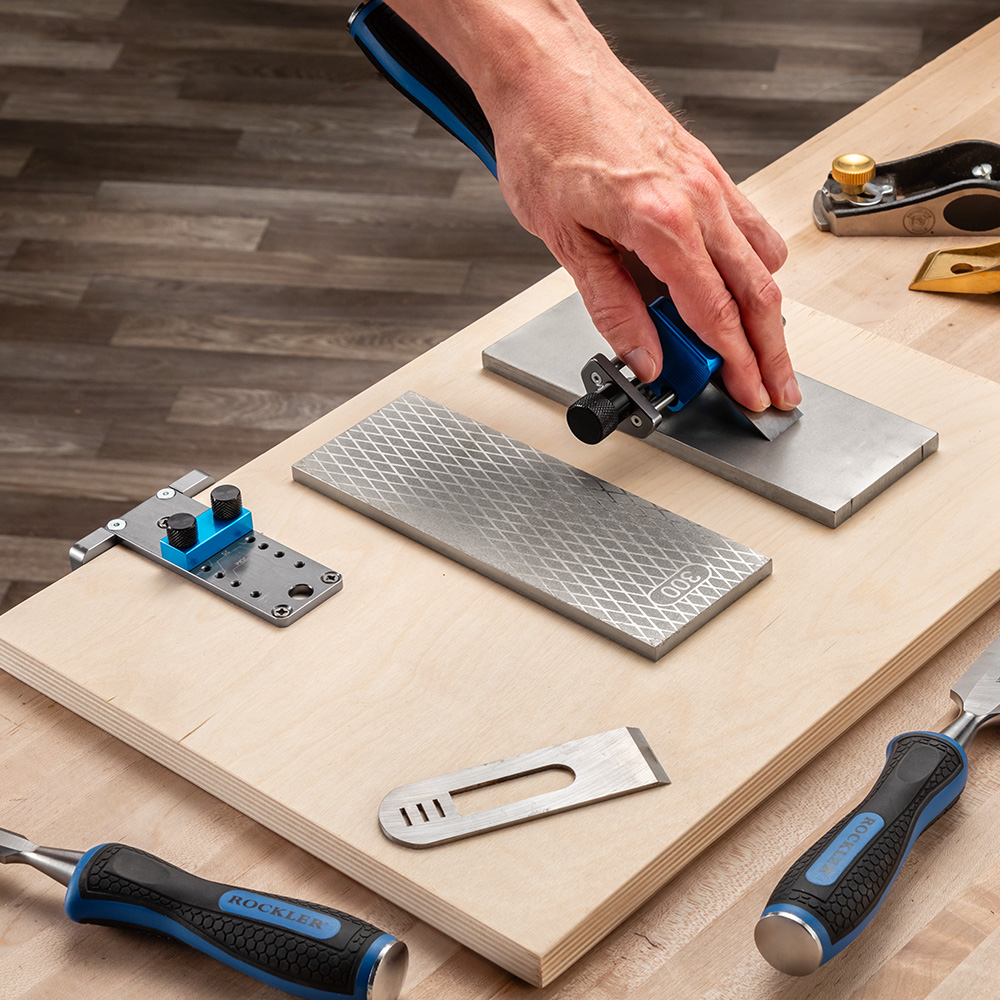

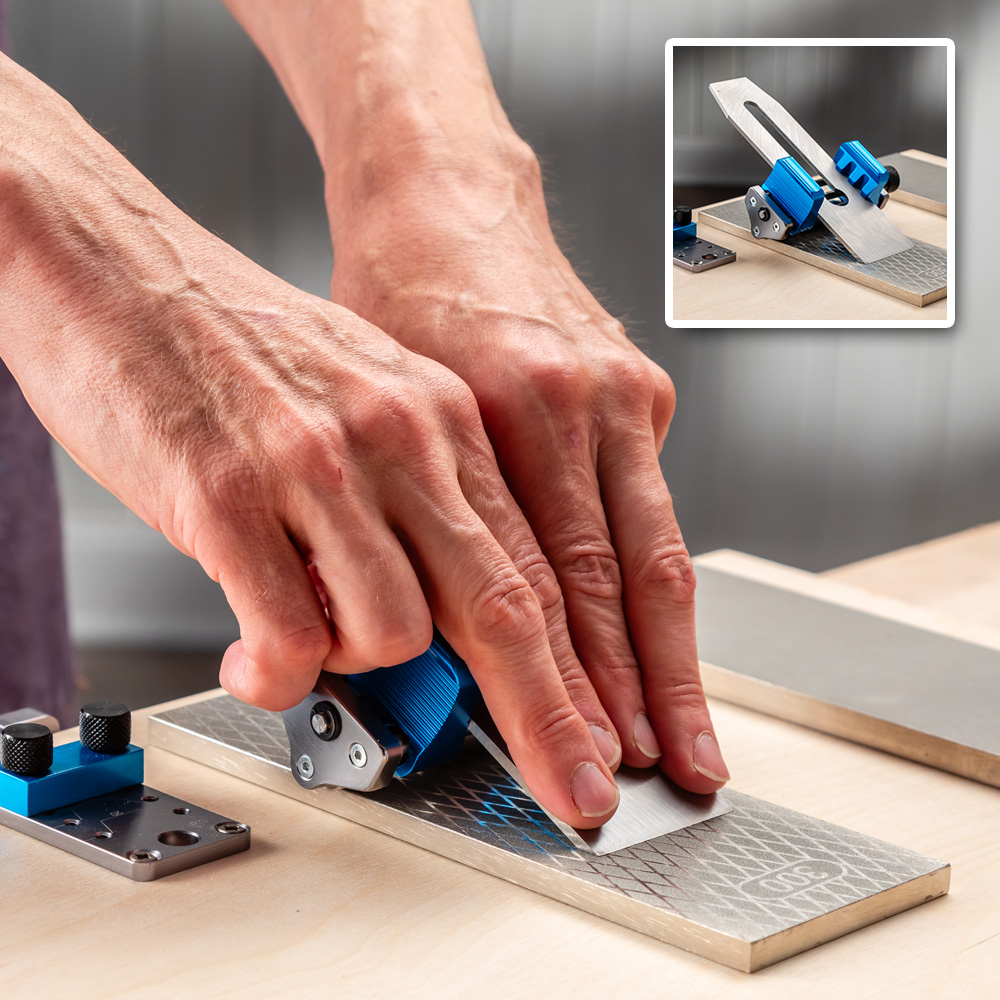

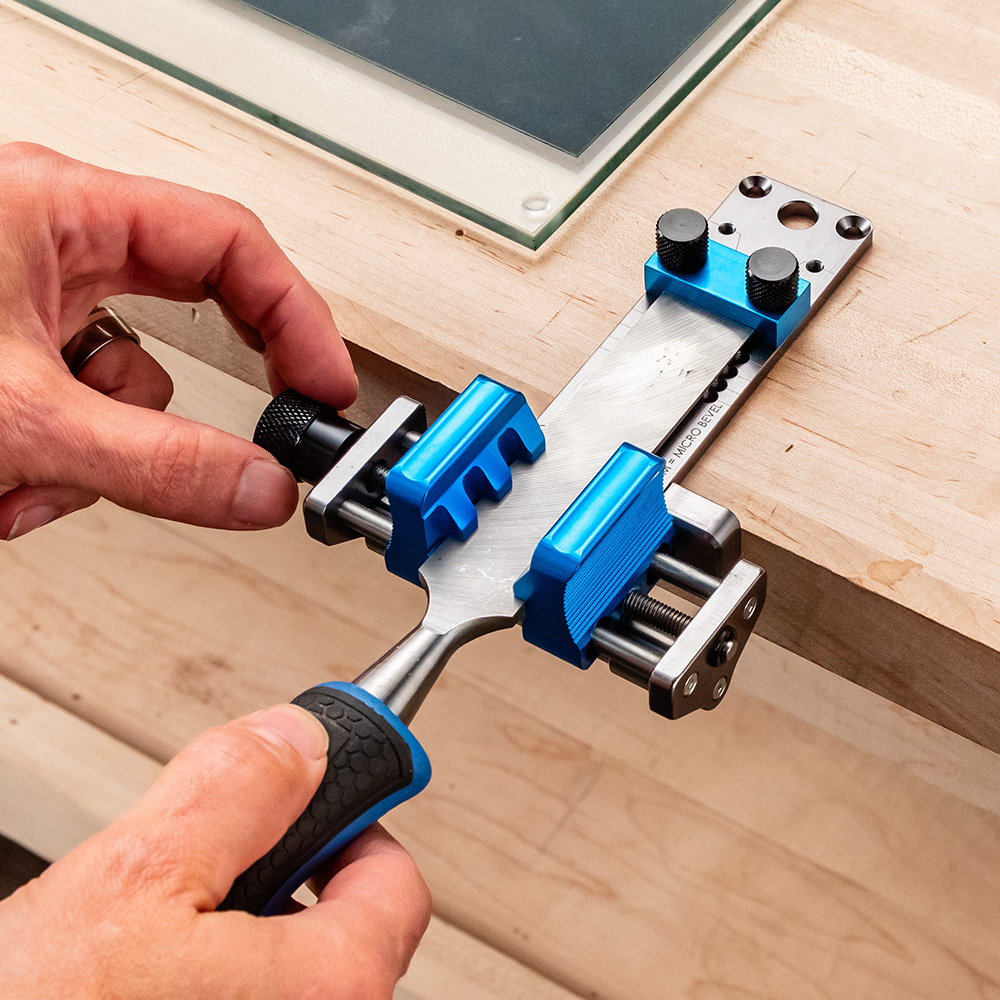

When sharpening chisels or plane irons, it's critical that the blade's primary bevel and microbevel angles are maintained. To do that, you need a reference for indexing these angles correctly and a reliable way to hold the blade while sharpening it. Our Deluxe Honing Guide and Setup Gauge satisfy both requirements simply and consistently. The precision-machined aluminum Setup Gauge is etched with clear, easy-to-read markings for registering 20°, 25°, 30° and 35° primary bevels and microbevels accurately. (Note: A microbevel is a small, slightly steeper bevel at the tip of the blade that strengthens the edge and makes it easier to hone because you're removing less material.) Simply adjust the blue stop on the Setup Gauge to match the angle you need. Then clamp your chisel or plane iron loosely between the large jaws of the Deluxe Honing Guide. Rest the front of the Honing Guide against the Gauge's crosspiece, extend the blade until it touches the stop and tighten the large, knurled knob. That's it! The Honing Guide is now precisely tuned and ready to take to your choice of abrasive for sharpening. Its oversized, 3-1/2''-long wheel rolls smoothly over any flat abrasive surface (sharpening stones, diamond plates or sandpaper) to hone a razor-sharp edge.

Rockler Deluxe Honing Guide and Setup Gauge Details:

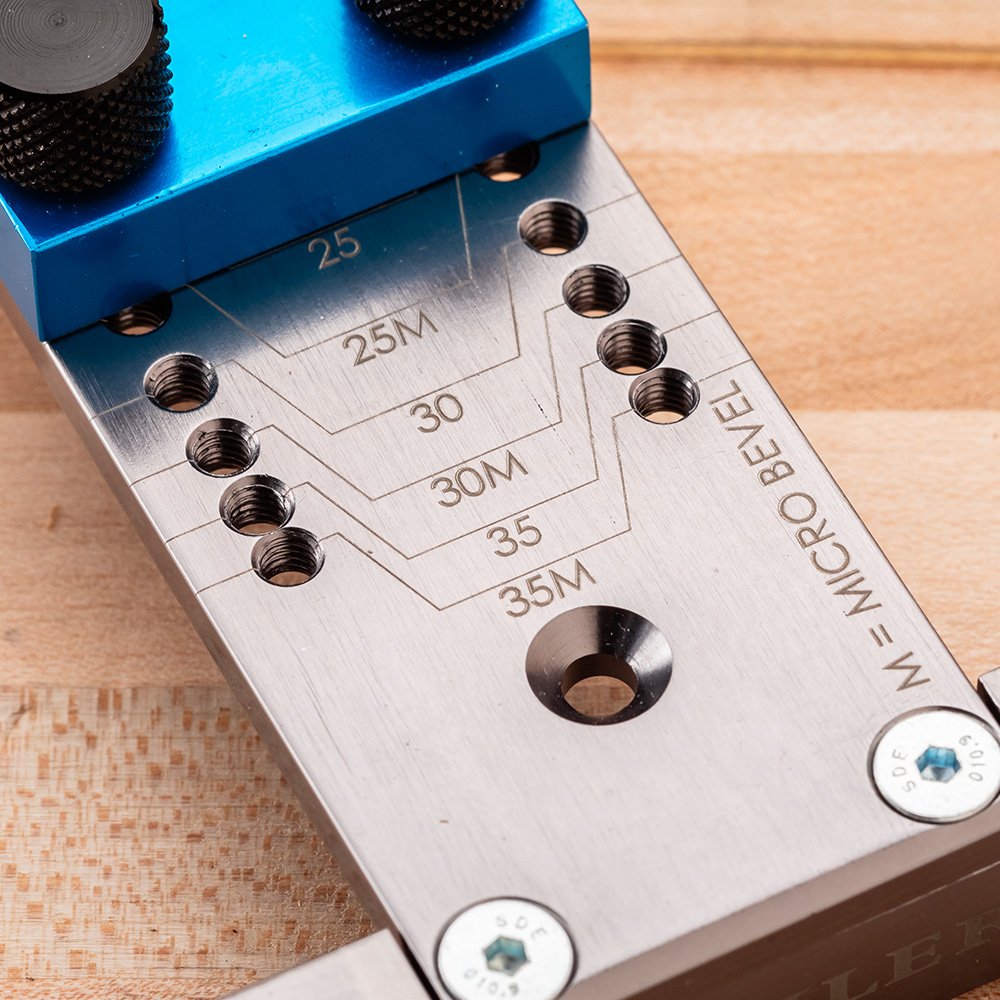

• Clear, easy-to-read etchings on Setup Gauge index 20°, 25°, 30° and 35° primary bevels and microbevels
• Microbevel settings are helpfully marked with an ''M'' for clarity
• Blade stop threads into Setup Gauge plate with knurled knobs
• Setup Gauge is made of aluminum for corrosion-resistance and to prevent marring blade edge

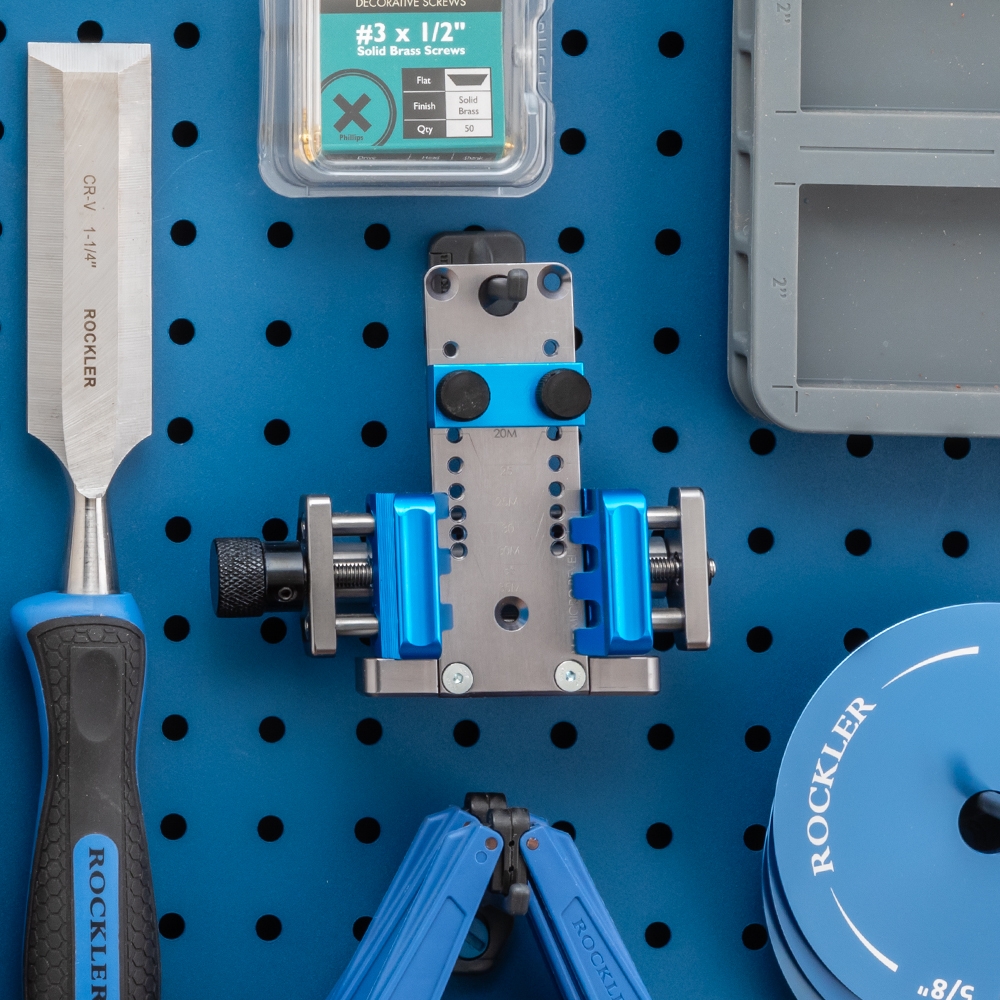

• Mount the Setup Gauge to a work surface with included screws or hang it vertically for storage
• Wide jaws on Honing Guide grip blade edges securely

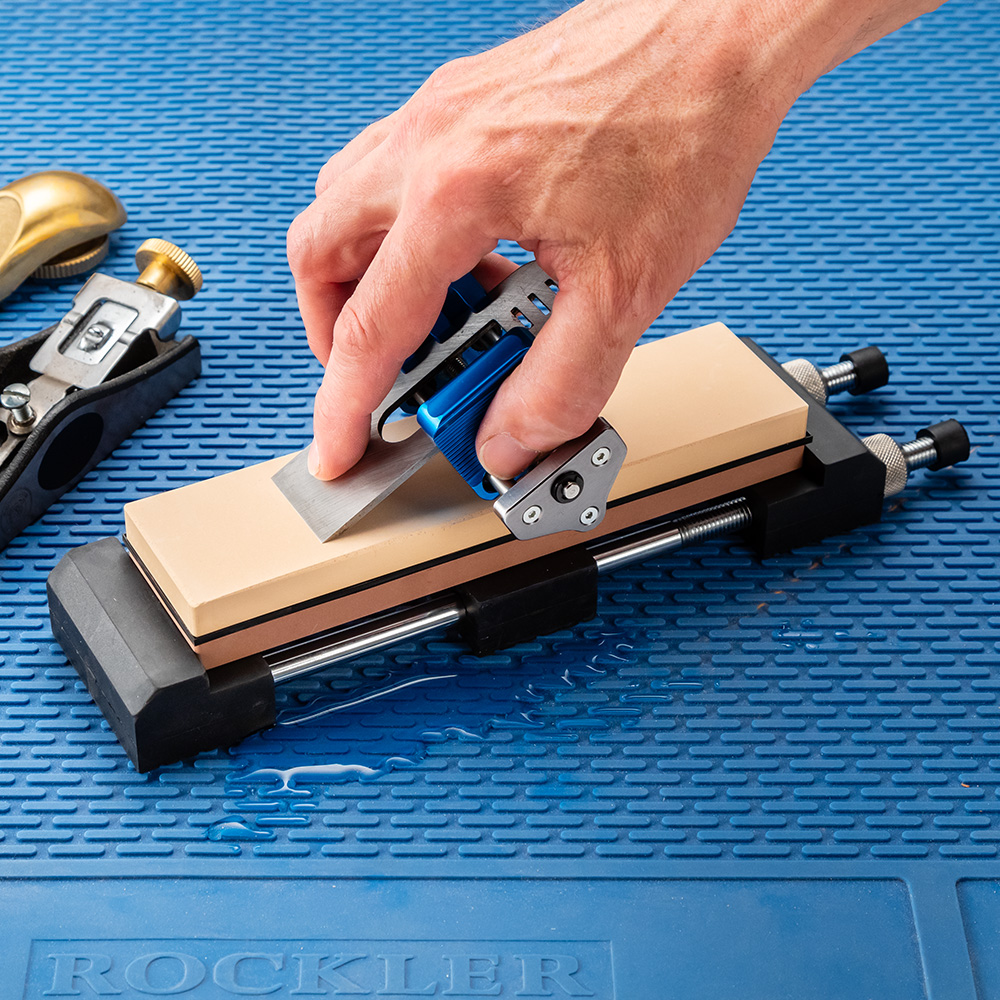

• 3-1/2''-long roller wheel ensures stability for narrow or wide blades and rolls smoothly over any abrasive sharpening surface
• Contoured, textured gripping areas make Honing Guide easy to hold
• Honing Guide fits blades from 1/4'' to 2-1/8'' wide
• Sharpening abrasives sold separately

Note: Chisel or plane blades must be at least 4-3/4'' long for a 20° grind; at least 3-7/8'' long for a 25° grind; at least 3-3/8'' long for a 30° grind; and at least 3'' for a 35° grind.
