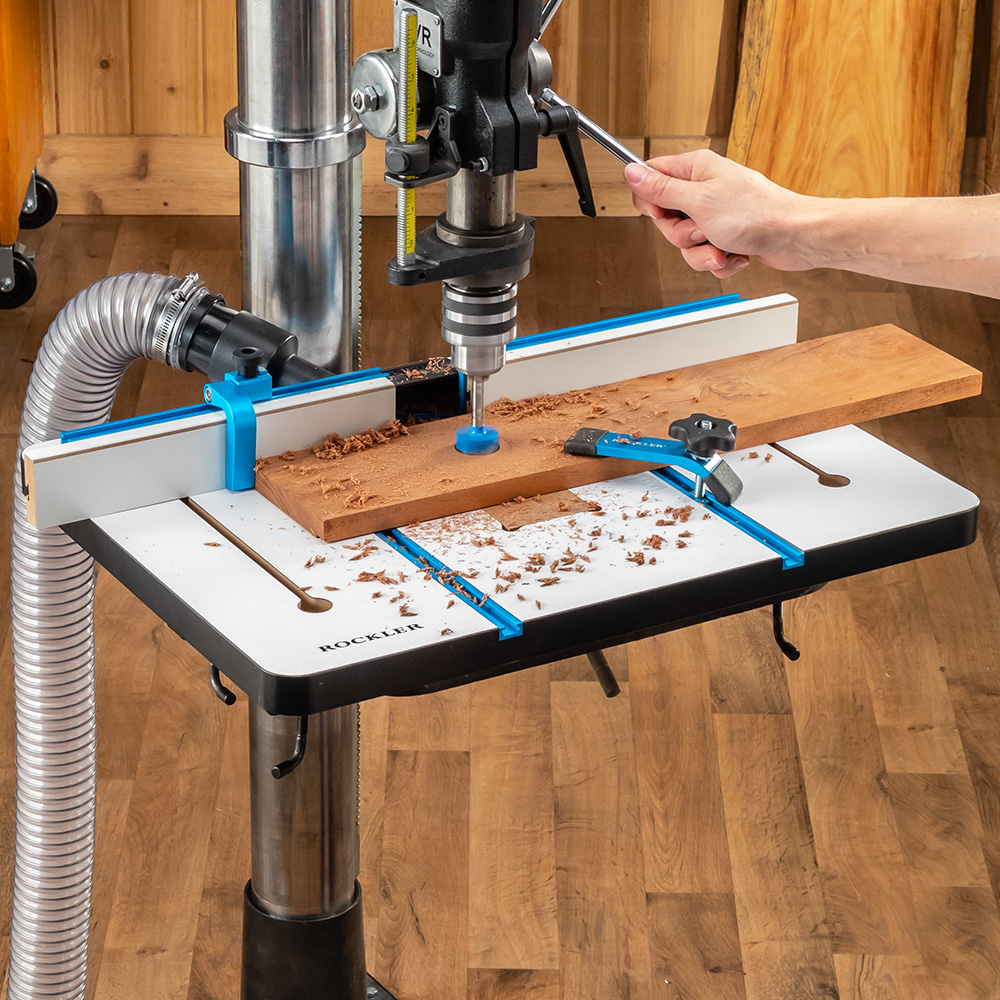

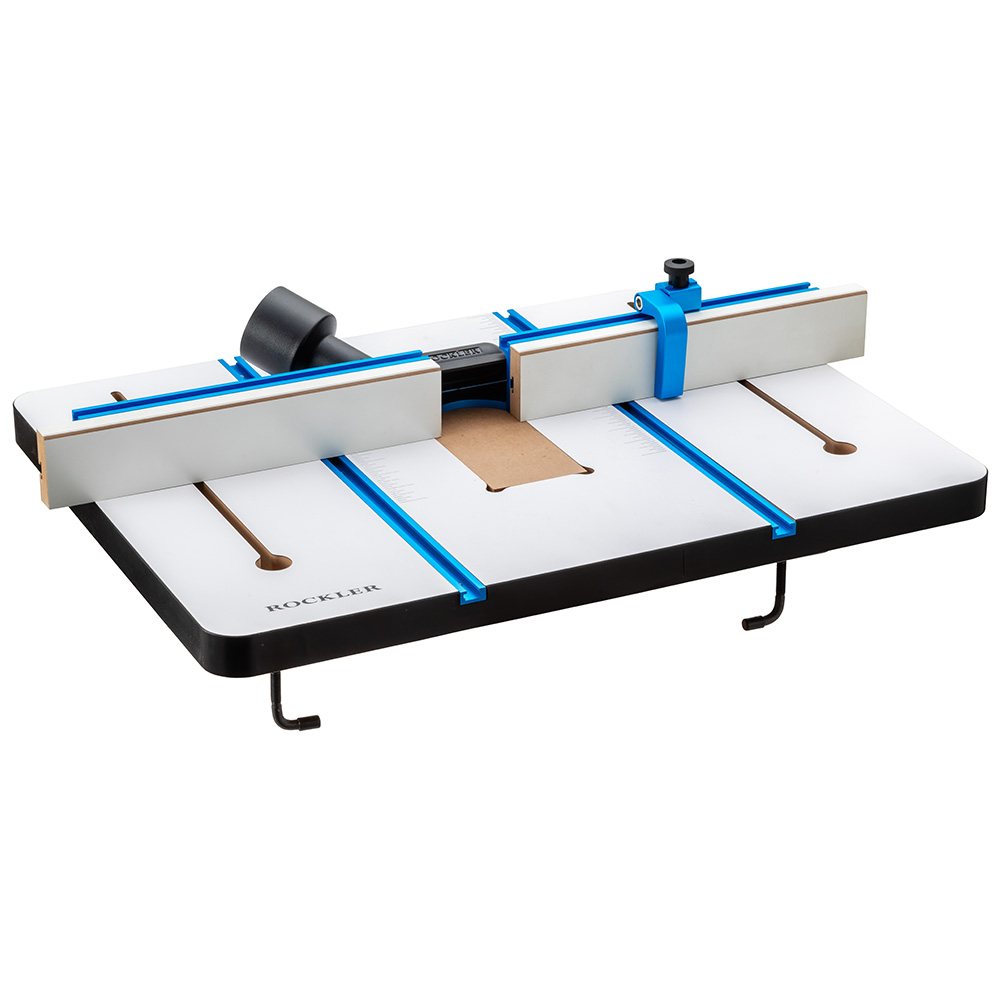

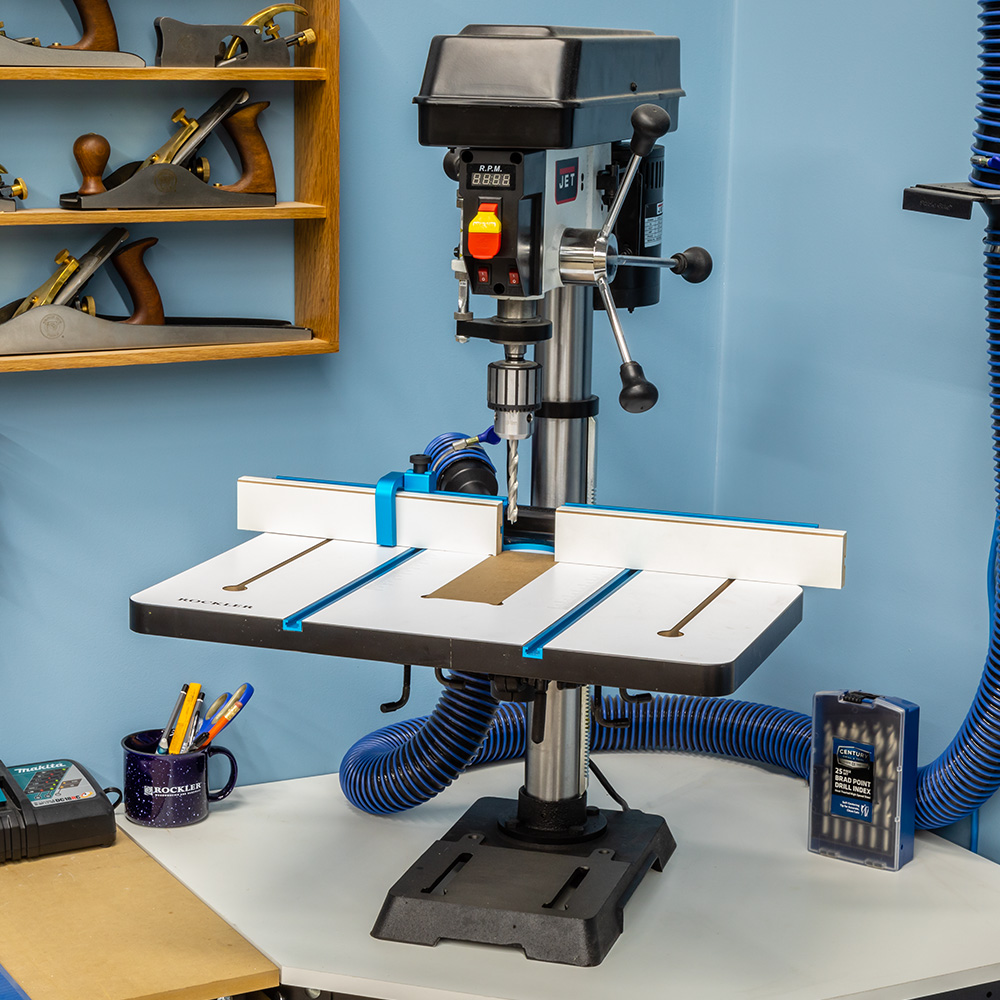

Bring stability and precise repeatability to your drill press with our table and fence combo. With its large table, you'll enjoy excellent support, and thanks to the dual T-tracks, it accepts a variety of optional accessories, included our hold-down clamps (#35283, sold separately). Add to that a full-featured fence with a unique low-profile dust port, adjustable faces and flip-down stop for repeatable accuracy, and you'll have a drill press that outperforms any other.
Features:
Large MDF table with high-pressure laminate micro-dot surface provides increased support for workpieces

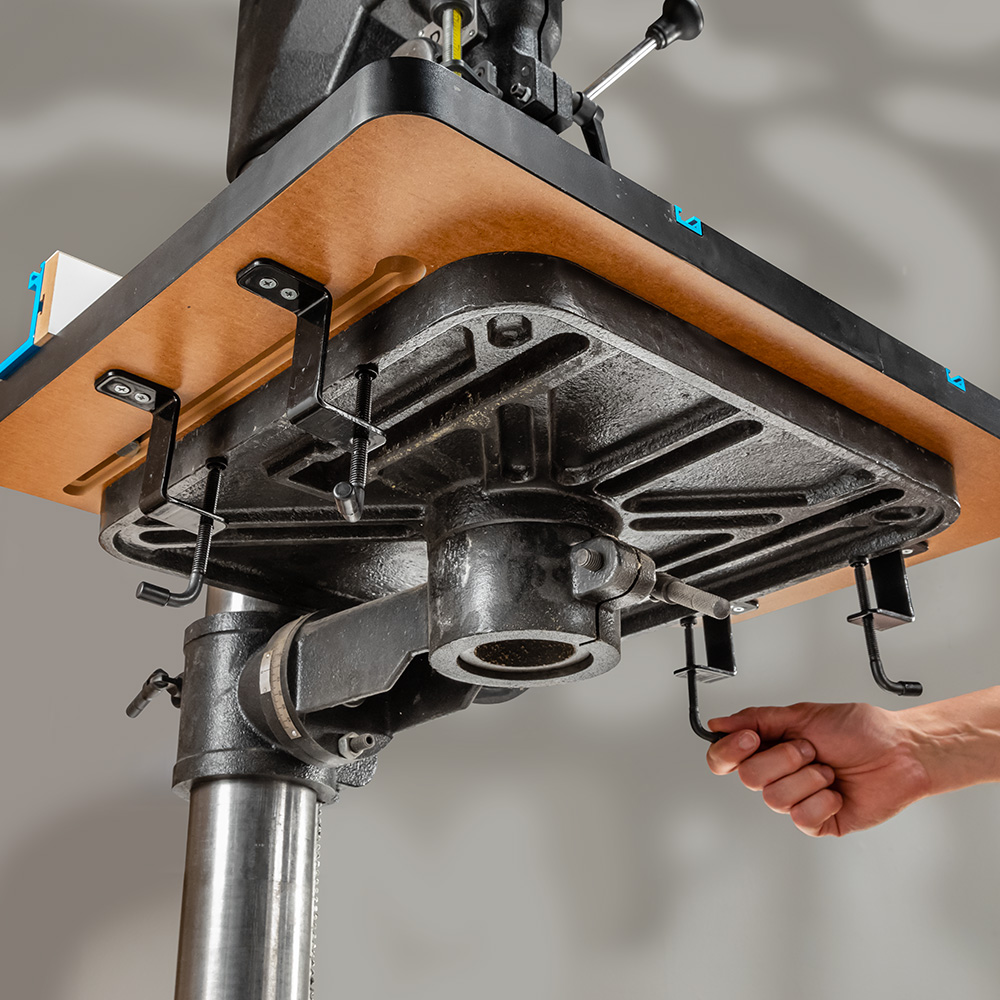

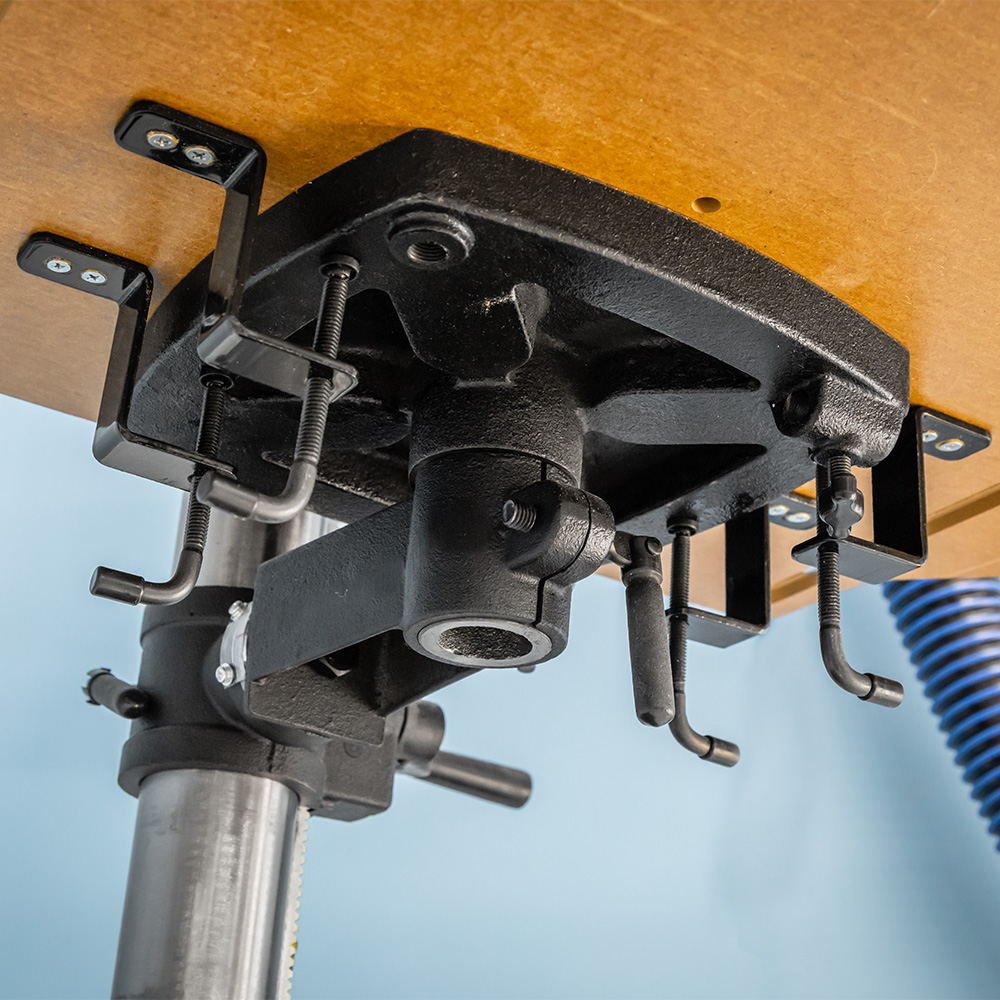

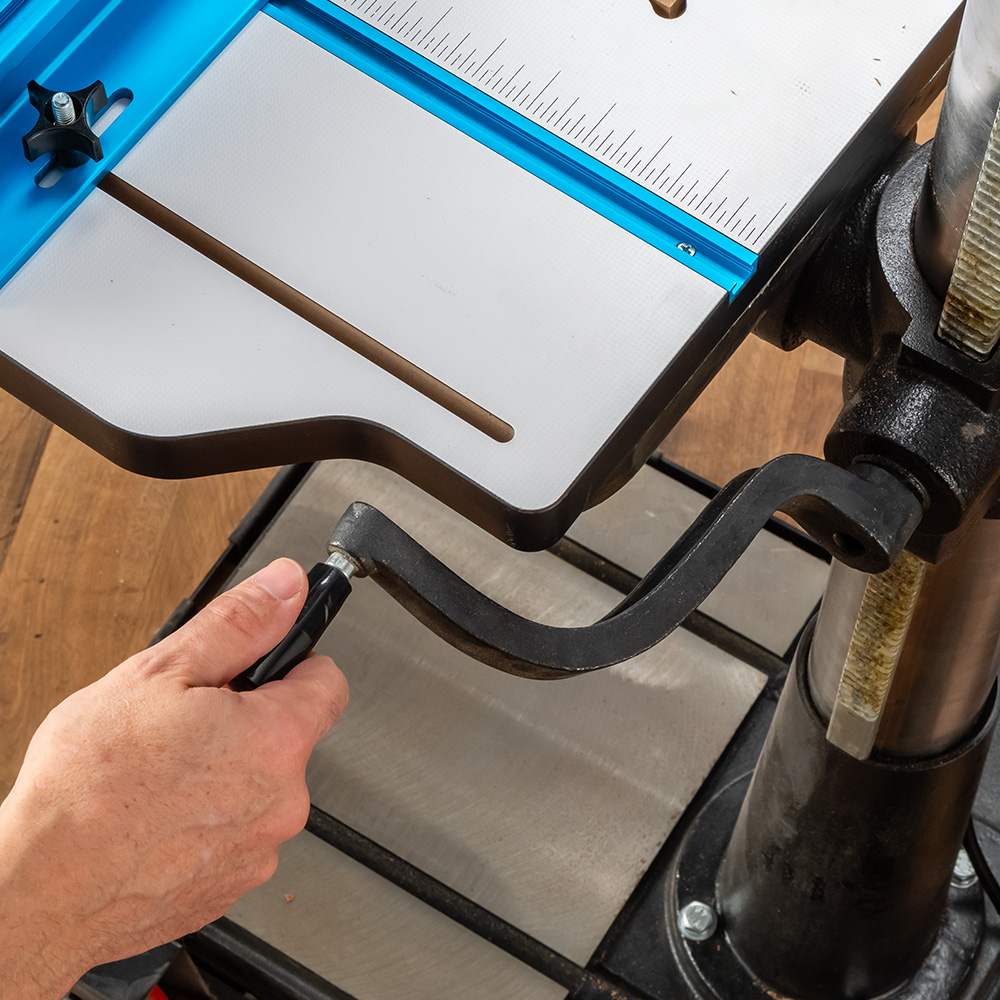

Included mounting brackets screw to the underside of the table, allowing installation on a wide range of drill presses

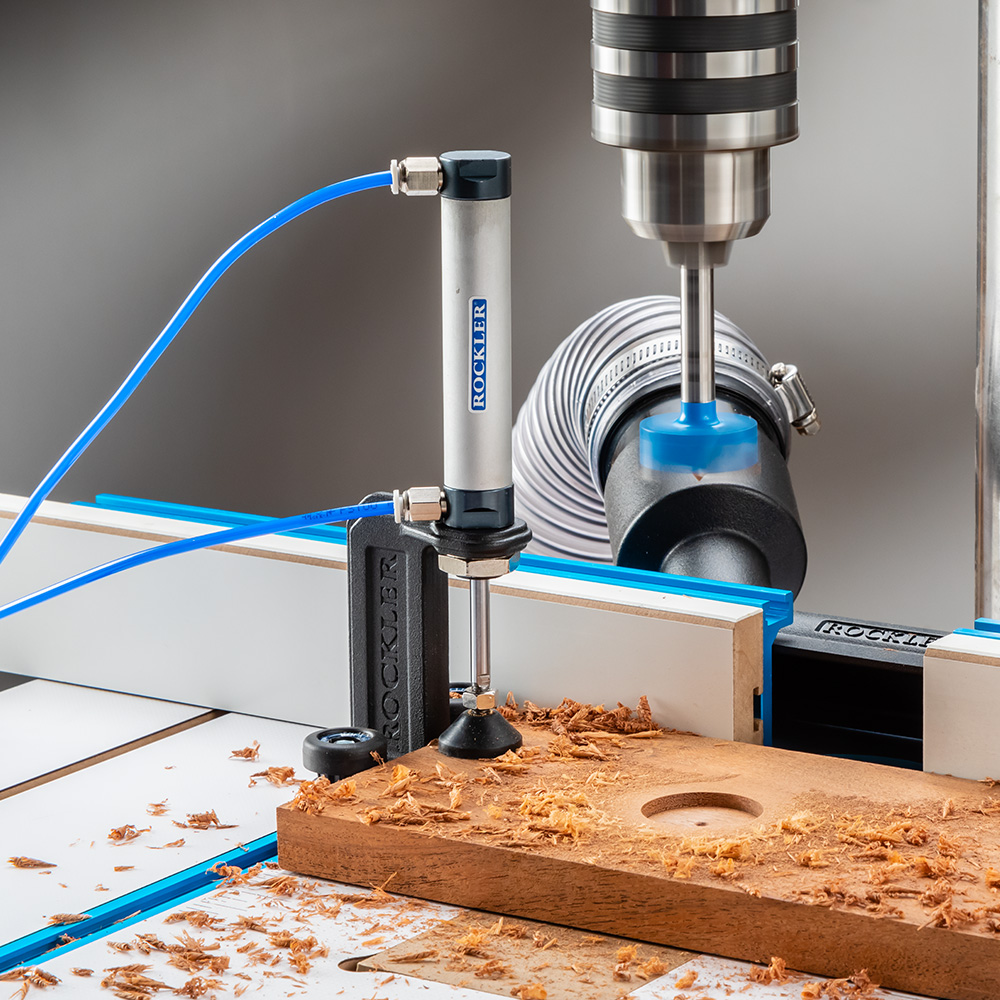

Two T-Tracks offer range of positioning options for hold-down clamps (sold separately)
Replaceable MDF sacrificial center insert serves as backer to prevent blowout during drilling

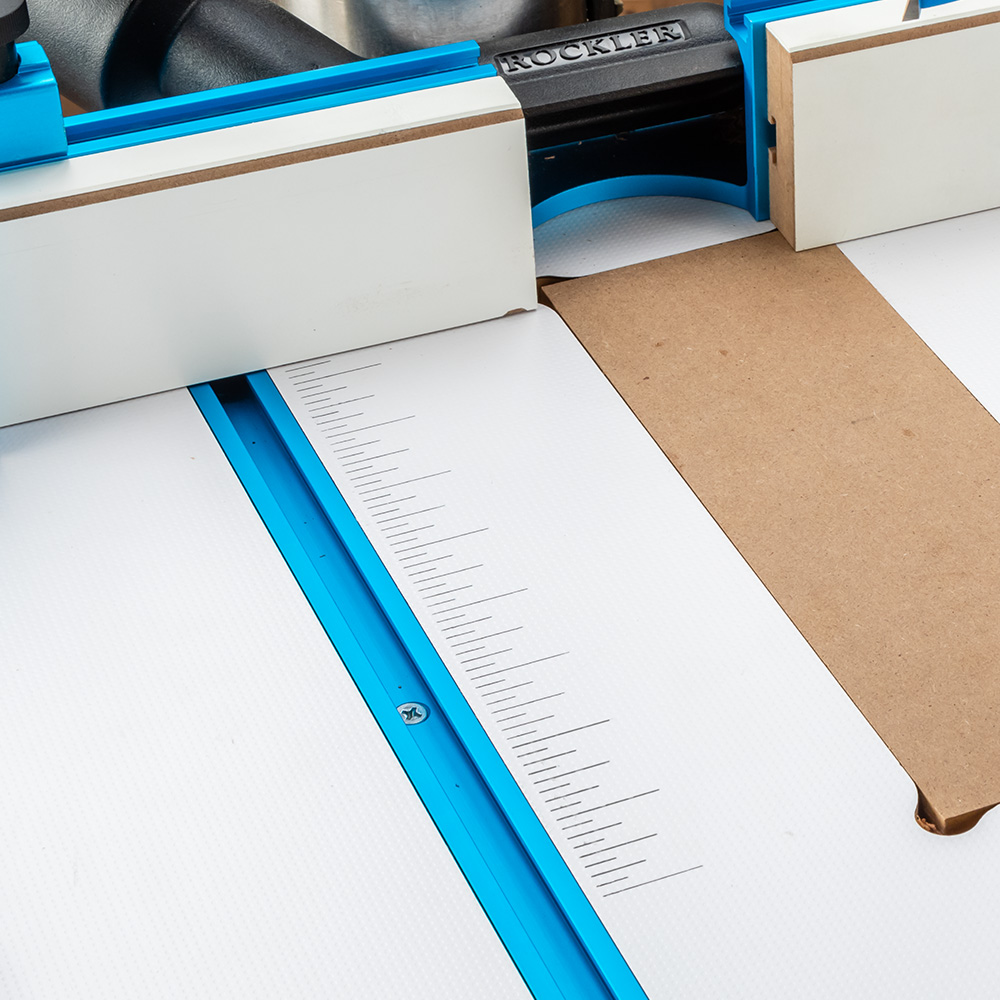

Integral rule offers visual scale to help with fence positioning and alignment
Extruded aluminum fence features adjustable MDF faces that let you straddle large Forstner bits and sanding spindles
Flip-down stop included for accurate, repeatable holes

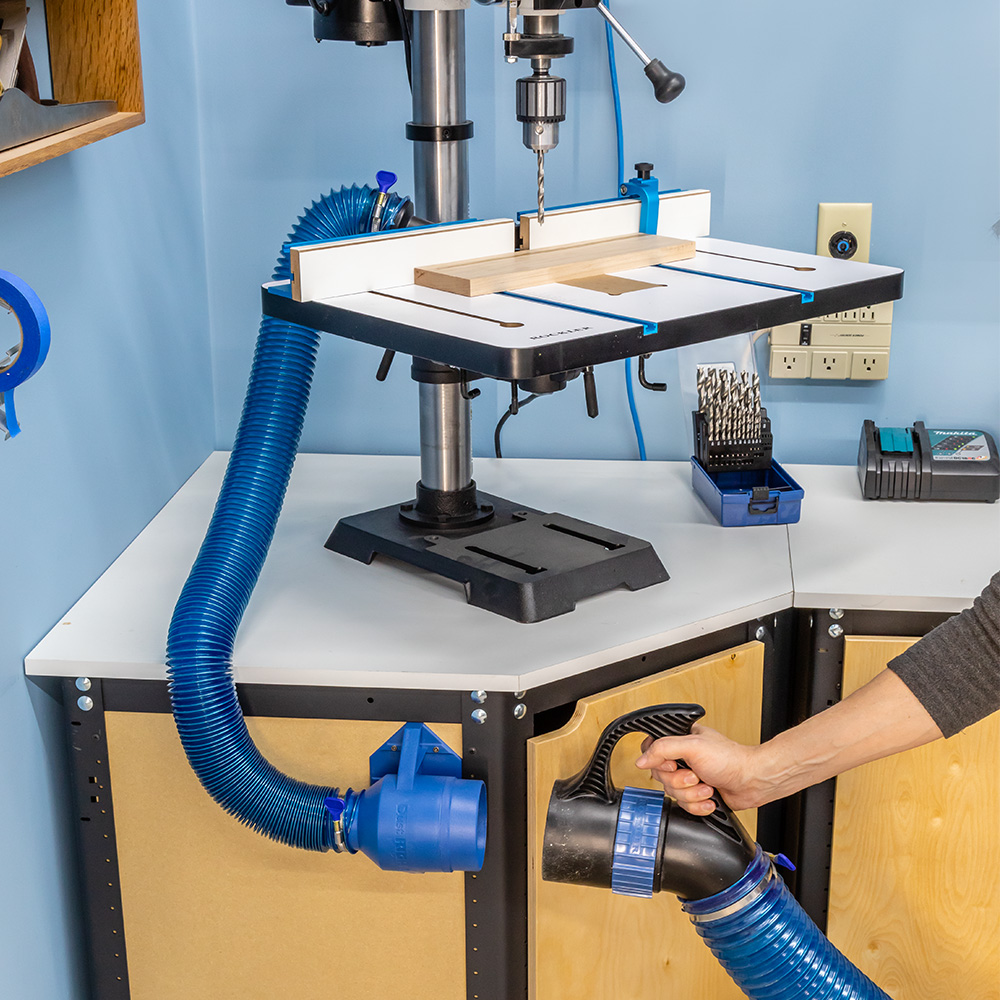

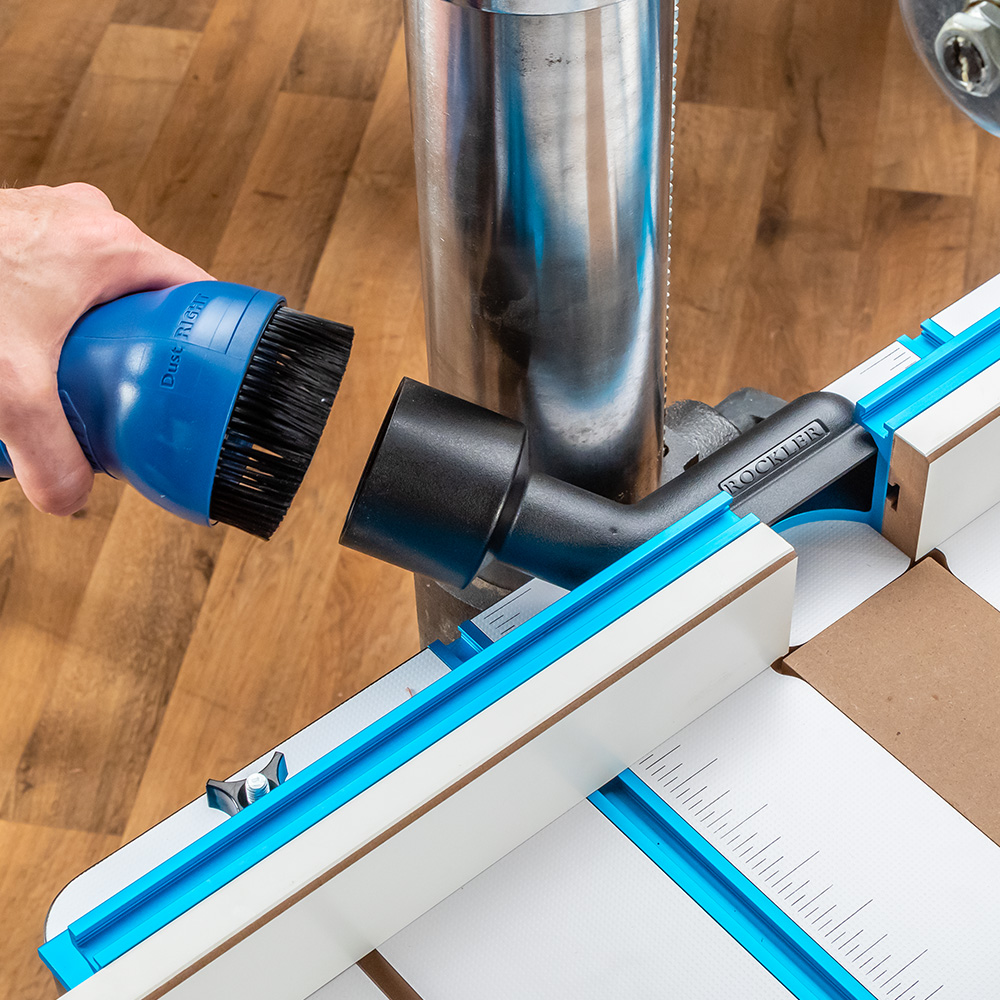

Low-profile dust port minimizes interference with drill press column, retaining up to 3'' more throat depth over typical dust ports
Dust port angles up and away to keep the hose from impeding movement of the fence on the table
Upward facing T-track on fence allows addition of included flip stop and other optional accessories
Compatibility Notes: The front edge of the cast iron table on your drill press can project 9'' to 18'' from the drill press column. The width of the cast iron table can range from 6'' to 20''.
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood

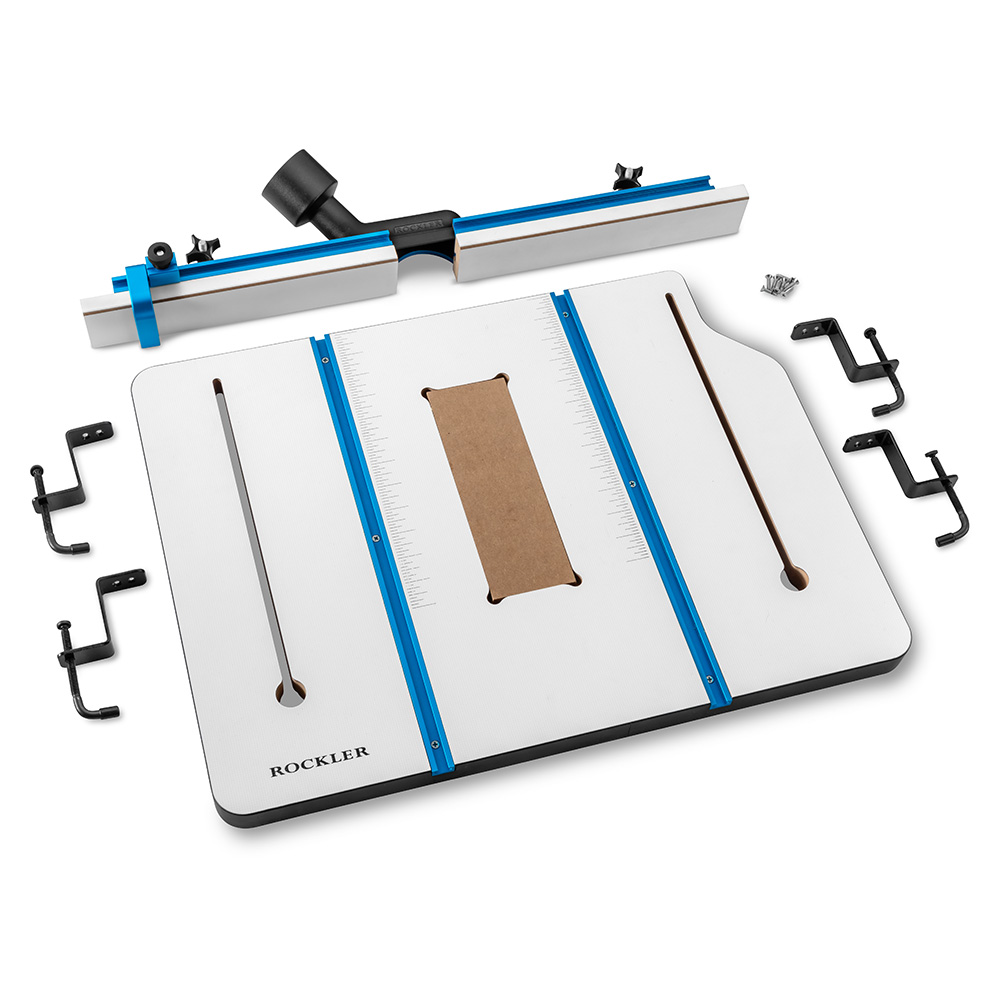

(1) Rockler Drill Press Table and Fence (4) Clamping mounting brackets (1) 24'' Extruded Aluminum Fence (2) 12'' MDF Subfences (1) 2-1/4'' Flip Stop (1) Dust Port (8) #8 X 3/4'' Mounting Bracket Screws (1) Pack of Hardware wiht Knobs
(1) Rockler Drill Press Table and Fence (4) Clamping mounting brackets (1) 24'' Extruded Aluminum Fence (2) 12'' MDF Subfences (1) 2-1/4'' Flip Stop (1) Dust Port (8) #8 X 3/4'' Mounting Bracket Screws (1) Pack of Hardware wiht Knobs
Brand Rockler
More Information
Brand
Rockler
Weight
22.25
Tech Spec
Table:
Brand: Rockler Innovation
Table Material: MDF with high-pressure laminate coating
Table Dimensions: 18'' x 24'' x 1-1/8'' thick
Center Insert Dimensions: 3" x 9" x 1/2" thick
Drill Press Compatibility: The front edge of the cast iron table on your drill press can project 9'' to 18'' from the drill press column. The width of the cast iron table can range from 6'' to 20''
Fence:
Fence Length: 24''
Fence Height: 2-1/4''
Fence Depth (with MDF Face): 2-3/4''
Fence Material: Aluminum extrusion with MDF faces
Dust Port I.D.: 2-1/4''
Dust Port O.D.: 2-1/2''
Fits Tables with Track Spacings of: 16-1/4'' to 19-3/4'' apart
