Router table insert plates make it easy to lift your router out and set it on the table for comfortable bit changes, height adjustments, maintenance and even to use your router free hand or with a straight edge guide. These router table baseplates save you from a lot of backaches, squinting and bumps on the back of the head from stooping under the table. These router plates are made of 3/8'' solid phenolic, which has naturally low-friction for easy sliding. In addition, phenolic is very stable and extremely durable. At 8-1/4'' x 11-3/4'', they fit both our current tables and most of our old tables, and work equally as well with shop-made router tables.
Which Router Plate Do I Need?
To choose a pre-drilled plate, find your router below.

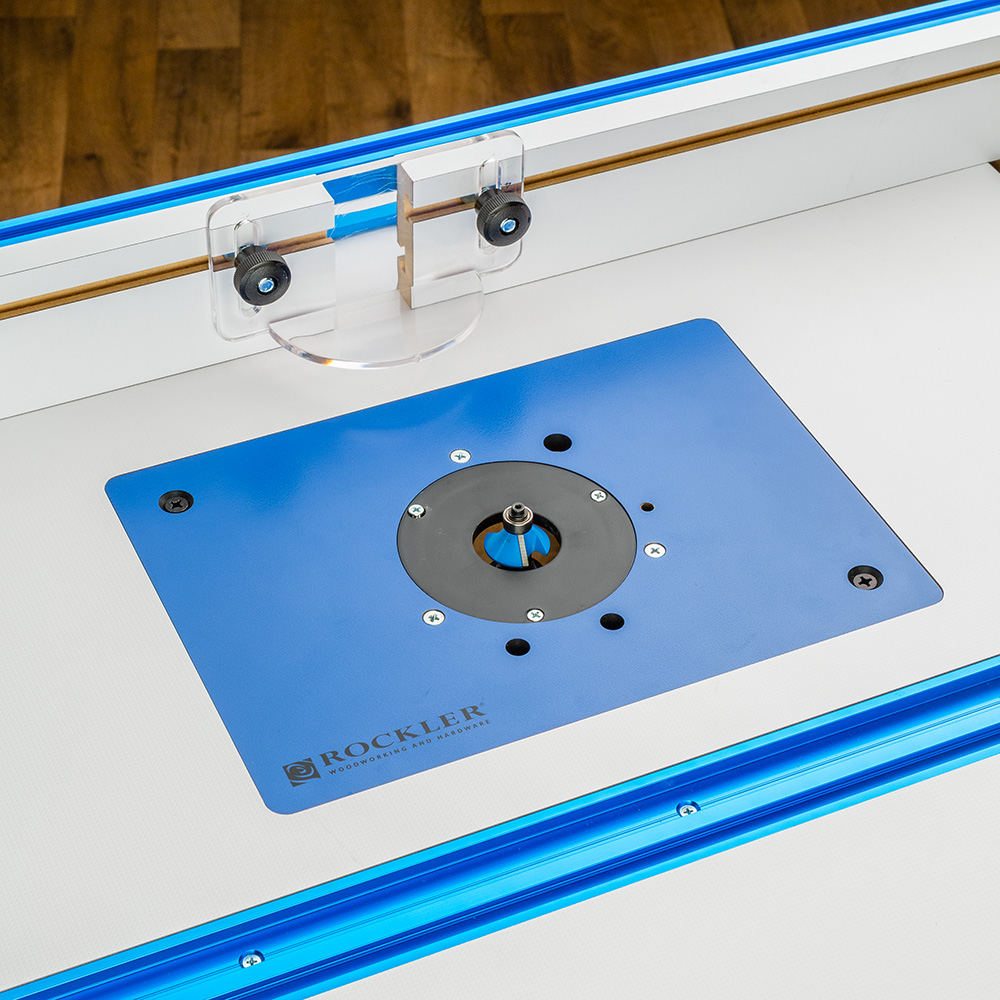

Router Plate A (#54820):
Bosch MRC23 series
Bosch 1617
Bosch 1618
DeWalt 616
DeWalt 618
Hitachi M12VC (fixed and kit)
Makita 1100
Milwaukee 5615
Milwaukee 5616
Milwaukee 5624
Porter-Cable 690 series
Porter-Cable 890 series
Porter-Cable 7529
Porter-Cable 97529
Porter-Cable 8529
Ridgid 2930 Combo Kit
Note: Current models of the Porter-Cable 892 require at least two screws to be 1/2'' long versus 5/8''.

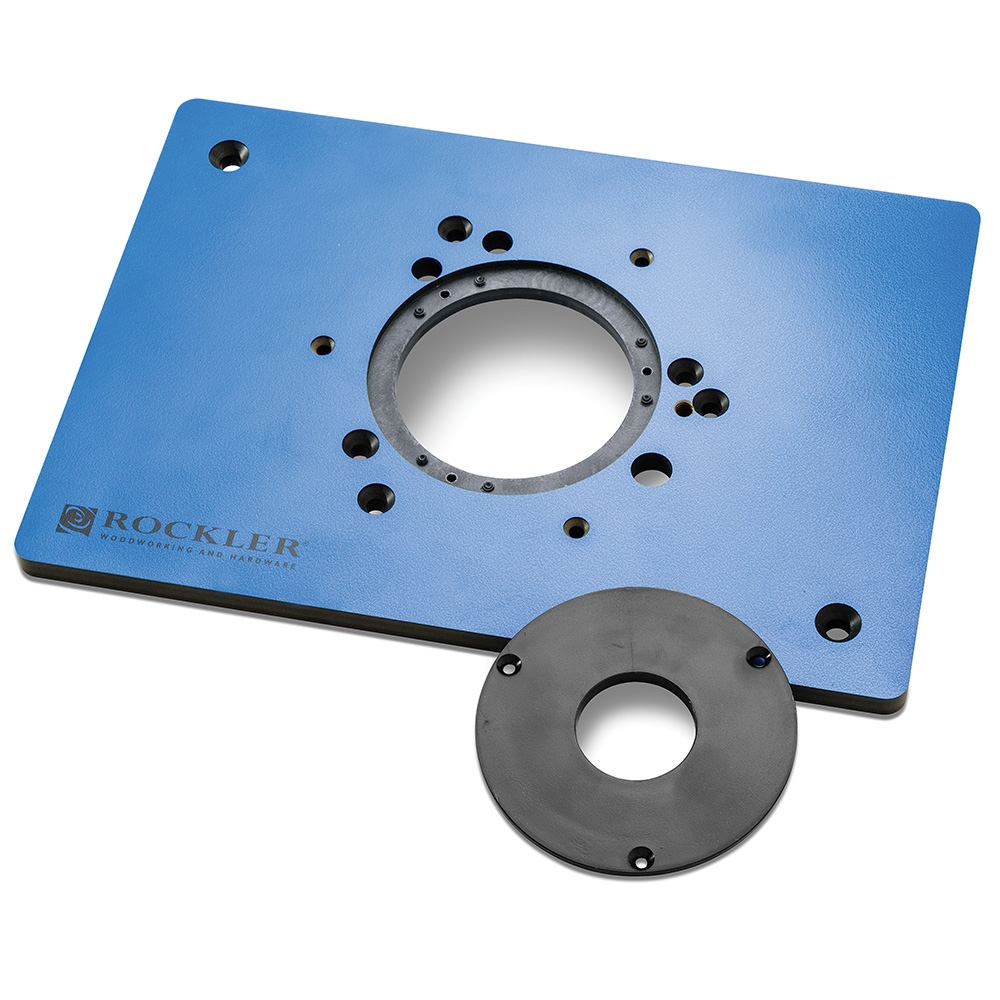

Router Plate B (#50007):
Craftsman Standard
DeWalt DW621
DeWalt DW621K
Freud FT 1700E
Freud 1702VCEK
Skil RT1322-00
Skil RT1323-00

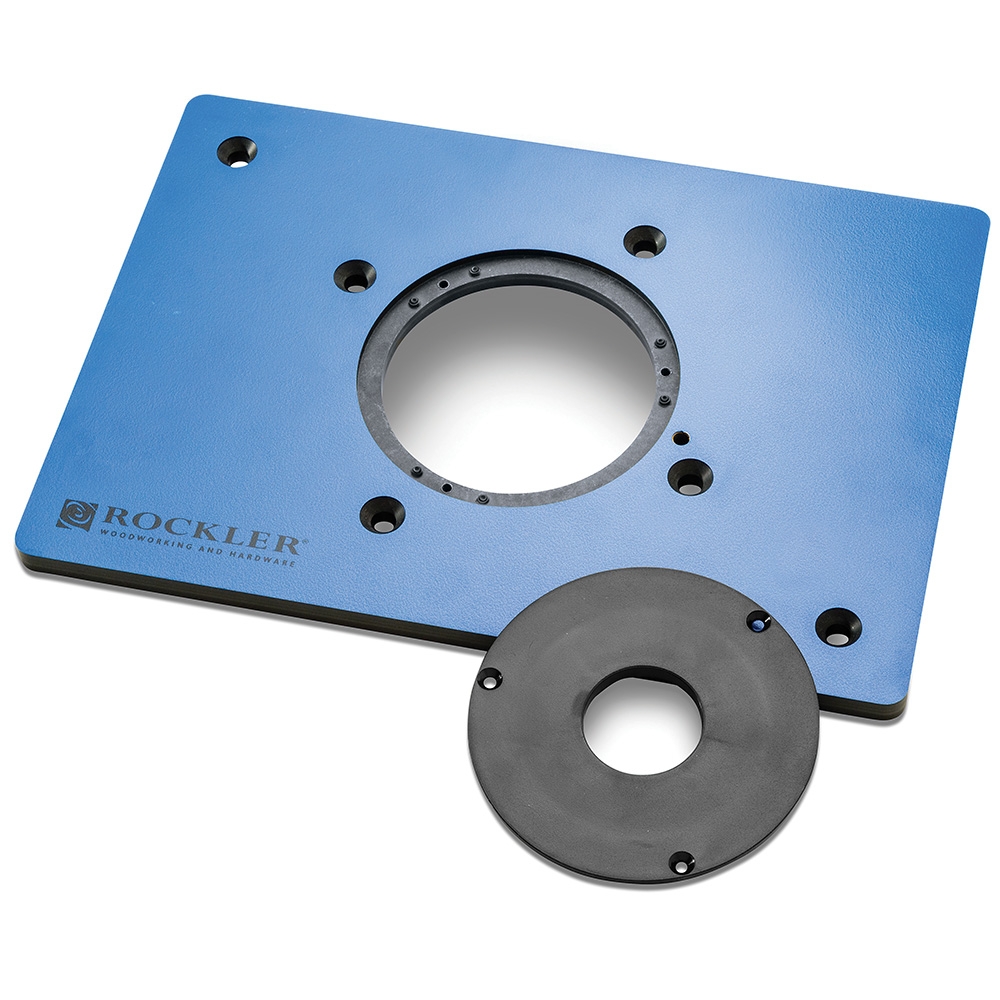

Router Plate C (54074):
Milwaukee 5625-20
Porter-Cable 7518
Porter-Cable 7519
Porter-Cable 7538
Porter-Cable 7539
Triton TRA001
Triton TRA002
Triton MOF001

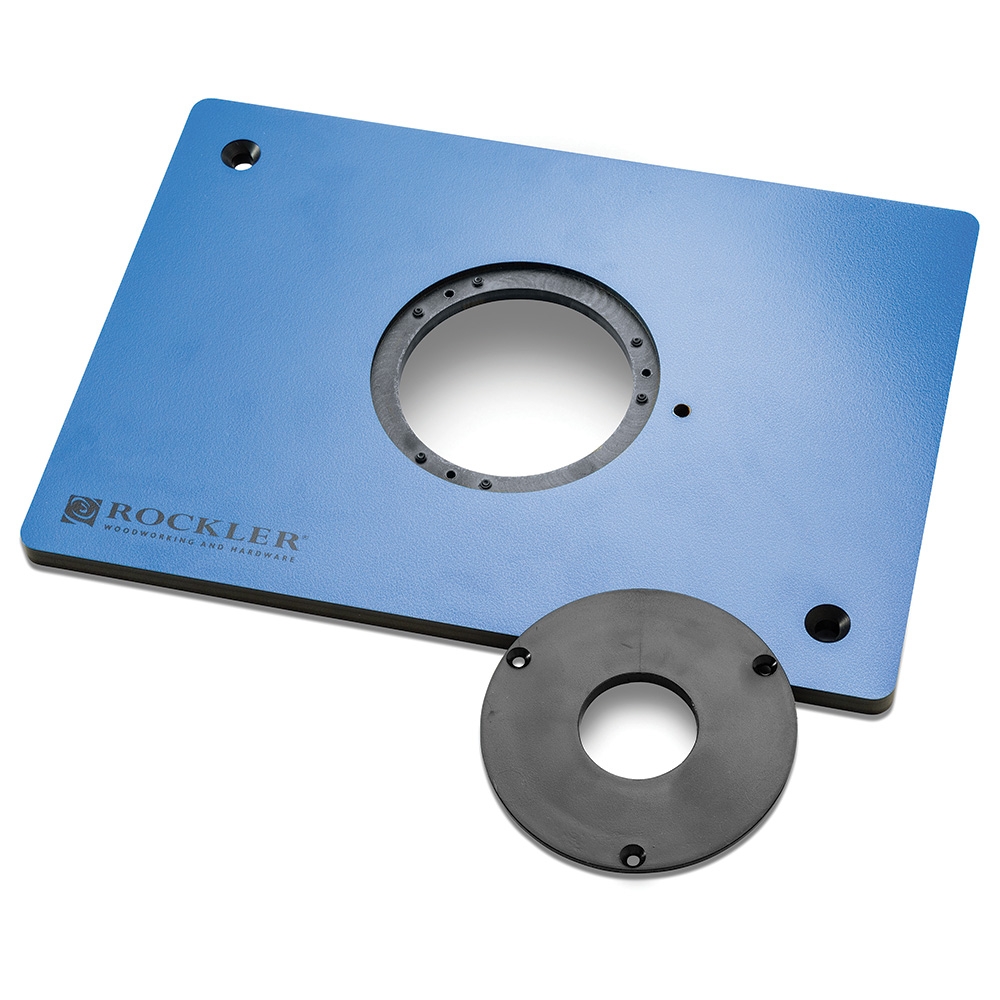

If your router is not listed: Choose the non-drilled plate with a
4'' insert ring (#57293) and drill the plate to fit your router.
Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection. For more information go to www.P65Warnings.ca.gov/wood.
(1) Router Plate
(1) Insert Ring
(2) Plate Locking Bolts
(1) Hardware Pack
Leveling screws not included with router plate, they will be included with table top.
(1) Router Plate
(1) Insert Ring
(2) Plate Locking Bolts
(1) Hardware Pack
Leveling screws not included with router plate, they will be included with table top.
Brand Rockler
More Information
Brand
Rockler
Weight
1.90
Tech Spec
Dimensions: 8-1/4'' x 11-3/4'' x 3/8'' thick
Insert Ring I.D. (All): 1-1/2''
Insert Ring O.D. (Groups A and B): 4''
Insert Ring O.D. (Groups C and D): 4-3/8''
Plate Material: Solid Phenolic
Insert Ring Material: Plastic
Plate Color: Blue
Which Router Plate Do I Need?
To choose a pre-drilled plate, find your router below.
Router Plate A (#54820):
Bosch MRC23 series
Bosch 1617
Bosch 1618
DeWalt 616
DeWalt 618
Hitachi M12VC (fixed and kit)
Makita 1100
Milwaukee 5615
Milwaukee 5616
Milwaukee 5624
Porter-Cable 690 series
Porter-Cable 890 series
Porter-Cable 7529
Porter-Cable 97529
Porter-Cable 8529
Ridgid 2930 Combo Kit
Note: Current models of the Porter-Cable 892 require at least two screws to be 1/2'' long versus 5/8''.
Router Plate B (#50007):
Craftsman Standard
DeWalt DW621
DeWalt DW621K
Freud FT 1700E
Freud 1702VCEK
Skil RT1322-00
Skil RT1323-00
Router Plate C (54074):
Milwaukee 5625-20
Porter-Cable 7518
Porter-Cable 7519
Porter-Cable 7538
Porter-Cable 7539
Triton TRA001
Triton TRA002
Triton MOF001
If your router is not listed: Choose the non-drilled plate with a
4'' insert ring (#57293) and drill the plate to fit your router.
Important Message
Notice: For customers making custom router tables, we recommend the Router Plate Leveling and Locking Hardware Pack (#22994, sold separately).
