Feature-rich upgrade replaces the original T-Glide rip fence on cast-iron SawStop Contractor and Professional Cabinet Saws with no modification required.
Enhance the versatility, accuracy and safety of your SawStop Contractor or Professional Cabinet Saw by replacing its original T-Glide rip fence with this T-Glide Advance Rip Fence. Upgrading requires no modification to your saw or the fence rails—just lift your old fence off the rails and set this one into place! While it retains the current length and fence tube/head construction of the stock fence, the Advance Rip Fence features an adjustable aluminum face with a dovetail-shaped slot for attaching featherboards, fixtures and jigs. Loosening three clamps lets you slide the face forward of the blade, so it becomes a step-off block for crosscutting parts in tandem with the miter gauge. You can also orient the face to a low position, for ripping small or narrow workpieces more easily with the blade guard in place. A roller on the outfeed end provides smooth, easy fence movement over the saw table.

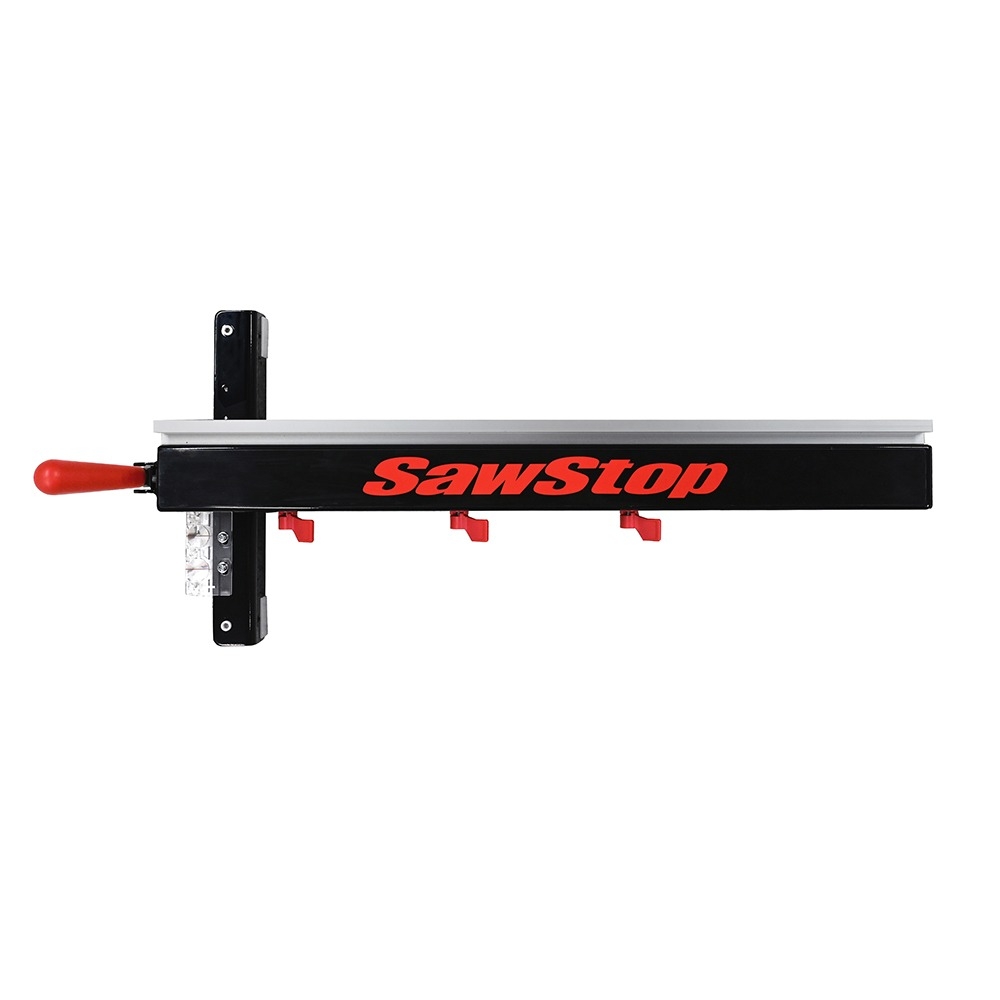

SawStop Professional T-Glide Advance Rip Fence Details:
Replaces the original T-Glide rip fence on SawStop Contractor and Professional Cabinet Saws (see note below)
No modification to the saw or its original fence rails is required
Matches the length and fence tube/head construction of original T-Glide rip fence

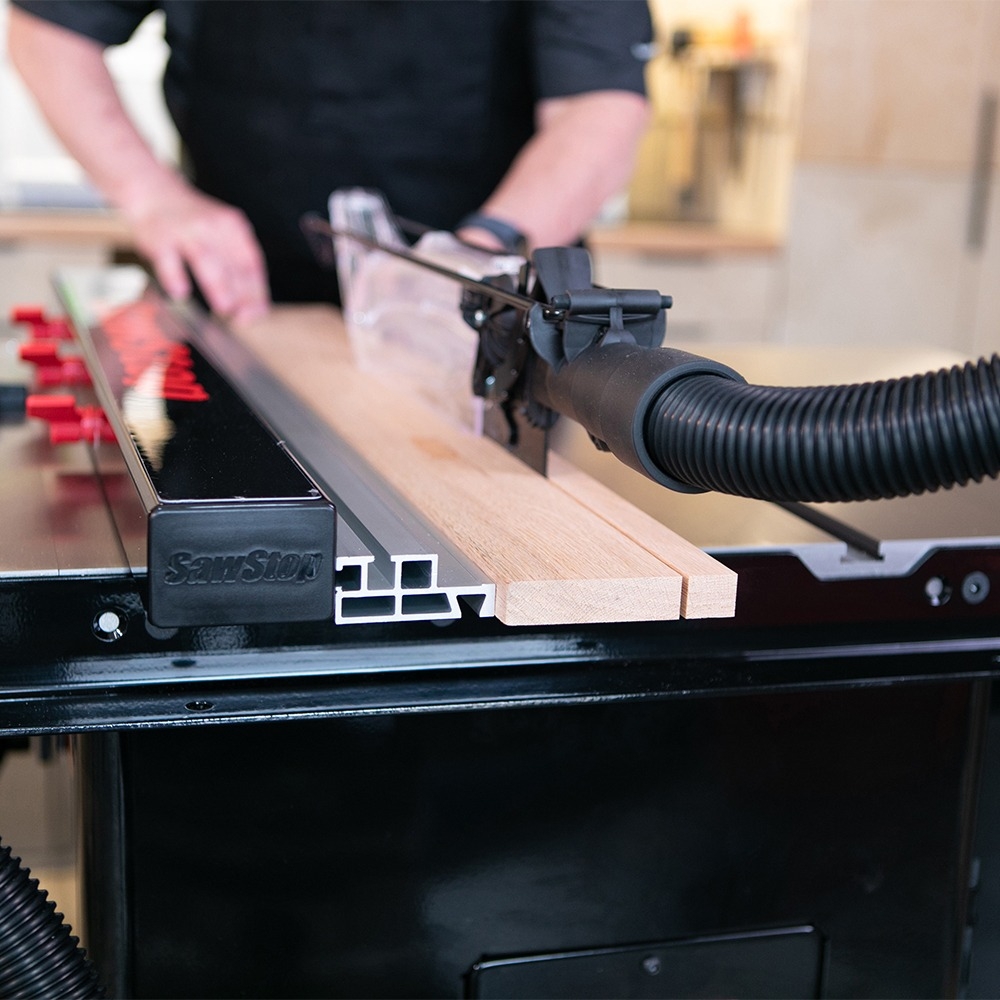

Extruded aluminum fence face has dovetail slot with sliding wedges for attaching featherboards, fixtures and jigs
Slot is compatible with the Micro Jig MatchFit attachment system and most 1/2'' T-track attachment hardware
Aluminum face slides forward, for use as a step-off block when crosscutting with the miter gauge

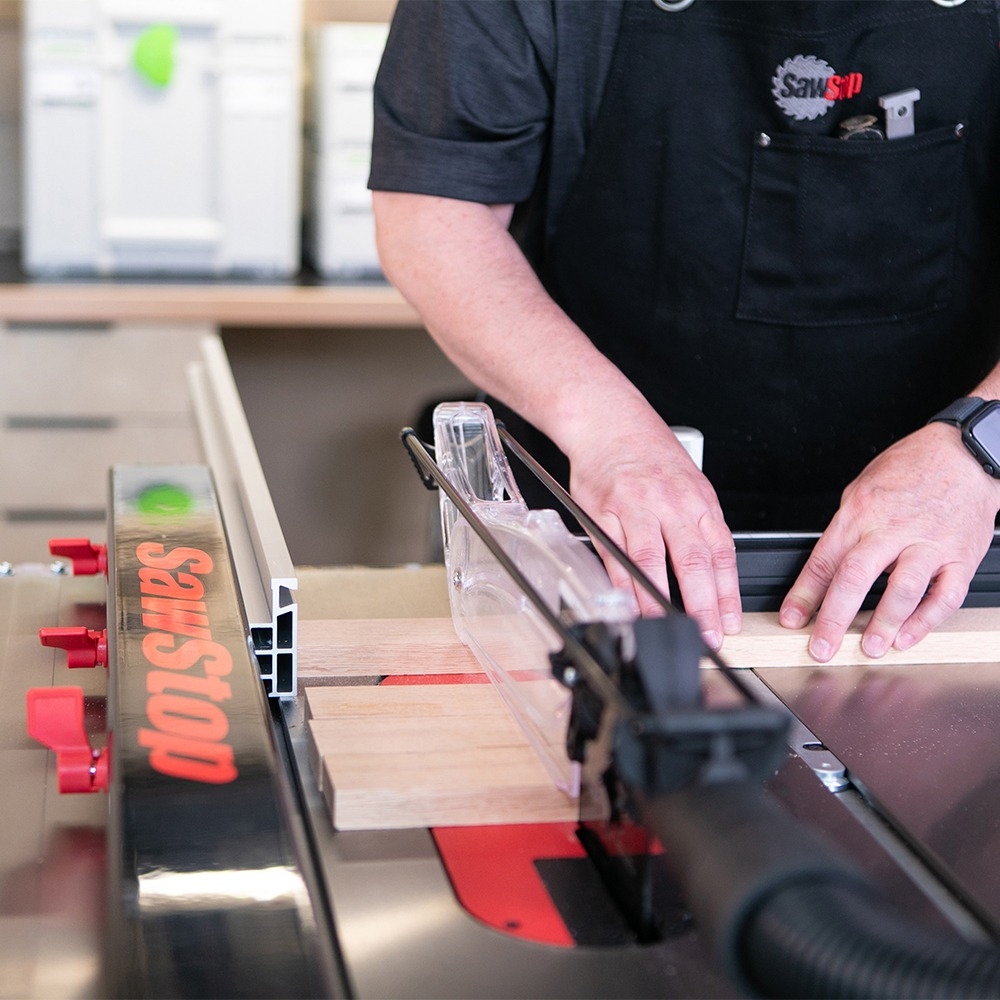

Face can be repositioned as a low fence, to reach under the blade guard for ripping small or narrow workpieces
Three built-in clamps make face easy to secure and adjust on fence
Durable extruded aluminum face won't warp or delaminate and can be installed on either side of the fence
Two hairline indicators mark high and low fence positions
Fence locks parallel to the blade, once aligned
Rear roller support ensures smooth fence travel over the saw table
Note: Designed for use with SawStop T-Glide rip fence systems (TGP2-FA) only; not compatible with SawStop Premium rip fence systems.
