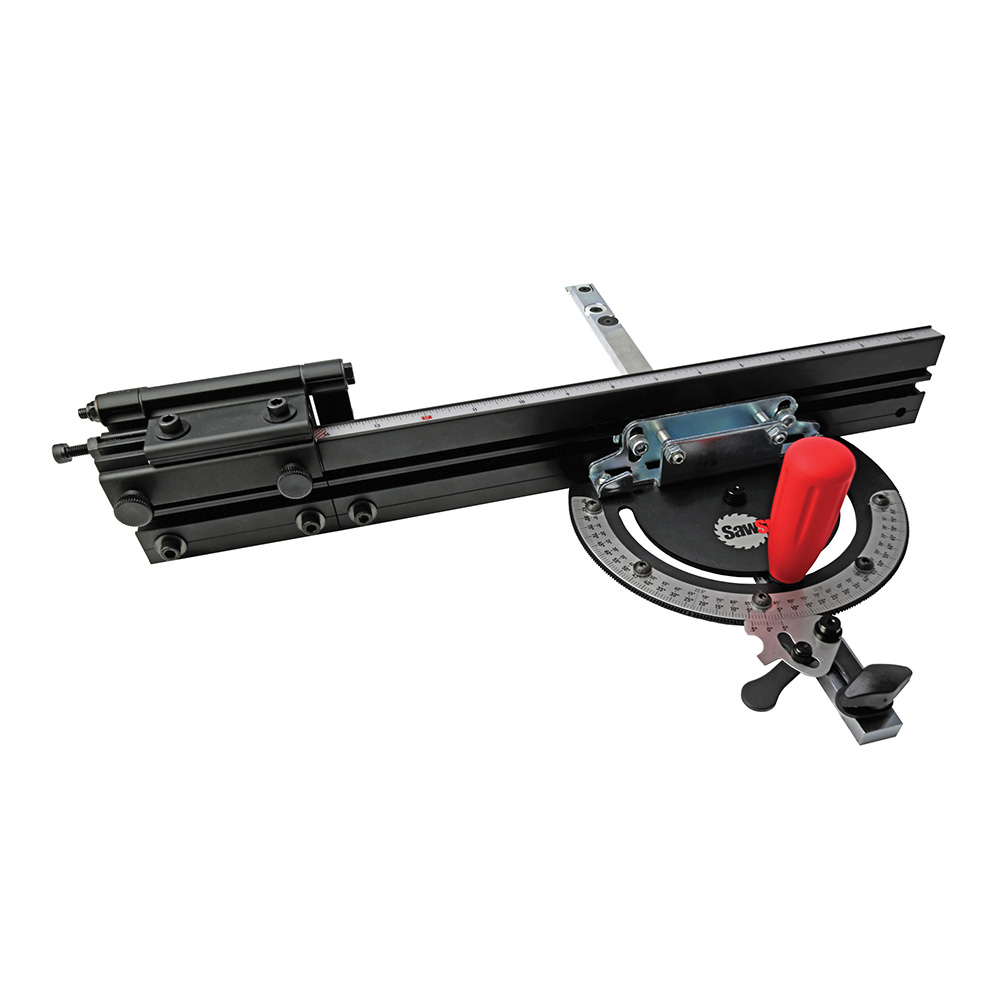

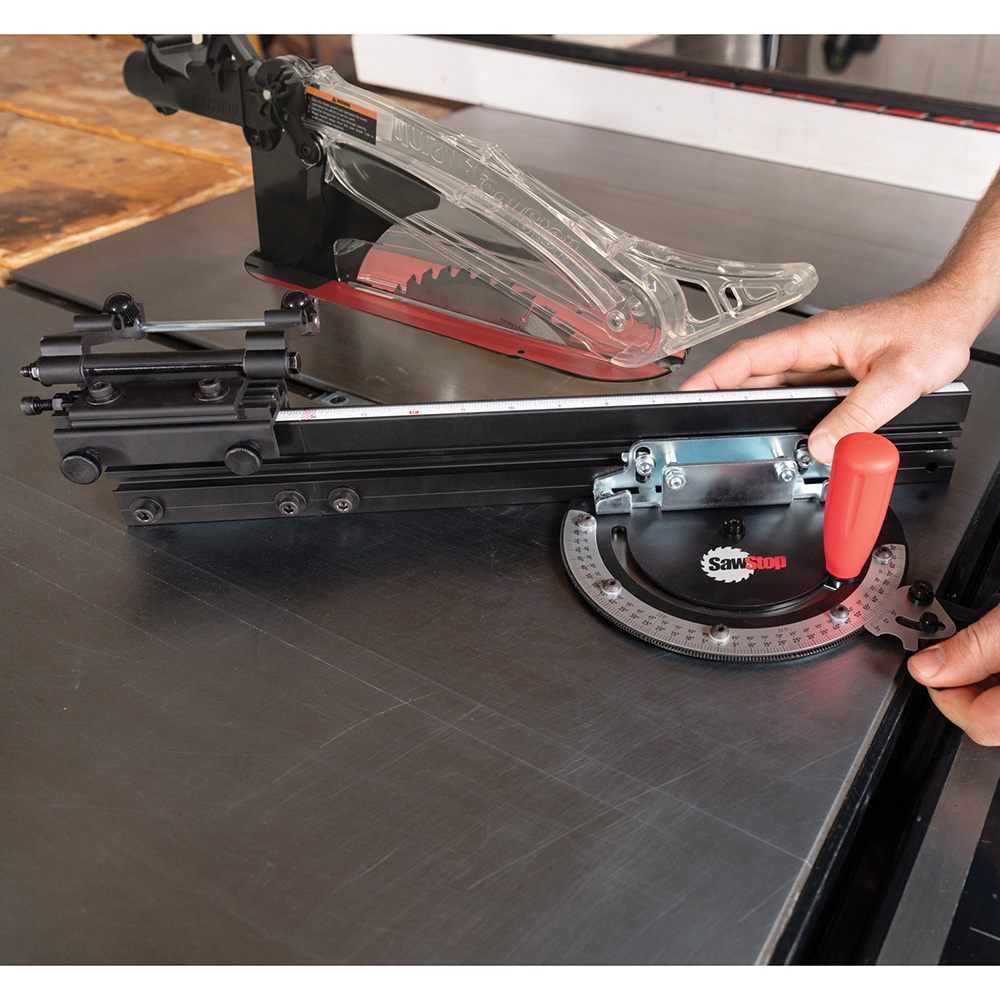

Perfect the crosscutting accuracy of your table saw with the SawStop TSA-SMG Scale Miter Gauge. This exceptional tool boasts 180 locked-in angles, plus an ingenious fine-tuning device for can't-miss accuracy for your woodworking projects. Notches in 1° increments provide precise adjustments, while the Vernier scale allows for additional fine-tuning in 1/10° increments. The 18'' long miter bar features adjustable washers for removing play in the miter slot, plus an extendable fence that adjusts up to 31''. The included flip stop's 1/32'' increments and micro-adjuster enable you to make identical, repeatable cuts effortlessly. Accessory tracks in the fence face allow easy attachment of sacrificial fences.
SawStop TSA-SMG Scale Miter Gauge Details:

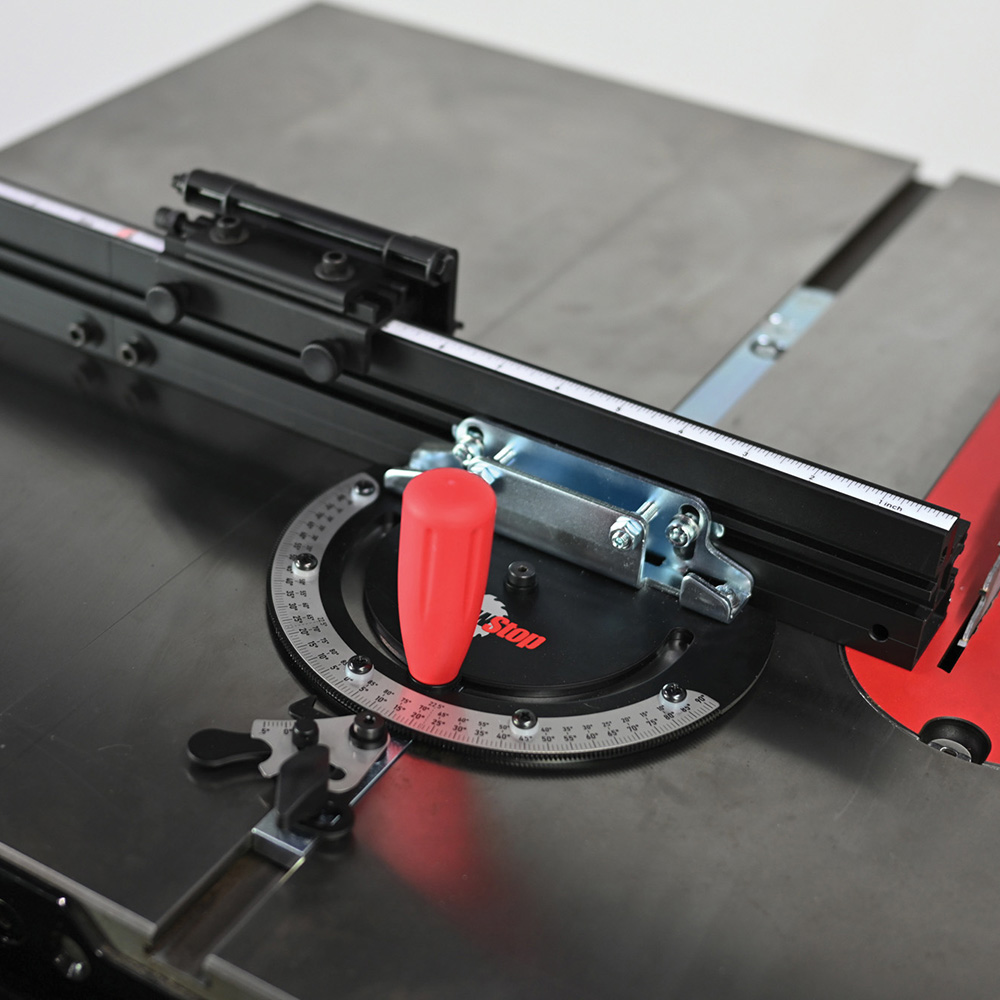

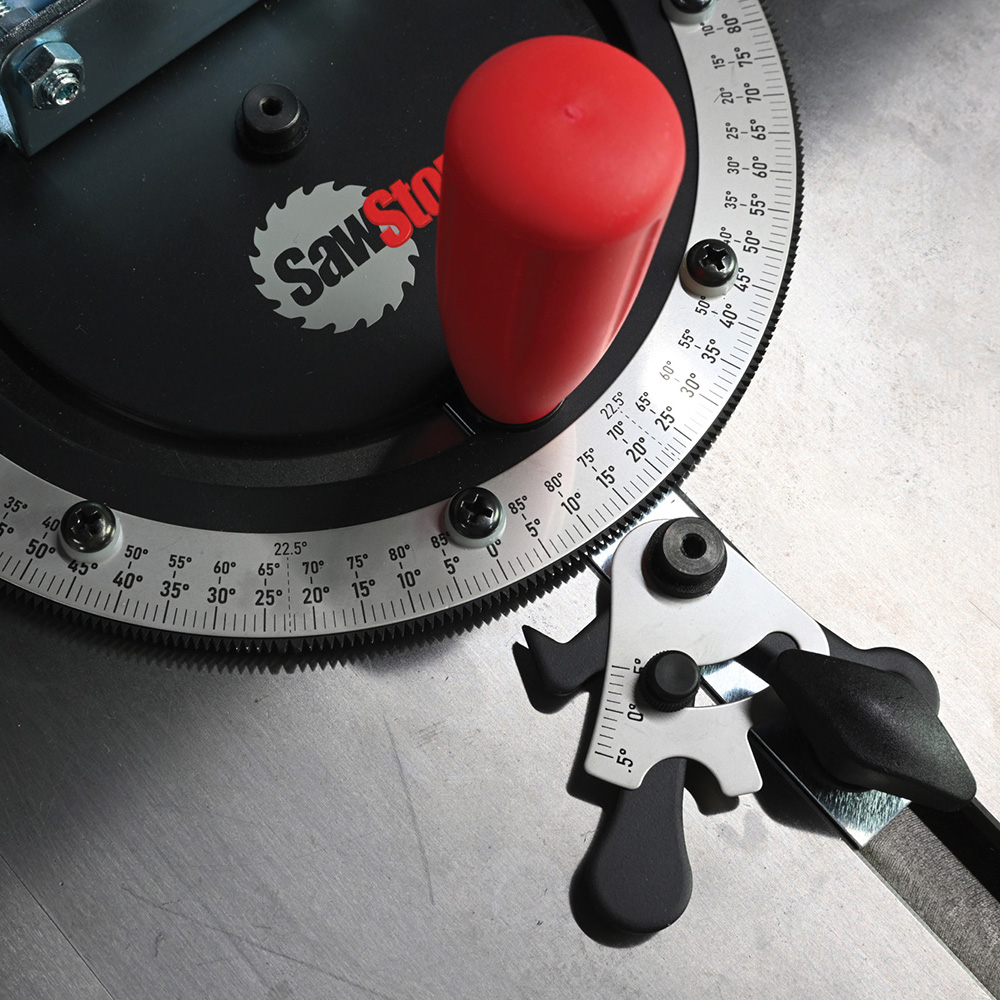

Miter head features a pointer and 90 notches to each side of 0° in 1° increments, including one for 22.5° on each side
Vernier scale lets you fine-tune each angle detent in 1/10° increments
18'' long miter bar uses six adjustable expansion discs to eliminate movement in the miter slot while ensuring a smooth glide

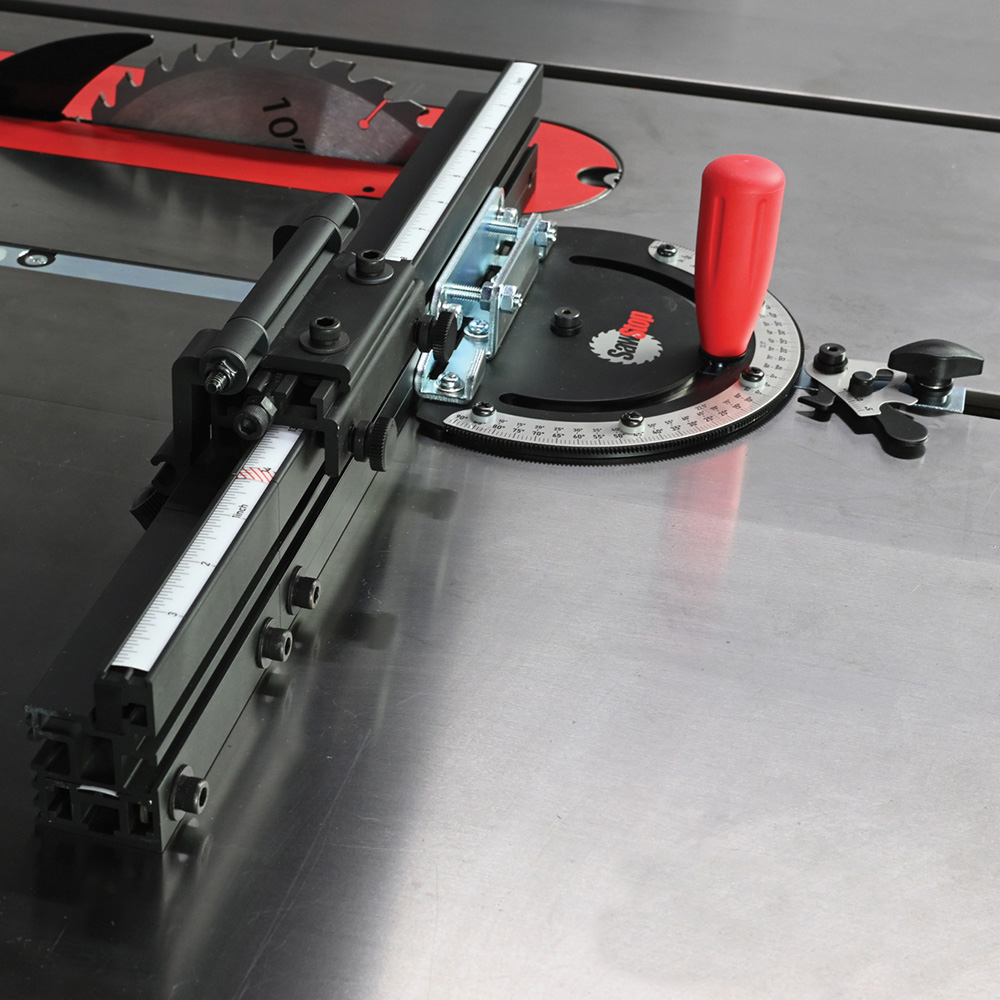

Aluminum fence provides a large reference for workpieces, with a telescoping extension that reaches up to 31'' for flip stop use
Scale on top of fence can be calibrated to enable precise crosscuts without having to measure and mark your boards
Accessory tracks in the fence face allow easy attachment of sacrificial fences

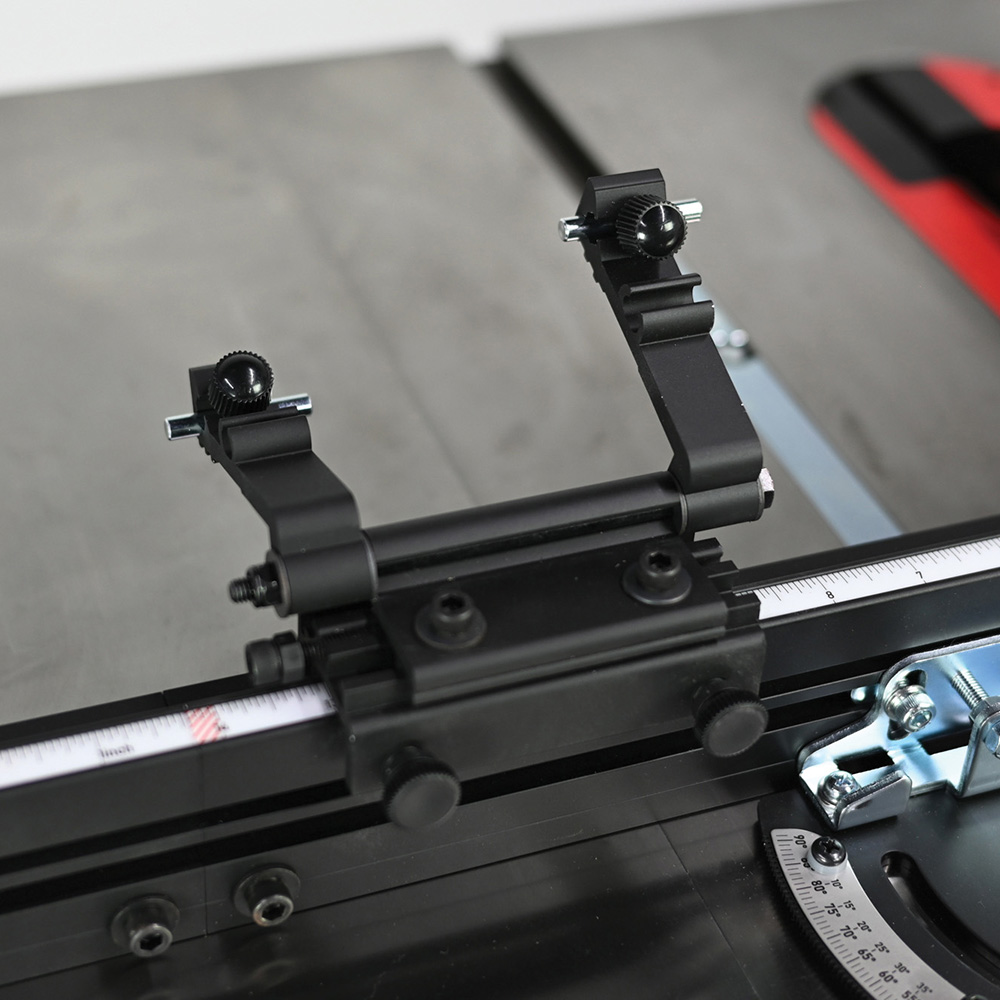

Flip stop indexes on the fence in 1/32'' increments; dual arms can be set independently at different lengths from the blade or linked together, and all can be fine-tuned with the micro-adjuster
